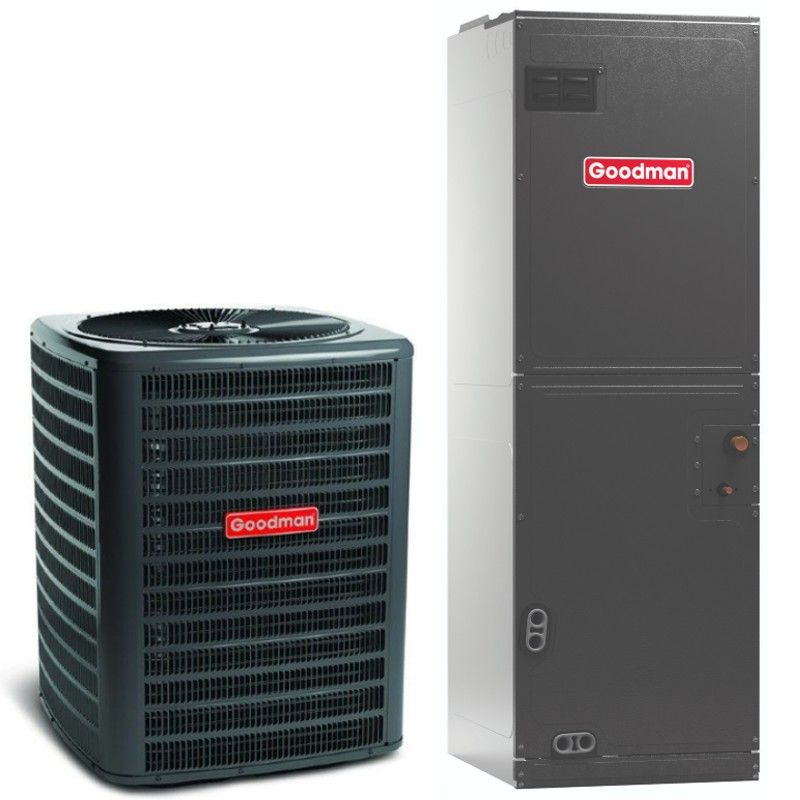

Goodman 1.5 Ton 15.2 SEER2 Heat Pump Split System - Multi-Positional - R32 - 230V
The Goodman GLZS4BA1810 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GLZS4BA1810 is manufactured with high-quality materials to provide a superior comfort in your home.
Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
Features:
- Ideal size to cover a smaller house in ideal climates
- 1.5 ton, 14.3 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
Warranty:
The GLZS4BA1810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

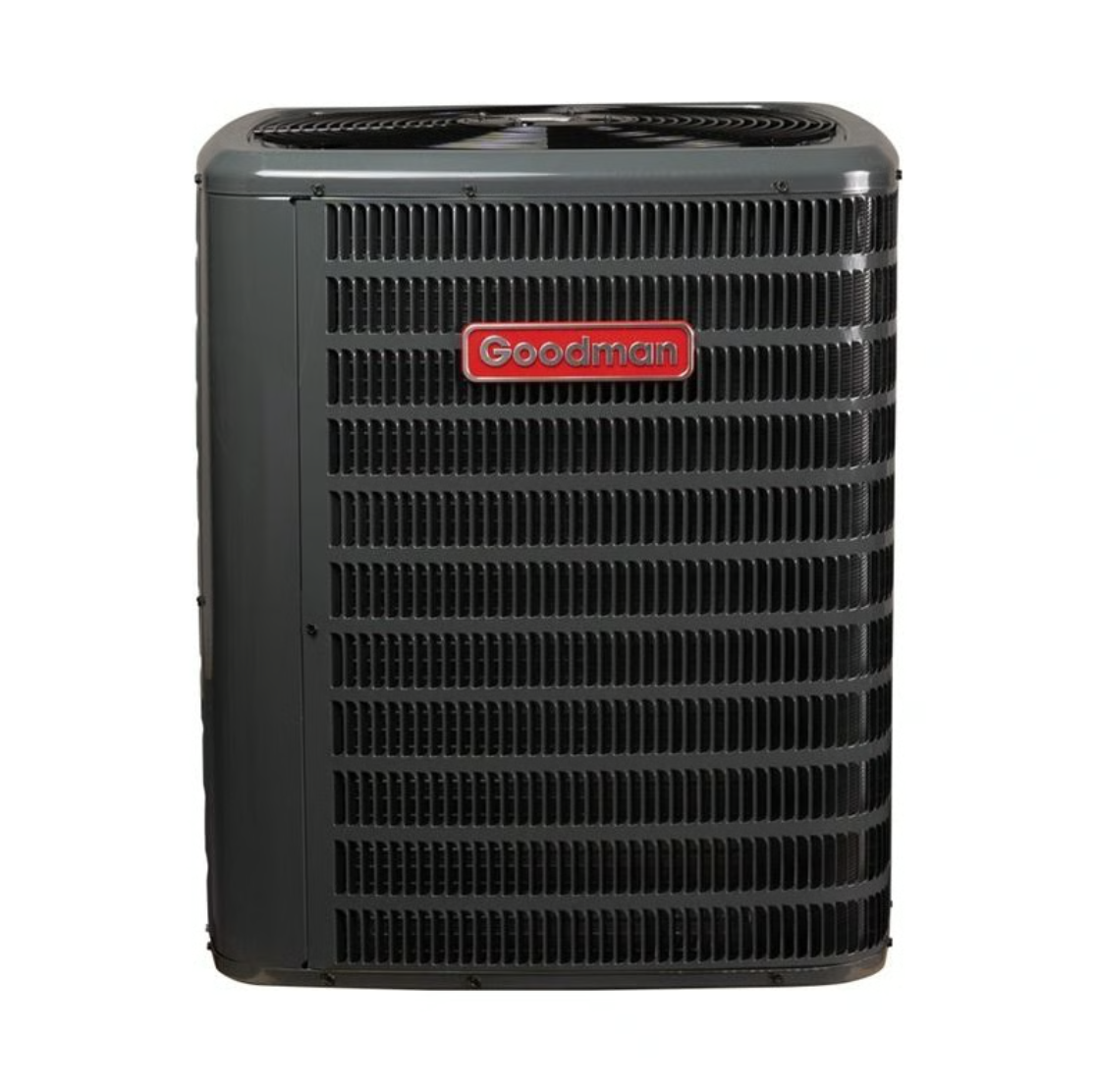

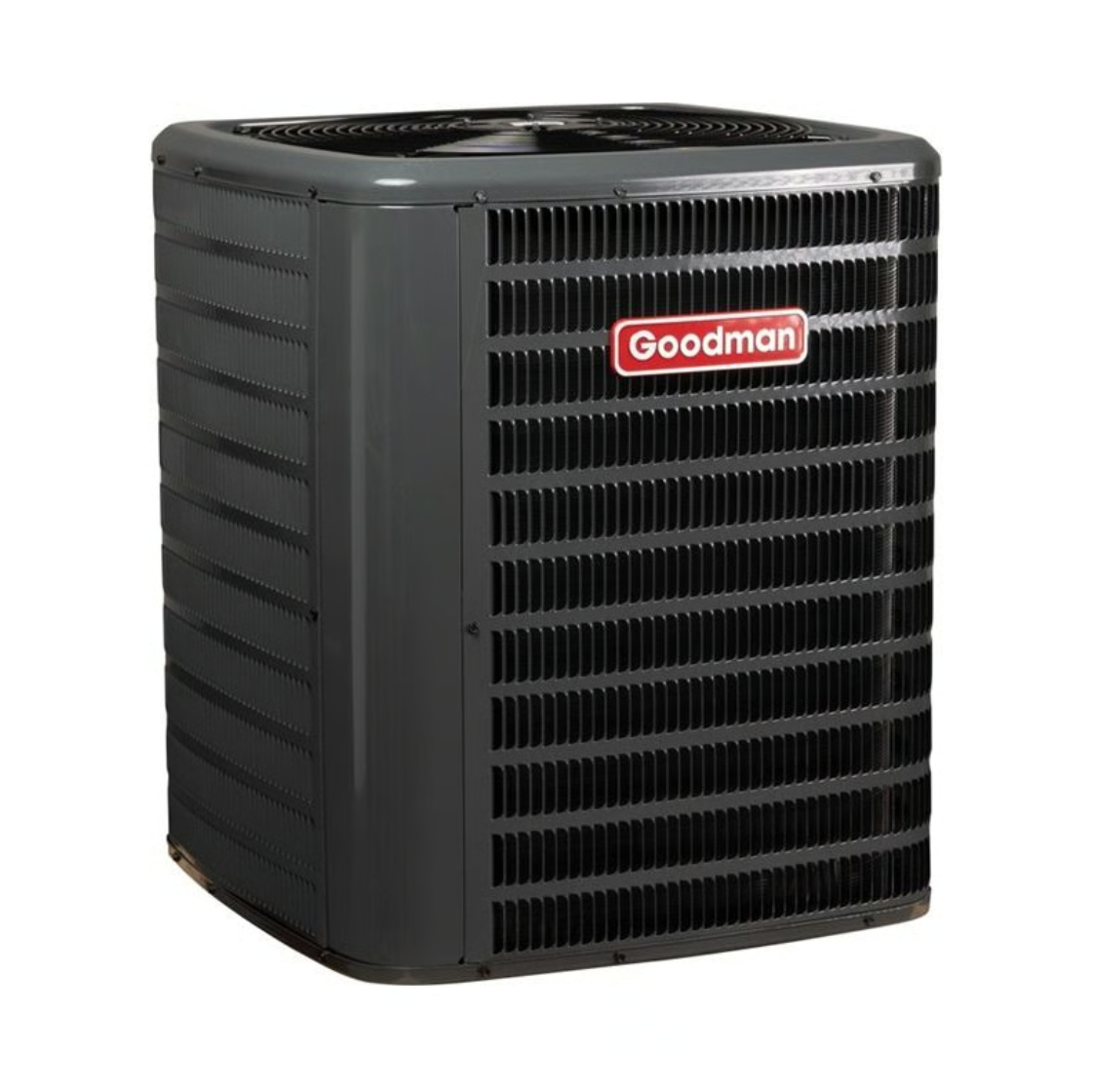

Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | GLZS4BA1810 |
| Weight | 165.000000 |
| Manufacturer | Goodman |
| Replaces | GSZ140181, GSZ140191, GSZB401810 |
| Product Features | New Refrigerant Compliant, Basic Efficiency |
| HSPF2 | 7.8 |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Decibel Level (dBA) | 74 |
| Horsepower | 1/6 HP |
| Refrigerant | R32 |
| SEER2 | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 11.2 Amps |
| Tonnage | 1.5 Ton |
| Connection | Sweat |
| Height | 32 1/2" |
| Width | 29" |
| Depth | 29" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |

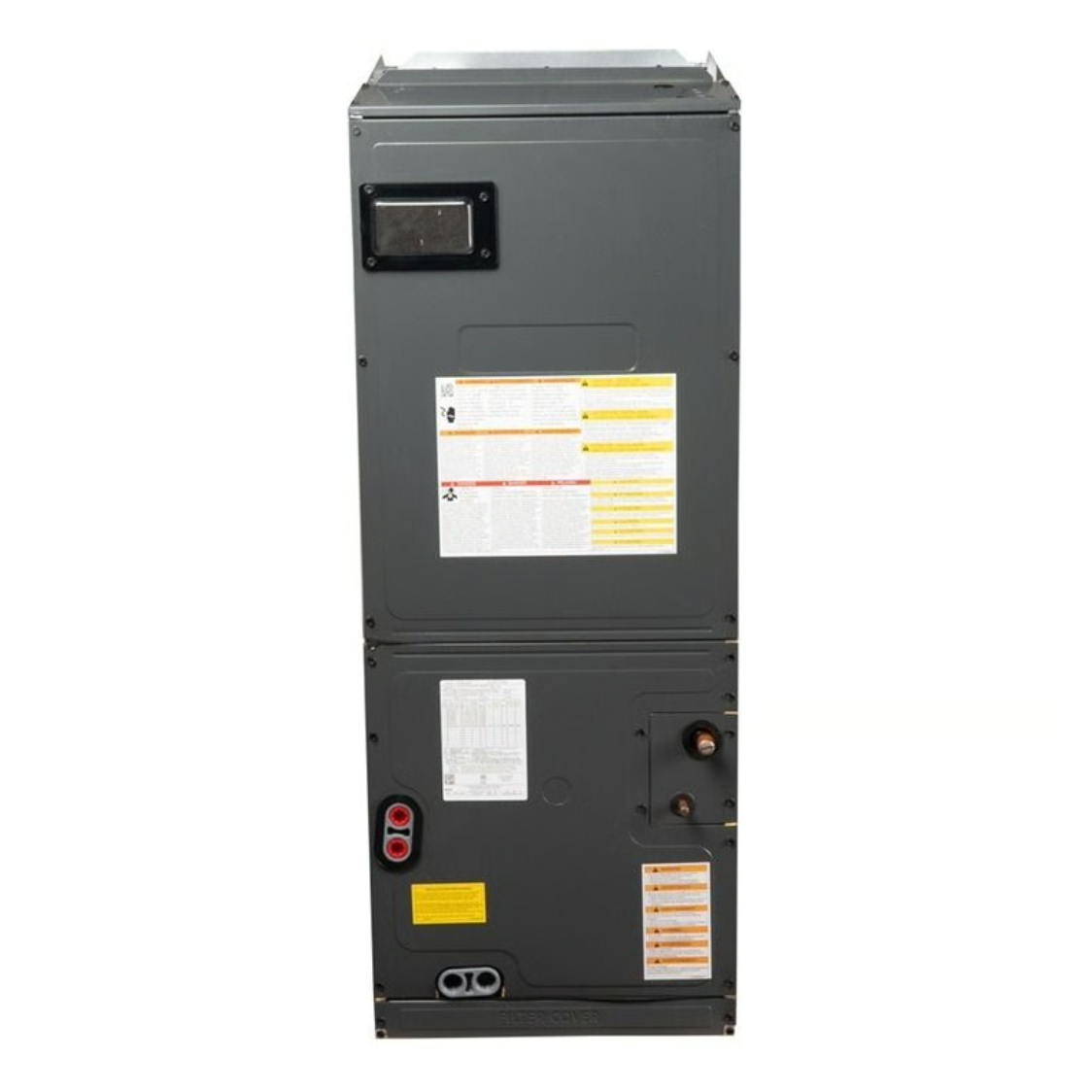

Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | AMST24BU1300 |
| Weight | 112.000000 |
| Manufacturer | Goodman |
| Product Features | New Refrigerant Compliant |
| Blower Motor | Multi-Speed Direct Drive ECM Motor |
| Maximum CFM | 1215 |
| Horsepower | 0.75 HP |
| Electric Backup Heat Capabilities (Optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Refrigerant | R32 |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/240v 1 Phase 60Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.8 Amps |
| Tonnage | 2 Ton |
| Connection | 3/4" FPT |
| Height | 45" |
| Width | 17 9/16" |
| Depth | 21" |
| Warranty | 10 Years Parts with Online Registration |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
