Product overview

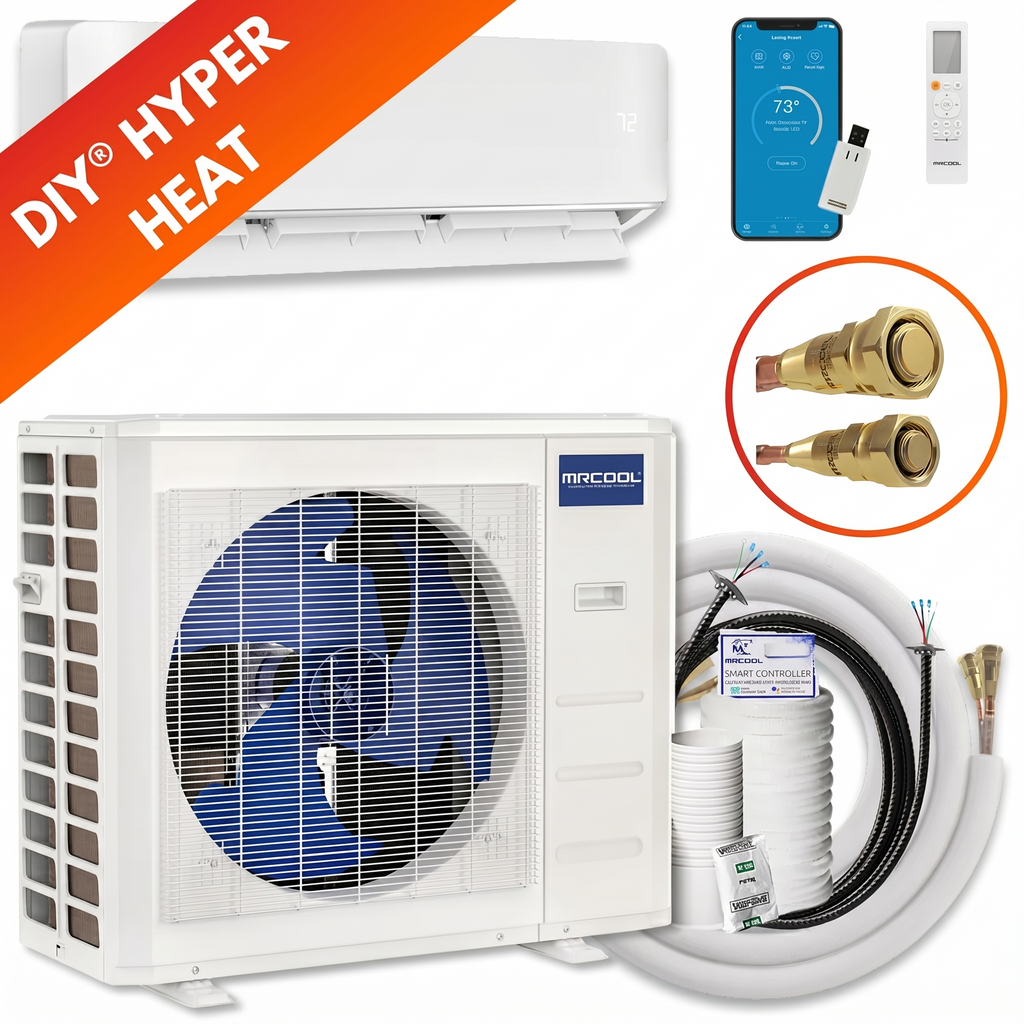

MRCOOL DIY 18,000 BTU 5th Gen Hyper Heat Single Zone Mini Split System - 230V
Experience year-round comfort with the MRCOOL® DIY® 18k BTU 208/230V Hyper Heat 21.2 SEER Ductless Heat Pump Single Zone Mini Split Condenser—a high-performance solution designed for easy installation without the need for professional tools or experience. Perfect for spaces ranging from 500-800 sq. ft. The Hyper Heat model can continue heating down to -22 degrees.

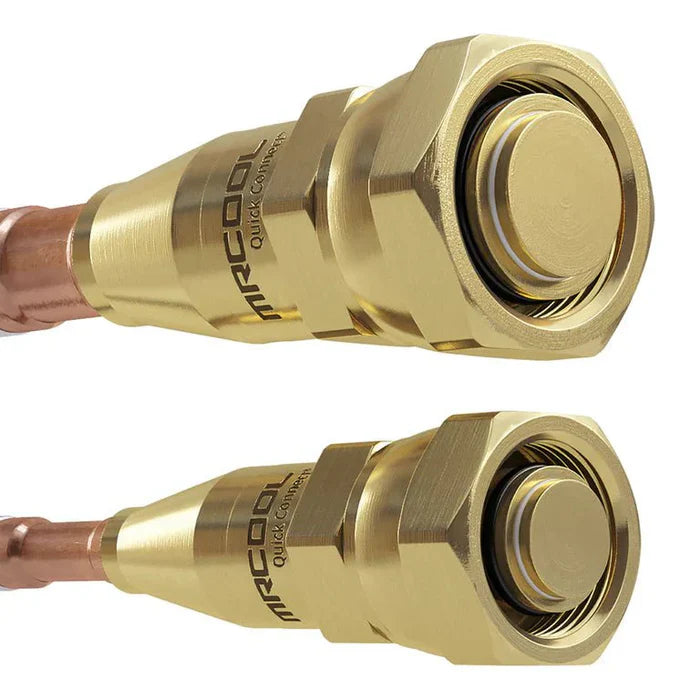

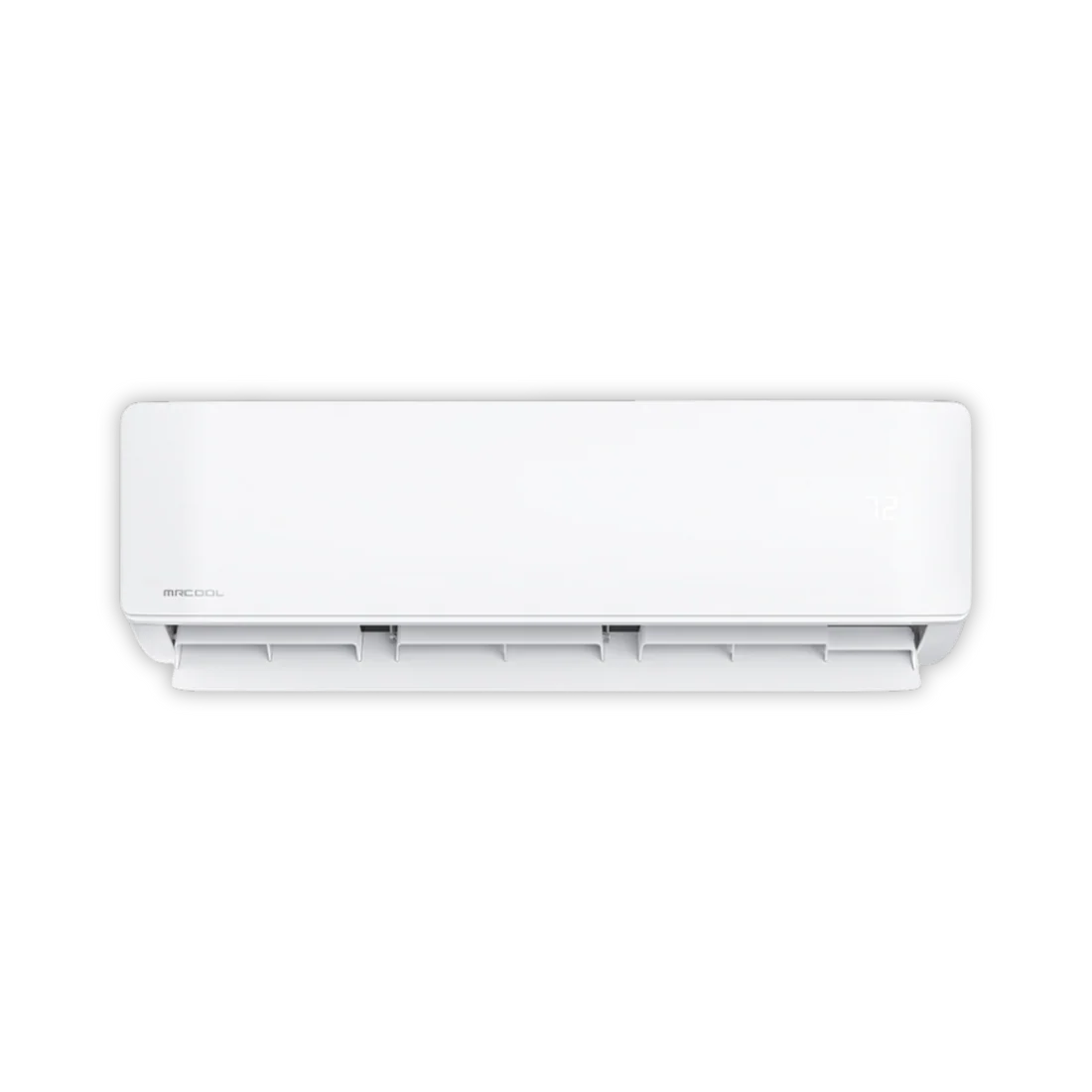

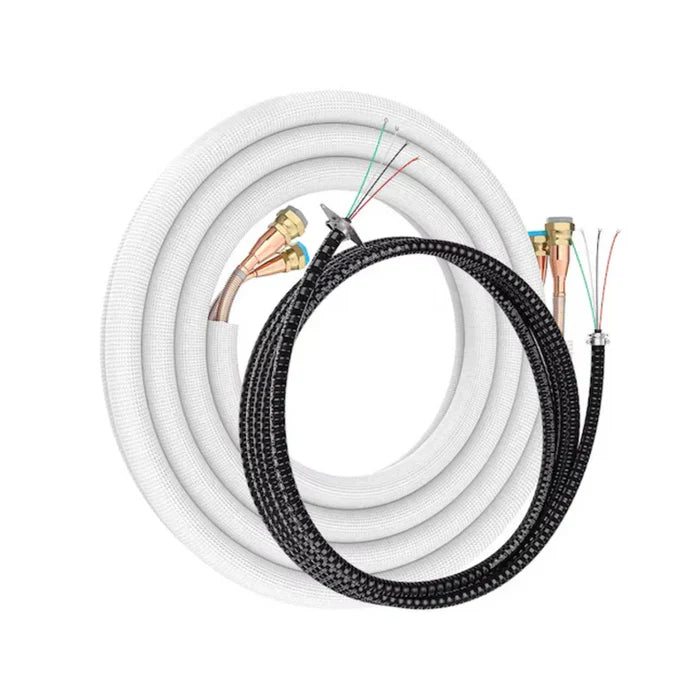

This system is compatible with both our stylish wall-mounted air handlers and the discreet DIY® OuttaSight® Ceiling Cassette. Installation is quick and hassle-free, thanks to the 25-foot DIY® Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant. No vacuum pump or gauges required. The included DIYPRO® cable adds extra durability, offering protection against outdoor elements, animals, and everyday wear. Control your comfort effortlessly with several convenient options: a handheld remote, the SmartHVAC mobile app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser coating helps resist corrosion, making it a dependable option even in coastal climates. Advanced features enhance both convenience and efficiency. Auto-Restart resumes unit function after a power outage, Timer allows for customized operation based on your schedule, and Sleep maximizes energy usage while you sleep.
For ultimate peace of mind, the MRCOOL® DIY® 18k BTU Hyper Heat Single Zone Mini Split includes a 7-year compressor and 5-year parts warranty following online registration. Give yourself additional protection with enrollment in the MRCOOL® Care Program, which includes a limited lifetime replacement program and an annual care kit for lasting performance and confidence.
Installation & Guides:
MRCOOL DIY Hyper Heat Brochure
MRCOOL DIY Hyper Heat Install Manual
MRCOOL DIY Hyper Heat Warranty Information
Specifications:
| BRAND NAME | MRCOOL |
| SERIES | DIY Hyper Heat |
| MODEL |
DIYHH-18-HP-C-230D25-O
|
| GTIN | 840255588096 |
| UPC | 840255588096 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION |
DIY 5th Gen - R454B - 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit
|
| WORKS WITH |
DIYCASSETTE18HP-230D25-O DIY-18-HP-WMAH-230D25-O
|
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2-4 | 11 |
| HSPF2-5 | 8.5 |
| CFM | 1765.8 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 18000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 25 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| COLOR | White |
| MAX COVERAGE AREA | 800 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 52.21 |
| DECIBEL RATING (DBA) | 58 |
| INVERTER | Yes |
| MIN AMBIENT COOL (F) | -22 |
| MIN AMBIENT HEAT (F) | -22 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 25ft |
| MAX LINESET LENGTH (FT) | 75 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 780/700/550 |
| METERING DEVICE | EEV |
| UL LISTED | Yes |
| CSA CERTIFIED | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
7-Years Compressor, 5-Years Parts
|
| BASE WARRANTY | 5-Years Parts |
| BASE PARTS WARRANTY | 5 Years |
| BASE COMPRESSOR WARRANTY | 7 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 99.87 |
| GROSS DEPTH (IN) | 18.11 |
| GROSS HEIGHT (IN) | 29.53 |
| GROSS WIDTH (IN) | 40.55 |
| GROSS WEIGHT (LBS) | 120.15 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 18,000 |
|---|---|
| Indoor unit(s) | 18K |
| Coverage area | 800 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | DIY Installation |
| Brand | MRCOOL |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
