MRCOOL DIY 5th Gen Multi-Zone 18K BTU Three Zone Ductless Mini Split - A Heating and AC System You Can Install By Yourself!

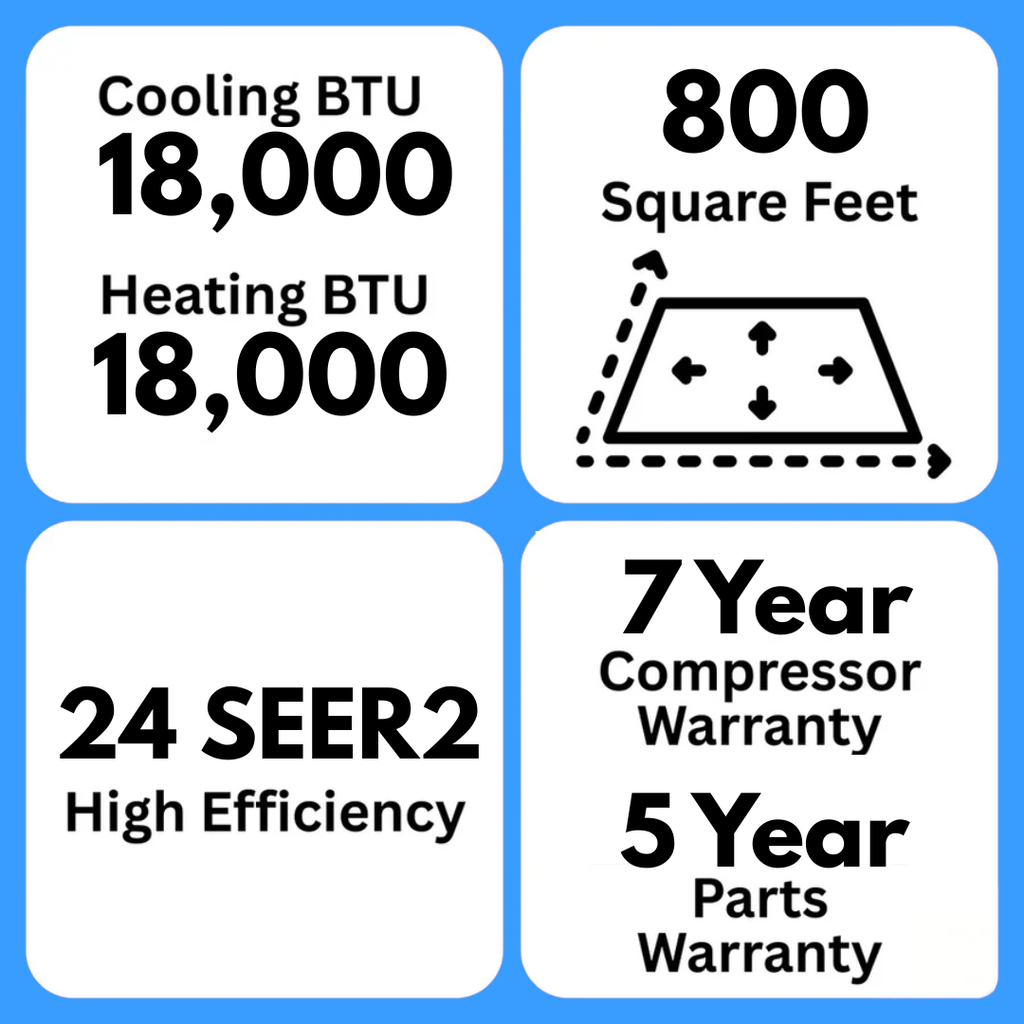

Heat or cool three zones with the MRCOOL DIY Multi-Zone 18,000 BTU 23.9 SEER2 3 Zone Ductless Heat Pump Split System - 6K + 6K + 9K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 18,000 BTU capacity.

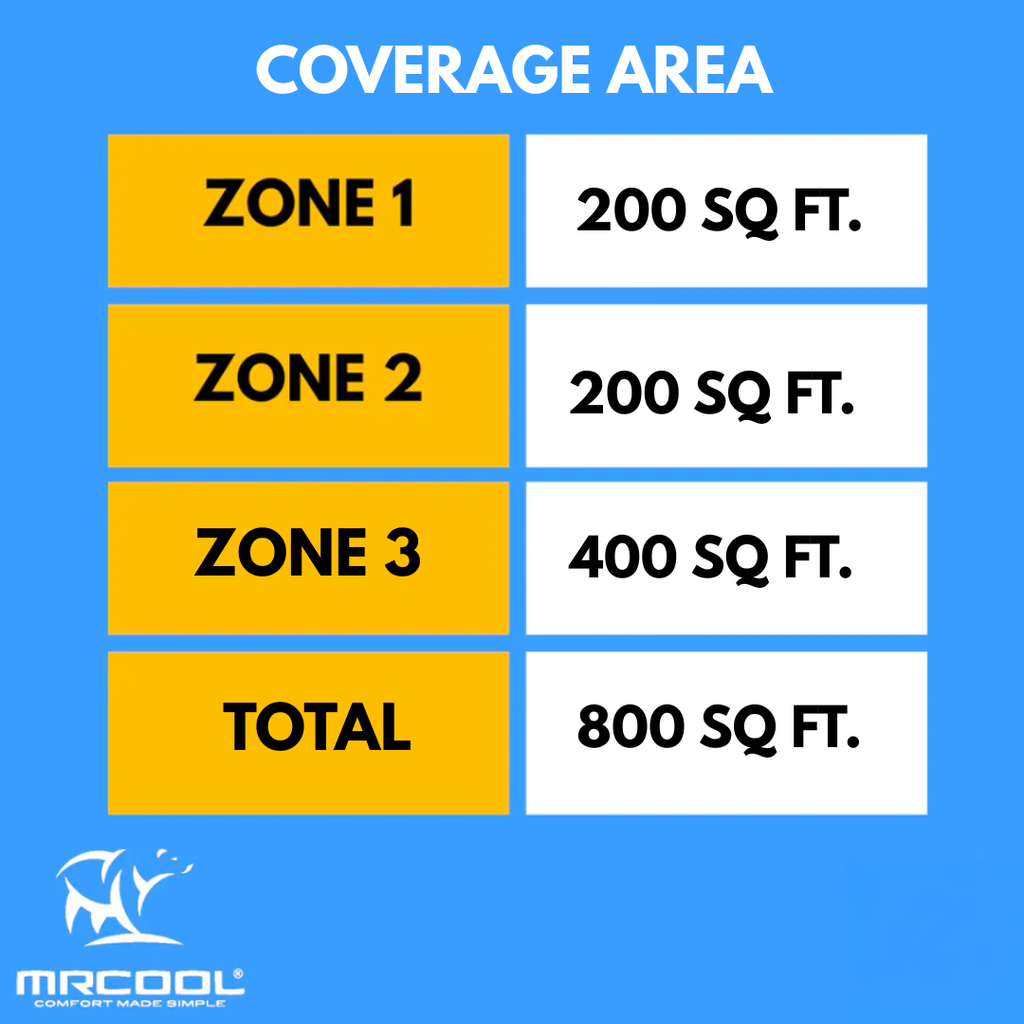

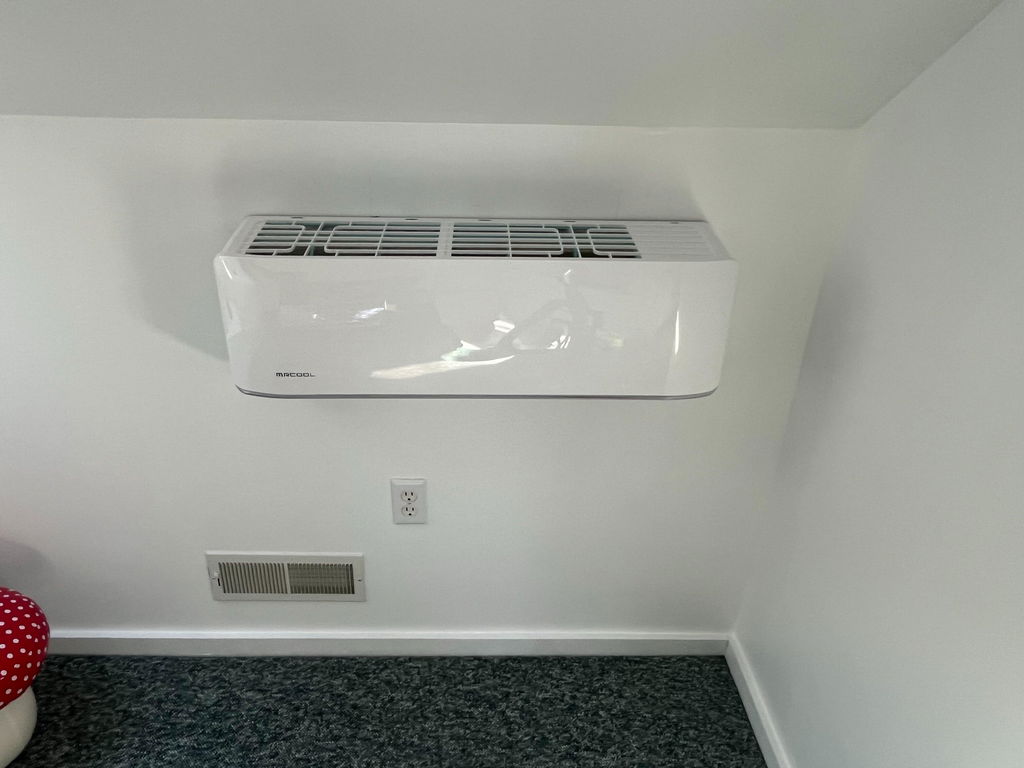

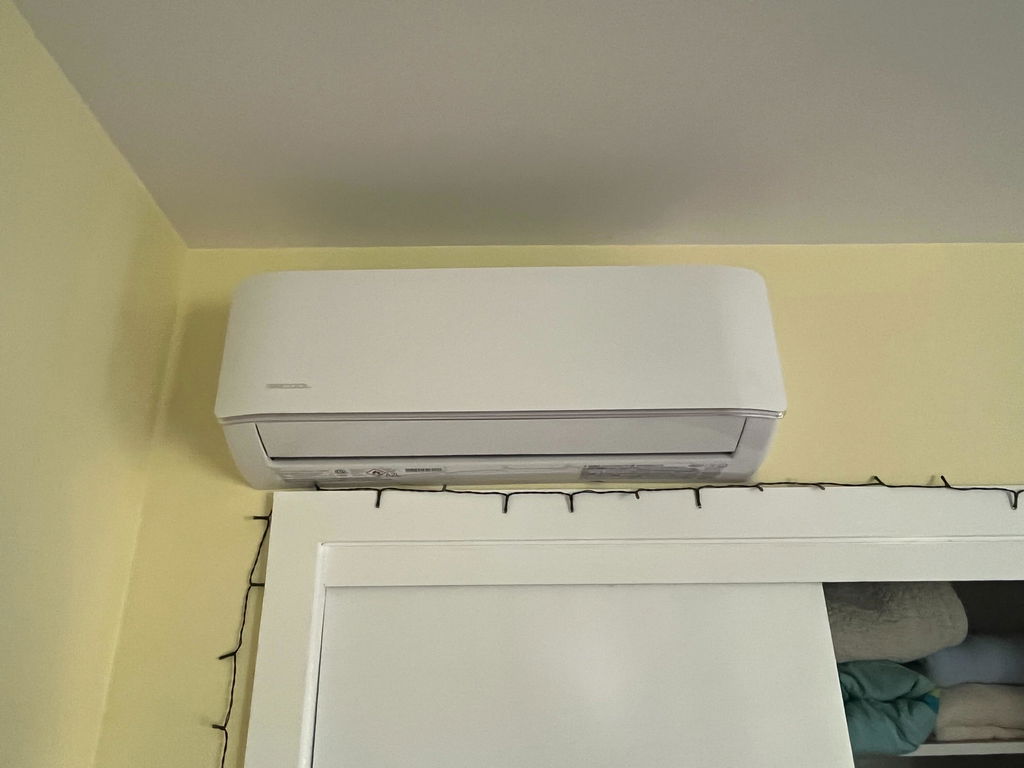

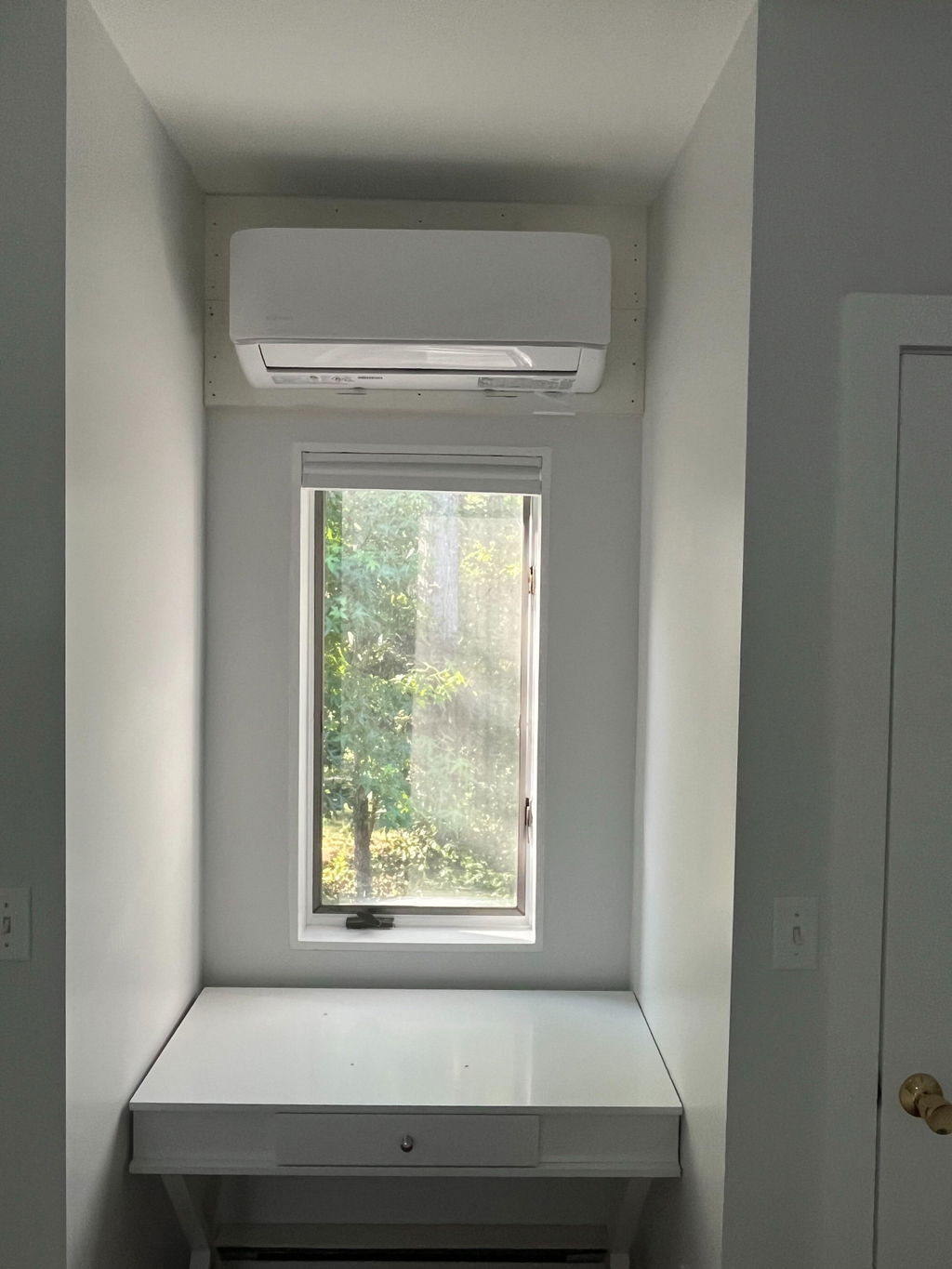

The three indoor air handlers consist of two 6,000 btu and one 9,000 btu. They use the condenser's power to heat and cool up to approximately 200 and 400 square feet respectively. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus a limited lifetime compressor warranty), 5 Year Parts Manufacturer Warranty!
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Follow Me® Feature
- Low Ambient Cooling
Installation & Guides:
Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI3-18HP230D-O
|
| GTIN | 840255587617 |
| UPC | 840255587617 |
| SHORT DESCRIPTION |
MRCOOL® 18k DIY 5th Generation 3 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We are thrilled to announce our new 5th Generation MRCOOL® DIY® 18k BTU Multi-Zone Ductless Mini Split Condenser, which is the best and most convenient way to get comfortable. You won’t need the services of an HVAC professional to install this unit, because it’s do-it-yourself! Achieving a SEER2 rating of 23.9 and an HSPF2-4 rating of 10, you can rest easy knowing this unit will help you save money as you chill. This condenser can also support up to three air handlers, meaning it can heat and cool three rooms that are a combined 750 square feet in size, making it a perfect option if you have spare bedrooms in need of heating and cooling. What makes this system different is our patented pre-charged Quick Connect® line sets filled with R-454B, an incredibly efficient and eco-friendly refrigerant. This switch from the previous refrigerant makes the system even more efficient and sustainable than before. The design of these innovative line sets allow you to install the system yourself, saving you time and money. These line sets are sold separately. This condenser is more than just a heating and cooling unit. When operating as a system, you will be able to experience total customization with the unit’s wealth of features. For example, you can integrate your system with Amazon Alexa or Google Home through the Smart HVAC app, allowing you to control your system with your voice and monitor its operation with the touch of a button. You can also set schedules, temperature ranges, and mode of operation through the app. The power of comfort is in your hands with this system. In the unlikely event that something happens to the system, we’ve got you covered. The DIY® series comes with one of the best warranties in the industry - a 7 year compressor warranty, a 5 year parts warranty, and a Limited Lifetime Replacement warranty with enrollment in the MRCOOL® Care Program. Give yourself the best comfort with the DIY®.
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 23.9 |
| EER2 | 13 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 18000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 16 |
| COLOR | White |
| ZONE CAPACITY | 3 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 61.73 |
| DECIBEL RATING (DBA) | 60 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 172.2 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 101.63 |
| GROSS DEPTH (IN) | 17.24 |
| GROSS HEIGHT (IN) | 29.53 |
| GROSS WIDTH (IN) | 40.55 |
| GROSS WEIGHT (LBS) | 109.57 |
