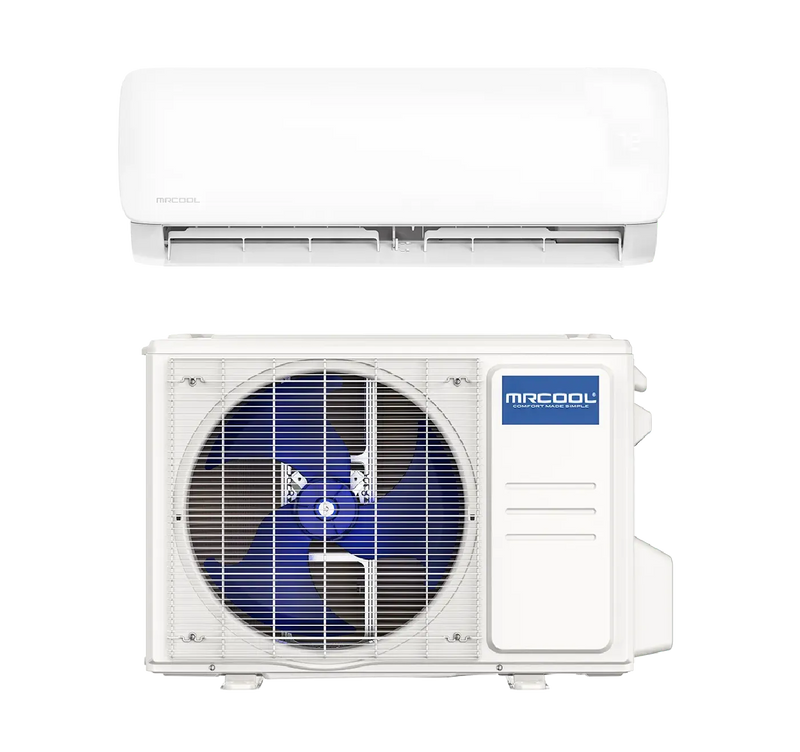

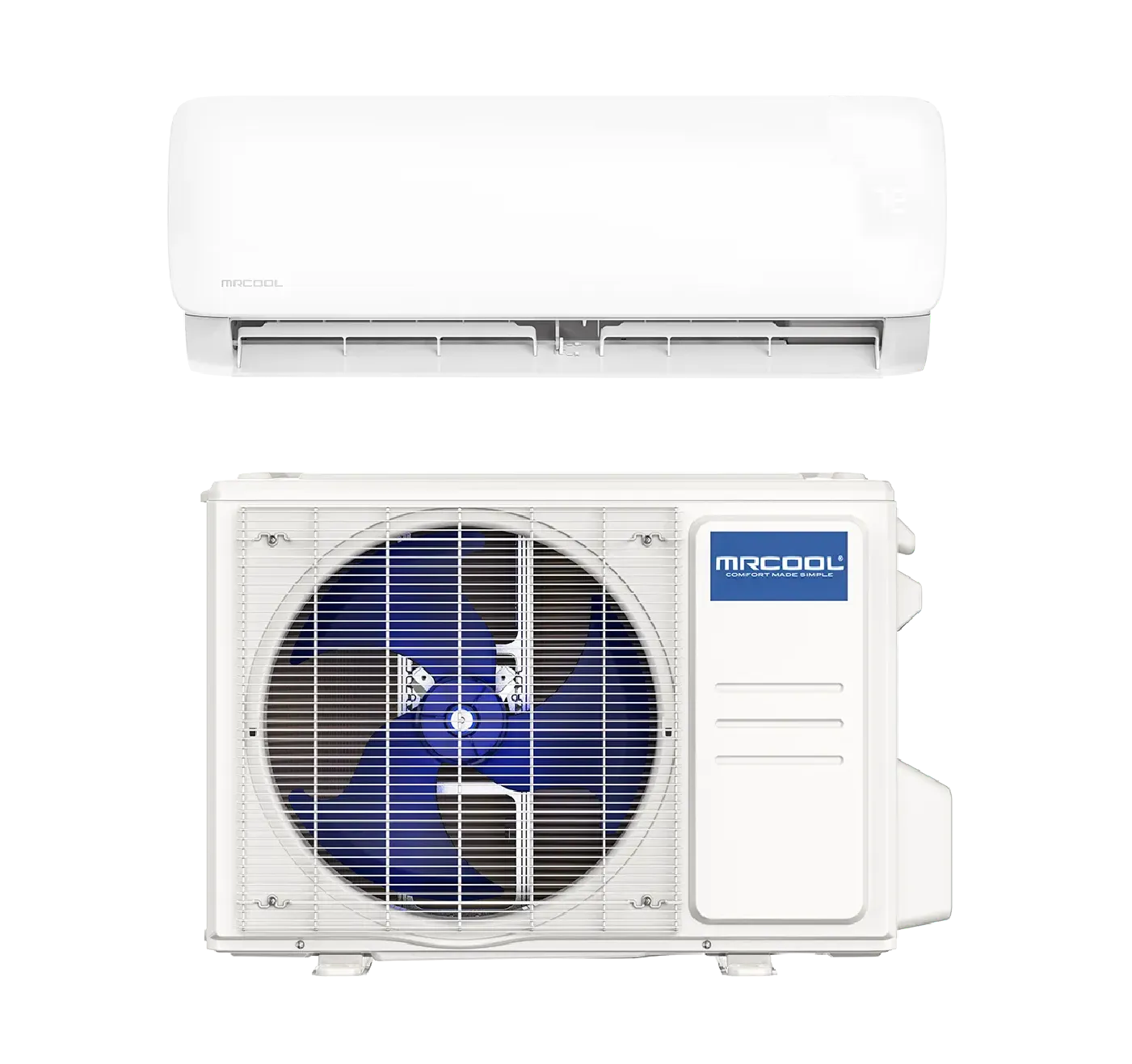

MRCOOL DIY Easy Pro 5th Gen 24,000 BTU 18.9 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 230V
The newly released 5th Generation of the MRCOOL Easy Pro® DIY 24K BTU Ductless Mini-Split Heat Pump System is easy to install and is capable of effectively heating and cooling a space of 1,050 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection® fittings.
The features are numerous with this system such as the Follow Me® feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own.
This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 1-year compressor warranty and 2-year parts warranty. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office.
Key Feature:
- Smart Control
- DIY Installation
- Energy Efficient
- Quiet Operation
- Durable Design

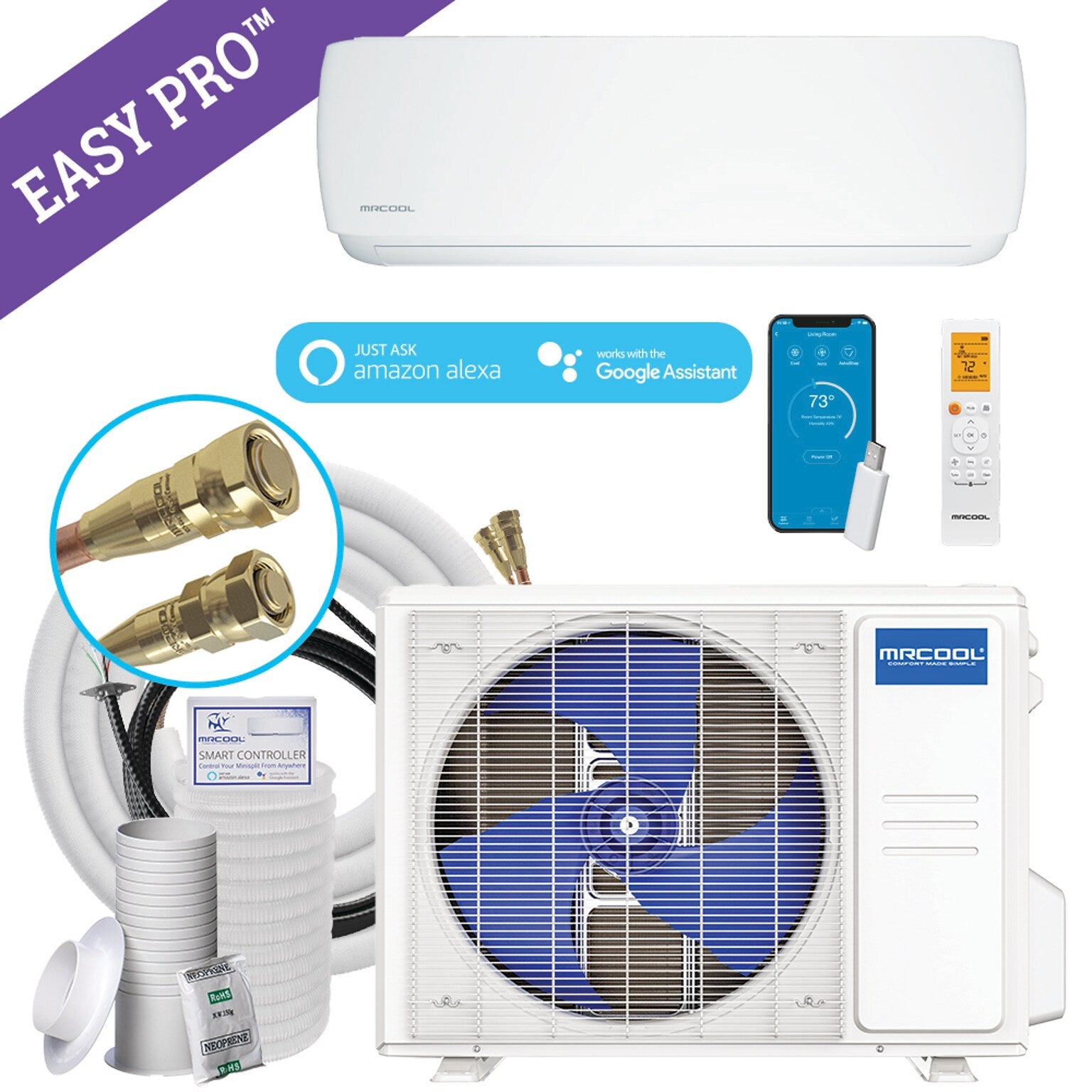

What It Includes:
- Indoor Units (MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Air Handler)
- Outdoor Unit (MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Condenser)

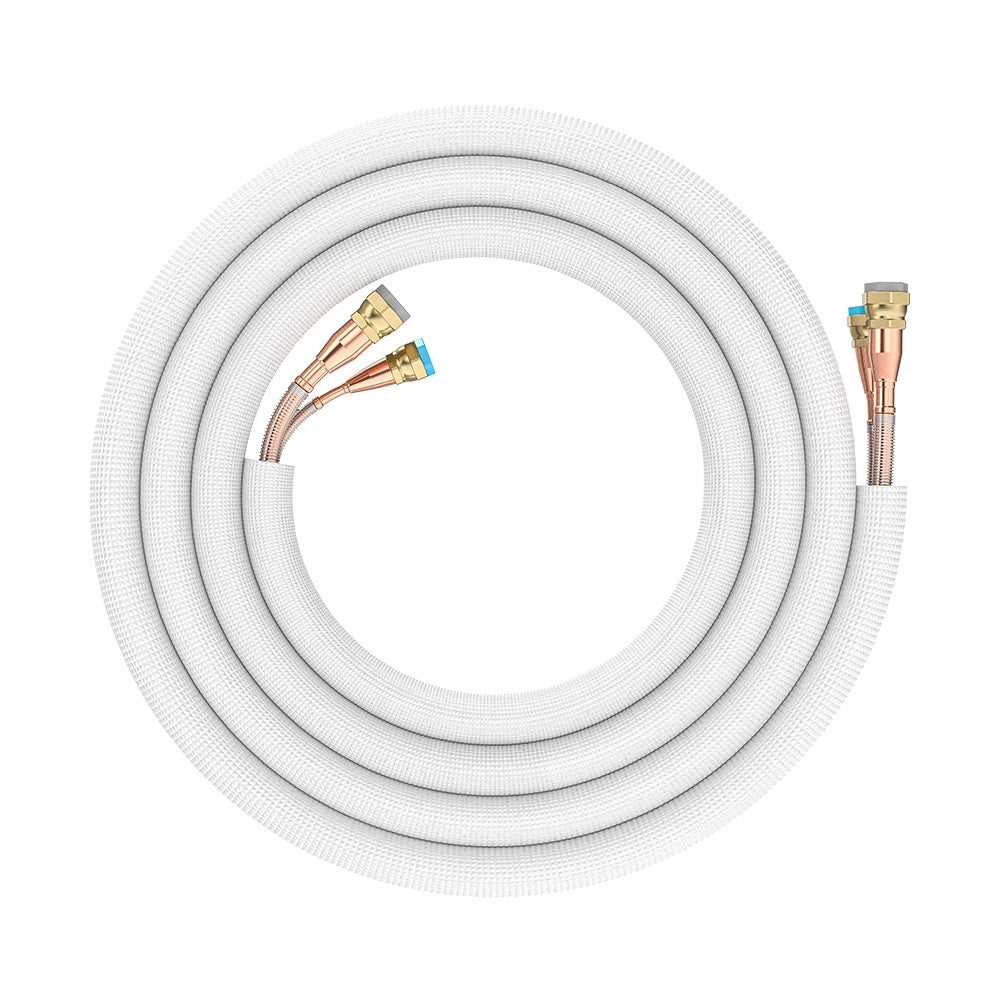

- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty

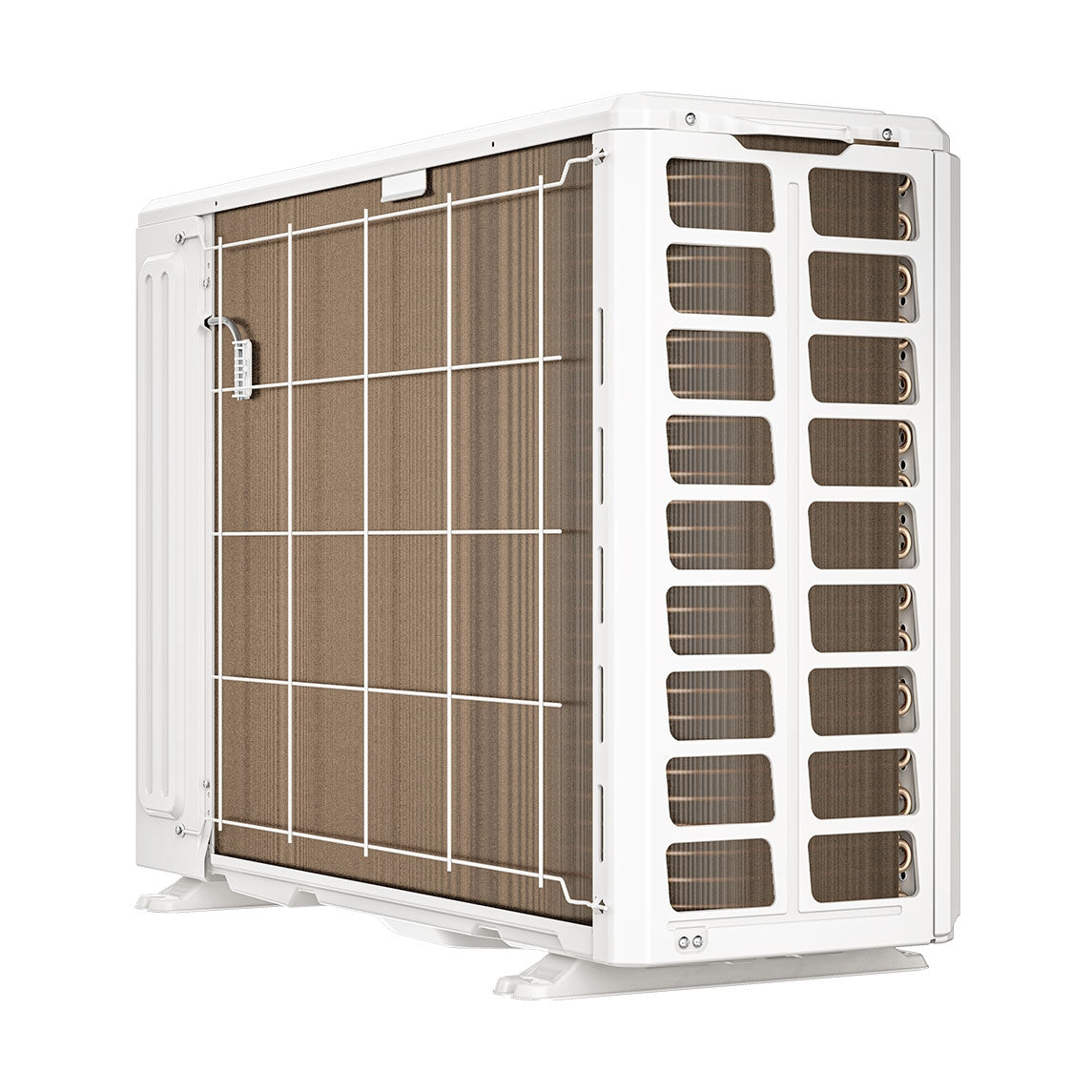

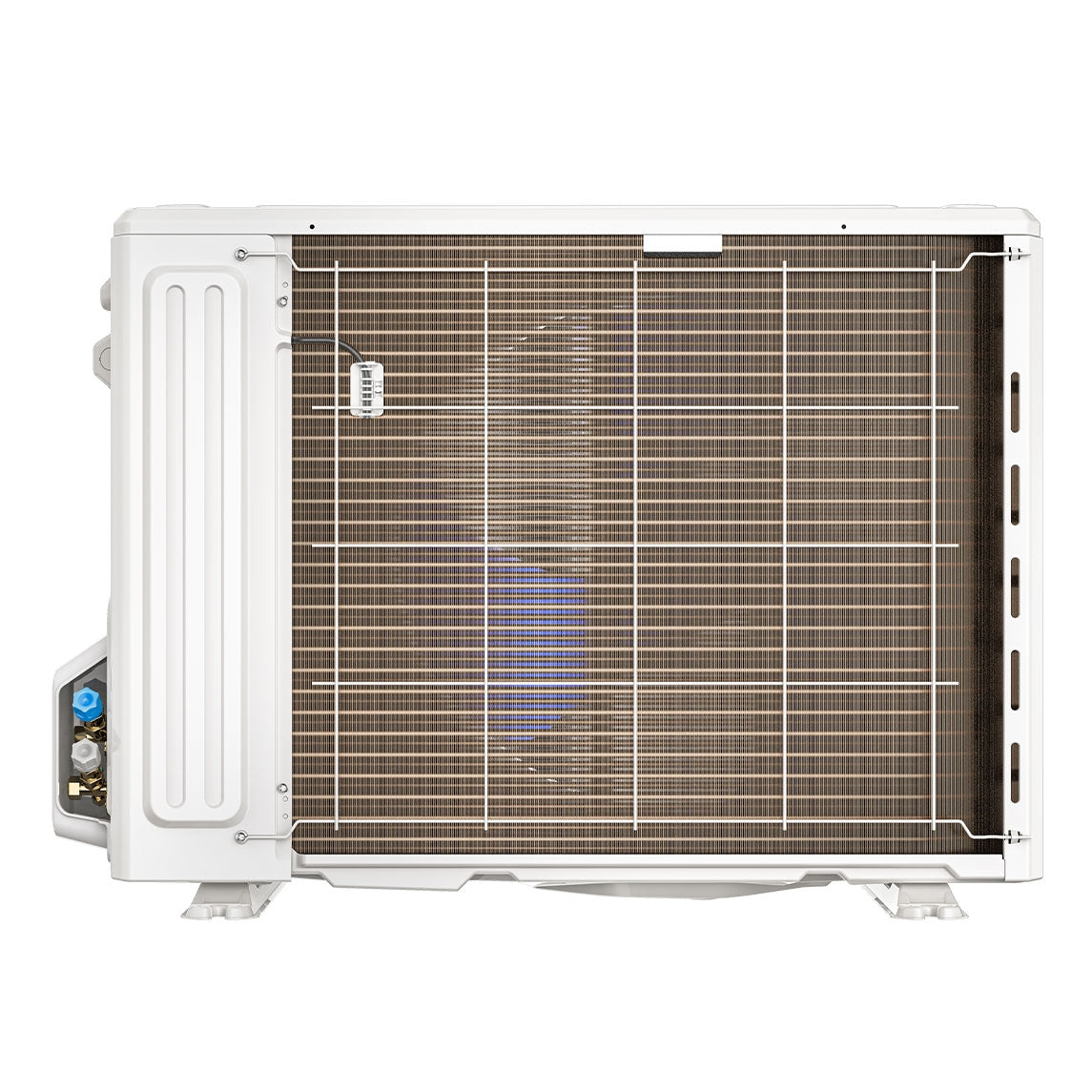

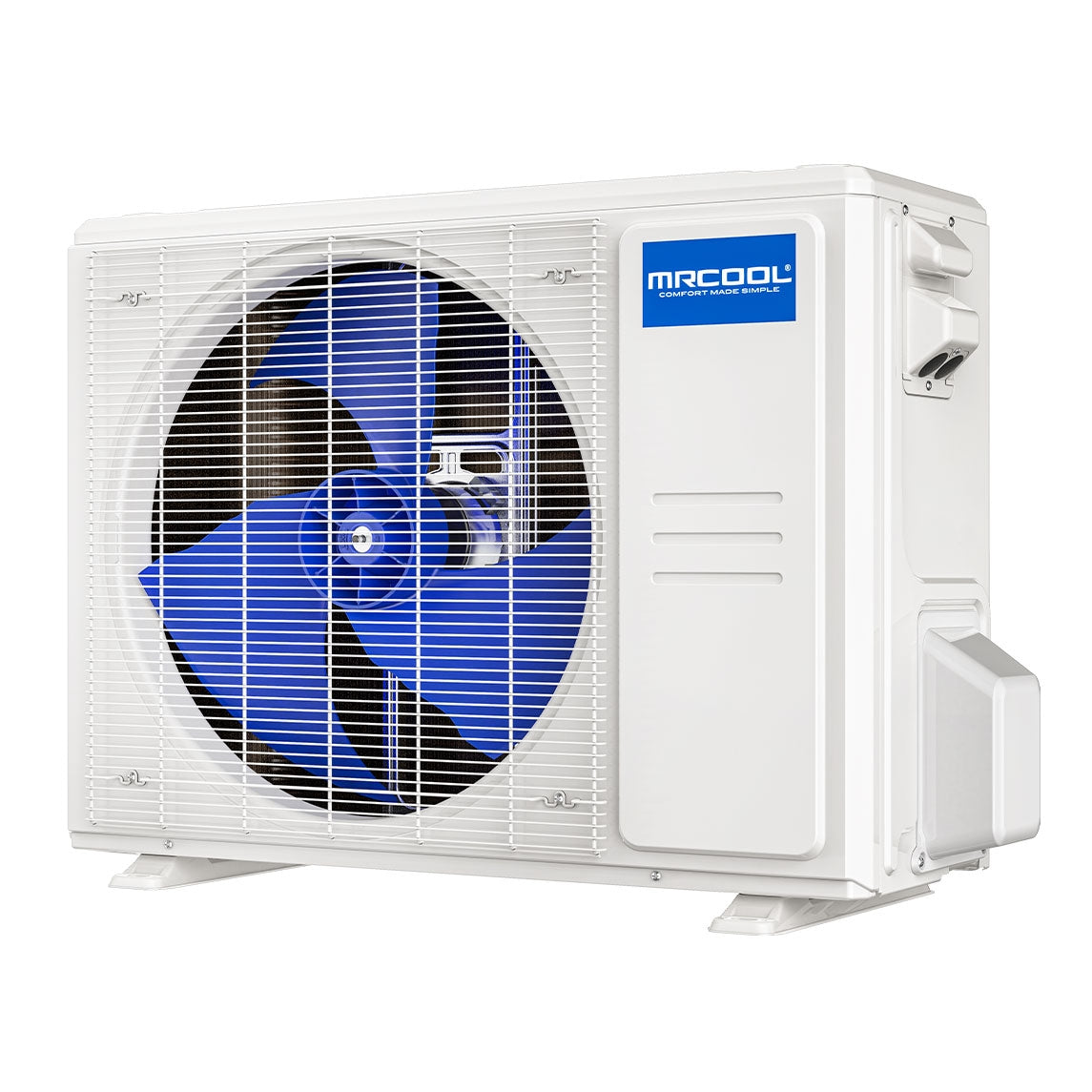

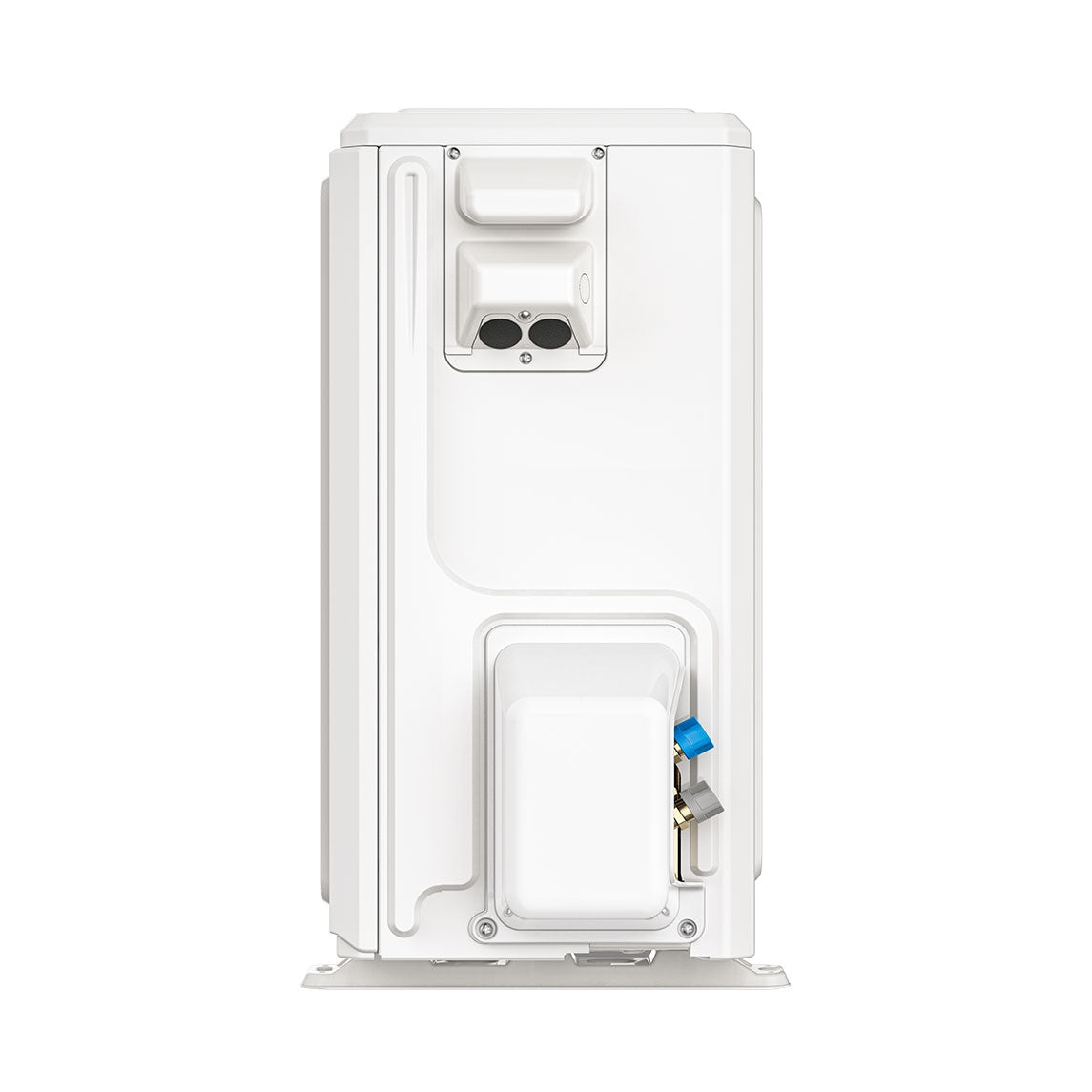

Condenser Specification:
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-24-HP-C-23016D-O |
|
GTIN |
00840255586757 |
|
UPC |
840255586757 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 24k BTU 230V Condenser |
|
LONG DESCRIPTION |
For the best comfort you’ve ever felt at a price that’s perfect, choose the MRCOOL® Easy Pro™ Series 24k BTU Mini-Split Heat Pump Condenser. This unit will heat or cool a space that is up to 1050 square feet with efficient, effective comfort. On top of the money you’ll save in the long run, this unit has a do-it-yourself installation, so you’ll save money before you even turn the system on. This unit doesn’t require the services of an HVAC professional to install because it comes with a 16’ pre-charged Fast Connection® line set. The fittings easily link together, making the installation process quick, easy, and safe. On top of immediate savings, the 18.9 SEER2 rating and 8.7 HSPF2-4 rating mean that this unit will save you money in the long run. Ultimate convenience and control is what the Easy Pro™ is all about. The unit’s ability to connect to Wi-Fi enables operation through your smart phone with just the touch of a button. If you are cooling a space all year long, the unit’s Low Ambient Cooling feature allows the system to cool even when it’s 5°F outside. No matter what temperature you choose, though, your comfort will be whisper-quiet, as this system will only ever attain a volume level of 61 dB(A). Even if the power falters, this unit won’t, because the Auto Restart function will ensure your system will go right back to your previous settings once the power turns back on. You deserve total peace of mind, which is why you can register your system to enjoy its 2 year parts warranty and its 1 year compressor warranty. For efficient, reliable comfort that’s easy on your wallet, choose the MRCOOL® Easy Pro™condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
18.9 |
|
EER2 |
9.7 |
|
HSPF2-4 |
8.7 |
|
HSPF2-5 |
6.9 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
25000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
50.44 |
|
DECIBEL RATING HIGH (DBA) |
61 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
13.46 |
|
NET HEIGHT (IN) |
26.5 |
|
NET WIDTH (IN) |
35.04 |
|
NET WEIGHT (LBS) |
95.9 |
|
GROSS DEPTH (IN) |
15.67 |
|
GROSS HEIGHT (IN) |
29.13 |
|
GROSS WIDTH (IN) |
39.17 |
|
GROSS WEIGHT (LBS) |
117.73 |

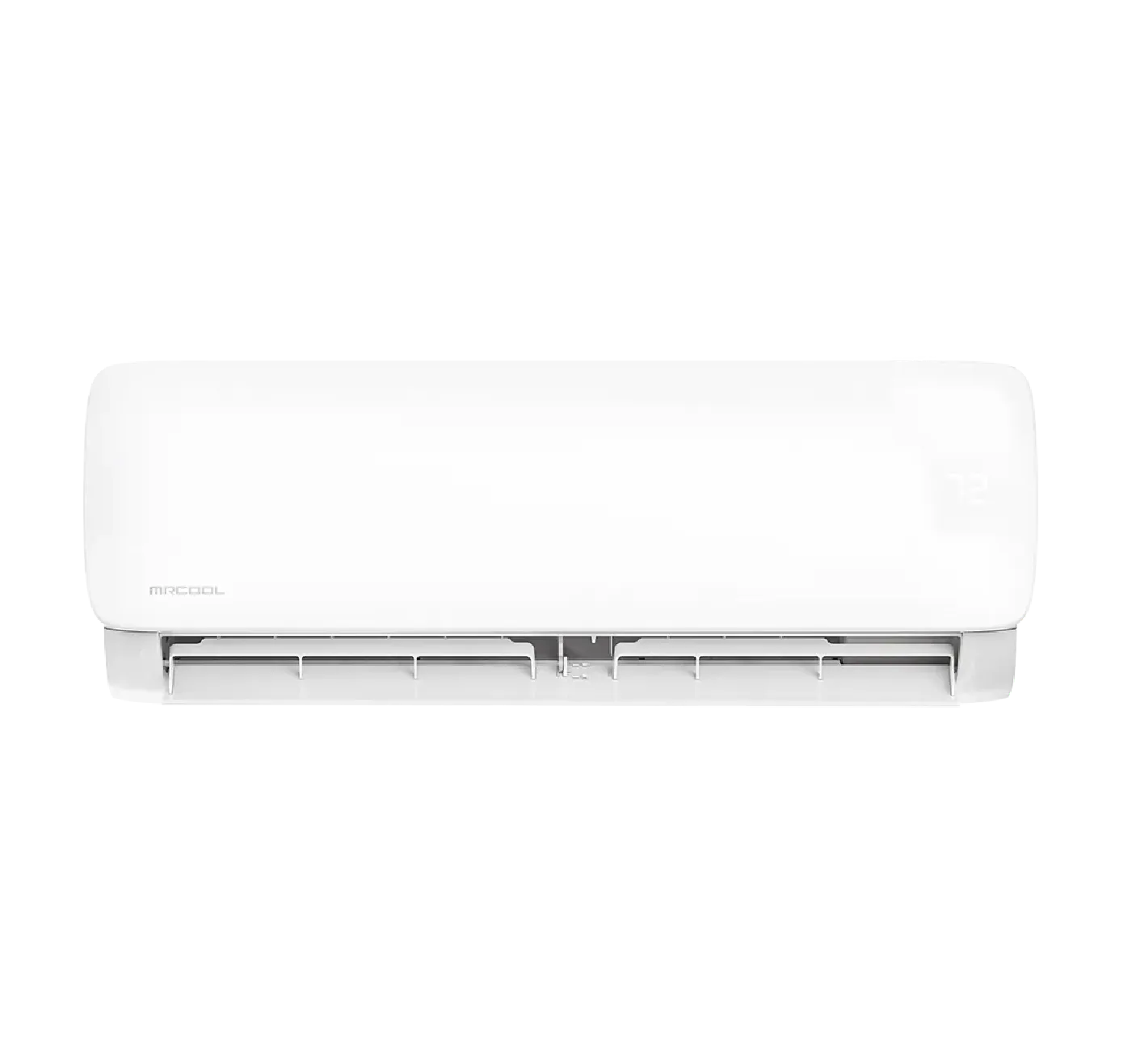

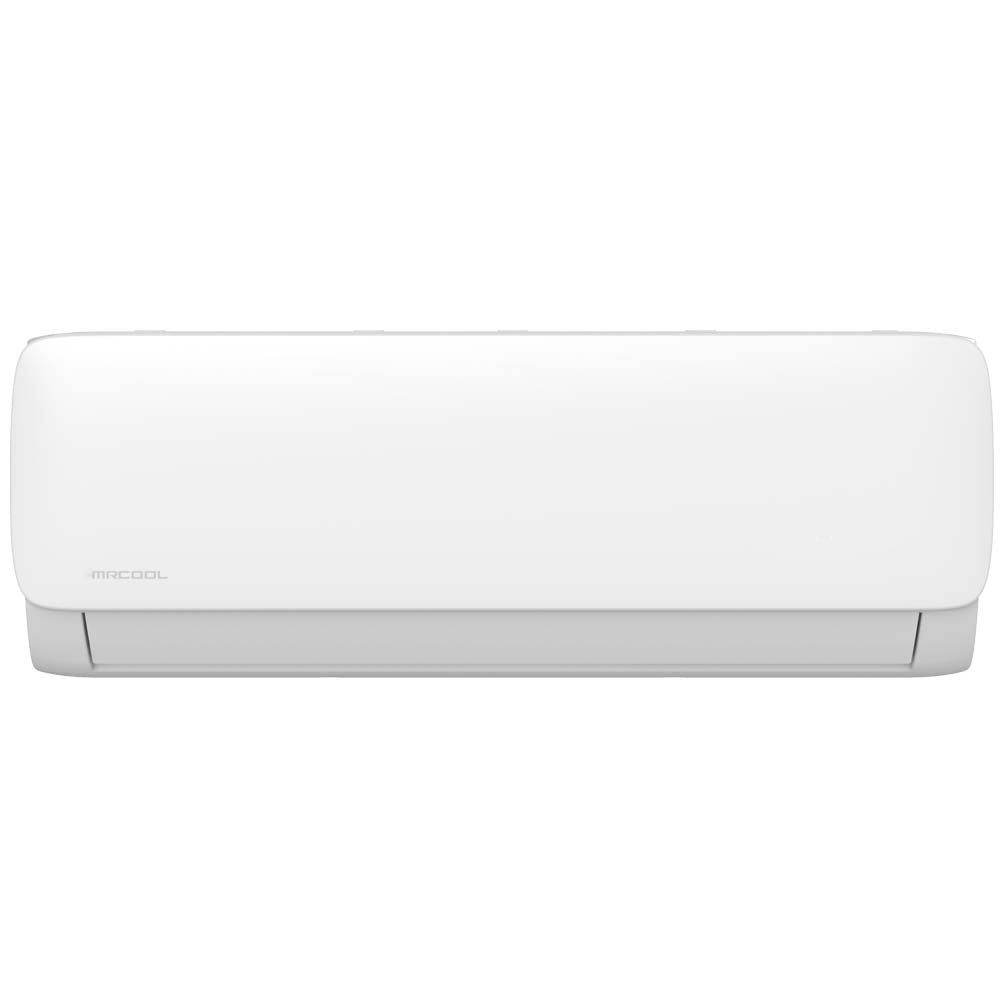

24k Air Handler Specs:
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-24-HP-WMAH-230D-O |
|
GTIN |
00840255586795 |
|
UPC |
840255586795 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 24k BTU 230V Air Handler |
|
LONG DESCRIPTION |
The MRCOOL® EASY PRO™ Mini-Split Air Handler is an affordable and user-friendly solution for heating and cooling spaces up to 1,050 square feet, making it perfect for larger rooms, open office areas, or versatile home applications. As MRCOOL’s most budget-friendly unit, the EASY PRO™ air handler is designed for easy, DIY installation without the need for professional assistance. The EASY PRO™ air handler, which is a very efficient and convenient option, provides seamless and dependable operation. With WiFi connectivity, you can adjust and monitor temperature settings from your smartphone, while Active Clean Technology and simple-to-maintain filters help keep indoor air fresh. In the event of a power outage, the Auto Restart function restores operation automatically, and the Sleep Function adjusts temperature settings overnight to save energy while enhancing comfort. Operating at a Whisper Quiet level, the EASY PRO™ is perfect for maintaining a tranquil environment, ideal for both home and work settings. Built to handle extreme conditions, it offers Low Ambient Cooling down to 5°F, making it suitable for spaces requiring year-round cooling, such as server rooms or greenhouses. Backed by a 2-year parts warranty and a 1-year compressor warranty, the MRCOOL® EASY PRO™ air handler combines affordability, convenience, and reliability in an easy-to-install package. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
CFM |
729.9 / 547.4 / 400.2 / 329.6 / / |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
25000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
MAX COVERAGE AREA |
1050 sqft |
|
DECIBEL RATING (DBA) |
40 |
|
DECIBEL RATING LOW (DBA) |
21.5 |
|
DECIBEL RATING HIGH (DBA) |
51.5 |
|
NUMBER OF SPEEDS |
5 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
BLOWER MOTOR SPEEDS |
3 |
|
BLOWER MOTOR RPM |
1100/940/780 |
|
FILTER TYPE |
Reusable |
|
FAN ONLY OPTION |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
9.21 |
|
NET HEIGHT (IN) |
13.27 |
|
NET WIDTH (IN) |
42.6 |
|
NET WEIGHT (LBS) |
35.49 |
|
GROSS DEPTH (IN) |
16.34 |
|
GROSS HEIGHT (IN) |
12.4 |
|
GROSS WIDTH (IN) |
45.47 |
|
GROSS WEIGHT (LBS) |
49.6 |
