Product overview
MRCOOL Olympus E Star 12,000 BTU 25.4 SEER2 Ceiling Concealed Ducted Single Zone Mini Split System
The MRCOOL 4th generation Olympus E Star 12,000 BTU Mini Split efficiently heats and cools spaces up to 550 sq ft. This compact system is easy to install and includes an advanced air handler and high-efficiency condenser. Control settings with the MRCOOL Smart HVAC app, remote, or voice assistants like Alexa and Google. It operates quietly, uses eco-friendly refrigerant, and delivers excellent energy efficiency with a SEER2 of 25.4. Backed by a strong warranty, it provides reliable, year-round comfort and energy savings for bedrooms, offices, and more.
Features:
- Complete Climate Control: Combined air handler and condenser deliver efficient heating and cooling for up to 550 sq. ft.
- Energy Efficiency: SEER2 rating of 25.4, EER2 of 13.4, and HSPF2-4 of 10.5 reduce energy consumption and costs.
- Smart Operation: Wi-Fi connectivity and MRCOOL® Smart HVAC app allow full control from your smartphone or tablet.
- Quiet Performance: Indoor unit runs at 47 dB and outdoor fan at 56 dB for whisper-quiet comfort.
- Eco-Friendly Design: Uses R-454B refrigerant to minimize environmental impact while maintaining high efficiency.
- Voice Control Compatibility: Works with Amazon Alexa and Google Assistant for hands-free adjustments.
- Compact Installation: Sleek, space-saving design ensures fast and simple setup in any room.
- Comprehensive Warranty: Protected by a limited lifetime warranty, 7-year compressor coverage, and 5-year parts warranty for dependable performance.
Installation & Guides:
MRCOOL Olympus Warranty Documentation

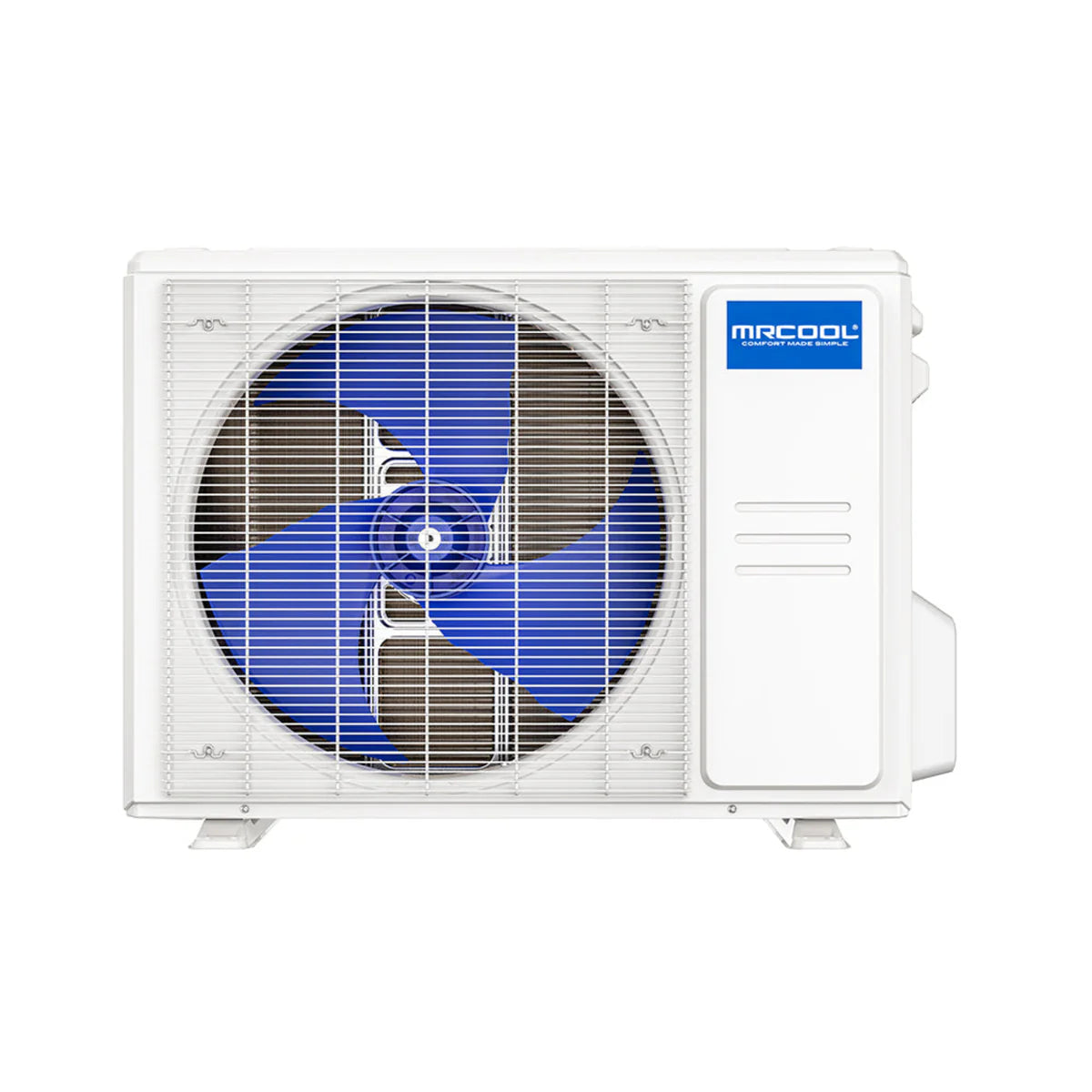

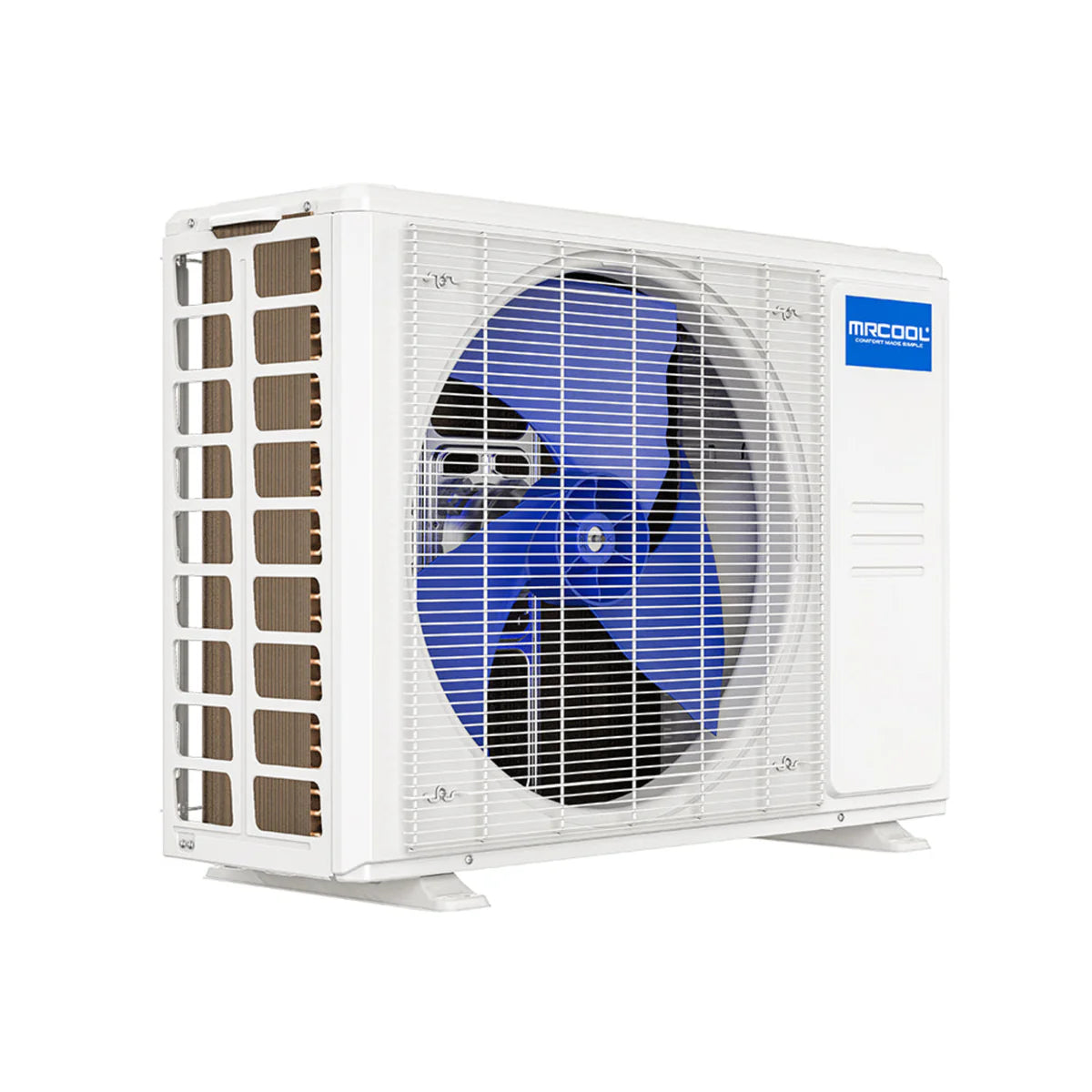

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
Olympus 4th Gen Single-Zone Condensers
|
| MODEL | O-ES-12-HP-C-230C-O1 |
| GTIN | 840255587631 |
| UPC | 840255587631 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION |
Olympus ENERGY STAR 12,000 BTU 1 Ton Mini-Split Heat Pump Condenser - 230V/60Hz
|
| WORKS WITH |
O-12-HP-WMAH-230C-O DUCT-12HP-230B-O CASSETTE12HP-230C-O
|
| FEATURE LIST |
Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified
|
| SEER2 | Up to 25.4 |
| EER2 | Up to 13.4 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 15 |
| COLOR | White |
| MAX COVERAGE AREA | Up to 550 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 35.27 |
| DECIBEL RATING (DBA) | 56 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 82 |
| LINESET FITTING TYPE | Flare |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 780/680/580 |
| METERING DEVICE | EXV |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE WARRANTY |
5-Year Parts/7-Year Compressor
|
| BASE PARTS WARRANTY | 5-Year |
| BASE COMPRESSOR WARRANTY | 7-Year |
| BASE REMOTE WARRANTY | 5 Year |
| REGISTERED LABOR WARRANTY | None |
| BASE LABOR WARRANTY | None |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU, PR, VI |
| NET DEPTH (IN) | 12.99 |
| NET HEIGHT (IN) | 21.81 |
| NET WIDTH (IN) | 31.69 |
| NET WEIGHT (LBS) | 72.75 |
| GROSS DEPTH (IN) | 14.57 |
| GROSS HEIGHT (IN) | 24.21 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 78.7 |

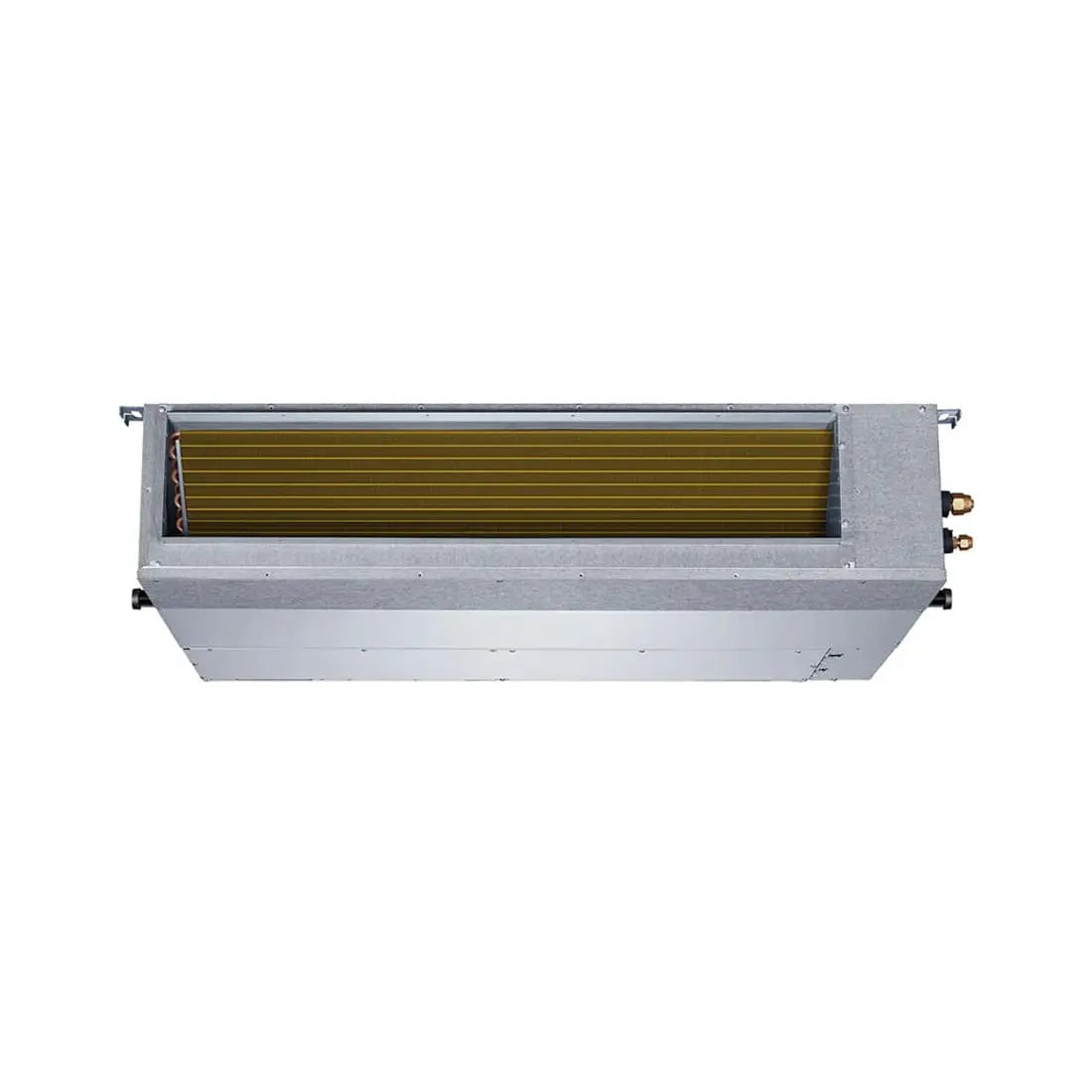

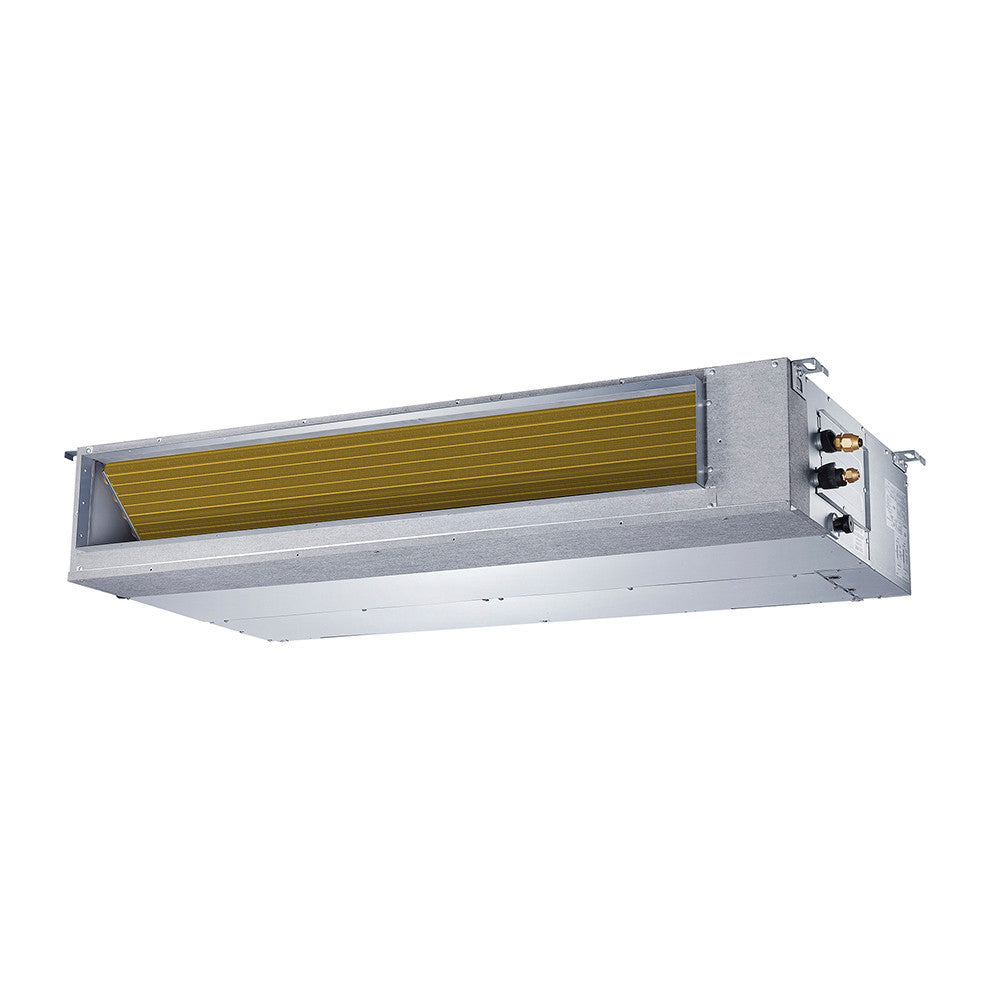

Air Handler Specifications:
| Net Dimensions (In) | 19.92 D x 7.87 H x 27.56 W |
| Net Weight (Lbs) | 39.46 |
| Tonnage | 1 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| Mount Type | Ducted |
| Color | Metal |
| Max Coverage Area | Up to 550 |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 36/36/34.5/32.5/25.5 |
| Decibel Rating Low (Dba) | 25.5 |
| Decibel Rating High (Dba) | 36 |
| Air Flow Direction | Ducted |
| Number Of Speeds | 5 (Variable) |
| Oscillation | No |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
| Blower Motor Speeds | 400.2/323.7/264.9/176.6/117.7 |
| Blower Motor Rpm | 780/680/580 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | No |
| App Compatibility | No |
| Works With Ios | No |
| Works With Android | No |
| Remote Control Included | Yes |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| Gross Weight (Lbs) | 46.74 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12,000 |
|---|---|
| Indoor unit(s) | 12K |
| Coverage area | 600 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 25 SEER2 · ENERGY STAR certified |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | MRCOOL |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
