Descripción
MRCOOL VersaPro 18,000 BTU 1.5 Ton 16.6 SEER2 Central Ducted Heat Pump System
Introducing the new MRCOOL VersaPro 18,000 BTU 1.5 Ton Central Ducted Heat Pump System, a variable speed 18K unit boasting an impressive SEER2 of 16.6 and HSPF4 of 10.2. With a DC inverter, this advanced yet affordable unit guarantees excellent operation and reduced utility costs, making it an exceptional upgrade option. The convenience of installation is further enhanced by the inclusion of a 25-foot MRCOOL® Quick Connect® precharged line set, facilitating swift and trouble-free setup for professional HVAC technicians. Precharged with eco-friendly R-410A refrigerant, this line set eliminates the need for vacuuming and ensures a seamless connection. This unit features a robust build and finish utilizing painted galvanized steel, ensuring longevity. Additionally, the condenser has a compact, side-discharge design and self-diagnostic capabilities simplify maintenance efforts. Moreover, the 10-year parts and compressor warranty offers added peace of mind and provides hassle-free coverage in the event of unexpected issues.

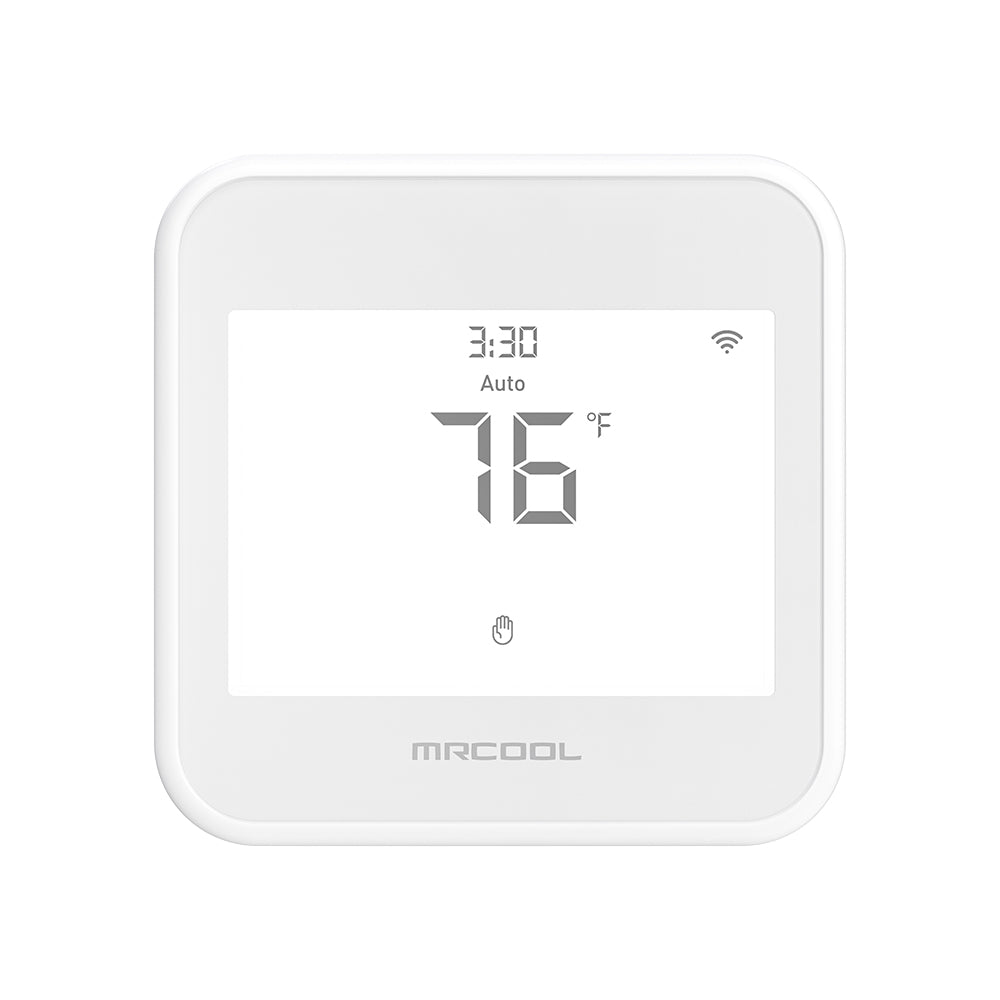

The MRCOOL VersaPro 18K presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 750 square feet of space and boasting a SEER2 rating of 16.6, this heating and cooling system serves as a dependable upgrade from older units. Constructed with durable painted galvanized steel, this air handler ensures long-term performance and reliability. Its easily accessible removable filter and self-diagnostics panel simplify maintenance tasks by facilitating quick identification of error codes. Installation versatility is a key feature of the 1.5 Ton MRCOOL® VersaPro Central Ducted System, allowing for positioning in various configurations such as upflow, downflow, and horizontal orientations. Additionally, an optional heat kit is available for enhanced functionality. Equipped with a wireless remote featuring the Follow Me function, the VersaPro 18K air handler adjusts airflow temperature automatically based on the remote's location in the room, ensuring consistent comfort throughout your home. Furthermore, the inclusion of a wired thermostat offers convenient and reliable temperature control in any space. Investing in the 1.5 Ton MRCOOL® VersaPro Central Ducted System comes with the added assurance of a 10-year parts and compressor warranty provided by MRCOOL®, offering comprehensive coverage and enhancing ease of ownership.

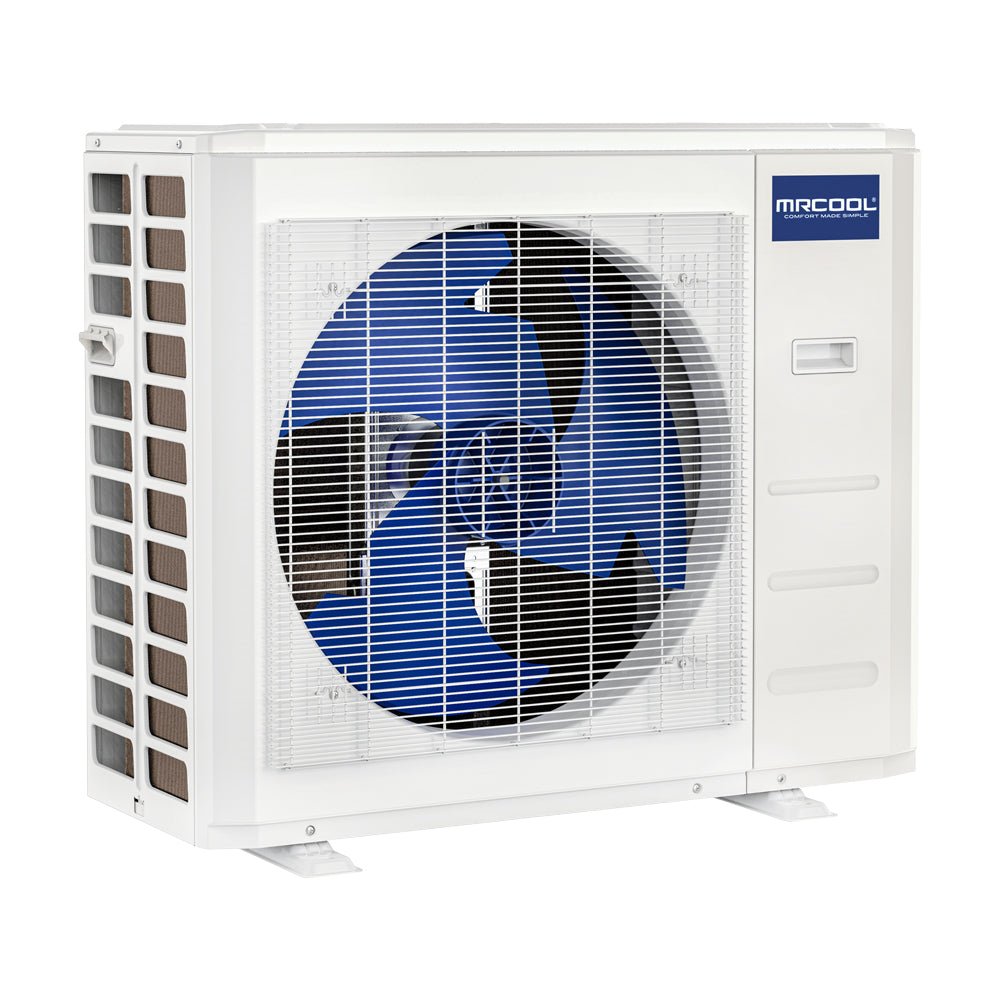

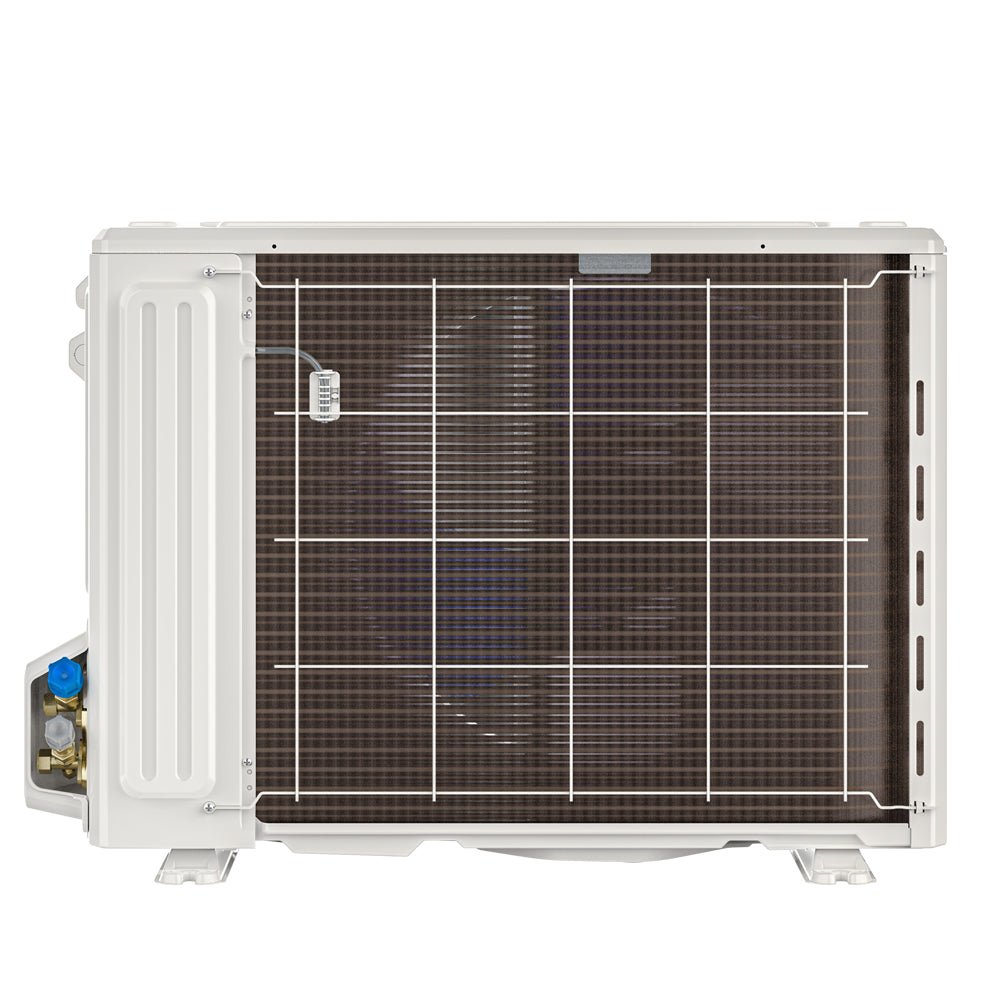

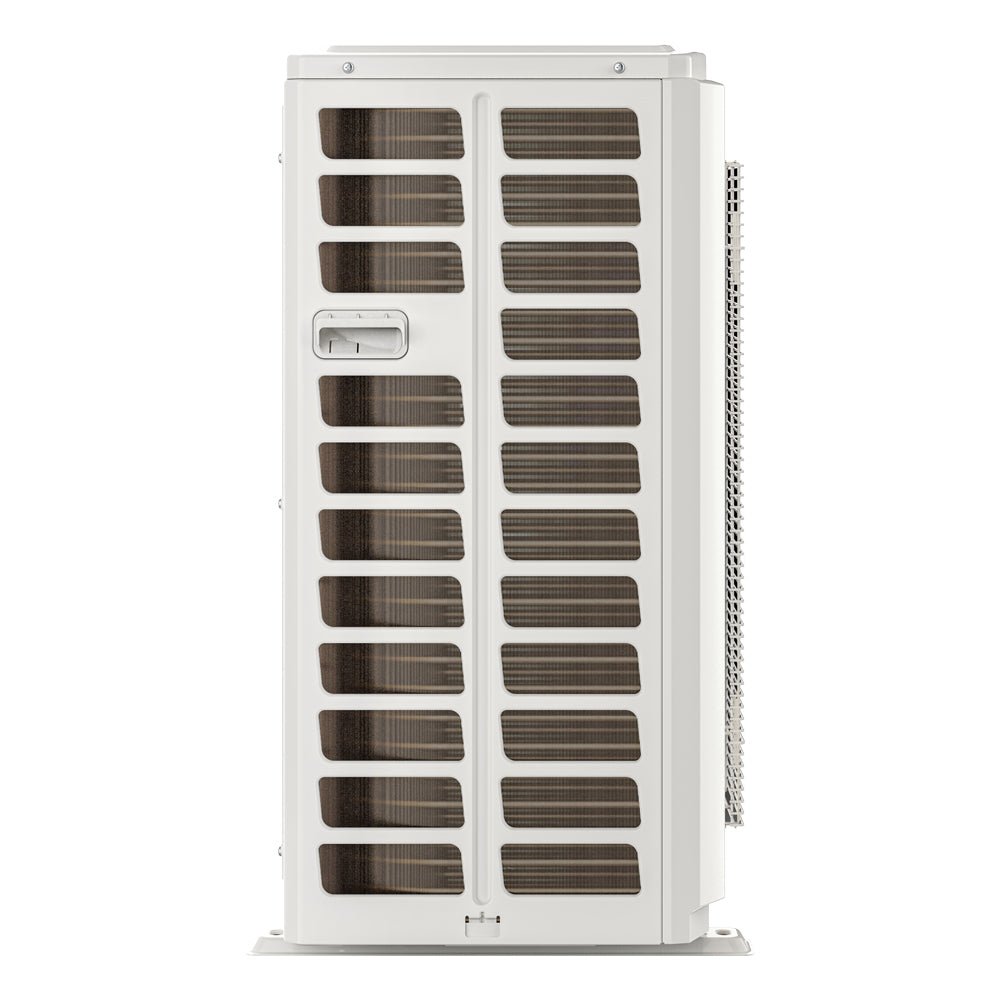

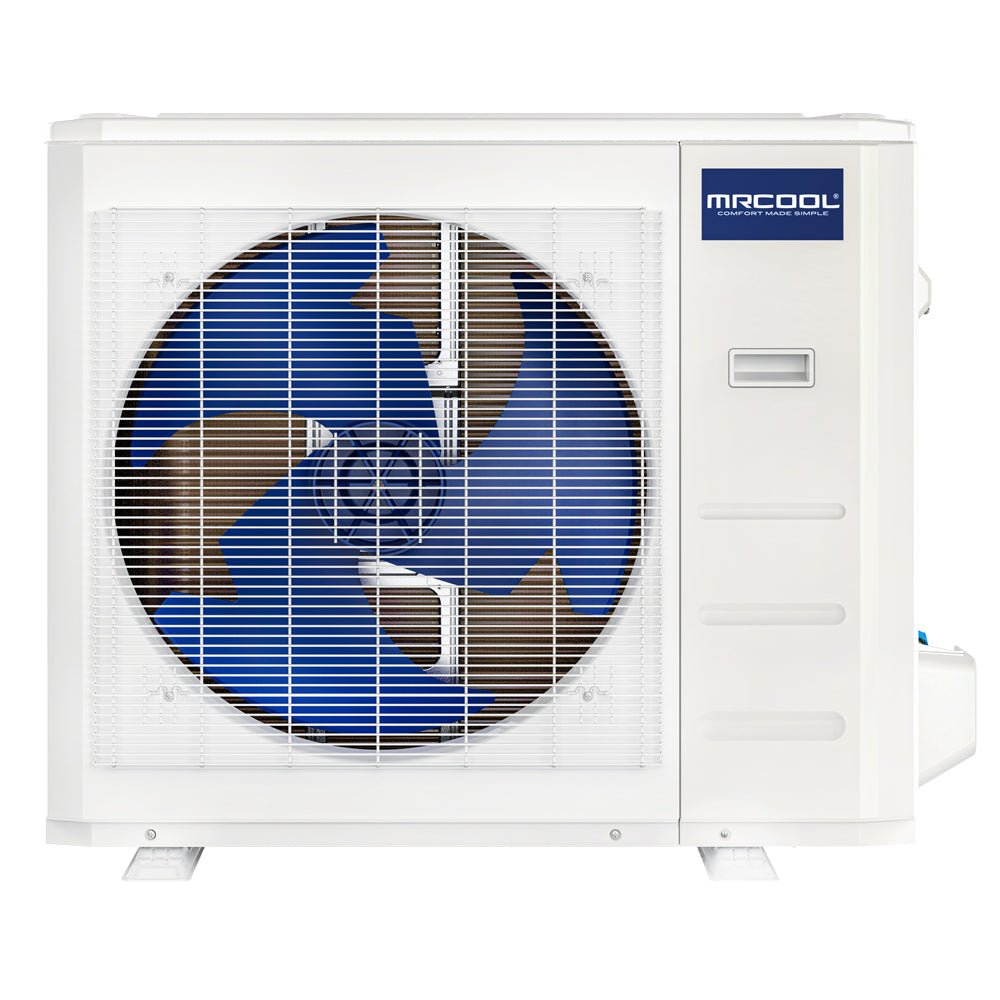

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | VersaPro |
| MODEL |
MVP-18-HP-C-230-25
|
| UNIT TYPE |
Split System Heat Pump
|
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION |
1.5 Ton MRCOOL® VersaPro® Central Ducted Condenser
|
| SEER2 | 16.6 |
| EER2 | 11.7 |
| HSPF2-4 | 10.2 |
| HSPF2-5 | 7.9 |
| CFM | 1764.71 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 17000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 30 |
| MIN CIRCUIT AMPACITY (A) | 18 |
| REFRIGERANT TYPE | R410A |
| REFRIGERANT VOLUME (OZ) | 56 |
| DECIBEL RATING (DBA) | 58 |
| MAX LINESET LENGTH (FT) | 98.42 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 810/720 |
| APP COMPATIBILITY | yes |
| AHRI CERTIFIED | yes |
| BASE PARTS WARRANTY | 10 years |
| BASE COMPRESSOR WARRANTY | 10 years |
| CONTAINS ELECTRONICS | yes |
| CONTAINS CHEMICALS | yes |
| PROPOSITION 65 WARNING | yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 94.36 |
| GROSS DEPTH (IN) | 18.11 |
| GROSS HEIGHT (IN) | 29.13 |
| GROSS WIDTH (IN) | 40.55 |
| GROSS WEIGHT (LBS) | 100.97 |

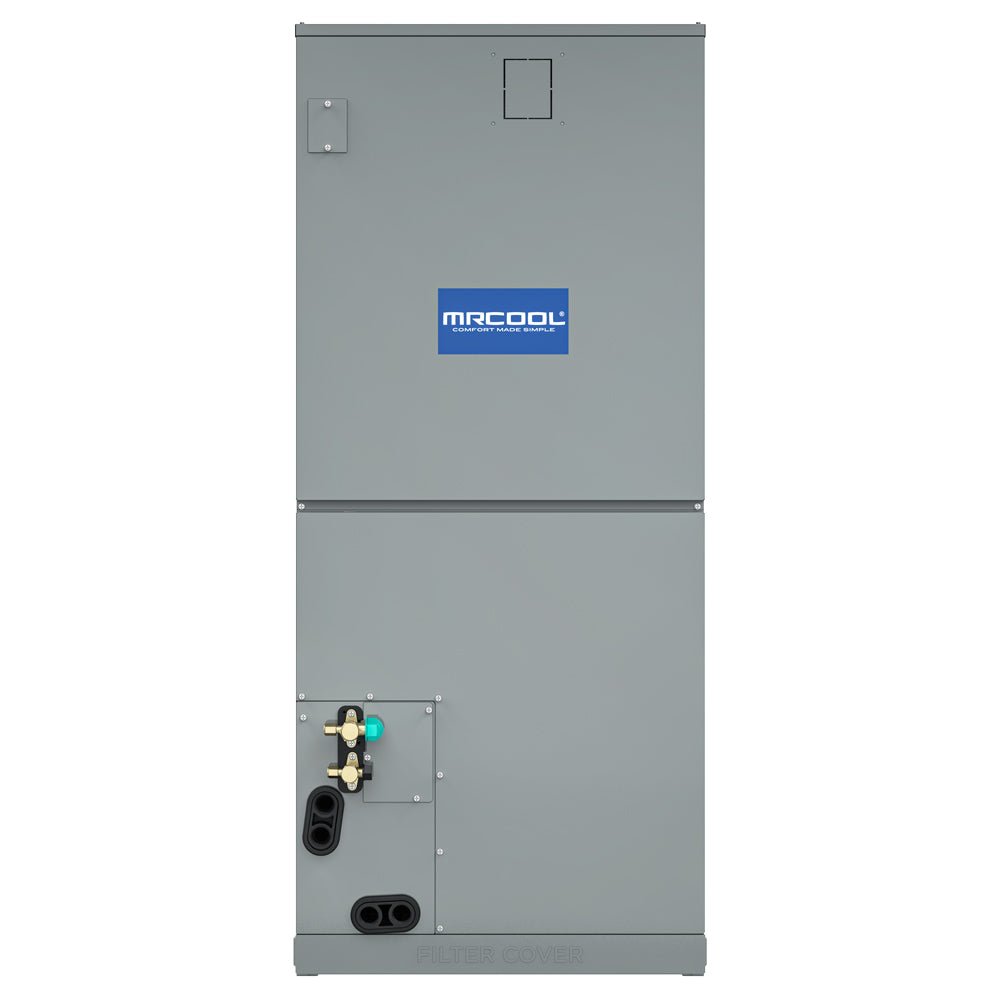

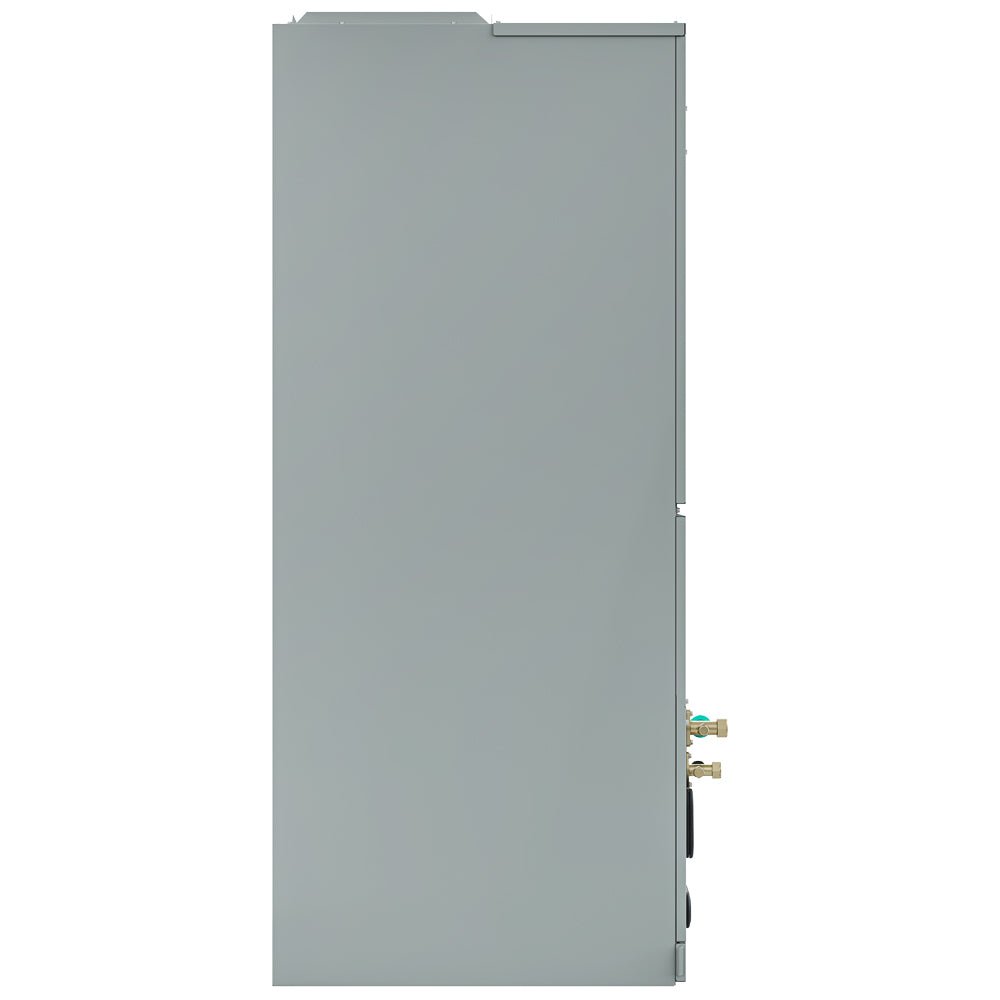

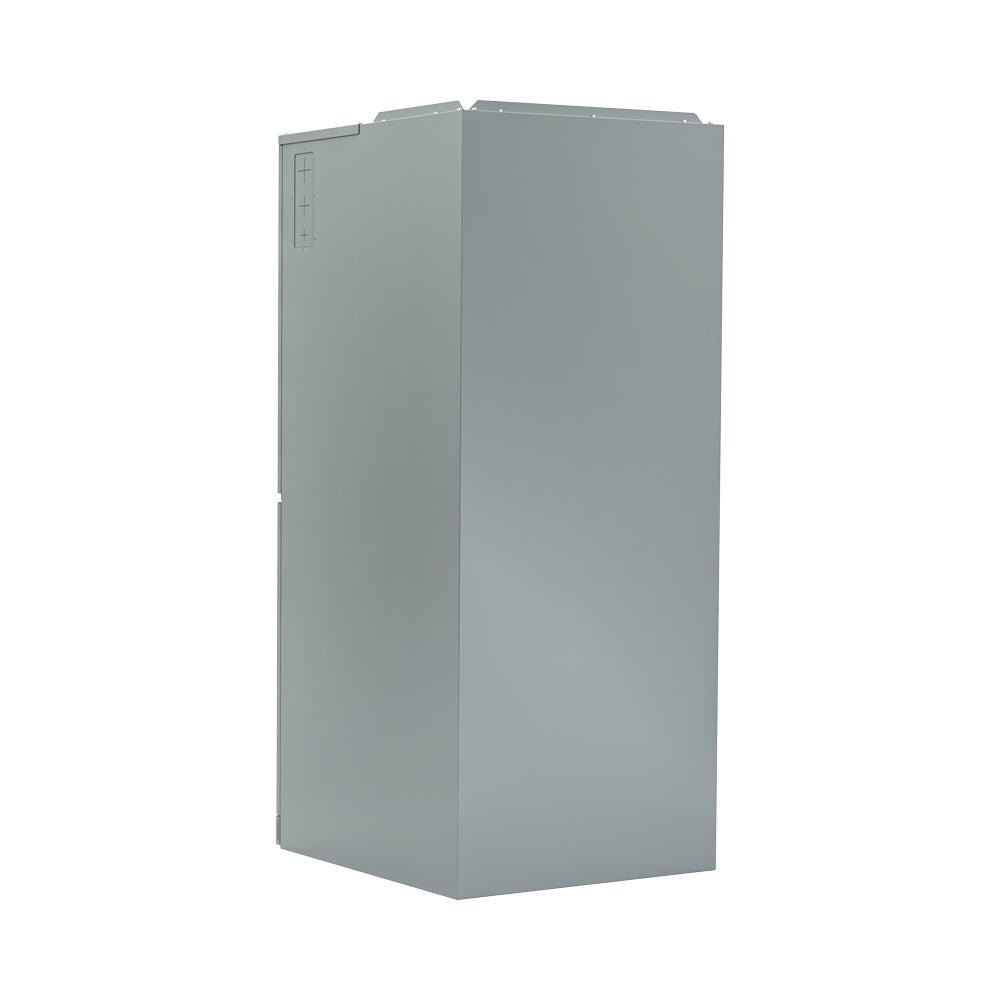

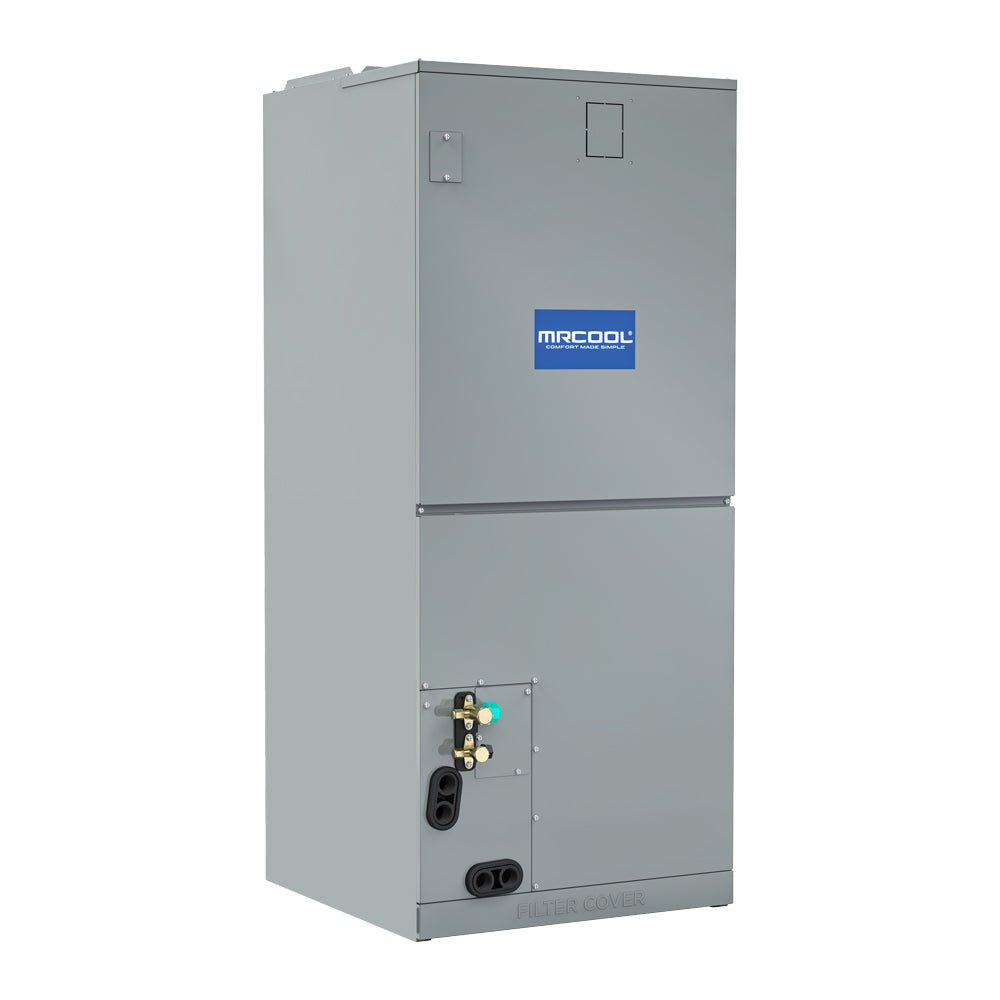

Air Handler Specifications:
| MODEL |
MVP-18-HP-MUAH-230-25
|
| GTIN | 840255577533 |
| UPC | 840255577533 |
| UNIT TYPE |
Split System Heat Pump
|
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION |
1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler
|
| CFM |
617.65/576.47/529.41/494.12
|
| TONNAGE | 1.5 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 2.5 |
| RATED LOAD | 2 |
| DECIBEL RATING (DBA) | 38.5 |
| DECIBEL RATING LOW (DBA) | 35.5 |
| DECIBEL RATING HIGH (DBA) | 39.5 |
| MAX LINESET LENGTH (FT) | 98.42 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| APP COMPATIBILITY | yes |
| AHRI CERTIFIED | yes |
| BASE PARTS WARRANTY | 10 years |
| BASE COMPRESSOR WARRANTY | 10 years |
| CONTAINS ELECTRONICS | yes |
| NET DEPTH (IN) | 21.02 |
| NET HEIGHT (IN) | 45 |
| NET WIDTH (IN) | 17.52 |
| NET WEIGHT (LBS) | 106.48 |
| GROSS DEPTH (IN) | 26.57 |
| GROSS HEIGHT (IN) | 48.62 |
| GROSS WIDTH (IN) | 20.87 |
| GROSS WEIGHT (LBS) | 131.61 |
