Product overview
MRCOOL VersaPro 30,000 BTU 2.5 Ton 17 SEER2 Central Ducted Heat Pump System
Introducing the new 2nd Gen MRCOOL VersaPro 30,000 BTU 2.5 Ton Central Ducted Heat Pump System, a variable speed 30K unit boasting an impressive SEER2 of 17 and HSPF4 of 8.5. With a DC inverter, this advanced yet affordable unit guarantees excellent operation and reduced utility costs, making it an exceptional upgrade option. The convenience of installation is further enhanced due to it's compatibility with the MRCOOL® Quick Connect® precharged line set, facilitating swift and trouble-free setup for professional HVAC technicians. The Precharged lineset is sold separately with eco-friendly R-454B refrigerant, which eliminates the need for vacuuming and ensures a seamless connection. This unit features a robust build and finish utilizing painted galvanized steel, ensuring longevity. Additionally, the condenser has a compact, side-discharge design and self-diagnostic capabilities simplify maintenance efforts. Moreover, the 10-year parts and compressor warranty offers added peace of mind and provides hassle-free coverage in the event of unexpected issues.

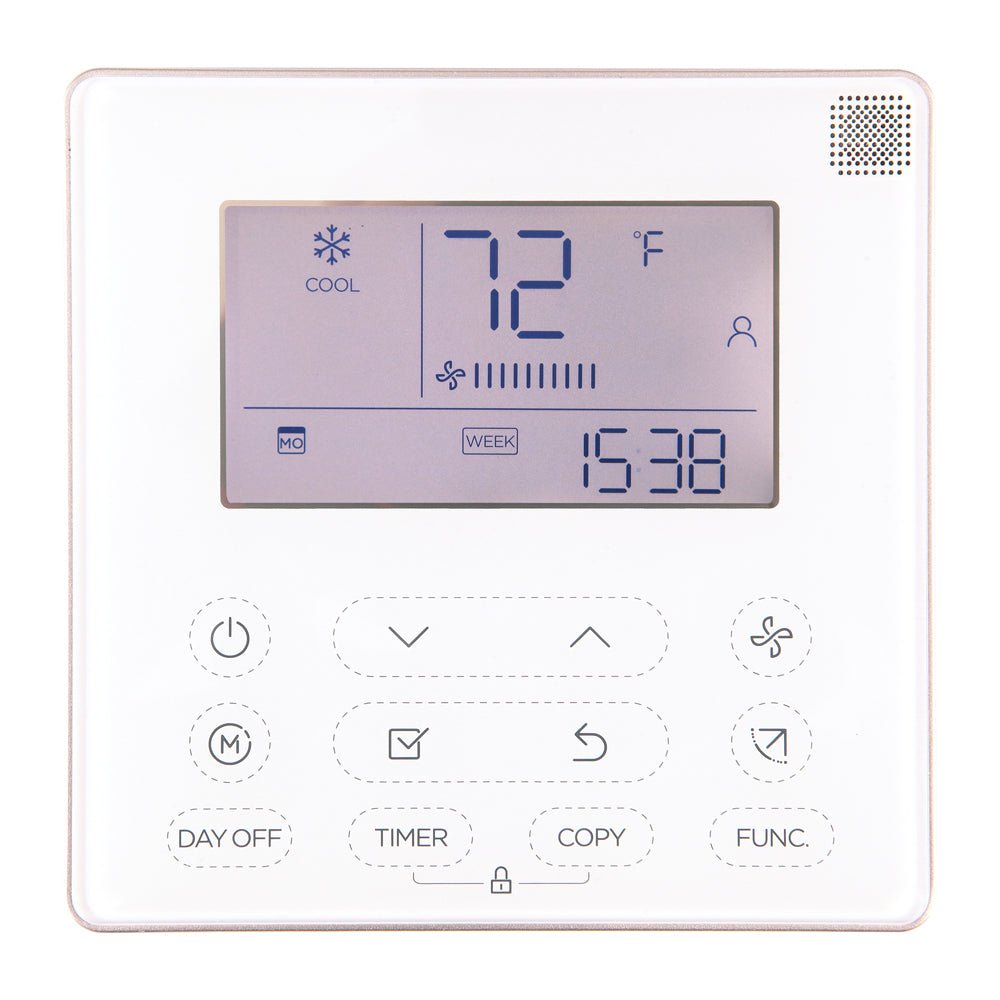

The MRCOOL VersaPro 30K presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 1,250 square feet of space and boasting a SEER2 rating of 17, this heating and cooling system serves as a dependable upgrade from older units. Constructed with durable painted galvanized steel, this air handler ensures long-term performance and reliability. Its easily accessible removable filter and self-diagnostics panel simplify maintenance tasks by facilitating quick identification of error codes. Installation versatility is a key feature of the 2.5 Ton MRCOOL® VersaPro Central Ducted System, allowing for positioning in various configurations such as upflow, downflow, and horizontal orientations. Additionally, an optional heat kit is available for enhanced functionality. Furthermore, the inclusion of a wired thermostat offers convenient and reliable temperature control in any space. Investing in the 2.5 Ton MRCOOL® VersaPro Central Ducted System comes with the added assurance of a 10-year parts and compressor warranty provided by MRCOOL®, offering comprehensive coverage and enhancing ease of ownership.

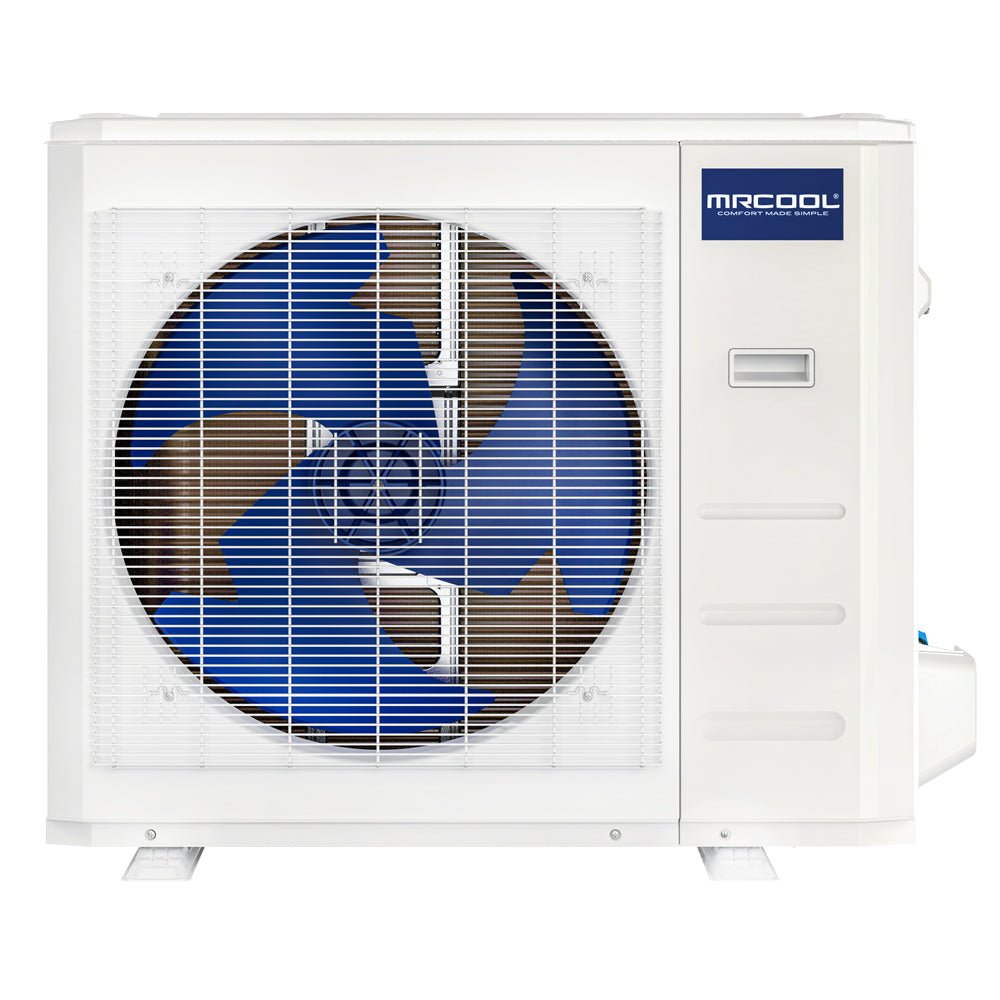

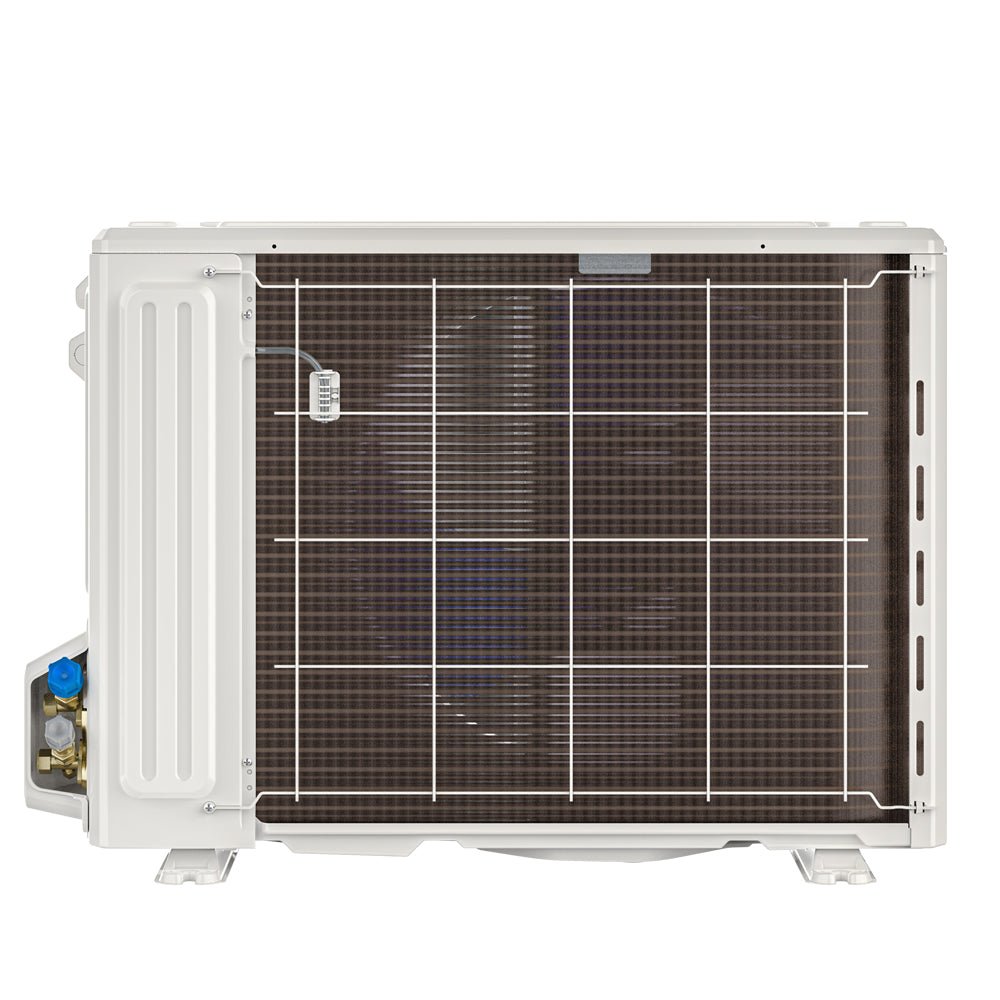

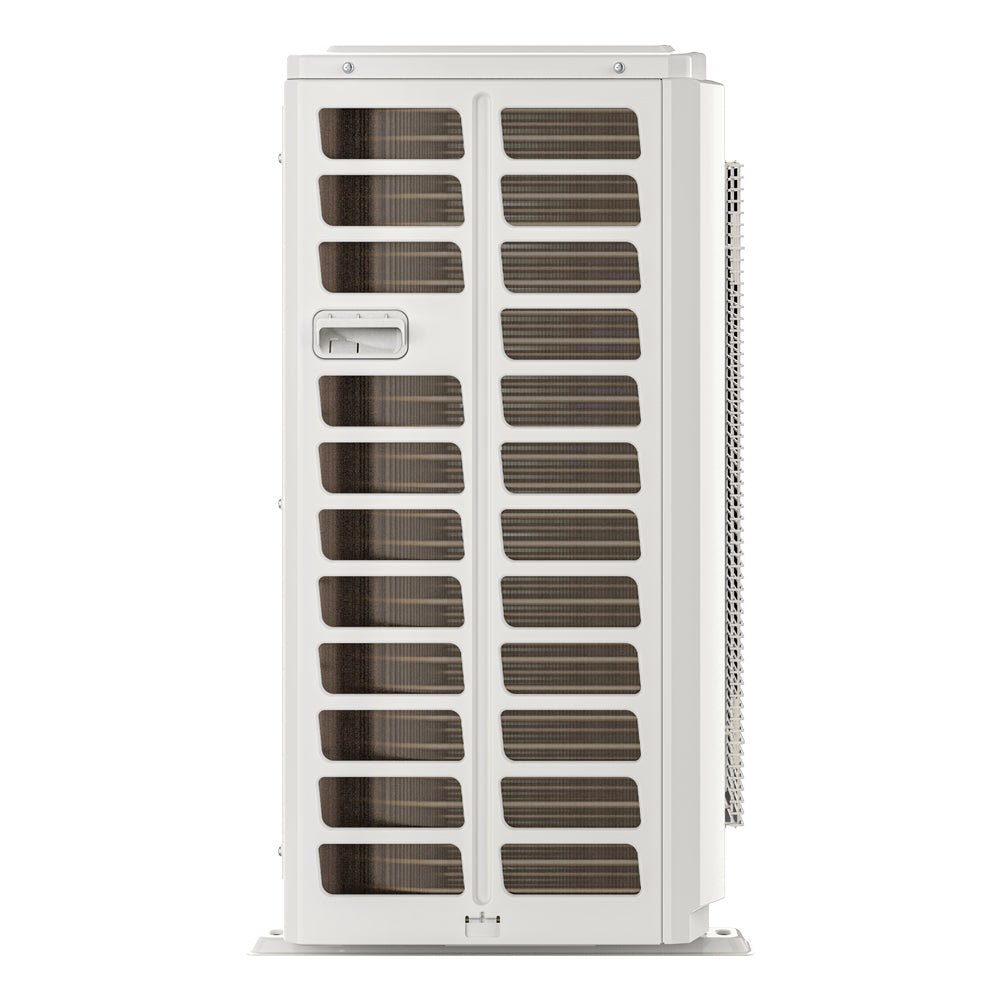

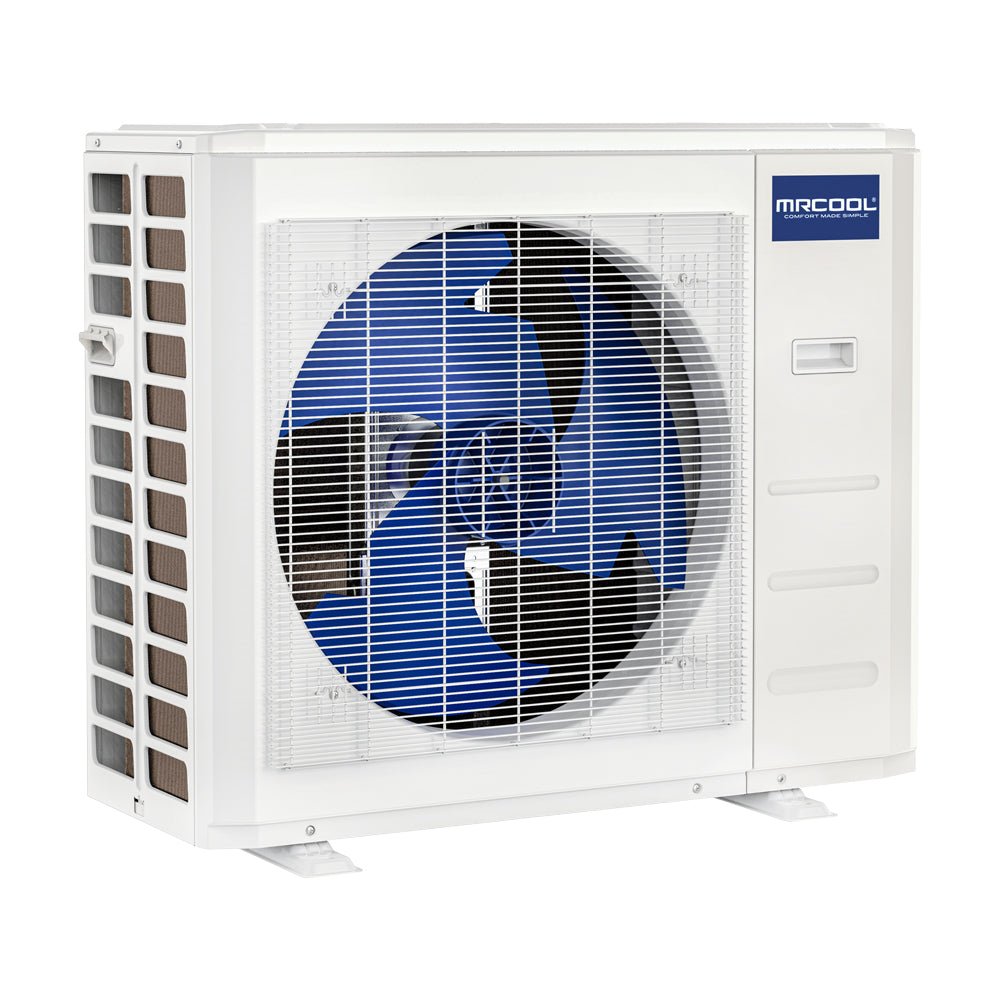

Condenser Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Condenser |
|
MODEL |
MVP-30-HP-C-230A00-O |
|
GTIN |
00840255582704 |
|
UPC |
840255582704 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser |
|
LONG DESCRIPTION |
Upgrading your HVAC system doesn’t have to be complicated. The 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a simple, cost-effective solution to meet your home’s heating and cooling needs year-round. With a 30k capacity and a variable-speed design, this unit provides a SEER2 rating of 17 and an HSPF4 rating of 8.5, ensuring it’s both energy-efficient and effective. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, this system delivers reliable performance, adjusting to your home’s heating and cooling demands. The advanced DC inverter technology helps optimize energy usage and minimize utility costs. A MRCOOL® Smart thermostat is also included, ensuring simple and effective temperature management. The VersaPro® condenser also focuses on sustainability, using eco-friendly R-454B refrigerant. Its durable, painted galvanized steel construction ensures long-lasting reliability, while the compact side-discharge design makes installation easier, even in tight spaces. Built-in self-diagnostic features further simplify maintenance, helping you avoid unnecessary service calls. To give you peace of mind, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This means you can rely on its performance for years to come, knowing your investment is protected. Upgrade today and experience a more efficient, hassle-free way to maintain comfort in your home. |
|
SEER2 |
17 |
|
EER2 |
10.7 |
|
HSPF-4 |
8.5 |
|
HSPF-5 |
6.6 |
|
CFM |
3001.8 |
|
TONNAGE |
2.5 |
|
COOLING CAPACITY (BTU) |
30000 |
|
HEATING CAPACITY (BTU) |
31000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
25 |
|
MIN CIRCUIT AMPACITY (A) |
22.5 |
|
COLOR |
Gray |
|
REFRIGERANT TYPE |
R454B |
|
REFRIGERANT VOLUME (OZ) |
91.71 |
|
DECIBEL RATING (DBA) |
60 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
16.14 |
|
NET HEIGHT (IN) |
31.89 |
|
NET WIDTH (IN) |
37.24 |
|
NET WEIGHT (LBS) |
141.76 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
34.84 |
|
GROSS WIDTH (IN) |
42.91 |
|
GROSS WEIGHT (LBS) |
152.34 |

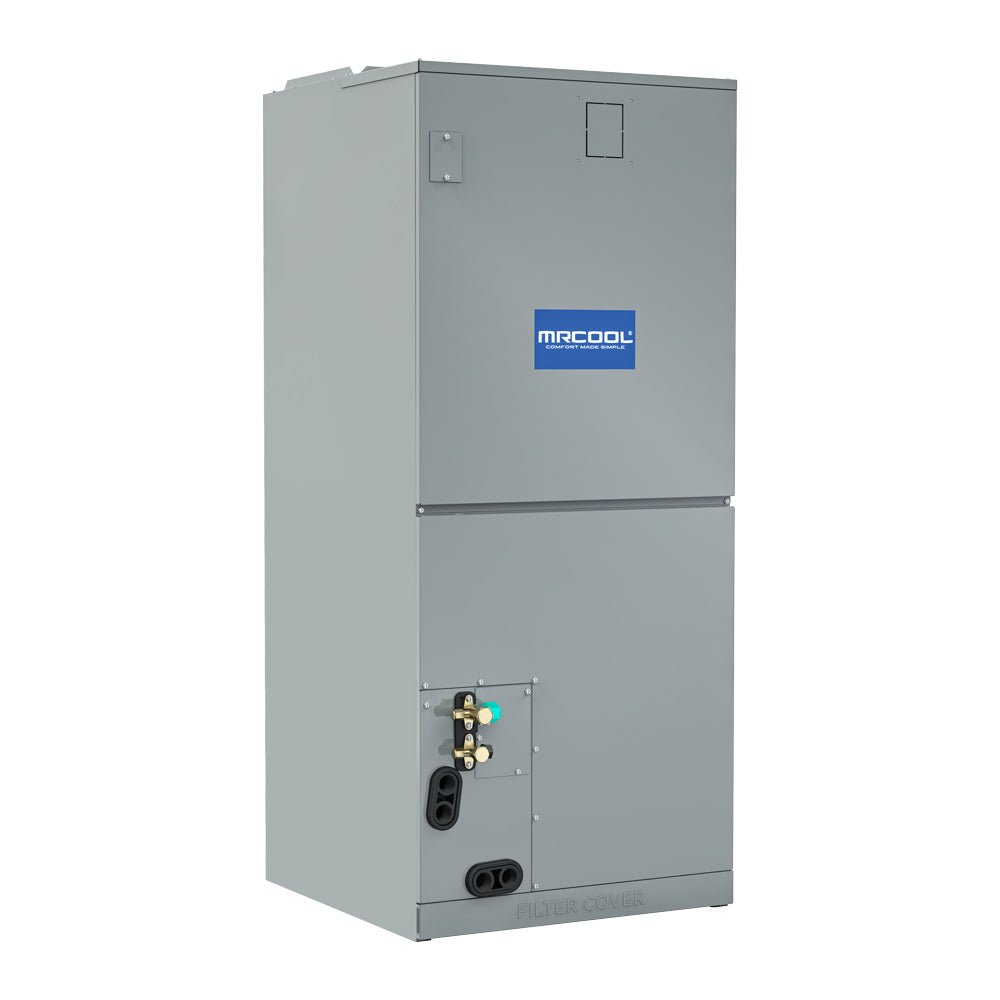

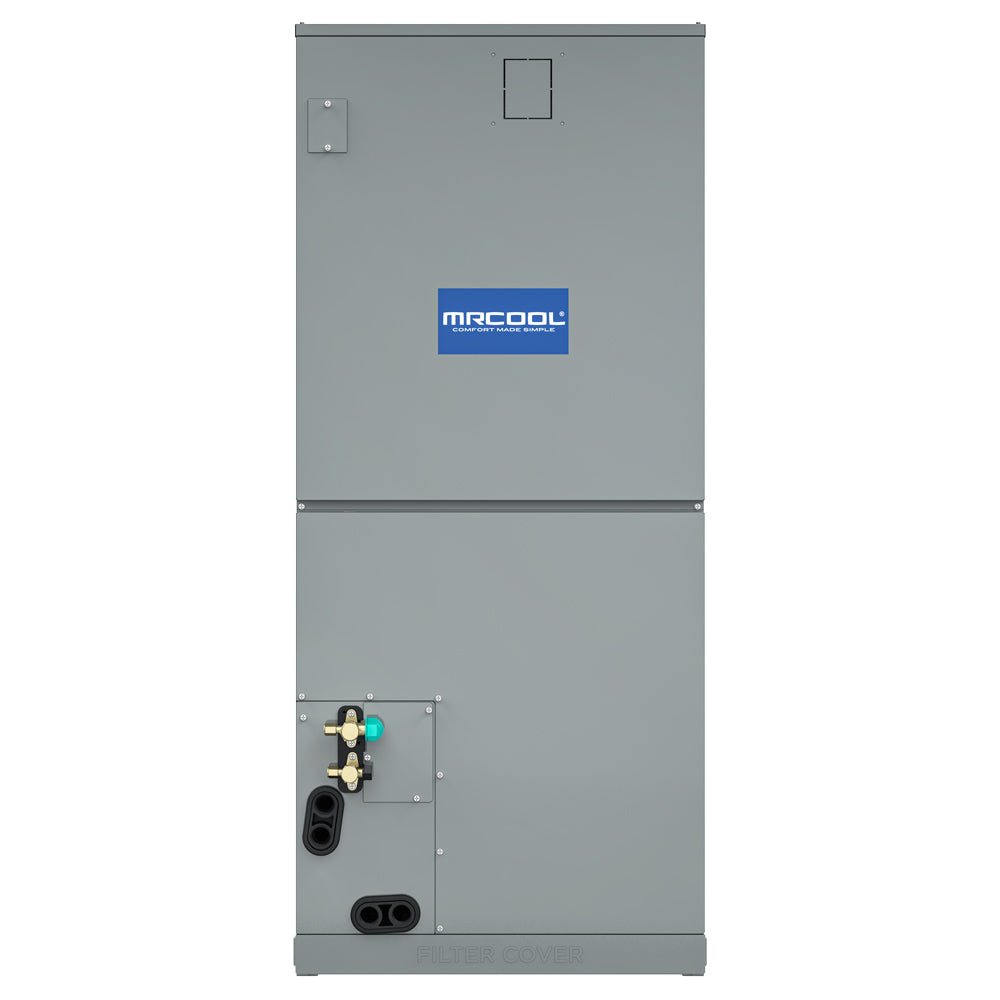

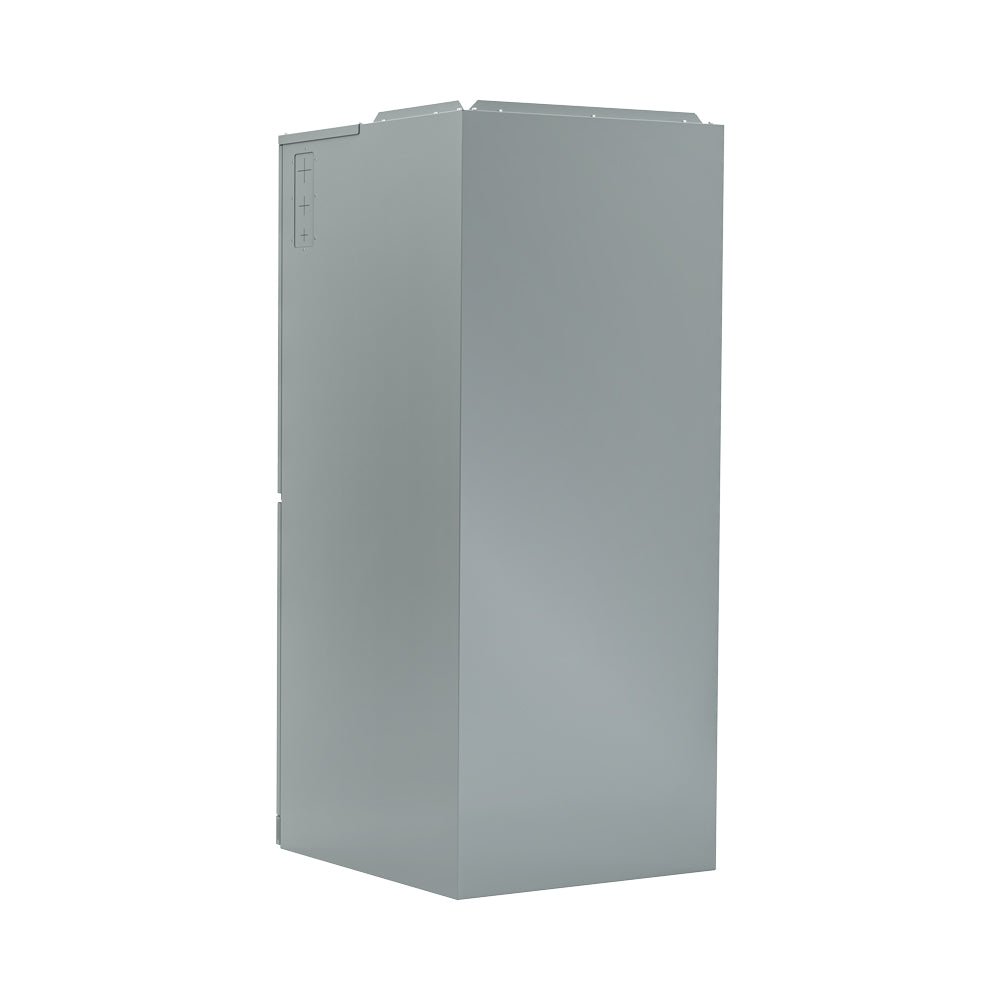

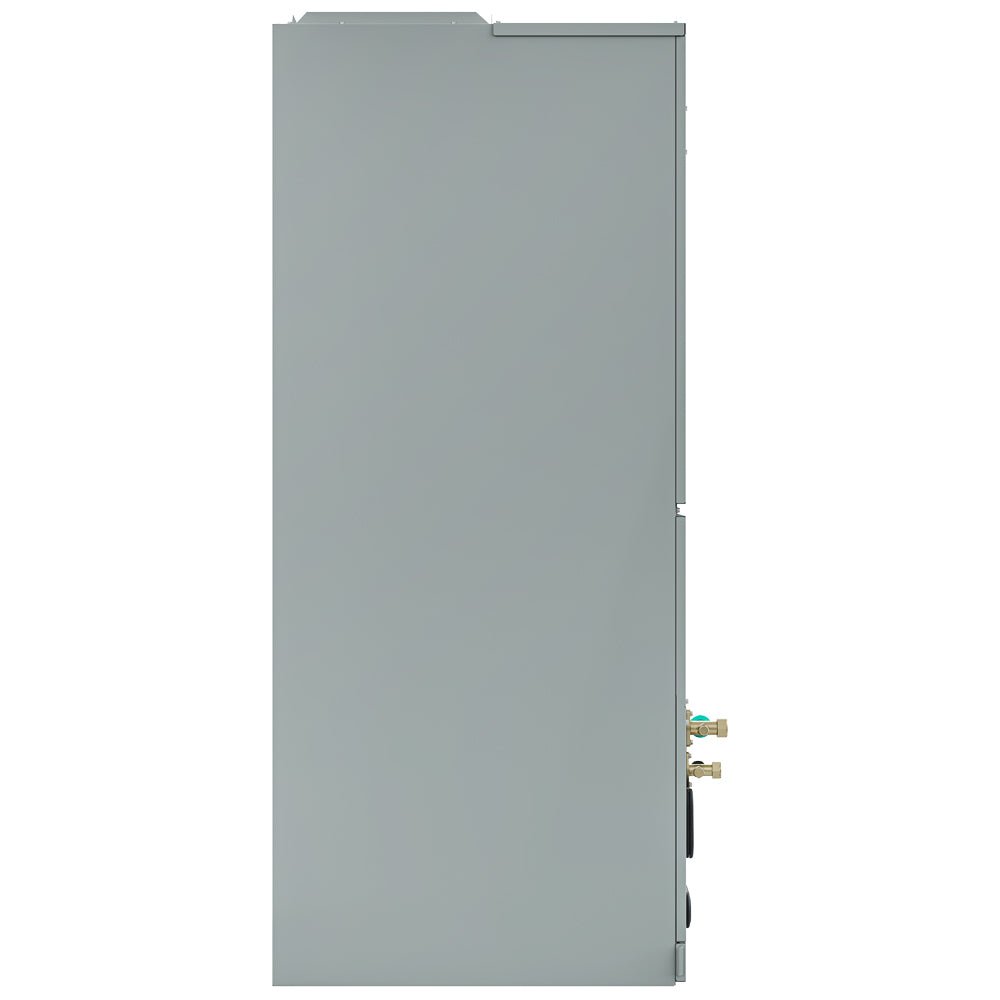

Air Handler Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-30-HP-MUAH-230A00-O |
|
GTIN |
00840255586467 |
|
UPC |
840255586467 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime. This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available. The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone. Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system. |
|
CFM |
988.85/894.67/806.38/712.21 |
|
TONNAGE |
2.5 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8.0/6.0 |
|
COLOR |
Gray |
|
DECIBEL RATING LOW (DBA) |
29 |
|
DECIBEL RATING HIGH (DBA) |
46 |
|
MAX LINESET LENGTH (FT) |
164 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
19x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
21.02 |
|
NET HEIGHT (IN) |
49.02 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
128.97 |
|
GROSS DEPTH (IN) |
26.57 |
|
GROSS HEIGHT (IN) |
52.56 |
|
GROSS WIDTH (IN) |
24.41 |
|
GROSS WEIGHT (LBS) |
153.44 |
