Product overview
Summary
- High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

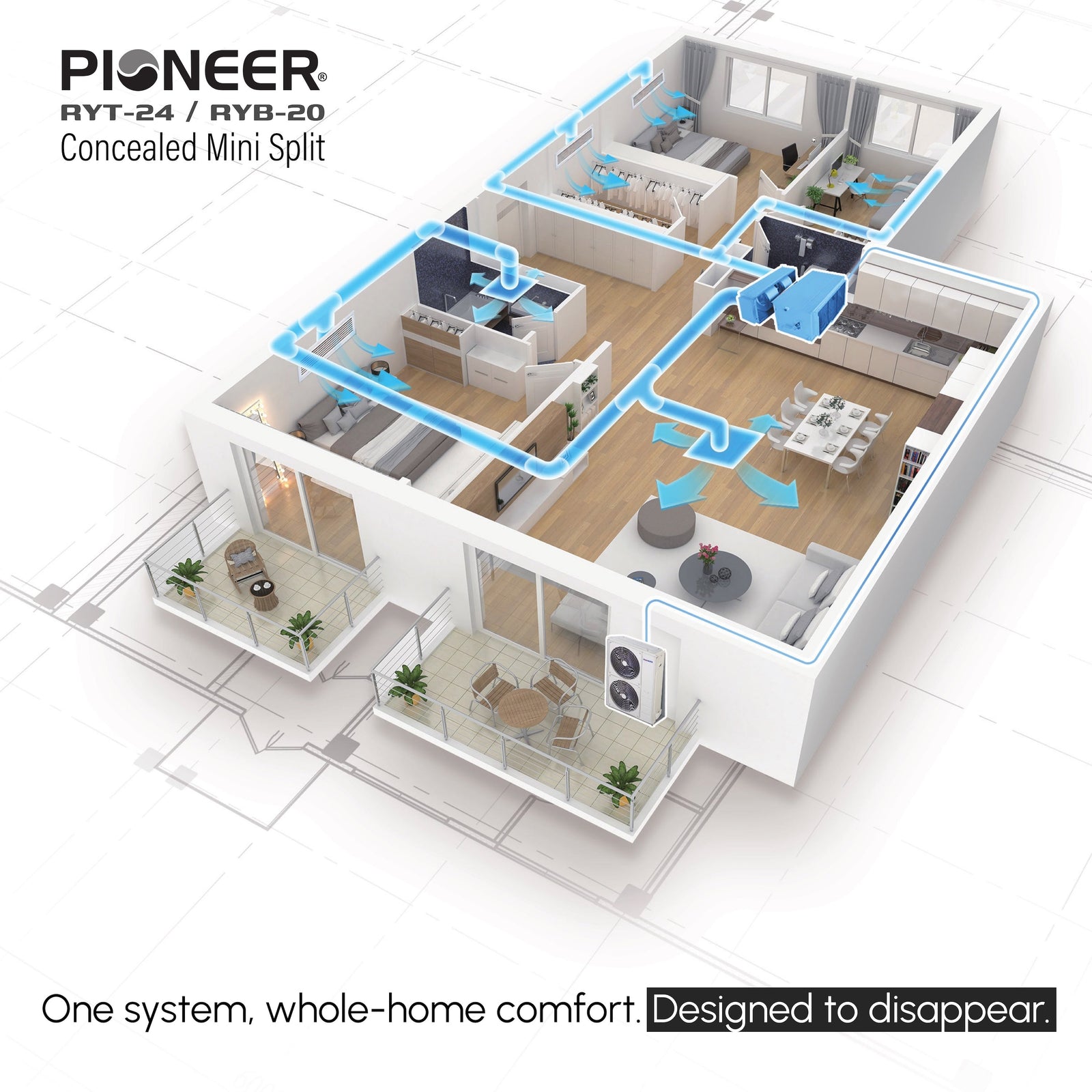

- Slim-Duct Ceiling Concealed Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

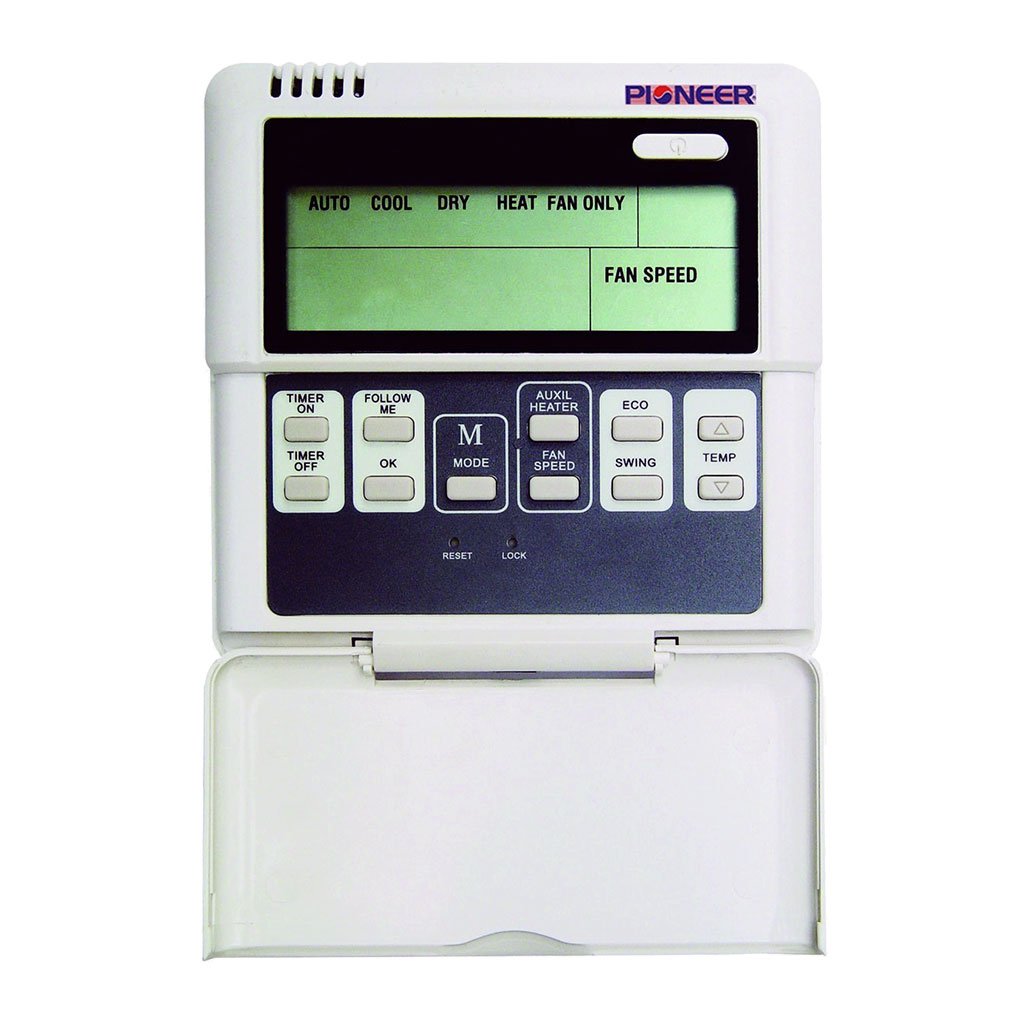

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 7,900~42,500 BTU/h
- Cooling SEER2: 18.7 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Heating Rated Capacity: 40,000 BTU/h
- Heating Capacity Range: 8,100~43,500 BTU/h
- Heating HSPF2 (Region IV/V): 10.2 / 7.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.7 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,000~1,400 sq ft
- Minimum Room Size: 104 sq ft
- Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010993
-

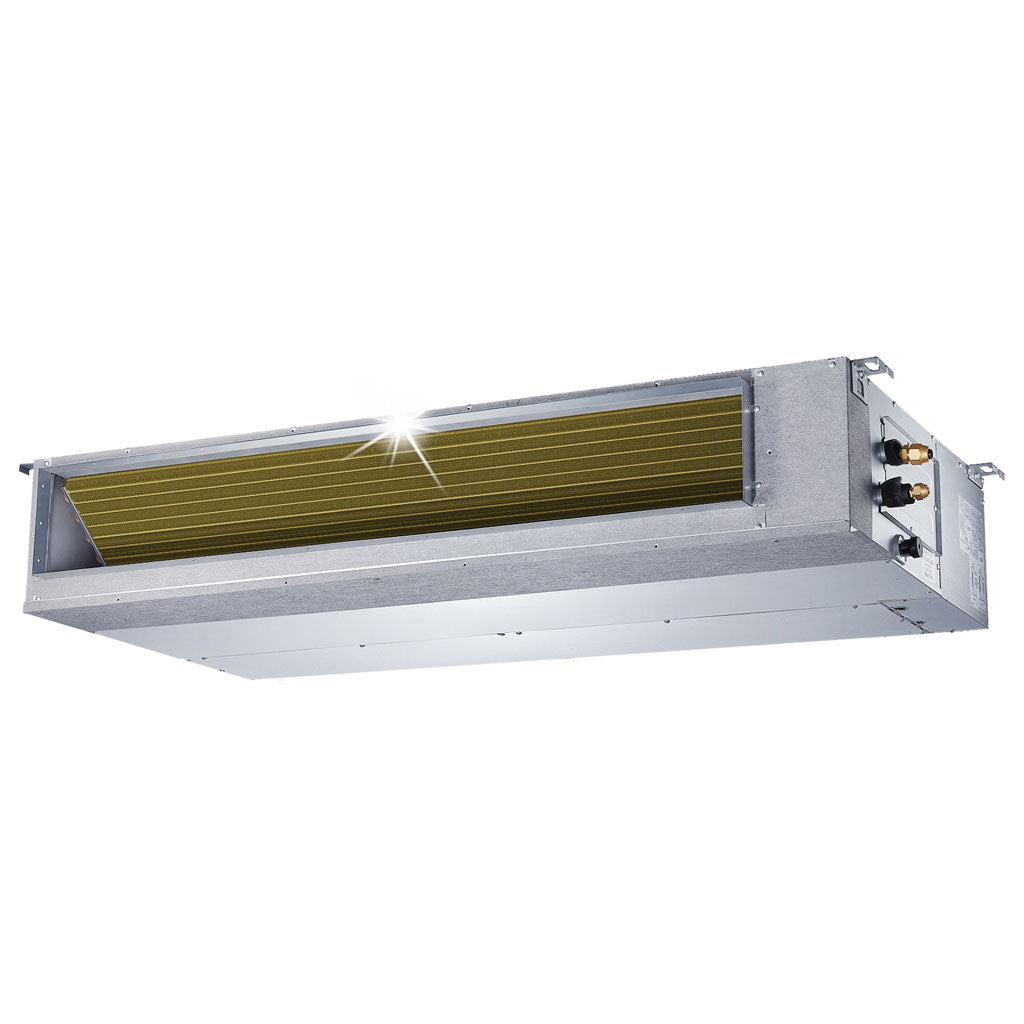

Indoor Unit
- Part Number: RB036GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,235 / 1,059 / 941 / 765 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 39.5 / 33 / 30 dB(A)
- Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
- Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
- Net / Gross Weight: 106.3 / 120.3 lbs
-

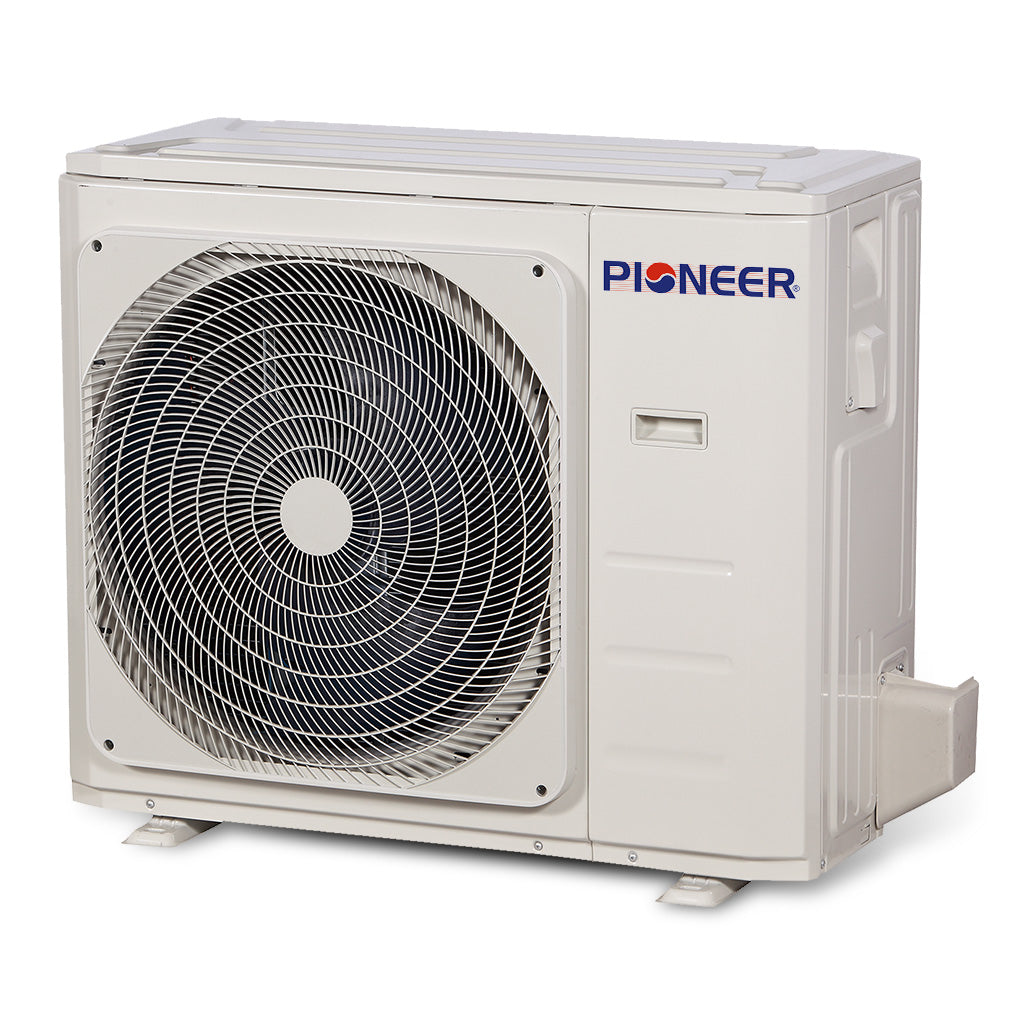

Outdoor Unit
- Part Number: YN036GMSI20RUG
- Breaker Needed: 40A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
- Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
- Net / Gross Weight: 152.4 / 162.5 lbs
Dimension Chart
