Product overview

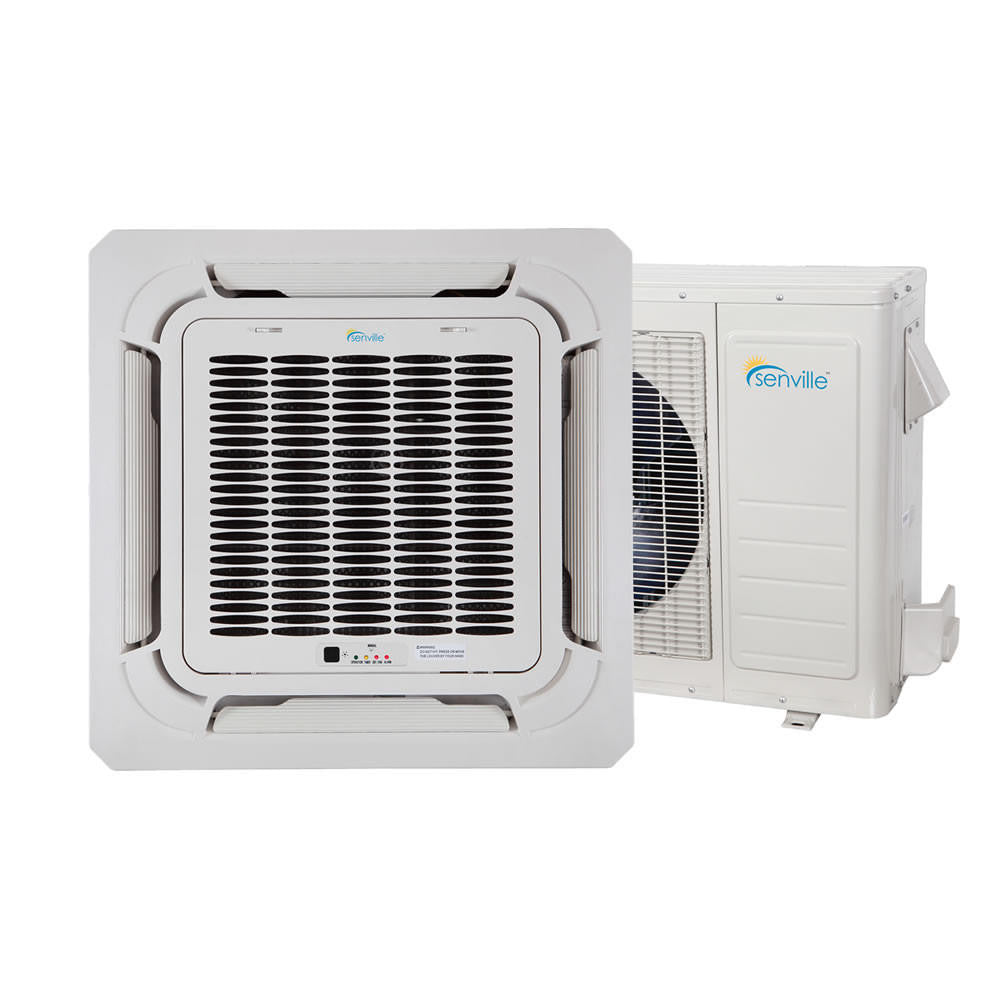

Senville 18,000 BTU 20 SEER2 Square Ceiling Cassette Air Conditioner - Heat Pump - 230V
Senville SENA-18HF/IC is a high-efficiency 18000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features:
|
20 SEER2 ENERGY STAR Save up to 40% on energy costs annually. |
Heating down to -30°C (-22°F) Reliable performance in extreme cold. |
|
Ultra-Quiet Operation Whisper-quiet for bedrooms & offices. |
Professional Installation Required to maintain warranty coverage. |
What's Included:

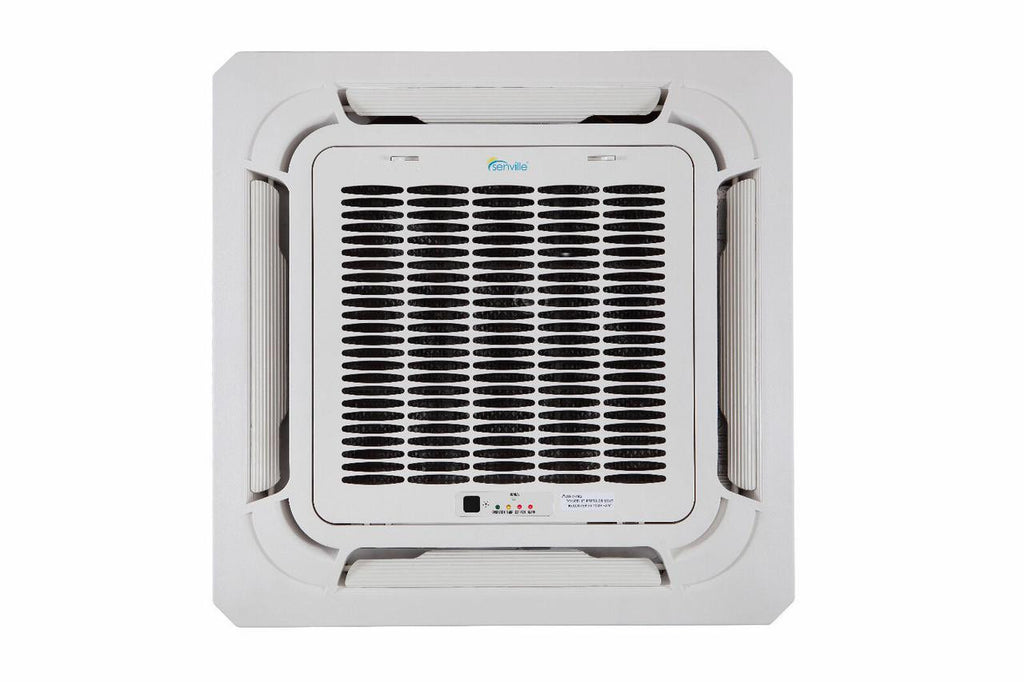

- Indoor Unit (Ceiling Cassette)

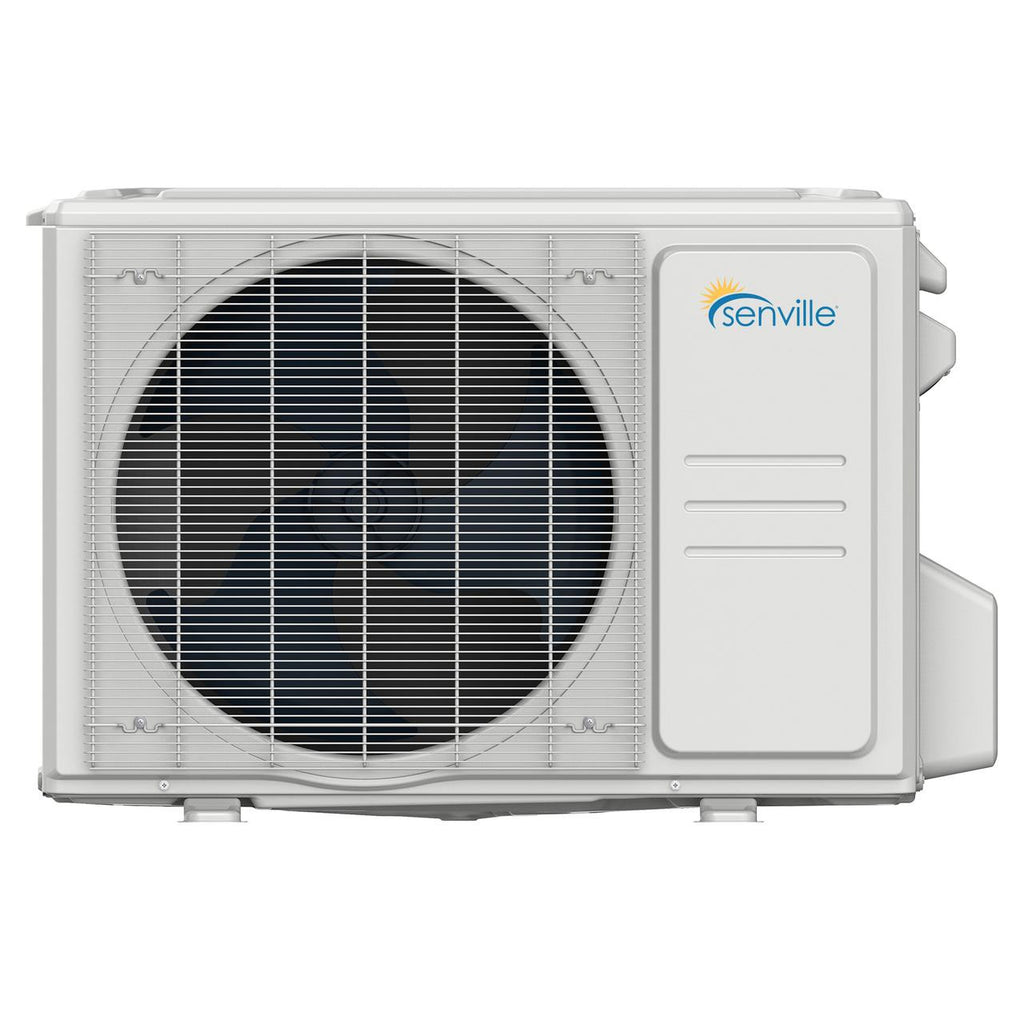

- Outdoor Unit

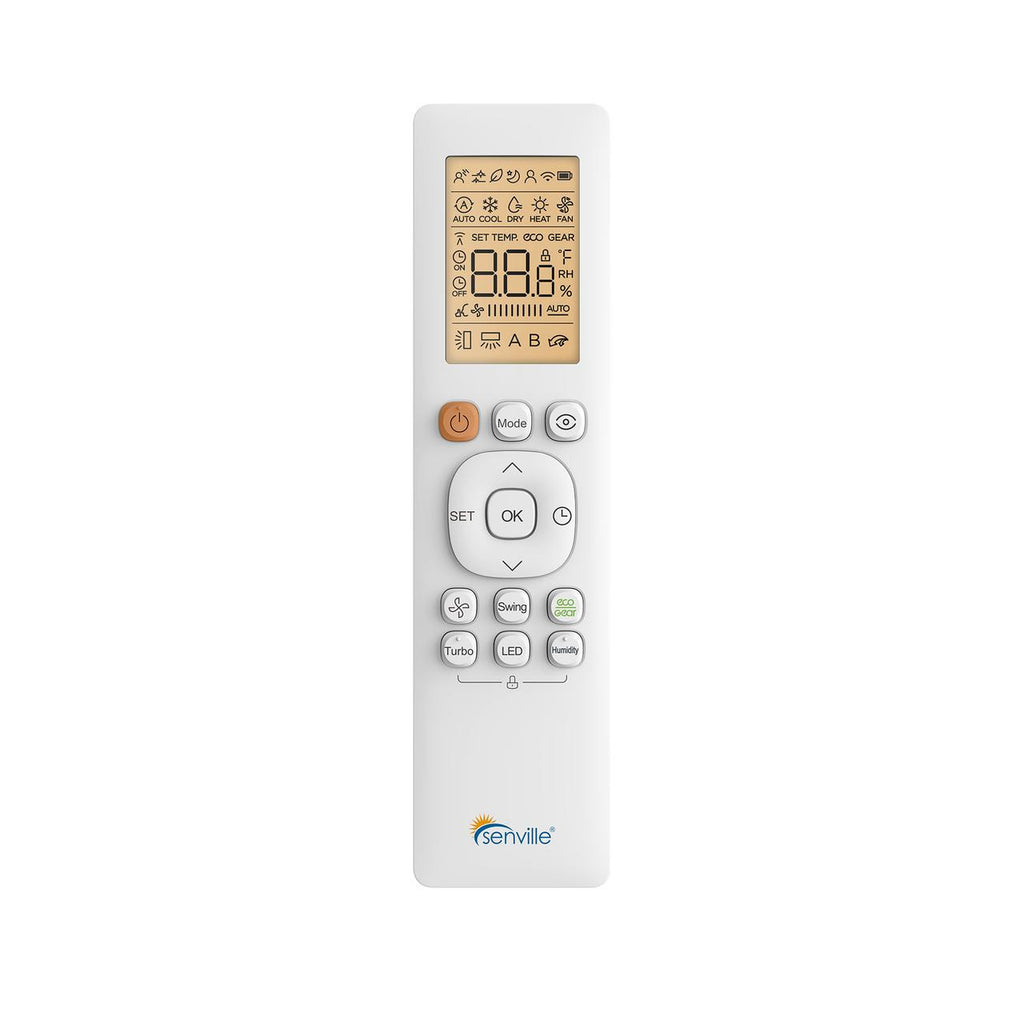

- Wireless Remote Control

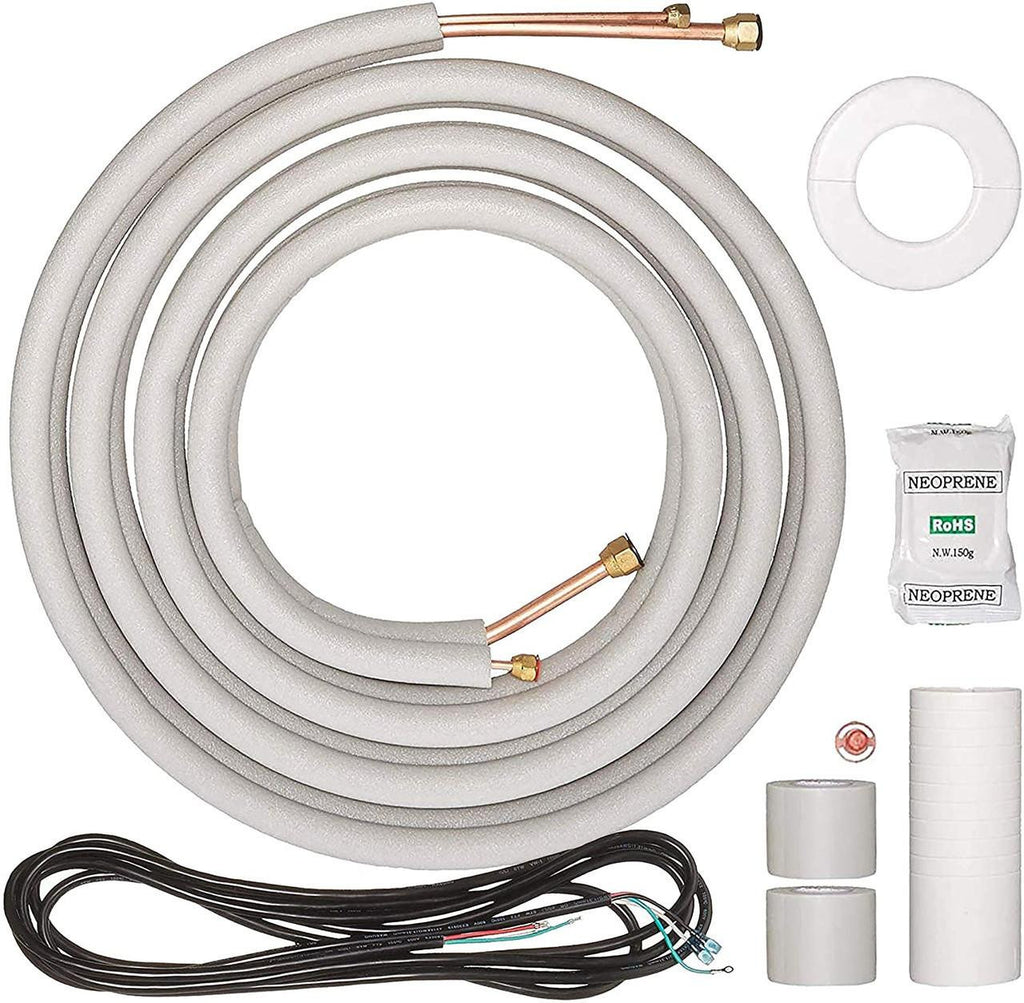

- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Documentation and Certifications:
- AHRI Certified (View Certificate)
- EnergyGuide (View EnergyGuide Label)
- Installation Manual (View Installation Manual)
- Service Manual (View Service Manual)
Specifications:
| Model Number | SENA-18HF-IC |
| Style | Ceiling Cassette Mini Split AC With Heat Pump |

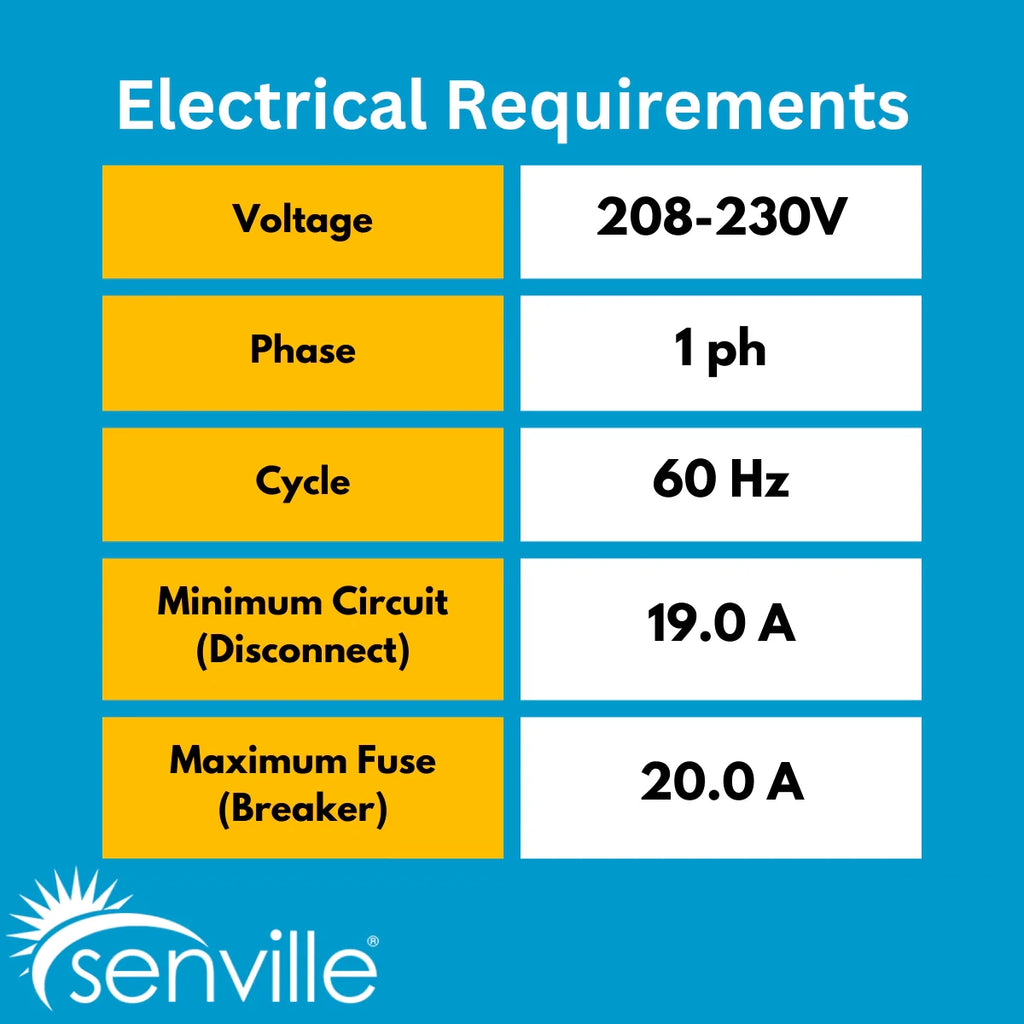

| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 20 |
| EER2 | 12.5 |

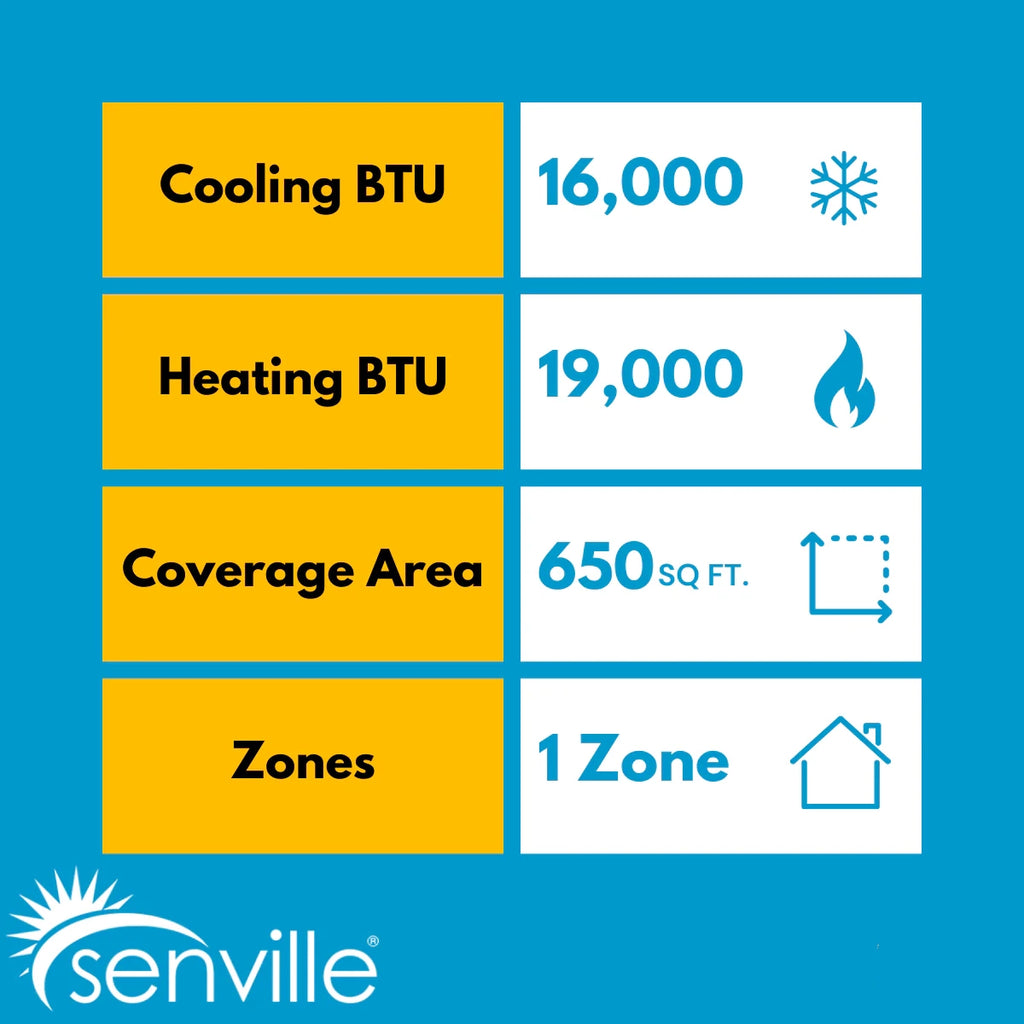

| Cooling Capacity (BTU) | 16000 |
| Cooling Range (BTU) | 7000~18500 |
| Cooling Input Range (W) | 320~1640 |
| Cooling Current Range (A) | 2.3~7.2 |
| Heating Capacity (BTU) | 19000 |
| Heating Range (BTU) | 8700~20000 |
| Heating Input Range (W) | 500~1950 |
| Heating Current Range (A) | 3.5~12.0 |
| HSPF2-4 | 12.3 |
| HSPF2-5 | 9.5 |
| COP W/W | 3.18 |
| Minimum Circuit Ampacity (A) | 19 |
| Max. Fuse (A) | 20 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 447.3 / 388.5 / 317.8 / 194.2 |
| Indoor Noise Level (Turbo/H/M/L) dB | 48 / 44.5 / 41.0 / 27.5 |
| Indoor Dimensions (WxDxH) (in.) | 22.44 x 22.44 x 9.65 |
| Indoor Weight | 35.27 Lbs. |
| Moisture Removal (L/H) | 2 |
| Outdoor Air Flow (Max) CFM | 1765.8 |
| Outdoor Noise Level dB | 57.5 |
| Outdoor Dimensions (WxDxH) (in.) | 35.04 x 13.46 x 26.50 |
| Outdoor Weight | 99.87 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 55.38 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
