Product overview

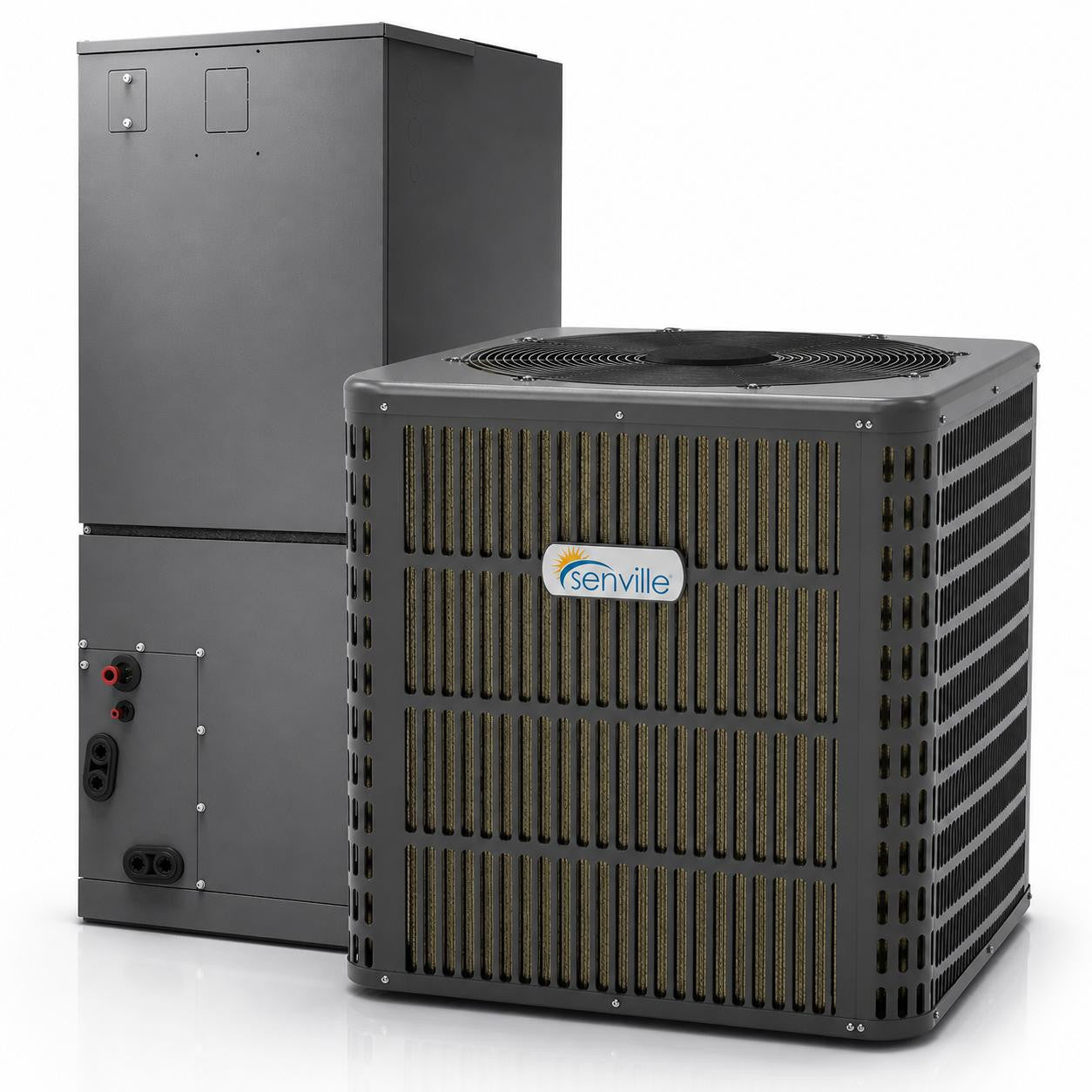

Senville 5 Ton 17.1 SEER2 Central AC Unit Heat Pump - Top Discharge - R-32 - 230V
Built for large homes and light commercial applications, this 5 ton inverter central heat pump delivers high-capacity airflow and dependable heating and cooling from a space-efficient top-discharge outdoor unit.
Key Features
- 5 ton / 60,000 BTU-class ducted central heat pump
- 17.1 SEER2 efficiency
- Heating and cooling from one inverter-driven system

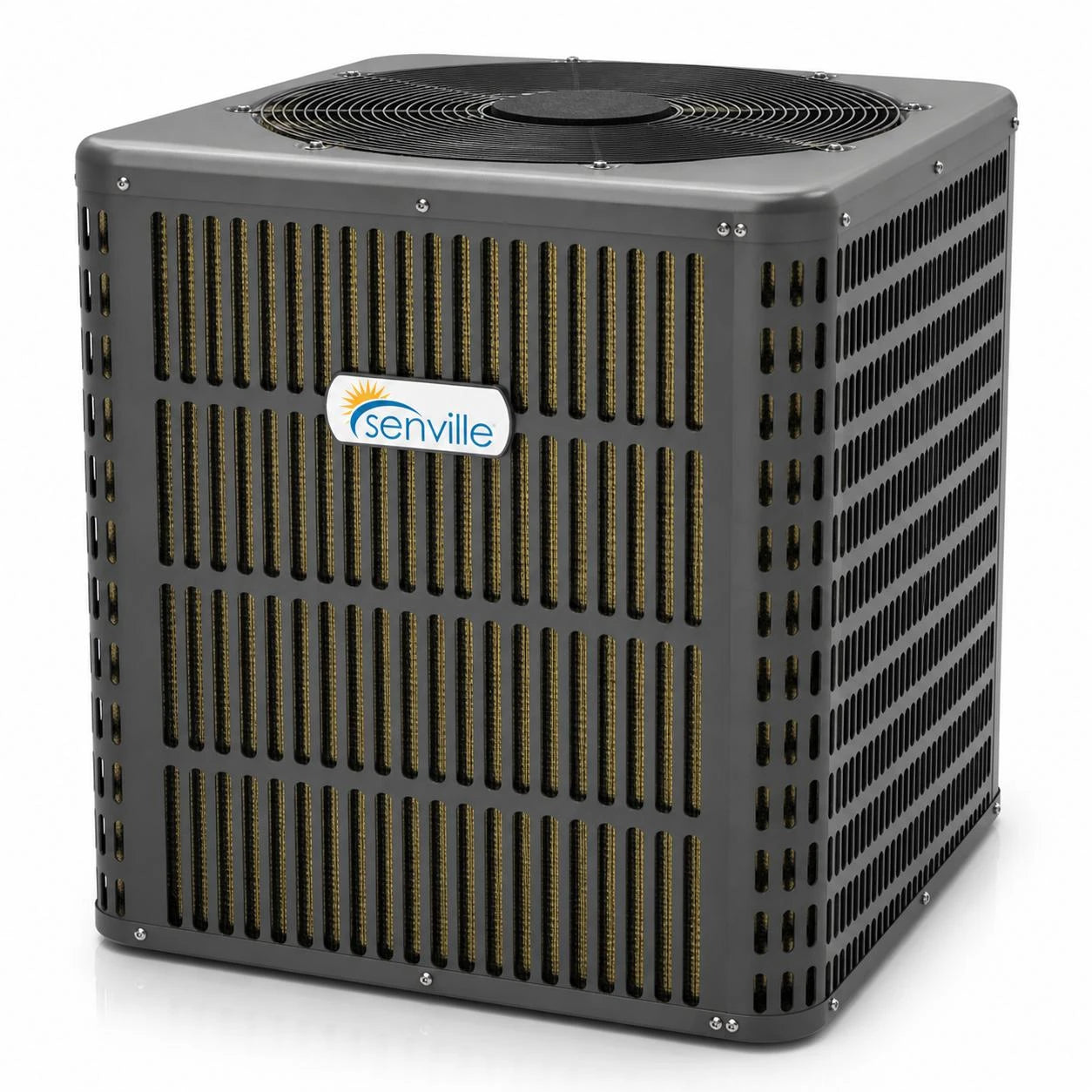

- Top-discharge outdoor unit
- Heating operation down to -4°F
- R-32 refrigerant
- 208/230V single-phase power
Specifications
| Model | SENTC-60TD |
| SEER2 / EER2 | 17.1 / 10.0 |
| HSPF2-4 / COP | 8.7 / 3.31 |
| Rated Cooling / Heating Capacity | 55,000 / 57,000 BTU/h |
| Cooling Capacity Range | 14,000-55,000 BTU/h |
| Heating Capacity Range | 13,400-55,000 BTU/h |
| Operating Range | Cooling: 5-131°F; Heating: -4-75°F |
| Power Supply | 208/230V, 60Hz, 1-phase |
| Indoor MCA / MOP | 7 A / 15 A |
| Outdoor MCA / MOP | 39 A / 40 A |
| Refrigerant | R-32 |
| Liquid / Gas Line | 3/8 in. / 3/4 in. |
| Maximum Pipe Length | 246 ft. |

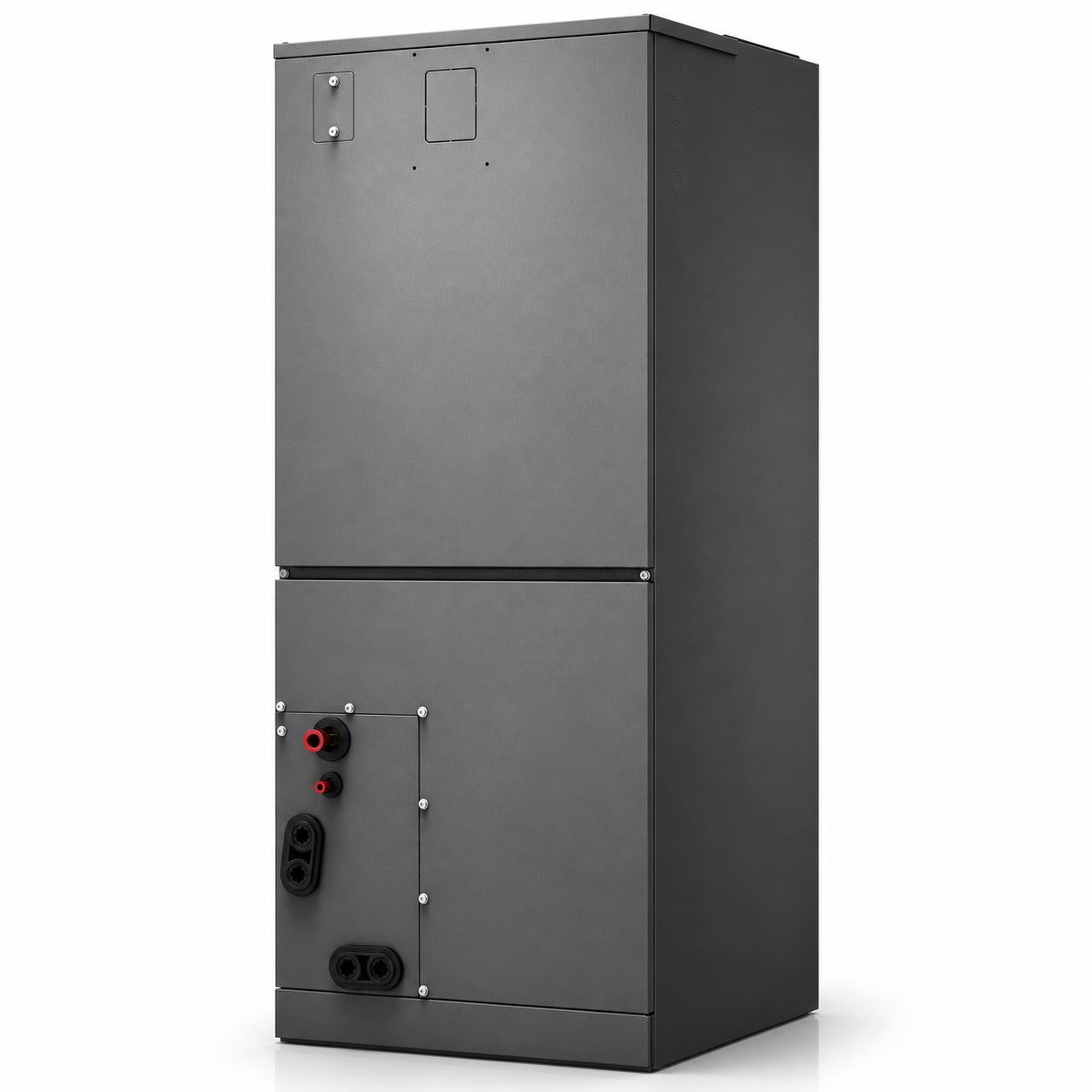

| Indoor Dimensions (W x D x H) | 24-31/64 x 21-1/32 x 52-63/64 in. |
| Outdoor Dimensions (W x D x H) | 29-9/64 x 29-9/64 x 32-7/8 in. |
Professional installation is required. Equipment sizing, duct design, electrical requirements, and refrigerant adjustments must be confirmed by a licensed HVAC professional.
