Product overview

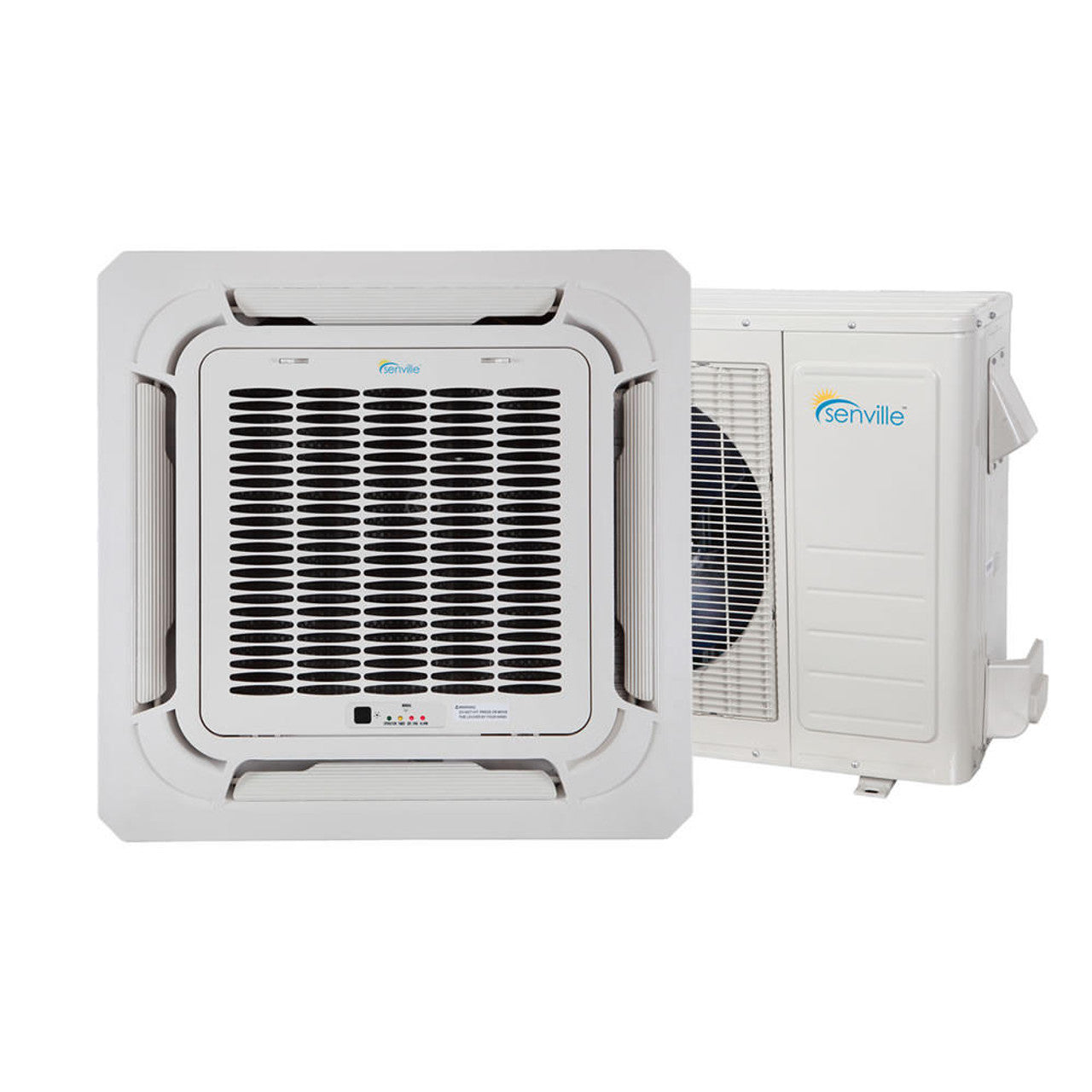

Senville AURA 24,000 BTU Ceiling Cassette Single Zone Ductless Mini Split - 230V - 20.7 SEER2 - Energy Star
Senville SENA-24HF/IC is a high-efficiency 24000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business. Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
Features:
- 21.4 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Alexa Enabled Smart Control
- Ultra-Quiet Operation
What's Included:

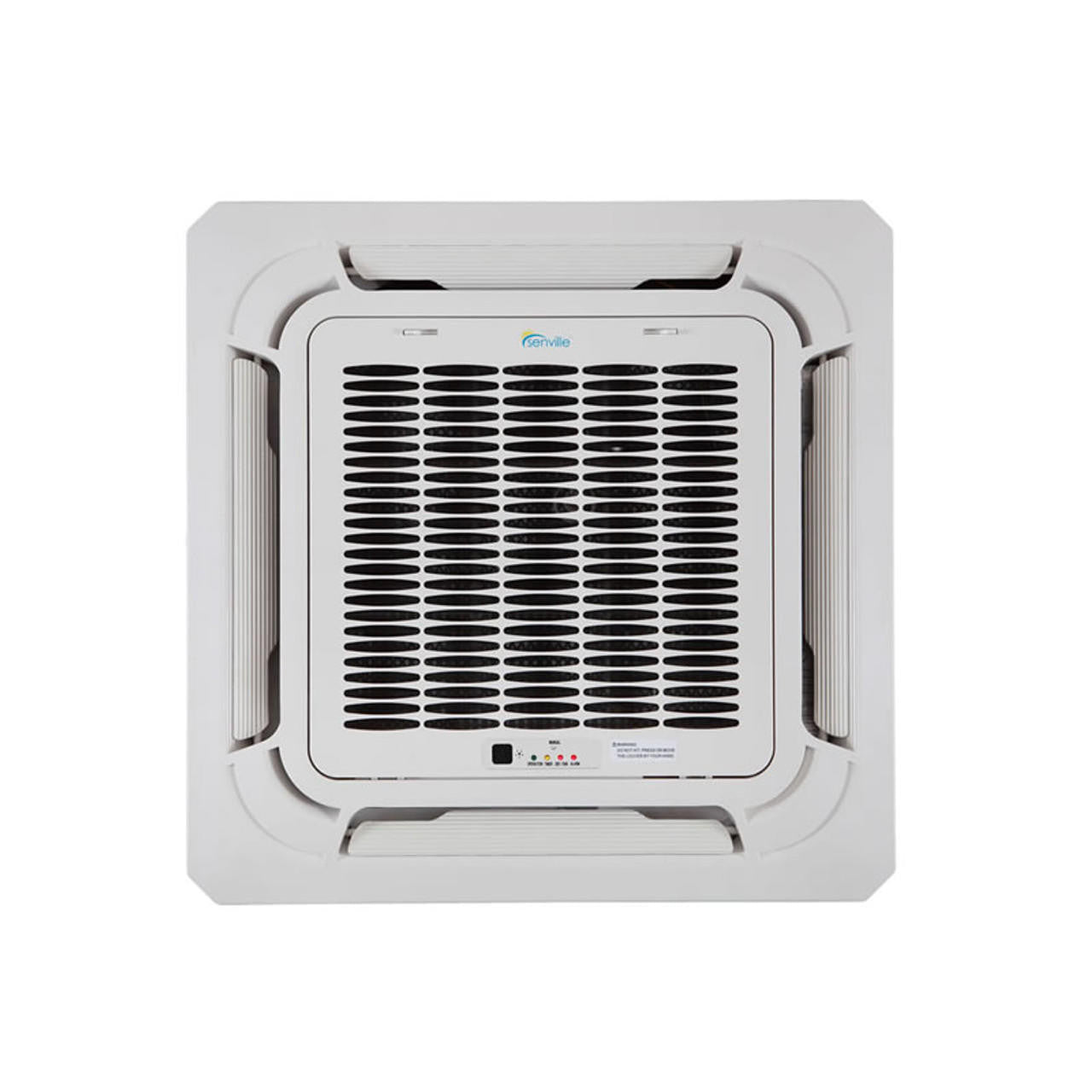

- Indoor Unit (1 x 24K Ceiling Cassette)

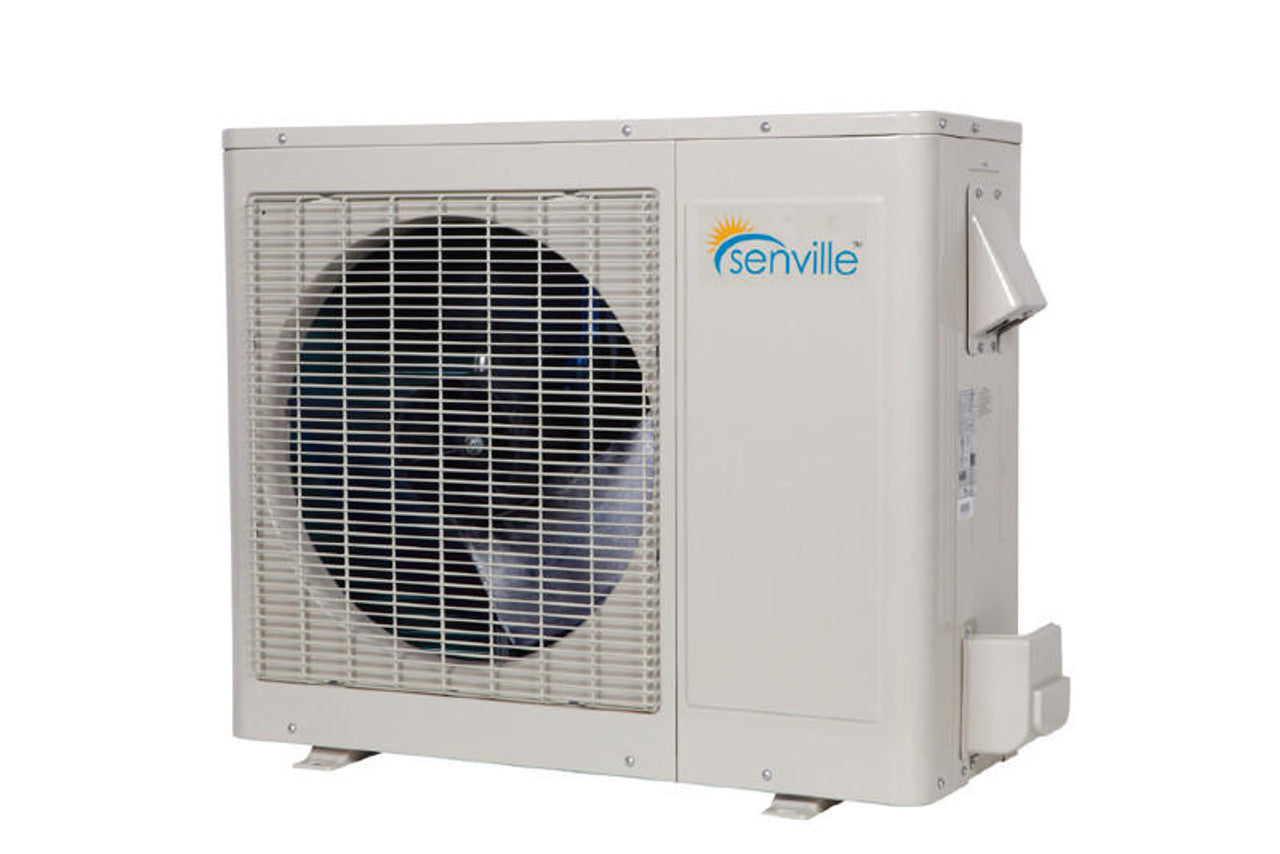

- Outdoor Unit

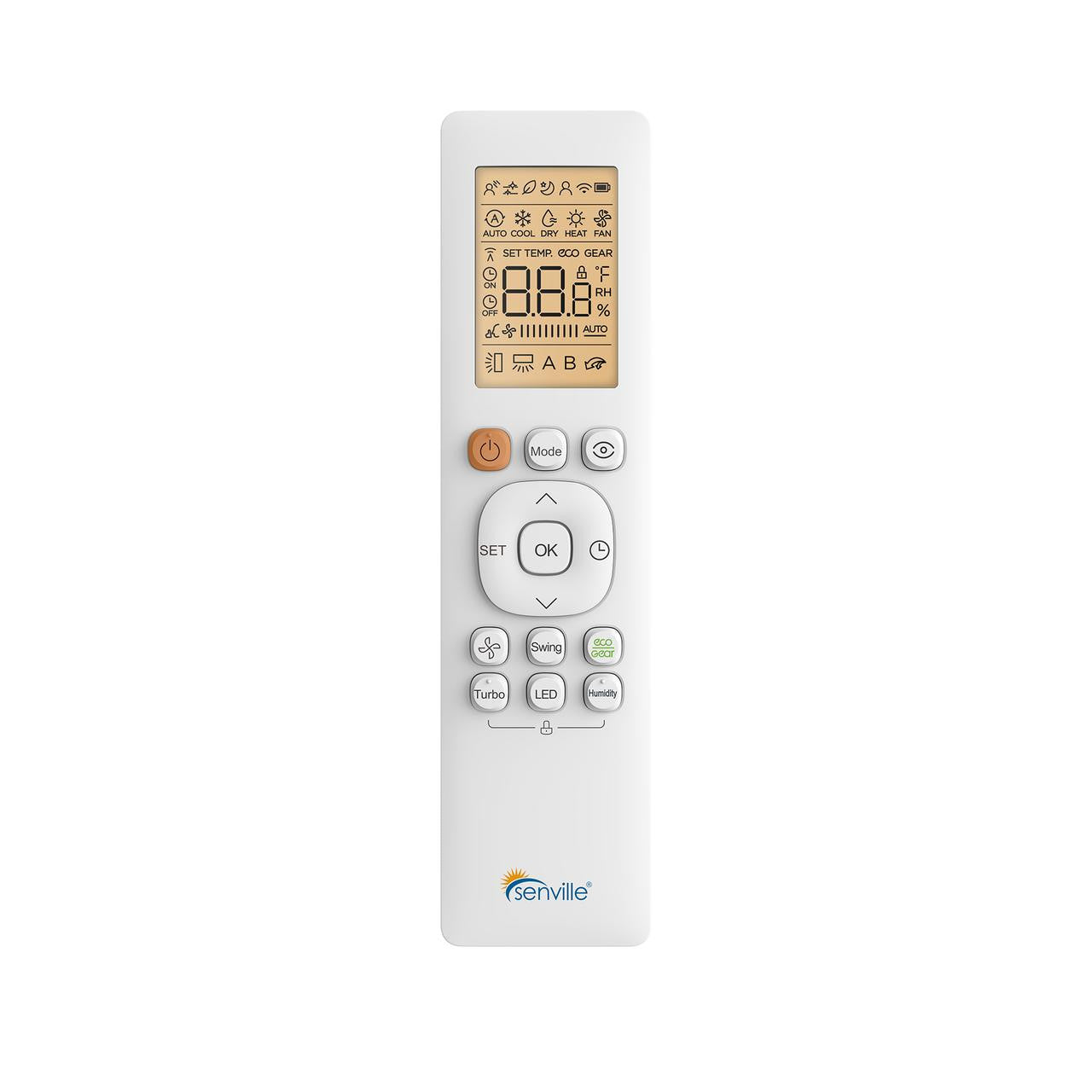

- Wireless Remote Control
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-24HF-IC |
| Style | Ceiling Cassette Mini Split AC With Heat Pump |

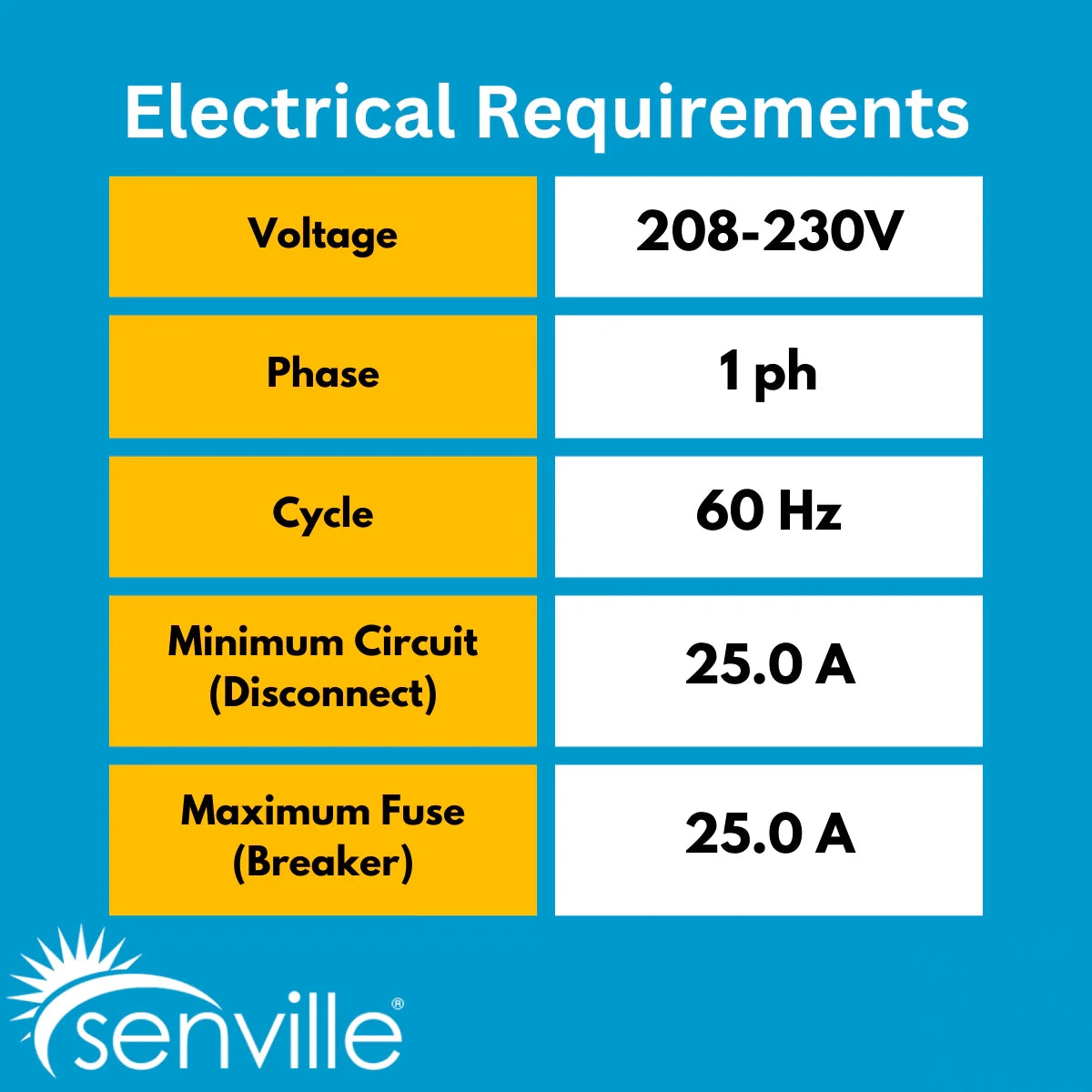

| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 20.7 |
| EER2 | 12 |

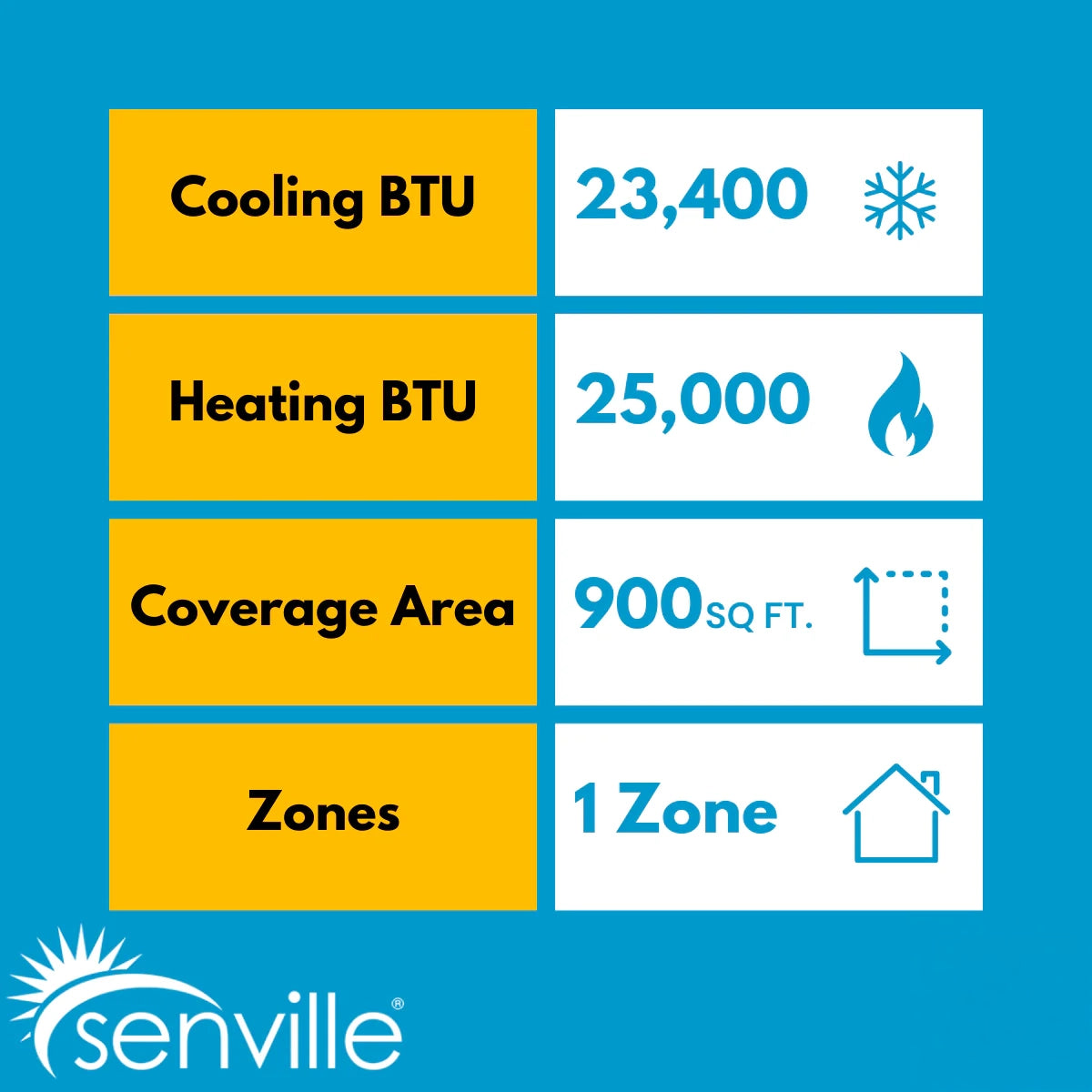

| Cooling Capacity (BTU) | 23400 |
| Cooling Range (BTU) | 128000~26200 |
| Cooling Input Range (W) | 960~2300 |
| Cooling Current Range (A) | 4.3~10.1 |
| Heating Capacity (BTU) | 25000 |
| Heating Range (BTU) | 11500~30700 |
| Heating Input Range (W) | 695~2490 |
| Heating Current Range (A) | 3.8~10.9 |
| HSPF2-4 | 11.6 |
| HSPF2-5 | 9.2 |
| COP W/W | 3.54 |
| Minimum Circuit Ampacity (A) | 25 |
| Max. Fuse (A) | 25 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 765.2 / 706.3 / 635.7 / 547.4 |
| Indoor Noise Level (Turbo/H/M/L) dB | 48.5 / 45.0 / 42.5 / 33.5 |
| Indoor Dimensions (WxDxH) (in.) | 32.68 x 32.68 x 8.07 |
| Indoor Weight | 47.18 Lbs. |
| Moisture Removal (L/H) | 2.36 |
| Outdoor Air Flow (Max) CFM | 2236.7 |
| Outdoor Noise Level dB | 61.5 |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Outdoor Weight | 130.29 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 63.49 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|
| Indoor unit(s) | 24K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 1 Zone |
| Line set | Custom |
| Mount type | Ceiling |
| Installation | Professional Installation |
| Brand | Senville |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
