Product overview
Senville AURA 36,000 BTU (9K+12K+18K) 3 Zone Mini Split Air Conditioner - 230V
Senville SENA-36HF/T is a high-efficiency 36000 BTU tri zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It provides reliable heating and cooling performance even in extreme climates and is ideal for larger multi-room applications. The system covers up to 1800 sq. ft. Professional installation required for full warranty protection.
Features:
- 23 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Whisper-Quiet Operation
- Smart Control with Alexa
What's Included:
- 3 Indoor Units (9K+12K+18K)
- Outdoor Unit
- Wireless Remote Controls
- Alexa USB Kit
- 16 ft. Installation Kits (x3)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-36HF-MOA |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2-4 |

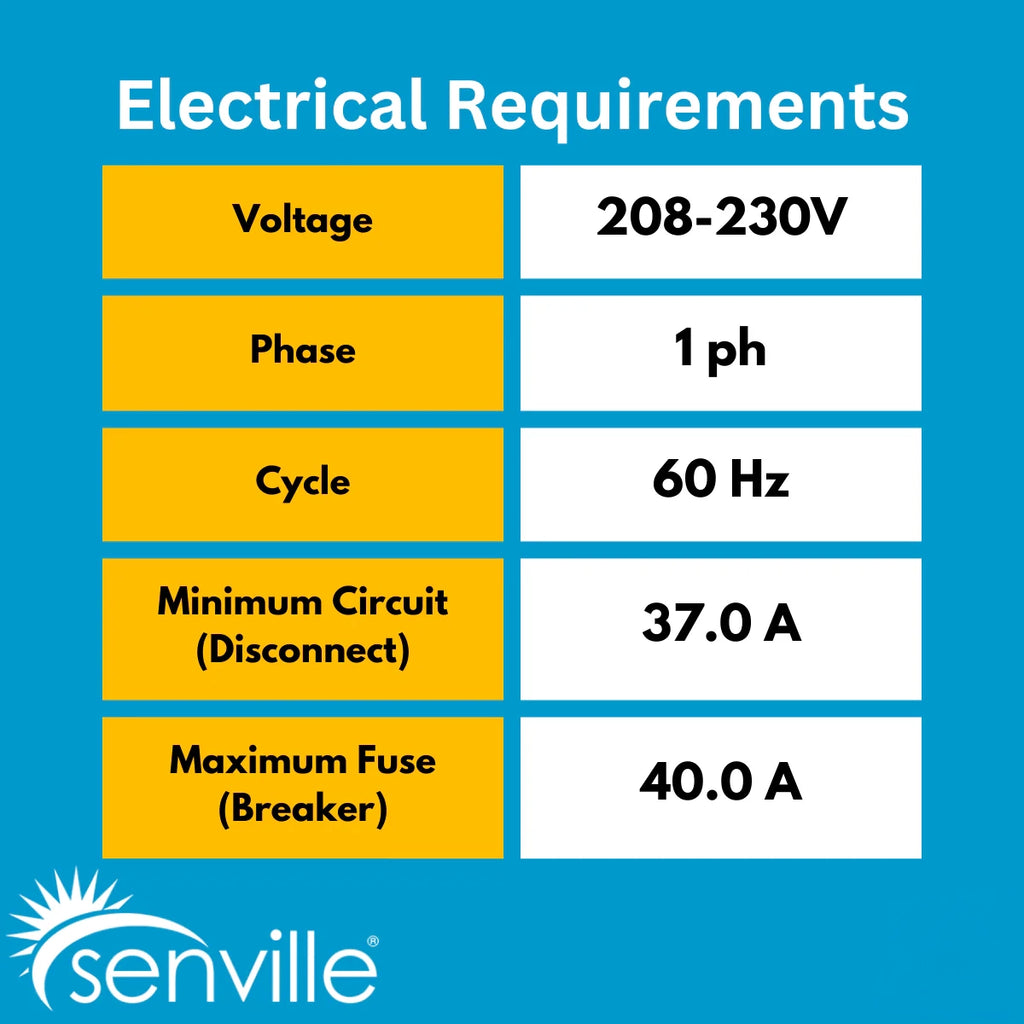

| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |

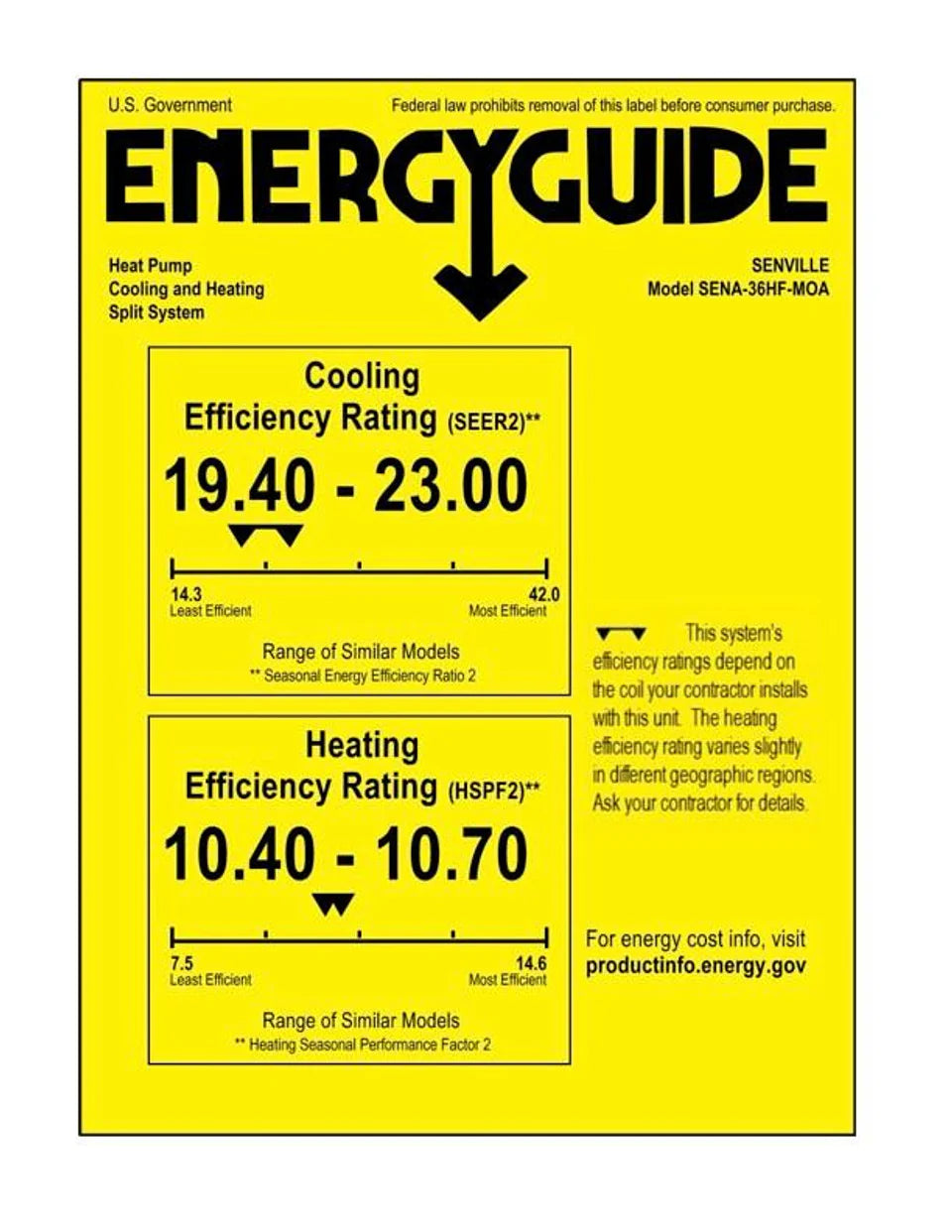

| SEER2 | 23 |
| EER2 | 13 |

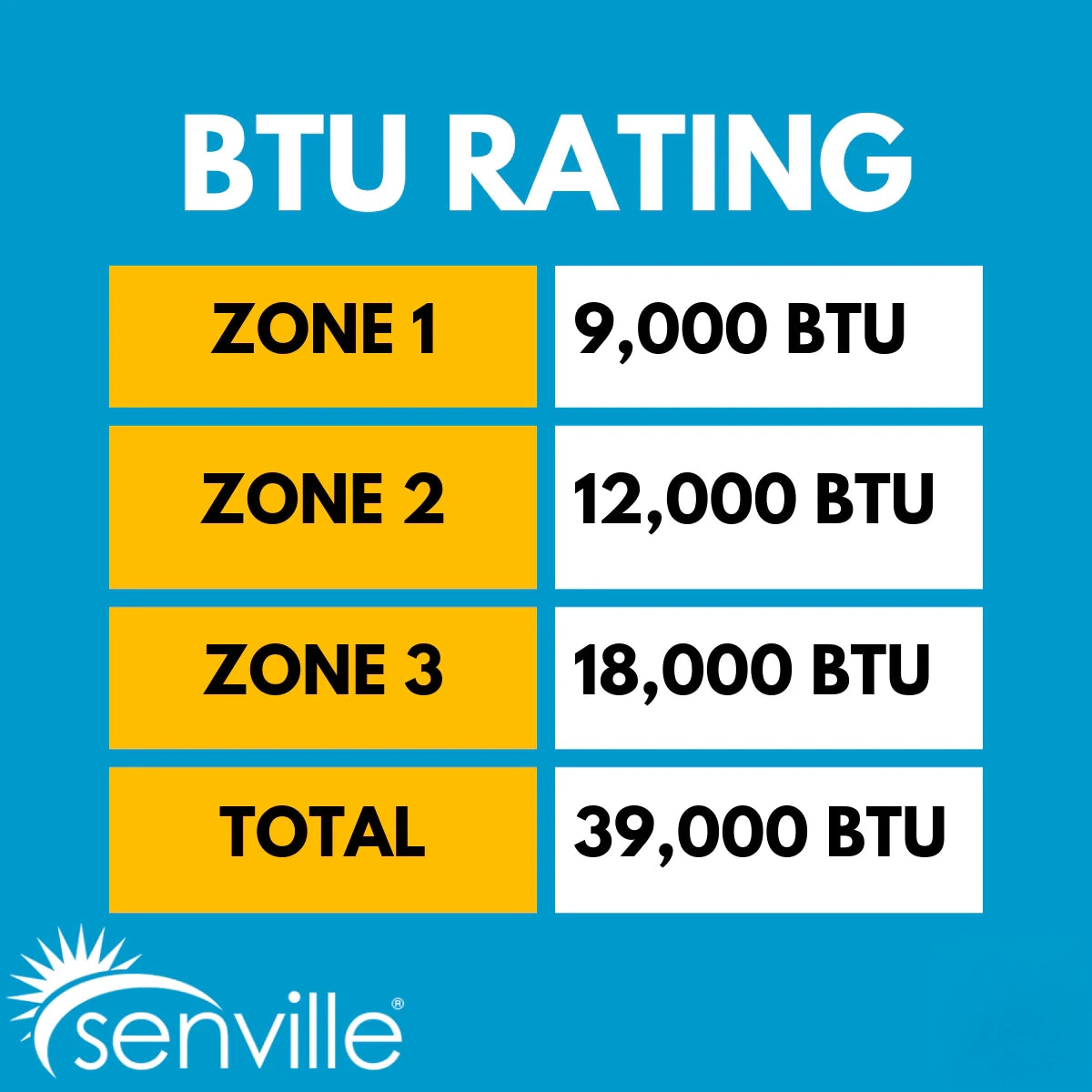

| Cooling Capacity (BTU) | 36000 |
| Cooling Range (BTU) | 9000~43000 |
| Cooling Input Range (W) | 600~4000 |
| Cooling Current Range (A) | 5.2~17.8 |
| Heating Capacity | 36000 |
| Heating Range (BTU) | 10000~44000 |
| Heating Input Range (W) | 600~3750 |
| Heating Current Range (A) | 5.2~16.6 |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Outdoor Air Flow (Max) CFM | 3037.2 |
| Outdoor Noise Level dB | 65 |
| Outdoor Dimensions (WxDxH) (in.) | 38.58 x 16.34 x 38.39 |
| Outdoor Weight | 211.86 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 134.04 oz |
| Refrigerant Pre-charge | 100 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 36K BTU |
|---|---|
| Indoor unit(s) | 9K + 12K + 18K |
| Coverage area | 1,500 Sq Ft. |
| Zones / rooms | 3 Zones |
| Power | 230 Volt |
| Mount type | Wall |
| Installation | Professional installation required |
| Brand | Senville |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
