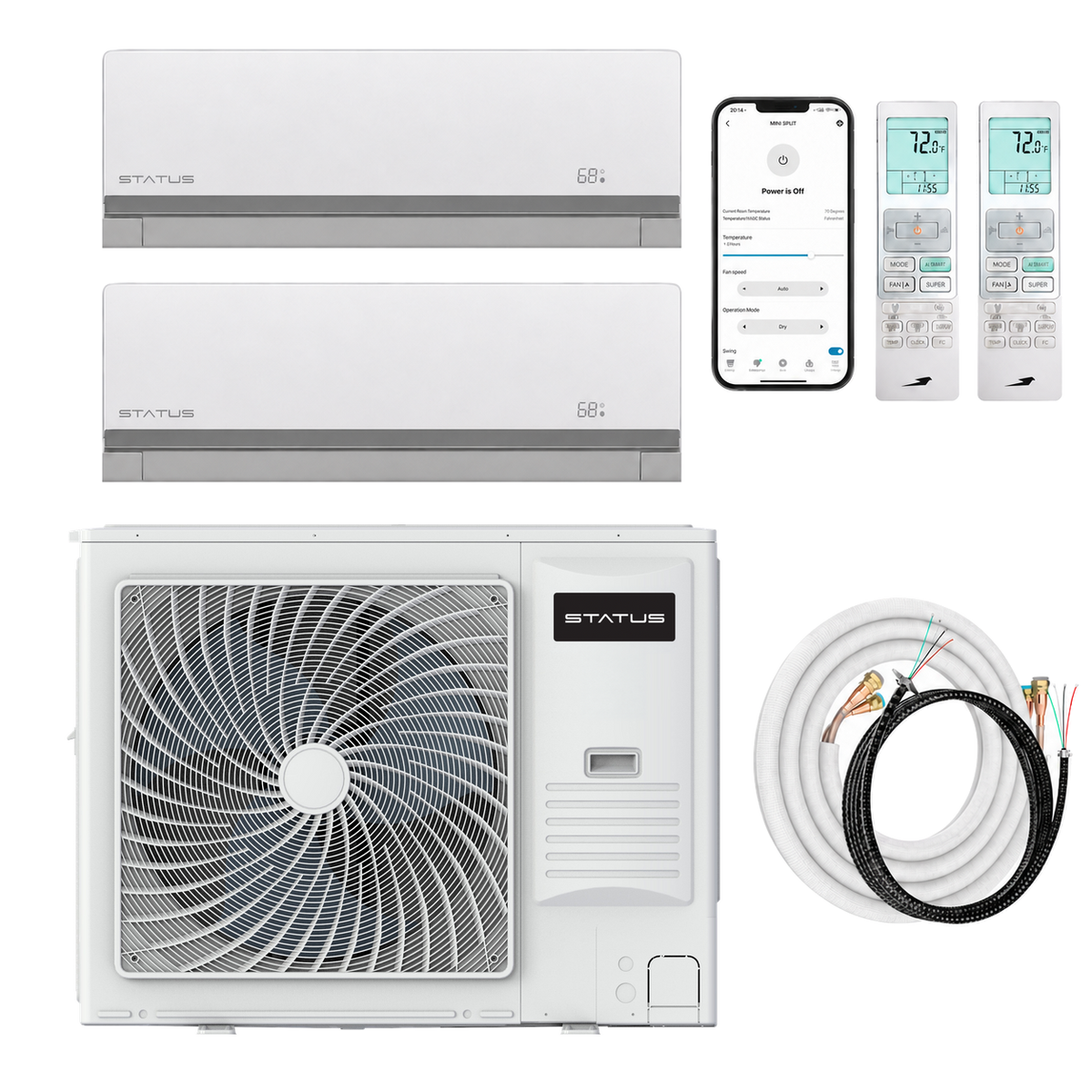

Status DIY 5th Gen Multi Zone Mini Split 18,000 BTU (9K + 9K) 2 Zone Ductless AC & Heat Pump 23 SEER2 - R454B
Experience powerful, year-round climate control with the Status® 2-Zone Ductless Mini-Split System. Designed for true DIY installation, it uses a pre-charged R454b lineset—meaning no vacuum pumps, no expensive contractors, and no complicated refrigerant handling. Under the hood, variable-speed DC inverter technology ensures ultra-quiet, energy-efficient performance, while built-in Wi-Fi lets you seamlessly manage your home's comfort from anywhere.
The total coverage for the condenser is around 800 sq ft with standard ceiling heights. Each 9K air handler can cover spaces up to 400 sq ft each, making it great for medium sized rooms or large bedrooms. It also boasts an industry leading, 8 year compressor & 8 year parts warranty.
Features:
-

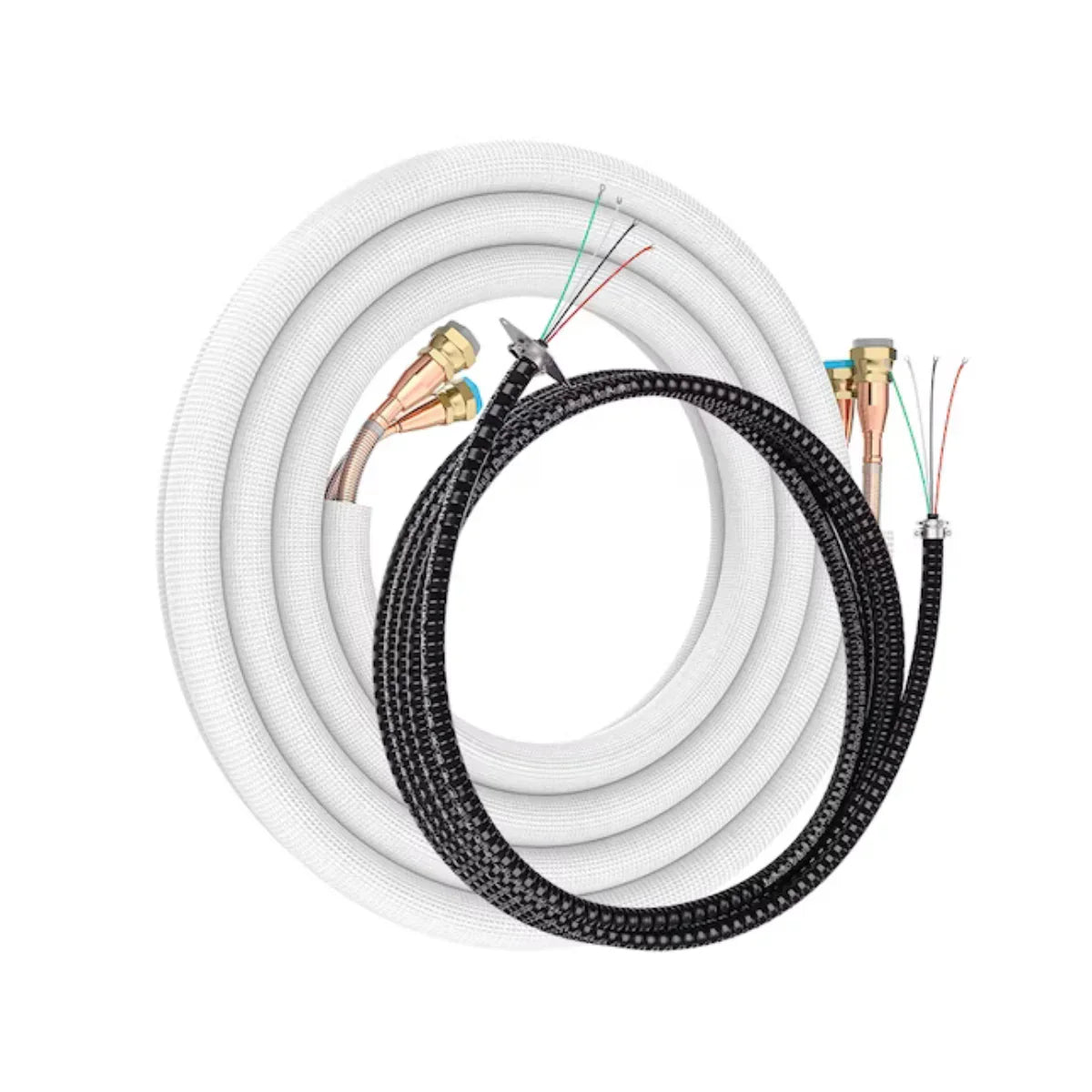

True DIY Installation: Includes a pre-charged R454b lineset—no vacuum pumps, contractors, or refrigerant handling required.
-
Powerful & Efficient: Variable-speed DC inverter technology delivers robust heating and cooling while keeping energy consumption low.
-
Whisper-Quiet Operation: Enjoy a perfectly temperature-controlled space without the noisy interruptions of traditional HVAC.
-
Smart Wi-Fi Control: Easily adjust your comfort levels from anywhere using your smartphone.

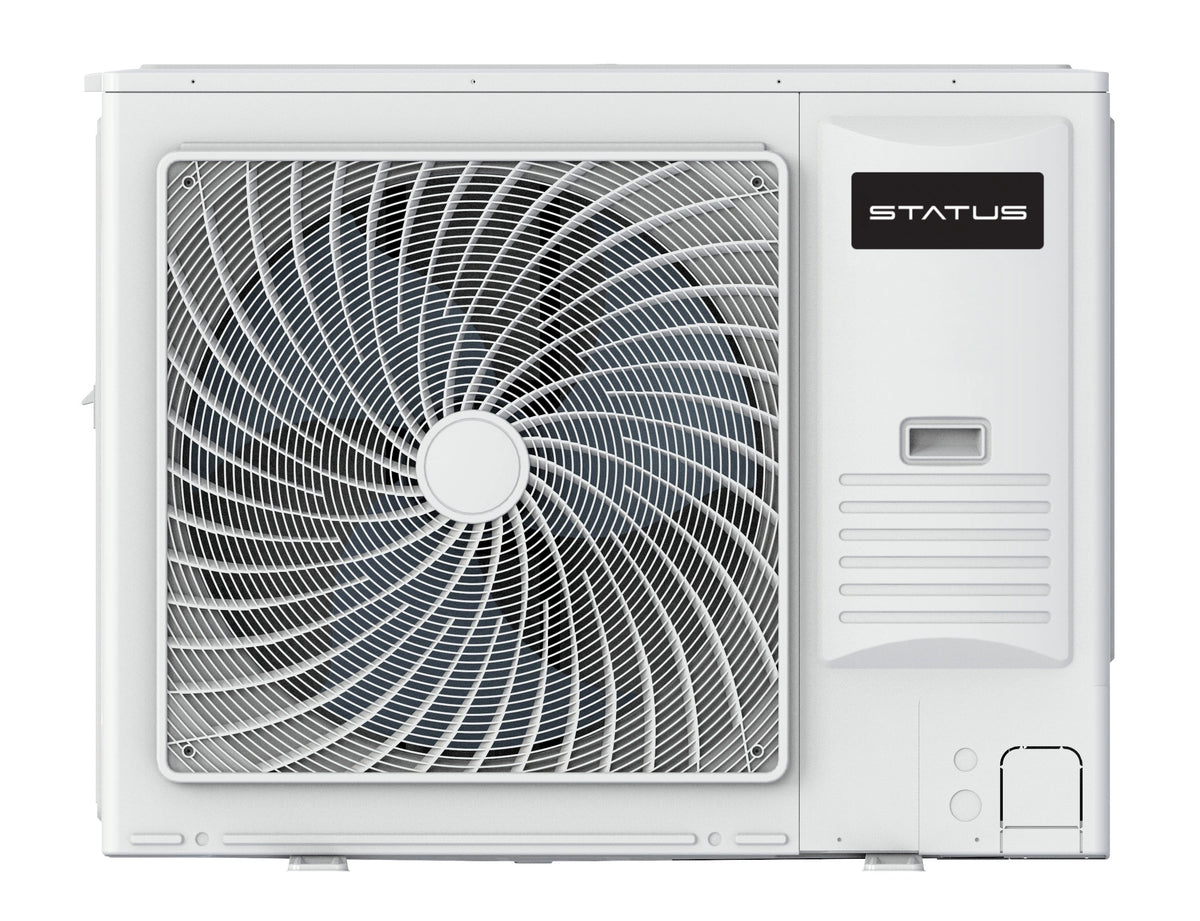

Outdoor Condenser Specifications
| Specification | Details |
|---|---|
| Model | STATUS-DIY-MC-18 |
| Product | Status® 18K DIY 5th Generation 2 Zone Multi-Zone Mini-Split Condenser 230v |
| Dimensions (L x W x H) | 38.98 x 17.72 x 28.74 in. |
| Weight | 112.46 lb. |

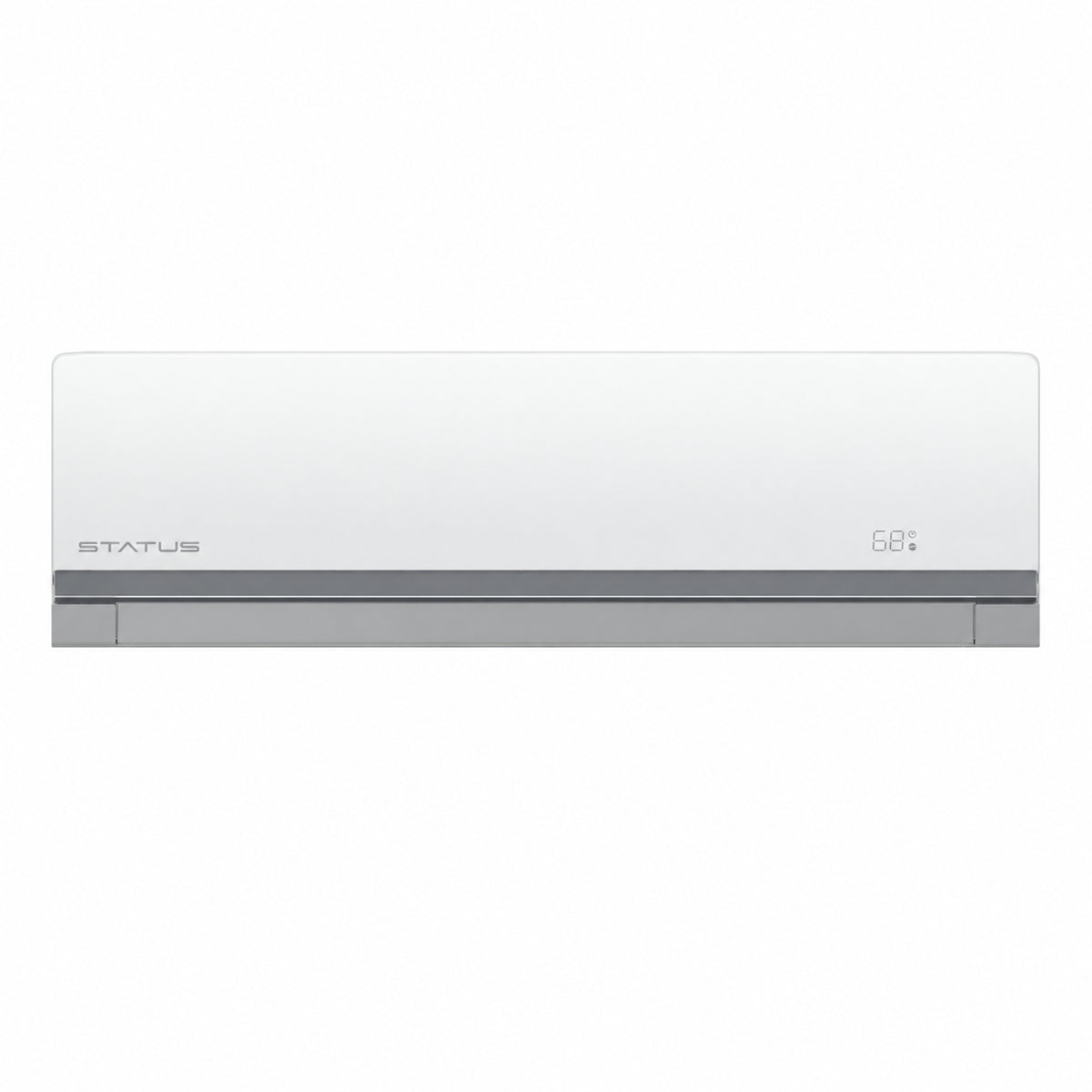

9K Wall Mounted Air Handler Specifications
| Specification | Details |
|---|---|
| Model | STATUS-DIY-AH-09 |
| Product | Status® 9K DIY 5th Generation Mini-Split Air Handler 230v |
| Refrigerant | R454B |
| Energy Star certified | Yes |
| Unit dimensions (W x D x H) | 35 x 8.75 x 10.75 in. |
| Unit weight | 18.75 lb. |
| Packaged dimensions (W x D x H) | 37 x 10.25 x 13.25 in. |
| Packaged weight | 23.25 lb. |
| Wi-Fi | Yes-Built In |
| Rated cooling capacity at 95°F | 9,000 BTU/h |
| SEER2 | 23 |
| EER2 | 14.05 |
| HSPF2 (Region IV) | 10 |
| Rated heating capacity at 47°F | 13,000 BTU/h |
| Power source | 230V |
| Liquid line connection | 1/4 |
| Suction line connection | 3/8 |
| Outdoor operating temperature | -13°F to 125°F |
