Product overview
Stealth DIY 24,000 BTU 21 SEER Solar Ready Single Zone Wall Mount Mini Split System w/ 16ft Line Set - R32 - 230V
The DIY Stealth Solar-Ready Hybrid 24,000 BTU mini-split is designed for powerful, energy-efficient climate control while supporting both grid and direct solar inputs. It seamlessly switches between AC and DC, allowing professional installers to offer solar-integrated comfort without compromising performance.
Note this unit is Solar Ready, but does not require use of Solar for Operation. Solar Panels Not Included.
Solar-Ready, Grid-Optional Operation:
- Hybrid AC/DC input (208–240 VAC & 90–380 VDC) accepts solar power and grid power simultaneously
- Automatically prioritizes solar input during daylight hours
- MC4-compatible solar terminals—connect PV array directly to the outdoor unit
- Built-in AC power limiter (adjustable up to 2250 W AC) controls grid usage
- Recommended solar input between 1600–2400 W allows daytime off-grid capability
High-Efficiency Heating & Cooling:
- 24,000 BTU cooling and 26,000 BTU heating capacity
- SEER2 rating of 21 / HSPF2 rating of 9.6 for excellent seasonal efficiency
- COP of 11.82 Btu/W under optimal conditions
- Operates in outdoor temperatures from 5°F to 131°F(14 °F to 136 °F)
- Eco-friendly R32 refrigerant with reduced environmental impact
Installer-Focused Design:
- Includes pre-charged 16.4 ft refrigerant line set, ready for professional connection
- Quick-connect MC4 solar inputs simplify PV integration
- Compact outdoor unit (approx. 132 lb) accommodates versatile mounting
- Indoor unit designed for whisper-quiet operation (39–50 dB(A)) with modern styling
- Maximum line-set length: 82 ft; elevation difference: up to 32 ft
What’s Included:
- Indoor air handler
- Outdoor condenser unit
- 16.4 ft refrigerant line set and interconnect wiring
- Wall mounting bracket and accessory kit
- WiFi Ready
- LCD remote control
Warranty:
- 6-Year Limited Warranty on compressor and 4-Year on parts with Online Registration
Ideal For:
- Residential or light-commercial spaces up to ~1,350 sq ft
- Properties integrating solar PV to offset grid usage
- Installations prioritizing energy efficiency and flexible power sourcing

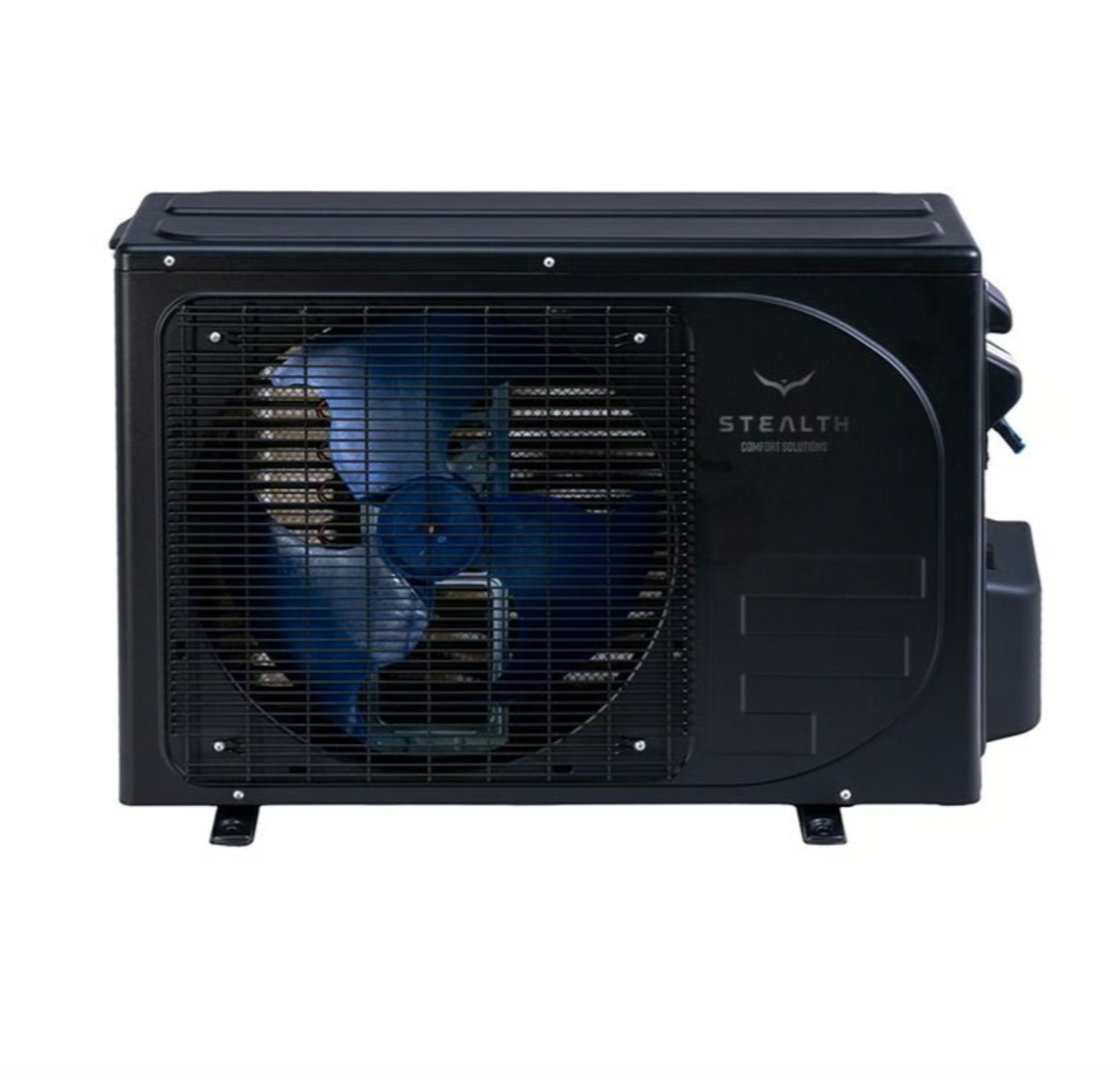

Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | S-24Z-ACDC230 |
| Weight | 114.640000 |
| AHRI Certificate Number | 208650754 |
| Manufacturer | Stealth |
| Product Features | WiFi, Solar Ready |
| Additional Information | Heat Pump |
| Additional Information | Maximum Line Set Length: 98' |
| Additional Information | Minimum Line Set Length: 10' |
| Additional Information | Drain: 5/8" |
| HSPF | 10 |
| Cooling BTU | 24,000 |
| Heating BTU | 24,000 |
| Maximum CFM | 1940 CFM |
| Decibel Level (dBA) | 58 dB(A) |
| Energy Star | Yes |
| Refrigerant | R32 |
| SEER | 18-20 |
| EER | 11.7 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208-230V 1 Phase 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 16.33 Amps |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | 5F - 86F |
| Min/Max Outdoor Temp for Cooling | 32F - 131F |
| Zone Compatibility | Single Zone |
| Height | 27.56" |
| Width | 35.43" |
| Depth | 13.27" |
| Warranty | 6 year compressor, 4 year parts with online registration |

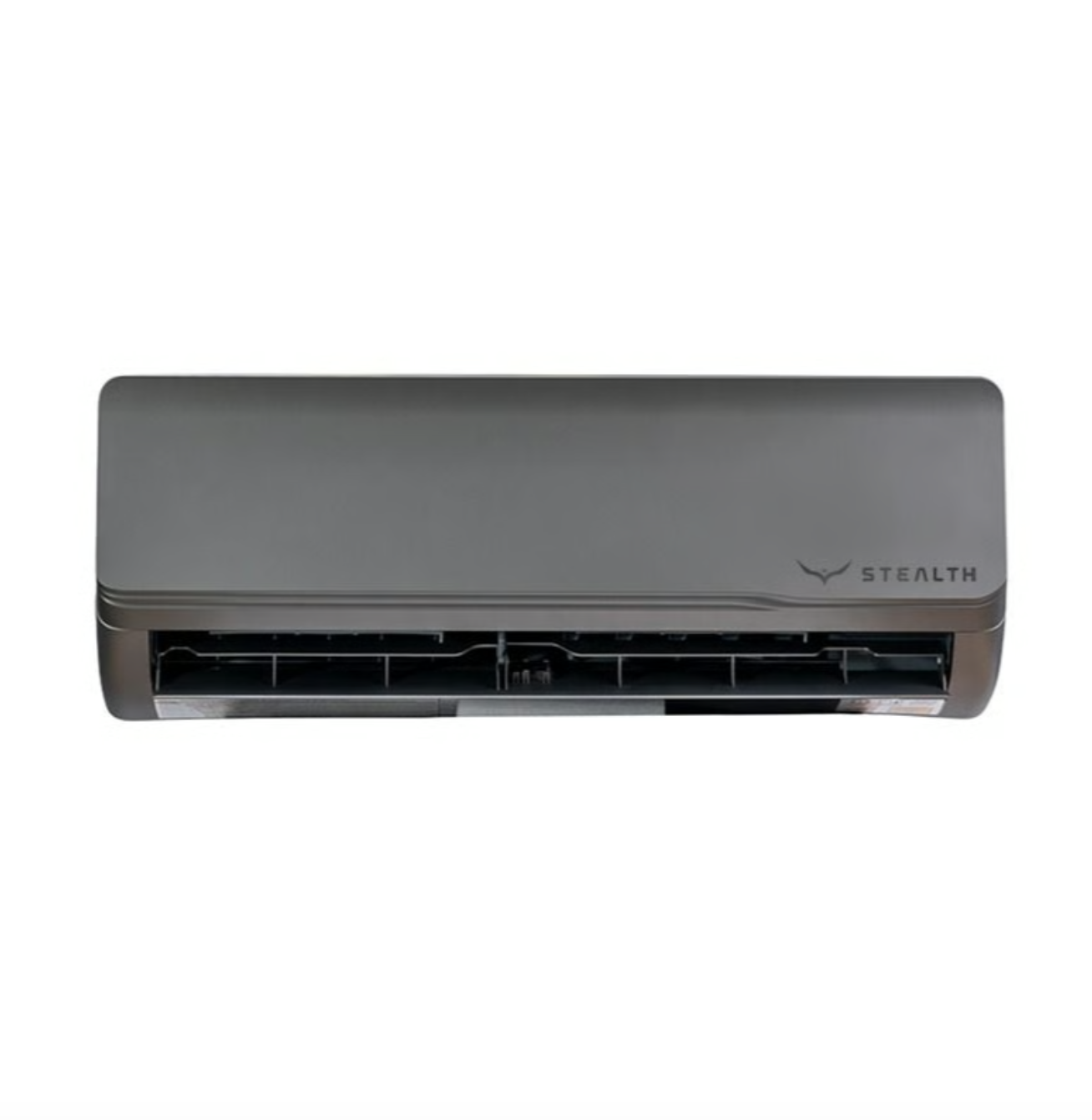

Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | S-24W-ACDC230 |
| Weight | 38.580000 |
| Manufacturer | Stealth |
| Controller | Wireless Included |
| Product Features | WiFi, Solar Ready |
| Additional Information | Drain: 5/8" |
| Cooling BTU | 24,000 |
| Heating BTU | 24,000 |
| Maximum CFM | 430-700 CFM |
| Decibel Level (dBA) | Indoor Unit: 39-50 dB(A) |
| Refrigerant | R32 |
| SEER | 18-20 |
| EER | 11.7 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208-230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 12.99" |
| Width | 42.51" |
| Depth | 9.33" |
| Warranty | 6 year compressor, 4 year parts with online registration |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
