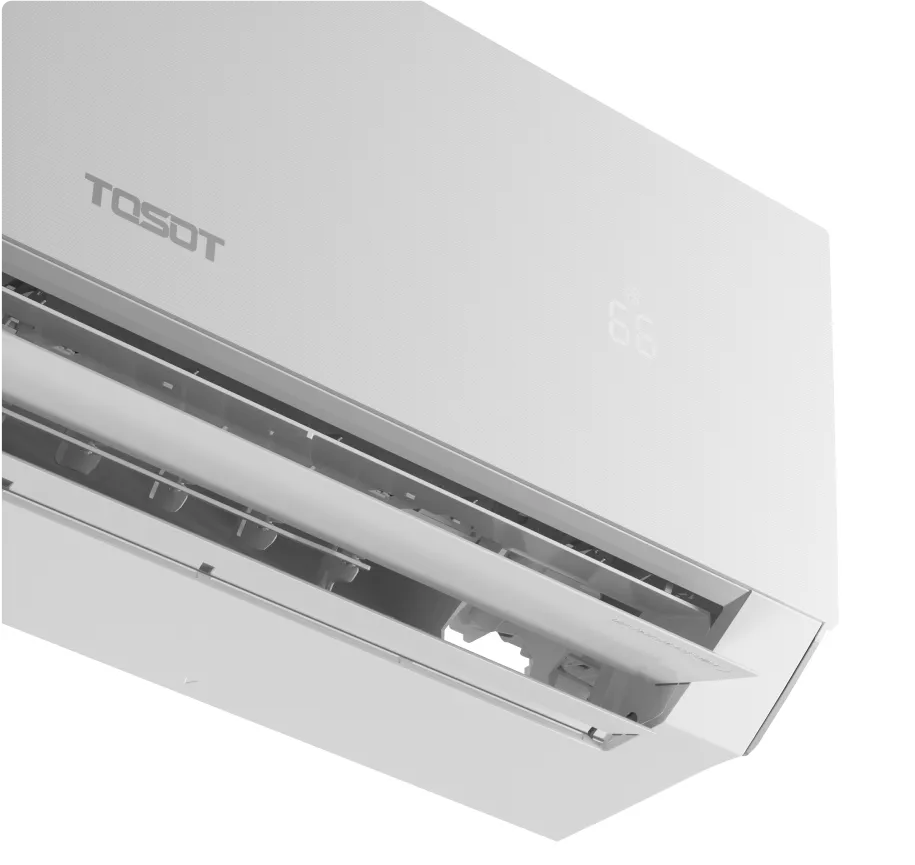

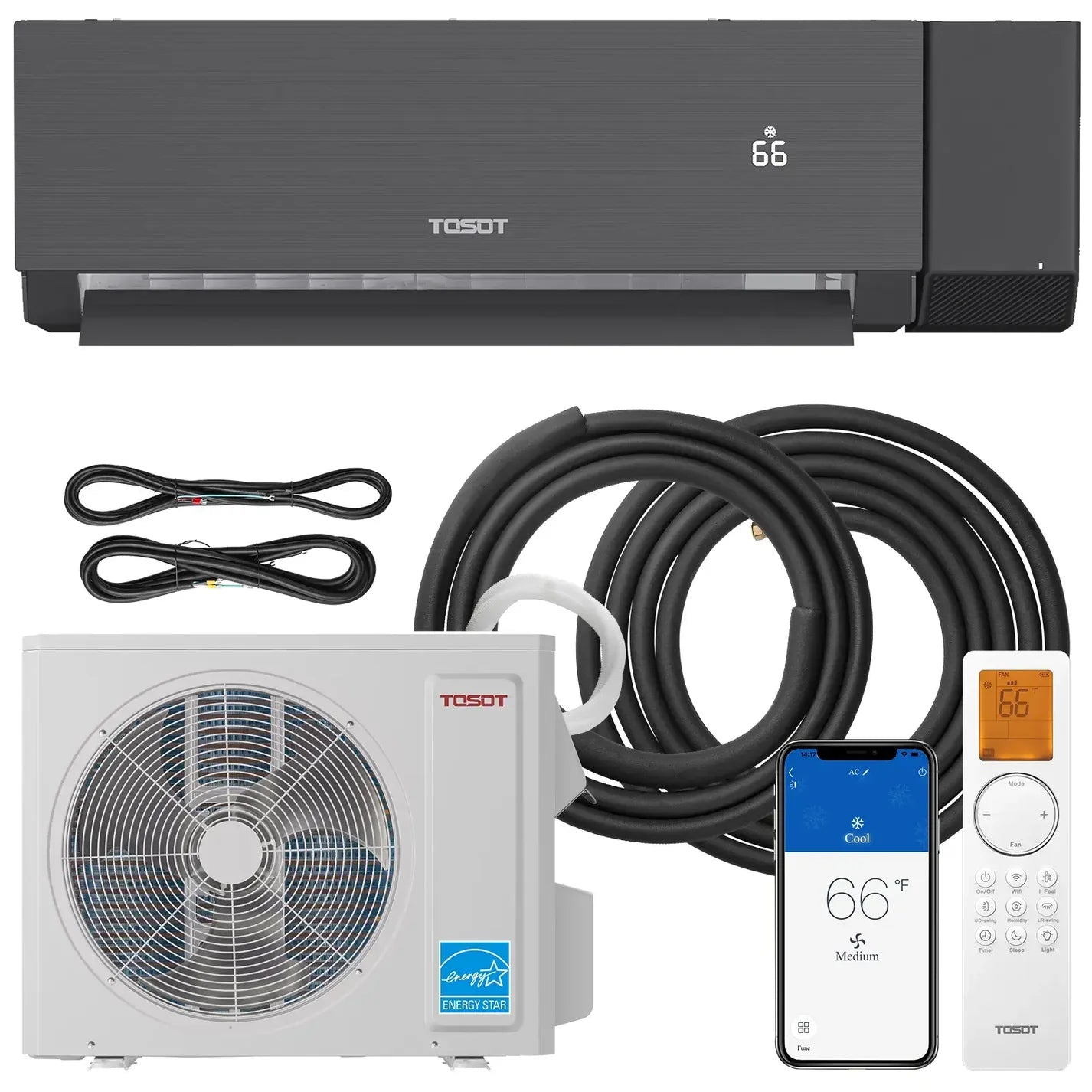

TOSOT Aoraki 12,000 BTU 24.5 SEER2 Heat Pump Mini Split AC w/ERV System - 115V
The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 24.5. Certified by Energy Star and AHRI, it qualifies for tax credits. Compared to a 16 SEER system, it can lower your energy bills by up to 36%.

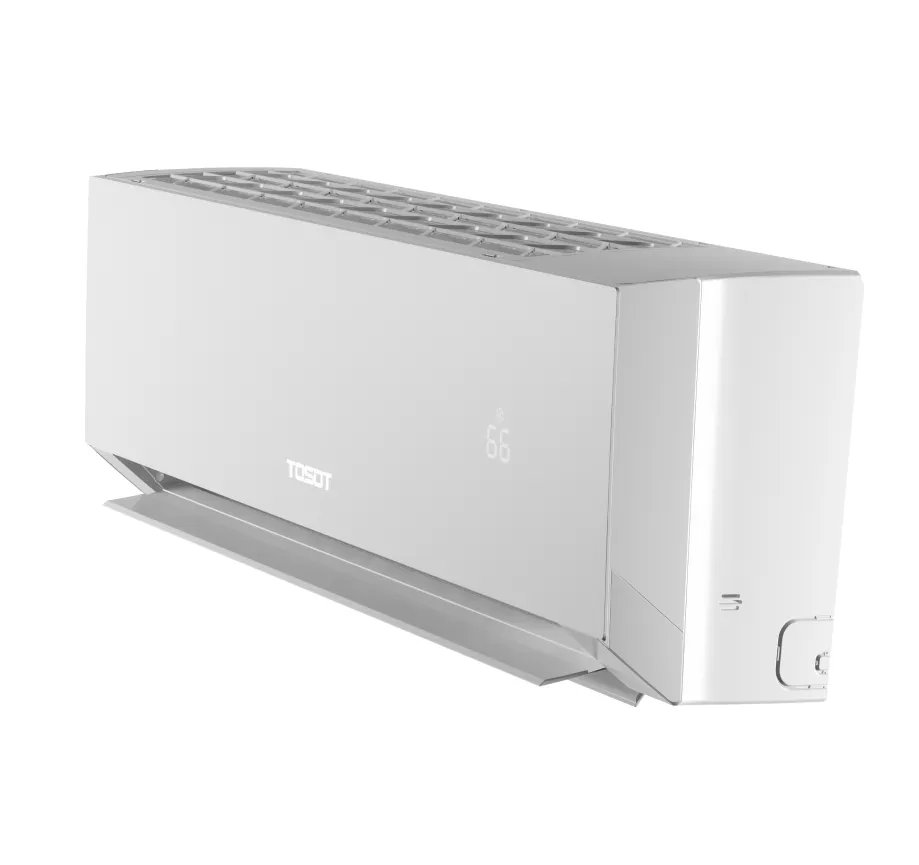

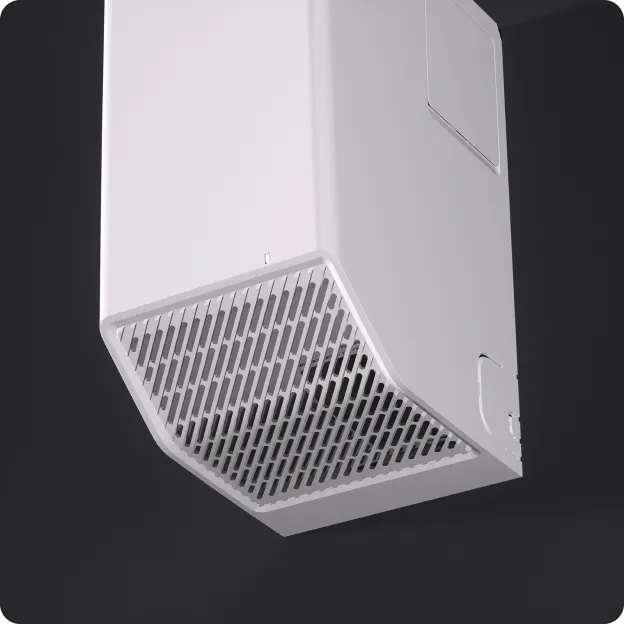

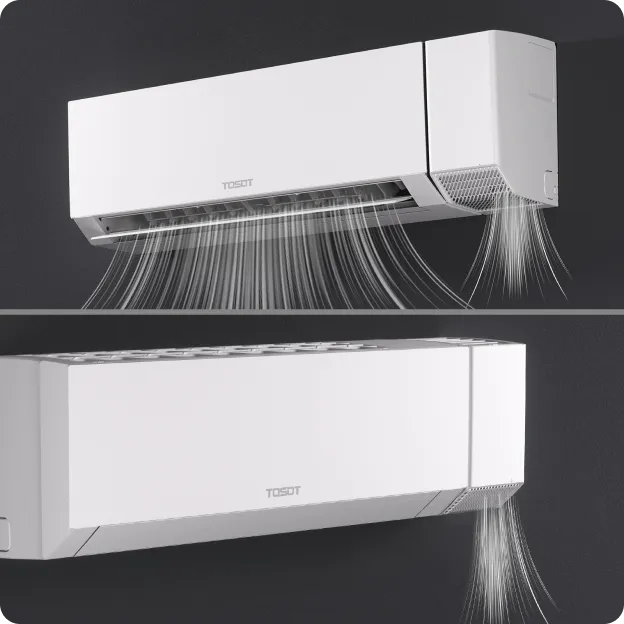

The ERV system exchanges stale indoor air with fresh outdoor air, pre-conditioning the incoming air by transferring heat and moisture from the outgoing air to improve indoor air quality and energy efficiency.
Features:
- Exceptional 24-24.5 SEER Rating.
- Energy Star Certified with tax rebate eligibility.
- Compatible with ERV Systems.
- Operates in Extreme Temperatures from -22°F to 122°F
- 5 Year Warranty
- Copper Line Set: 16 Ft
Installation and Guides:
Specifications:
- Cooling Capacity (Btu/h):12,000
- Heating Capacity (Btu/h): 12,000
- EER(Btu/h)/w: 13
- COP(Btu/h)/w: 13
- SEER2: 24.5
- HSPF2: 9.5
- Airflow (H/M/L): 620/560/490 m3/h
- Dehumidification (Pts/hr): 2.96
- Est. Cooling Area (Sq. Ft.): 750
- Voltage: 103/126~60Hz, 1Ph
- Rated Input(W):1450
- Rated Current(A): 15.41
- Min. Current (MCA) (A) :19
- Max. Rating of Overcurrent Protective (A): 20
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 38/34/25 decibels
DIMENSIONS & WEIGHTS
Indoor Unit
- Approximate Shipping Weight (lbs): 25.4
- Approximate Net Weight (lbs): 20.9
- Shipping Dimensions (W×H×D) (inches): 35.1x14.1 x10.3
- Unit Dimensions (W×H×D) (inches): 33.0 x 11.5 x 7.9

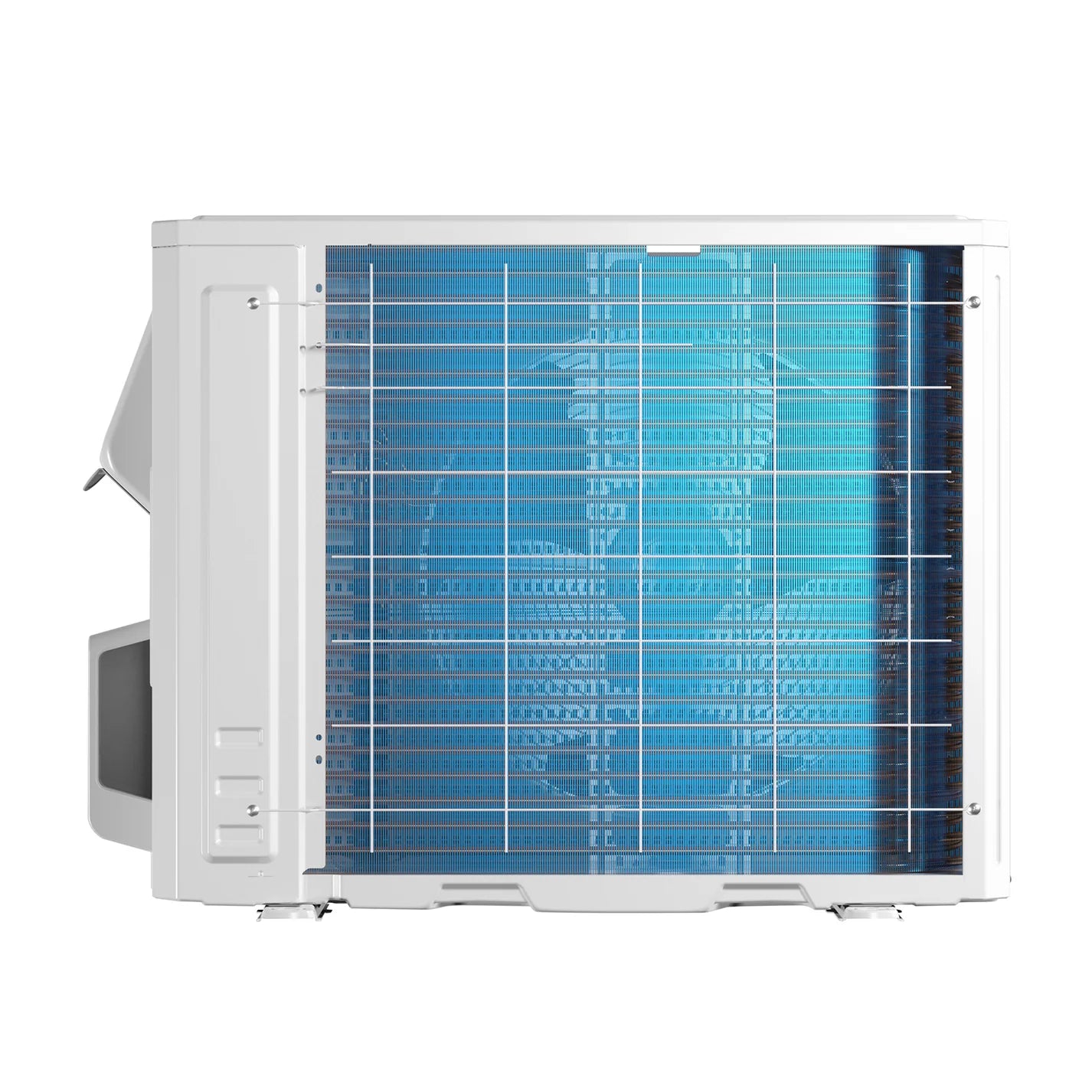

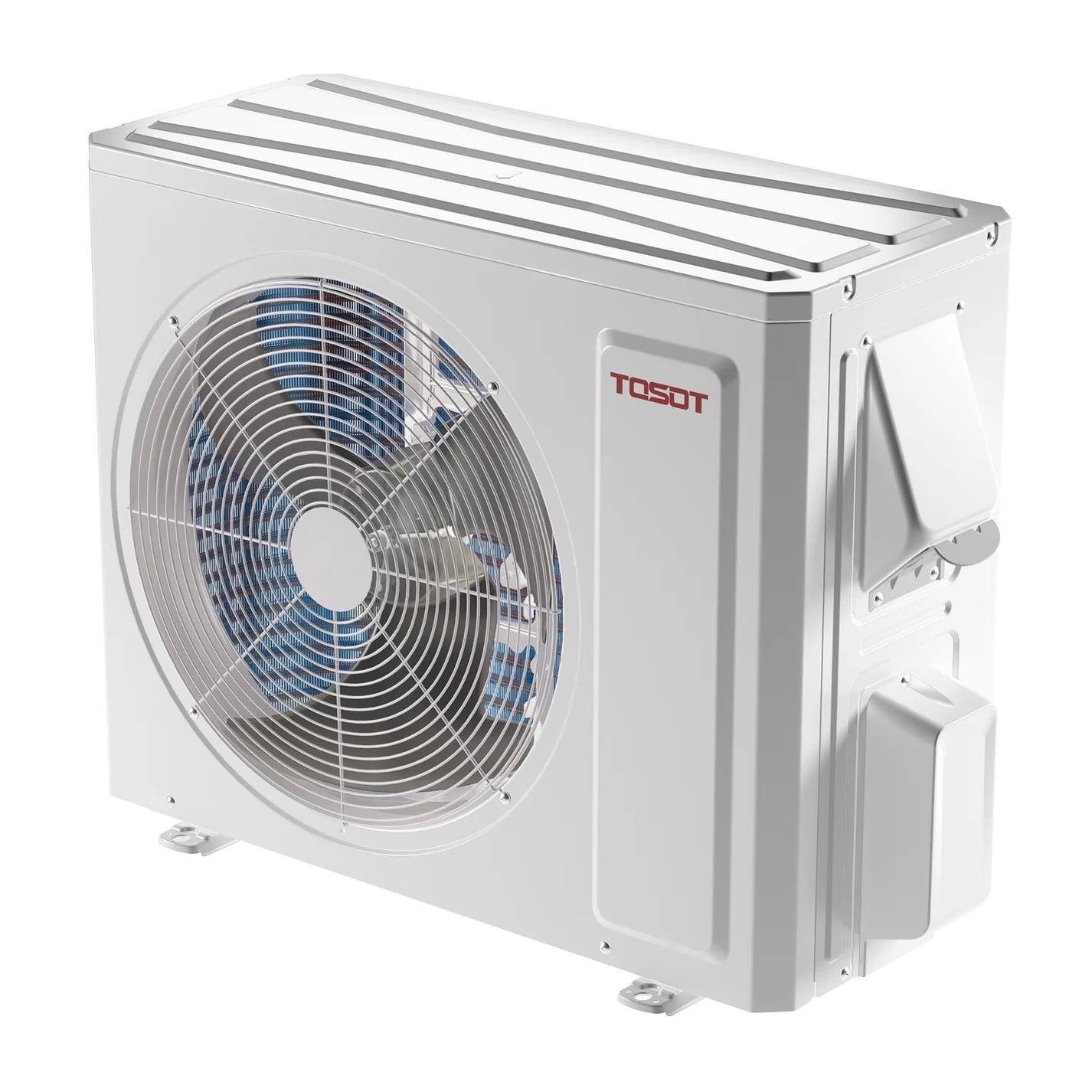

Outdoor Unit
- Approximate Shipping Weight (lbs): 75
- Approximate Net Weight (lbs): 69.5
- Shipping Dimensions (W×H×D) (inches): 34.3 x 24.4x 15.7
- Unit Dimensions (W×H×D) (inches): 31.6 x 21.9 x 13.8
Line Set Length
- Copper Line Set(ft): 16
- Copper Line Size: 1/4" & 1/2"
- Signal Cable(ft): 19
- Power Cord(ft):19
