Pioneer Quantum Ultra 3-Zone 27K BTU Heat Pump System is a complete 3-zone ductless mini split heat pump package for independent room-by-room comfort. This Quantum Ultra bundle pairs one outdoor condenser with three 9,000 BTU wall-mounted indoor air handlers, giving homes, additions, offices, and light commercial spaces efficient cooling and heating from one matched system.
Why this system works well

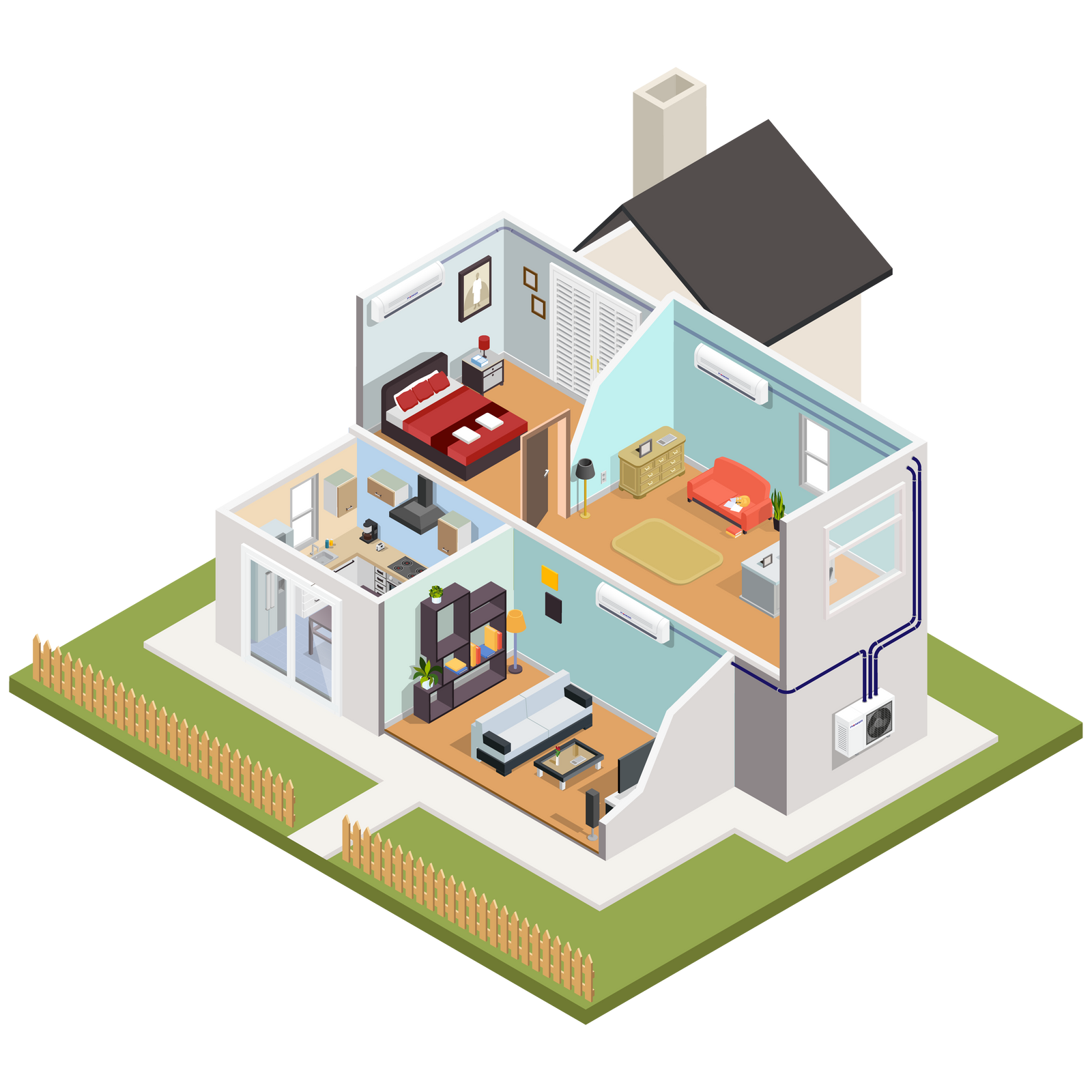

Multi-zone comfort: heat or cool 3 separate areas while giving each indoor unit its own wireless remote and dedicated line-set selection.
High-efficiency inverter performance: rated at 24 SEER / 12.0 EER for cooling and 10 HSPF / 3.5 COP for heating, with variable-speed inverter compressor and fan technology designed to reduce energy use and temperature swings.
Cold-weather heating: the ultra low-ambient design can deliver heat at outdoor temperatures down to -13°F, helping the system serve as a year-round comfort solution.
Smart operation: Wi-Fi enabled controls and included wireless remotes make it easy to adjust each zone.
Clean wall-mounted design: high-wall indoor sections keep floor space open while delivering quiet, direct comfort where each zone needs it.
System configuration
Base SKU
WYT030GLSI24M3-9W-9W-9W
Indoor combination
9K + 9K + 9K
Cooling capacity
27,000 BTU/H nominal; 4,500-31,000 BTU/H operating range
Heating capacity
28,000 BTU/H nominal; 4,500-33,000 BTU/H operating range
Pre-charged with R-454B for up to 75 ft total combined attached line-set length
Certifications
Energy Star, ETL, AHRI, and DOE listed by Pioneer
What is included

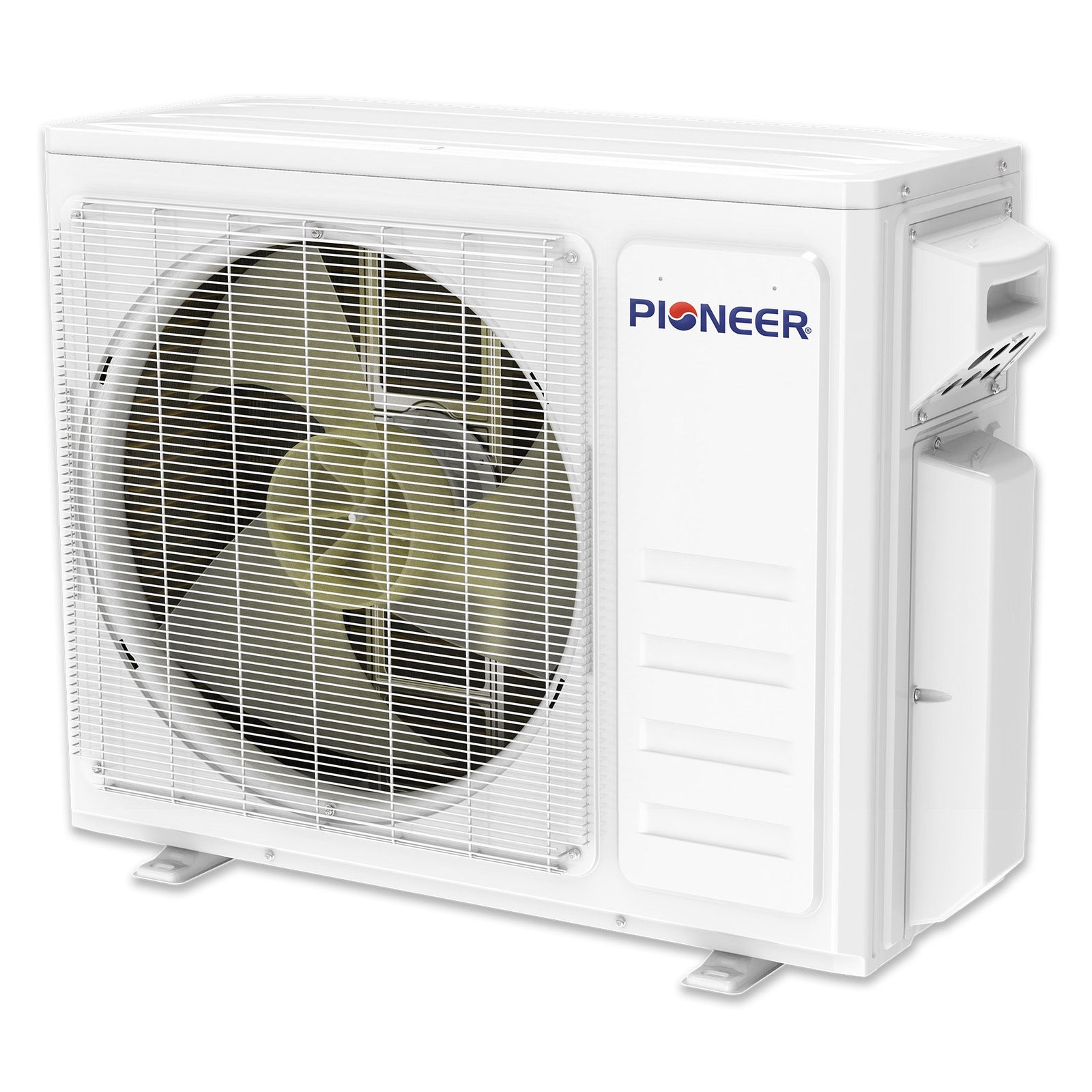

Outdoor multi-zone condenser section

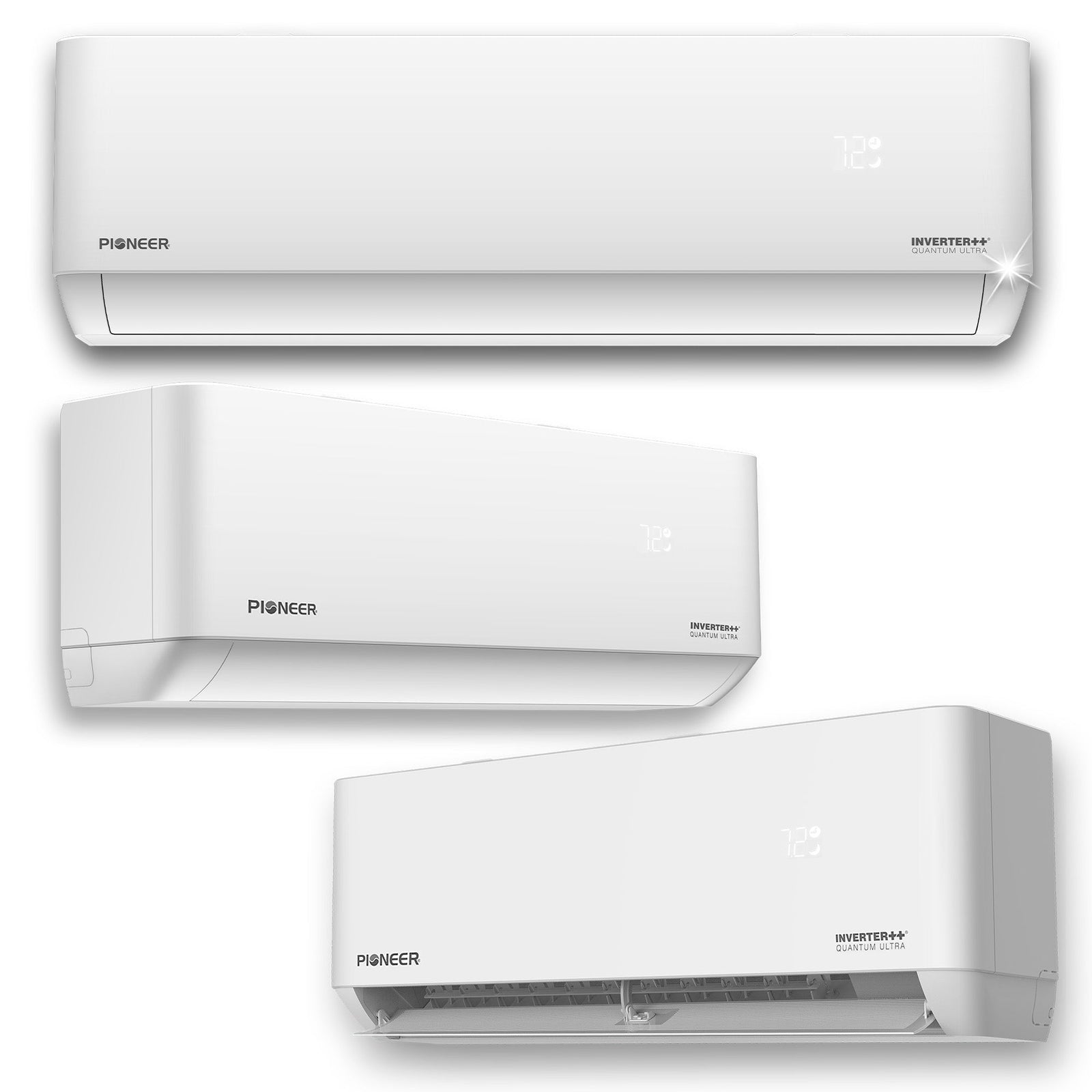

Three 9,000 btu wall-mounted indoor air handlers

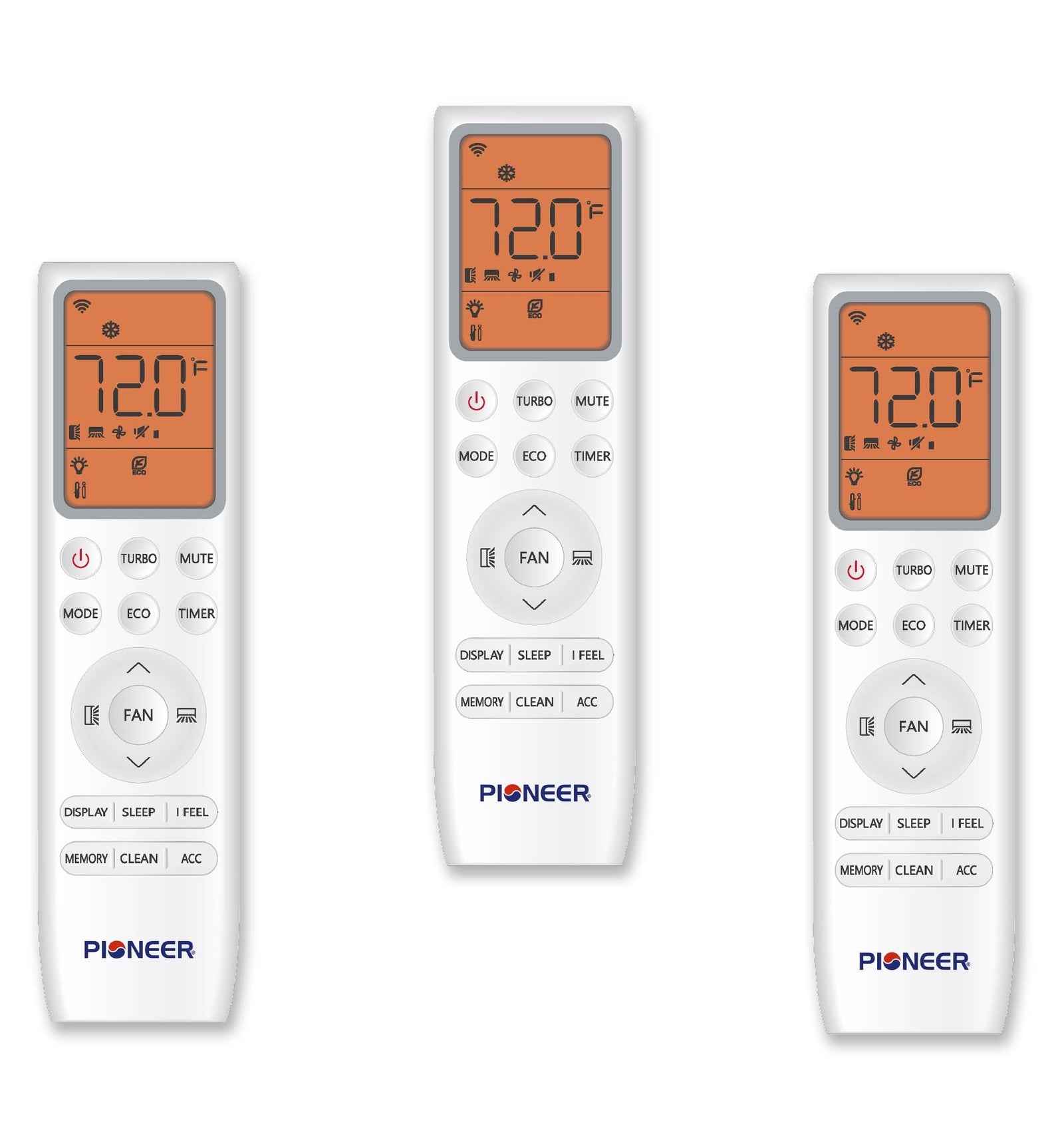

Wireless remote controllers with Wi-Fi control support

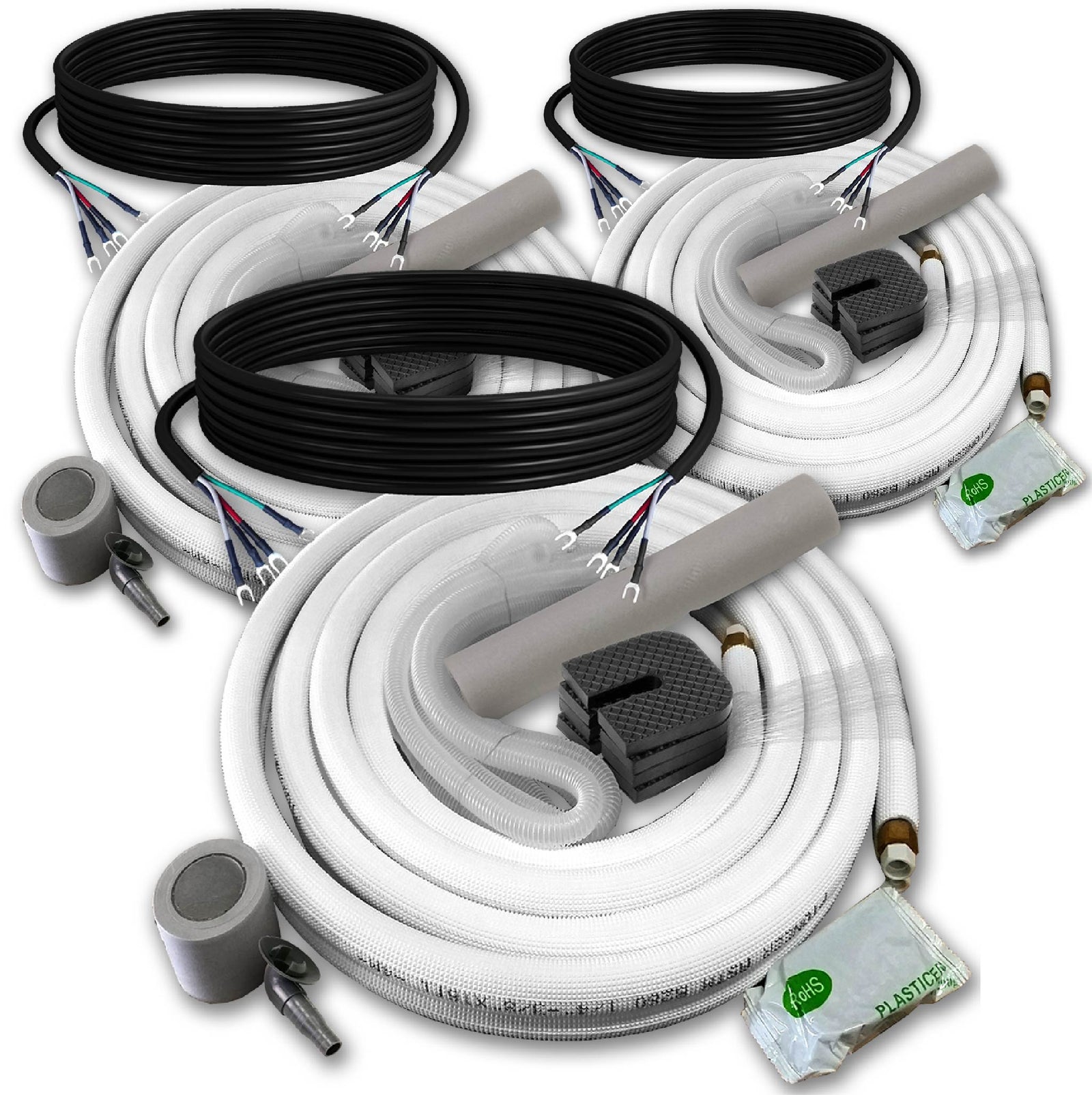

Selected insulated flared copper line sets and installation accessories
Pioneer documentation for installation, service, AHRI certification, and energy guide reference
Line-set options
Choose a line-set length for each indoor air handler before adding to cart. Available choices are None, 10 Ft, 16 Ft, 25 Ft, 33 Ft, and 50 Ft. If your total combined line-set length is longer than the factory pre-charge allowance, the installing technician may need to add refrigerant according to the installation manual.
Installation note
This is a ductless heat pump system that should be sized, installed, evacuated, leak-tested, and commissioned by a qualified HVAC professional according to local code and Pioneer installation instructions.
