ACiQ Standard 27,000 BTU 25 SEER2 3 Zone Wall Mount Mini Split Heat Pump System 230V - 6 + 6 + 12

Save 19%
ACiQ

Lineset for 6K Air Handler: 15 ft
Lineset for 6K Air Handler #2: 15 ft
Lineset for 12K Air Handler: 15 ft
Price:
Sale price$4,047.22 Regular price$5,020.00
Stock:
In stock

Estimated shipping: 1-3 Business Days

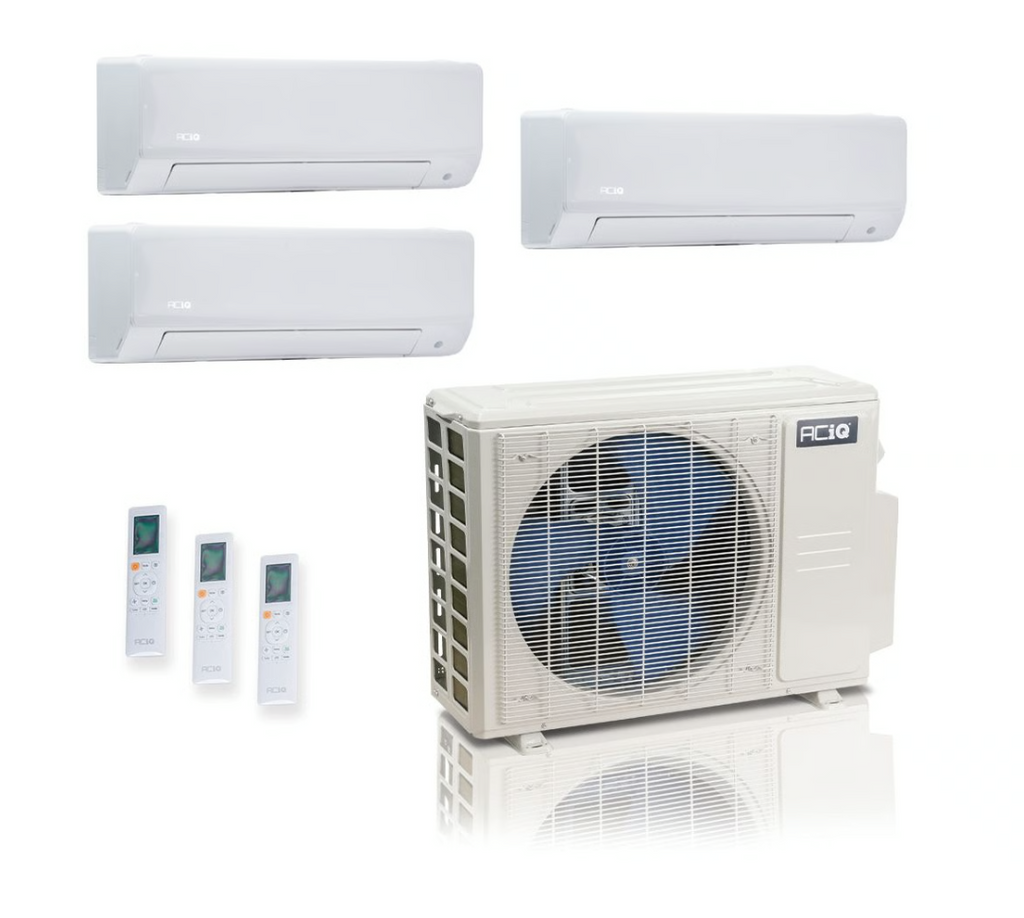

ACiQ Standard 27,000 BTU 25 SEER2 3 Zone Wall Mount Mini Split Heat Pump System 230V - 6 + 6 + 12

This ACiQ 3-Zone Standard Series System combines high efficiency with advanced climate control. ES-27Z-M4C / ACIQ-06W-HH-MD-2 / ACIQ-12W-HH-MD is the perfect solution for year-round heating and cooling in up to 3 spaces.

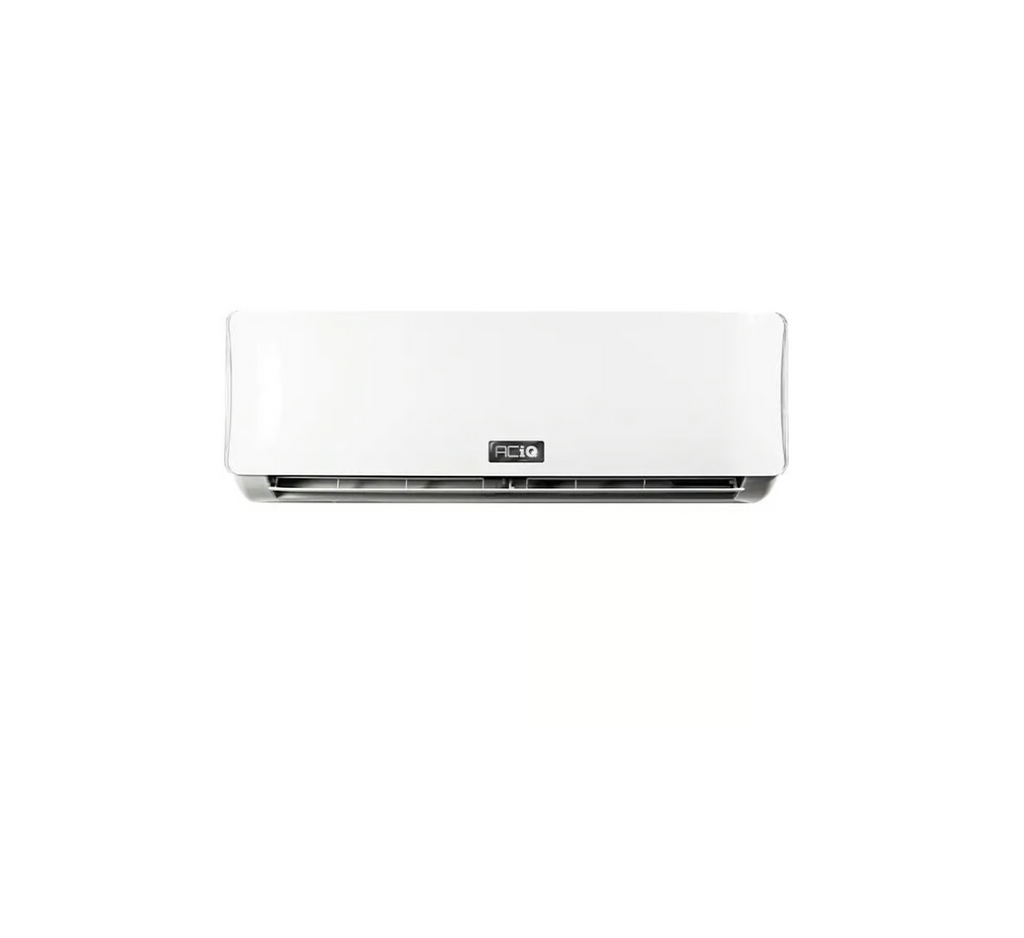

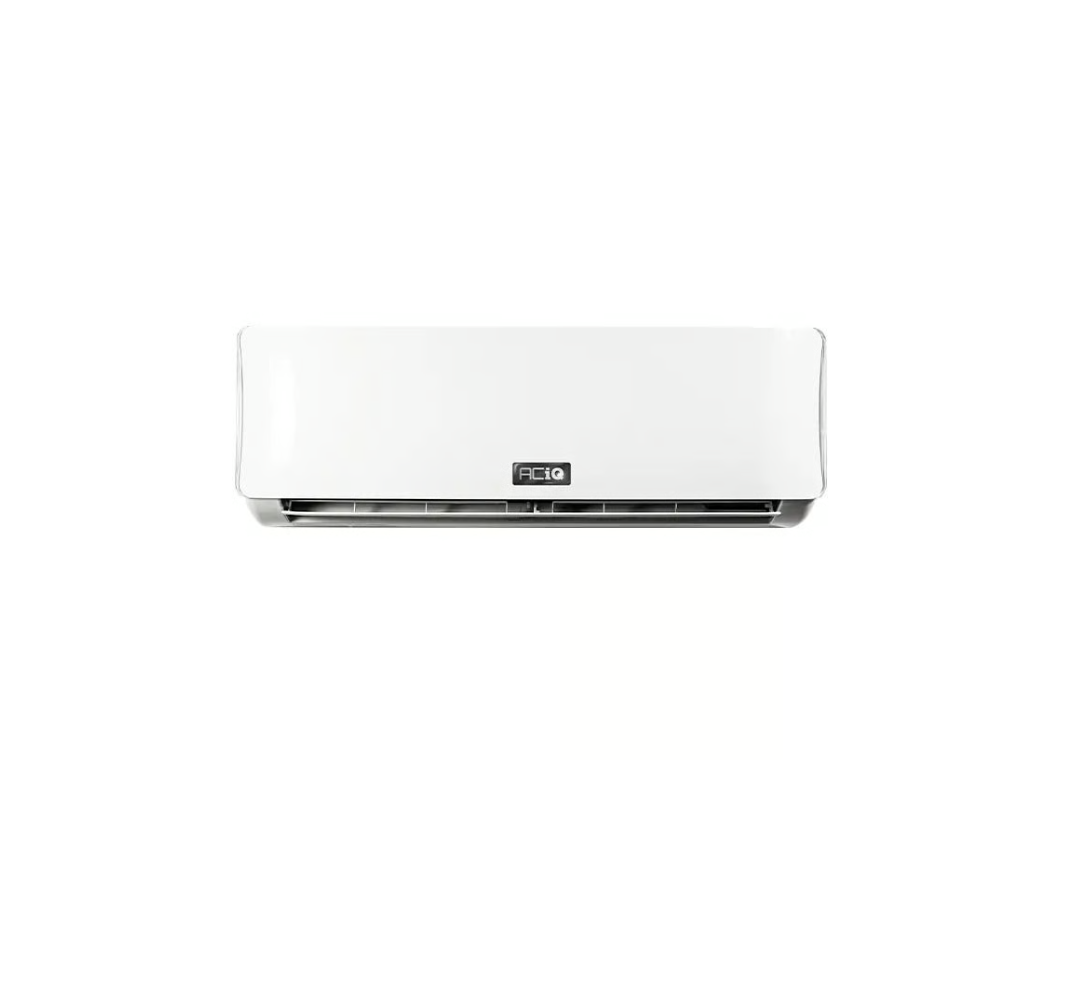

12,000 BTU ACiQ Platinum Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V

Platinum Performance

ACiQ Platinum air handlers can be used with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.

Features

  • 12,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes an Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

Intelligent Heating and Cooling

The ACiQ-12W-HH-MD air handler includes a soft LED display on the front of the unit, giving you information at a glance. The display shows the room's temperature by default, but it can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, the display will also show any error codes from its self-diagnosing control board, which can be switched off if desired. The included smart remote can show these notifications on its built-in LCD display as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

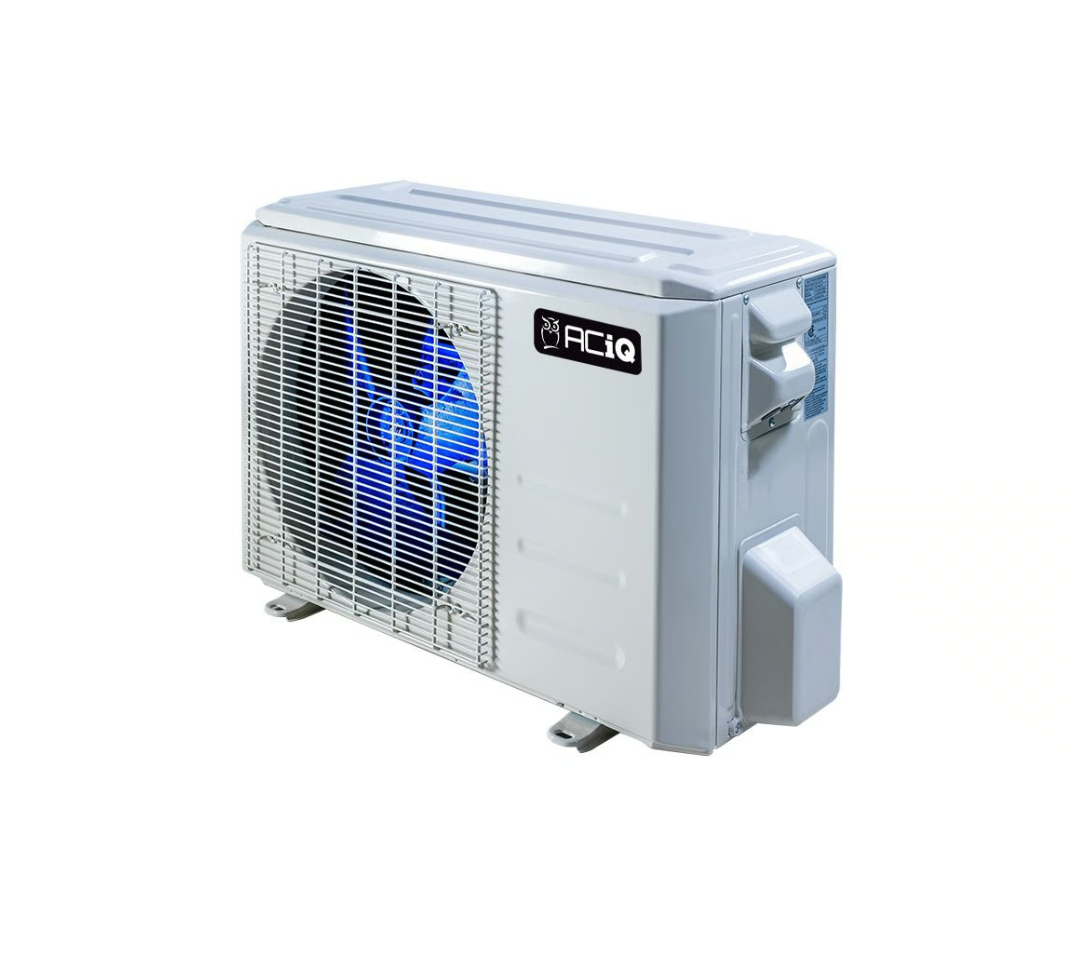

Condenser Specs:

SKU ES-27Z-M4C
Refrigerant Charge 84.66 oz.
Weight 149.690000
AHRI Certificate Number 216032379
Manufacturer ACiQ
Replaces ES-27Z-M3B
HSPF2 9.5
Cooling BTU 27000 BTU
Heating BTU 27000 BTU
Maximum CFM 2131
Decibel Level (dBA) 61
Electric Heat Heat Pump
Energy Star Yes
Refrigerant R454B
SEER2 25
Compressor Type Rotary
Liquid Line 1/4" (4)
Suction Line 3/8" (3); 1/2" (1)
Electrical 208/230V 1 Phase 60 Hz
Electric Phase Filter Single Phase
Max Breaker Size 25A
Min. Breaker Size 23A
Tonnage 2 Ton to 2.5 Ton
BTU/Tonnage 24,000 BTU/2 Ton
Mini Split Type Wall Mounted
Zone Compatibility Multi Zone
Ambient Temperature Range -13 ~ 122
Height 31.89"
Width 37.24"
Depth 16.14"
Warranty 12 year compressor, 7 year parts with online registration

Need help deciding which mini split system is right for you? We are here to help.

Talk with one of our trusted HVAC and Mini Split professionals today!
