Daikin 24,000 BTU (7K + 7K + 7K) MXM 21 SEER2 3 Zone Wall Mount Mini Split Heat Pump System - R32 - 230V
The 24,000 BTU Daikin 21 SEER2 Tri Zone Wall Mount Mini Split Heat Pump System is a high-efficiency climate control solution designed to provide year-round heating and cooling for three separate spaces. Ideal for residential and light commercial applications, this system includes three 7,000 BTU indoor units, allowing independent temperature control in each zone. Featuring advanced inverter technology, quiet operation, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Features:
- 24,000 BTU Total Capacity Includes three 7,000 BTU indoor units for efficient heating and cooling.
- 21 SEER2 Energy Efficiency Reduces energy consumption while maintaining powerful performance.
- Tri Zone Operation Independently control three separate spaces for customized comfort.
- Advanced Inverter Technology Adjusts compressor speed for precise temperature regulation and energy efficiency.
- Eco-Friendly R-32 Refrigerant Minimizes environmental impact while improving system performance.
- Quiet Operation Low noise levels make it ideal for bedrooms, offices, and other quiet environments.
- Wall-Mounted Indoor Units Sleek, space-saving design that blends seamlessly with any interior.
- 230V Power Supply Ensures stable and efficient operation for long-term reliability.

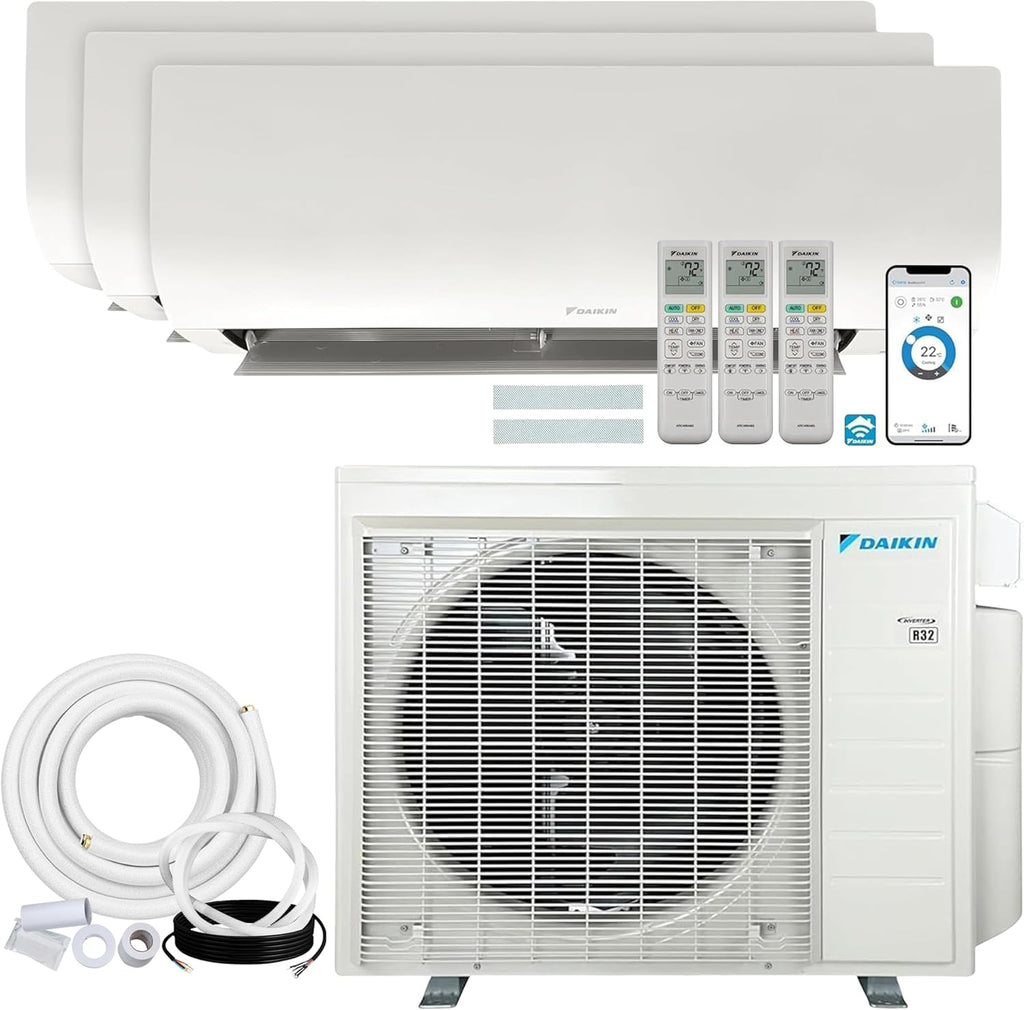

What's Included:
- Three (3) 7,000 BTU Wall-Mounted Indoor Units
- Outdoor Condenser Unit
- Three (3) Wireless Remote Controllers
- Installation Kit (line set length varies based on selection)
- Wall Mounting Brackets
Warranty:
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.

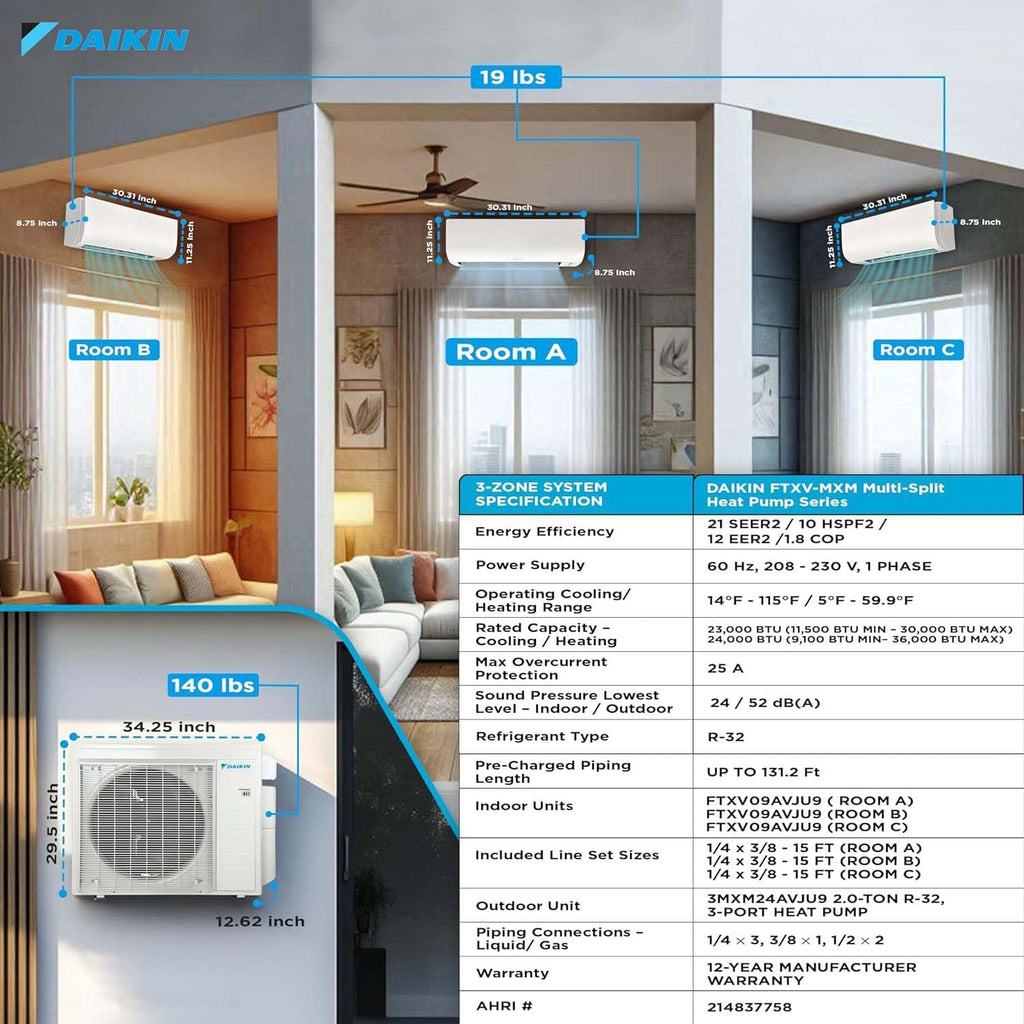

Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | 3MXM24AVJU9 |
| Weight | 140.000000 |
| Manufacturer | Daikin |
| Replaces | 3MXS24WMVJU9 |
| Cooling BTU | 24,000 |
| Decibel Level (dBA) | Operates between 24 to 40 |
| Refrigerant | R32 |
| SEER2 | 21 |
| Compressor Type | Swing |
| Liquid Line | 1/4" (3) |
| Suction Line | 3/8" (1), 1/2" (2) |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 19.9 Amps |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | -13°F to 60°F |
| Min/Max Outdoor Temp for Cooling | 14°F to 115°F |
| Zone Compatibility | Multi Zone |
| Height | 29.5" |
| Width | 34.16" |
| Depth | 12.58" |
| Warranty | Limited 12-Year Parts Warranty |

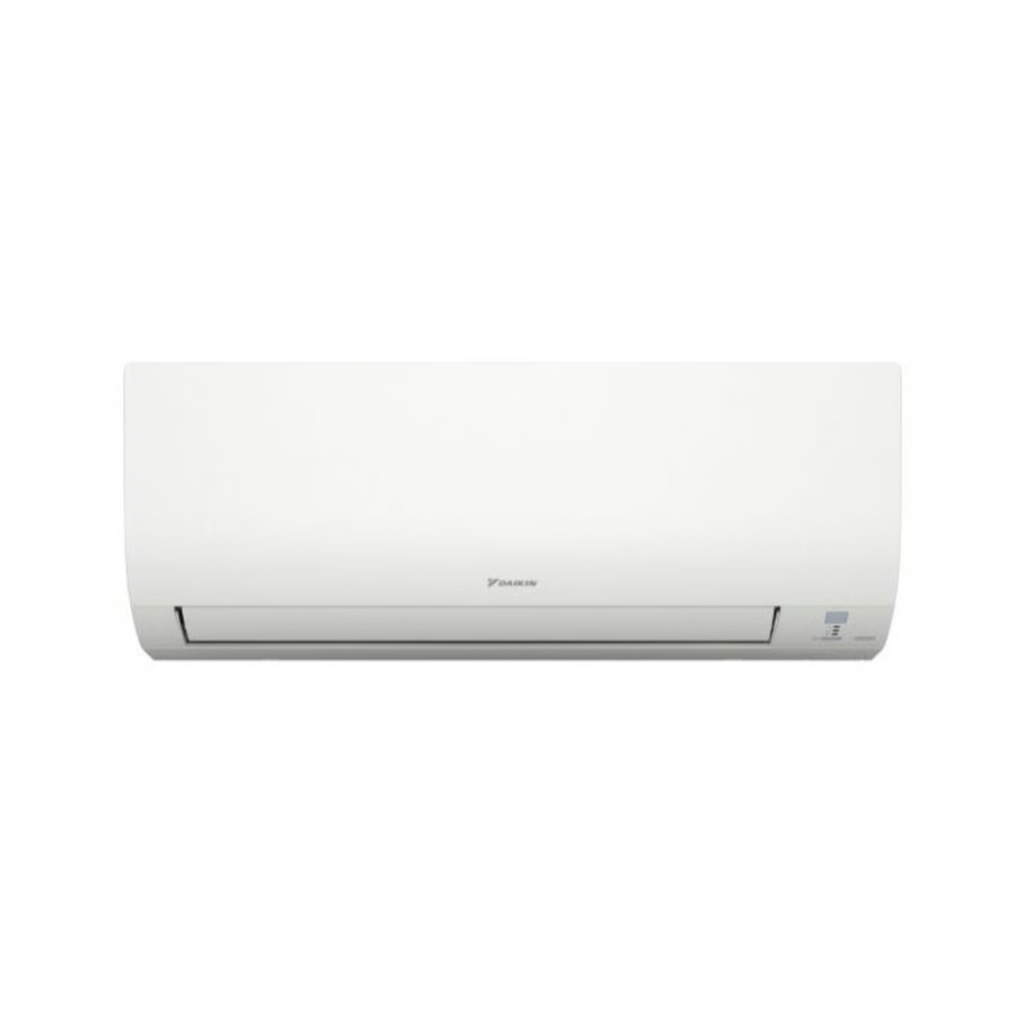

7K Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | CTXV07AVJU9 |
| Weight | 24.000000 |
| Manufacturer | Daikin |
| Replaces | CTXS07WVJU9 |
| Decibel Level (dBA) | 40 |
| Refrigerant | R32 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.16" |
| Width | 30.31" |
| Depth | 8.16" |
| Warranty | Limited 12-Year Parts Warranty |
