Product overview
Daikin ATMOSPHERA 24,000 BTU 22 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 - 230V
The 24,000 BTU Daikin Atmosphera 22 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is an energy-efficient and high-performance solution designed for year-round comfort. Perfect for residential and light commercial applications, this system features advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant. With a 22 SEER2 rating, the Atmosphera series ensures outstanding energy savings while delivering powerful heating and cooling. The system covers up to around 1,000 Sq Ft.
Key Features:
- 24,000 BTU Heating & Cooling Capacity Delivers powerful climate control for large rooms and open spaces.
- 22 SEER2 Energy Efficiency Reduces energy consumption while maintaining superior performance.
- Heat Pump Technology Provides both heating and cooling for year-round climate control.
- Advanced Inverter Technology Adjusts power output to maintain consistent comfort while improving efficiency.
- Eco-Friendly R-32 Refrigerant Reduces environmental impact while enhancing overall system performance.
- Quiet Operation Low noise levels make it ideal for bedrooms, offices, and quiet environments.
- Wall-Mounted Indoor Unit Sleek and space-saving design that integrates seamlessly with any decor.
- 230V Power Supply Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Large homes, offices, and commercial spaces needing efficient heating and cooling.
- Rooms without ductwork where a traditional HVAC system is impractical.
- Garages, basements, sunrooms, and home additions requiring year-round climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.
What's Included:
- Indoor Wall-Mounted Unit
- Outdoor Condenser Unit
- Wireless Remote Controller
- Installation Kit (line set length varies based on selection)
- Wall Mounting Bracket
Warranty:
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.

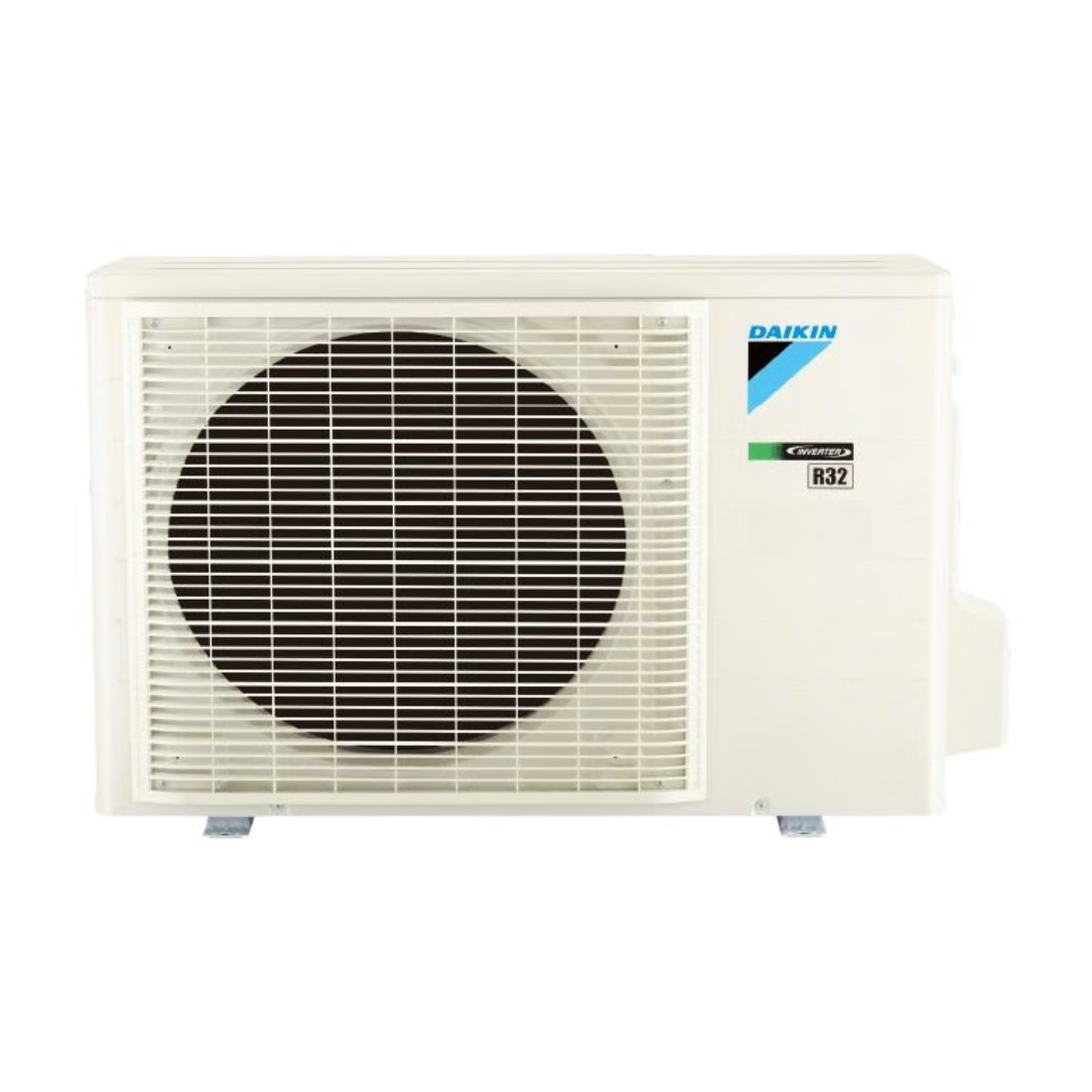

Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | RXM24WVJU9 |
| Weight | 132.000000 |
| Manufacturer | Daikin |
| Cooling BTU | 21,600 |
| Heating BTU | 24,000 |
| Decibel Level (dBA) | 56 |
| Refrigerant | R32 |
| SEER2 | 22 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 5/8" |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 20 A |
| Min. Breaker Size | 19.8 A |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | -13°F to 64.4°F |
| Min/Max Outdoor Temp for Cooling | 50°F to 114.8°F |
| Zone Compatibility | Single Zone |
| Height | 28.93" |
| Width | 34.25" |
| Depth | 12.62" |
| Warranty | Limited 12-Year Parts Warranty |

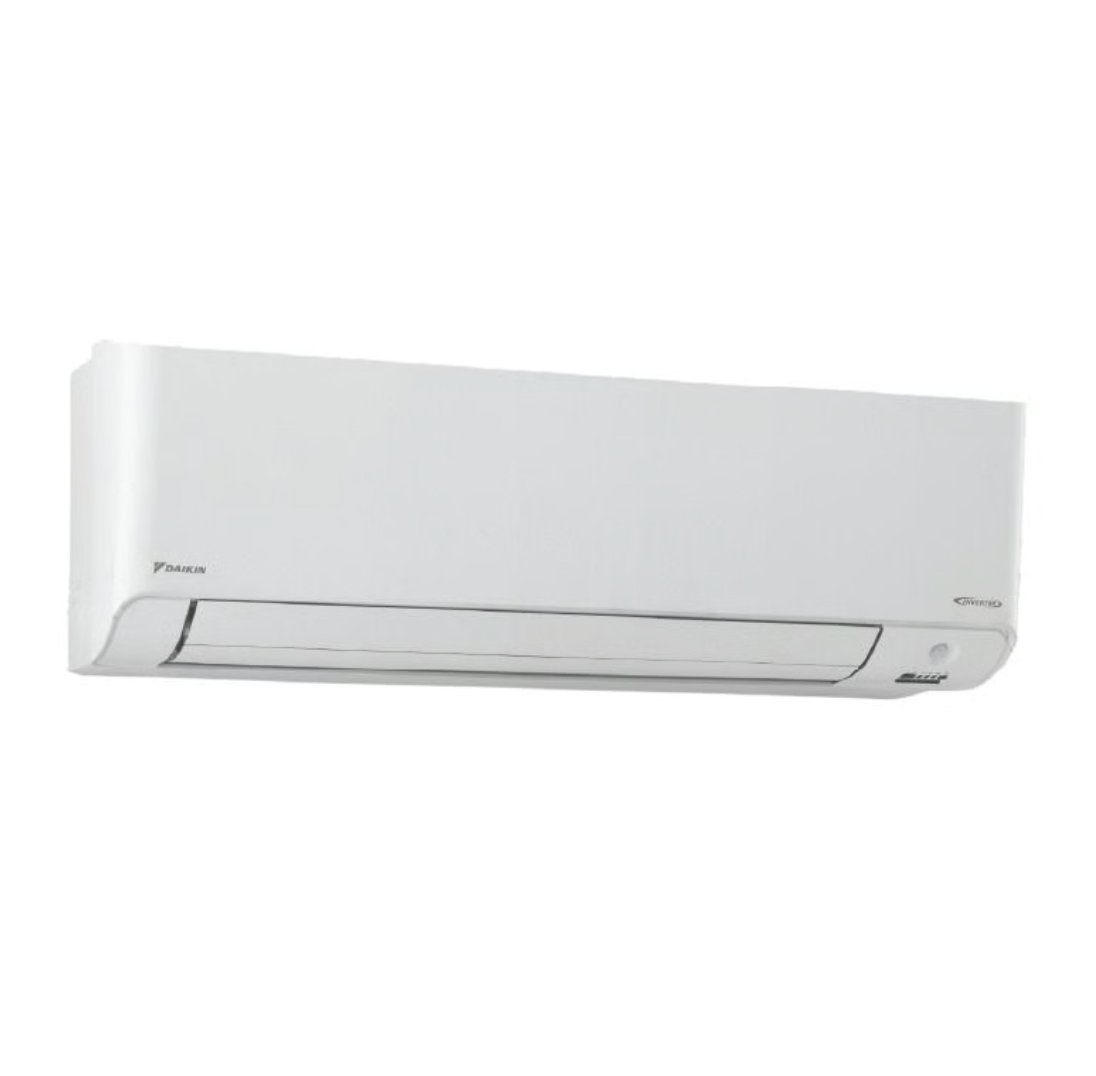

Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | FTXM24WVJU9 |
| Weight | 33.000000 |
| Manufacturer | Daikin |
| HSPF2 | 10 |
| Decibel Level (dBA) | 51 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.75" |
| Width | 43.31" |
| Depth | 10.81" |
| Warranty | Limited 12-Year Parts Warranty |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|
| Indoor unit(s) | 24K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 22 SEER2 |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
