Daikin MXM 48,000 BTU (12K + 15K) 20 SEERS Dual Zone Wall Mount Mini Split Heat Pump System- R32- 230V
The 36,000 BTU Daikin 20 SEER2 Dual-Zone Mini Split Heat Pump System ( 12K + 15K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features:
- 48,000 BTU Total Capacity – One (1) 12,000 BTU and One (1) 15,000 BTU indoor unit.
- 20 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
- Dual Zone Operation – Independently control two separate spaces for customized comfort.
- Advanced Inverter Technology – Adjusts power output to maintain consistent temperatures efficiently.
- Eco-Friendly R-32 Refrigerant – Minimizes environmental impact while enhancing system performance.
- Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
- Wall-Mounted Indoor Units – Sleek, space-saving design that integrates seamlessly with any décor.
- 230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

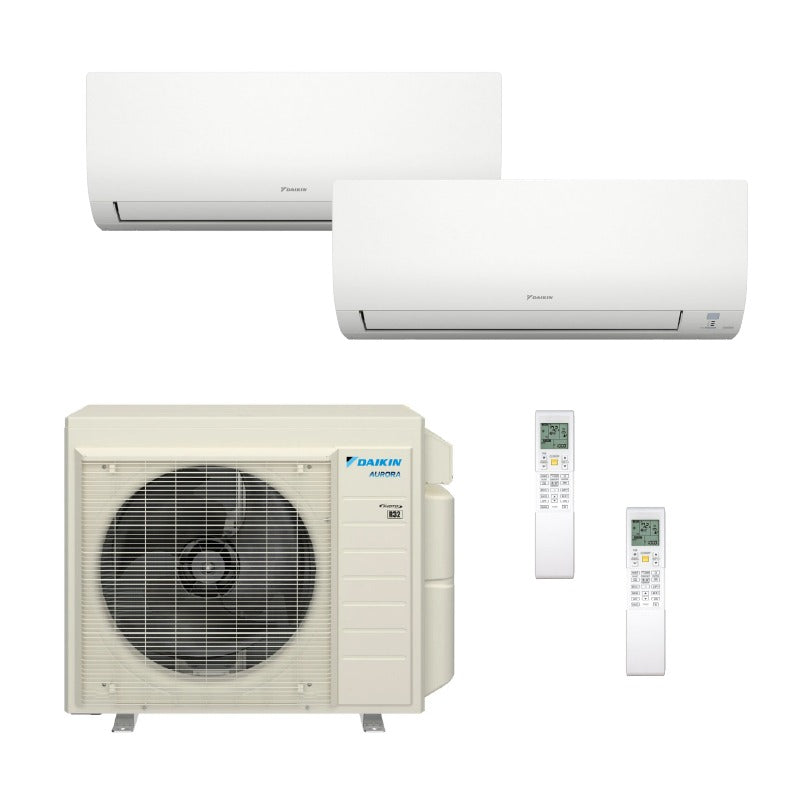

What's Included:

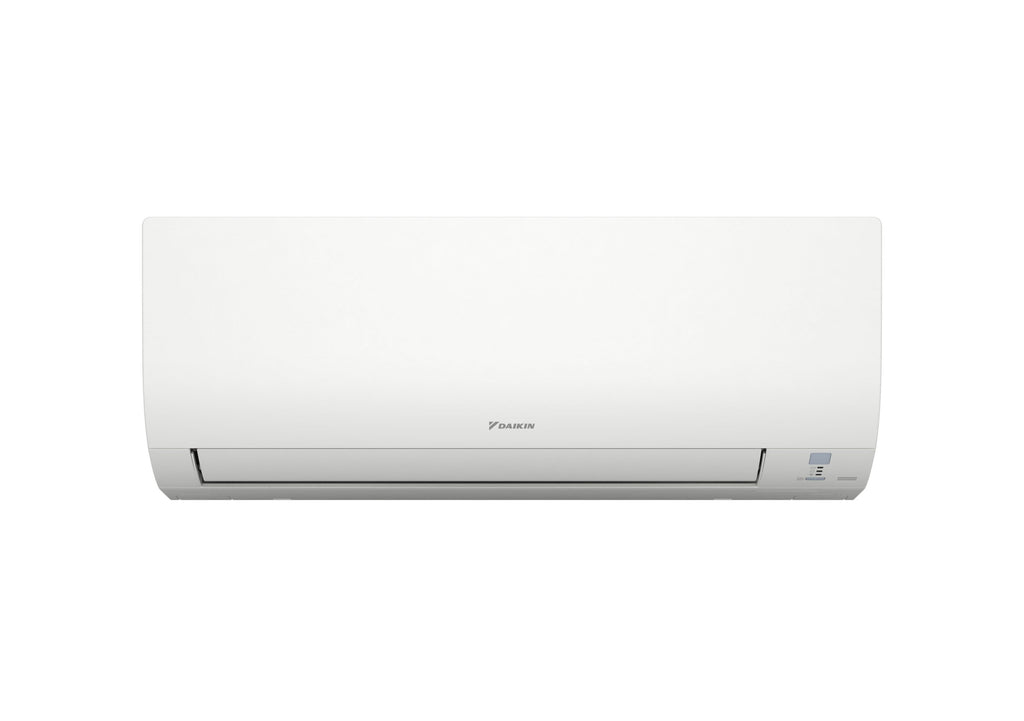

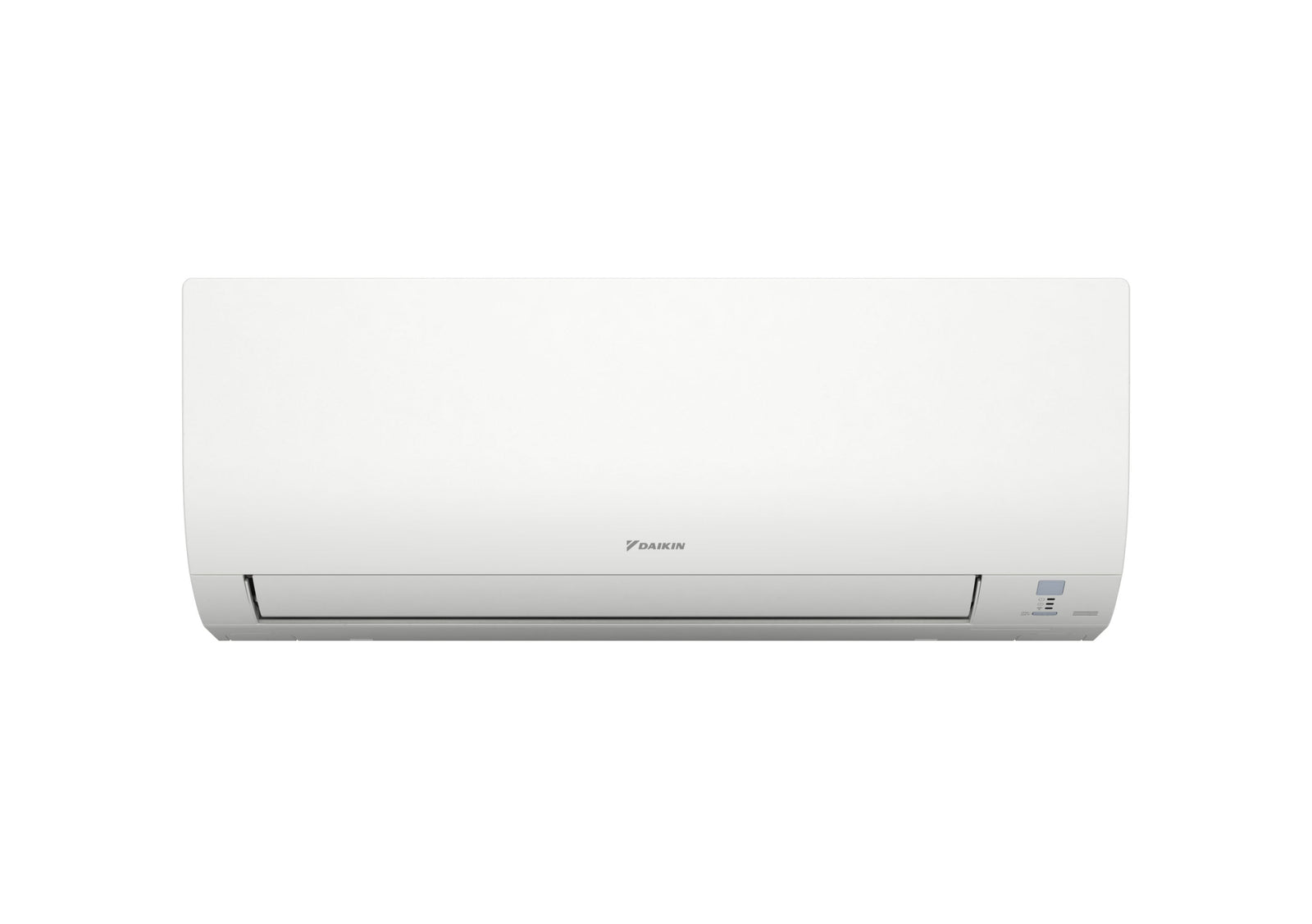

- One (1) 12,000 and One (1) 15,000 BTU Wall-Mounted Indoor Unit
- Outdoor Condenser Unit

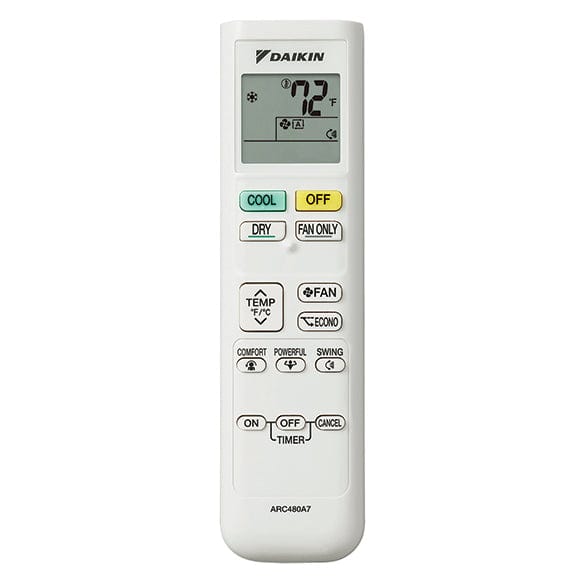

- Two (2) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

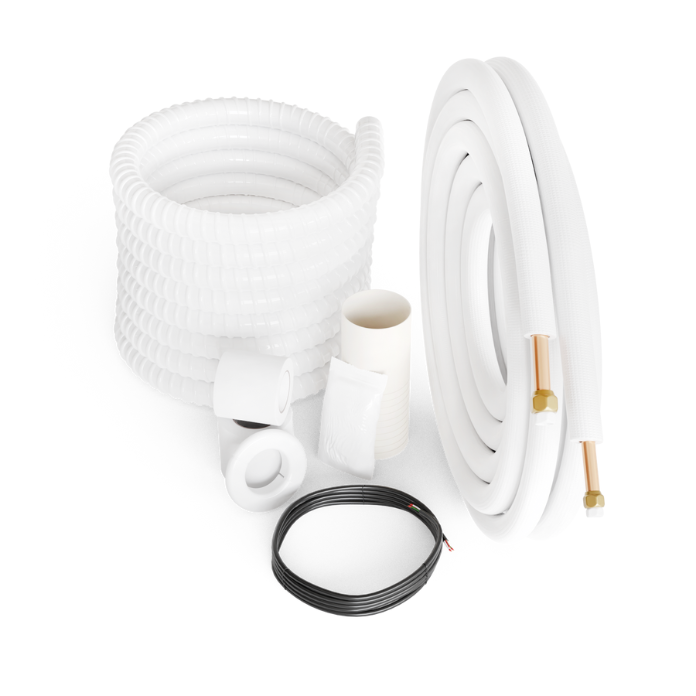

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- ThermostatÂ

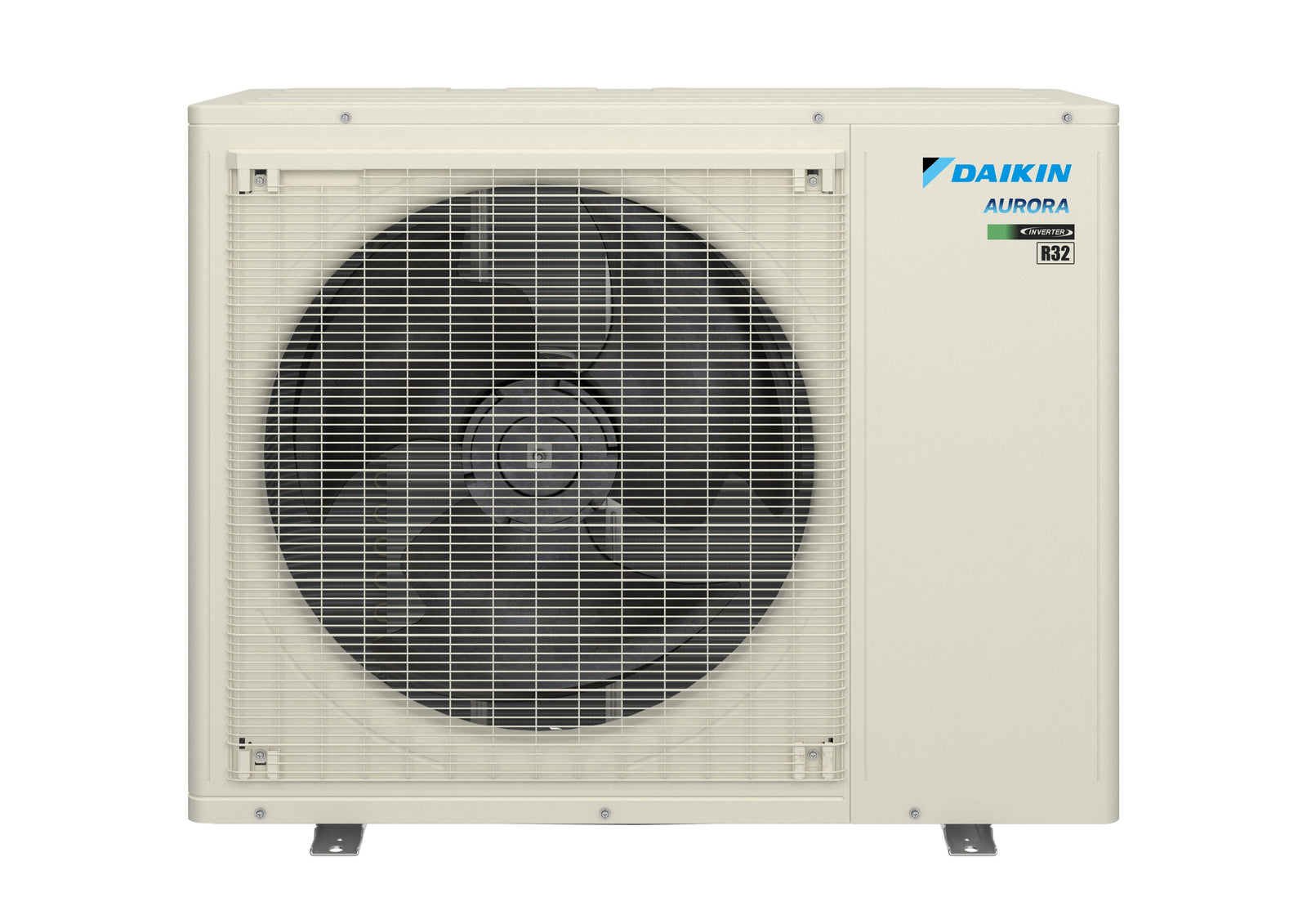

Condesnser Specifications:
| sku | 5MXM48AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Heat Pump |
| system family | Multi-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| product family | 5MXM_AVJU9 |
| series name | Multi Split Heat Pump Outdoor |
| short description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| product description | R-32 Standard Multi - 5 Port Heat Pump, Ductless ODU 4 Ton |
| cooling btu | 46,000 |
| heating btu | 48,500 |
| seer2 | 20 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 40 A |
| min. breaker size | 38.1 A |
| tonnage | 4 |
| btu/tonnage | 46,000 BTU/4 Ton |
| min/max outdoor temp for heating | 5 °F to 75 °F |
| min/max outdoor temp for cooling | 14 °F to 114.8 °F |
| zone compatibility | Multi Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 219 lb |
