Daikin MXM 48,000 BTU (18K + 24K) 20 SEERS Dual Zone Wall Mount Mini Split Heat Pump System- R32- 230V
The 48,000 BTU Daikin 20 SEER2 Dual-Zone Mini Split Heat Pump System ( 18K + 24K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features:
-
48,000 BTU Total Capacity – One (1) 18,000 BTU & One (1) 24,000 BTU indoor unit.
-
20 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
-
Dual Zone Operation – Independently control two separate spaces for customized comfort.
-
Advanced Inverter Technology – Adjusts power output to maintain consistent temperatures efficiently.
-
Eco-Friendly R-32 Refrigerant – Minimizes environmental impact while enhancing system performance.
-
Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
-
Wall-Mounted Indoor Units – Sleek, space-saving design that integrates seamlessly with any décor.
-
230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

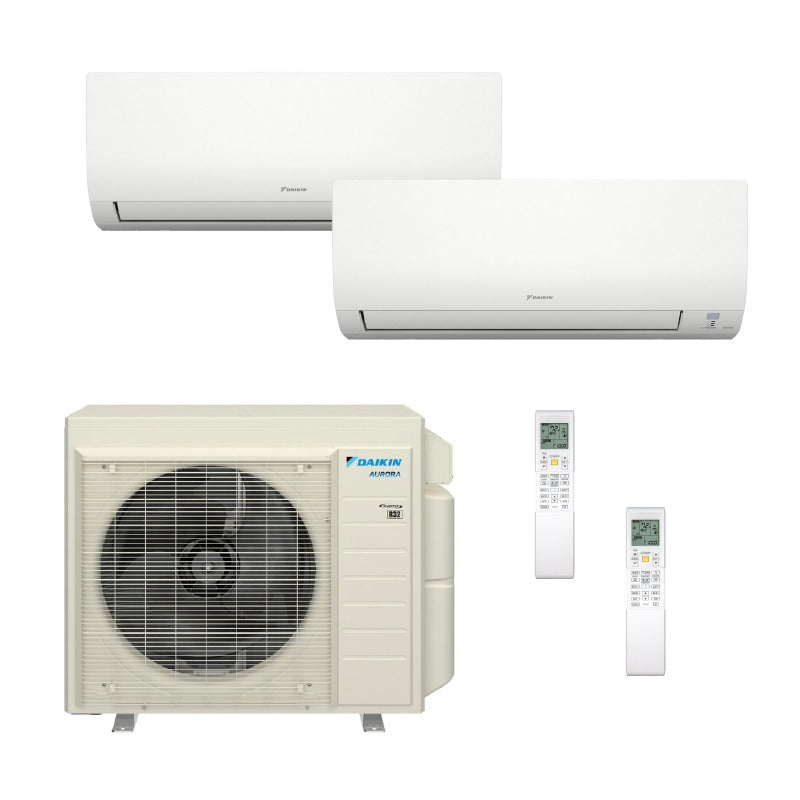

What's Included:
- One (1) 18,000 BTU & One (1) 24,000 Wall-Mounted Indoor Unit
- Outdoor Condenser Unit

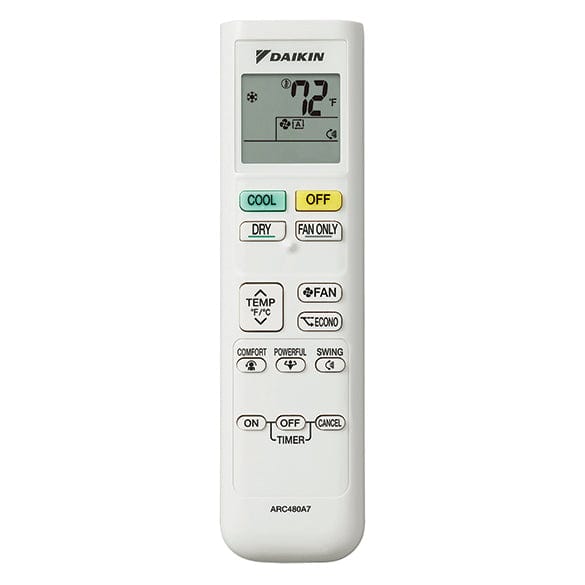

- Two (2) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

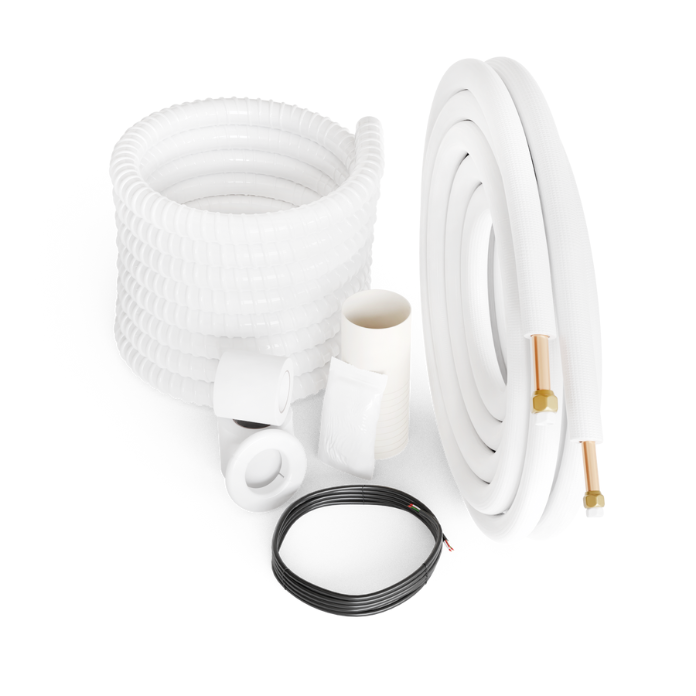

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat

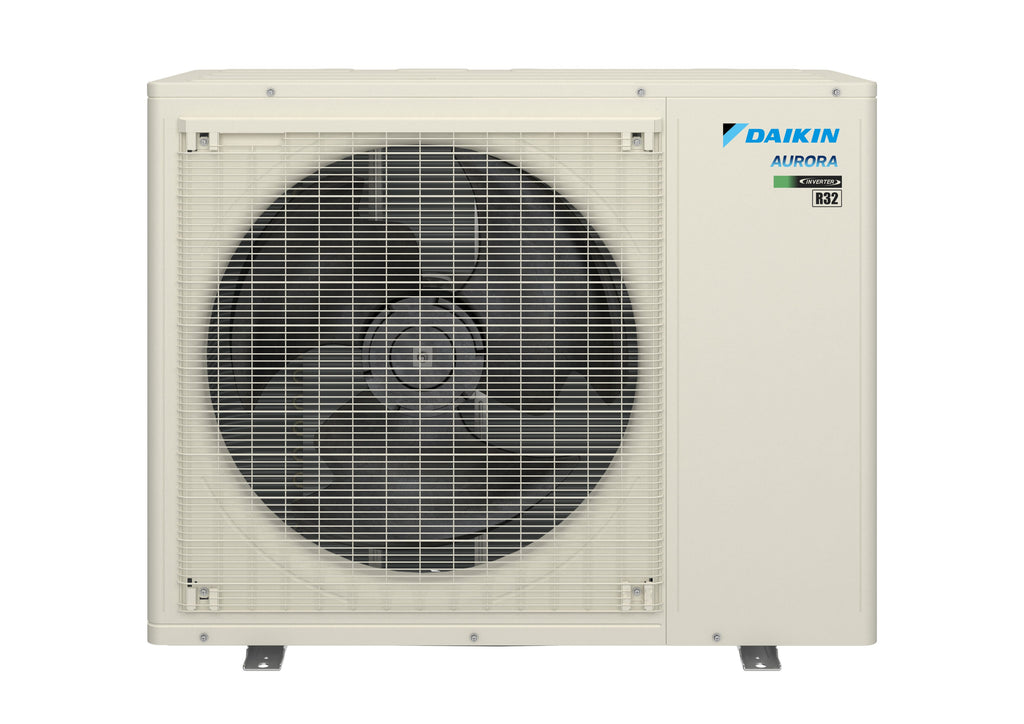

Condenser Specifications:
|
| FEATURE |
SPEC |
| SKU |
5MXM48AVJU9 |
| Weight (in lbs) |
219.000000 |
| AHRI Certificate Number |
217747237 |
| Brand/Manufacturer |
Daikin |
| HSPF2 |
9.5 |
| Cooling BTU |
46,000 BTU |
| Heating BTU |
48,500 BTU |
| Maximum CFM |
3137 |
| Decibel Level (dBA) |
55 |
| Energy Star |
Yes |
| Refrigerant |
R32 |
| SEER2 (Efficiency) |
20 |
| Compressor Type |
DC Inverter-Driven |
| Electrical |
230V | 60Hz | 1 Phase |
| Phase |
Single Phase |
| Max Breaker Size |
40 Amp |
| Min. Breaker Size |
38.1 Amp |
| BTU/Tonnage |
48,000 BTU/4 Ton |
| Min/Max Outdoor Temp for Heating |
5°F to 70°F |
| Min/Max Outdoor Temp for Cooling |
14°F to 155°F |
| Zone Compatibility |
Multi Zone |
| Operating Mode |
Heating/Cooling |
| Height |
34-1/4 in |
| Width |
43-5/16 in |
| Depth |
18-1/8 in |
| Warranty |
12 year limited parts |

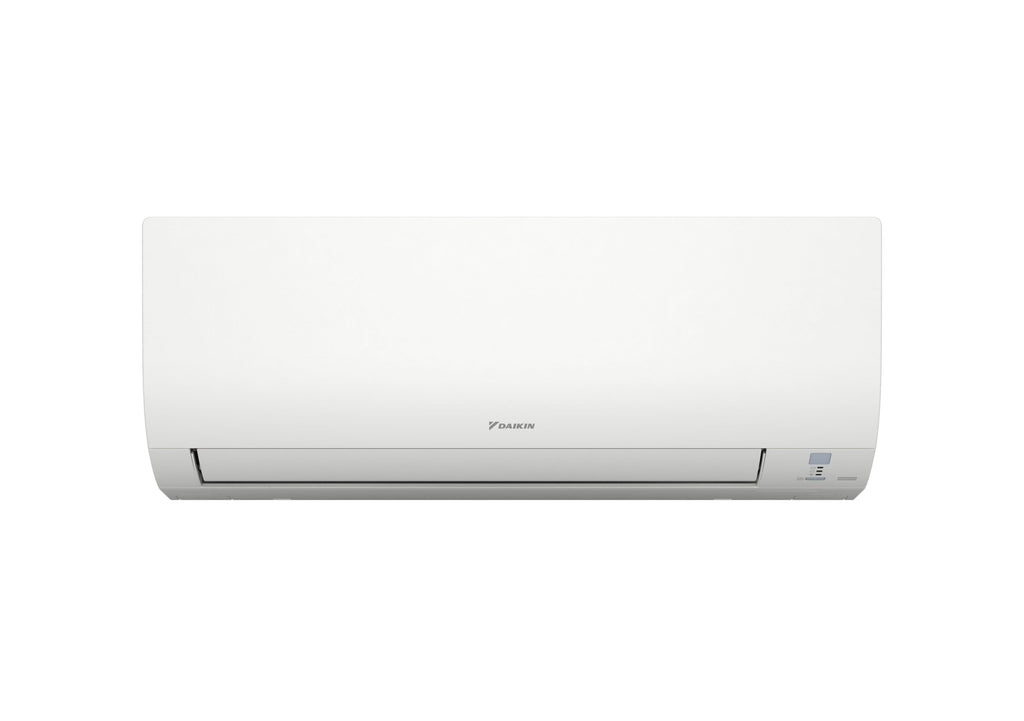

18K Air Handler Specs:
| sku |
FTXV18AVJU9 |
| manufacturer |
Daikin |
| product category |
Ductless Mini-Splits |
| product class |
Multi-Split Fan Coil |
| system family |
Multi-Split |
| function category |
Cooling Only |
| product type |
Equipment |
| unit type |
Indoor |
| market type |
Residential-Single Family |
| product family |
FTXV_AVJU9 |
| series name |
Multi-Split Fan Coil Indoor |
| short description |
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description |
R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description |
1.5 Ton Wall Mount - R-32 |
| decibel level (dba) |
48 dBA |
| refrigerant |
R-32 |
| liquid line |
1/4 in |
| suction line |
1/2 in |
| electrical |
208-230 V | 60 Hz | 1 Ph |
| zone compatibility |
Multi Zone |
| height |
11-5/8 in |
| width |
39 in |
| depth |
10-3/8 in |
| weight |
27 lb |
24K Air Handler Specs:
| sku |
FTXV24AVJU9 |
| manufacturer |
Daikin |
| product category |
Ductless Mini-Splits |
| product class |
Multi-Split Fan Coil |
| system family |
Multi-Split |
| function category |
Cooling Only |
| product type |
Equipment |
| unit type |
Indoor |
| market type |
Residential-Single Family |
| product family |
FTXV_AVJU9 |
| series name |
Multi-Split Fan Coil Indoor |
| short description |
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description |
R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description |
2.0 Ton Wall Mount - R-32 |
| decibel level (dba) |
52 dBA |
| refrigerant |
R-32 |
| liquid line |
1/4 in |
| suction line |
5/8 in |
| electrical |
208-230 V | 60 Hz | 1 Ph |
| zone compatibility |
Multi Zone |
| height |
11-5/8 in |
| width |
39 in |
| depth |
10-3/8 in |
| weight |
27 lb |
