Daikin Aurora 3-Zone Ductless Mini Split AC & Heat Pump 36000 BTU (12K+18K+18K), Wall Mount Units, 230V - R32
The 36,000 BTU 21 SEER2 Three-Zone Mini Split Heat Pump System (12K + 18K + 18K) is a high-efficiency solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes three indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Features:
Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
Variable Speed Inverter Compressor
Cooling Range 14° - 115° F
Continuous heating operation as low as -13F° (-25°C)
Quick and easy installation
Precision temperature control for individual rooms
Space-saving design
Quiet operation
Intelligent Defrost mode

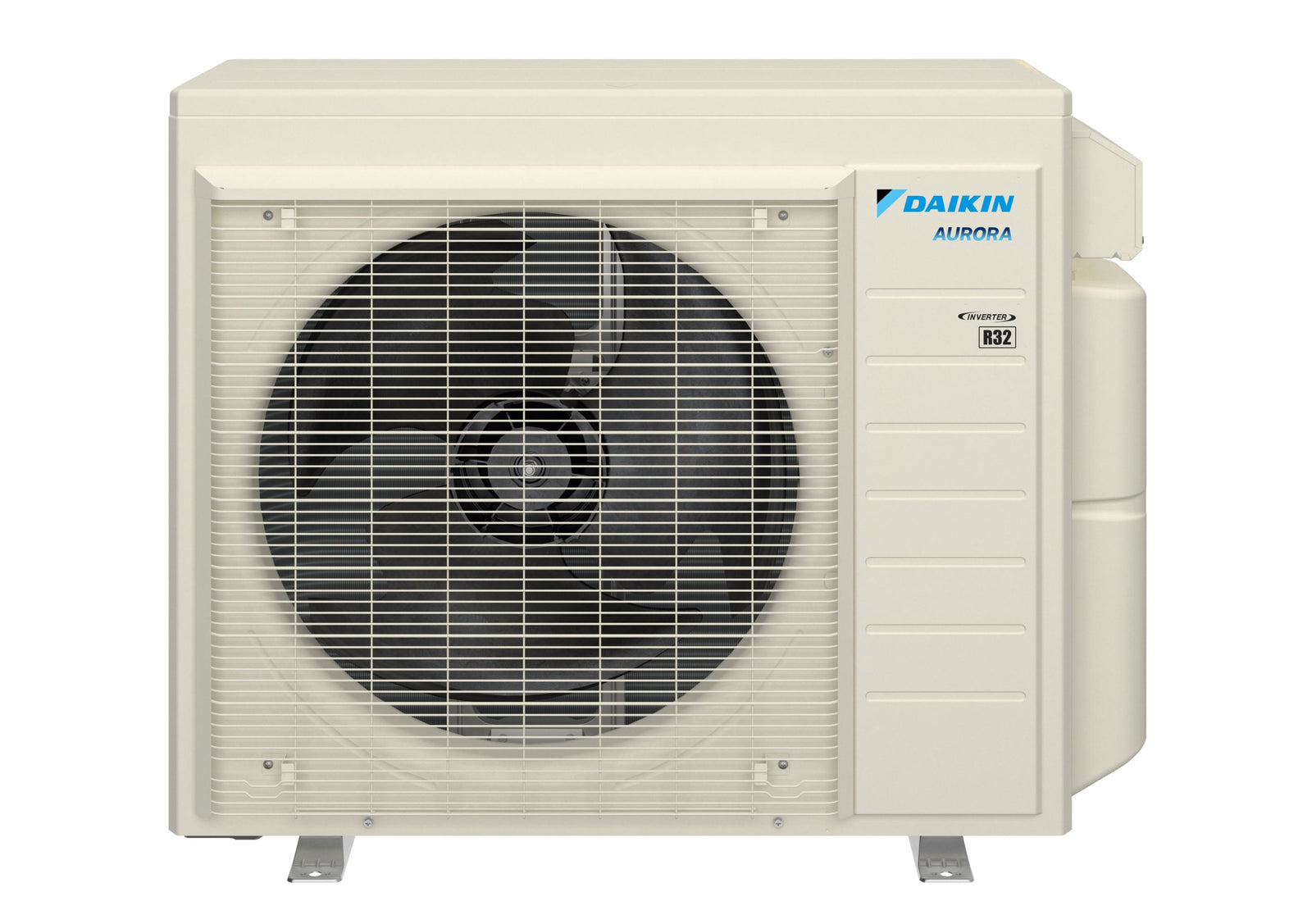

Condenser Specifications:
Sku
3MXM24AVJU9
Manufacturer
Daikin
Product Category
Ductless Mini-Splits
Product Class
Multi-Split Heat Pump
System Family
Multi-Split
Function Category
Heat Pump
Product Type
Equipment
Unit Type
Outdoor
Market Type
Residential-Single Family
Product Family
3MXM_AVJU9
Series Name
MXM
Short Description
Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump
Family Description
2.0 Ton 3-Port Heat Pump
Product Description
2.0-Ton R-32, 3-Port Heat Pump, Ductless ODU
Cooling Btu
23,000
Heating Btu
24,000
Seer2
21
Decibel Level (Dba)
52 dBA
Refrigerant
R-32
Compressor Type
Swing
Liquid Line
1/4 in
Suction Line
3/8 in
Electrical
208-230 V | 60 Hz | 1 Ph
Max Breaker Size
25 A
Min. Breaker Size
19.9 A
Tonnage
2
Btu/Tonnage
23,000 BTU/2 Ton
Min/Max Outdoor Temp For Heating
5 °F to 59.9 °F
Min/Max Outdoor Temp For Cooling
14 °F to 114.8 °F
Zone Compatibility
Multi Zone
Height
29-1/2 in
Width
34-1/4 in
Depth
12-5/8 in
Weight
140 lb
Warranty
ALL PARTS - 12 YEARS PARTS

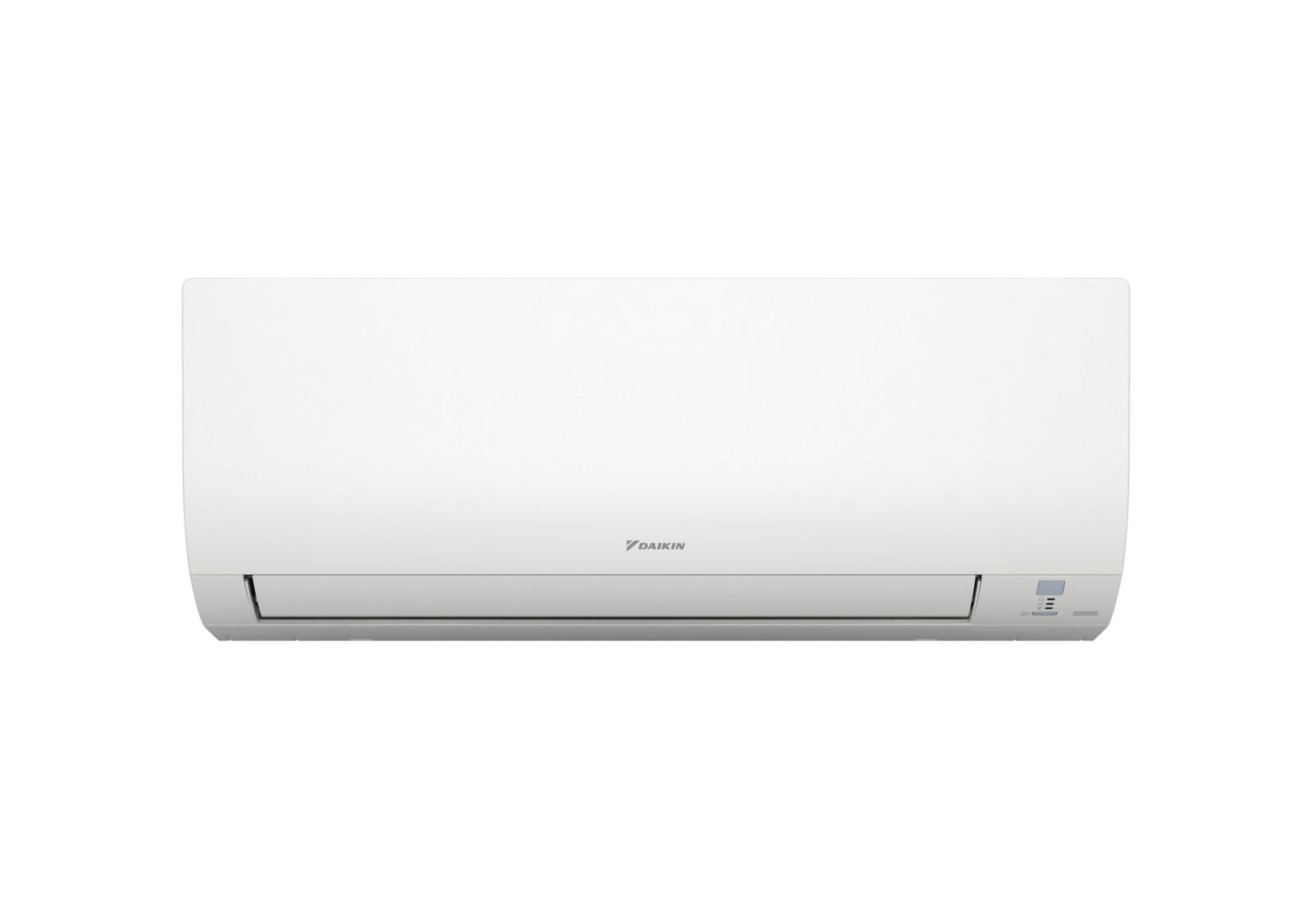

12k Air Handler Specifications:
Sku
FTXV12AVJU9
Manufacturer
Daikin
Product Category
Ductless Mini-Splits
Product Class
Multi-Split Fan Coil
System Family
Multi-Split
Function Category
Cooling Only
Product Type
Equipment
Unit Type
Indoor
Market Type
Residential-Single Family
Product Family
FTXV_AVJU9
Series Name
Multi-Split Fan Coil Indoor
Short Description
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
Family Description
R-32 0.75 - 2.0 Ton Wall Mounted Unit
Product Description
1 Ton Wall Mount R-32
Decibel Level (Dba)
45 dBA
Refrigerant
R-32
Liquid Line
1/4 in
Suction Line
3/8 in
Electrical
208-230 V | 60 Hz | 1 Ph
Tonnage
1
Zone Compatibility
Multi Zone
Height
11-1/4 in
Width
30-5/16 in
Depth
8-3/4 in
Weight
19 lb
18k Air handler Specifications:
Sku
FTXV18AVJU9
Manufacturer
Daikin
Product Category
Ductless Mini-Splits
Product Class
Multi-Split Fan Coil
System Family
Multi-Split
Function Category
Cooling Only
Product Type
Equipment
Unit Type
Indoor
Market Type
Residential-Single Family
Product Family
FTXV_AVJU9
Series Name
Multi-Split Fan Coil Indoor
Short Description
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil
Family Description
R-32 0.75 - 2.0 Ton Wall Mounted Unit
Product Description
1.5 Ton Wall Mount - R-32
Decibel Level (Dba)
48 dBA
Refrigerant
R-32
Liquid Line
1/4 in
Suction Line
1/2 in
Electrical
208-230 V | 60 Hz | 1 Ph
Zone Compatibility
Multi Zone
Height
11-5/8 in
Width
39 in
Depth
10-3/8 in
Weight
27 lb
