Product overview
Daikin Aurora 3-Zone Ductless Mini Split AC & Heat Pump 36000 BTU (7K + 12K+ 24K), Wall Mount Units, 230V - R32
The 36,000 BTU Daikin 21 SEER2 Three-Zone Mini Split Heat Pump System (7K + 12K + 24K) is a high-efficiency solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes three indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort. This Daikin 36,000 BTU multi-zone heat pump system is Backed back a 12 year limited parts warranty, which ensures long term reliability.
Includes:
-
36,000 BTU Multi-Zone Condenser.
-
Three air handlers (7K, 12K & 24K BTU).
-

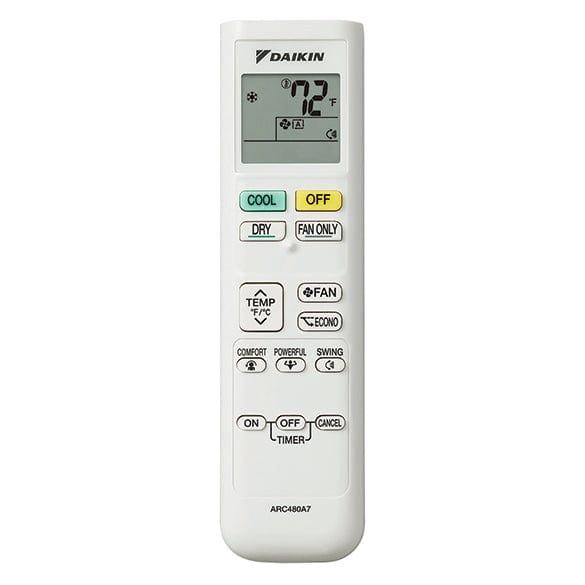

Three remotes.
-

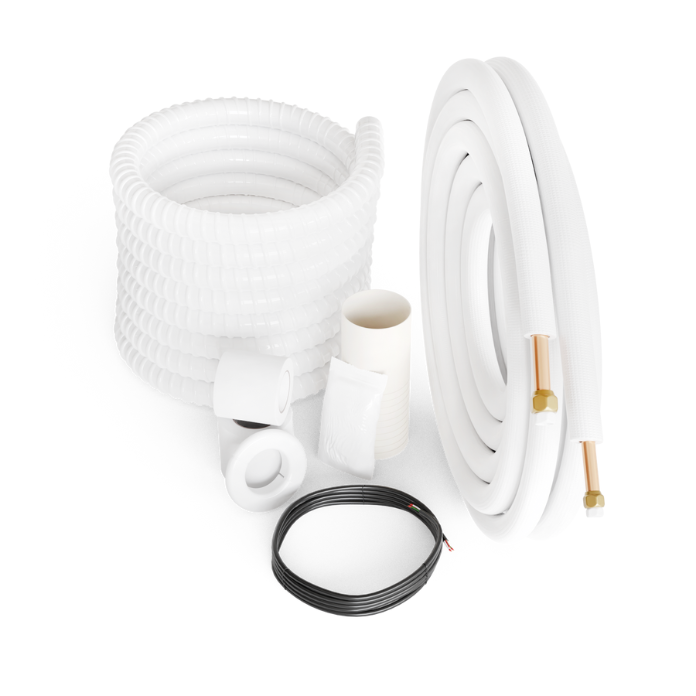

Three linesets of your choice.
Features:
-
Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
-
Variable Speed Inverter Compressor
-
Cooling Range 14° - 115° F
-
Continuous heating operation as low as -13F° (-25°C)
-
Quick and easy installation
-
Precision temperature control for individual rooms
-
Space-saving design
-
Quiet operation
-
Intelligent Defrost mode

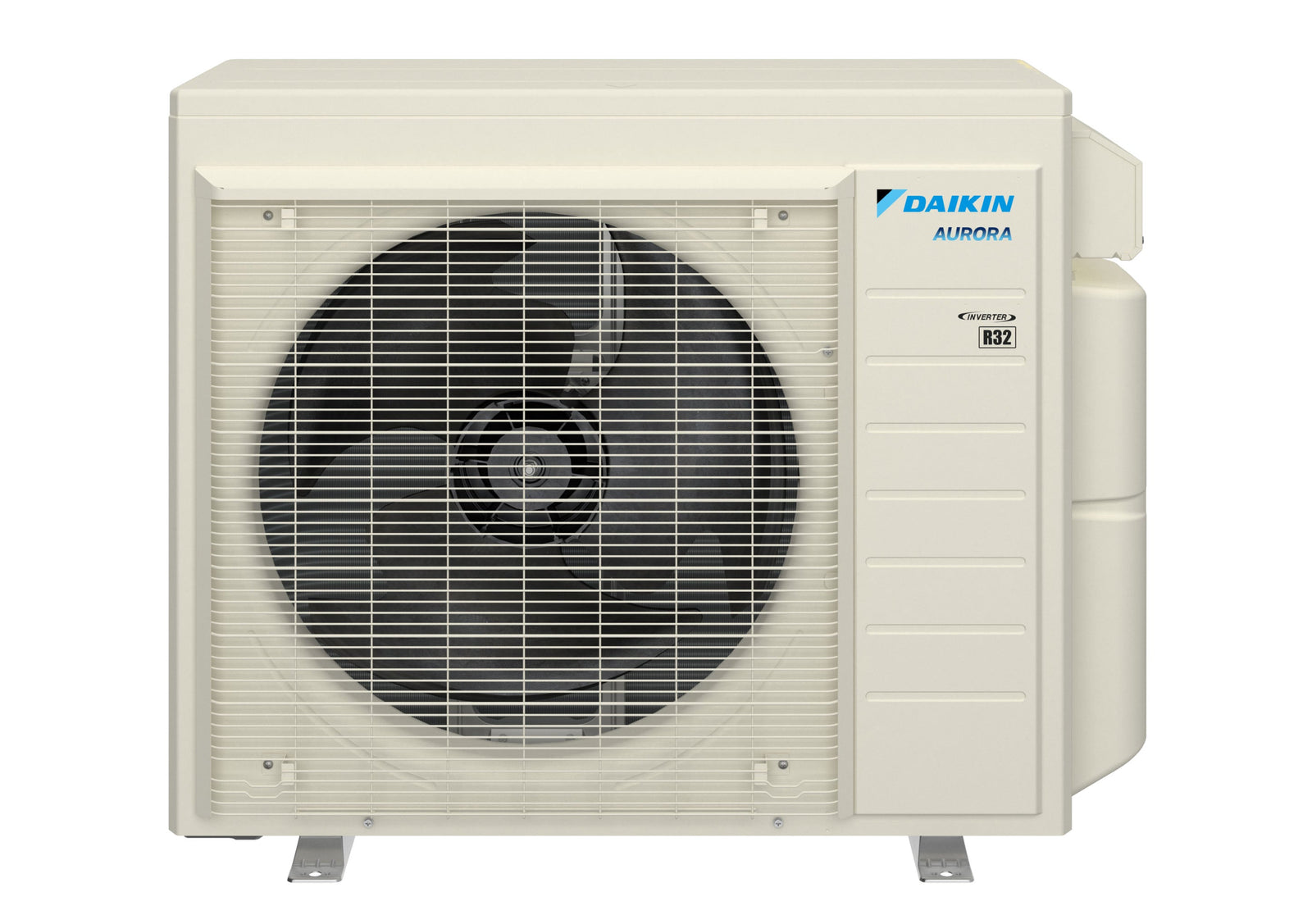

Condenser Specifications:
| Sku | 4MXM36AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Heat Pump |
| System Family | Multi-Split |
| Function Category | Heat Pump |
| Product Type | Equipment |
| Unit Type | Outdoor |
| Market Type | Residential-Single Family |
| Product Family | 4MXM_AVJU9 |
| Series Name | MXM |
| Short Description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| Family Description | 3.0 Ton R-32 4-Port Heat Pump |
| Product Description | 3.0-Ton R-32, 4-Port Heat Pump, Ductless ODU |
| Cooling Btu | 34,200 |
| Heating Btu | 34,600 |
| Seer2 | 20 |
| Decibel Level (Dba) | 56 dBA |
| Refrigerant | R-32 |
| Compressor Type | Swing |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 24.1 A |
| Tonnage | 3 |
| Btu/Tonnage | 34,200 BTU/3 Ton |
| Min/Max Outdoor Temp For Heating | 5 °F to 59.9 °F |
| Min/Max Outdoor Temp For Cooling | 14 °F to 114.8 °F |
| Zone Compatibility | Multi Zone |
| Height | 29-1/2 in |
| Width | 34-1/4 in |
| Depth | 12-5/8 in |
| Weight | 142 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |

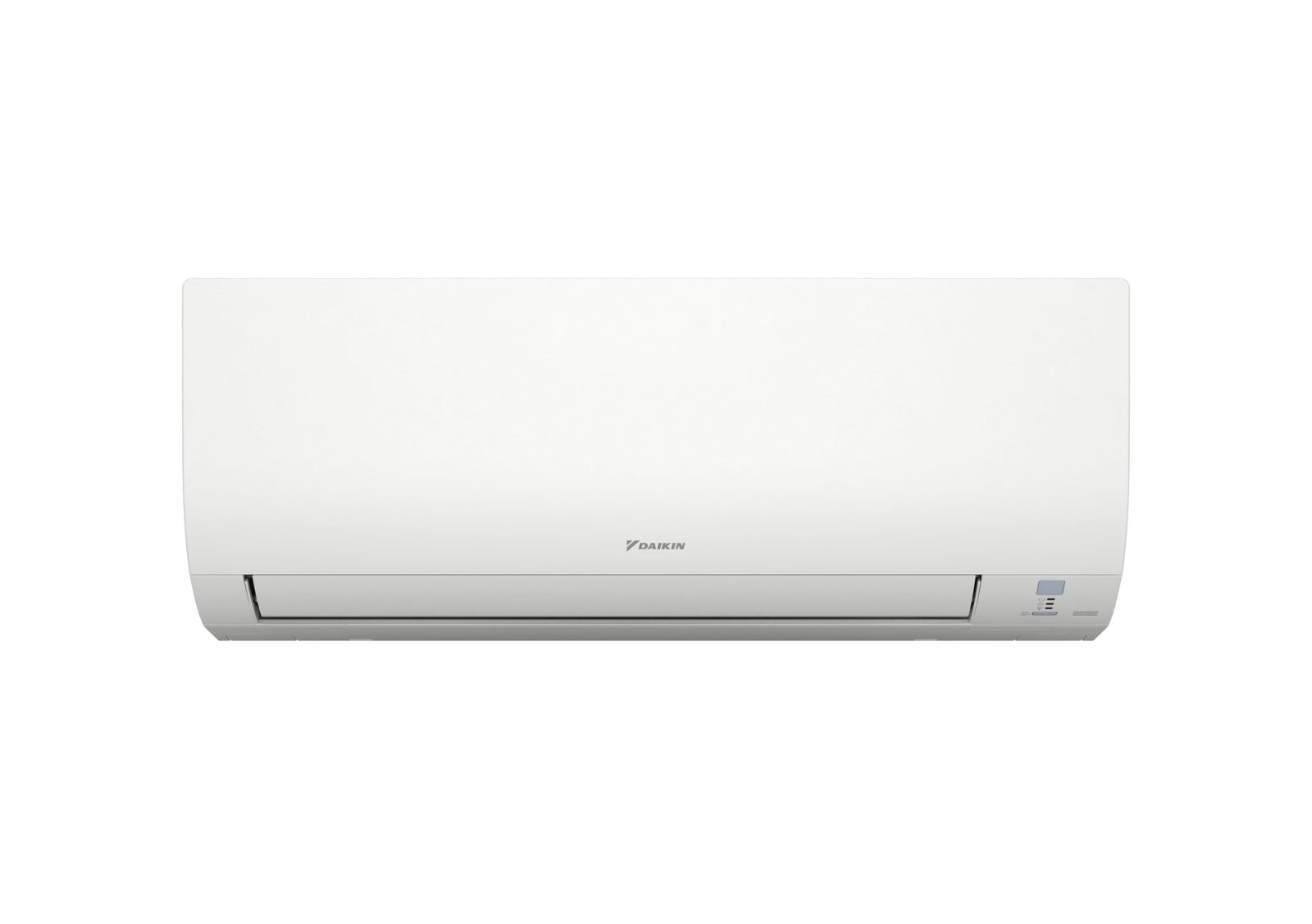

7k Air Handler Specs:
| Sku | CTXV07AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | CTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor R-32 |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | 0.5 Ton Wall Mounted Unit |
| Product Description | 1/2 Ton Wall Mounted Unit - R-32 |
| Decibel Level (Dba) | 40 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 0.5 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
12K air Handler Specs:
| Sku | FTXV12AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 1 Ton Wall Mount R-32 |
| Decibel Level (Dba) | 45 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 1 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
24K Air Handler Specs:
| Sku | FTXV24AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 2.0 Ton Wall Mount - R-32 |
| Decibel Level (Dba) | 52 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 5/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Zone Compatibility | Multi Zone |
| Height | 11-5/8 in |
| Width | 39 in |
| Depth | 10-3/8 in |
| Weight | 27 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 36K BTU |
|---|---|
| Indoor unit(s) | 7K + 12K + 24K |
| Zones / rooms | 3 Zones |
| Power | 230 Volt |
| Mount type | Wall |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
