Daikin Aurora 36,000 BTU 3-Zone Ductless Mini Split System (7K + 15K + 18K)
Premium three-room comfort from one outdoor unit. This Daikin 3-zone ductless mini split AC and heat pump package is built for homeowners who want quiet, efficient heating and cooling in separate spaces without adding ductwork.
This bundle pairs one Daikin 4MXM36AVJU9 R-32 outdoor condenser with 1 x CTXV07AVJU9 7,000 BTU wall-mounted indoor unit, 1 x FTXV15AVJU9 15,000 BTU wall-mounted indoor unit, 1 x FTXV18AVJU9 18,000 BTU wall-mounted indoor unit. It is a strong fit for a mix of smaller and larger rooms, such as bedrooms, offices, living areas, finished basements, or additions.
Use this configuration when the 7K + 15K + 18K indoor unit mix matches your room load calculations. Before ordering, confirm room sizes, outdoor unit placement, electrical requirements, and line-set lengths with your installer.
At a Glance:
| Best For | Three-room heating and cooling with independent zone comfort |
| Outdoor Unit | Daikin 4MXM36AVJU9, 36,000 BTU class, R-32, 4-port multi-zone condenser |
| Indoor Units | 1 x CTXV07AVJU9 7,000 BTU wall-mounted indoor unit, 1 x FTXV15AVJU9 15,000 BTU wall-mounted indoor unit, 1 x FTXV18AVJU9 18,000 BTU wall-mounted indoor unit |
| Indoor Mix | 7K + 15K + 18K wall-mounted units |
| Efficiency Family | Up to 21 SEER2 / 12 EER2 / 10 HSPF2, depending on the matched indoor unit combination |
| Cold-Weather Note | Daikin AURORA multi-zone heat pump performance for year-round heating and cooling |
| Voltage | 208-230V / 60Hz / 1 Phase |
| Installation Type | Professional HVAC installation recommended |
Why Choose This Daikin 3-Zone System?
- Room-by-room comfort: Heat and cool three separate spaces from one outdoor condenser, with each indoor unit serving its own zone.
- Right-sized indoor mix: The 7K + 15K + 18K configuration helps match smaller and larger rooms more accurately than a one-size-fits-all system.
- Efficient inverter operation: Daikin inverter technology adjusts output as conditions change, helping maintain steadier comfort than traditional single-speed systems.
- R-32 refrigerant: This system uses Daikin's R-32 refrigerant platform for modern ductless heat pump performance.
- Quiet wall-mounted comfort: The sleek indoor units are designed for everyday residential comfort in bedrooms, offices, living areas, and finished spaces.
- Smart control ready: Indoor units support wireless remote operation and wireless LAN/app control capability where configured.
- Warranty confidence: Daikin offers a 12-Year Parts Limited Warranty when eligible equipment is registered online within 60 days of installation, subject to warranty terms and state or province rules.
What Is Included?

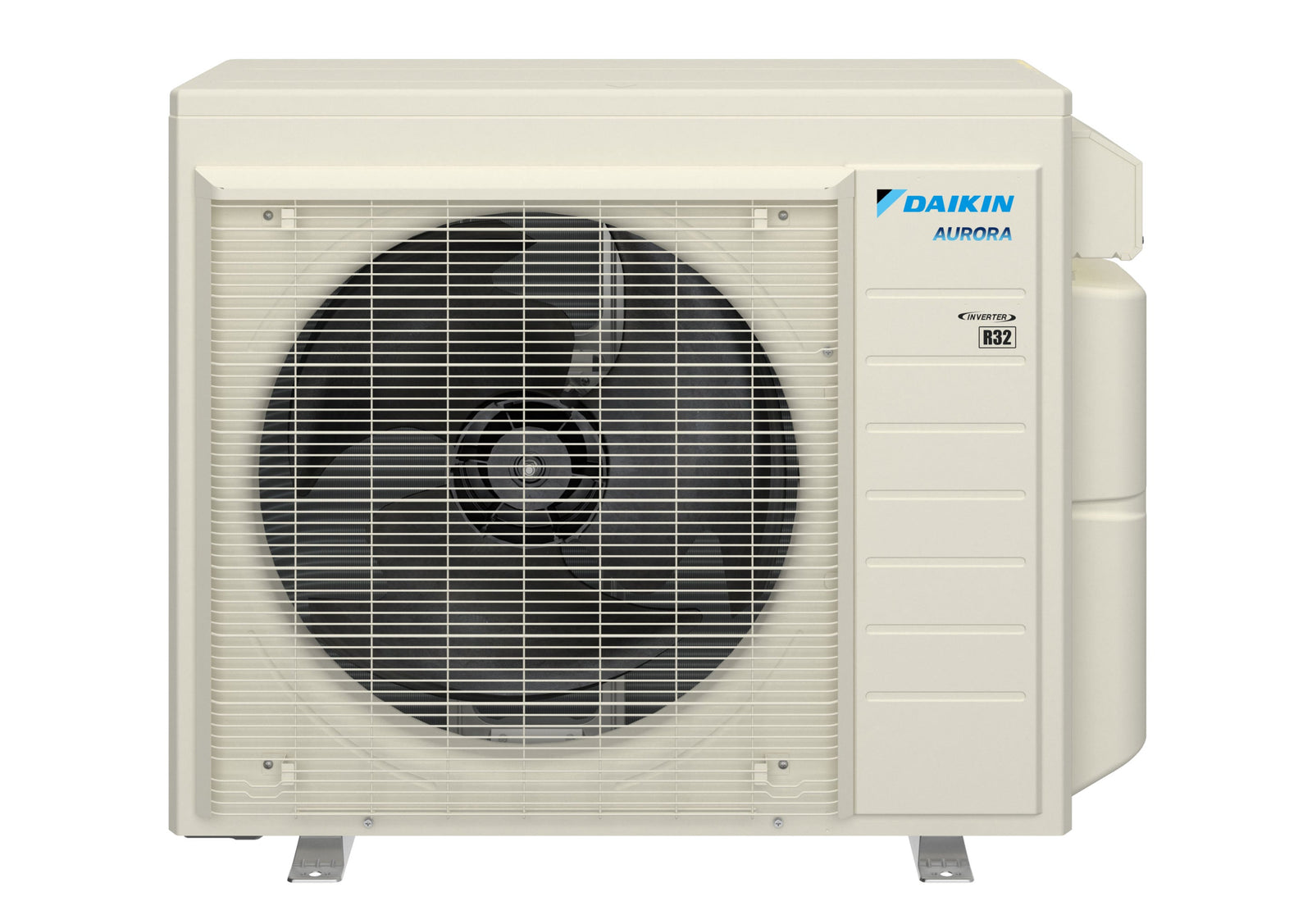

- 1 Daikin 4MXM36AVJU9 36,000 BTU class R-32 outdoor heat pump condenser

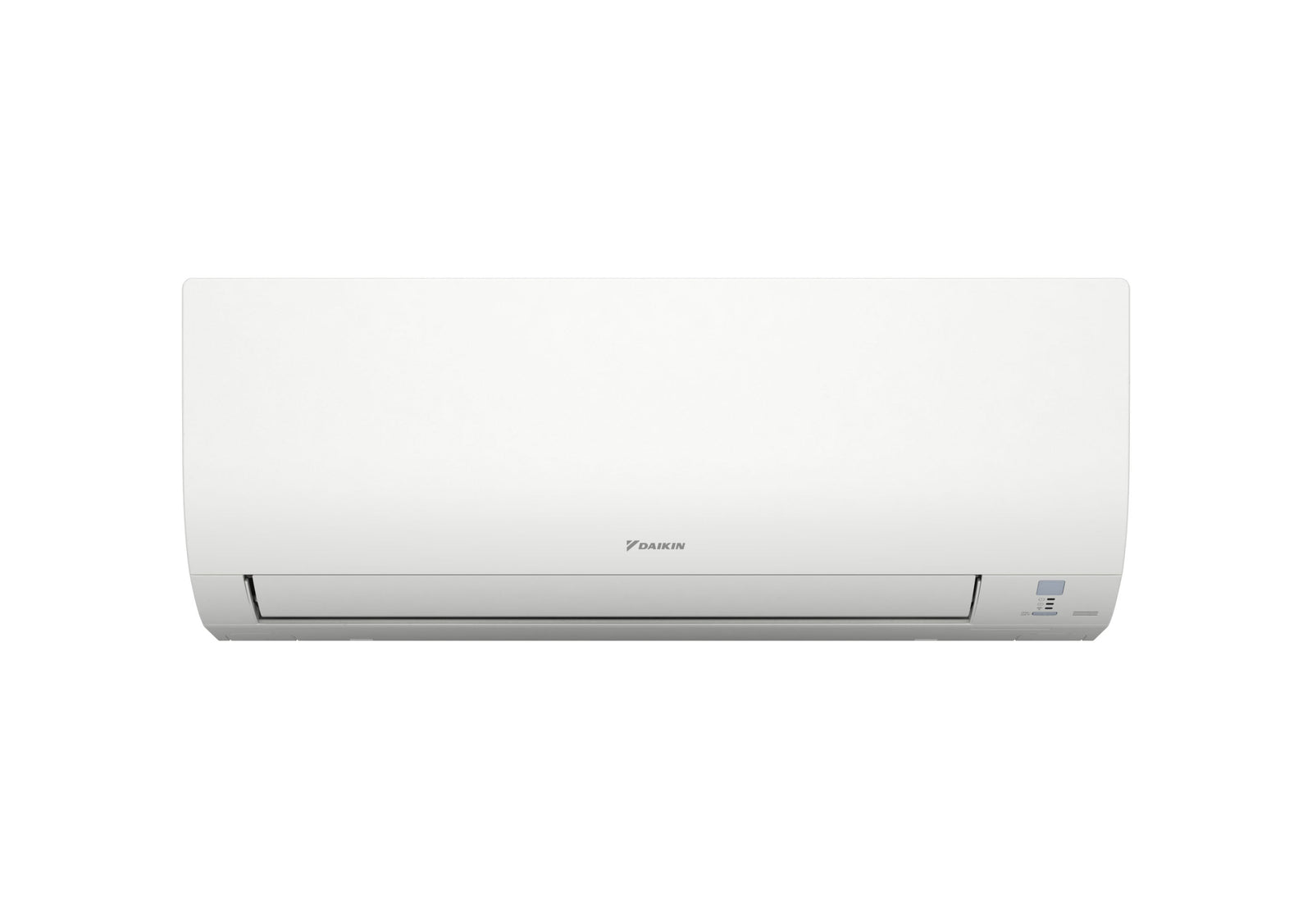

- 1 Daikin CTXV07AVJU9 7,000 BTU wall-mounted indoor unit
- 1 Daikin FTXV15AVJU9 15,000 BTU wall-mounted indoor unit
- 1 Daikin FTXV18AVJU9 18,000 BTU wall-mounted indoor unit

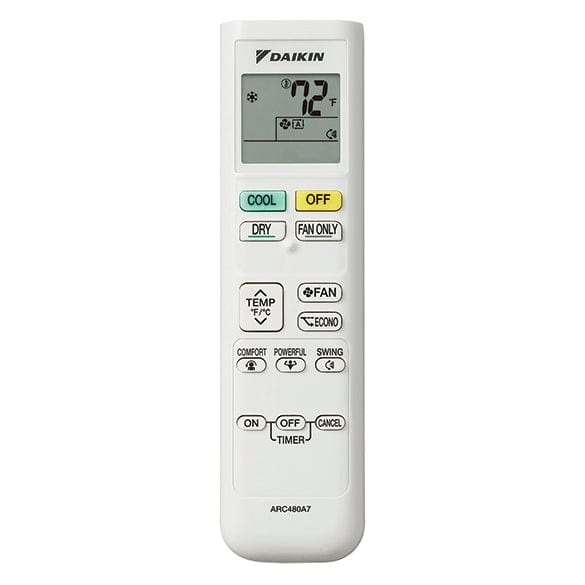

- Wireless remote control capability for the indoor units

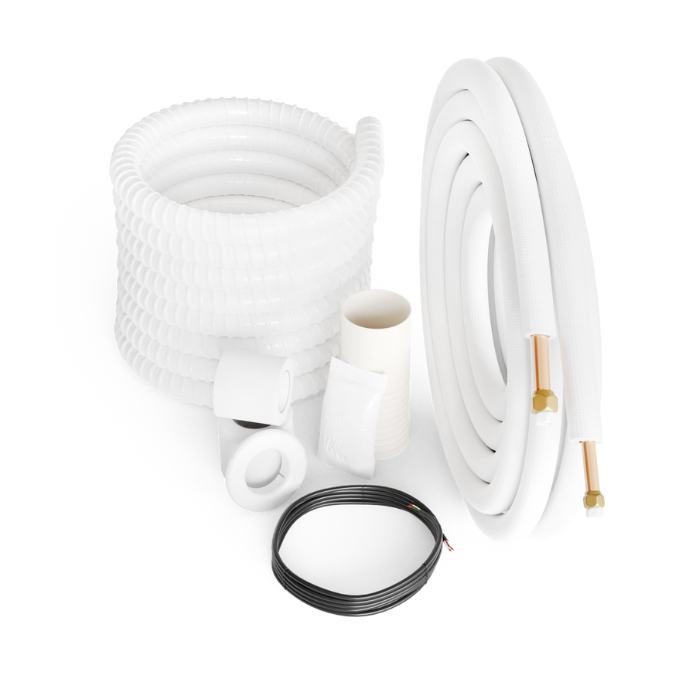

- Line-set selections are chosen by variant; available selections on this product include 25 Ft, 35 Ft, 50 Ft
Before You Order:
- Confirm that the 7K + 15K + 18K indoor unit mix matches the room sizes and heating/cooling loads for your project.
- Have your installer verify line-set lengths, indoor and outdoor placement, condensate routing, electrical requirements, clearances, and local code requirements.
- All connected indoor zones can have separate setpoints and fan settings, but the system operates in one overall mode at a time, such as heating or cooling.
- This is professional HVAC equipment. Proper refrigerant piping, evacuation, electrical work, startup, and commissioning should be handled by a qualified HVAC professional.
Installation & Guides:
Daikin AURORA Multi-Zone Product Information
Indoor Unit Operation / Installation Manual
Frequently Asked Questions:
Can each room be controlled separately?
Yes. Each indoor unit serves its own zone, so rooms can have different setpoints and fan settings. As with most multi-zone heat pump systems, all zones share the same overall operating mode at a given time.
Is this the right size for my home?
The 7K + 15K + 18K mix should be matched to the actual heating and cooling load of each room. Room size, insulation, ceiling height, windows, sun exposure, and climate all matter, so confirm sizing with your installer before purchase.
Do I need a professional installer?
Yes. This is professional HVAC equipment. A qualified installer should handle refrigerant piping, evacuation, electrical work, condensate routing, startup, and warranty registration where applicable.
Which line-set option should I choose?
Choose the line-set selections that match your installation plan. Your installer should confirm the required lengths for each indoor unit before purchase.
Specifications:
| BRAND NAME | Daikin |
| SERIES | Daikin AURORA MXM R-32 Multi-Zone |
| SYSTEM TYPE | Ductless mini split heat pump |
| OUTDOOR MODEL | 4MXM36AVJU9 |
| INDOOR MODELS INCLUDED | 1 x CTXV07AVJU9 7,000 BTU wall-mounted indoor unit, 1 x FTXV15AVJU9 15,000 BTU wall-mounted indoor unit, 1 x FTXV18AVJU9 18,000 BTU wall-mounted indoor unit |
| ZONE CAPACITY | 3 zones |
| CONFIGURATION | 7K + 15K + 18K wall-mounted indoor units |
| OUTDOOR UNIT PLATFORM | 4-port multi-zone outdoor condenser used for this 3-zone package |
| BTU CLASS | 36,000 BTU |
| EFFICIENCY FAMILY | Up to 21 SEER2 / 12 EER2 / 10 HSPF2, depending on the matched indoor unit combination |
| REFRIGERANT TYPE | R-32 |
| COMPRESSOR TECHNOLOGY | Daikin inverter variable-speed technology |
| POWER SUPPLY | 208-230V / 60Hz / 1 Phase |
| LINE-SET OPTIONS | 25 Ft, 35 Ft, 50 Ft |
| WARRANTY | 12-Year Parts Limited Warranty with eligible online registration; terms and restrictions apply |
