Product overview
Daikin MXM 4-Zones Ductless Mini Split AC & Heat Pump 36,000 BTU (7K + 7K + 9K + 15K), Wall Mount Units,230V- R32
The 36,000 BTU Daikin 20 SEER2 Four-Zone Mini Split Heat Pump System (7K + 7K + 9K + 15K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort. This system is also backed by a 12 year parts warranty.
Key Features:
- Exceptional Heating & Cooling Efficiency
- Advanced Technology
- durable & Quiet Design
- Flexible Installation & Operation
- User Friendly Features
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

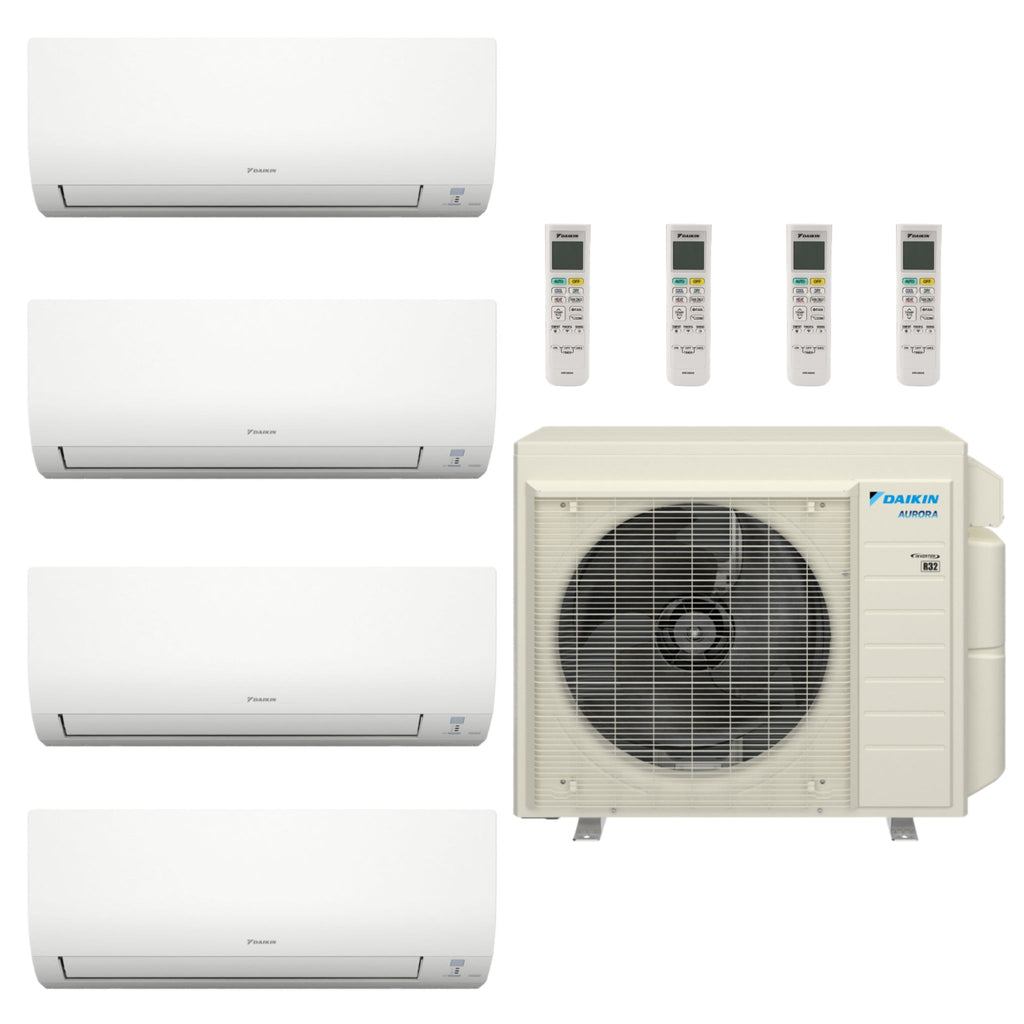

What's Included:
- Two (2) 7,000, one (1) 9,000 BTU and one (1) 15,000 BTU Wall-Mounted Indoor Unit
- Outdoor Condenser Unit

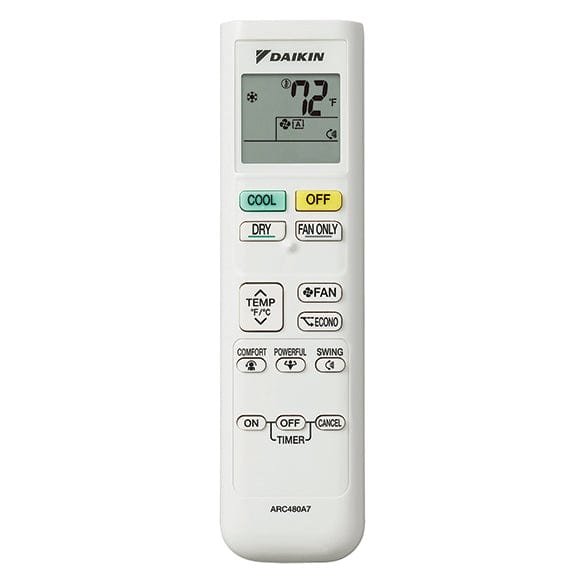

- Four (4) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

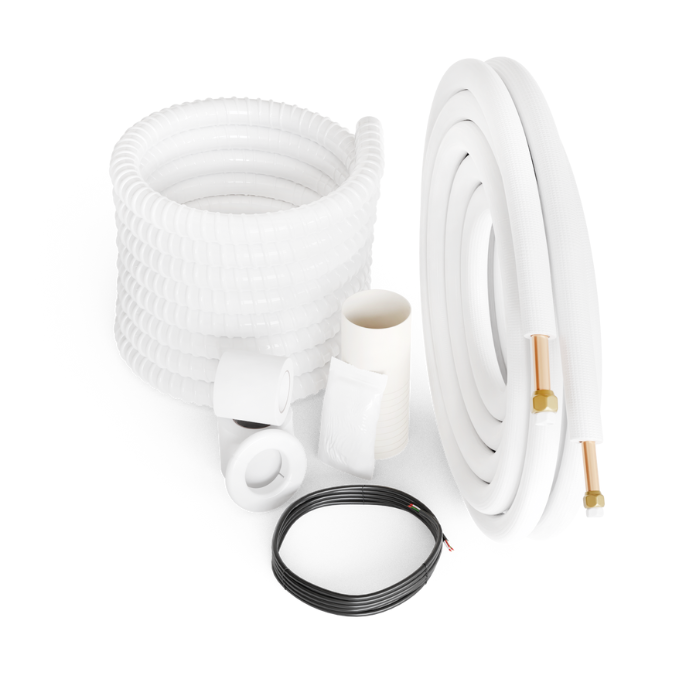

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat

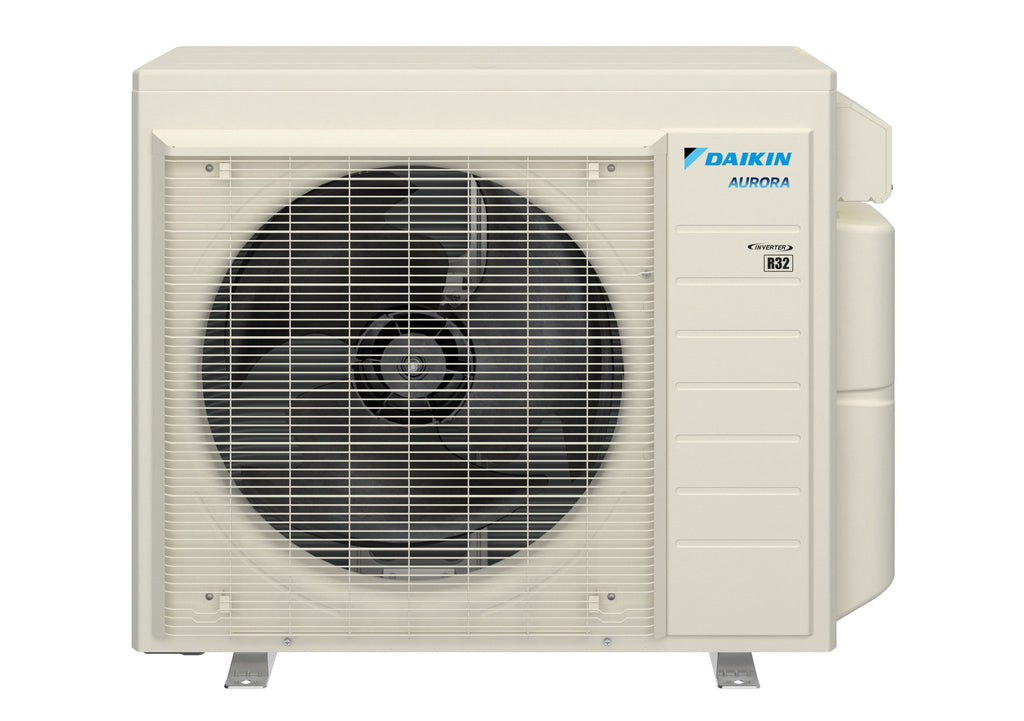

Condenser Specifications:
| Sku | 4MXM36AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Heat Pump |
| System Family | Multi-Split |
| Function Category | Heat Pump |
| Product Type | Equipment |
| Unit Type | Outdoor |
| Market Type | Residential-Single Family |
| Product Family | 4MXM_AVJU9 |
| Series Name | MXM |
| Short Description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| Family Description | 3.0 Ton R-32 4-Port Heat Pump |
| Product Description | 3.0-Ton R-32, 4-Port Heat Pump, Ductless ODU |
| Cooling Btu | 34,200 |
| Heating Btu | 34,600 |
| Seer2 | 20 |
| Decibel Level (Dba) | 56 dBA |
| Refrigerant | R-32 |
| Compressor Type | Swing |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 24.1 A |
| Tonnage | 3 |
| Btu/Tonnage | 34,200 BTU/3 Ton |
| Min/Max Outdoor Temp For Heating | 5 °F to 59.9 °F |
| Min/Max Outdoor Temp For Cooling | 14 °F to 114.8 °F |
| Zone Compatibility | Multi Zone |
| Height | 29-1/2 in |
| Width | 34-1/4 in |
| Depth | 12-5/8 in |
| Weight | 142 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |

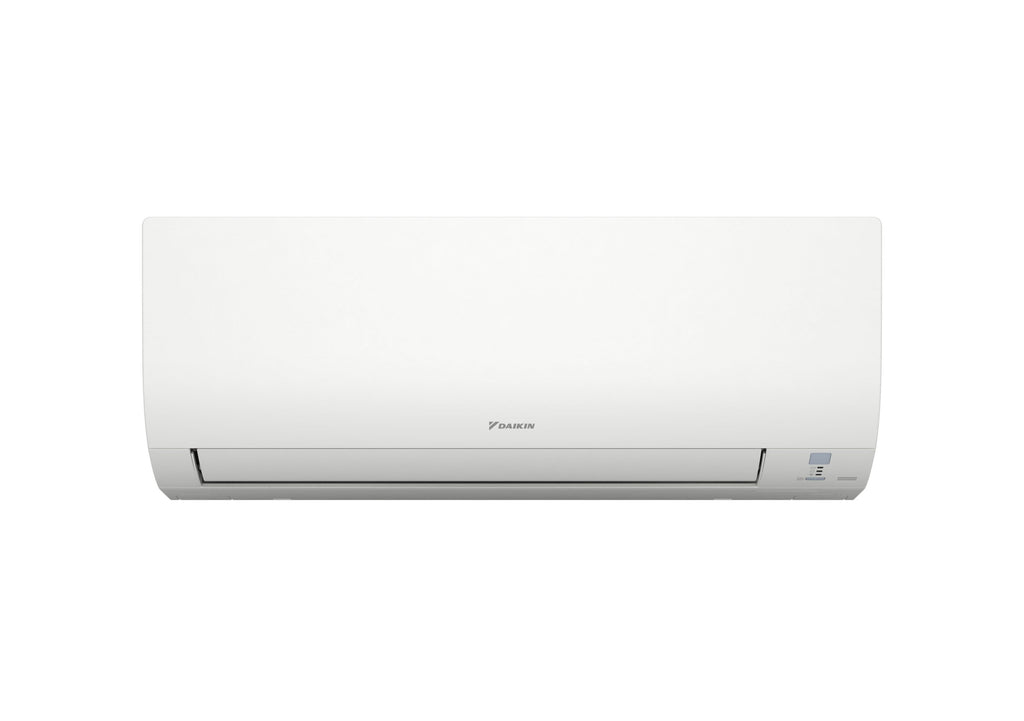

7k Air Handler Specs:
| Sku | CTXV07AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | CTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor R-32 |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | 0.5 Ton Wall Mounted Unit |
| Product Description | 1/2 Ton Wall Mounted Unit - R-32 |
| Decibel Level (Dba) | 40 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 0.5 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
9k Air Handler Specs:
| Sku | FTXV09AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 3/4 Ton Wall Mount R-32 |
| Decibel Level (Dba) | 43 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 0.75 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
15K Air Handler Specs:
| Sku | FTXV15AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 1.25 Ton Wall Mount R-32 |
| Decibel Level (Dba) | 45 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 1/2 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 1.25 |
| Zone Compatibility | Multi Zone |
| Height | 11-5/8 in |
| Width | 39 in |
| Depth | 10-3/8 in |
| Weight | 27 lb |
| Warranty | ALL PARTS - 12 YEAR |
Manuals & Documents
Outdoor Unit Installation Manual
