Description
The newly designed MRCOOL 4th generation Advantage Series 24,000 BTU ductless mini split air conditioner has improved efficiency ratings up to 17.5 SEER and is competitively priced. It provides maximum comfort and is designed to heat and cool 1,100 square feet without requiring any ductwork. This system also comes with a 16 ft. install kit that includes a 100% copper line set. Both the wall mounted air handler and the condenser operate quietly for your comfort while also being eco-friendly, with chlorine-free R-410A refrigerant
- 16 ft. install kit included. Contains 16ft line set, copper tubing
- 25,000 BTU Heat Pump
- Temperature range: 61°F – 86°
- R-410A environmentally friendly refrigerant
- Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
- 1-year compressor, 2-year parts warranty when registered and when installed by a licensed professional
- Installation by a licensed professional is required
- Includes Remote
Looking for a Do-It-Yourself unit? DIY 24,000 BTU Mini Splits
| BRAND NAME | MRCOOL |
| SERIES |
Advantage Series 4th Gen
|
| MODEL | A-24-HP-230C |
| GTIN | 00840255521796 |
| UPC | 840255521796 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION |
This new 4th generation MRCOOL Advantage series now features an improved SEER of 17.5 while providing quality comfort immediately upon installation by an HVAC technician.
|
| BULLET 1 |
Installation kit included
|
| BULLET 2 |
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
|
| BULLET 3 |
The new 4th generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
|
| BULLET 4 |
Installation by a licensed professional required where applicable
|
| BULLET 5 |
1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
|
| BULLET 6 |
R-410A environmentally friendly refrigerant
|
| BULLET 7 |
Sleep mode, louver position memory, and auto restart functions
|
| BULLET 8 |
Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor
|
| SEER | 18 |
| SEER2 | 18 |
| EER | 9 |
| EER2 | 9 |
| HSPF |
hspf4/hspf5: 9.8/8
|
| HSPF2 |
hspf2-4/hspf2-5: 8.6/6.6
|
| COOLING CAPACITY | 24000 |
| HEATING CAPACITY | 24000 |
| VOLTAGE | 208/230V |
| PHASE | 1 |
| CYCLE | 60Hz |
| MAX FUSE BREAKER | 30 A |
| MIN CIRCUIT AMPACITY | 19 A |
| COLOR | White |
| MAX COVERAGE AREA | 1000 sqft |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME | 62.8oz |
| DECIBEL RATING | 39.5 dBA |
| DECIBEL RATING LOW | 35 dBA |
| DECIBEL RATING HIGH | 45.5 dBA |
| NUMBER OF SPEEDS | 3 |
| MIN AMBIENT HEAT | 5 Degrees F |
| LIQUID LINE SIZE | 3/8 in |
| SUCTION LINE SIZE | 5/8 in |
| FILTER TYPE | Washable |
| LOW VOLTAGE COMPENSATION | No |
| OVERLOAD PROTECTION | Yes |
| ADJUSTABLE THERMOSTAT | Yes |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| SLEEP MODE | No |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR COMPLIANT | No |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
1-Year Compressor, 2-Year Parts and 1-Year Remote
|
| BASE WARRANTY | None |
| REGISTERED PARTS WARRANTY | 2-year |
| BASE PARTS WARRANTY | None |
| REGISTERED COMPRESSOR WARRANTY | 1-year |
| BASE COMPRESSOR WARRANTY | None |
| REGISTERED REMOTE WARRANTY | 1-year |
| BASE REMOTE WARRANTY | None |
| REGISTERED LABOR WARRANTY | None |
| BASE LABOR WARRANTY | None |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| CONDENSER DEPTH | 13.46 in |
| CONDENSER HEIGHT | 26.50 in |
| CONDENSER WIDTH | 35.04 in |
| CONDENSER WEIGHT | 97.88 lbs |
| AIR HANDLER DEPTH | 8.90 in |
| AIR HANDLER HEIGHT | 13.19 in |
| AIR HANDLER WIDTH | 42.52 in |
| AIR HANDLER WEIGHT | 29.98 lbs |
Need help deciding which mini split system is right for you? We are here to help.
Talk with one of our trusted HVAC and Mini Split professionals today!
Call Us!You may also like
Recently viewed

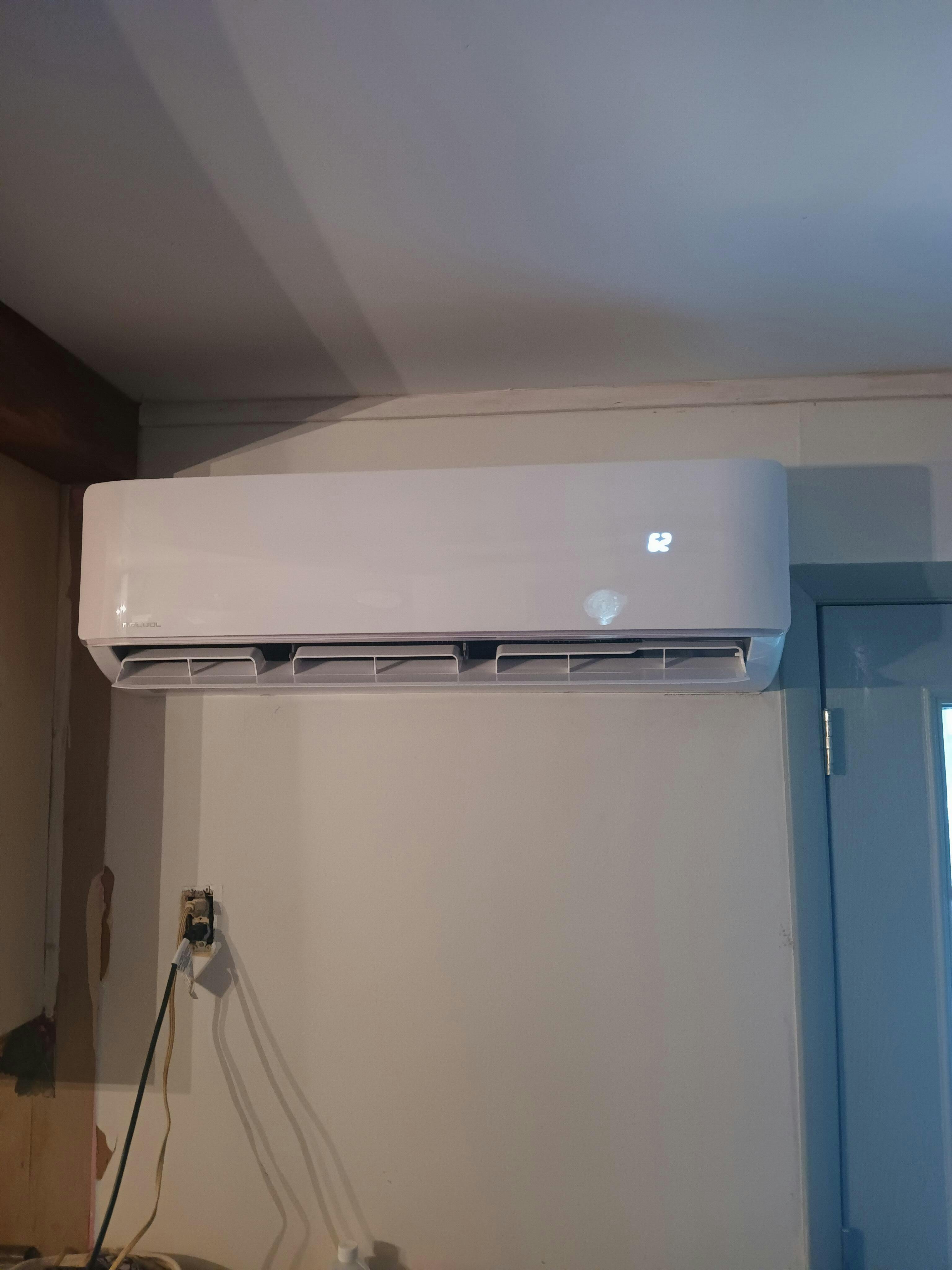

I love it it was really easy to install we can not even hear it operate and a nice looking piece of equipment installed on my wall I highly recommended this system to anyone and very afforadable also
