MRCOOL Advantage 5G 24,000 BTU 18.7 SEER2 Mini Split Heat Pump Condenser - 230V, A-24-HP-C-230D-O

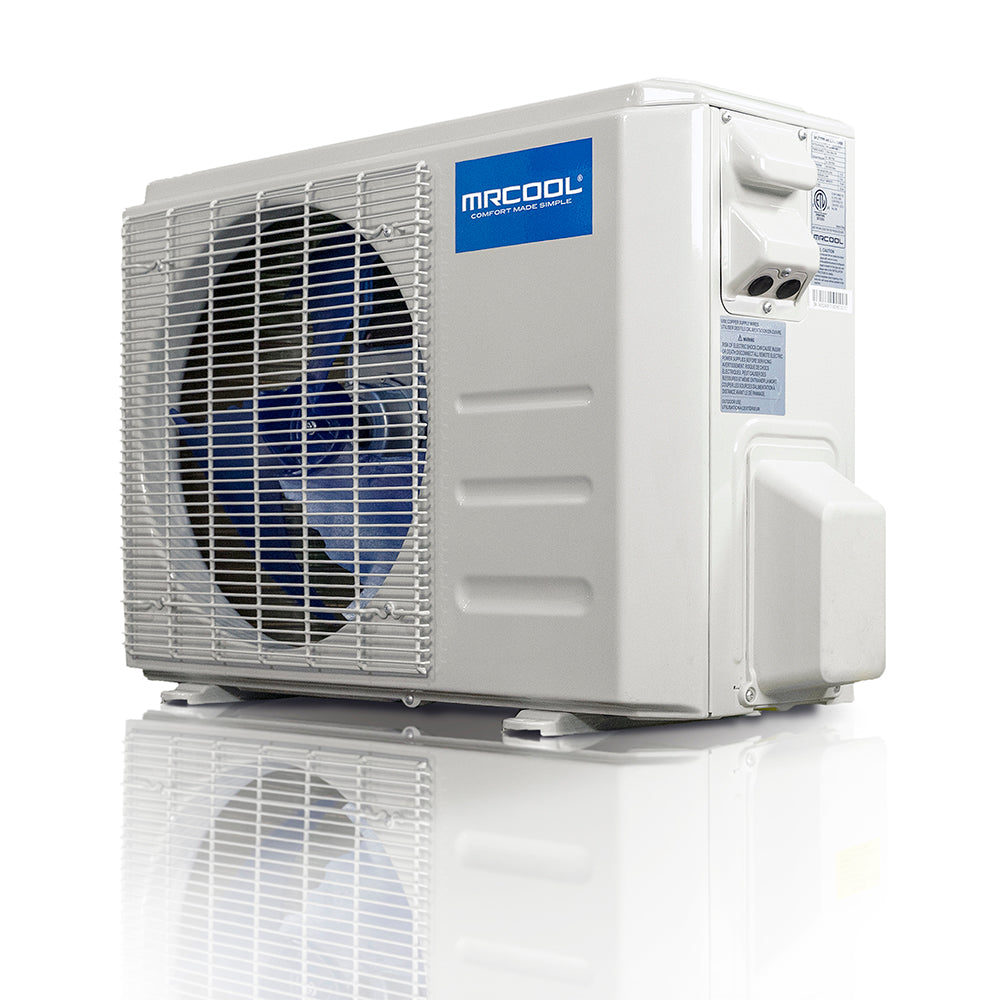

The MRCOOL Advantage 5th Generation 24K condenser is the outdoor component for a compatible Advantage single-zone mini-split system. It combines inverter-driven heating and cooling with efficient R-454B refrigerant for dependable year-round comfort.
This listing includes the outdoor condenser only. A matching Advantage 5G wall-mounted air handler, refrigerant line set, control wiring, and other installation materials are sold separately. Professional installation by a licensed HVAC technician is required.
- 24,000 BTU nominal capacity
- 18.7 SEER2 efficiency when paired with its matched Advantage air handler
- 230V single-phase operation
- Variable-speed DC inverter compressor
- Factory-charged with lower-GWP R-454B refrigerant
- Designed for a compatible MRCOOL Advantage 5G indoor unit
Product Documents
Condenser Specifications
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-24-HP-C-230D-O |
| GTIN | 840255586856 |
| UPC | 840255586856 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION |
Advantage 5th Gen 24k BTU 230V Condenser
|
| SEER2 | 18.7 |
| EER2 | 10 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7.3 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 24000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 53.62 |
| DECIBEL RATING (DBA) | 59.5 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 164 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| COMPRESSOR MOTOR TYPE | ROTARY |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 94.58 |
| GROSS DEPTH (IN) | 15.67 |
| GROSS HEIGHT (IN) | 29.13 |
| GROSS WIDTH (IN) | 39.17 |
| GROSS WEIGHT (LBS) | 102.29 |
