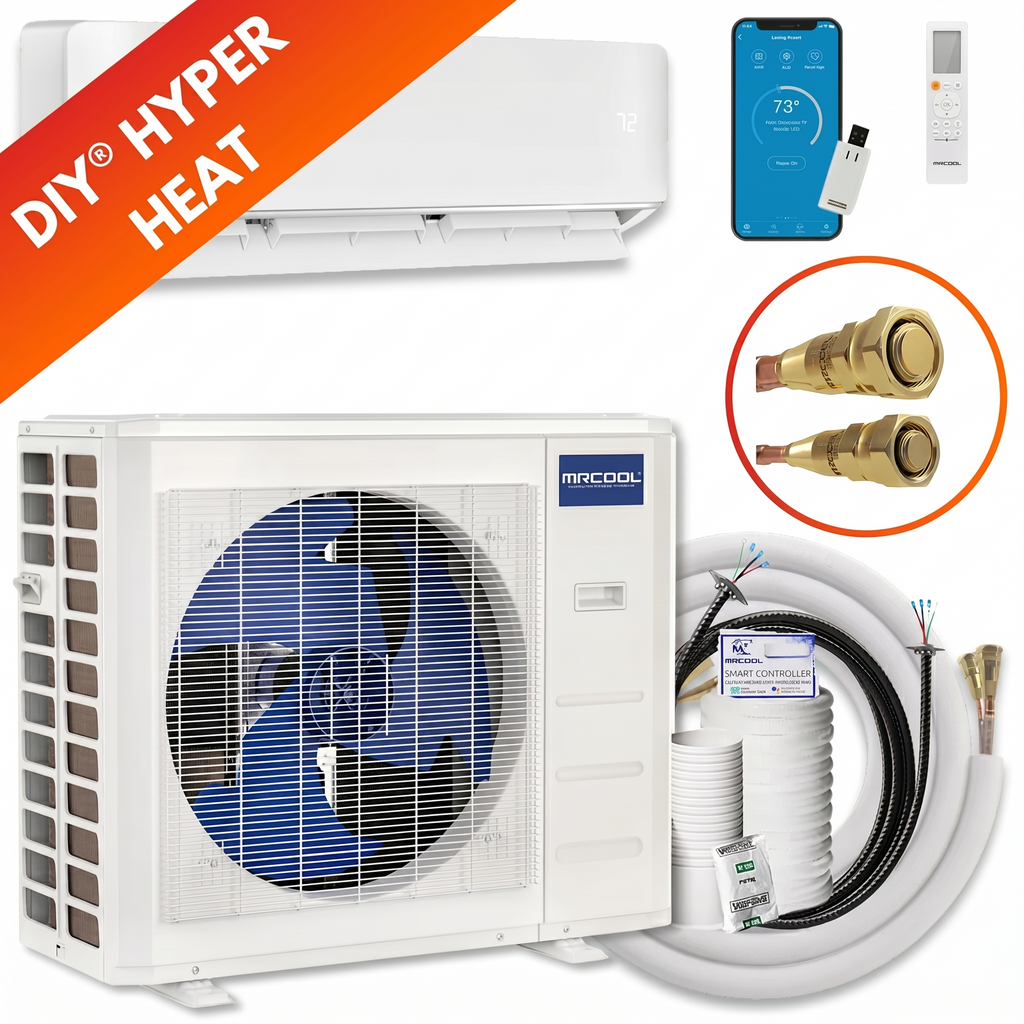

MRCOOL DIY 12,000 BTU 23.5 SEER2 5th Gen Hyper Heat Single Zone Mini Split System - 230V
The MRCOOL® DIY® 12K BTU 208/230V Hyper Heat 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser delivers powerful, high-efficiency climate control with simple do-it-yourself installation—no special tools, training, or professional assistance required. It’s ideal for heating and cooling spaces between 350–550 sq. ft. It is compatible with both our sleek wall-mounted air handlers and the low-profile DIY® OuttaSight® Ceiling Cassette. Installation is fast and straightforward thanks to the 25-foot DIY® QuickConnect® line set, filled with environmentally-friendly R-454B refrigerant, eliminating the need for vacuuming or handling refrigerant. This system can continue heating down to -22 degrees.
The included DIYPRO® cable enhances system protection, replacing traditional electrical conduit to guard against weather, pests, and yard work damage. Enjoy flexible control with multiple options: the included remote, the SmartHVAC app for iOS and Android devices, or voice control through Amazon Alexa and Google Assistant. The corrosion-resistant Gold Fin® condenser coating is designed for durability, making it ideal for both inland and coastal environments.
This system is loaded with smart features, including Auto-Restart to maintain continuity of comfort after power loss, a programmable Timer to correspond to your schedule, and the Sleep function, which increases efficiency while you sleep. For peace of mind, the unit includes a limited lifetime replacement and annual care kit with enrollment in the MRCOOL® Care Program, and comes standard with a 7-year compressor and 5-year parts warranty with online product registration. Enjoy dependable, hassle-free comfort year-round with The MRCOOL® DIY® 12K BTU Hyper Heat Single Zone Mini Split Condenser.
Installation & Guides:
MRCOOL DIY Hyper Heat Brochure
MRCOOL DIY Hyper Heat Install Manual
MRCOOL DIY Hyper Heat Warranty Information
Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | DIY Hyper Heat |
| MODEL |
DIYHH-12-HP-C-230D25-O
|
| GTIN | 840255588102 |
| UPC | 840255588102 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION |
DIY 5th Gen - R454B - 12K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit
|
| WORKS WITH |
DIYCASSETTE12HP-230D25-O DIY-12-HP-WMAH-230D25-O
|
| SEER2 | 23.5 |
| EER2 | 12.8 |
| HSPF2-4 | 10 |
| HSPF2-5 | 8 |
| CFM | 1471.5 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 15 |
| COLOR | White |
| MAX COVERAGE AREA | 550 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 32.1 |
| DECIBEL RATING (DBA) | 56.5 |
| INVERTER | Yes |
| MIN AMBIENT COOL (F) | -22 |
| MIN AMBIENT HEAT (F) | -22 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 25ft |
| MAX LINESET LENGTH (FT) | 75 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 780/680/580 |
| METERING DEVICE | EEV |
| UL LISTED | Yes |
| CSA CERTIFIED | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
7-Years Compressor, 5-Years Parts
|
| BASE WARRANTY | 5-Years Parts |
| BASE PARTS WARRANTY | 5 Years |
| BASE COMPRESSOR WARRANTY | 7 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 12.99 |
| NET HEIGHT (IN) | 21.81 |
| NET WIDTH (IN) | 31.69 |
| NET WEIGHT (LBS) | 72.31 |
| GROSS DEPTH (IN) | 14.57 |
| GROSS HEIGHT (IN) | 24.21 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 79.59 |
Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-12-HP-WMAH-230D25-O
|
| GTIN | 840255587037 |
| UPC | 840255587037 |
| SHORT DESCRIPTION |
MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler 230v
|
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 550 sqft |
| OSCILLATION | Yes |
| FILTER TYPE | Reusable |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.44 |
| NET HEIGHT (IN) | 11.63 |
| NET WIDTH (IN) | 31.57 |
| NET WEIGHT (LBS) | 24.47 |
| GROSS DEPTH (IN) | 16.34 |
| GROSS HEIGHT (IN) | 14.37 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 35.05 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12,000 |
|---|---|
| Indoor unit(s) | 12K |
| Coverage area | 600 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | DIY Installation |
| Brand | MRCOOL |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
