Description

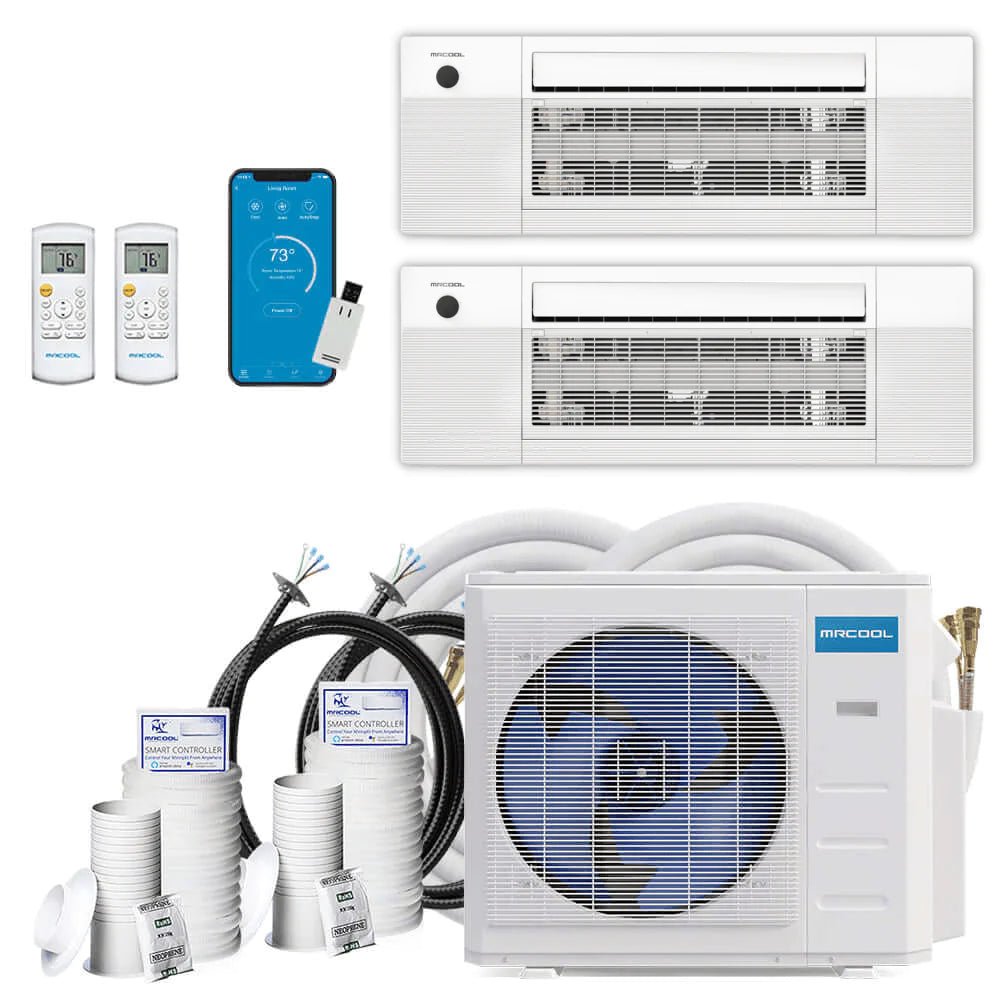

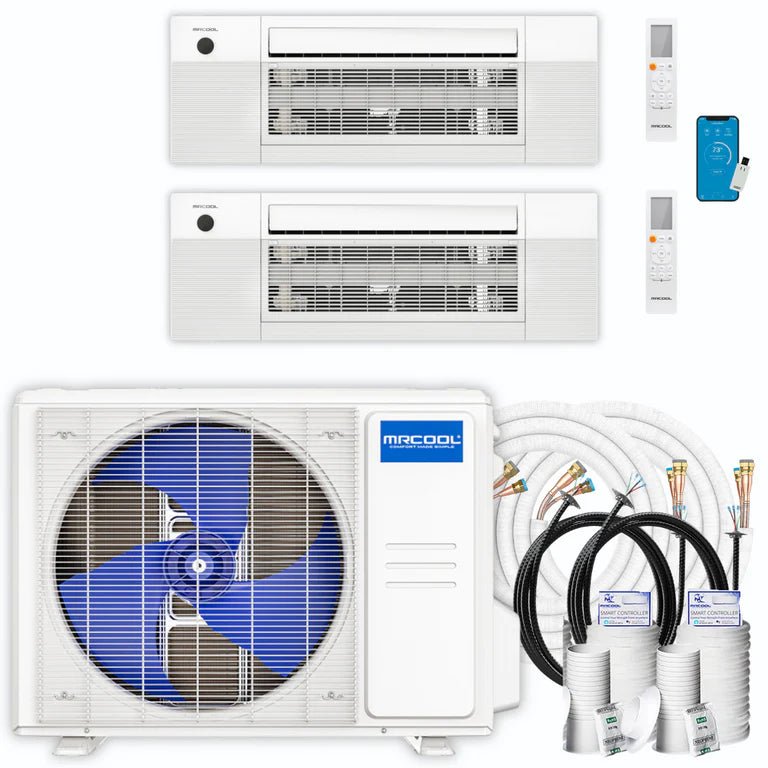

MRCOOL DIY Multi Zone 4th Gen 36K BTU Dual Zone Ductless Mini Split with Ceiling Cassettes (12K + 18K)
Heat or cool two rooms in style with the brand new 4th gen ceiling cassette air handlers on the MRCOOL DIY 4th Gen Multi-Zone 36,000 BTU 22 SEER 2 Zone Ductless Heat Pump Split System - 12K + 18K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 36,000 BTU capacity. The two indoor air handlers are 12,000 btu and 18,000 btu which use the condenser's power to heat and cool up to 500 and 750 square feet respectively. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus an optional lifetime compressor warranty) and a 5 Year Parts Manufacturer Warranty!

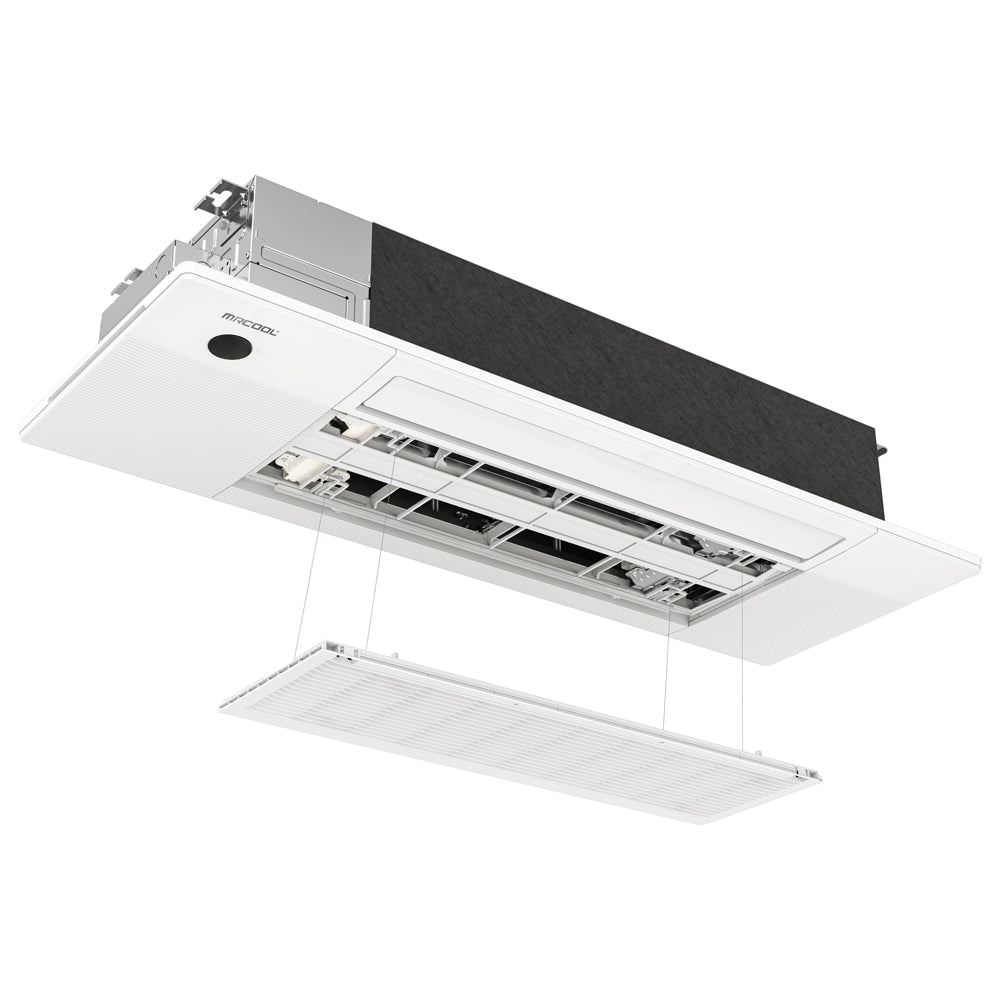

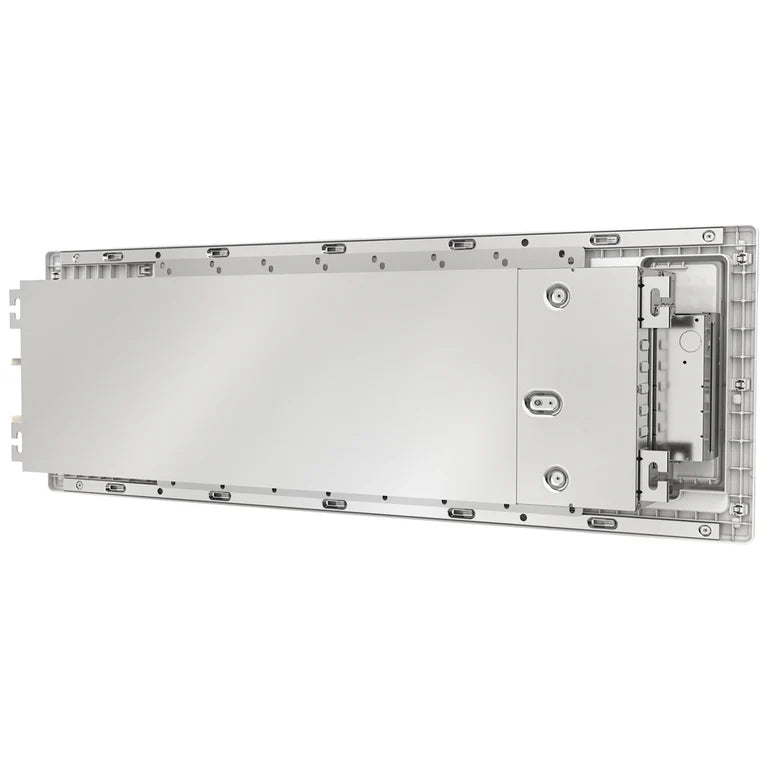

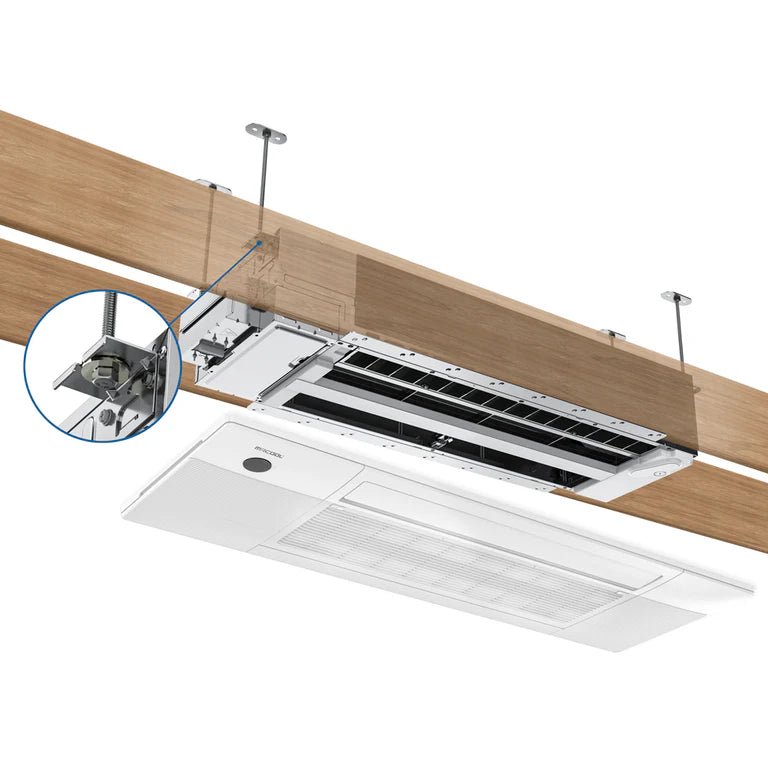

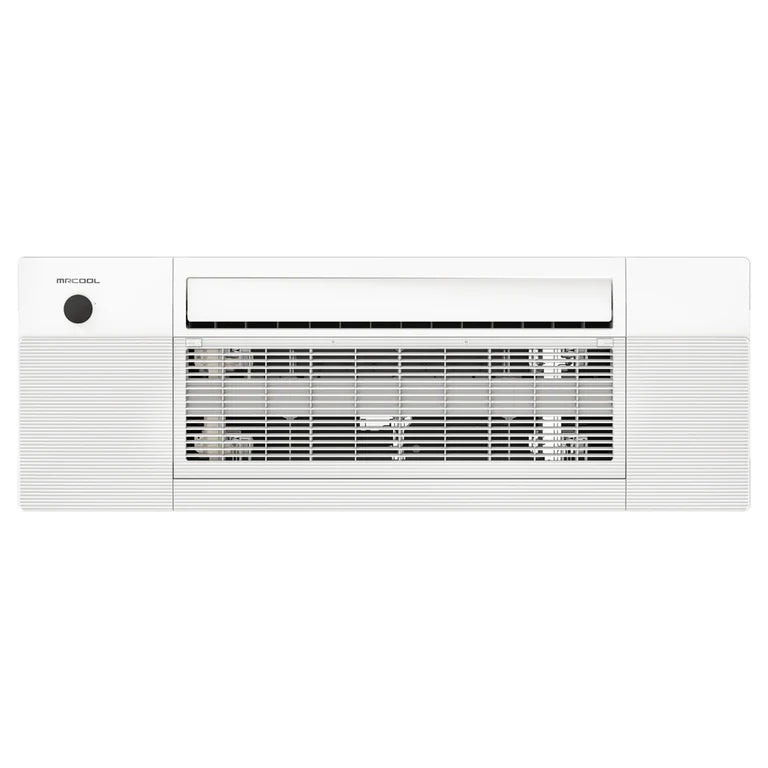

MRCOOL DIY Series Ceiling Cassettes provide efficient heating and cooling while remaining out of sight and discreet, making them a perfect fit for any space. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series 12K and 18K BTU Ceiling Cassettes are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-410A Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Low Ambient Cooling

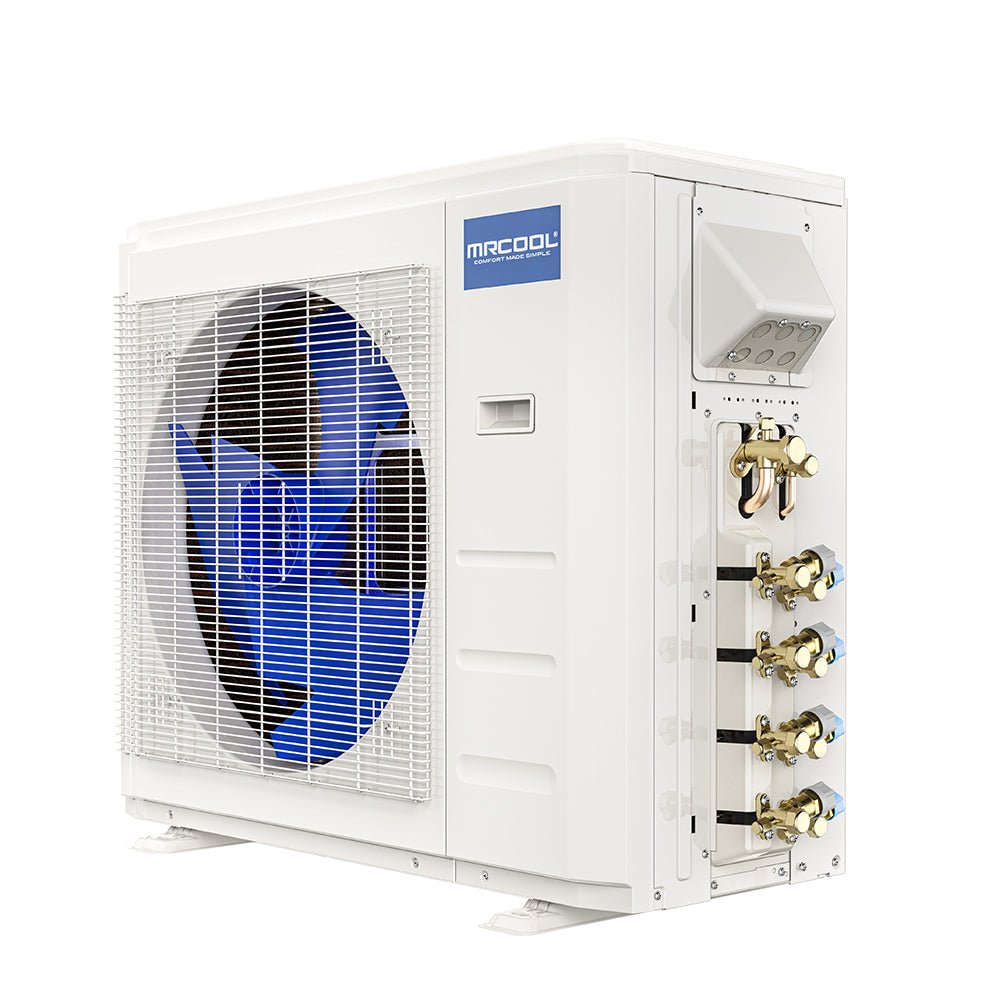

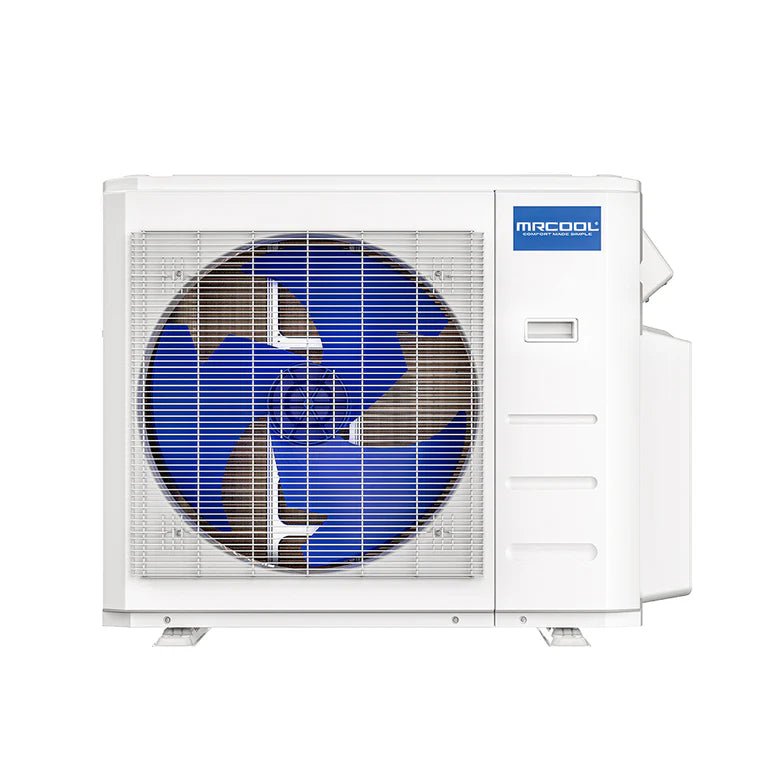

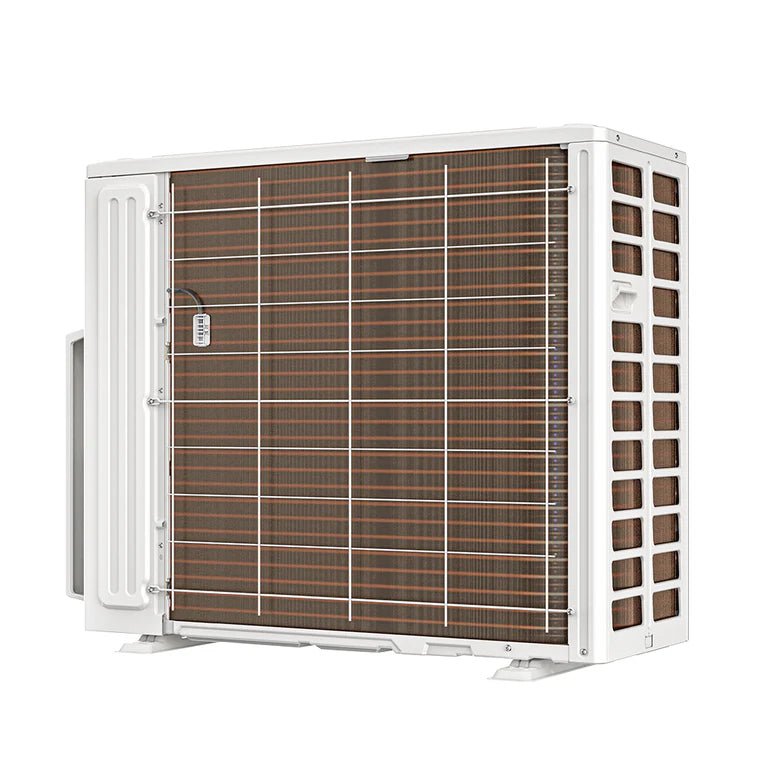

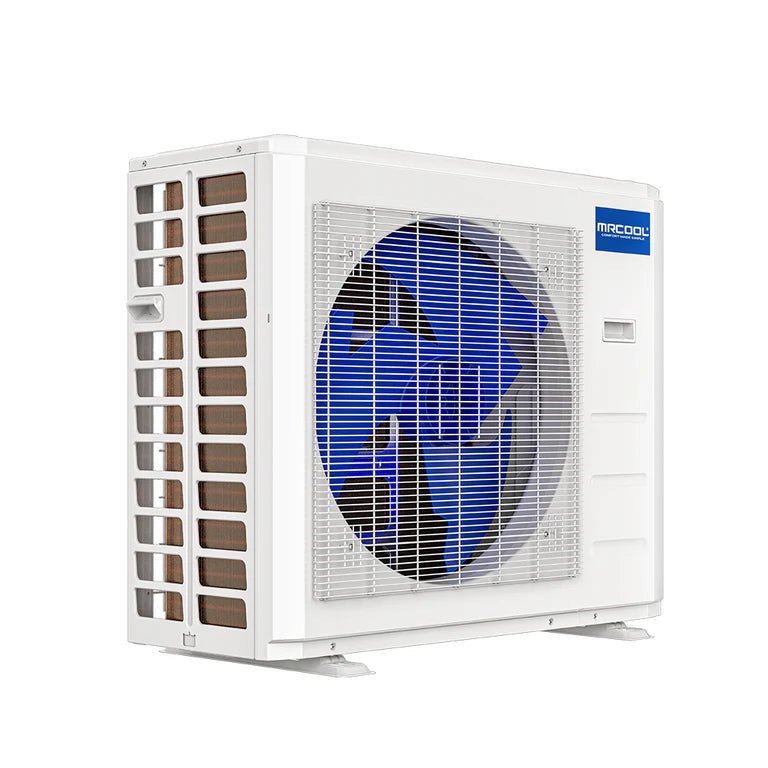

Condenser Specifications:
|
BRAND NAME |
MRCOOL |
|
SERIES |
DIY 4th Gen Multi-Zone |
|
MODEL |
DIY-MULTI4-36HP230C |
|
GTIN |
|
|
UPC |
810063869519 |
|
UNIT TYPE |
Mini-Split |
|
SHORT DESCRIPTION |
MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser |
|
LONG DESCRIPTION |

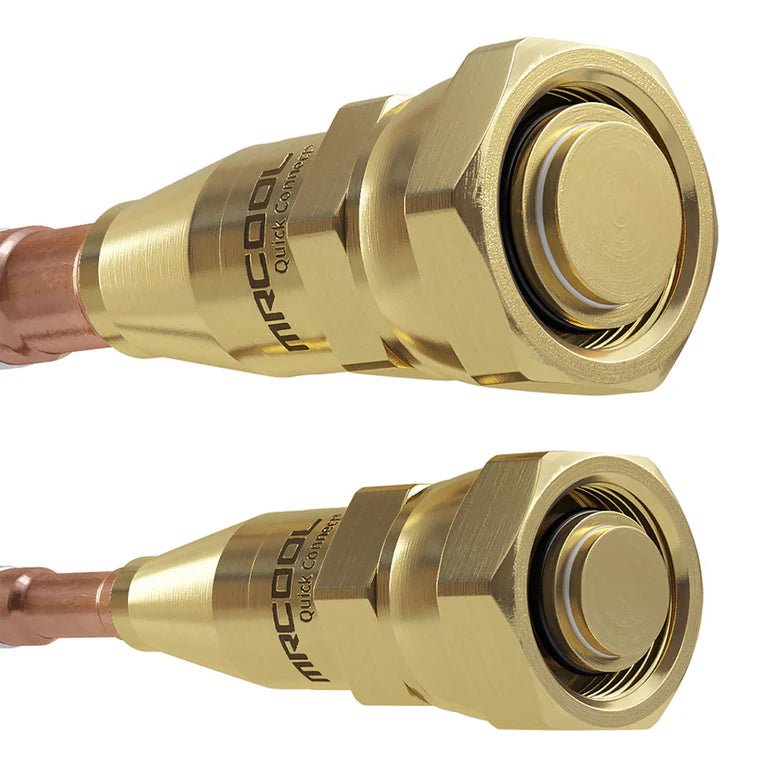

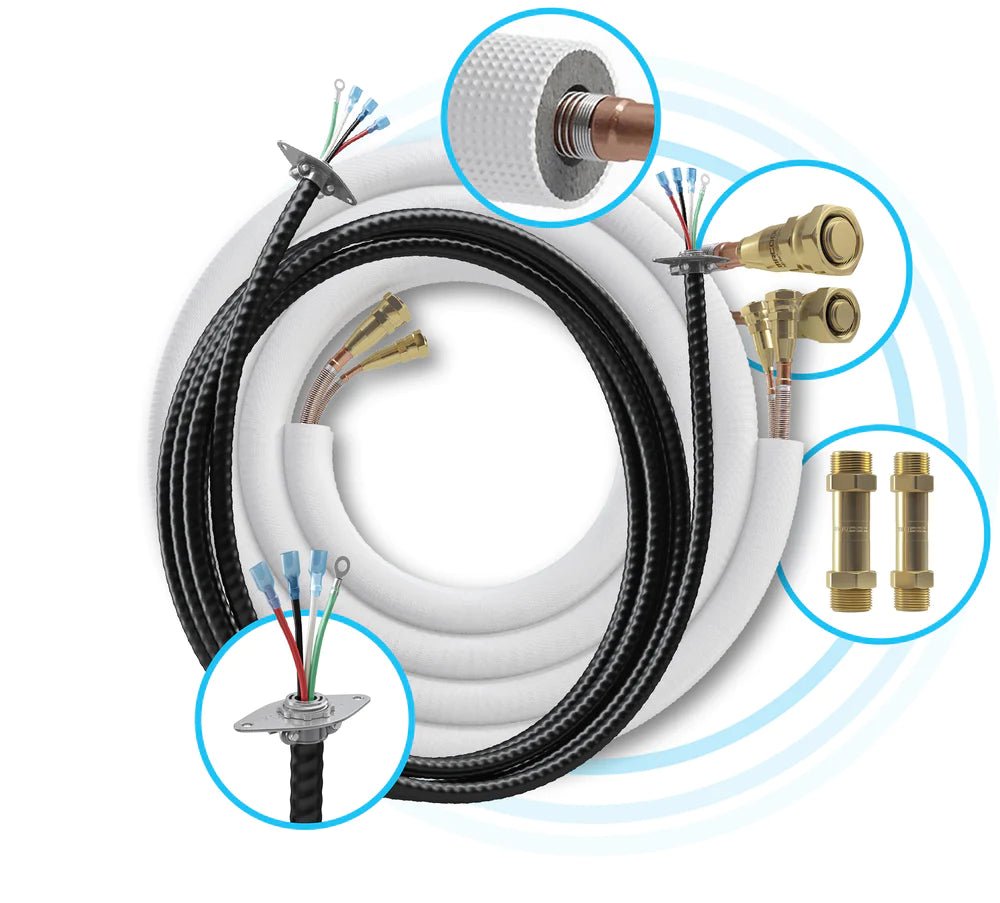

The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort. |
|
BULLET 1 |
Up to 21.5 SEER |
|
BULLET 2 |
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion |
|
BULLET 3 |
Energy Efficient DC Inverter |
|
BULLET 4 |
R-410A environmentally friendly refrigerant |
|
BULLET 5 |
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
|
SEER |
21.5 |
|
EER |
10.5 |
|
HSPF |
hspf4/hspf5 : 11/8.5 |
|
CFM |
2147.06 |
|
COOLING CAPACITY |
36000 BTU |
|
HEATING CAPACITY |
36000 BTU |
|
VOLTAGE |
208-230 V |
|
PHASE |
1 |
|
CYCLE |
60 Hz |
|
MAX FUSE BREAKER |
45 A |
|
MIN CIRCUIT AMPACITY |
27 A |
|
COLOR |
White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
Up to 4 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
134.04 oz |
|
DECIBEL RATING |
65 dBA |
|
INVERTER |
Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
-13F ~ 75.2F |
|
MAX LINESET LENGTH |
196.85 ft TOTAL |
|
LIQUID LINE SIZE |
1/4in |
|
SUCTION LINE SIZE |
3/8in+1/2in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
1000/900/750 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
16.14 in |
|
NET HEIGHT |
31.89 in |
|
NET WIDTH |
37.24 in |
|
NET WEIGHT |
170.42 lbs |
|
GROSS DEPTH |
19.88 in |
|
GROSS HEIGHT |
35.04 in |
|
GROSS WIDTH |
42.91 in |
|
GROSS WEIGHT |
187.83 lbs |
