MRCOOL DIY Multi Zone 5th Gen 48K BTU Dual Zone Mini-Split with Ceiling Cassettes 9K + 18K
Heat or cool 2 rooms in style with the brand new 5th gen ceiling cassette air handlers on the MRCOOL DIY 5th Gen Multi-Zone 48,000 BTU 22 SEER 2-Zone Ductless Heat Pump Split System - 9K + 18K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 48,000 BTU capacity. A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus an optional lifetime compressor warranty) and a 5 Year Parts Manufacturer Warranty!

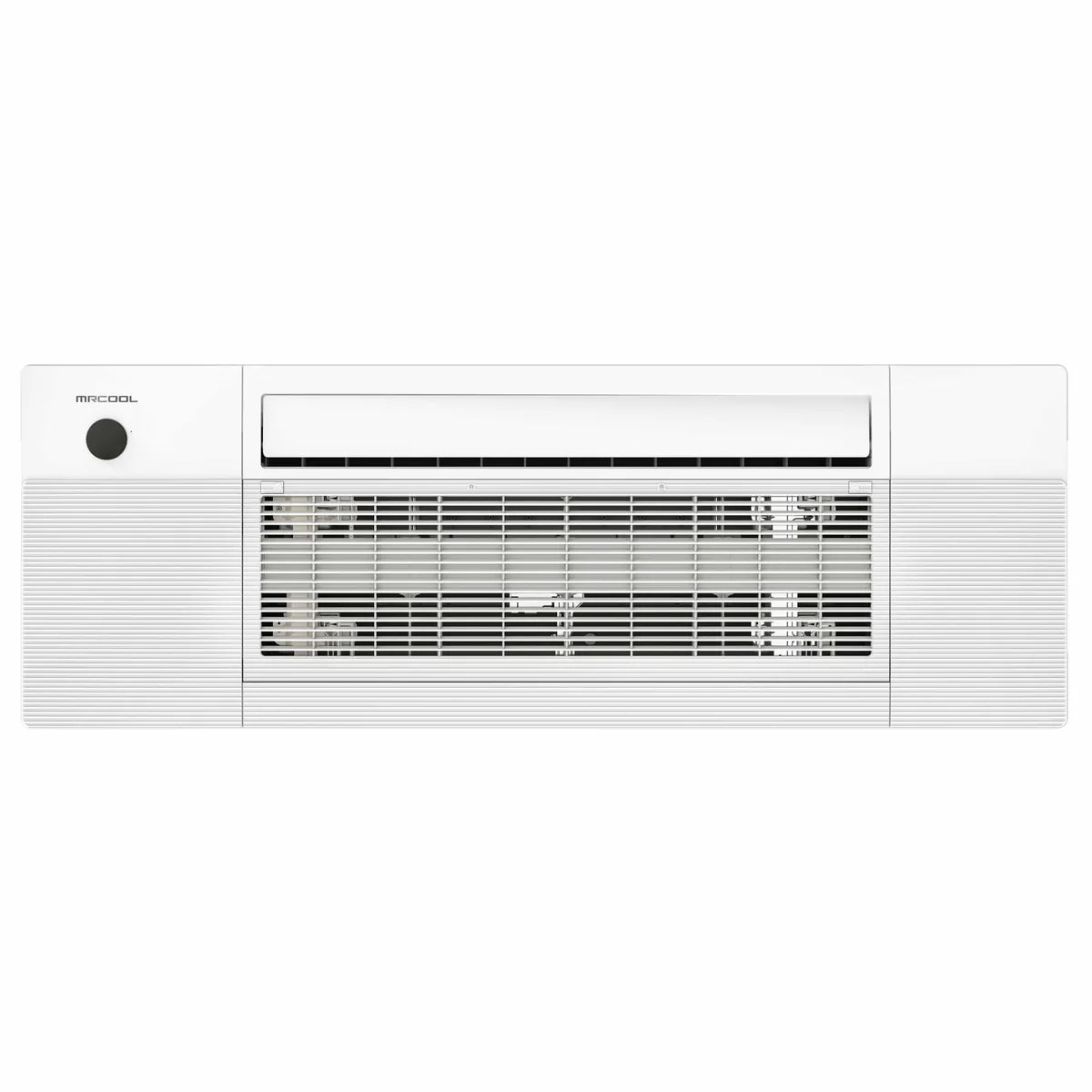

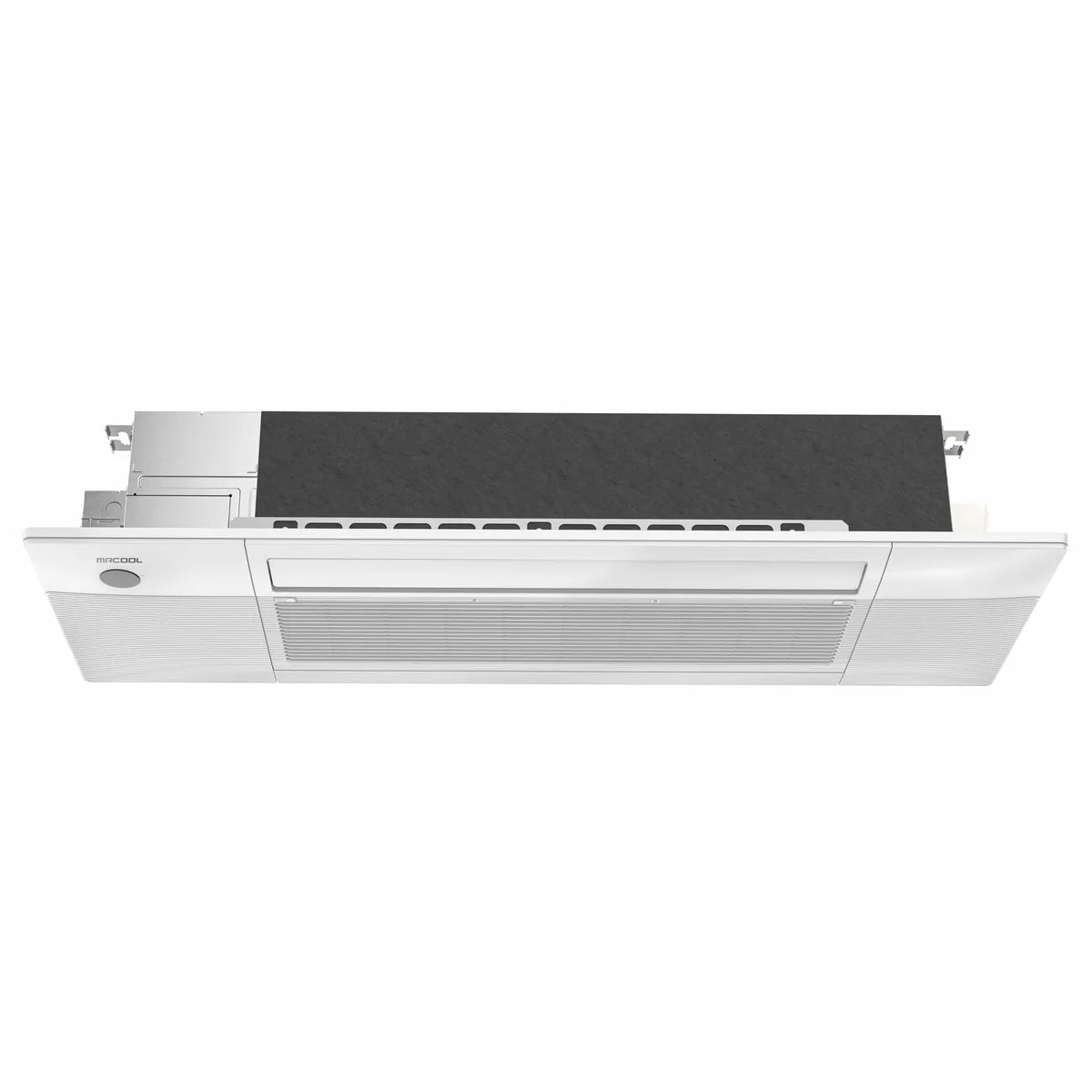

MRCOOL DIY Series Ceiling Cassettes provide efficient heating and cooling while remaining out of sight and discreet, making them a perfect fit for any space. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series Ceiling Cassettes are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Low Ambient Cooling
This system includes one 9K and one 18K ceiling cassette air handler, compatible with the 48K BTU condenser. Precharged linesets included. SEER2 rating: 22. Ideal for efficient, quiet home climate control.
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-48HP230D-O
|
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION |

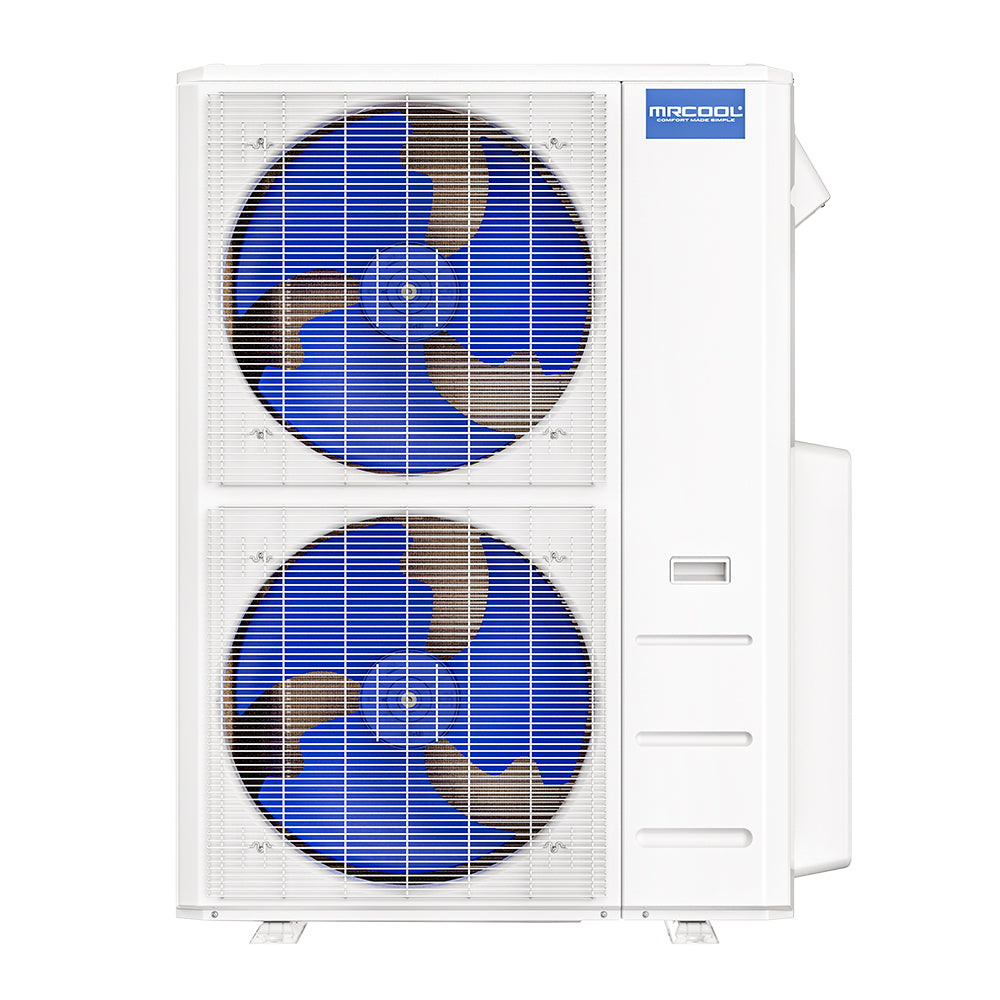

MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
|
| FEATURE LIST |
Intertek listed 5031495

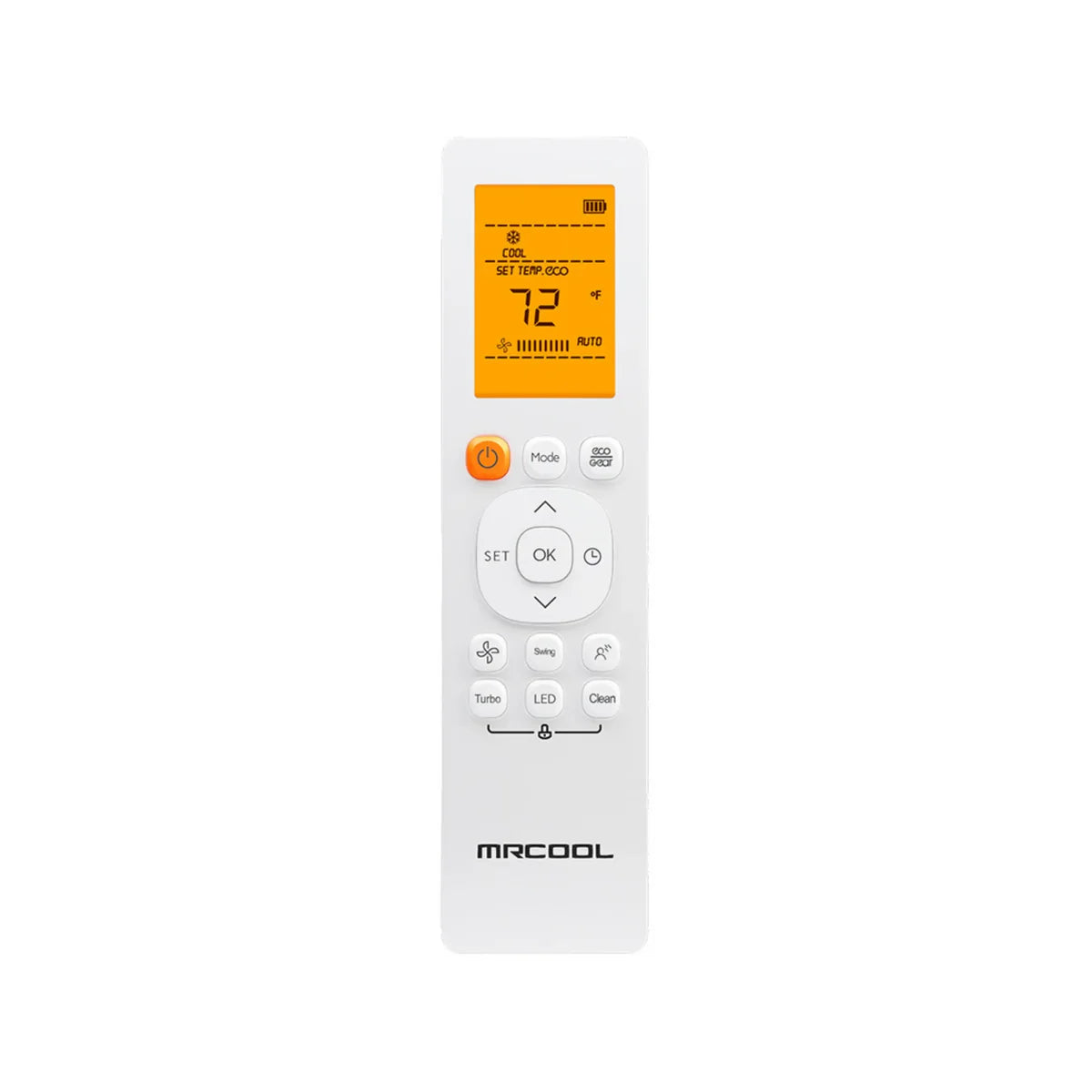

Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
