MRCOOL DIY Multi Zone 5th Gen 55K BTU Three Zone Ductless Mini Split with Ceiling Cassettes 12K + 18K + 18K - A Heating and AC System You Can Install By Yourself!

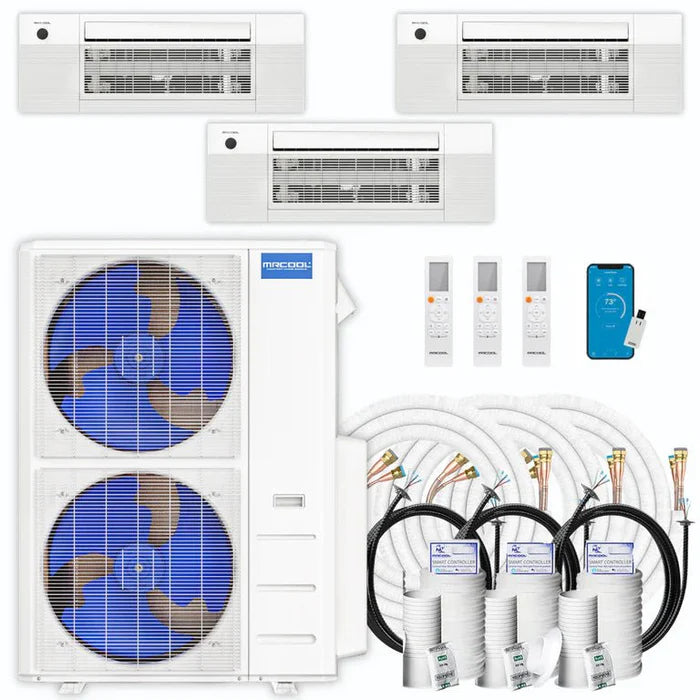

Heat or cool three rooms in style with the brand new 5th gen ceiling cassette air handlers on the MRCOOL DIY 5th Gen Multi-Zone 55,000 BTU 23 SEER 3-Zone Ductless Heat Pump Split System - 12K + 18K + 18K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 55,000 BTU capacity. Two of the indoor air handlers are 18,000 BTU (750 sq. ft. each) and one air handler is 12,000 BTU (550 sq. ft). A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus an optional lifetime compressor warranty) and a 5 Year Parts Manufacturer Warranty!

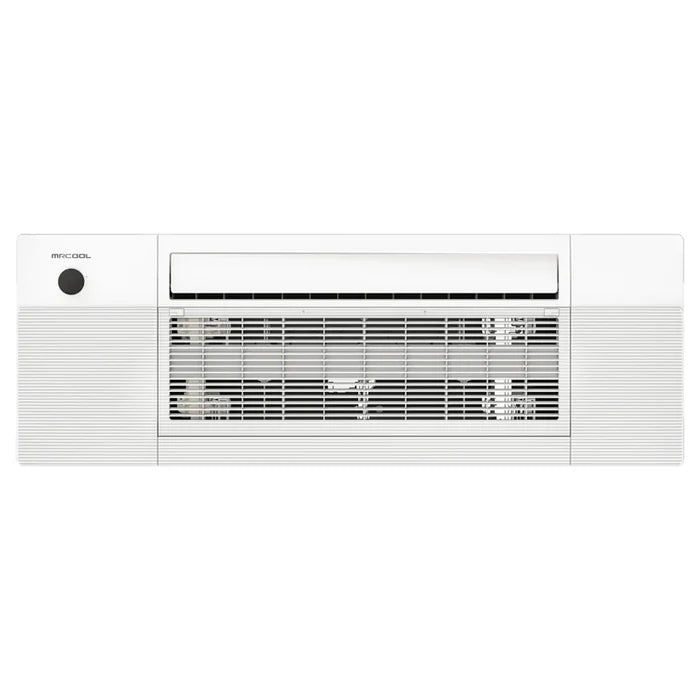

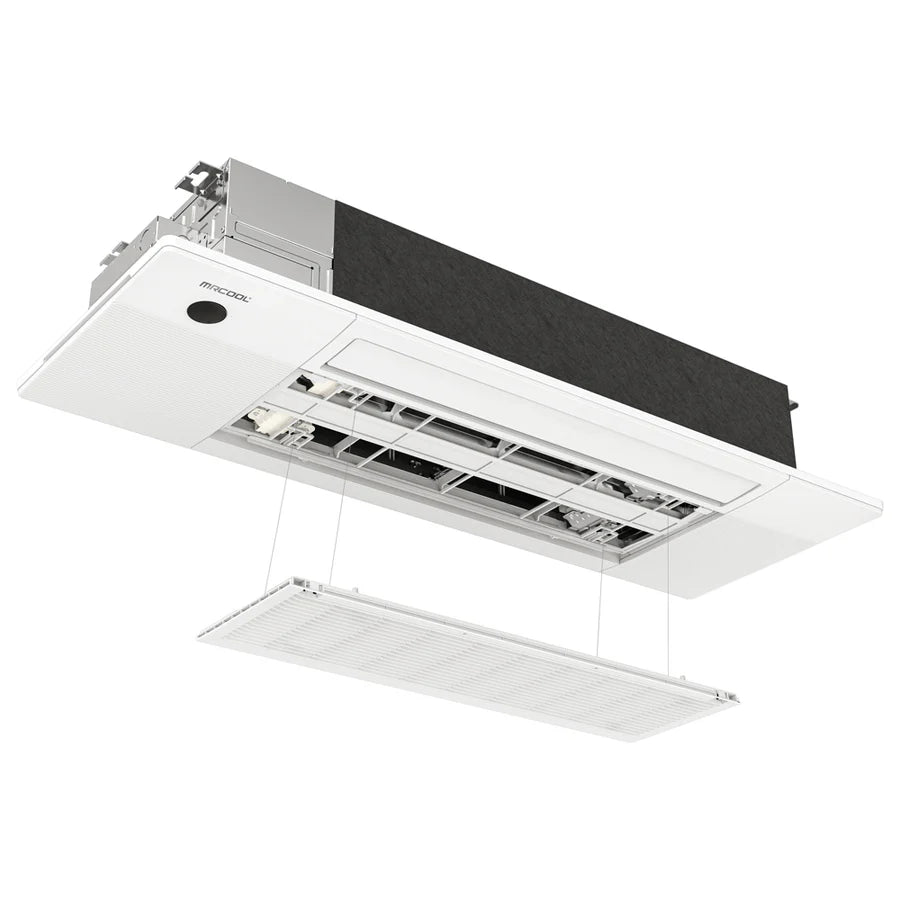

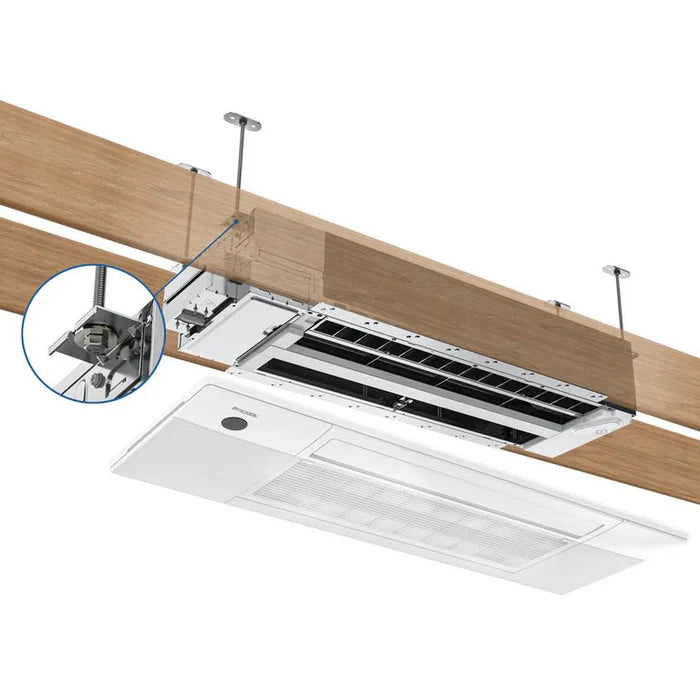

MRCOOL DIY Series Ceiling Cassettes provide efficient heating and cooling while remaining out of sight and discreet, making them a perfect fit for any space. The cassette features an easy, low profile installation and can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. This makes it a perfect option for both new construction or retrofits. It doesn’t have strict installation requirements like other ceiling cassettes, so you’re able to install it in the location that suits you best, without using ductwork or wall space. The cassette works with the MrCool® DIY® Quick Connect® line set and the No-Vac® Coupler to increase the length of the line set. Not only does the unit offer quiet operation and multiple operating modes, but it also features the Elevation function that lowers the filter panel for easy air filter maintenance. Purchases of the MrCool® DIY® Series Ceiling Cassettes are protected by a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty.
Features:
- Easy DIY® Installation
- "Pre-charged DIY®
- Quick Connect Line Set"
- Simple to Use
- Multi-room Comfort
- Energy Efficient DC Inverter
- 100% Sealed System
- Gold Fin® Condenser
- Eco Safe R-454B Refrigerant
- Smartphone App Controls
- Lifetime Technical Support
- Low Ambient Cooling
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-55HP230D-O
|
| GTIN | 840255587488 |
| UPC | 840255587488 |
| SHORT DESCRIPTION |

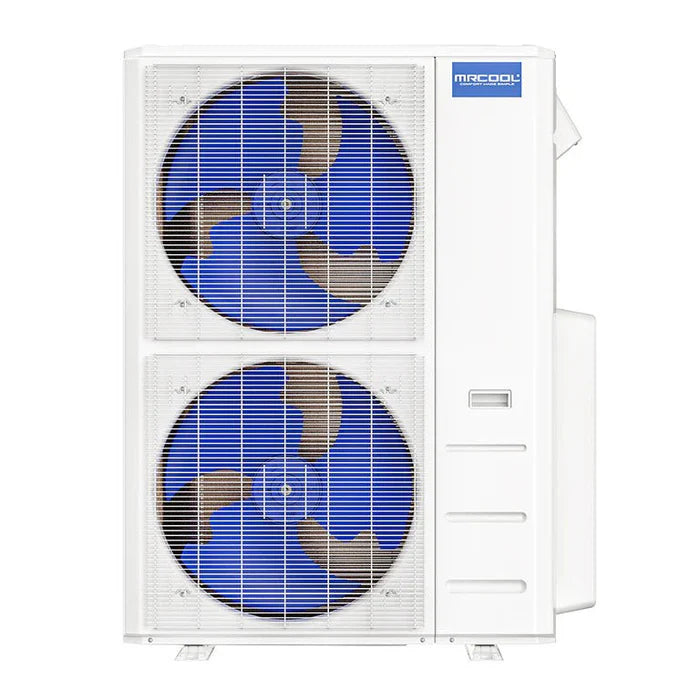

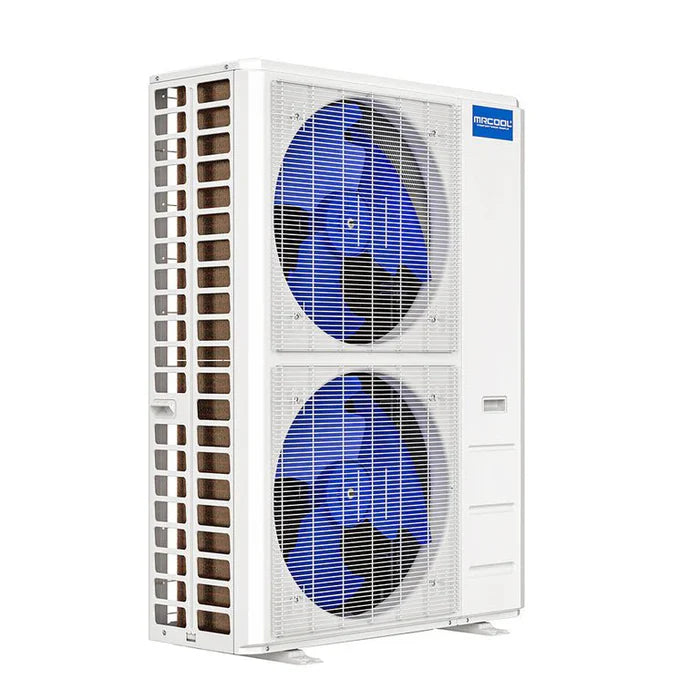

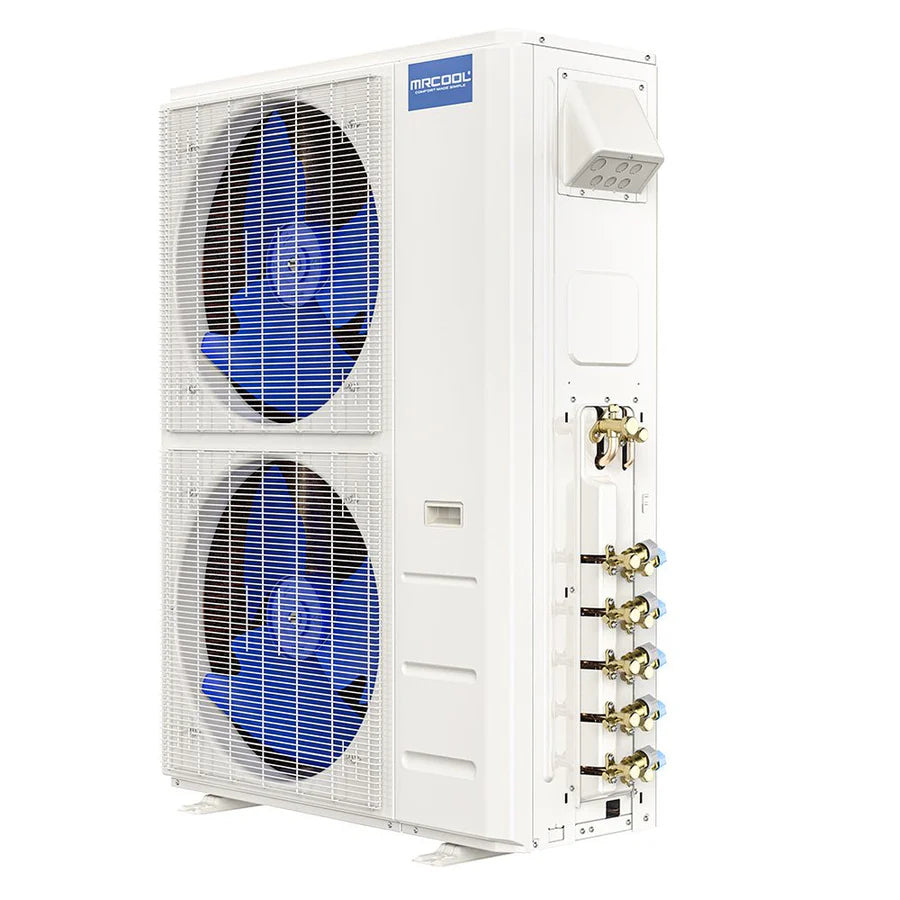

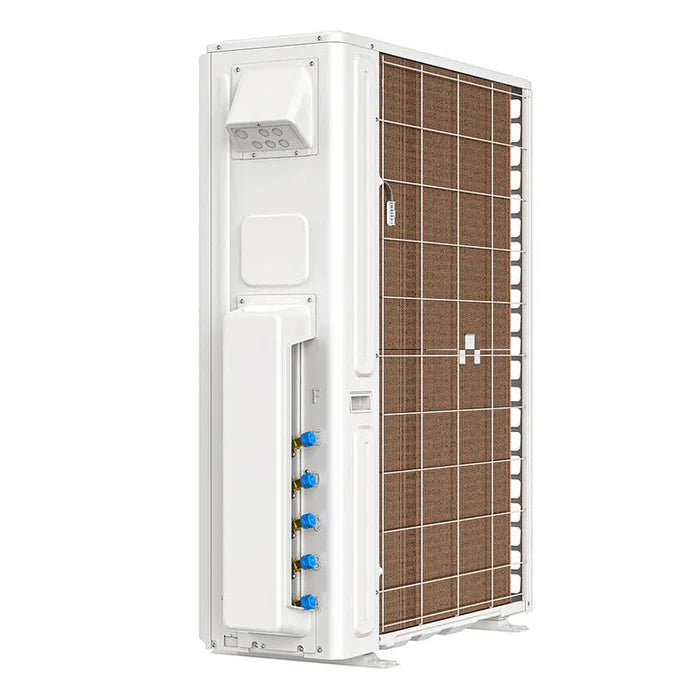

MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system. The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. These line sets are sold separately. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort. One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 22 |
| EER2 | 12 |
| HSPF2-4 | 10.6 |
| HSPF2-5 | 8.5 |
| TONNAGE | 4.6 |
| COOLING CAPACITY (BTU) | 47000 |
| HEATING CAPACITY (BTU) | 55000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 43 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 151.68 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 245.81 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 267.46 |
