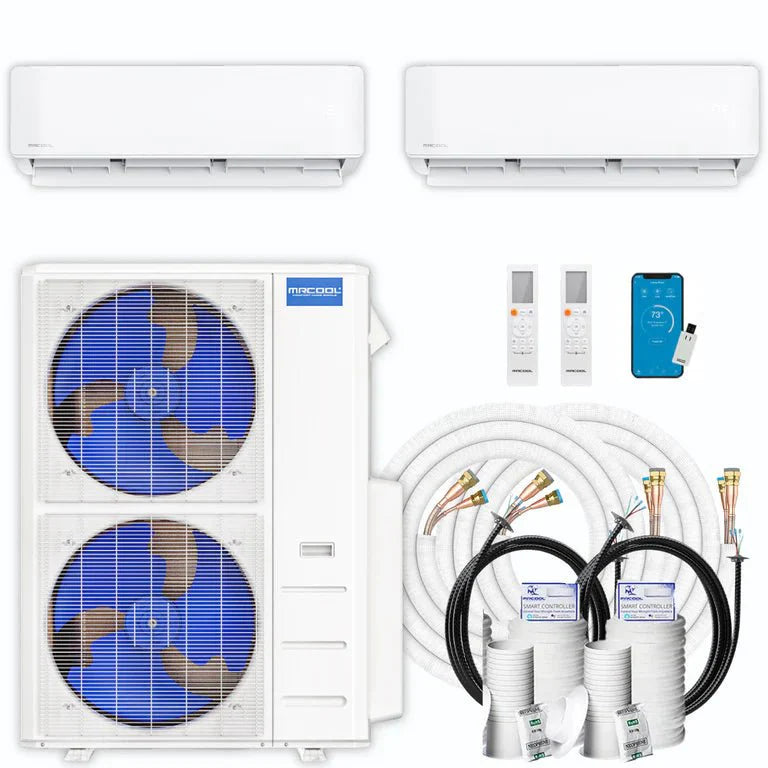

MRCOOL DIY Multi-Zone 5th Generation 48K BTU Two Zone Ductless Mini Split – A Heating and AC System You Can Install By Yourself!

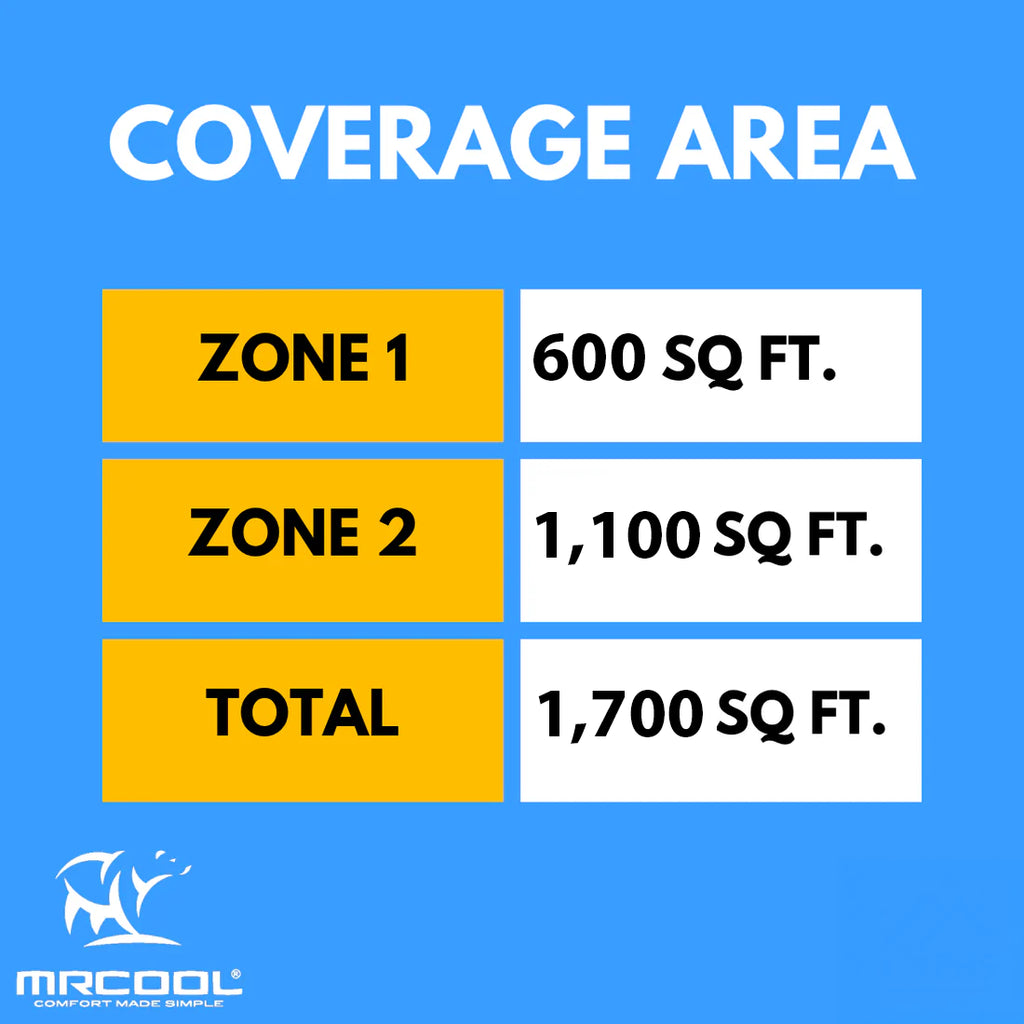

Heat or cool two rooms with the MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 12K + 24K. This 5th Gen system features an easy DIY installation with no need for special tools, HVAC certification, or professional installers. This configuration includes a 12,000 BTU air handler (ideal for ~500 sq ft) and a 24,000 BTU air handler (suitable for ~1,100 sq ft). Save thousands on labor and enjoy year-round comfort with a system designed to heat in winter and cool in summer. Backed by a 7-year compressor warranty (plus optional limited lifetime compressor coverage) and a 5-year parts warranty, it's a smart long-term investment.
MRCOOL DIY 5th Gen Multizone 48,000 BTU systems can support up to FIVE indoor units.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 12K + 24K is designed for seamless installation using pre-charged Quick Connect lines filled with R-454B refrigerant, meeting new EPA regulations while maintaining top performance. This eliminates the need for refrigerant charging or vacuuming. Step-by-step video guides are available to walk you through the process.
This ductless mini-split system heats, cools, and dehumidifies efficiently. The included remotes and the MRCOOL Smart Controller app (iOS & Android) provide flexible control from anywhere. It also supports voice commands via Amazon Alexa and Google Home.

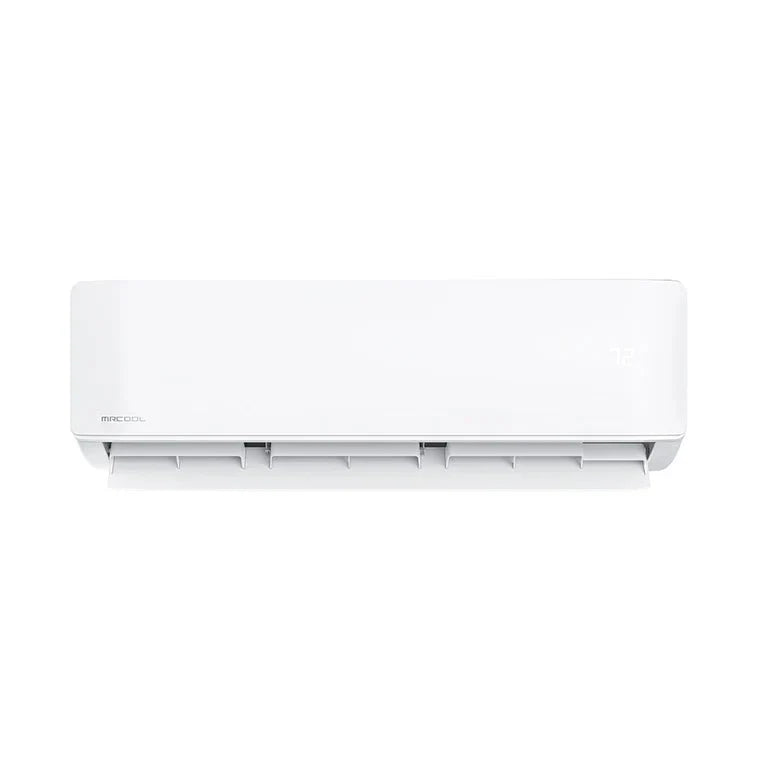

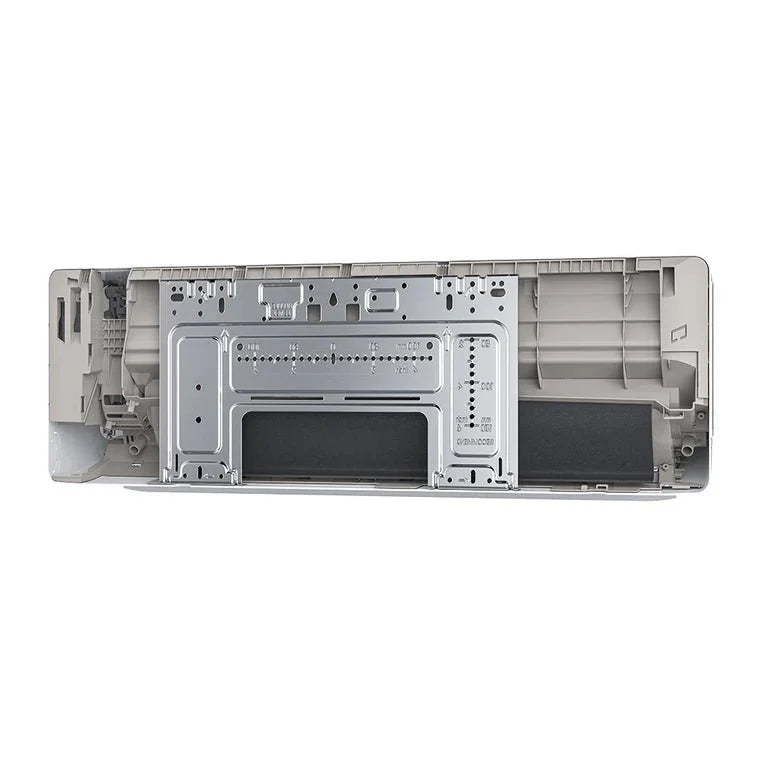

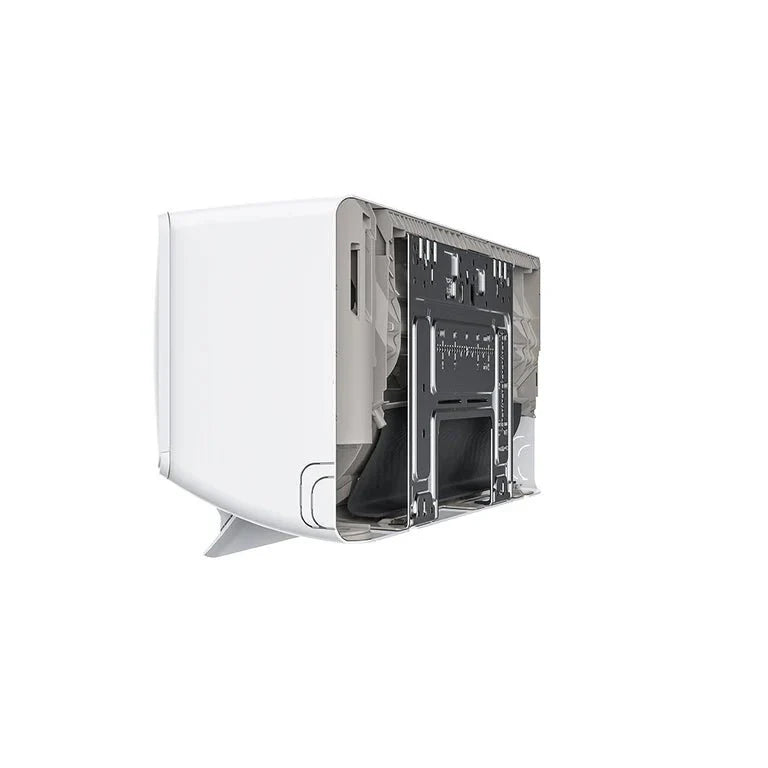

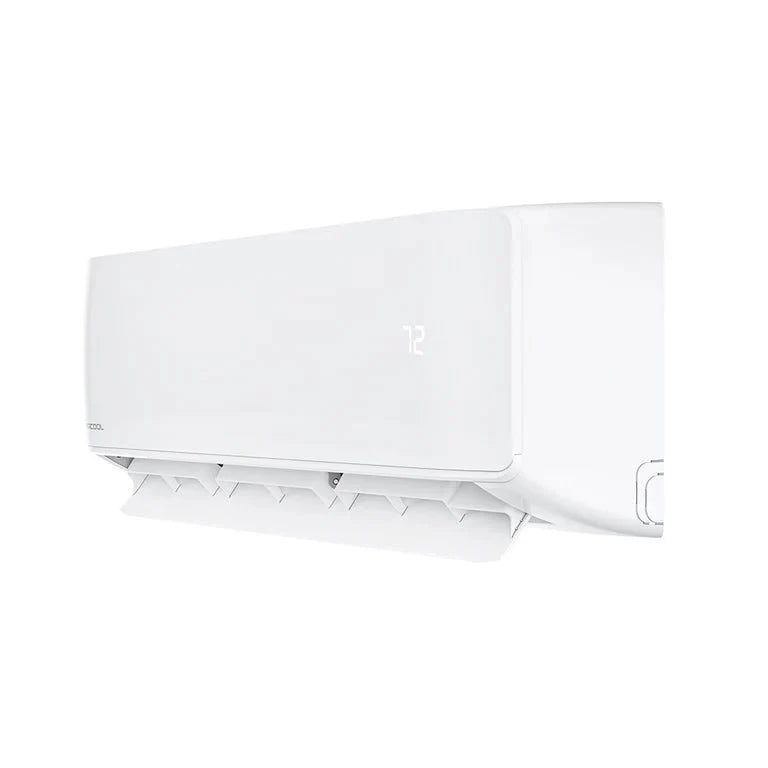

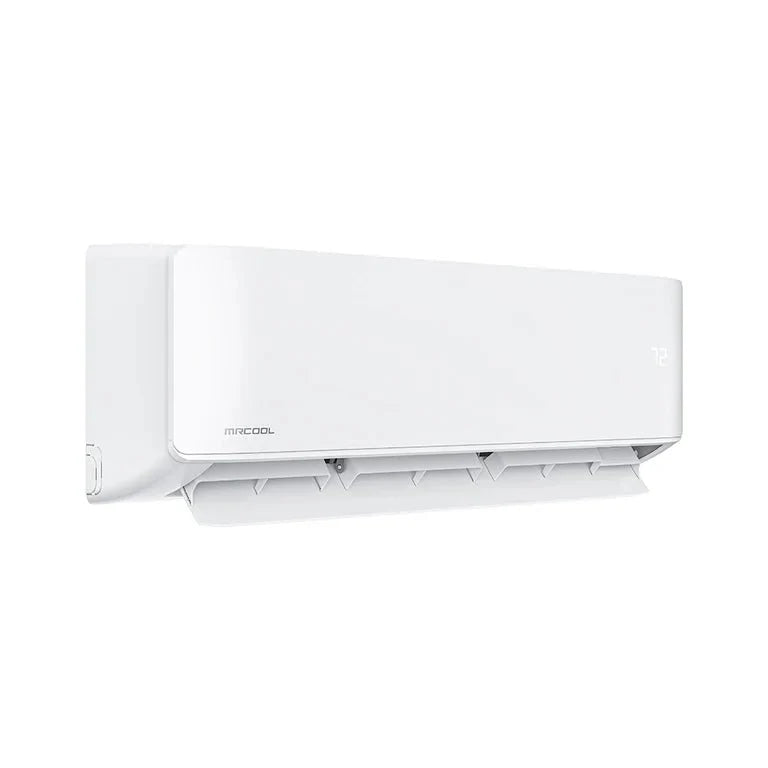

Each indoor unit delivers directional airflow for consistent comfort across your spaces. If needed, a manual operation mode is accessible by lifting the front panel of each handler, ideal for post-install testing or emergencies.
In auto mode, the system adjusts output to reach your desired temperature quickly and efficiently. The dry mode maintains comfort while reducing humidity levels.
Sleep mode conserves energy overnight by slowly adjusting temperature over an 8-hour cycle, reducing utility costs without sacrificing comfort.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 Two-Zone Ductless Heat Pump Split System – 12K + 24K includes smart features like programmable timers, refrigerant leak alerts, and muting options for quieter operation. If a power outage occurs, the system automatically resumes your previous settings.
Maintenance is simple, with automatic alerts for filter cleaning and diagnostic codes shown on the LED display. Units can be cleaned with just a soft cloth to keep things running efficiently.
Features:
-
Easy DIY® Installation
-
Pre-charged DIY® Quick Connect Line Set
-
Uses Eco-Friendly R-454B Refrigerant (EPA 2025 Compliant)
-
Multi-room Comfort
-
Energy Efficient DC Inverter
-
100% Sealed System
-
Gold Fin® Condenser
-
Smartphone App Controls
-
Lifetime Technical Support
-
Follow Me® Feature
-
Low Ambient Cooling
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-48HP230D-O
|
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION |

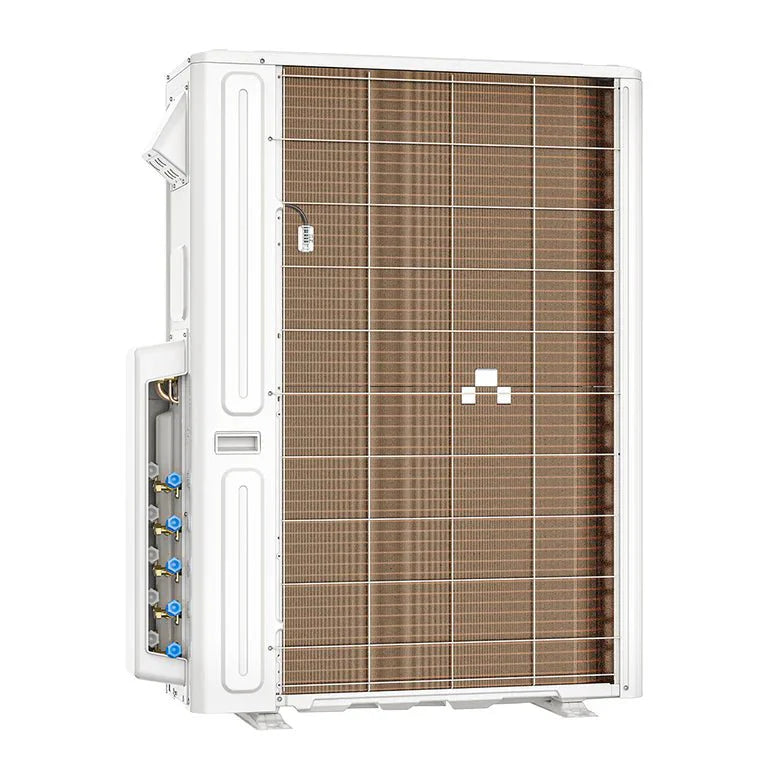

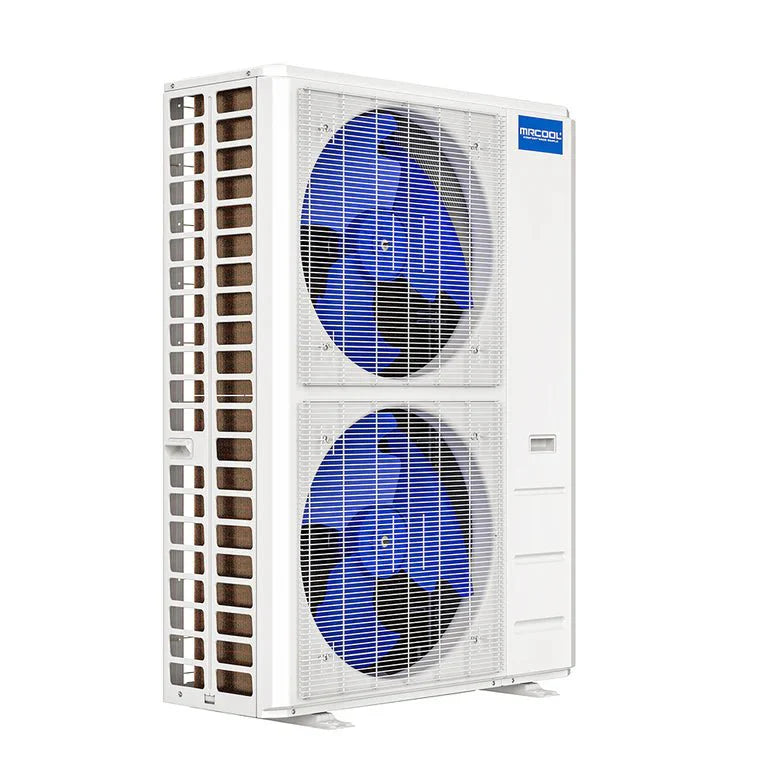

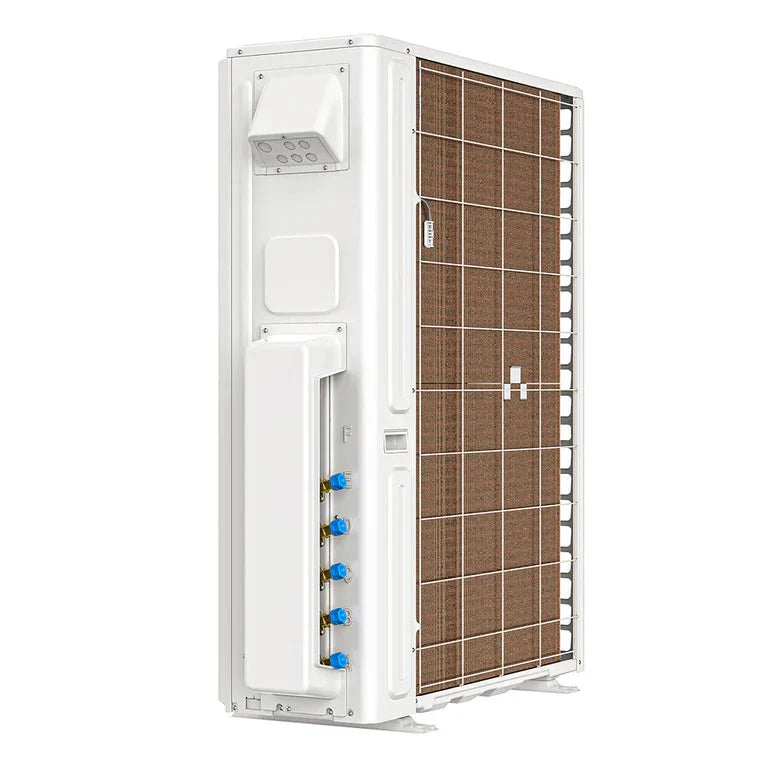

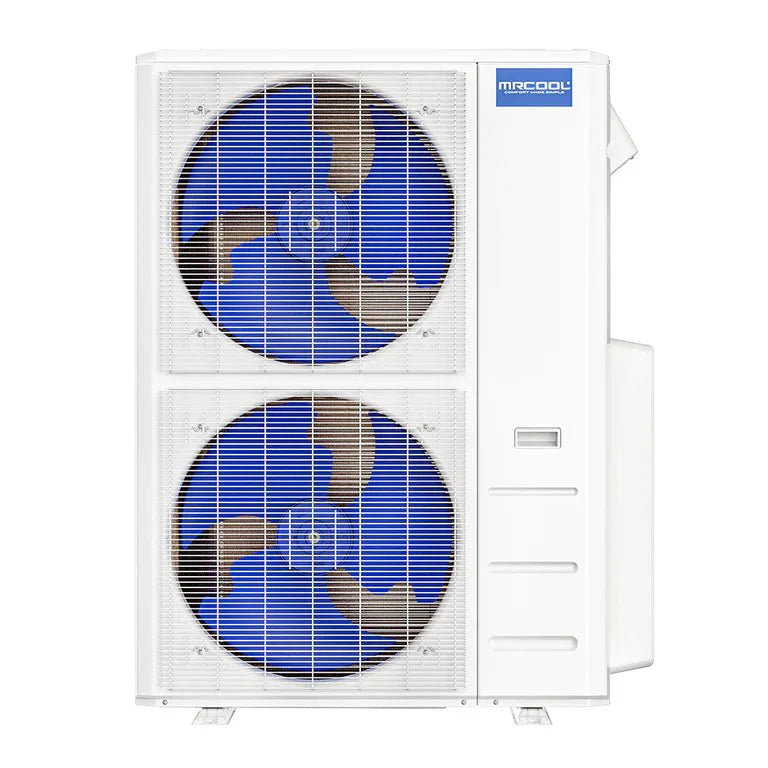

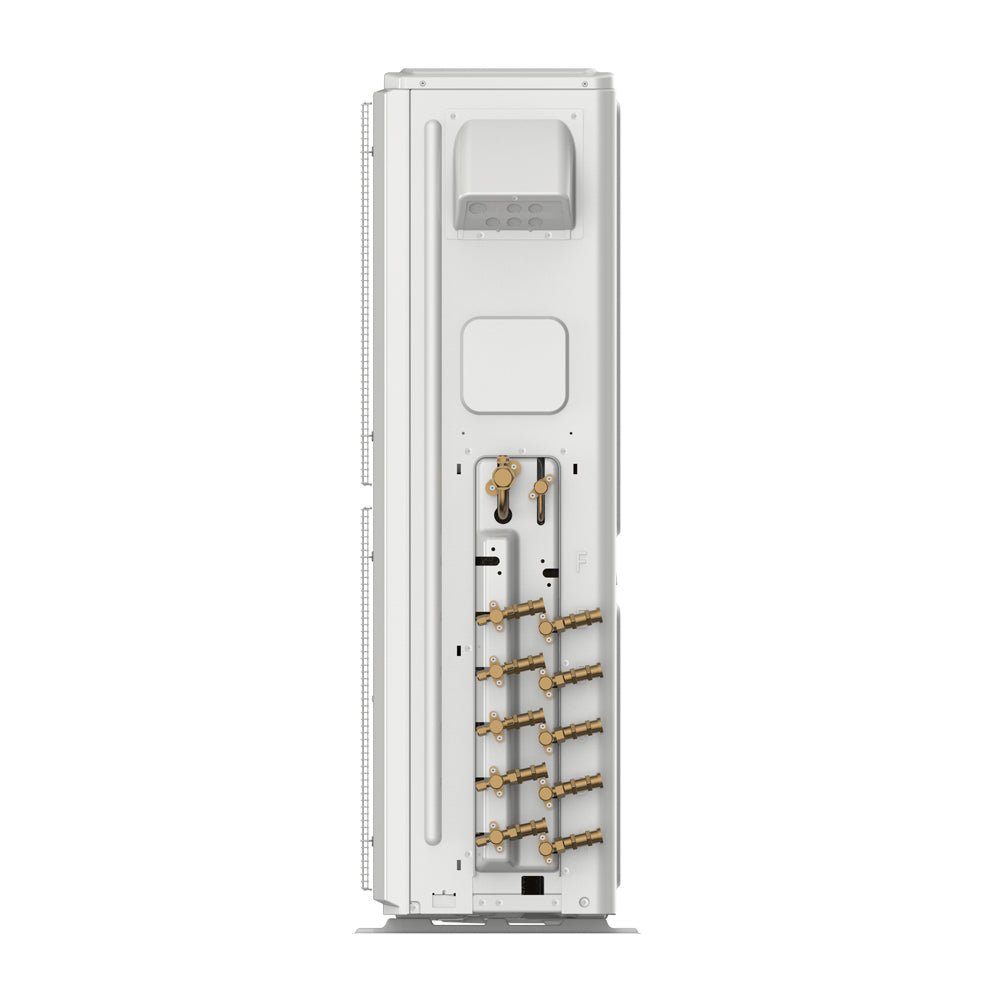

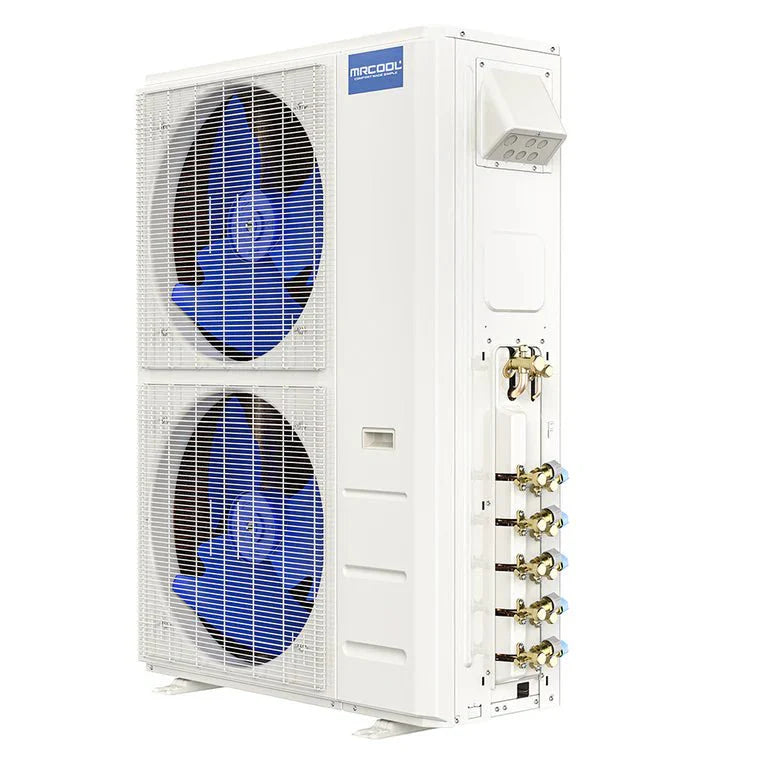

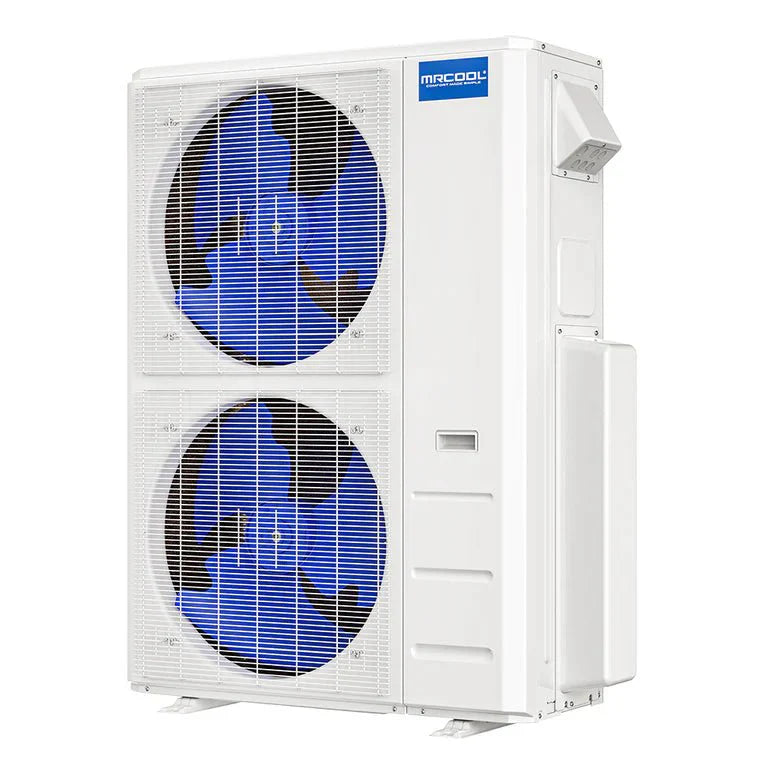

MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
