MRCOOL DIY Multi-Zone 5th Generation 48K BTU Two Zone Ductless Mini Split – A Heating and AC System You Can Install By Yourself!

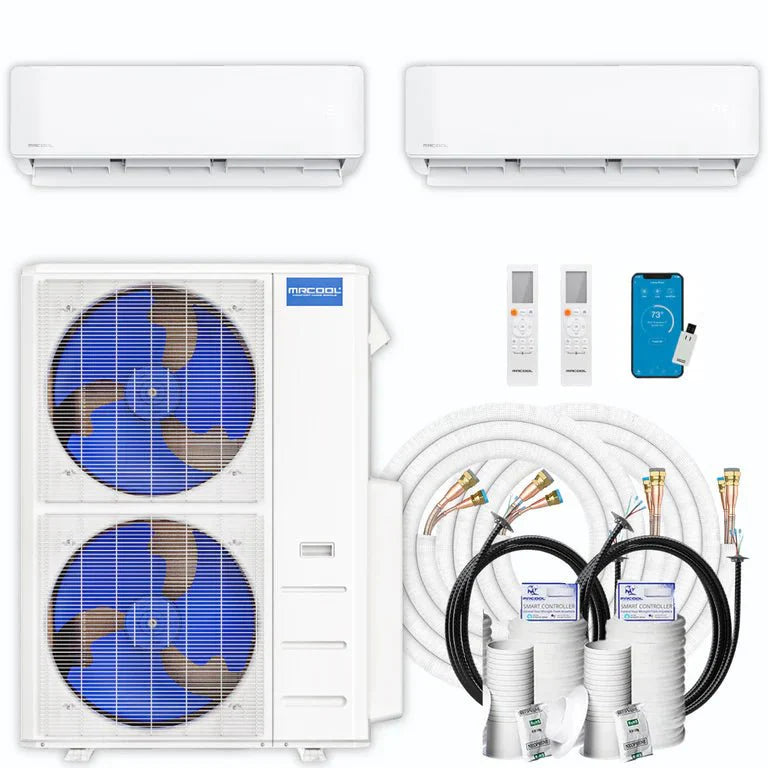

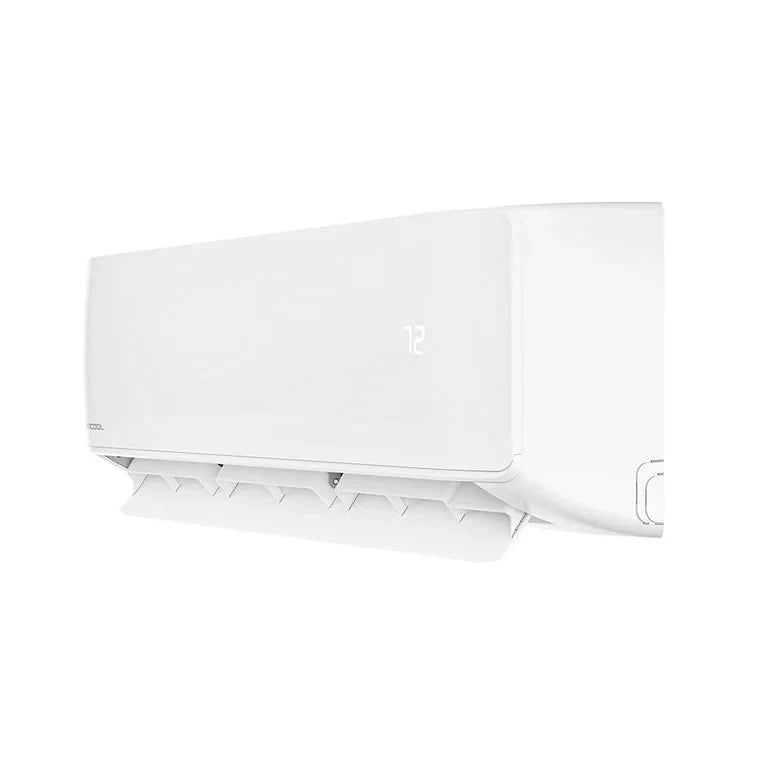

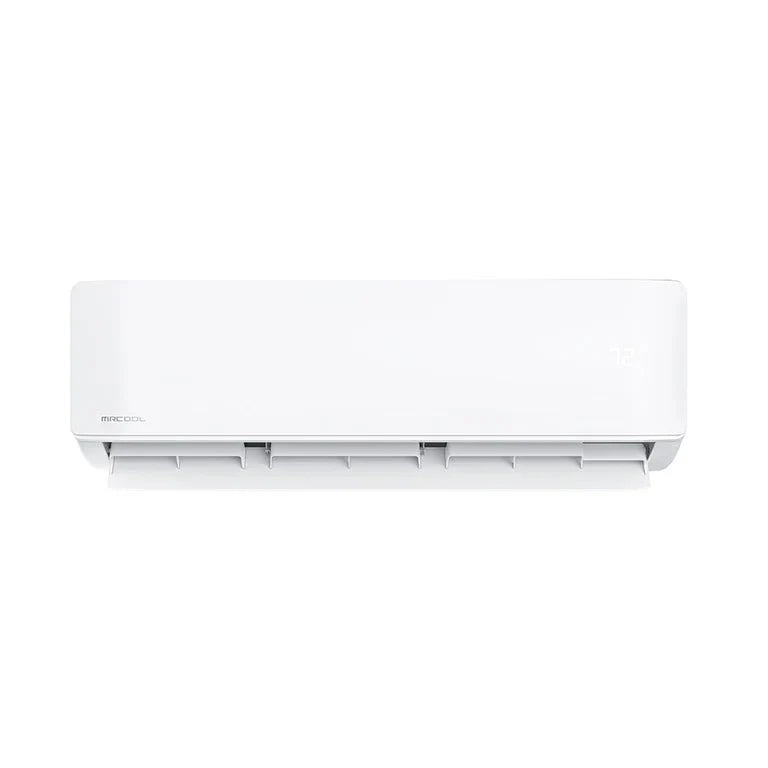

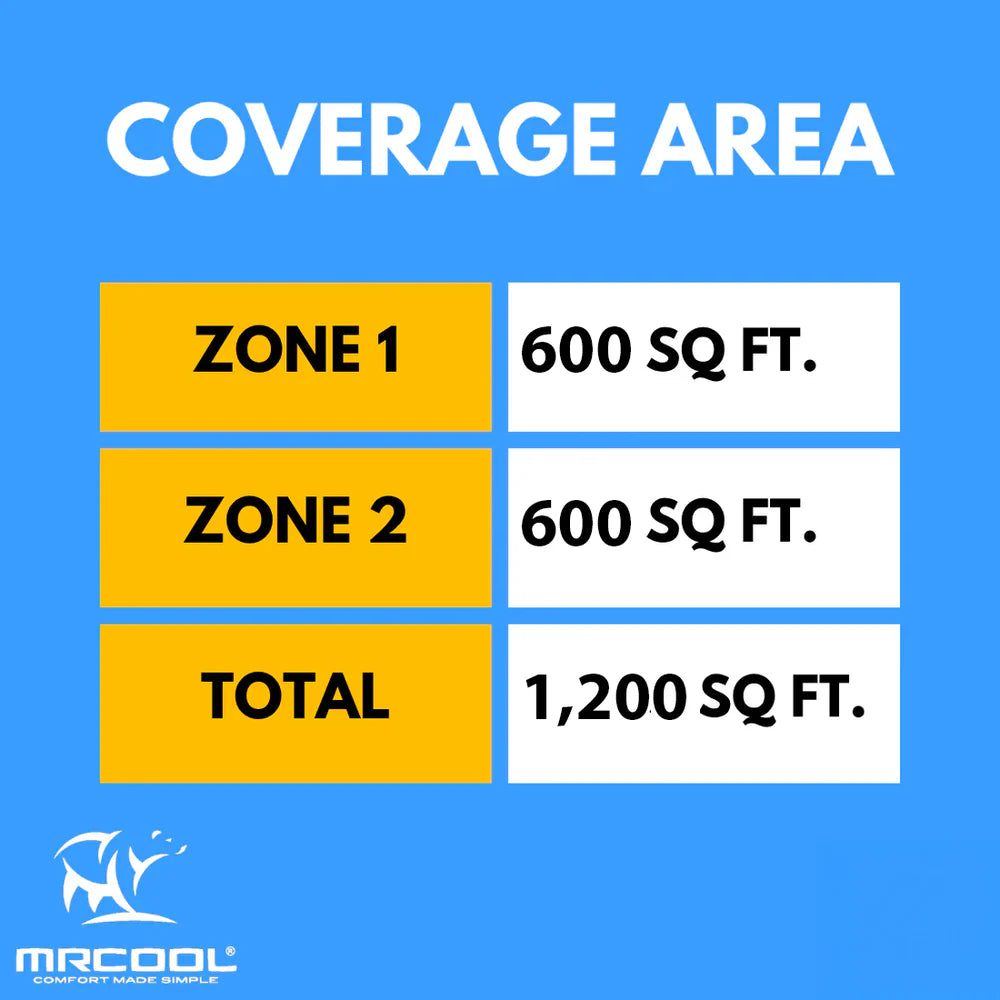

Heat or cool two rooms with the MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 12K + 12K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands on installation while enjoying the comfort of a 48,000 BTU system. This setup includes two 12,000 BTU air handlers, each ideal for spaces around 500 sq ft. It’s a heat pump system, meaning it can reverse operation to provide warmth during colder months. Backed by a 7-year compressor warranty (plus limited lifetime coverage) and a 5-year parts warranty.
MRCOOL DIY 5th Gen Multizone 48,000 BTU systems can support up to FIVE indoor units.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 12K + 12K is incredibly simple to install. It includes pre-charged Quick Connect lines filled with eco-friendly R-454B refrigerant, eliminating the need for professional HVAC tools or training. Detailed video guides walk you through every step of the installation process.
This system delivers efficient year-round performance — cooling in summer, heating in winter, and dehumidifying when needed. Monitor and control the temperature using the digital display or through the MRCOOL Smart Controller mobile app. Each indoor unit can also display troubleshooting alerts. You can control the system with the included remotes, the MRCOOL app, or even voice assistants like Amazon Alexa or Google Home.
Airflow direction is adjustable for maximum comfort, and each unit features a manual operation mode for quick system tests. In auto mode, the unit automatically adjusts output to maintain your preferred temperature. You can also enable a drying function for effective dehumidification.
Sleep Mode helps conserve energy overnight by adjusting operation within an 8-hour window.
The MRCOOL DIY Multi-Zone 48,000 BTU 22 SEER2 2 Zone Ductless Heat Pump Split System – 12K + 12K offers multiple customization options to enhance efficiency and comfort. Use the timer function to limit energy usage. If refrigerant levels drop, the system will alert you via the air handler display. Mute the units to disable light and sound notifications — perfect for bedrooms or workspaces. In the event of a power outage, the system resumes its previous settings automatically.
Maintenance is easy with built-in alerts. Troubleshooting codes appear on the front display, and cleaning reminders for the air filters ensure continued performance. Simply wipe down the indoor units with a dry or damp cloth to keep them in top shape.
Features:
-
Easy DIY® Installation
-
Pre-charged DIY® Quick Connect Line Set
-
Simple to Use
-
Multi-room Comfort
-
Energy Efficient DC Inverter
-
100% Sealed System
-
Gold Fin® Condenser
-
Eco Safe R-454B Refrigerant
-
Smartphone App Controls
-
Lifetime Technical Support
-
Follow Me® Feature
-
Low Ambient Cooling
| BRAND NAME | MRCOOL |
| SERIES |
DIY 5th gen Multi-Zone Mini-splits
|
| MODEL |
DIY-MULTI6-48HP230D-O
|
| GTIN | 840255587471 |
| UPC | 840255587471 |
| SHORT DESCRIPTION |

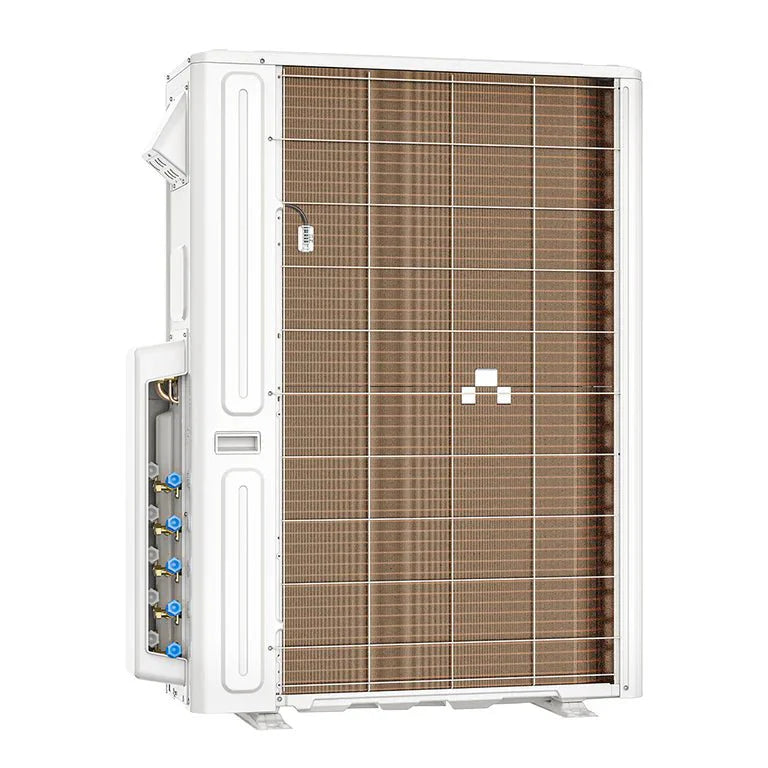

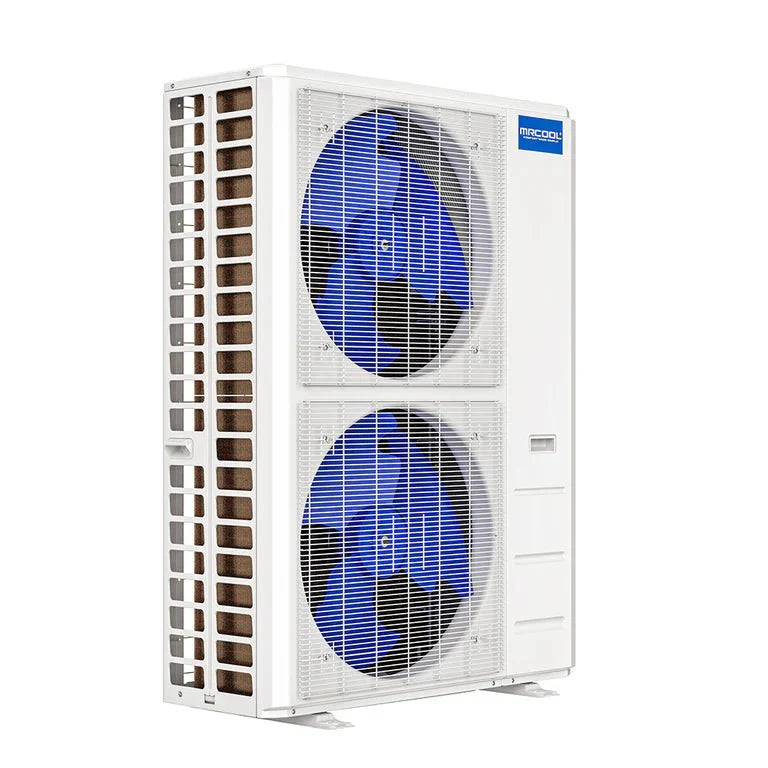

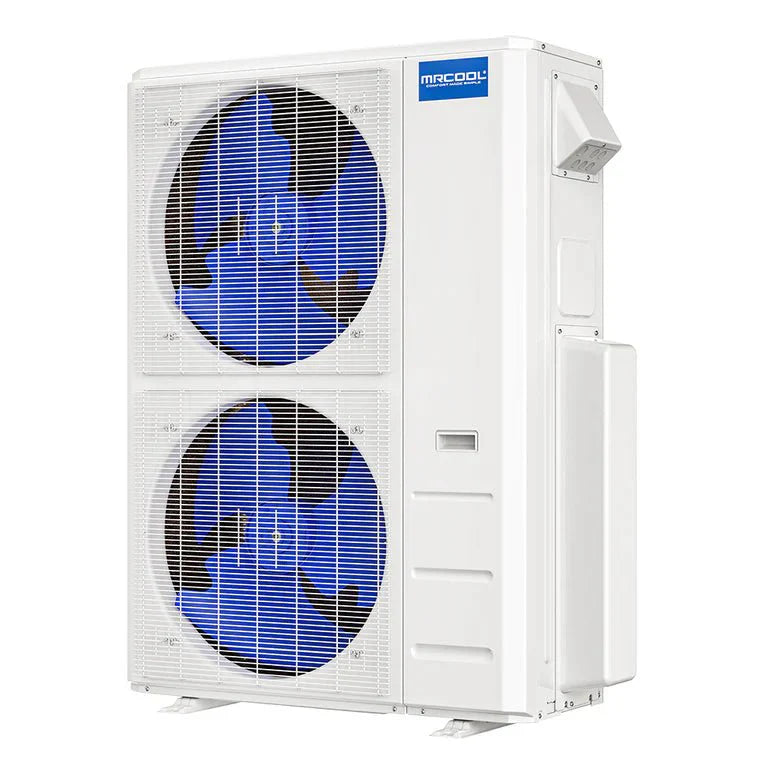

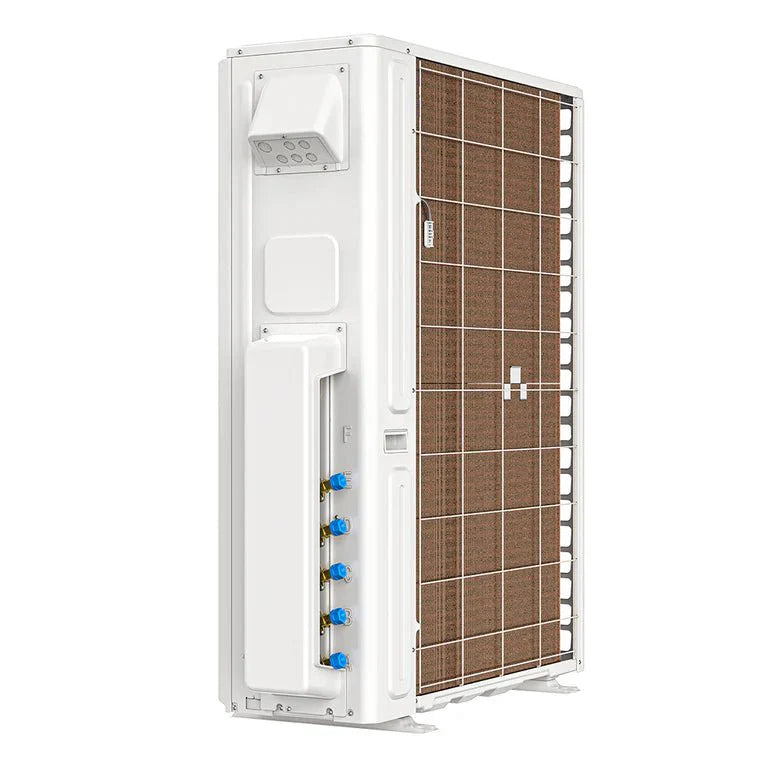

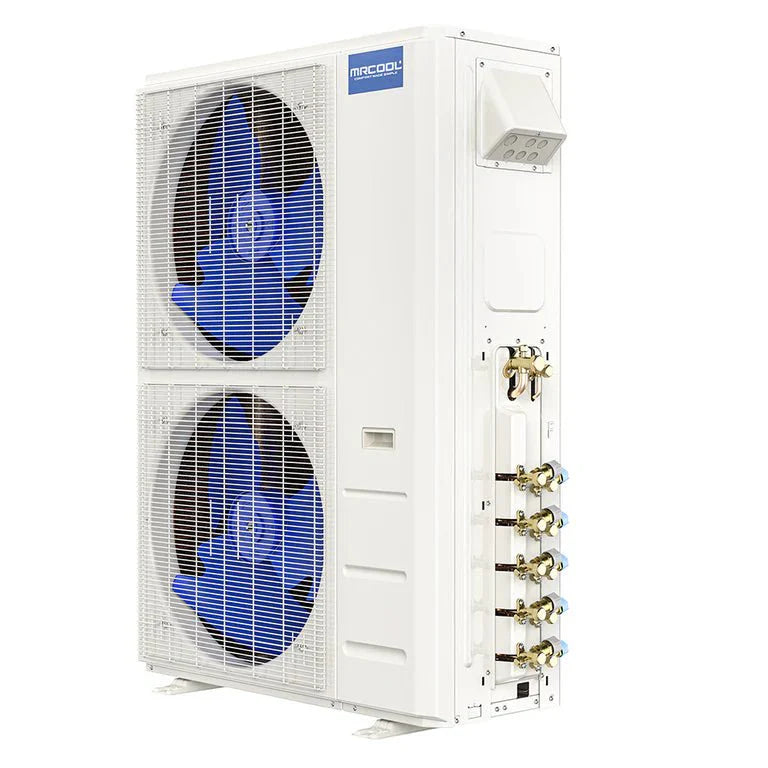

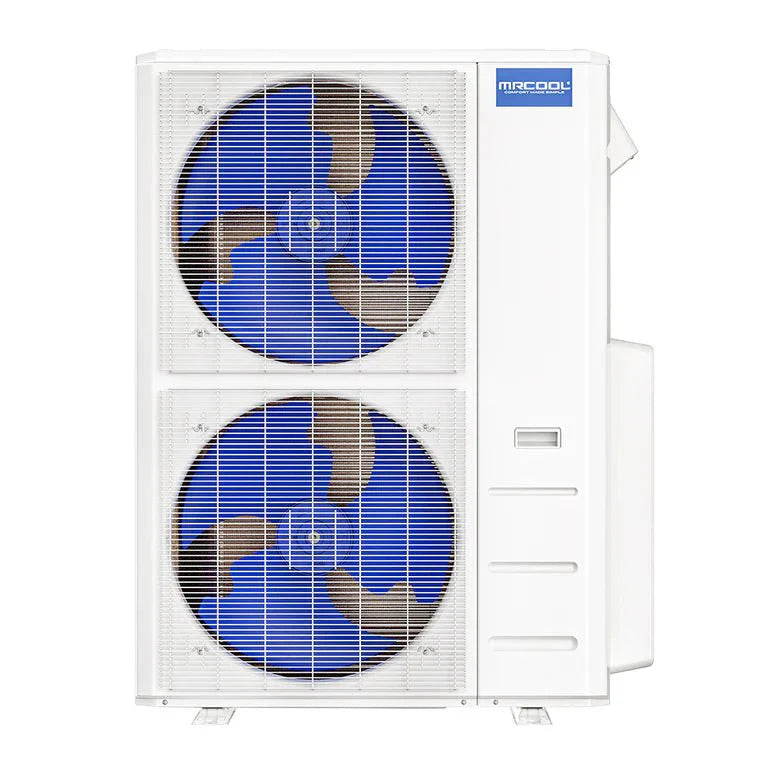

MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
|
| LONG DESCRIPTION |
We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!
|
| FEATURE LIST |
Intertek listed 5031495
Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. |
| SEER2 | 21.8 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 4 |
| COOLING CAPACITY (BTU) | 43000 |
| HEATING CAPACITY (BTU) | 48000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 45 |
| MIN CIRCUIT AMPACITY (A) | 40 |
| COLOR | White |
| ZONE CAPACITY | 6 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 148.15 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE |
(3/8 X4) (1/2 X2)
|
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime*
|
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.34 |
| NET HEIGHT (IN) | 52.48 |
| NET WIDTH (IN) | 37.48 |
| NET WEIGHT (LBS) | 223.77 |
| GROSS DEPTH (IN) | 19.49 |
| GROSS HEIGHT (IN) | 58.27 |
| GROSS WIDTH (IN) | 43.11 |
| GROSS WEIGHT (LBS) | 256.39 |
