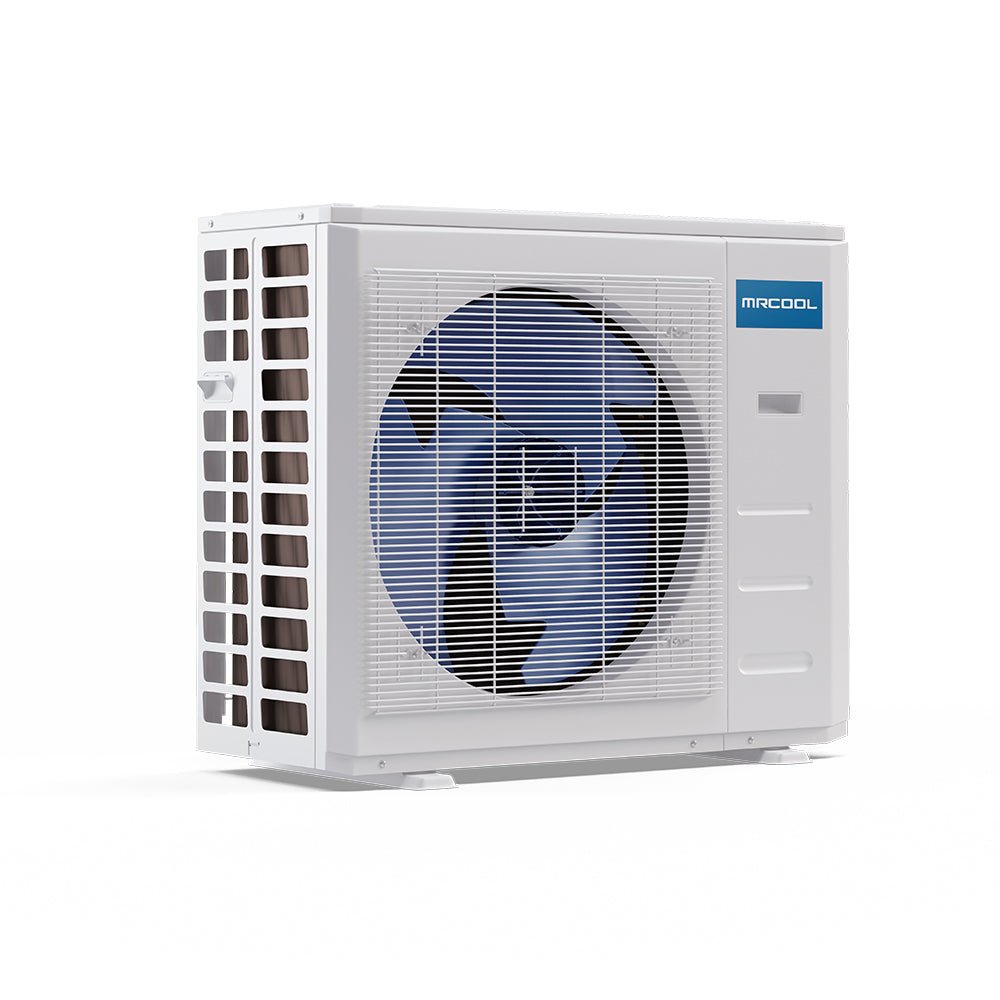

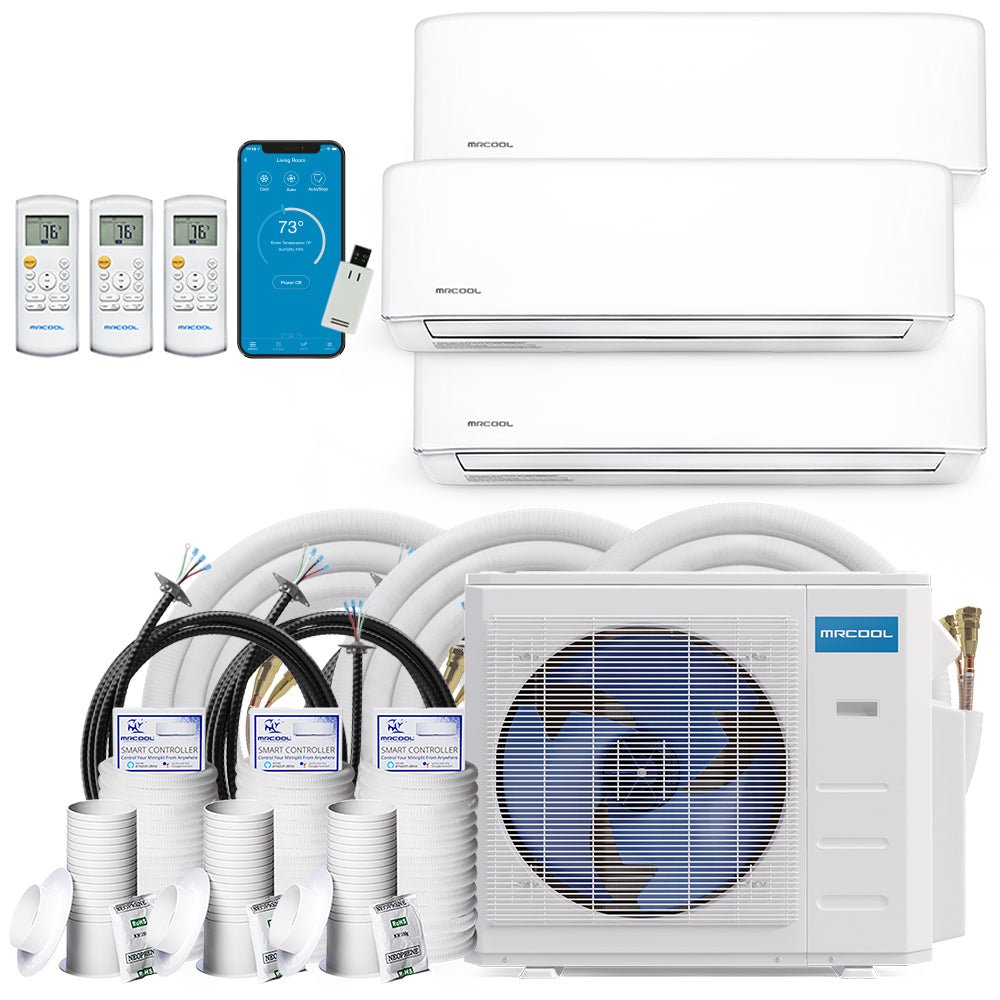

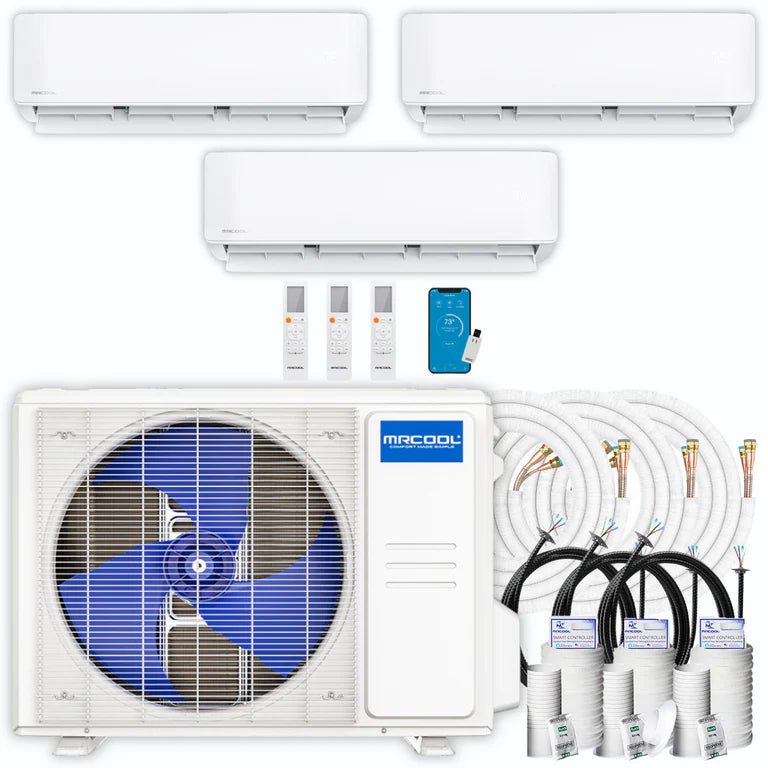

MRCOOL DIY 5th Gen Multi-Zone 3-Zone 27,000 BTU 23 SEER2 (9K + 9K + 12K) Ductless Mini-Split Air Conditioner and Heat Pump

Save 21%
MRCOOLSKU: DIYM327HPW01C00

Line Set for 9K Air Handler #1: 16 Ft
Line Set for 9K Air Handler #2: 16 Ft
Line Set for 12K Air Handler: 16 Ft
Price:
Sale price$4,534.00 Regular price$5,749.00

MRCOOL DIY 5th Gen Multi-Zone 27K BTU Three Zone Ductless Mini Split - A Heating and AC System You Can Install By Yourself!

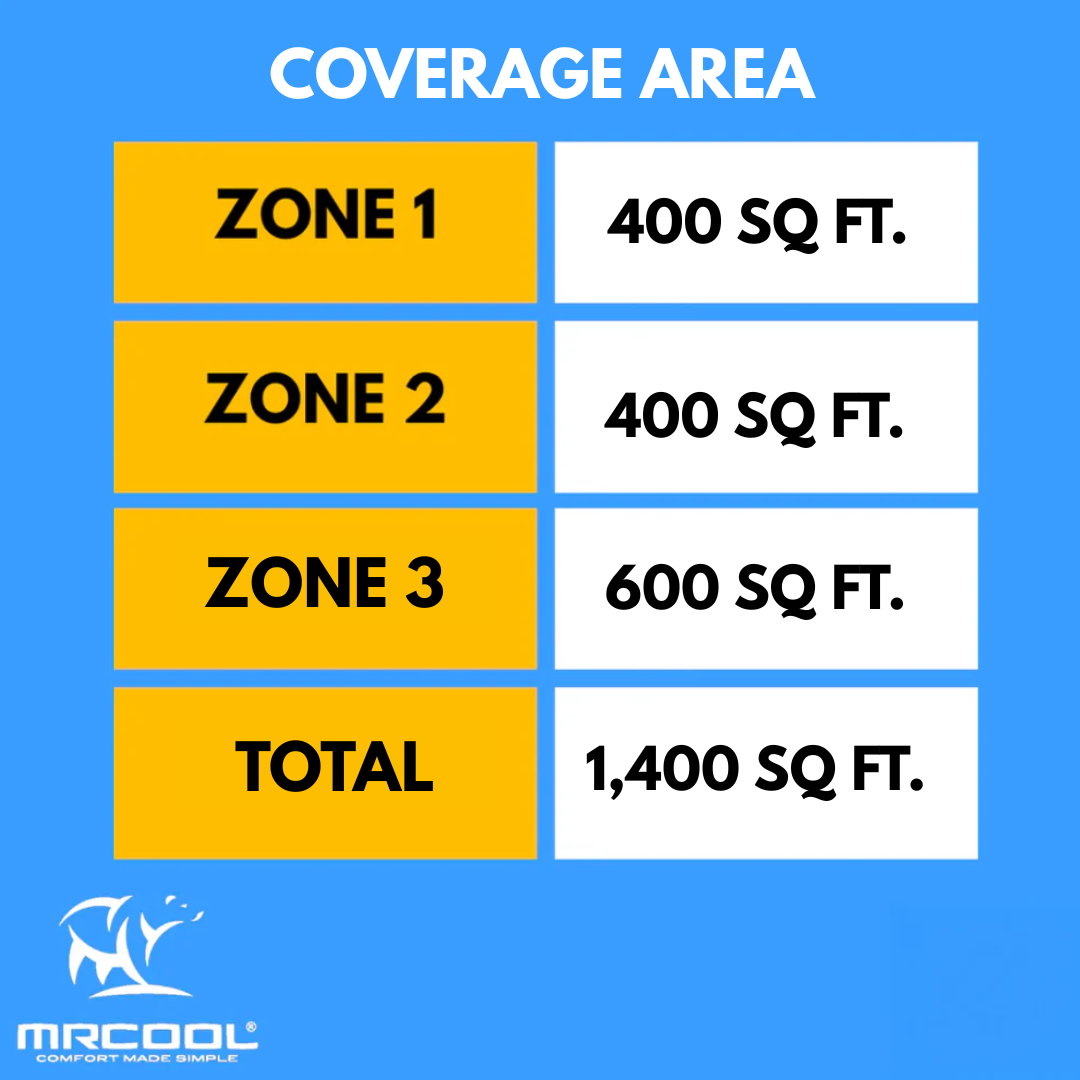

Heat or cool three zones with the MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER 3 Zone Ductless Heat Pump Split System - 9K + 9K + 12K. This DIY Series multi-zone product features easy installation that requires no special tools or training. You'll save thousands of dollars on installation and you can get the amazing air comfort of your dreams due to the condenser’s 27,000 BTU capacity. The indoor air handlers are two 9,000 btu (350 square feet) and one 12,000 btu (550 square feet). A heat pump by design, this ductless HVAC solution can run in reverse and pull in heat from the outdoors when in a heating mode. It comes with a 7 Year Compressor (Plus a limited lifetime compressor warranty), 5 Year Parts Manufacturer Warranty!

MRCOOL DIY 5th Gen Multizone 27,000 BTU systems can support up to three indoor units. Not enough? The DIY MULTI 36,000 BTU system can support up to FOUR indoor units.

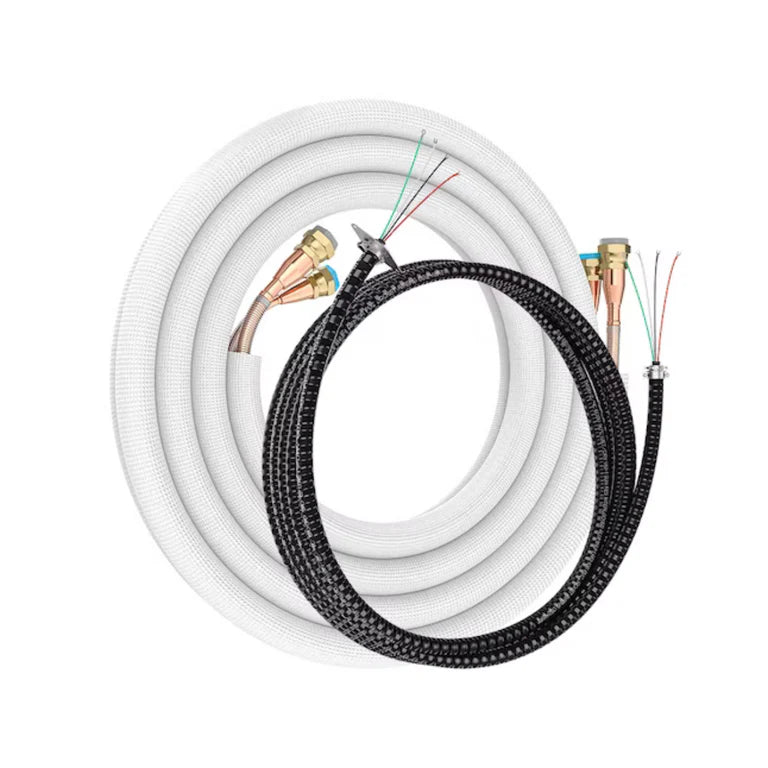

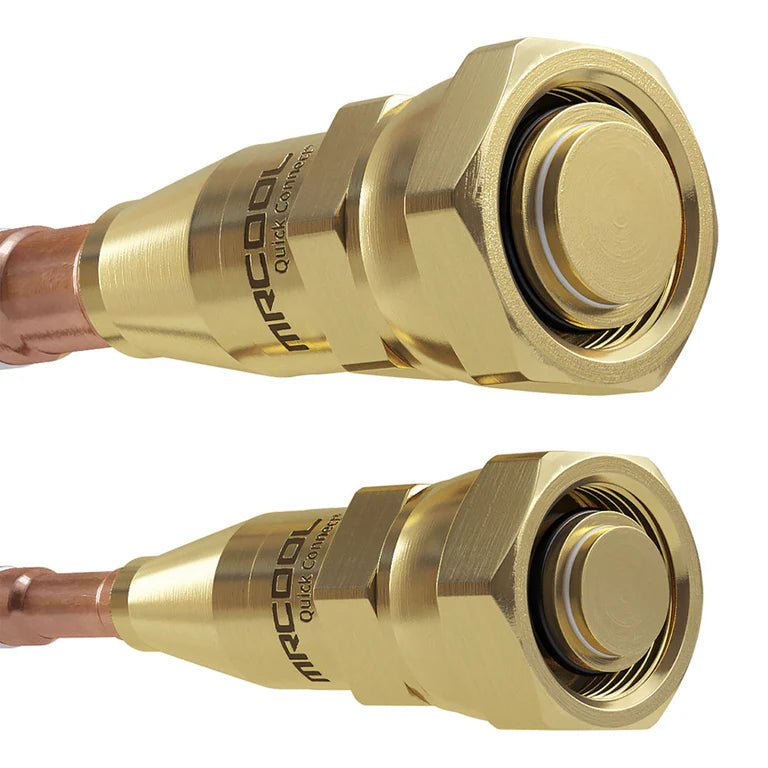

The MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER 3 Zone Ductless Heat Pump Split System - 9K + 9K + 12K units are super easy to install and require no special training or expensive specialty tools. The DIY system includes Quick Connect lines that are pre-charged with eco-friendly R-454B refrigerant. Due to the Quick Connect line set, you don’t have to hire an HVAC technician to complete the install. We also have simple video instructions on how to install a DIY Multi-Zone unit yourself!

The MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER 3 Zone Ductless Heat Pump Split System - 9K + 9K + 12K can cool through the Summer, heat through the Winter, and dehumidify through the wet seasons. Plus, you can quickly check the temperature of each room in your home from the easy to read digital display or from the MRCOOL Smart Controller mobile app. The display on the front of each indoor air handler unit can also display troubleshooting codes and alerts, so you are always aware of any issues with your system. Operate each unit wirelessly with either the included remote or with the MRCOOL Smart Controller app for Apple or Android devices. You also have the ability to control your mini-split unit with Amazon Alexa or Google Home.

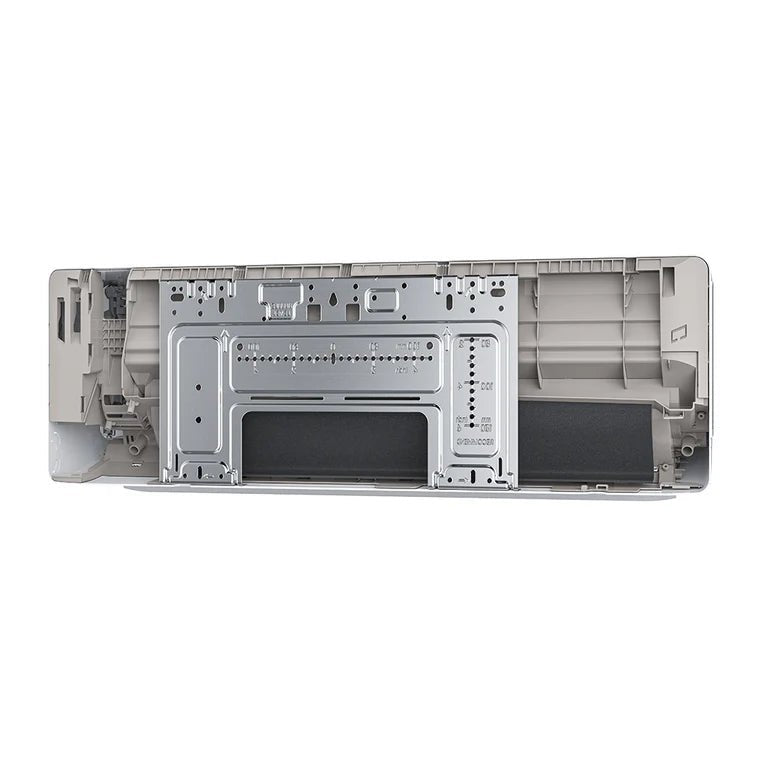

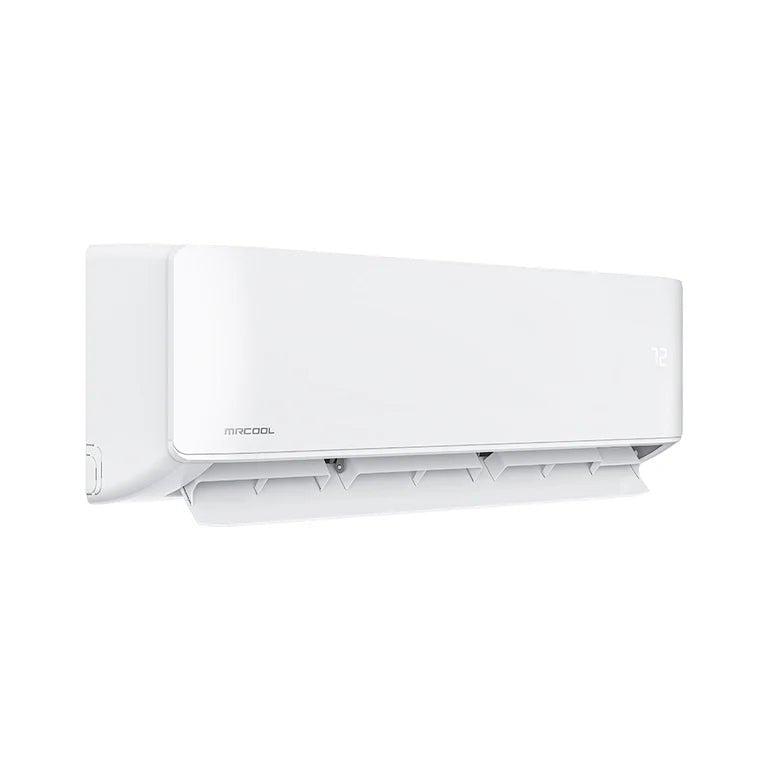

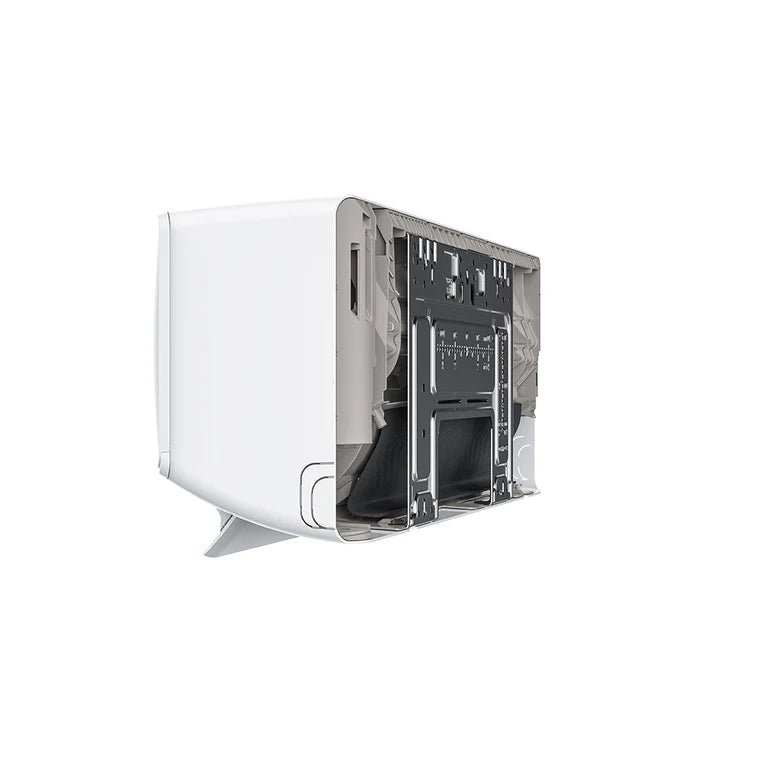

The three MRCOOL DIY Multi-Zone air handlers included in this set provide directional control of the heated or cooled air. This distributes the air evenly so everyone in the room can stay comfortable. If you are in a situation that requires forced cooling, you can set your MRCOOL DIY System to manual with the button located on the right side of the unit under the front panel. In this emergency operation mode, you can test the cooling operation of your unit after installation or to complete a maintenance task.

In auto mode, each unit provides air for your home at your desired comfort level. Set your desired temperature, and the HVAC unit will determine how much heat or air conditioning is needed. You can also set this system to a drying function, which will continue to control the space’s air temperature while dehumidifying.

Use the sleep mode at night to save money on your utilities bills and use less energy. Sleep mode operates in an 8 hour window once turned on.

The MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER Three-Zone Ductless Heat Pump Split Air Conditioner System - 9K + 9K + 12K comes with many options, so you can customize your system based on your needs. Limit your energy usage and save money on your utility bill by using the system’s timer function. If your system begins to run low on refrigerant, an alert will appear on the easy-to-read display on the front of each air handler, letting you know there may be a leak. If you desire to keep a room quiet and minimize lighted alerts, you can mute each indoor unit. By muting the system, the buzzer for alerts will not sound and the LED lit display will turn off. Should the unfortunate event of a power outage occur, the MrCool system will automatically shut off and then back on with the same settings once power returns.

Easily maintain your MRCOOL DIY Multi-Zone 27,000 BTU 22 SEER Three-Zone Ductless Heat Pump Split Air Conditioner Unit with alerts and reminders. Any troubleshooting codes will appear on the front display and the user manual contains an index for common codes. Air filter cleaning alerts are automatic, and you can easily keep the minimal indoor units clean with a dry or damp cloth.

Features:

  • Easy DIY® Installation
  • "Pre-charged DIY®
  • Quick Connect Line Set"
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System
  • Gold Fin® Condenser
  • Eco Safe R-454B Refrigerant
  • Smartphone App Controls
  • Lifetime Technical Support
  • Follow Me® Feature
  • Low Ambient Cooling



BRAND NAME MRCOOL
SERIES
DIY 5th gen Multi-Zone Mini-splits
MODEL
DIY-MULTI4-27HP230D-O
GTIN 840255587457
UPC 840255587457
SHORT DESCRIPTION

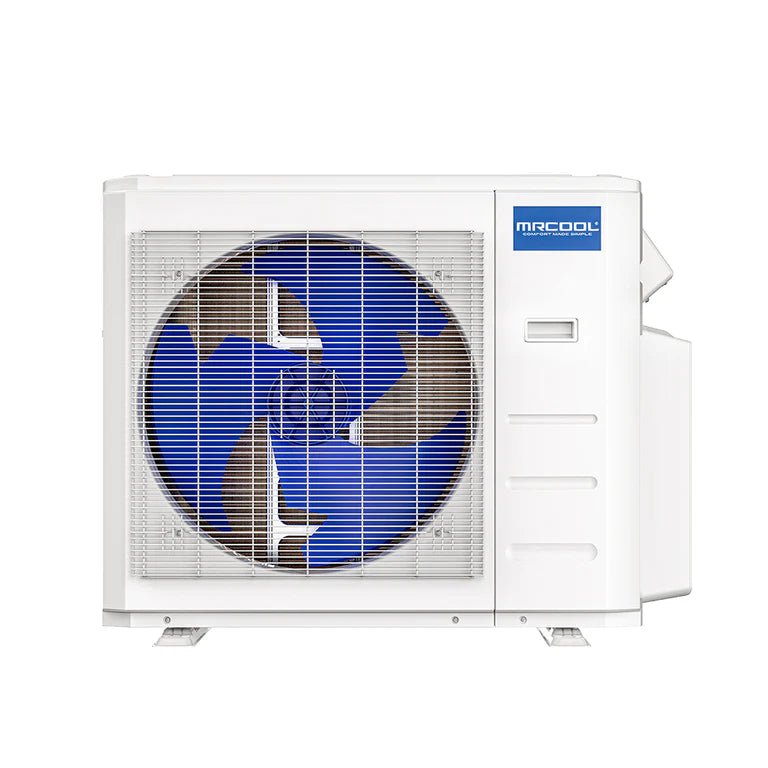

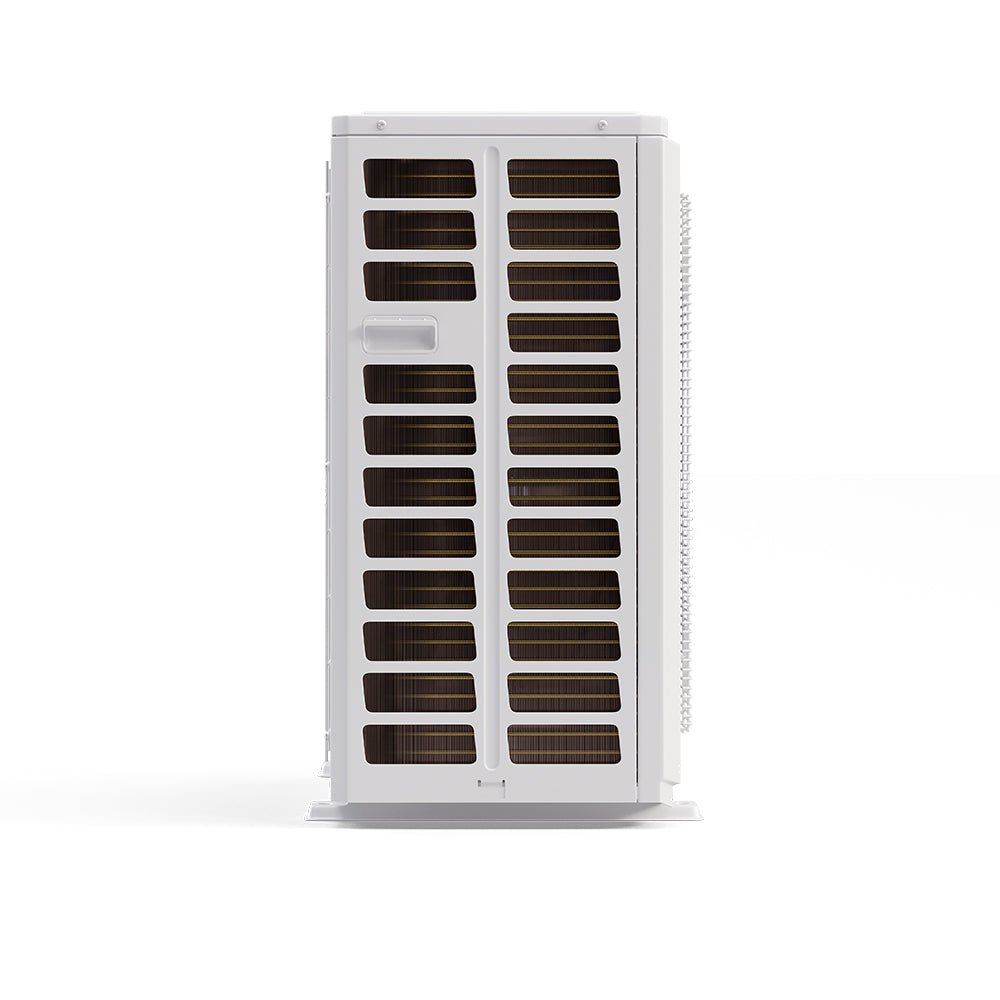

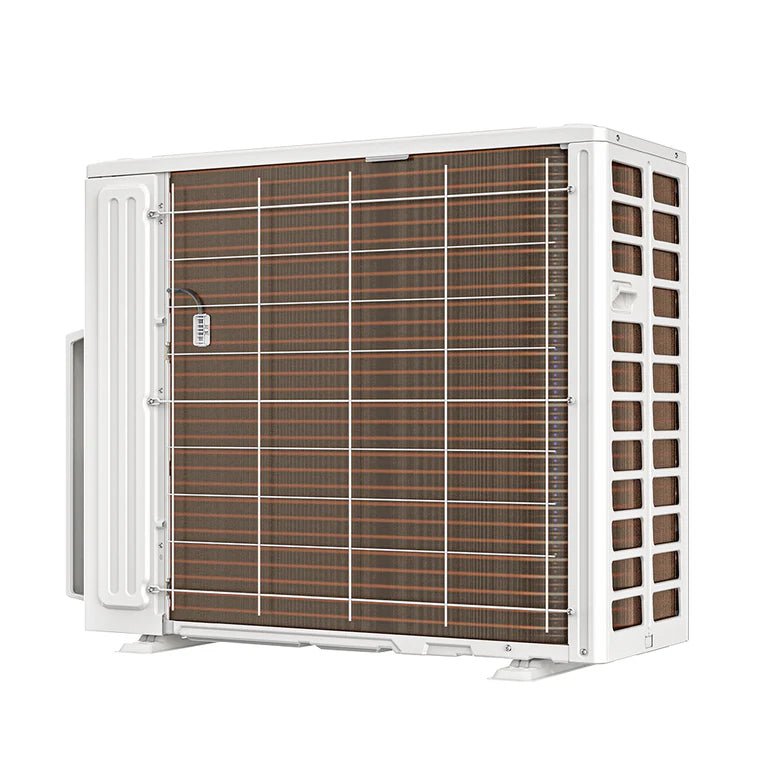

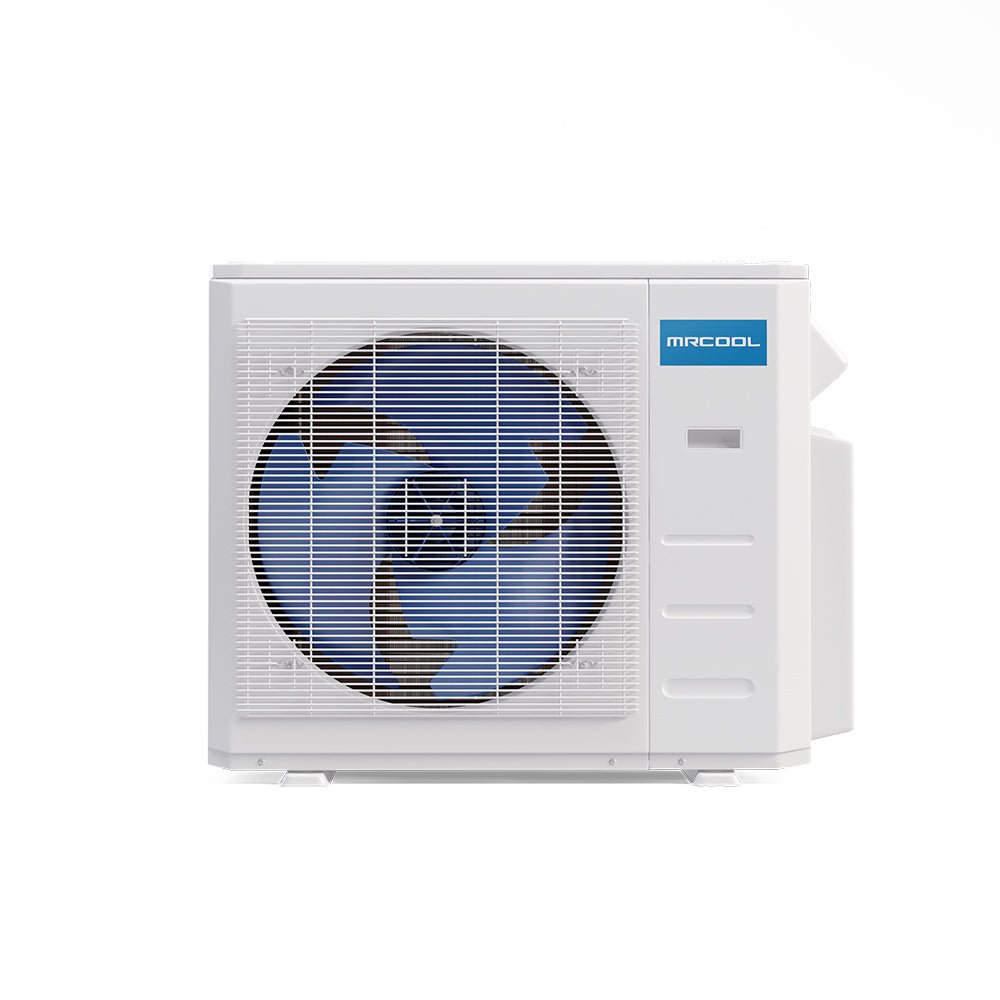

MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
LONG DESCRIPTION

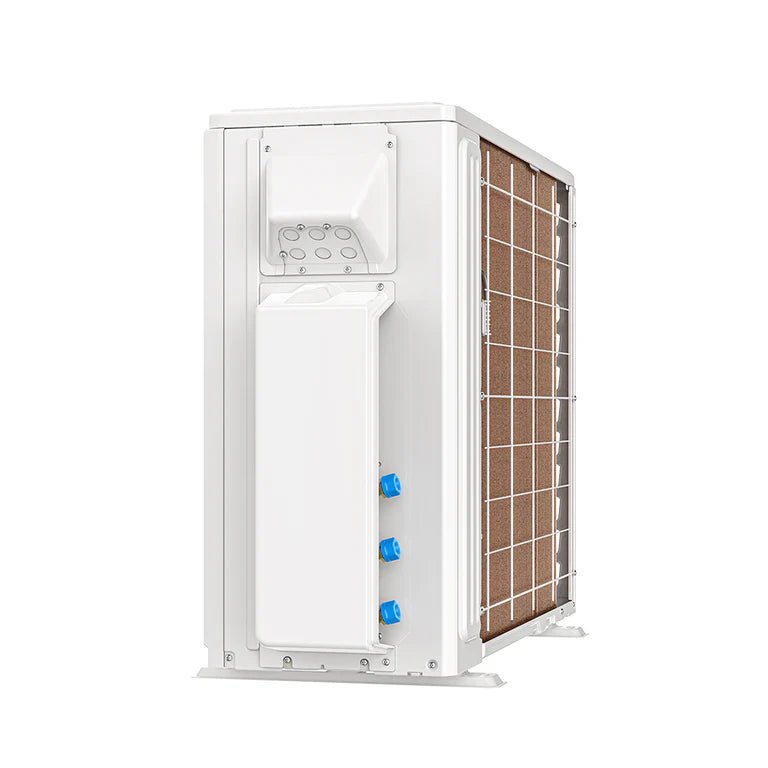

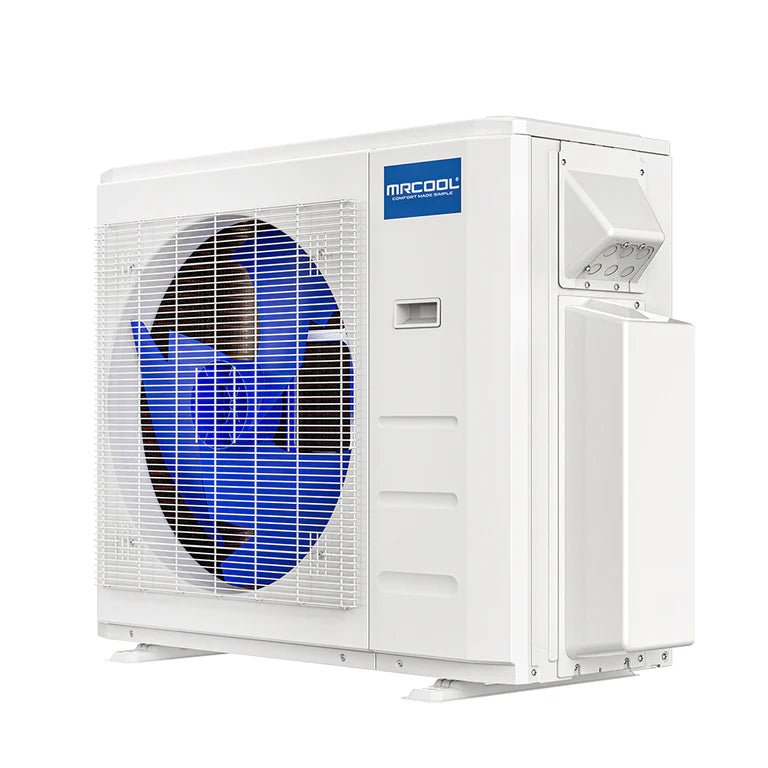

If you’re in need of comfort, our new 5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini Split Condenser is the perfect solution! The acronym in the name is true - you can install this system on your own, without the assistance of an HVAC professional! You’ll save money in more ways than one, too, due to the incredible efficiency of this system, which attains a SEER2 rating of 23 and a HSPF2-4 rating of 9.5. This condenser in particular is able to support up to 4 air handlers, meaning it can provide heat and air conditioning to four separate spaces equalling a total of 1,000 to 1,200 square feet. This system is unique because it utilizes special, patented Quick Connect® line sets that are pre-charged with R-454B, which is a newer refrigerant that allows the system to be even more sustainable and efficient than its previous generation. These line sets essentially link to the fittings of the condenser and the air handler, making the installation process a breeze. These line sets are sold separately. Once installed, this condenser will be able to do more than you expect! Our SmartHVAC app gives you the opportunity to integrate the system with your phone and Amazon Alexa or Google Home, which will let you control your comfort using just your voice. The app also gives you the ability to customize your comfort with a range of features, from setting schedules to monitoring the system’s energy use. You deserve to have your comfort meet your standards, and this unit can do that for you. Should something happen to the system, we’ve got your back. The DIY® series boasts one of the foremost warranties in the HVAC industry - a 5 year parts warranty, a 7 year compressor warranty, and a Limited Lifetime Replacement warranty if you enroll in the MRCOOL® Care Program. Get the best for your home and install a DIY®!
FEATURE LIST
Intertek listed 5031495
Easy DIY installation

Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
SEER2 23
EER2 12
HSPF2-4 9.5
HSPF2-5 7
TONNAGE 2.25
COOLING CAPACITY (BTU) 26000
HEATING CAPACITY (BTU) 26000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 25
MIN CIRCUIT AMPACITY (A) 23
COLOR White
ZONE CAPACITY 4
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 84.66
DECIBEL RATING (DBA) 61
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 221.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY
Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 140.21
GROSS DEPTH (IN) 19.69
GROSS HEIGHT (IN) 34.84
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 151.02
