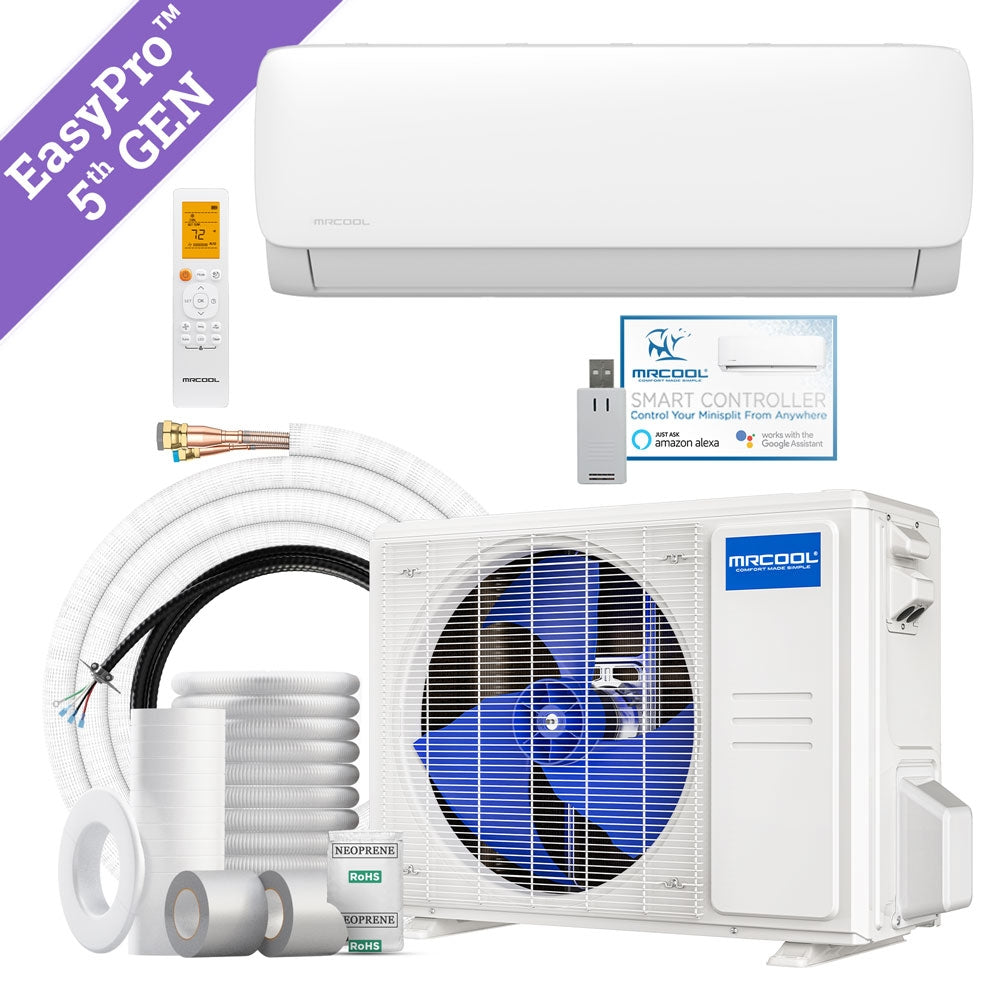

MRCOOL DIY Easy Pro 5th Gen 24K 24,000 BTU 18.9 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 230V

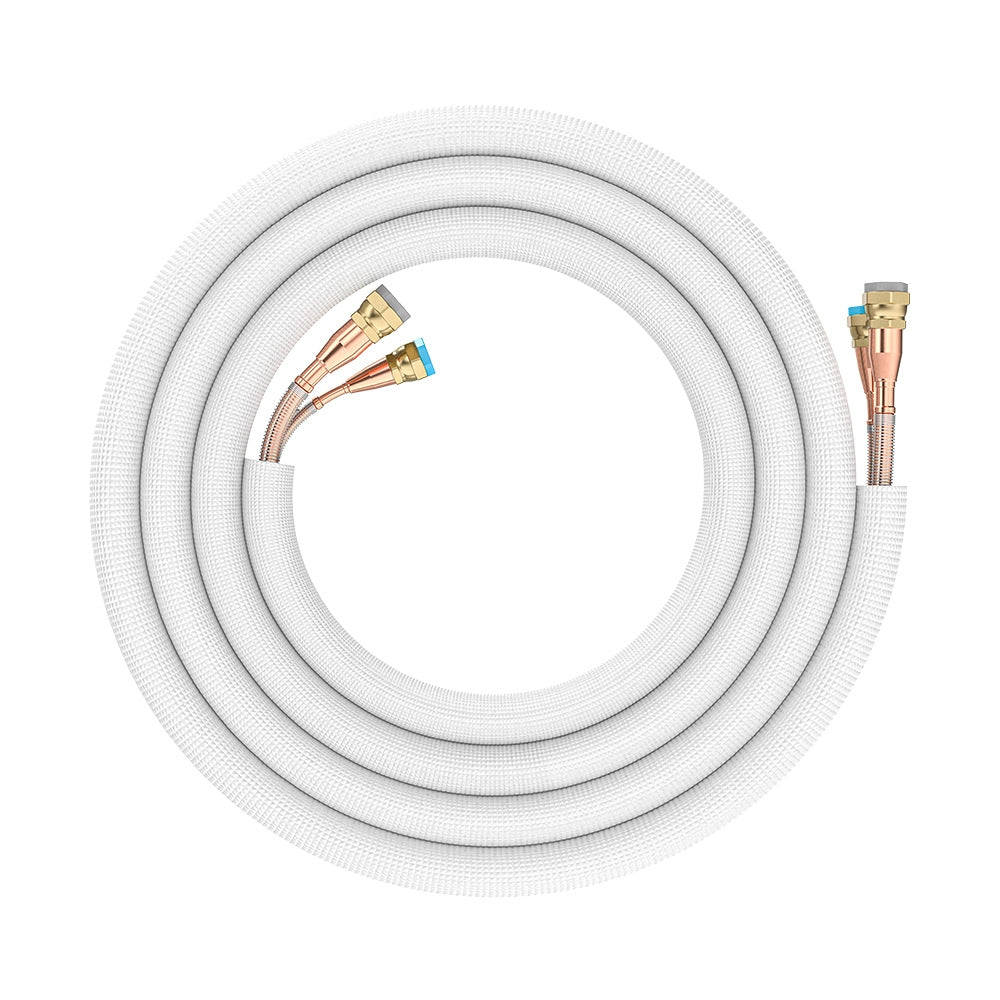

The newly released 5th Generation of the MRCOOL Easy Pro® DIY 24K BTU Ductless Mini-Split Heat Pump System is easy to install and is capable of effectively heating and cooling a space of 1,050 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection® fittings.
The features are numerous with this system such as the Follow Me® feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own.
This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 1-year compressor warranty and 2-year parts warranty. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office.
MRCOOL Easy Pro 24K 5th Gen Series Brochure
MRCOOL Easy Pro 24k 5th Gen Series Install Manual

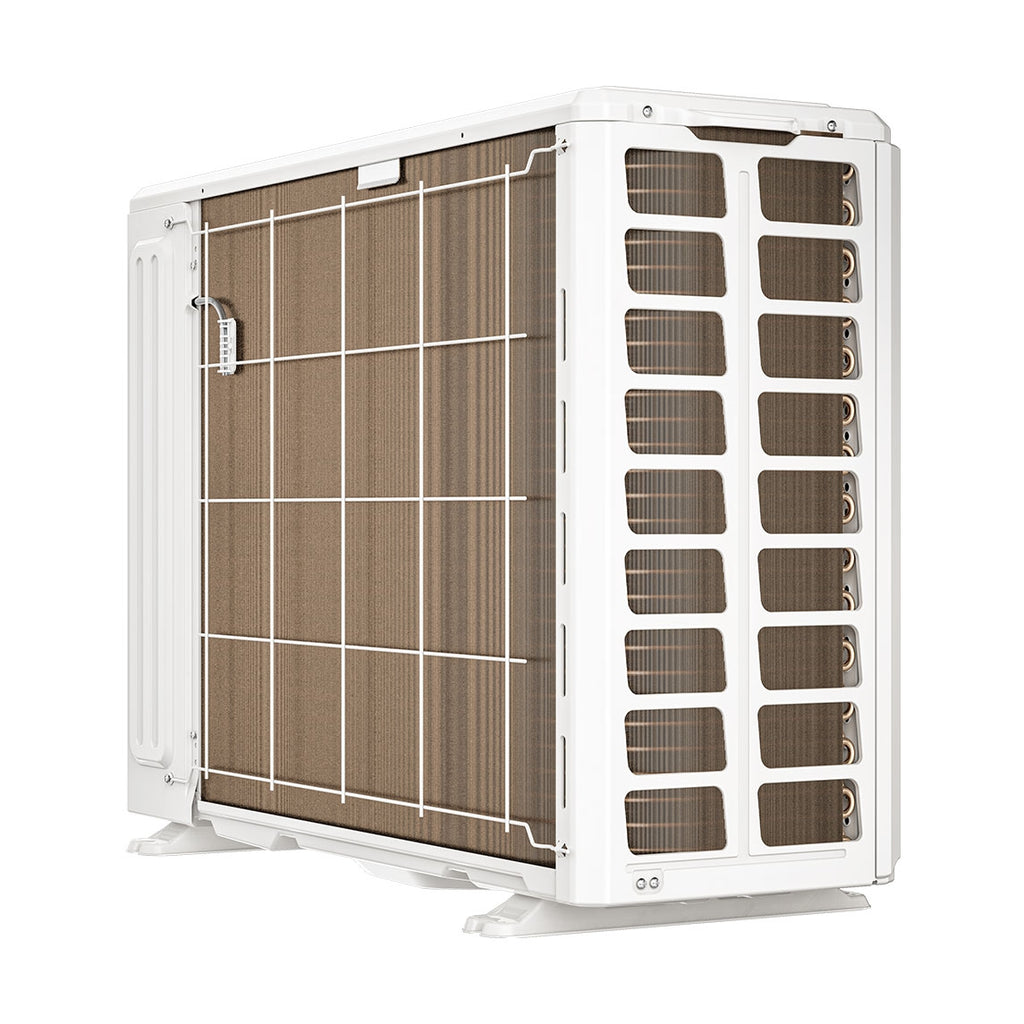

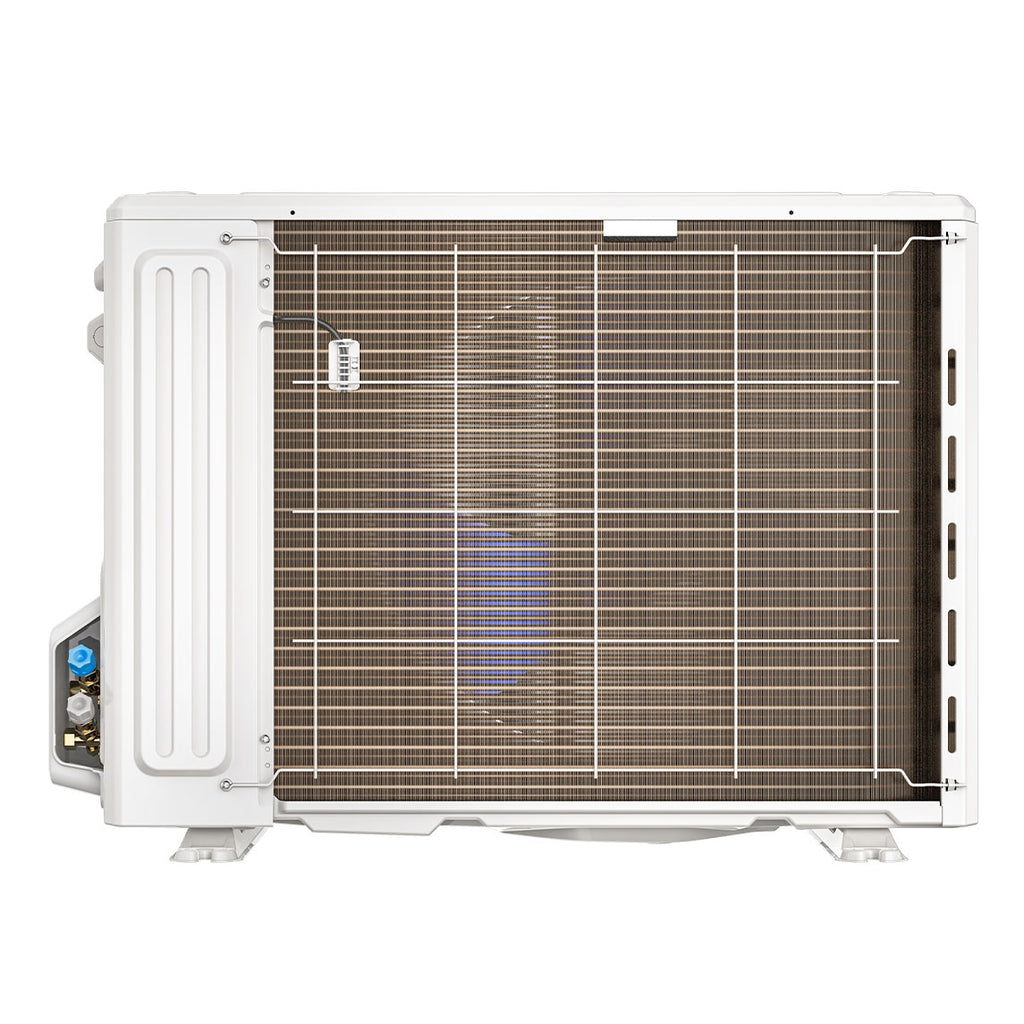

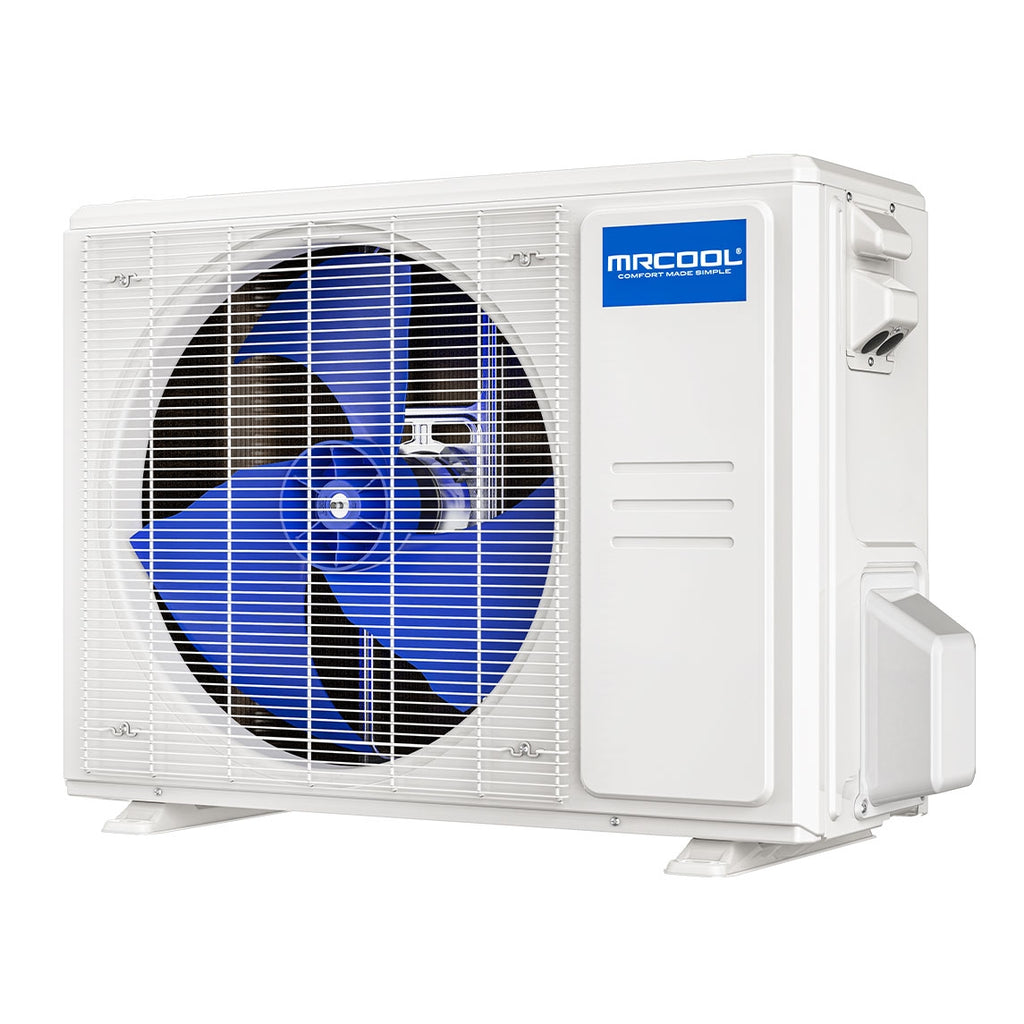

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-24-HP-C-23016D-O |
| GTIN | 840255586757 |
| UPC | 840255586757 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | EasyPro 5th Generation 24k BTU 230V Condenser |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 25000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 50.44 |
| DECIBEL RATING HIGH (DBA) | 61 |
| INVERTER | DC |
| MIN AMBIENT COOL (F) | 5 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 16ft |
| MAX LINESET LENGTH (FT) | 164 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 95.9 |
| GROSS DEPTH (IN) | 15.67 |
| GROSS HEIGHT (IN) | 29.13 |
| GROSS WIDTH (IN) | 39.17 |
| GROSS WEIGHT (LBS) | 117.73 |
Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-24-HP-WMAH-230D-O |
| GTIN | 840255586795 |
| UPC | 840255586795 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | EasyPro 5th Generation 24k BTU 230V Air Handler |
| CFM | 729.9 / 547.4 / 400.2 / 329.6 / / |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 25000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 1050 sqft |
| DECIBEL RATING (DBA) | 40 |
| DECIBEL RATING LOW (DBA) | 21.5 |
| DECIBEL RATING HIGH (DBA) | 51.5 |
| NUMBER OF SPEEDS | 5 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| BLOWER MOTOR SPEEDS | 3 |
| BLOWER MOTOR RPM | 1100/940/780 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 9.21 |
| NET HEIGHT (IN) | 13.27 |
| NET WIDTH (IN) | 42.6 |
| NET WEIGHT (LBS) | 35.49 |
| GROSS DEPTH (IN) | 16.34 |
| GROSS HEIGHT (IN) | 12.4 |
| GROSS WIDTH (IN) | 45.47 |
| GROSS WEIGHT (LBS) | 49.6 |
