Product overview

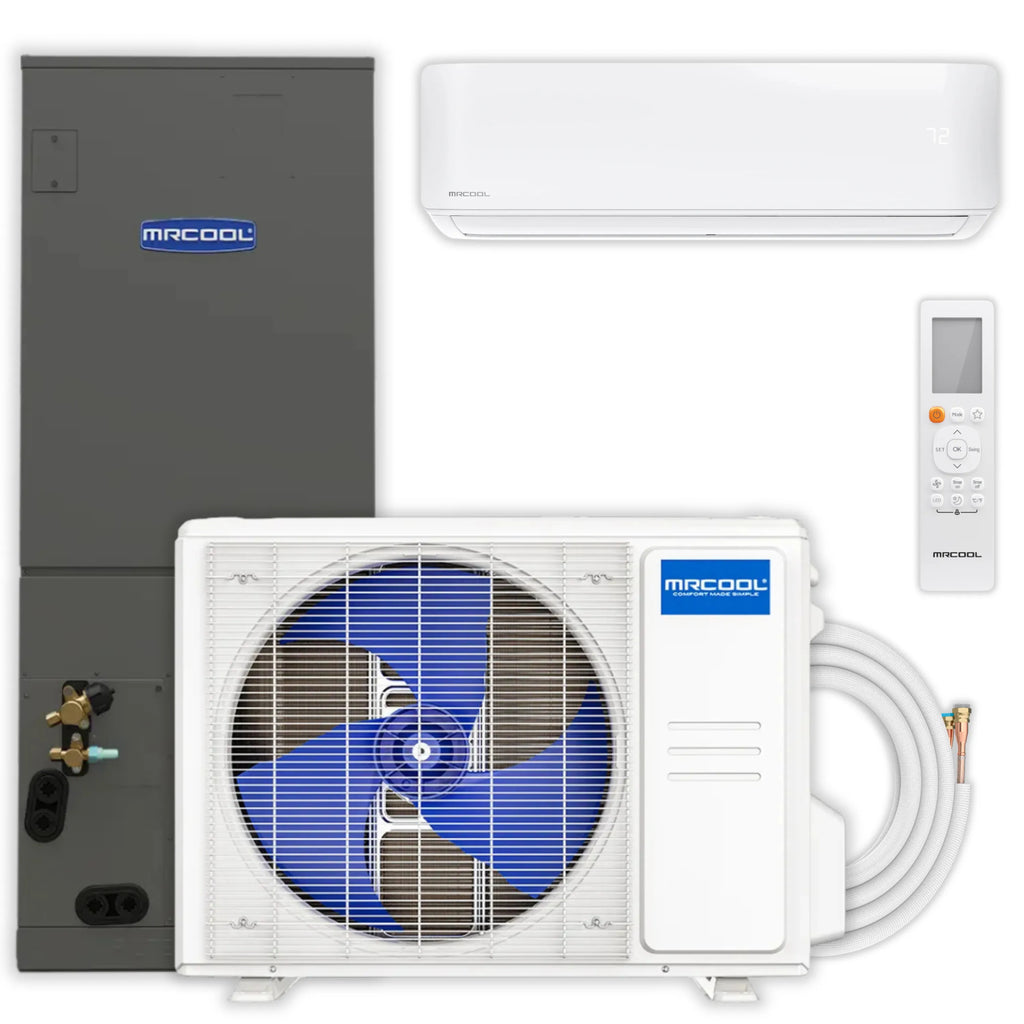

MRCOOL DIY Hybrid Central Split System 2-Zone 36K BTU Condenser with 24K Ducted Air Handler and 6K Wall Mounted Air Handler
This MRCOOL DIY Hybrid Central Split System is built for projects where one solution needs to do two jobs: deliver concealed, ducted comfort to a larger central area while adding independent ductless control to a separate room or zone. It pairs a 36K MRCOOL DIY multi-zone condenser with a 24K Hybrid™ Split System Ducted DIY Air Handler and a 6K wall mounted air handler.
The result is a flexible hybrid mini split system that can replace or supplement traditional central HVAC without giving up room-by-room comfort. Use the ducted air handler for a main living area, suite, or grouped room layout, then use the wall mounted air handler for a bedroom, office, addition, bonus room, or any space that benefits from its own temperature control.
Why this system works
- Hybrid comfort: combines central-style ducted air distribution with a dedicated ductless wall unit.
- DIY-friendly installation: compatible with MRCOOL DIY Quick Connect line sets to simplify installation and reduce labor complexity.
- Two-zone control: condition the ducted area and wall-mounted zone independently for better comfort and efficiency.
- Cleaner finished look: the ducted air handler can serve larger areas through ductwork while the wall unit handles the separate zone directly.
- Heat pump performance: provides both cooling and heating from one inverter-driven system.
- Smart control ready: compatible with MRCOOL smart controls for convenient app-based operation.
Included equipment

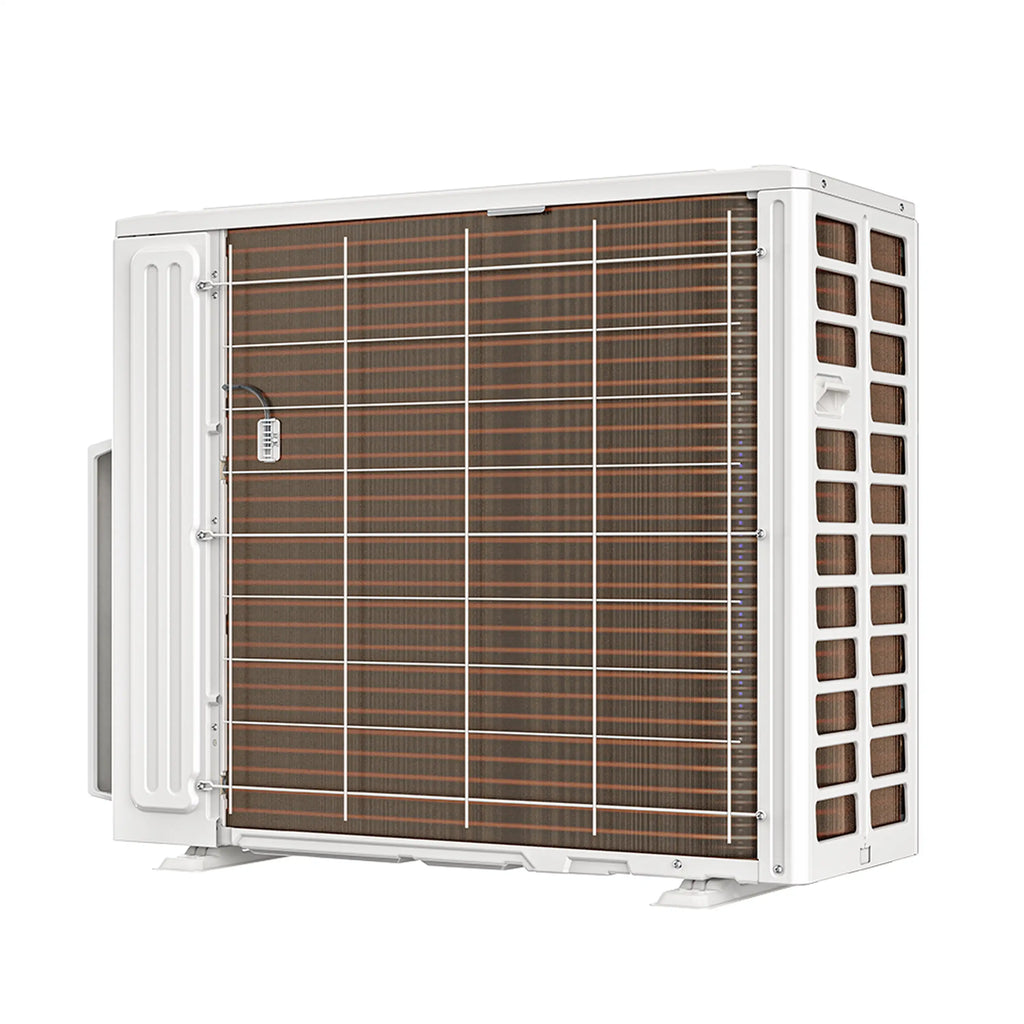

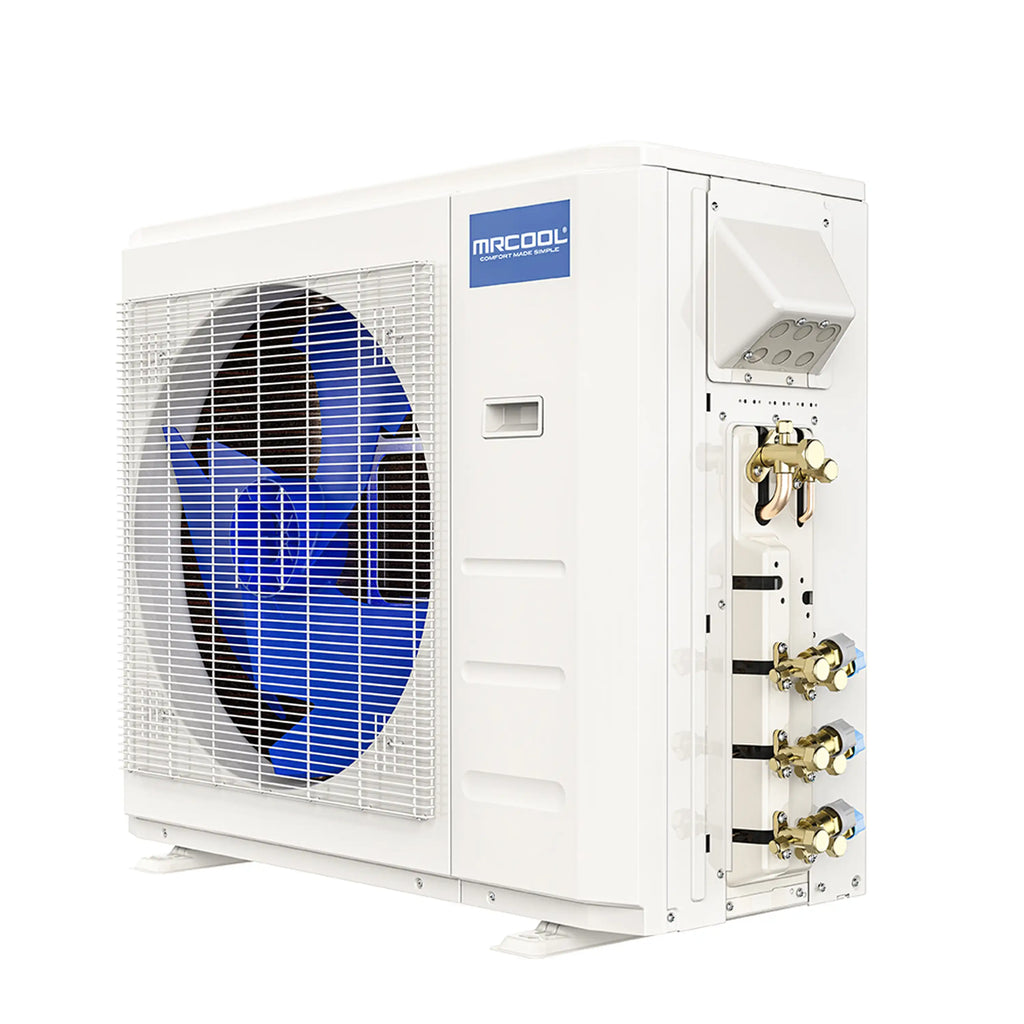

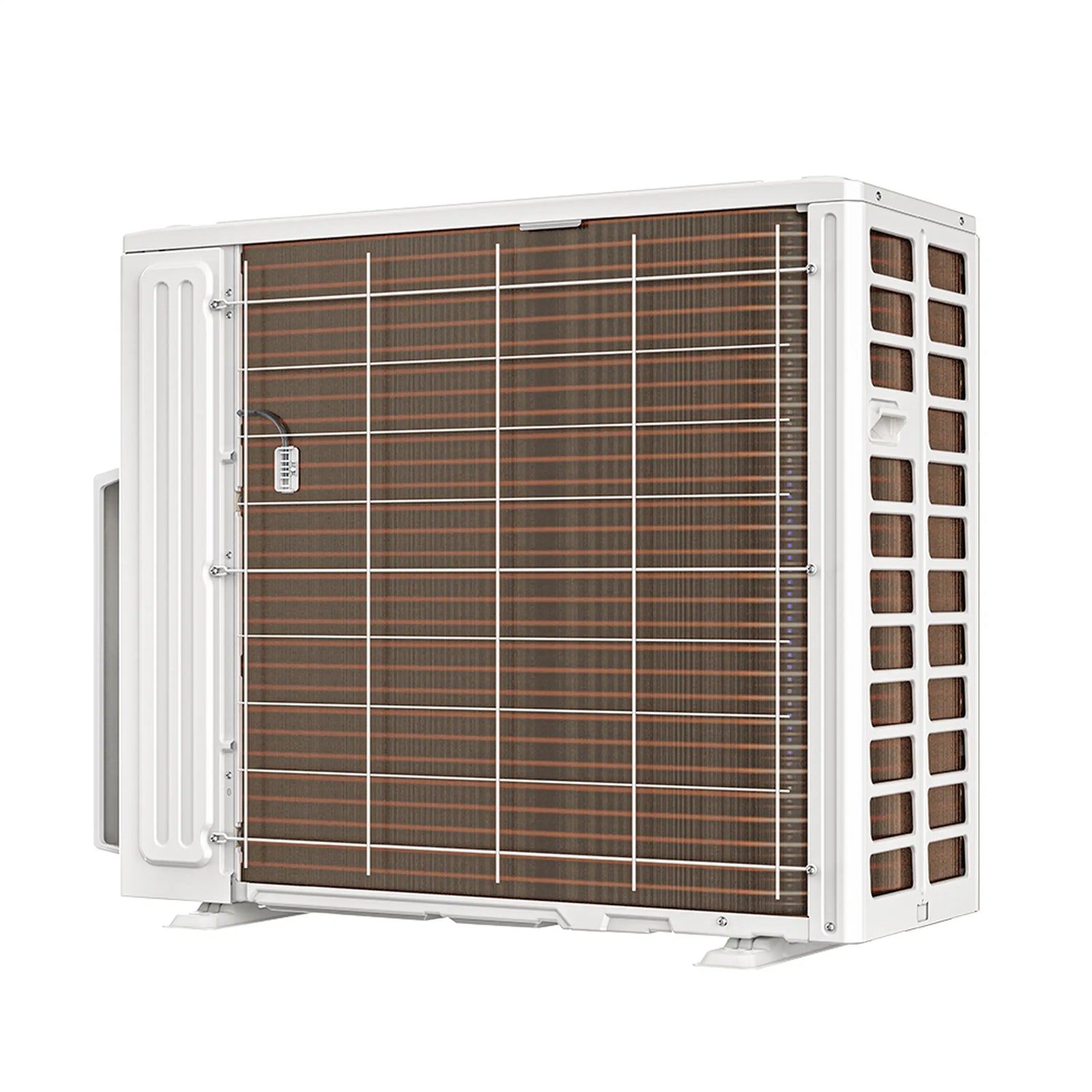

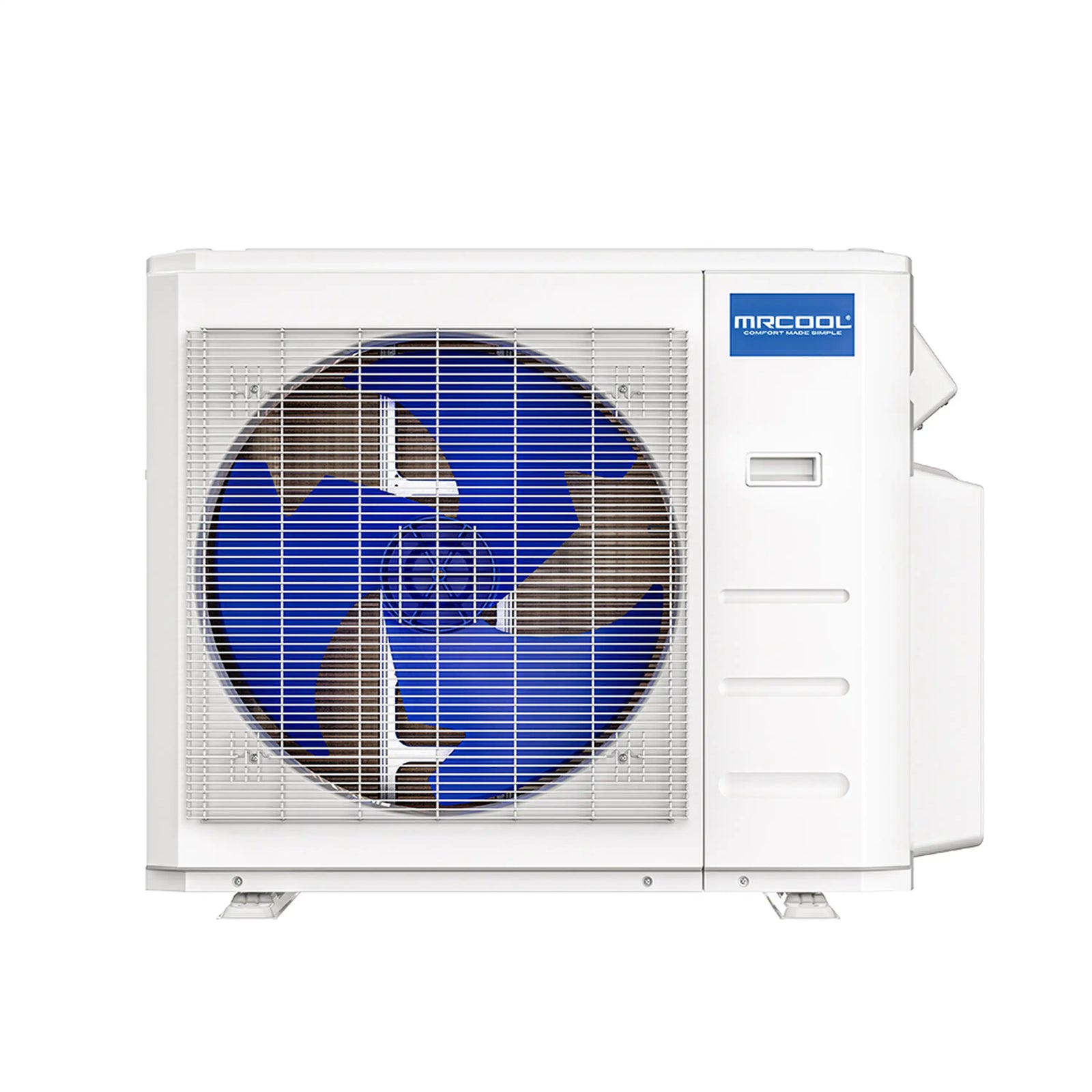

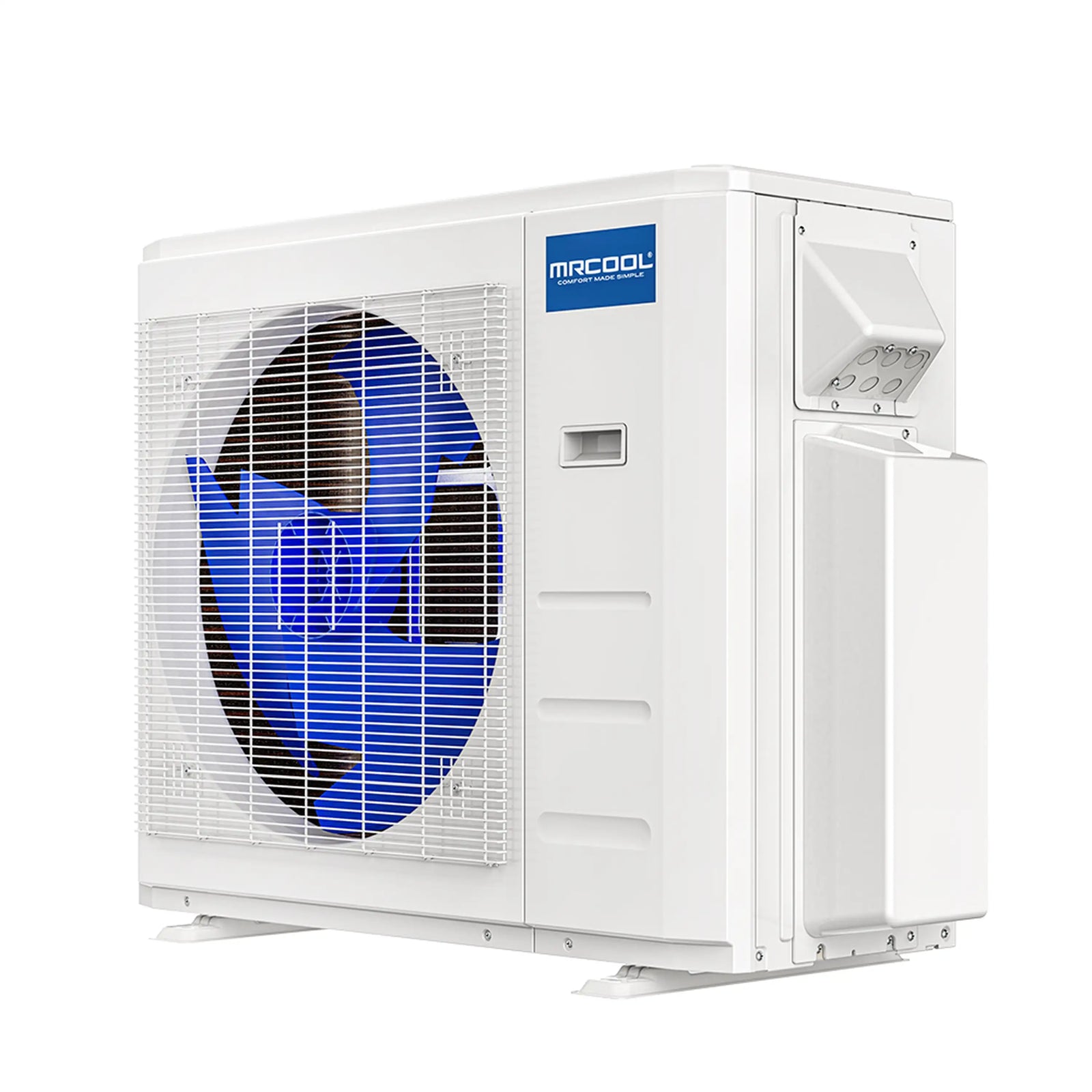

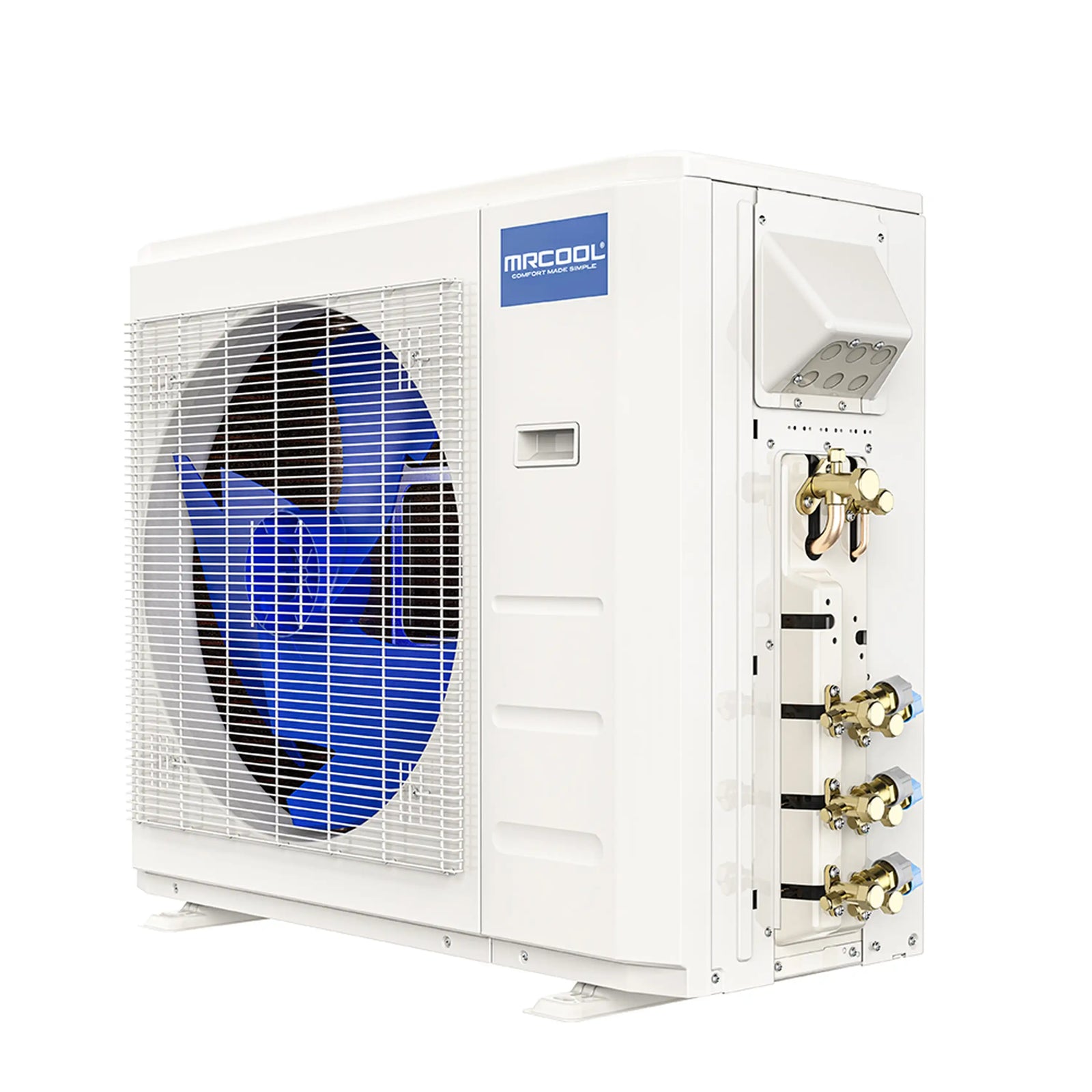

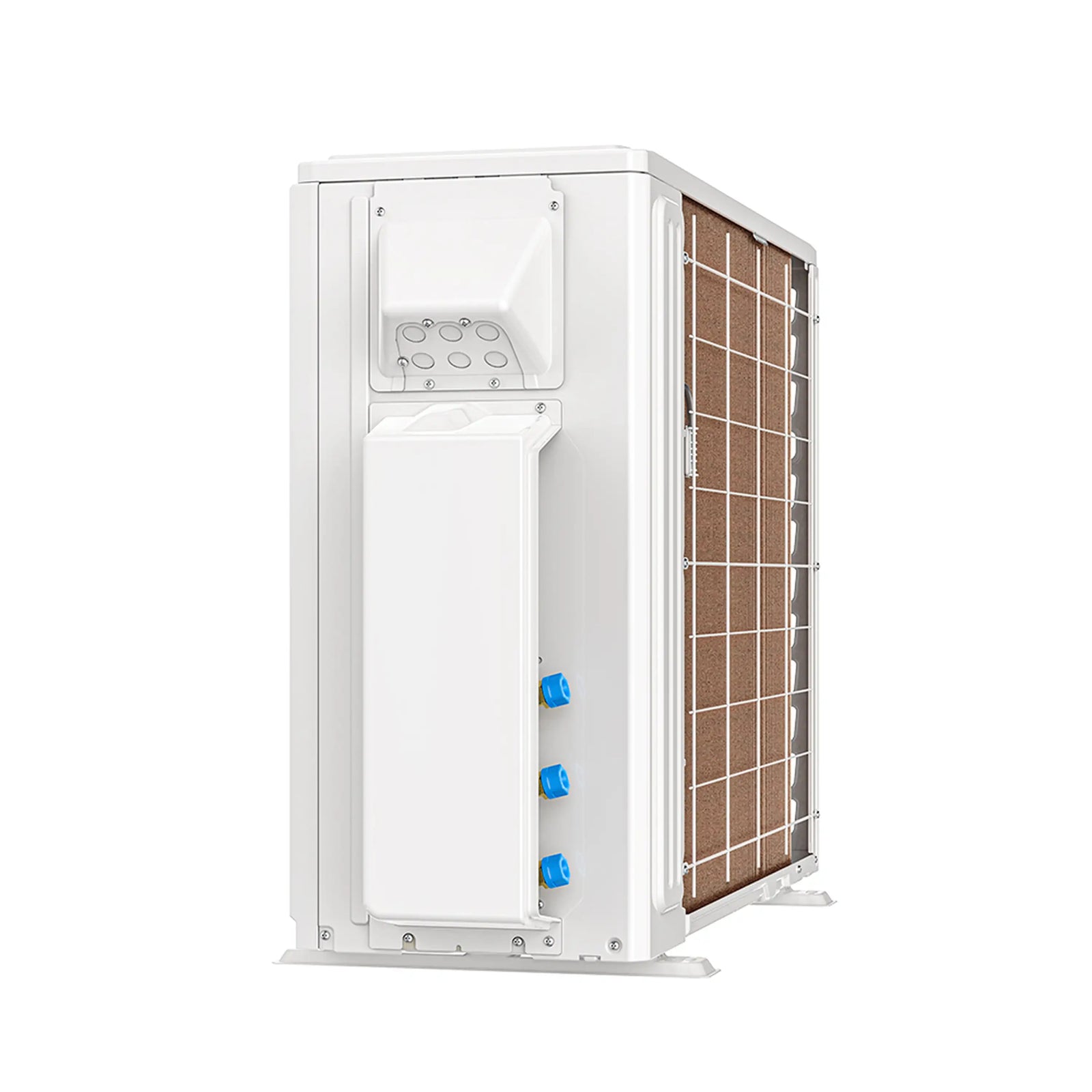

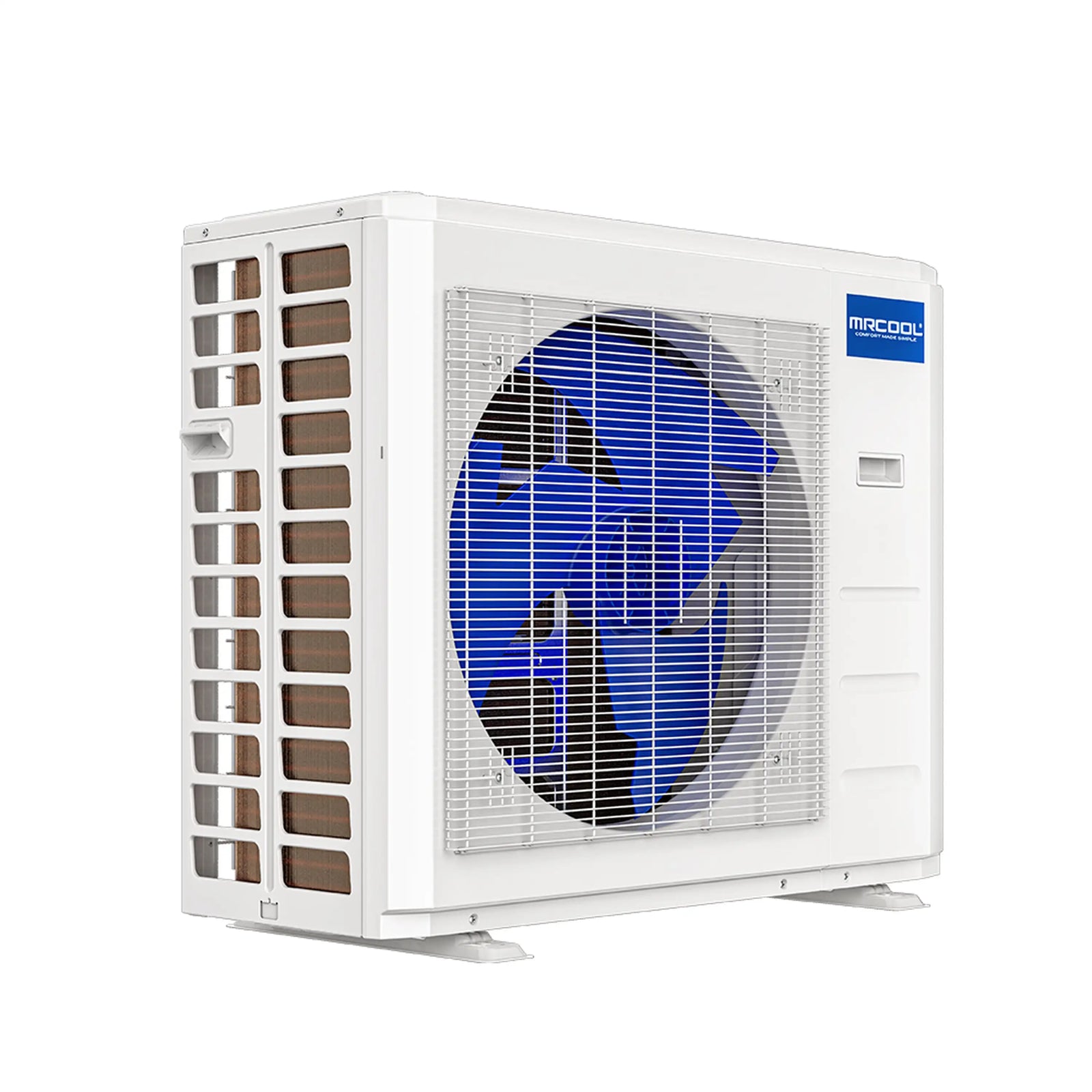

| Outdoor condenser | 36K MRCOOL DIY Multi-Zone Condenser | DIY-MULTI5-36HP230D-O |

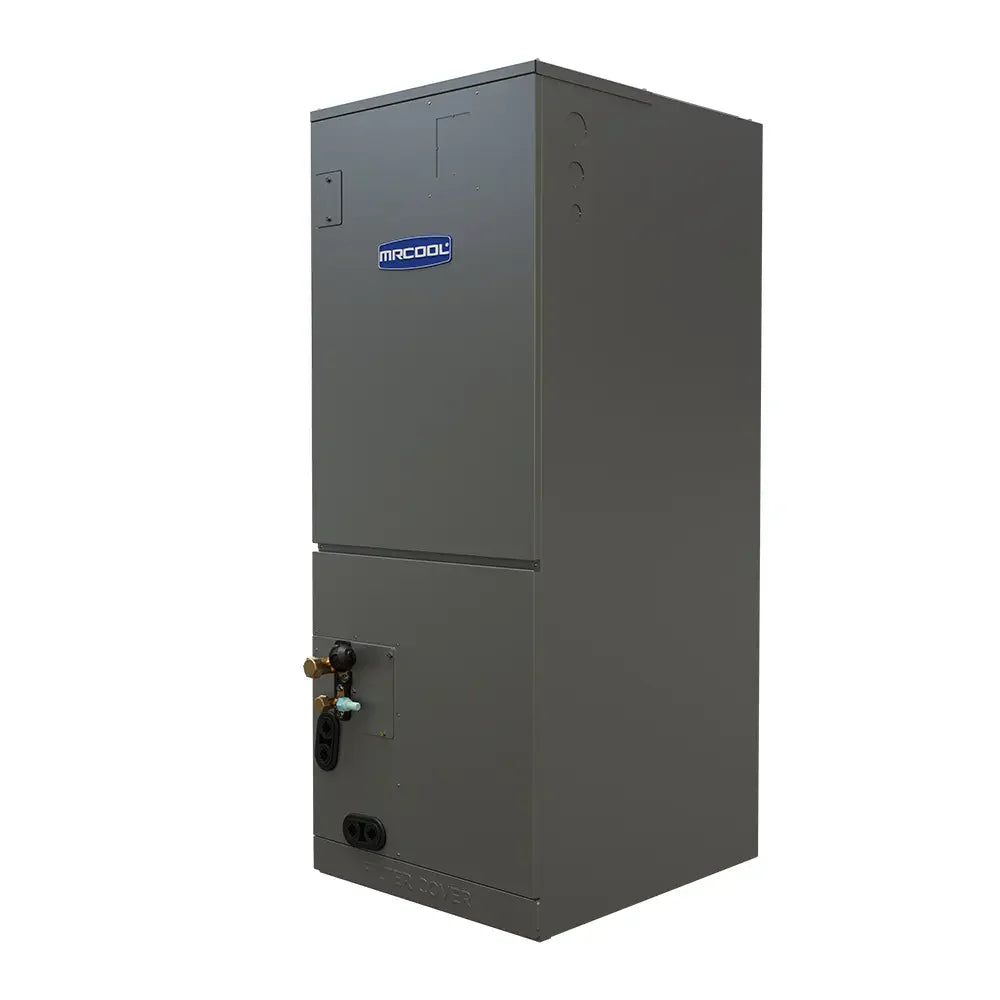

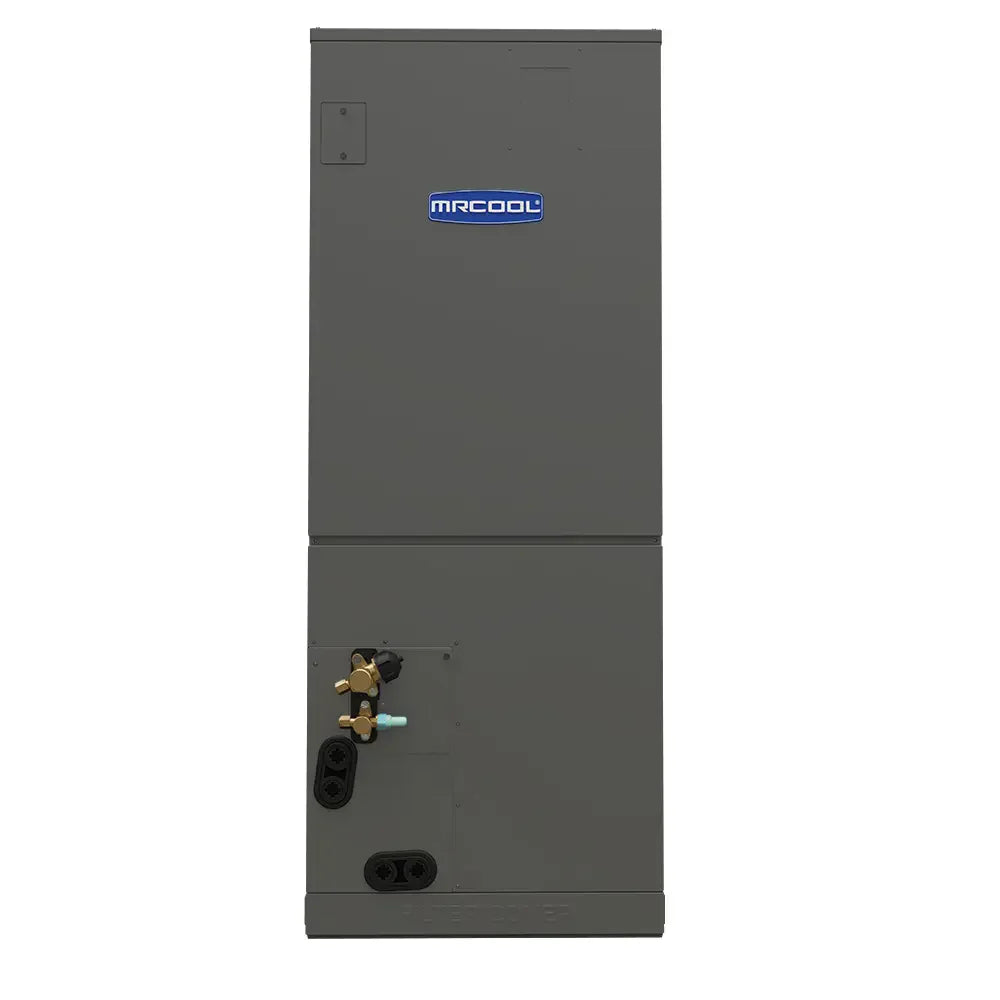

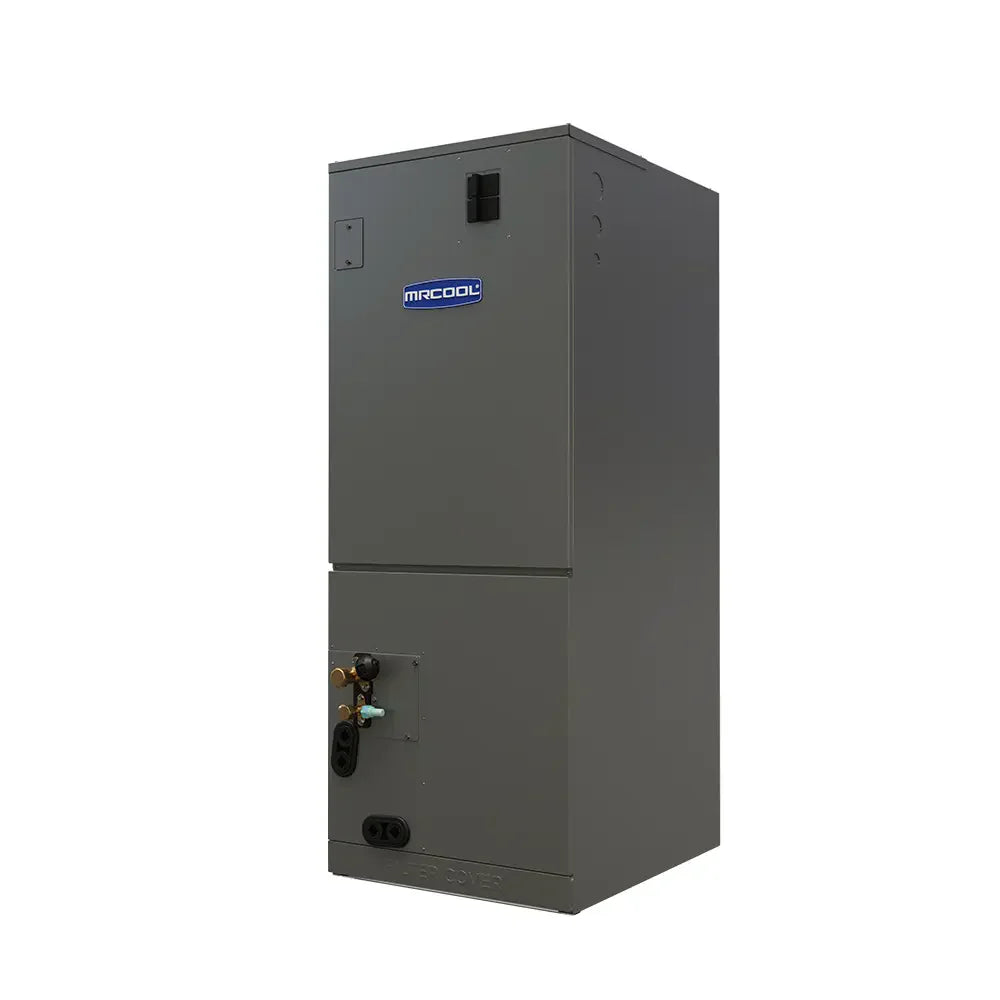

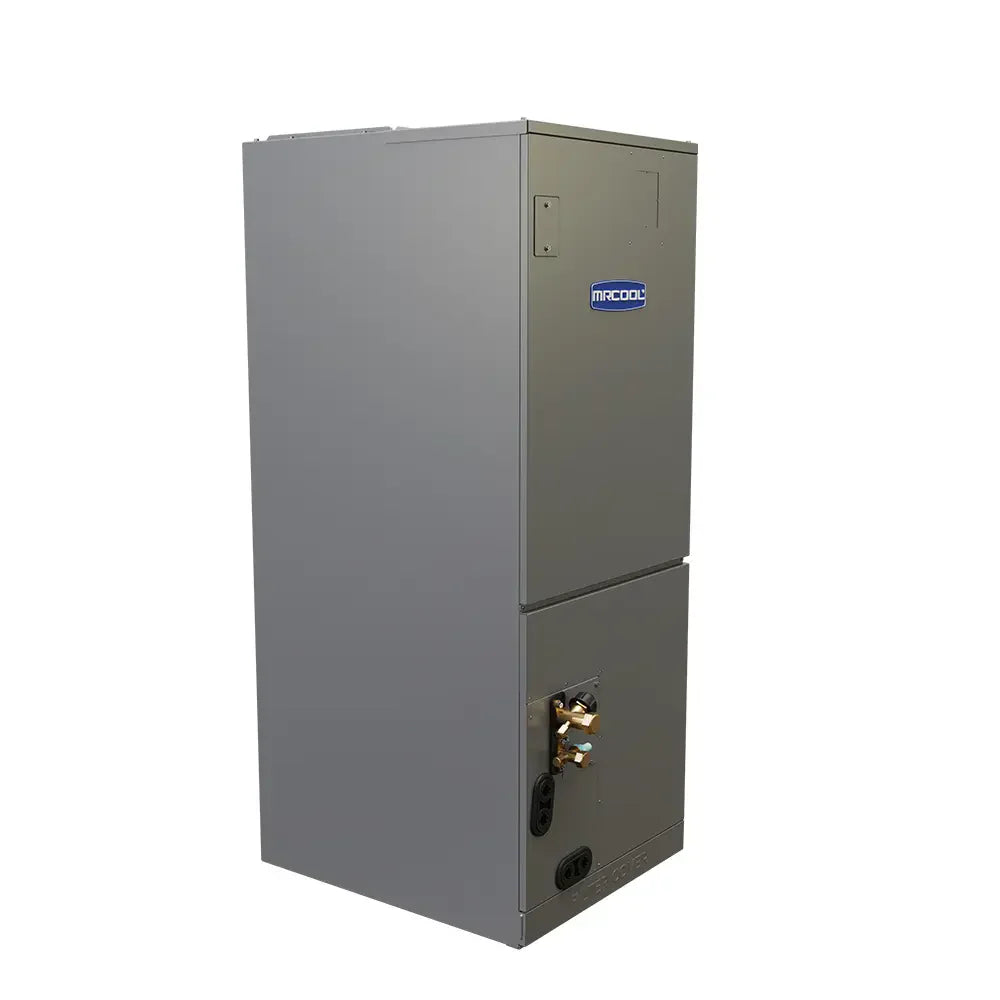

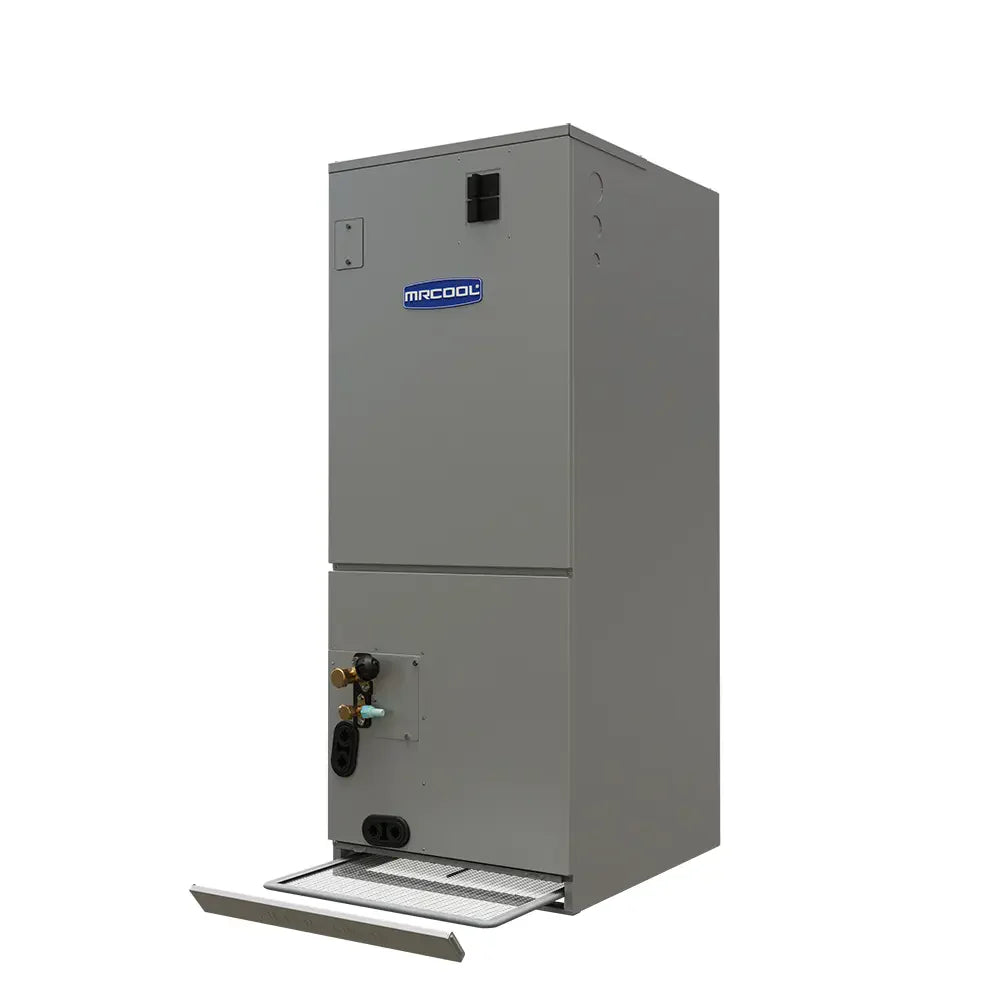

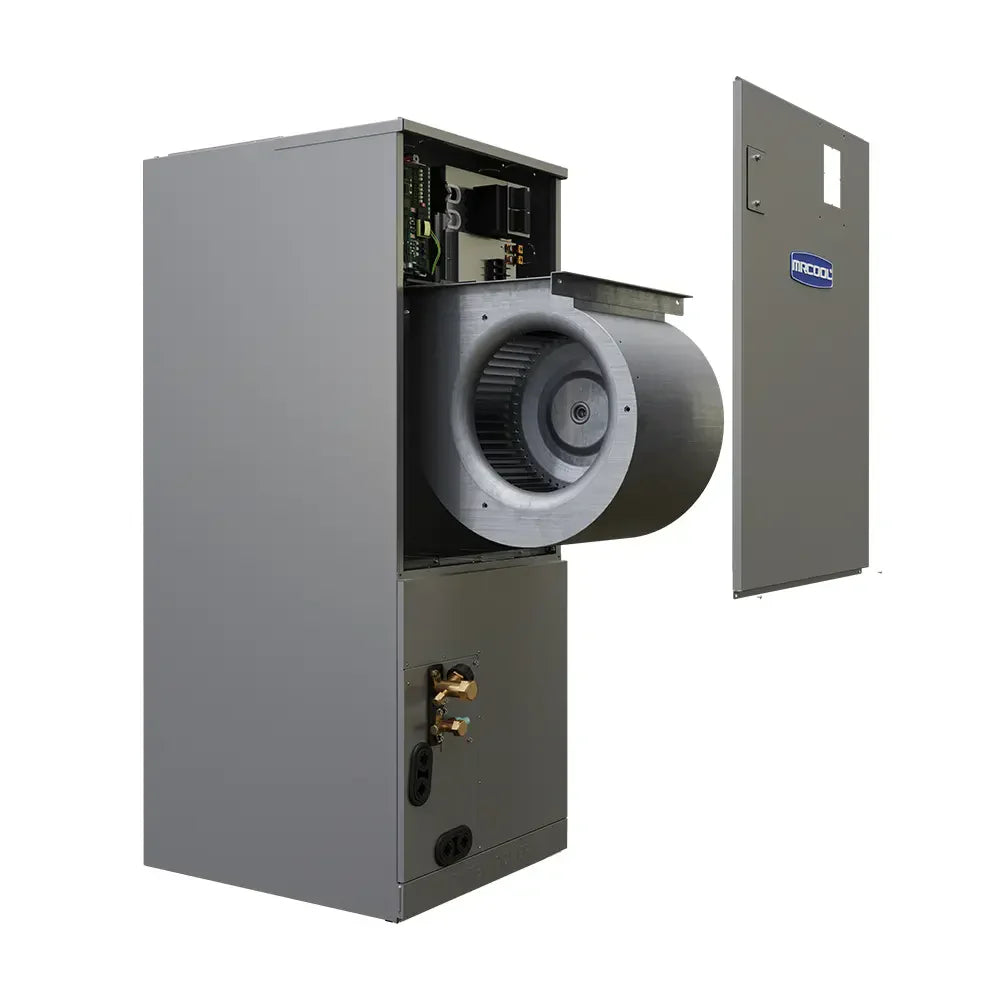

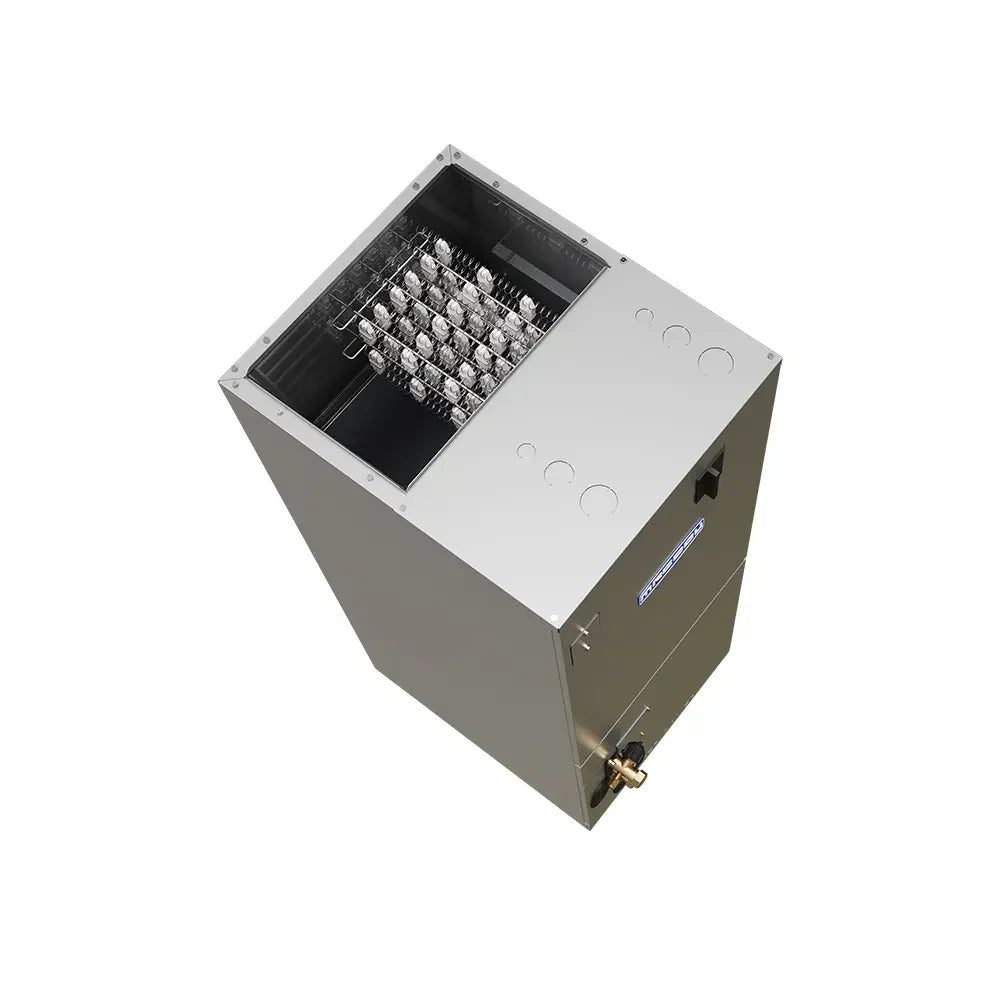

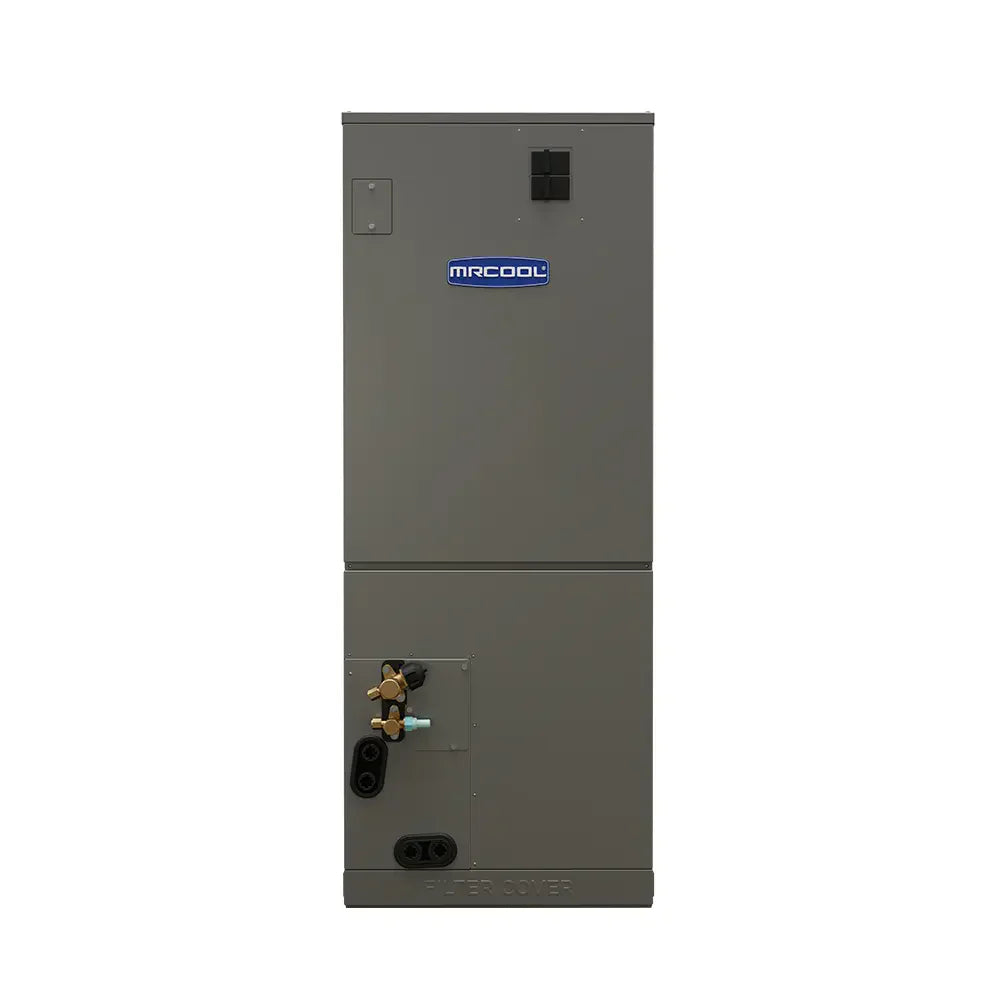

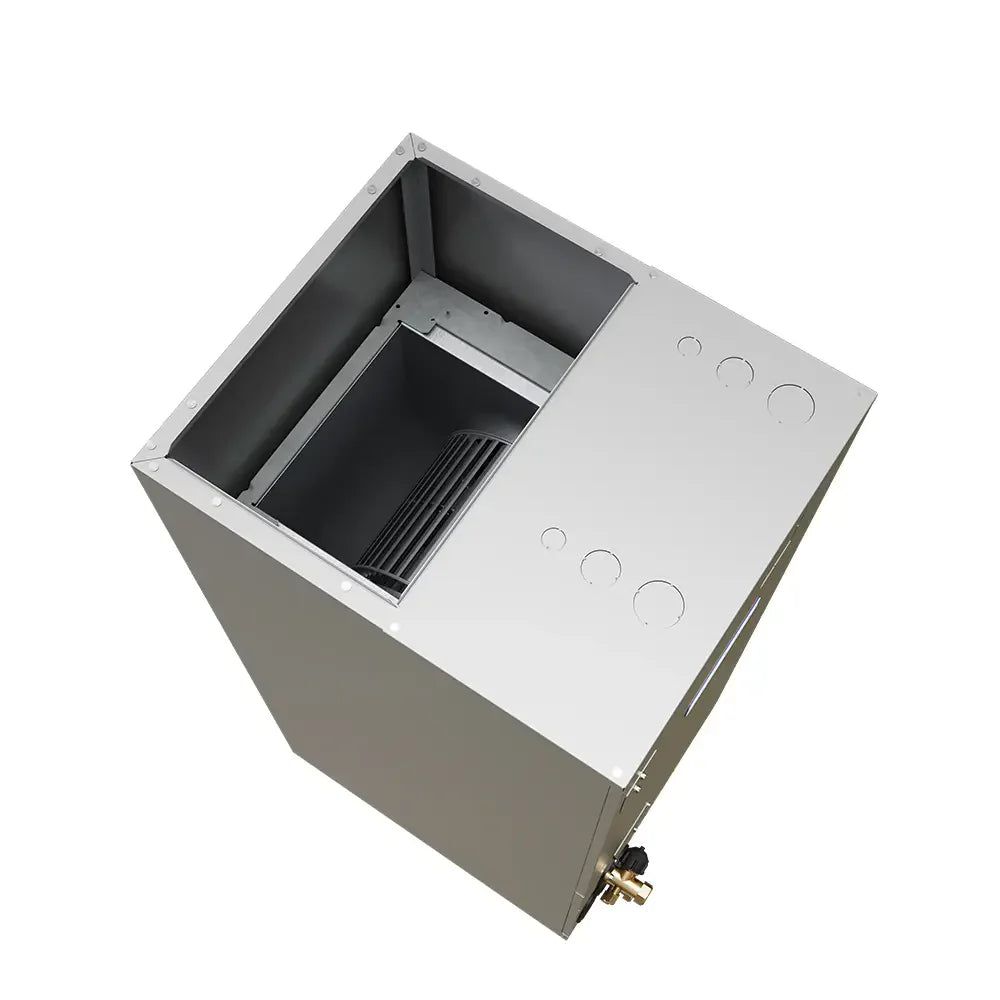

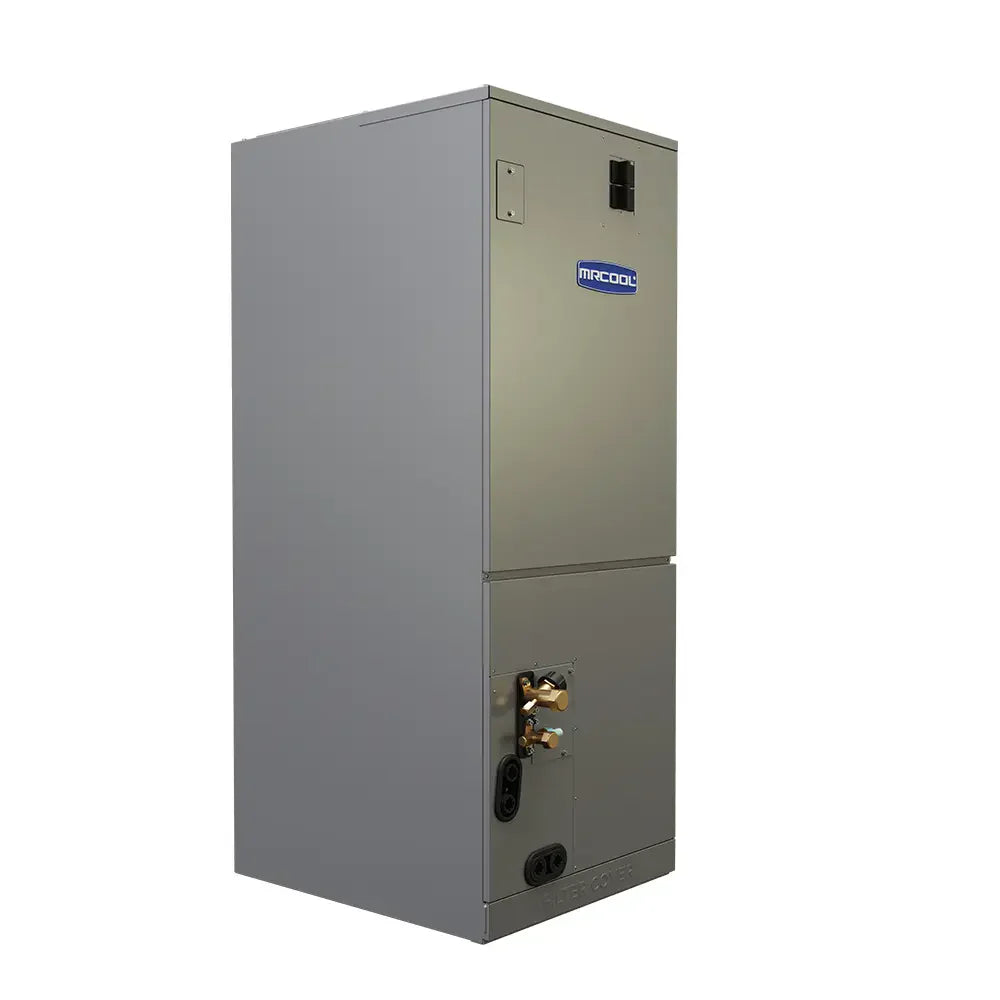

| Ducted indoor unit | 24K MRCOOL Hybrid™ Split System Ducted DIY Air Handler (up to 1,000 sq. ft.) | DIY-24-HP-MUAH-230D25-O |

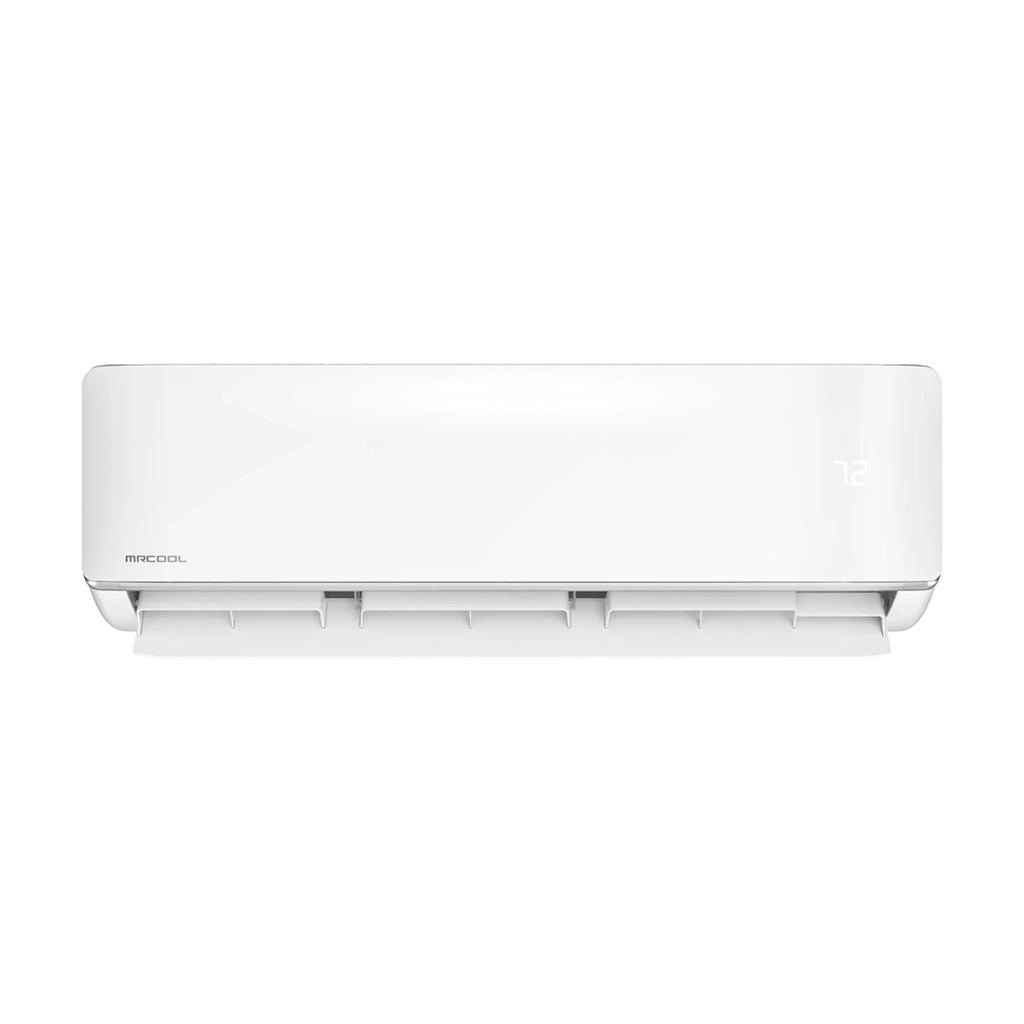

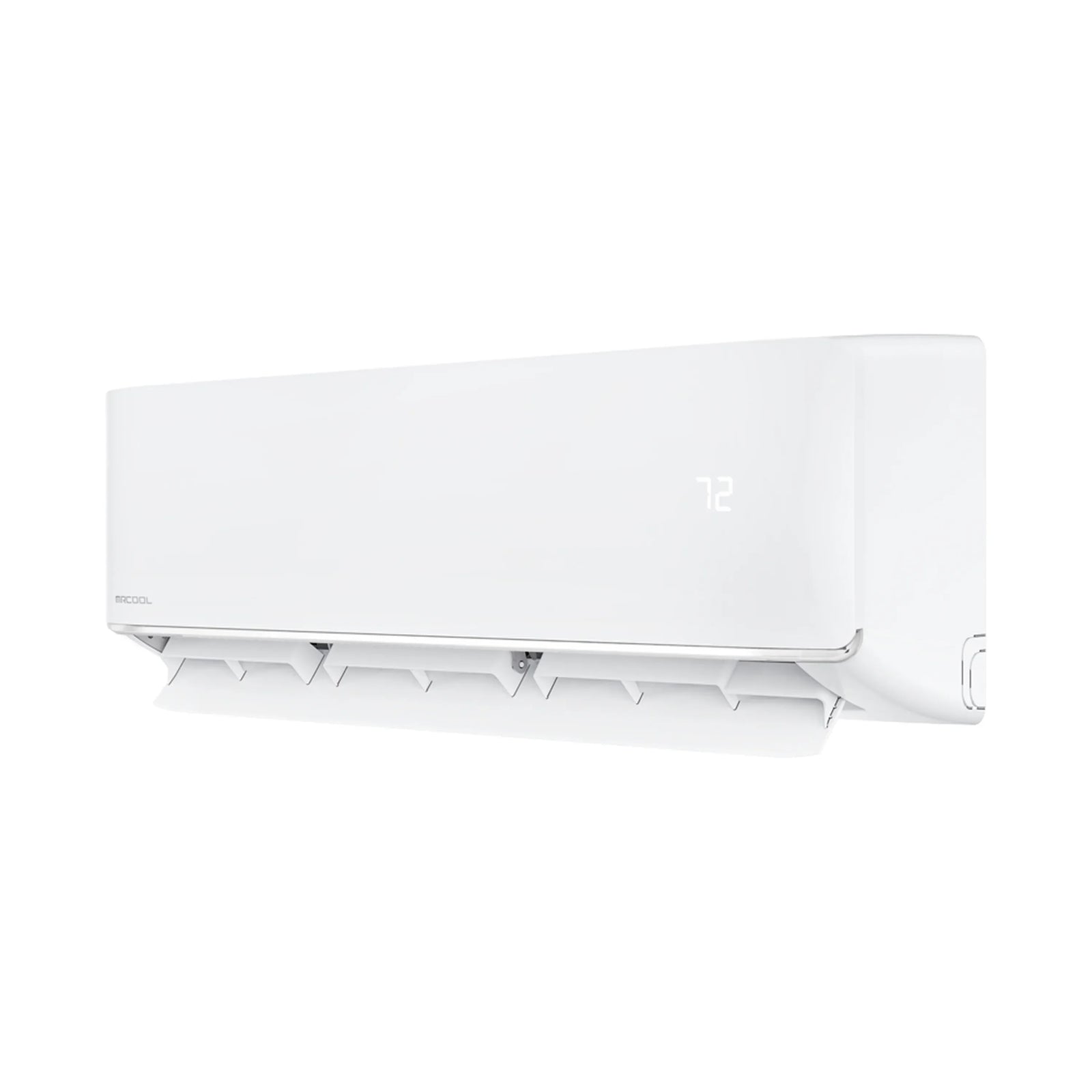

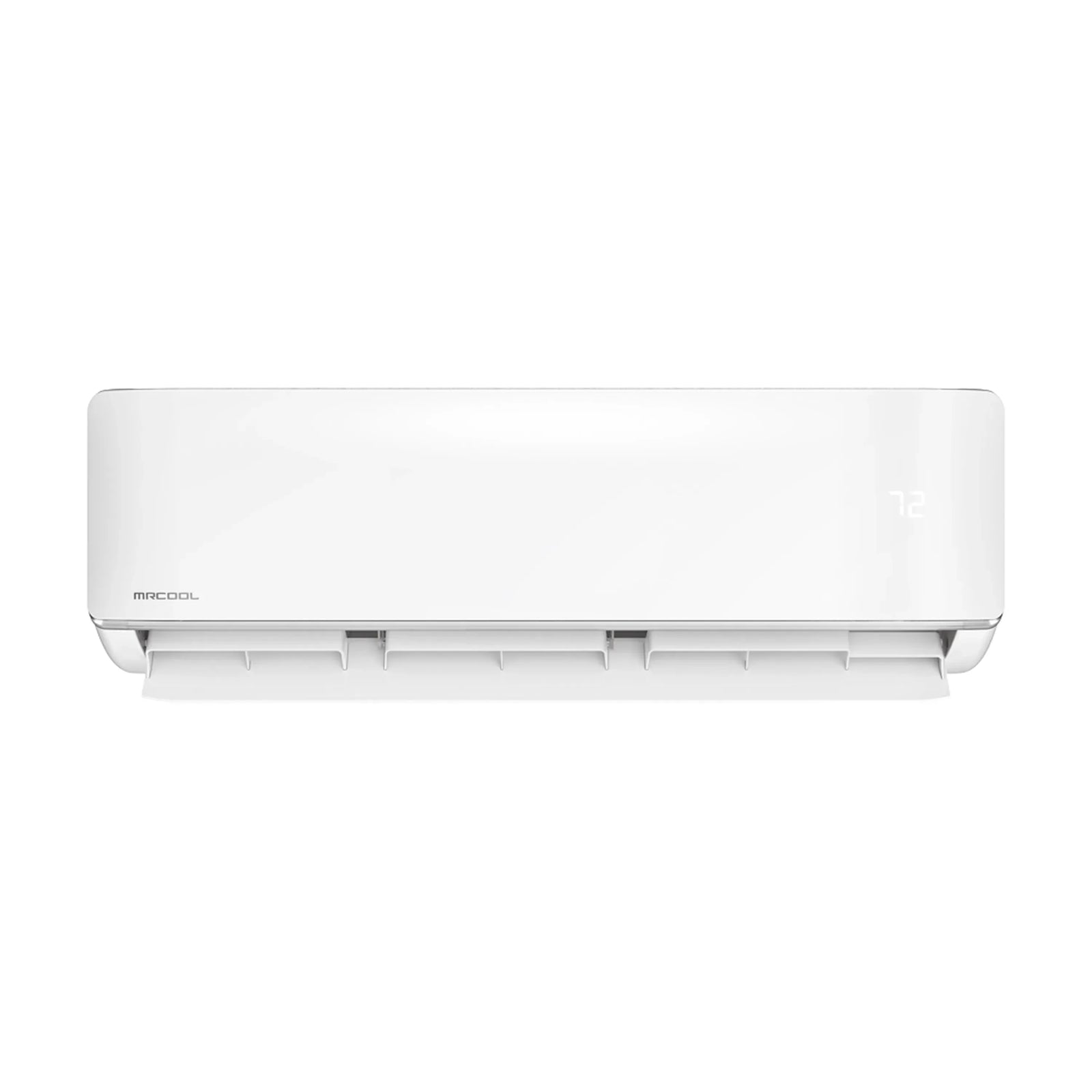

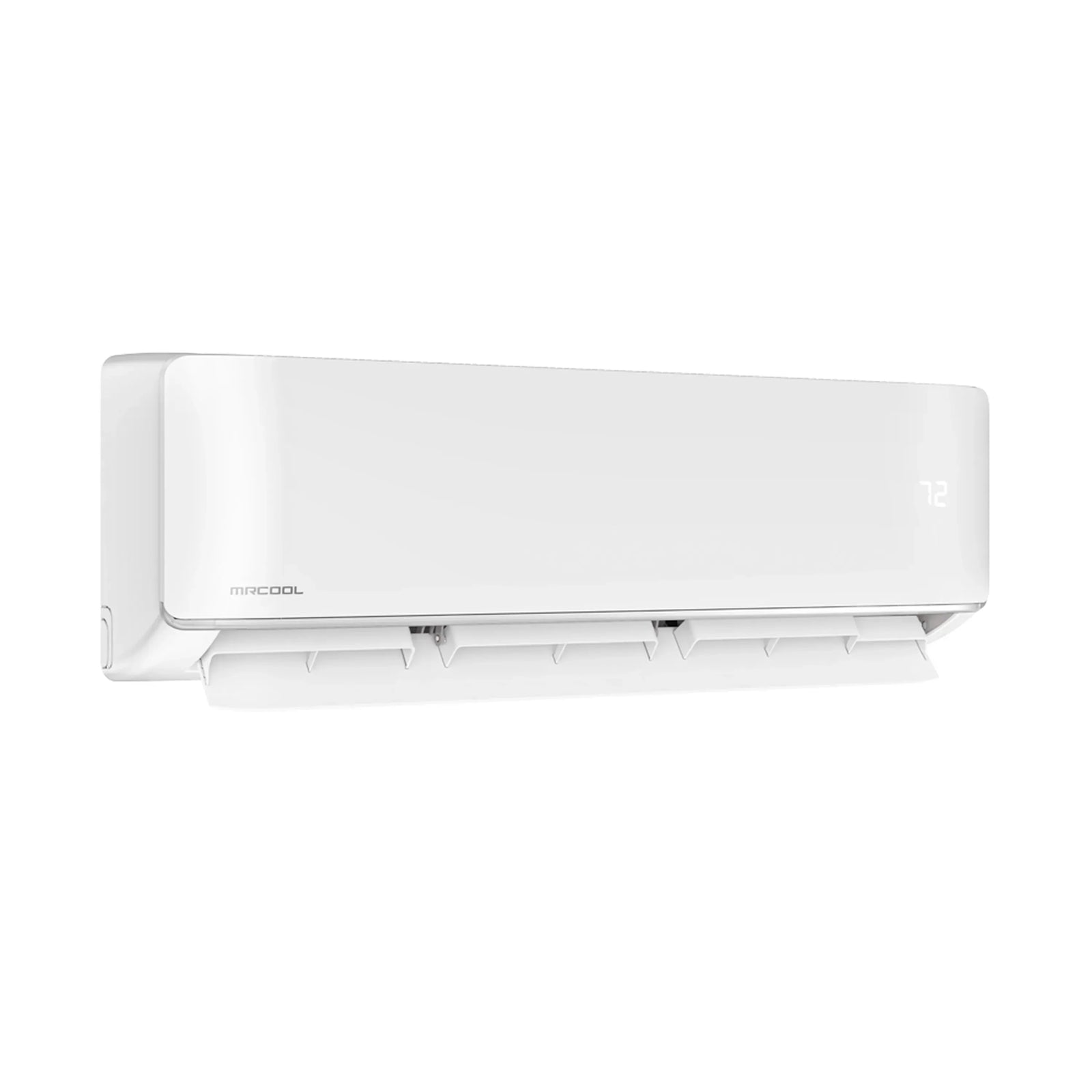

| Wall mounted indoor unit | 6K MRCOOL DIY Wall Mounted Air Handler (up to 150 sq. ft.) | DIY-06-HP-WMAH-230D25-O |
Best fit
This system is a strong fit when you want ducted comfort for a larger shared area and a separate wall mounted zone for a room that needs its own control. The connected indoor capacity is 30K BTU, paired with a 36K multi-zone condenser for balanced multi-zone operation.
SKU
DIY-MULTI5-36HP230D-O / DIY-24-HP-MUAH-230D25-O / DIY-06-HP-WMAH-230D25-O
Line sets and installation accessories may vary by selected option. Always confirm final equipment sizing and installation requirements for the project before purchase.
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
