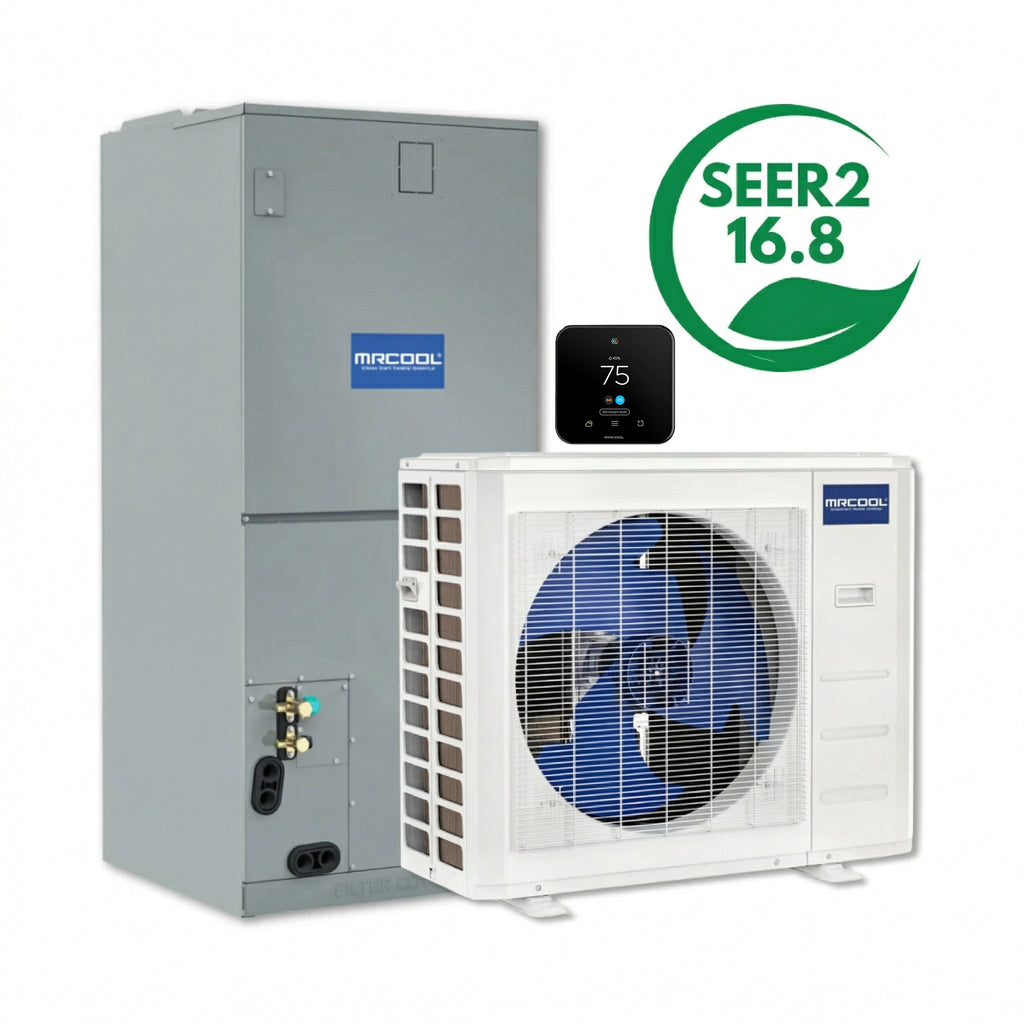

MRCOOL Hyper Heat 30K BTU 2.5 Ton 16.8 SEER2 Central Ducted Heat Pump System

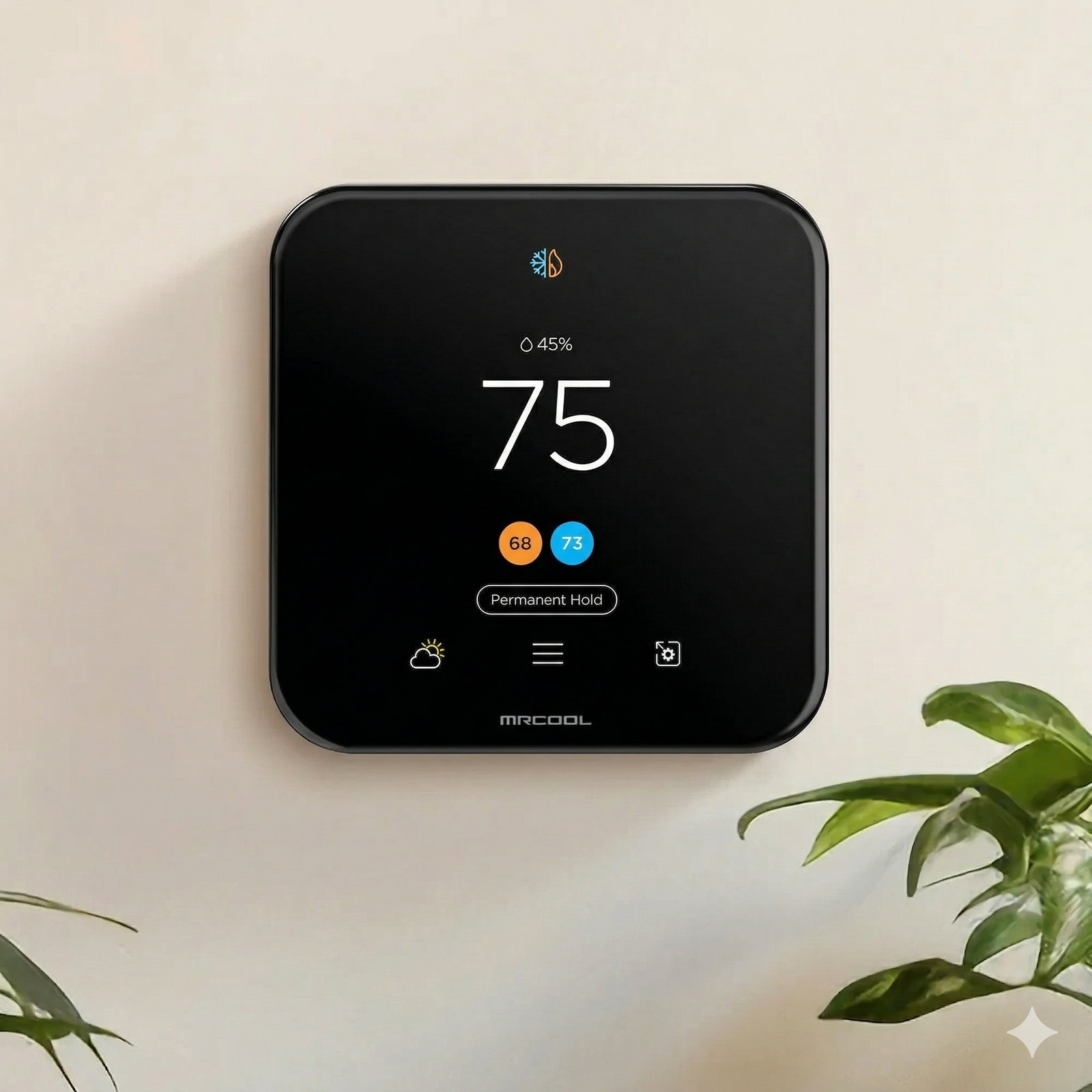

The new 2nd Gen MRCOOL 30K BTU Hyper Heat Central Ducted Heat Pump Split System is a great choice for heating and cooling around 1,250sqft and can handle extreme winter and summer temperatures! Boasting a DC Inverter and state-of-the-art variable speed technology, this unit offers exceptional efficiency, leading to significant savings on utility expenses without compromising performance. With an impressive SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures indoor comfort even when outdoor temperatures range from -22°F to 122°F. This cutting-edge unit combines powerful performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, it offers excellent heating capabilities while optimizing energy use. You can also enjoy effortless control with the included MRCOOL® Smart thermostat making temperature adjustments simple and efficient. The 30K MRCOOL® Hyper Heat Central Ducted Condenser is also designed to work with the 30K MRCOOL® VersaPro® Central Ducted Air Handler.
Installation is simple for professional HVAC technicians using the MRCOOL® No-Vac® Quick Connect® Line Set. This exclusive line set eliminates the need for vacuuming or flare welding and is kink-resistant, accelerating the connection process and reducing installation costs. Moreover, the eco-friendly R-454B refrigerant ensures no environmental harm. Constructed from high-quality materials like painted galvanized steel, this durable unit can withstand damage from severe weather, animals, or yard equipment, guaranteeing reliable performance for years. In the unlikely event of any issues, the unit is supported by a 10-year warranty covering the compressor, parts, and labor. Additionally, the labor warranty is automatically activated upon installation, eliminating the need for a time-consuming registration process.

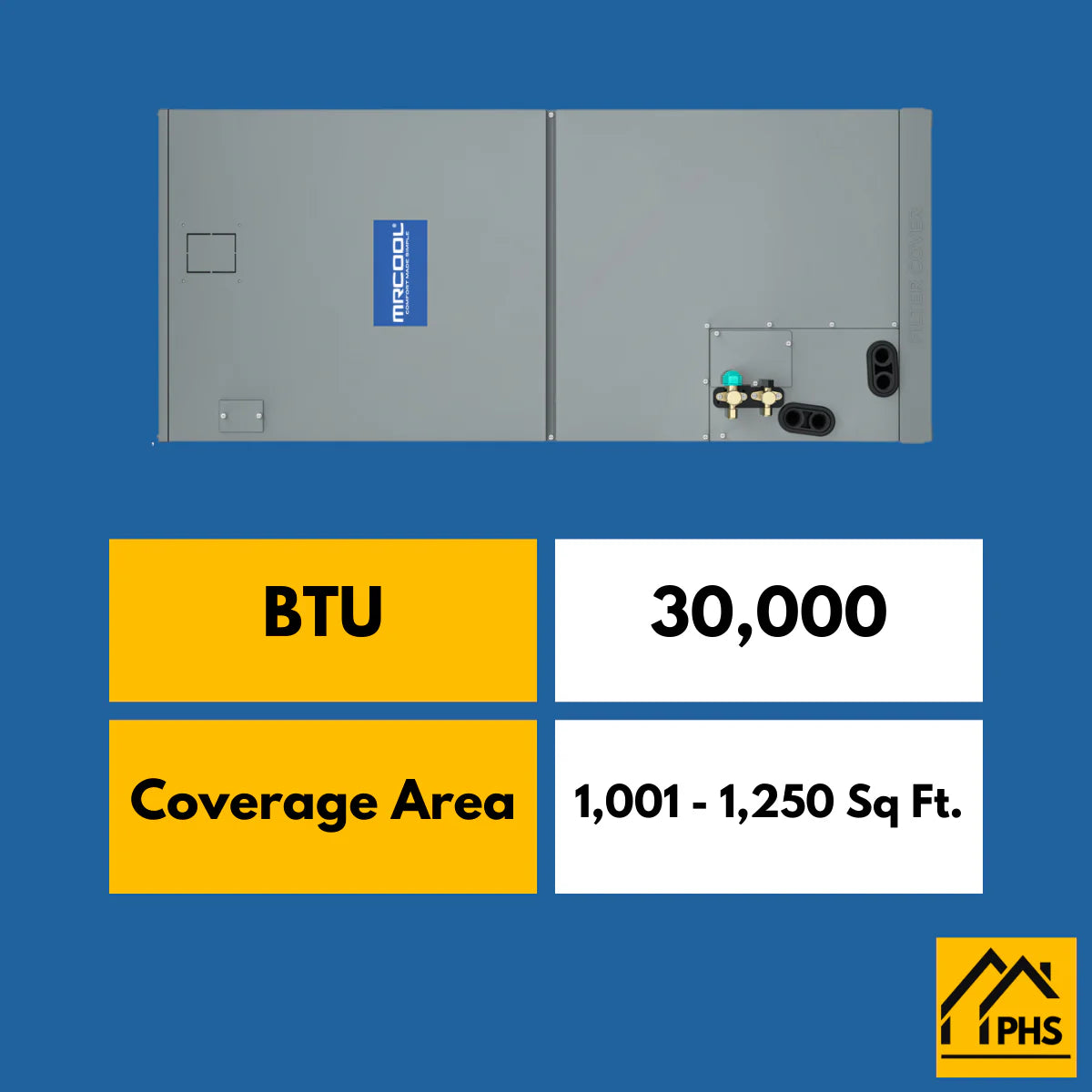

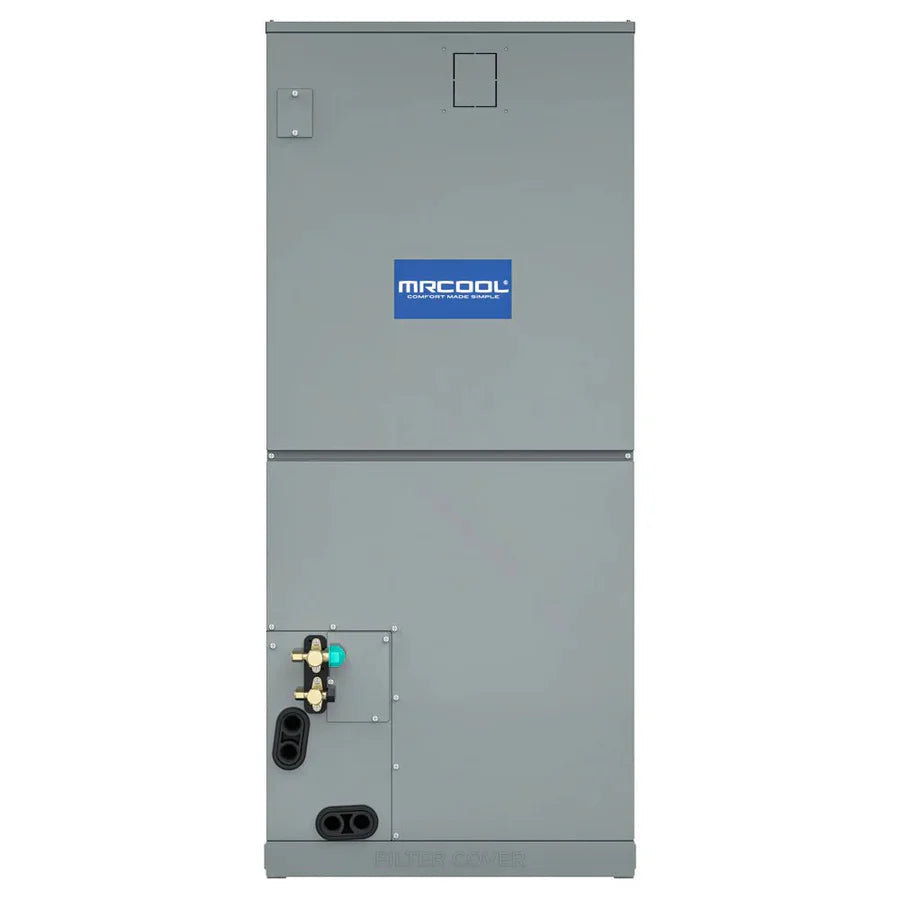

The air handler for the 30K MRCOOL Hyper Heat Central Ducted System has a side-discharge design, slide-out blower, self-diagnostics panel, and removable filters to make maintenance simple and easy. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote.
The multi-position air handler, which can accommodate upflow, downflow, horizontal left and horizontal right ductwork needs, combined with the highly efficient condenser is a pairing that will ensure ultimate comfort and reduce your bills as soon as it’s installed.
The self-diagnostics of this system will allow you to identify error codes on the air handler or the thermostat. This variable speed unit will keep your bills low and your home’s air clean with filters. Choose this MRCOOL 30,000 BTU Hyper Heat Central Ducted DC Inverter Heat Pump System for comfort exactly how you deserve it.
Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
Central Ducted Hyper Heat 2nd Gen
|
| MODEL |
CENTRAL-30-HP-C-230B00-O
|
| GTIN | 840255586511 |
| UPC | 840255586511 |
| UNIT TYPE |
Split System Heat Pump
|
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION |

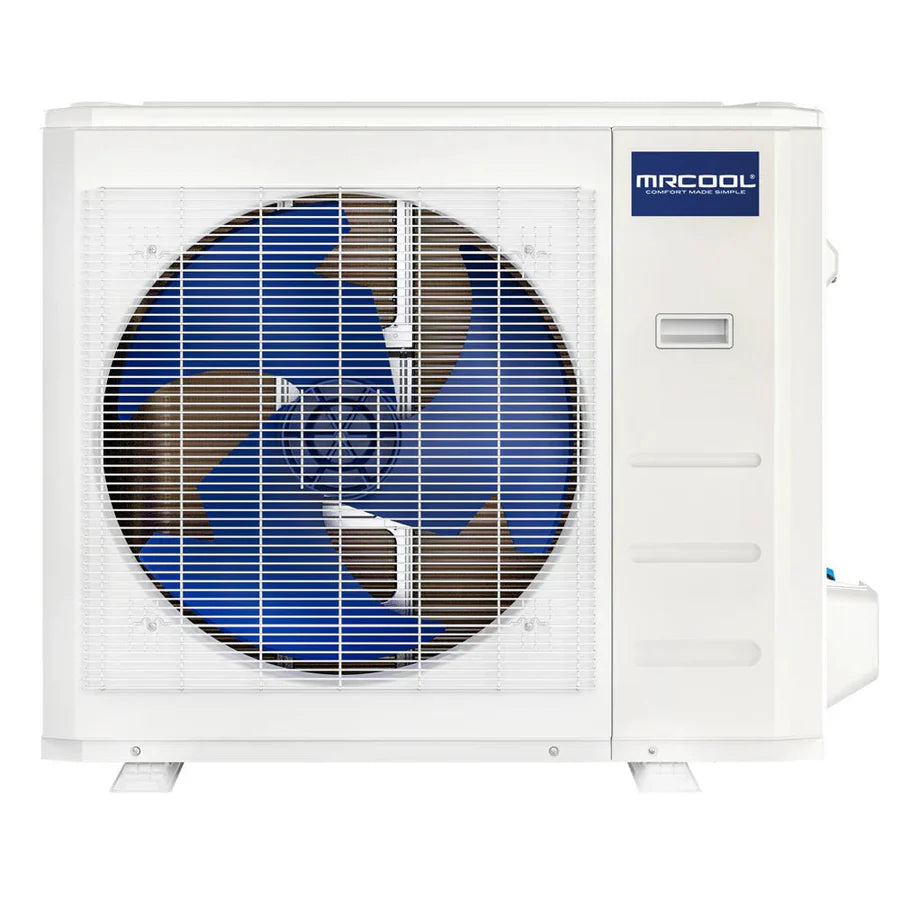

30K MRCOOL® Hyper Heat Central Ducted Condenser
|
| SEER2 | 16.8 |
| EER2 | 11.7 |
| HSPF-4 | 10 |
| HSPF-5 | 8.3 |
| CFM | 3001.8 |
| TONNAGE | 2.5 |
| COOLING CAPACITY (BTU) | 30000 |
| HEATING CAPACITY (BTU) | 34000 |

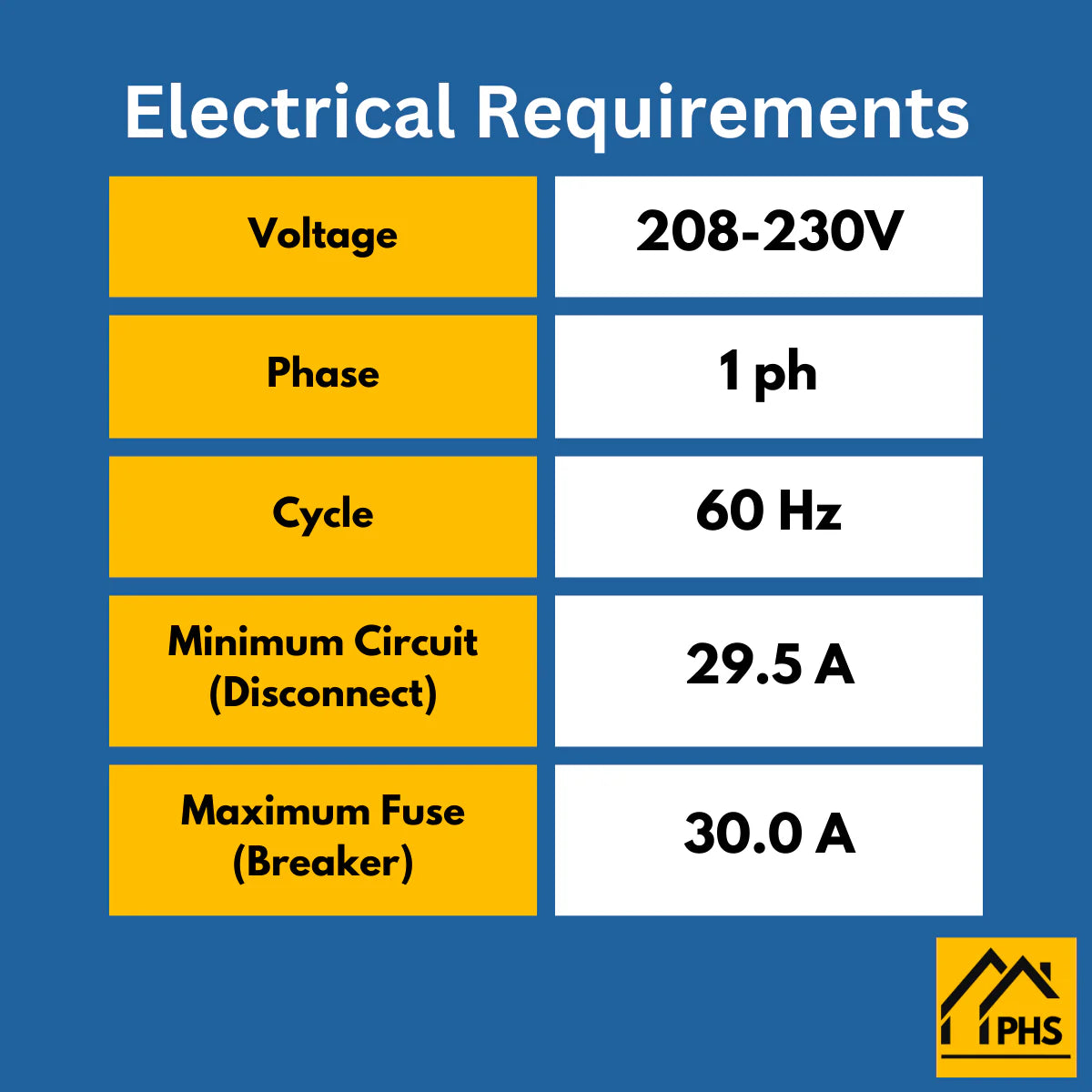

| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 30 |
| MIN CIRCUIT AMPACITY (A) | 29.5 |
| COLOR | gray |
| REFRIGERANT TYPE | R454B |
| REFRIGERANT VOLUME (OZ) | 105.82 |
| DECIBEL RATING (DBA) | 60.5 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| BASE LABOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 164.02 |
| GROSS DEPTH (IN) | 19.68 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 174.6 |
Brochure for the MRCOOL Hyper Heat 2.5 Ton Central Ducted Split System
Install Manual for the MRCOOL Hyper Heat 2.5 Ton Central Ducted Split System
Warranty for the MRCOOL Hyper Heat 2.5 Ton Central Ducted Split System
