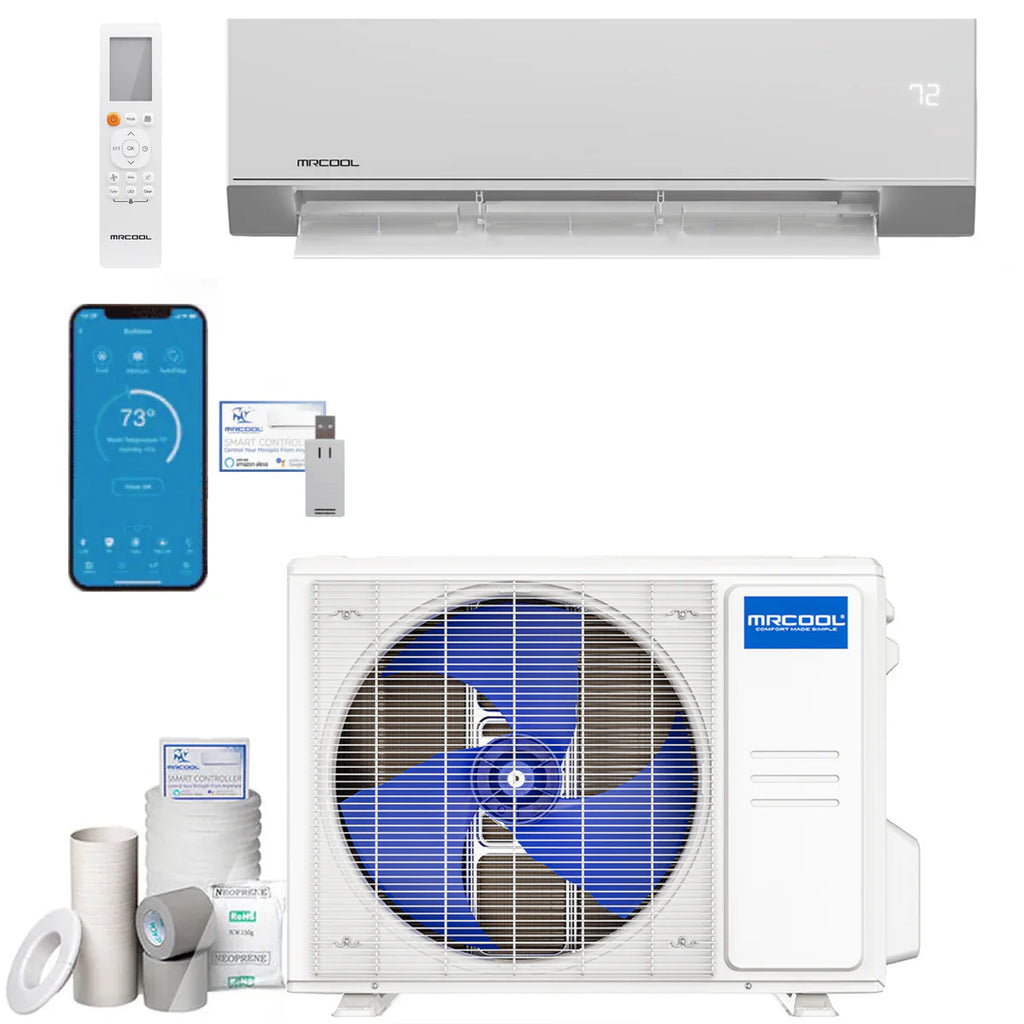

MRCOOL Olympus E Star 12,000 BTU 25.4 SEER2 Single Zone Mini Split System
The MRCOOL 4th generation Olympus E Star 12,000 BTU Mini Split efficiently heats and cools spaces up to 550 sq ft. This compact system is easy to install and includes an advanced air handler and high-efficiency condenser. Control settings with the MRCOOL Smart HVAC app, remote, or voice assistants like Alexa and Google. It operates quietly, uses eco-friendly refrigerant, and delivers excellent energy efficiency with a SEER2 of 25.4. Backed by a strong warranty, it provides reliable, year-round comfort and energy savings for bedrooms, offices, and more. Line set not included.
Features:
- Complete Climate Control: Combined air handler and condenser deliver efficient heating and cooling for up to 550 sq. ft.
- Energy Efficiency: SEER2 rating of 25.4, EER2 of 13.4, and HSPF2-4 of 10.5 reduce energy consumption and costs.
- Smart Operation: Wi-Fi connectivity and MRCOOL® Smart HVAC app allow full control from your smartphone or tablet.
- Quiet Performance: Indoor unit runs at 47 dB and outdoor fan at 56 dB for whisper-quiet comfort.
- Eco-Friendly Design: Uses R-454B refrigerant to minimize environmental impact while maintaining high efficiency.
- Voice Control Compatibility: Works with Amazon Alexa and Google Assistant for hands-free adjustments.
- Compact Installation: Sleek, space-saving design ensures fast and simple setup in any room.
- Comprehensive Warranty: Protected by a limited lifetime warranty, 7-year compressor coverage, and 5-year parts warranty for dependable performance.
Installation & Guides:
MRCOOL Olympus Warranty Documentation

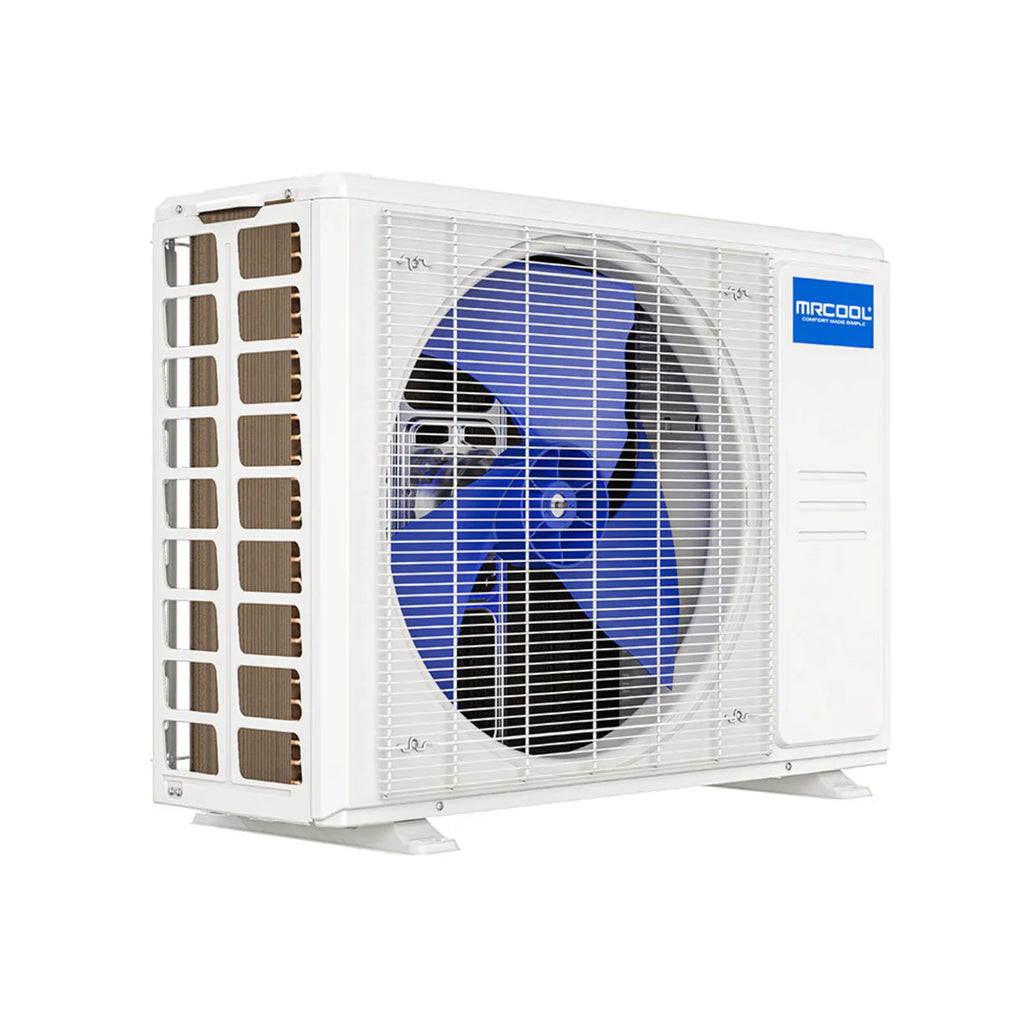

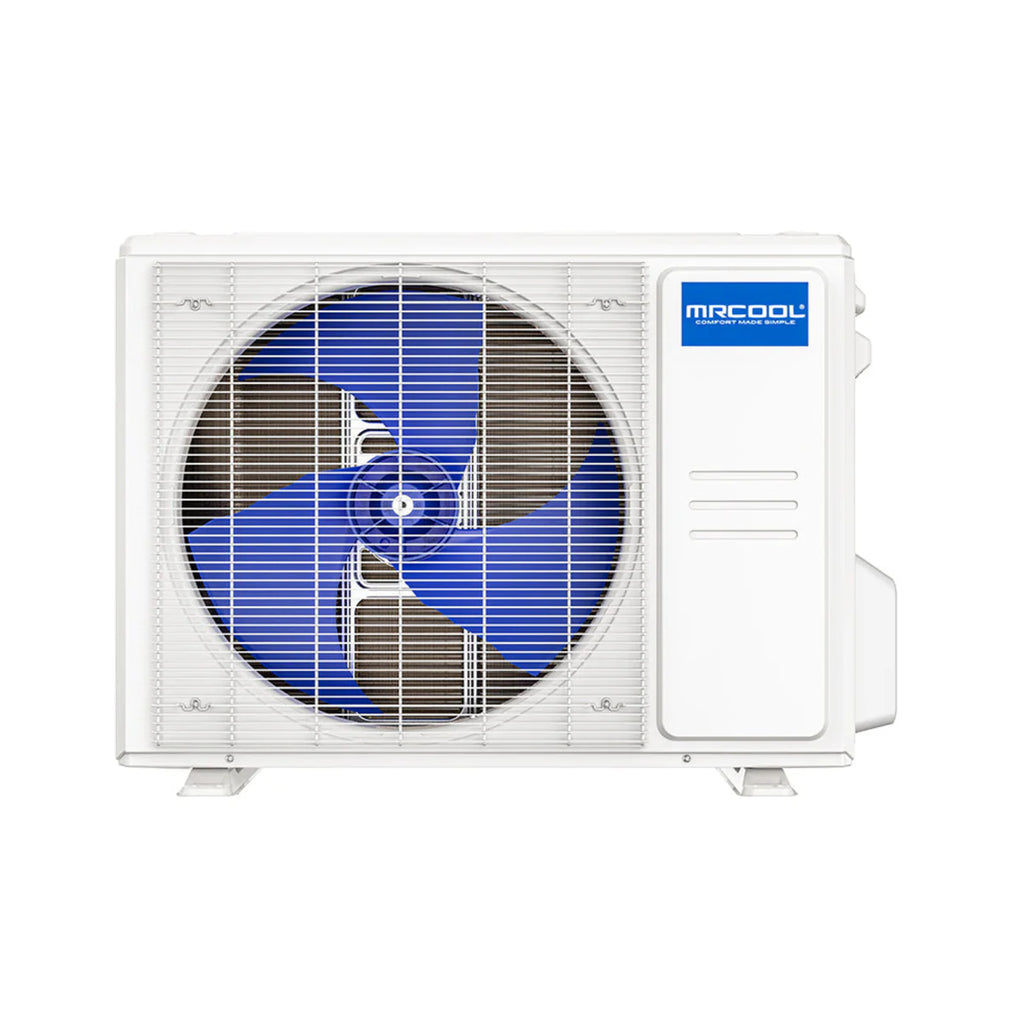

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
Olympus 4th Gen Single-Zone Condensers
|
| MODEL | O-ES-12-HP-C-230C-O1 |
| GTIN | 840255587631 |
| UPC | 840255587631 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION |
Olympus ENERGY STAR 12,000 BTU 1 Ton Mini-Split Heat Pump Condenser - 230V/60Hz
|
| WORKS WITH |
O-12-HP-WMAH-230C-O DUCT-12HP-230B-O CASSETTE12HP-230C-O
|
| FEATURE LIST |
Installation by a licensed professional required where applicable 7-Year Compresser, 5-Year Parts warranty when registered and installed by a licensed professional R-454B environmentally friendly friendly refrigerant Energy Star Certified
|
| SEER2 | Up to 25.4 |
| EER2 | Up to 13.4 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8 |
| TONNAGE | 1 |
| COOLING CAPACITY (BTU) | 12000 |
| HEATING CAPACITY (BTU) | 12000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 15 |
| COLOR | White |
| MAX COVERAGE AREA | Up to 550 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 35.27 |
| DECIBEL RATING (DBA) | 56 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 82 |
| LINESET FITTING TYPE | Flare |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 780/680/580 |
| METERING DEVICE | EXV |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE WARRANTY |
5-Year Parts/7-Year Compressor
|
| BASE PARTS WARRANTY | 5-Year |
| BASE COMPRESSOR WARRANTY | 7-Year |
| BASE REMOTE WARRANTY | 5 Year |
| REGISTERED LABOR WARRANTY | None |
| BASE LABOR WARRANTY | None |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU, PR, VI |
| NET DEPTH (IN) | 12.99 |
| NET HEIGHT (IN) | 21.81 |
| NET WIDTH (IN) | 31.69 |
| NET WEIGHT (LBS) | 72.75 |
| GROSS DEPTH (IN) | 14.57 |
| GROSS HEIGHT (IN) | 24.21 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 78.7 |

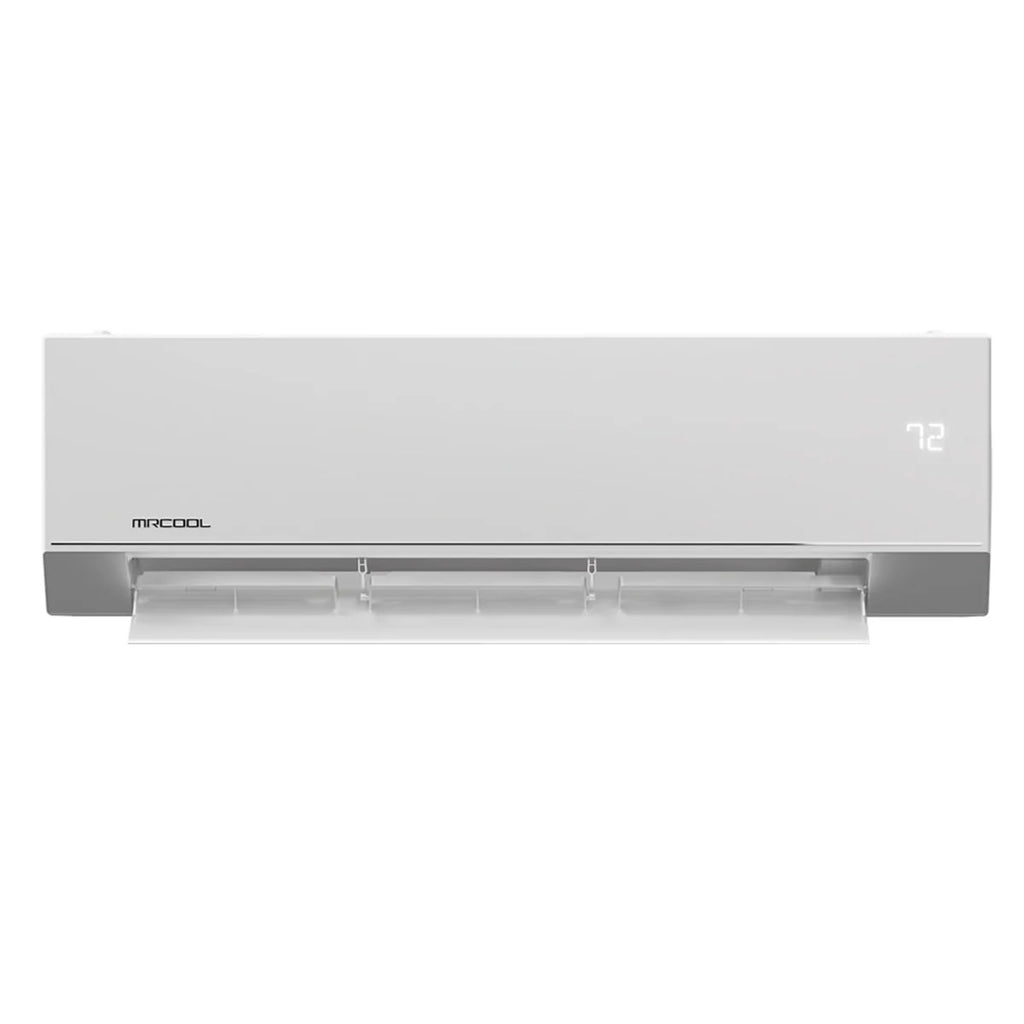

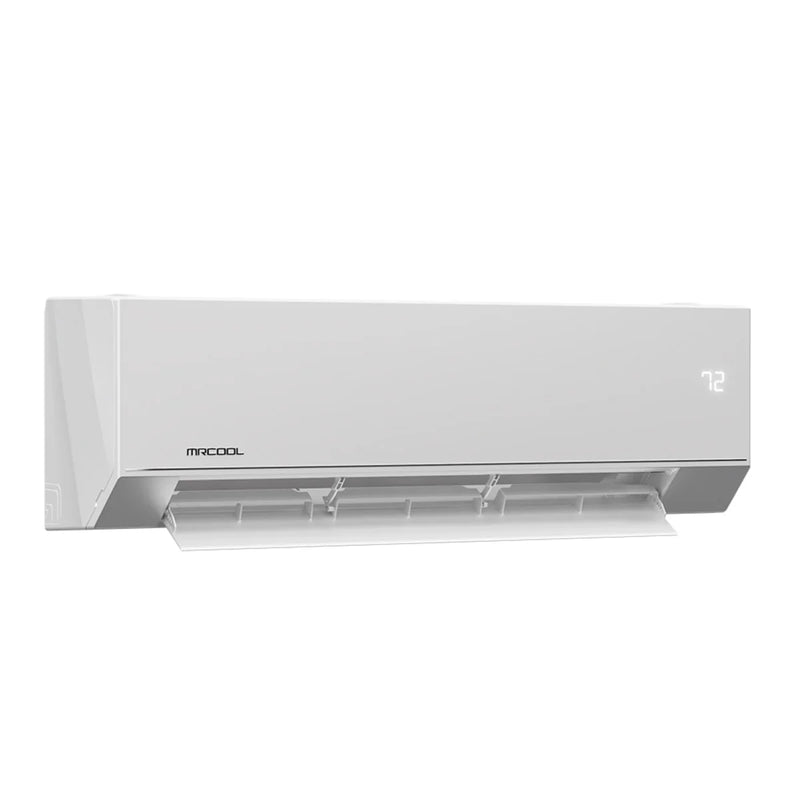

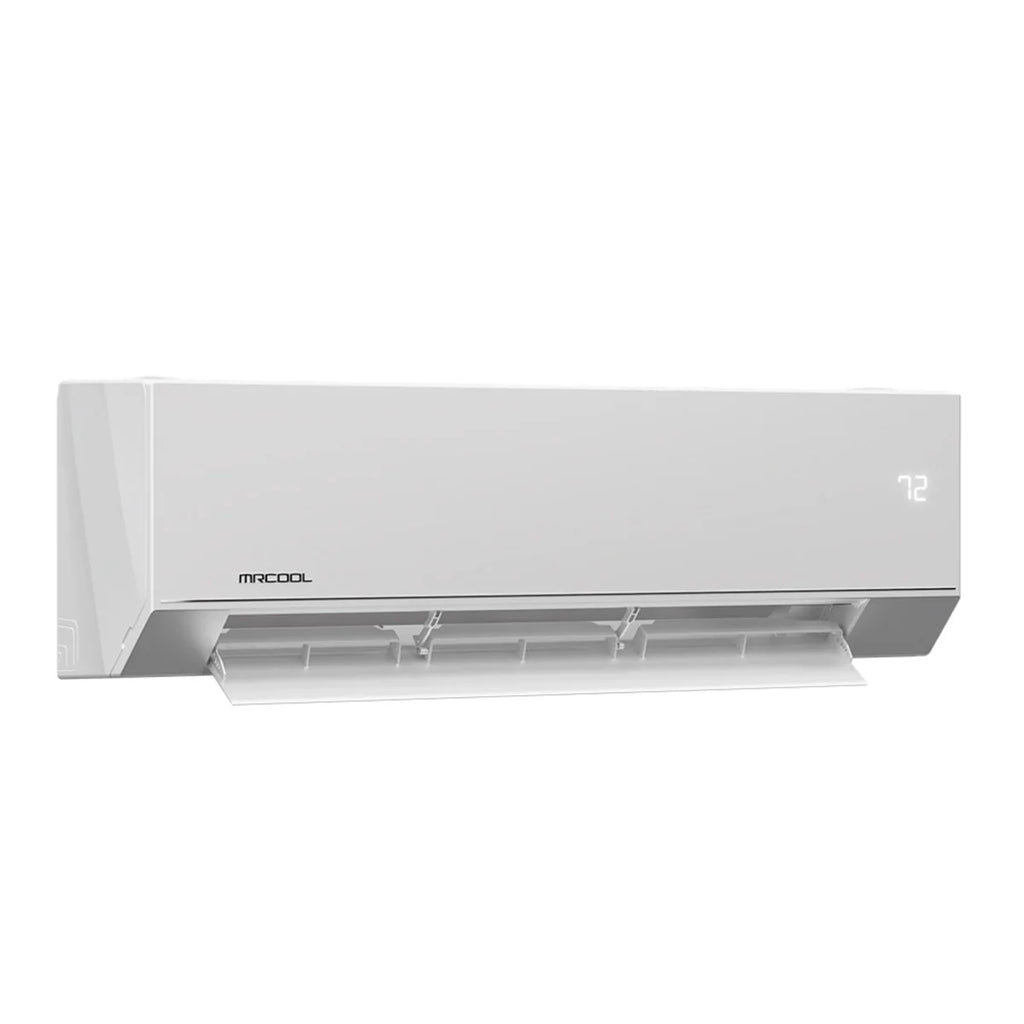

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
Olympus 4th Gen Air Handlers
|
| MODEL | O-12-HP-WMAH-230C-O |
| GTIN | 840255587716 |
| UPC | 840255587716 |
| UNIT TYPE | Mini-Split |
| SHORT DESCRIPTION |
Olympus 12,000 BTU 1 Ton Ductless Mini-Split Wall Mounted Air Handler - 230V/60Hz
|
| WORKS WITH |
O-ES-12-HP-C-230C-O1 MULTI3-18HP230C-O MULTI4-27HP230C-O MULTI5-36HP230C-O MULTI6-48HP230C-O
|
| TONNAGE | 1 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | Up to 550 |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 47/36.5/32.5/22/19.5 |
| DECIBEL RATING LOW (DBA) | 19.5 |
| DECIBEL RATING HIGH (DBA) | 47 |
| NUMBER OF SPEEDS | 5 (Variable) |
| OSCILLATION | Yes |
| LINESET FITTING TYPE | Flare |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| BLOWER MOTOR SPEEDS |
441.4/323.7/229.6/176.6/147.2
|
| BLOWER MOTOR RPM | 1100/850/700 |
| FILTER TYPE | Reusable |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| BASE WARRANTY | 5-Year Parts |
| BASE PARTS WARRANTY | 5-Year |
| BASE REMOTE WARRANTY | 5 Year |
| REGISTERED LABOR WARRANTY | None |
| BASE LABOR WARRANTY | None |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU, PR, VI |
| NET DEPTH (IN) | 9.09 |
| NET HEIGHT (IN) | 11.81 |
| NET WIDTH (IN) | 33.74 |
| NET WEIGHT (LBS) | 22.93 |
| GROSS DEPTH (IN) | 12.2 |
| GROSS HEIGHT (IN) | 14.57 |
| GROSS WIDTH (IN) | 36.22 |
| GROSS WEIGHT (LBS) | 29.32 |
