Description
The MRCOOL Signature Series TruInverter 3-ton complete heat pump system delivers efficient, variable-speed heating and cooling with next-generation R-454B refrigerant. TruInverter technology continuously adjusts output to match demand for steadier temperatures, improved humidity control, quieter operation, and lower energy use.
The included multi-position air handler supports upflow, downflow, and horizontal installation. The system is compatible with MRCOOL No-Vac Quick Connect line sets and the optional TruInverter electric heat kits shown on this page. Licensed HVAC installation is required.
What's Included:
1 x 3-Ton 19 SEER2 TruInverter Heat Pump Condenser (MCAESHV9T3621BA)
1 x 3-Ton TruInverter Multi-Position Air Handler (MCAEAMPVT36D21BA)
1 x MRCOOL Wired Thermostat

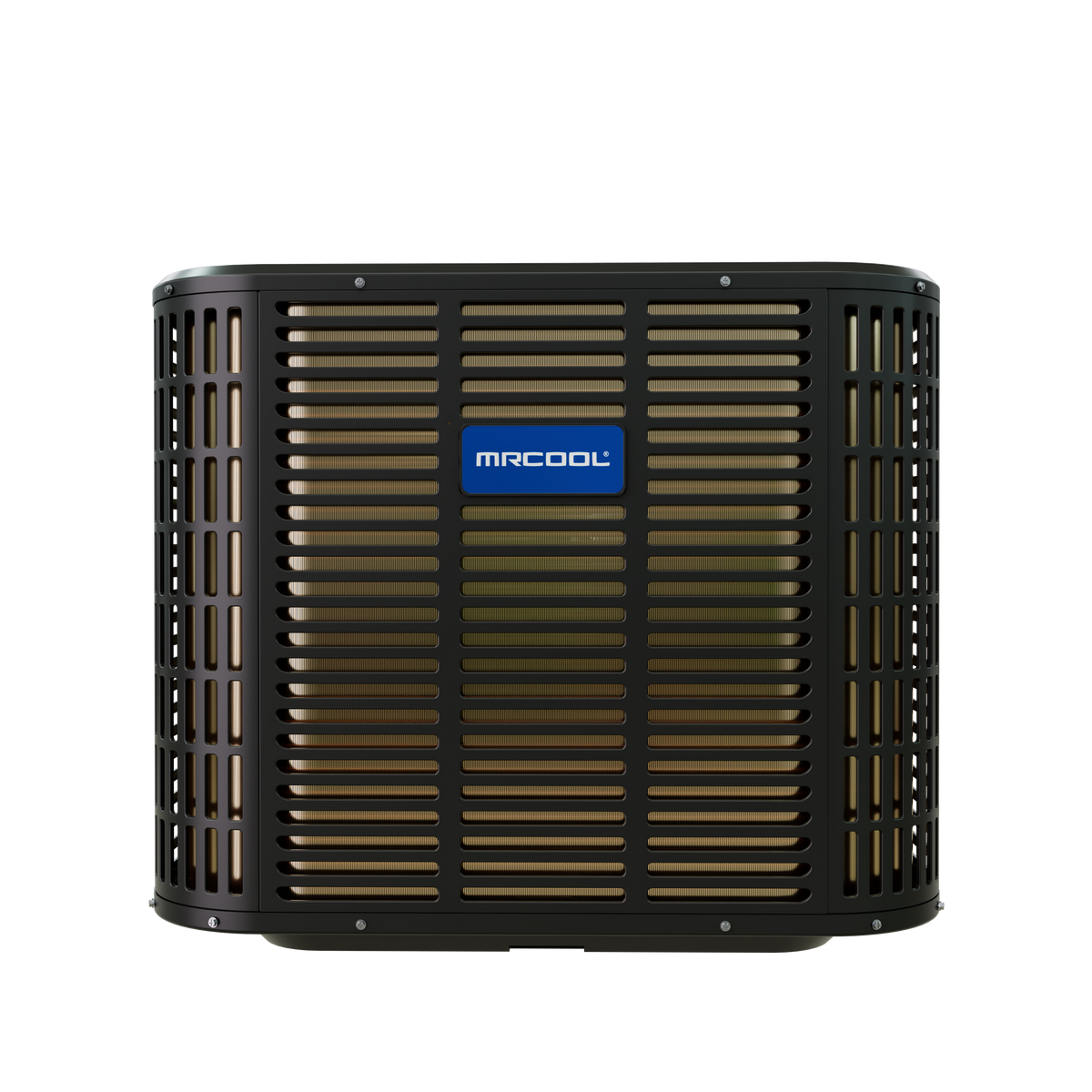

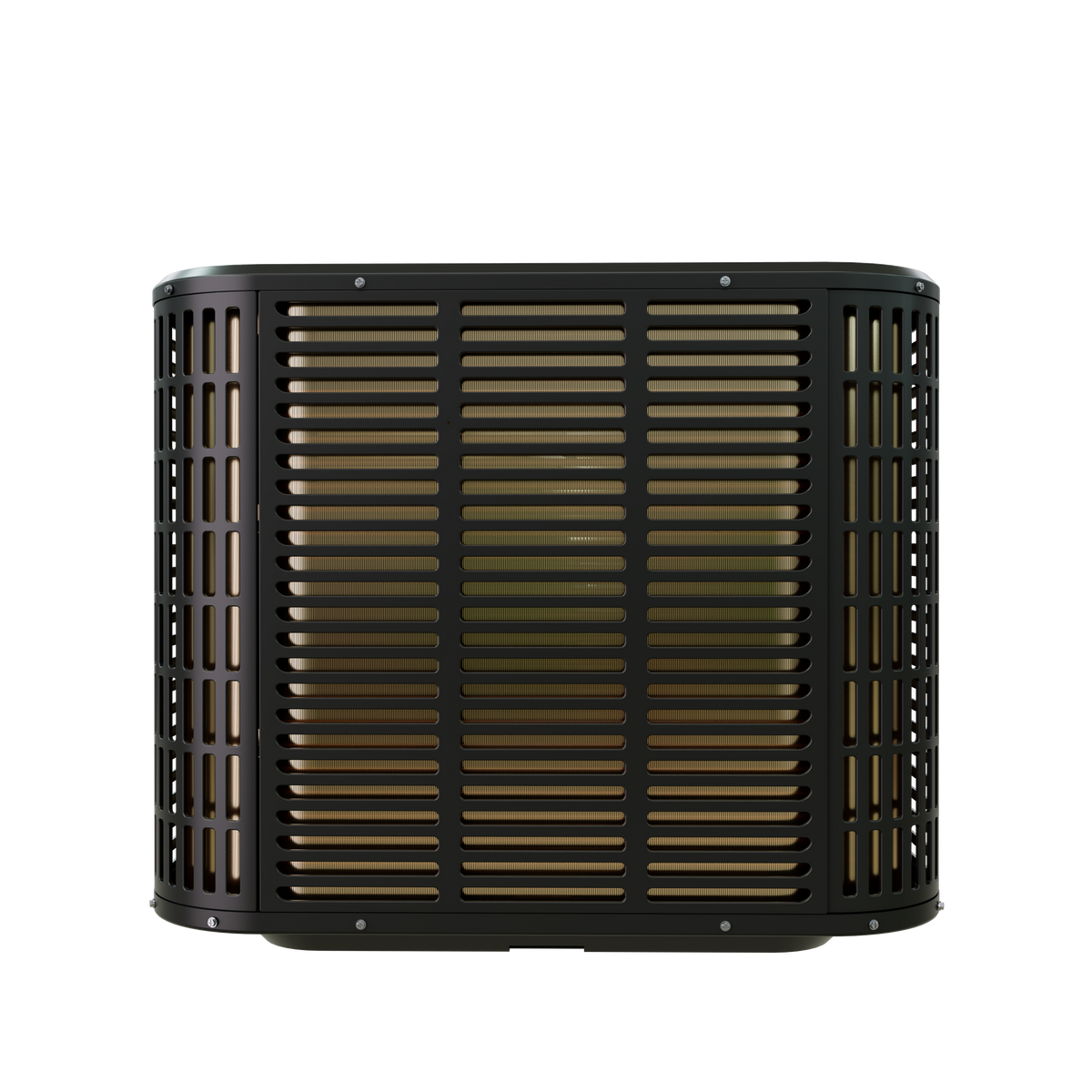

Outdoor Condenser Specifications
| Brand | MRCOOL |
| Series | TruInverter |
| Model | MCAESHV9T3621BA |
| UPC | 840433617167 |
| Equipment Type | Heat Pump Condenser |
| SEER2 | 19 |
| EER2 | 10 |
| HSPF2-4 | 9 |
| Tonnage | 3 |
| Cooling Capacity (BTU) | 34,000 |
| Heating Capacity (BTU) | 36,000 |
| Voltage | 208/230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35A |
| Minimum Circuit Ampacity | 22A |
| Refrigerant | R-454B |
| Refrigerant Charge | 100.53 oz |
| Sound Rating | 68 dBA |
| Minimum Cooling Ambient | 5 F |
| Minimum Heating Ambient | -5 F |
| Maximum Line Set Length | 100 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 in |
| Net Dimensions | 29.125 D x 24.94 H x 29.215 W in |
| Net Weight | 146 lb |
| Gross Dimensions | 30.25 D x 31.25 H x 30.25 W in |
| Gross Weight | 176 lb |
| Warranty | 10-year parts; limited lifetime compressor |

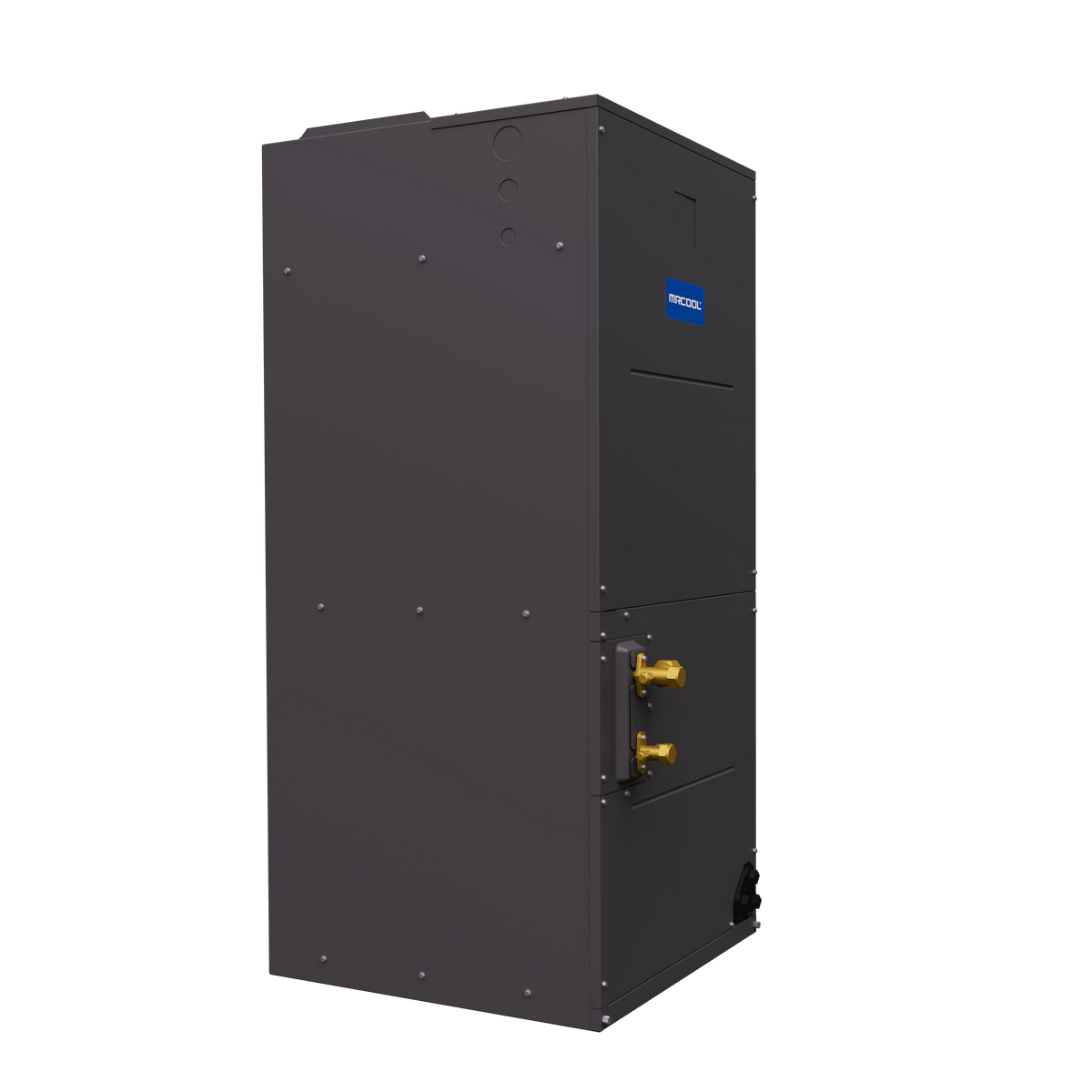

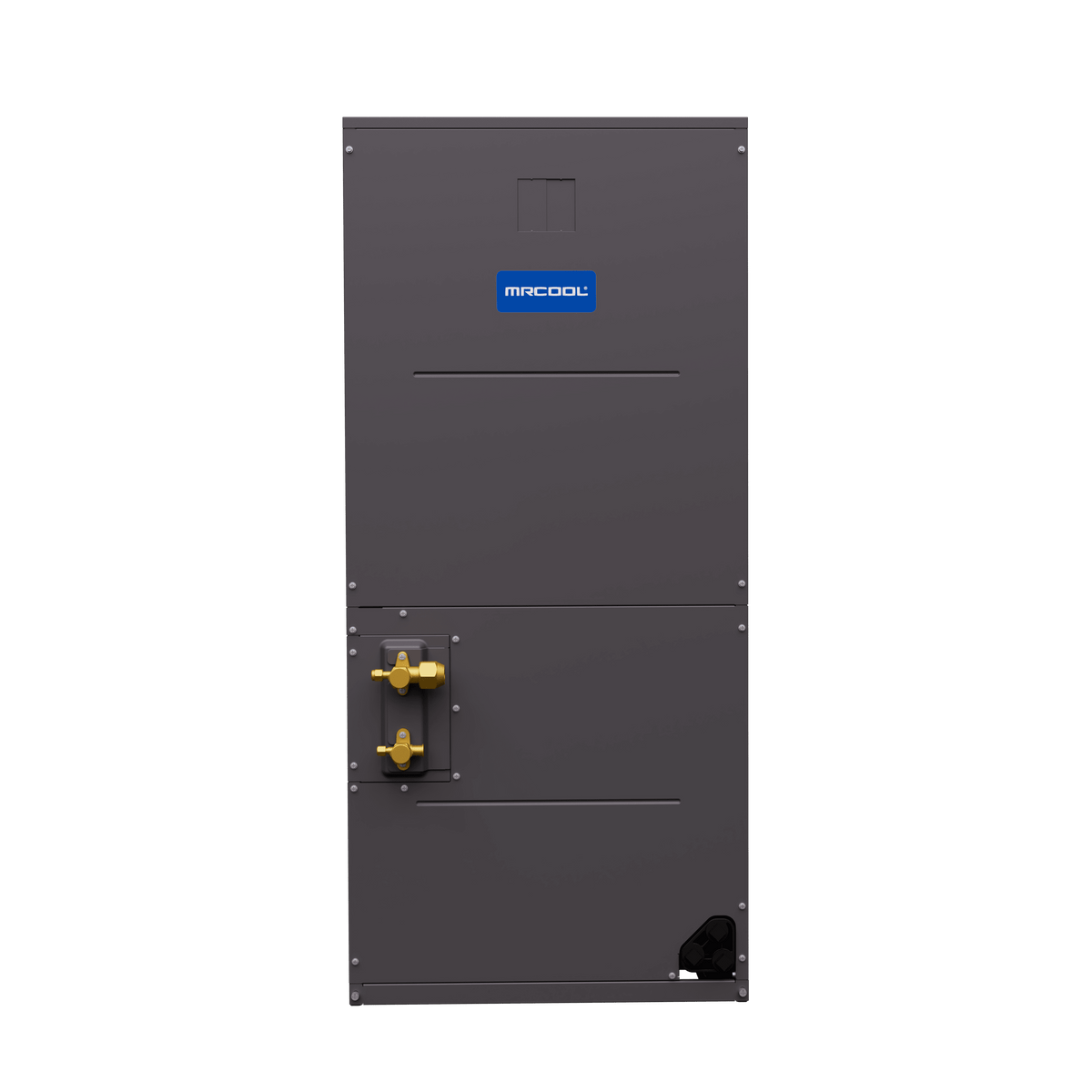

Indoor Air Handler Specifications
| Brand | MRCOOL |
| Series | TruInverter |
| Model | MCAEAMPVT36D21BA |
| UPC | 840433617204 |
| Equipment Type | Multi-Position Air Handler |
| Airflow | 1150 CFM |
| Tonnage | 3 |
| Voltage | 208/230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Minimum Circuit Ampacity | 5A |
| Mount Type | Upflow, downflow, or horizontal |
| Refrigerant | R-454B |
| Sound Rating | 58 dBA |
| Maximum Line Set Length | 100 ft |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 in |
| Blower Motor | DC, 1/2 HP, 5 speeds |
| Compatible Heat Kits | 5kW, 10kW, 15kW |
| Net Dimensions | 21 D x 46.5 H x 21 W in |
| Net Weight | 126.8 lb |
| Gross Dimensions | 26.33 D x 52.5 H x 22.75 W in |
| Gross Weight | 162 lb |
| Warranty | 10-year parts |
