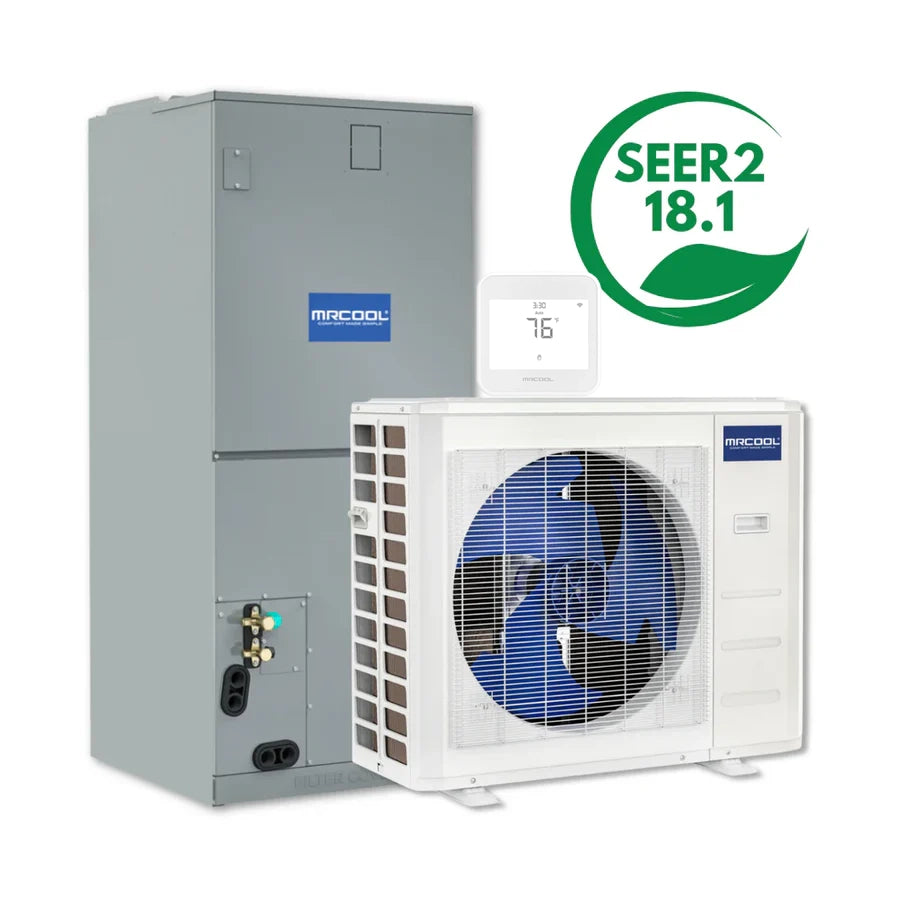

MRCOOL VersaPro 24,000 BTU 2 Ton 18.1 SEER2 Central Ducted Heat Pump System
Introducing the new 2nd Gen MRCOOL VersaPro 24,000 BTU 2 Ton Central Ducted Heat Pump System, a variable speed 24K unit boasting an impressive SEER2 of 18.1 and HSPF4 of 9.7. With a DC inverter, this advanced yet affordable unit guarantees excellent operation and reduced utility costs, making it an exceptional upgrade option. The convenience of installation is further enhanced due to it's compatibility with the MRCOOL® Quick Connect® precharged line set, facilitating swift and trouble-free setup for professional HVAC technicians. The Precharged lineset is sold separately with eco-friendly R-454B refrigerant, which eliminates the need for vacuuming and ensures a seamless connection. This unit features a robust build and finish utilizing painted galvanized steel, ensuring longevity. Additionally, the condenser has a compact, side-discharge design and self-diagnostic capabilities simplify maintenance efforts. Moreover, the 10-year parts and compressor warranty offers added peace of mind and provides hassle-free coverage in the event of unexpected issues.
The MRCOOL VersaPro 24K presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 1,000 square feet of space and boasting a SEER2 rating of 18.8, this heating and cooling system serves as a dependable upgrade from older units. Constructed with durable painted galvanized steel, this air handler ensures long-term performance and reliability. Its easily accessible removable filter and self-diagnostics panel simplify maintenance tasks by facilitating quick identification of error codes. Installation versatility is a key feature of the 2 Ton MRCOOL® VersaPro Central Ducted System, allowing for positioning in various configurations such as upflow, downflow, and horizontal orientations. Additionally, an optional heat kit is available for enhanced functionality. Equipped with a wireless remote featuring the Follow Me function, the VersaPro 24K air handler adjusts airflow temperature automatically based on the remote's location in the room, ensuring consistent comfort throughout your home. Furthermore, the inclusion of a wired thermostat offers convenient and reliable temperature control in any space. Investing in the 2 Ton MRCOOL® VersaPro Central Ducted System comes with the added assurance of a 10-year parts and compressor warranty provided by MRCOOL®, offering comprehensive coverage and enhancing ease of ownership.

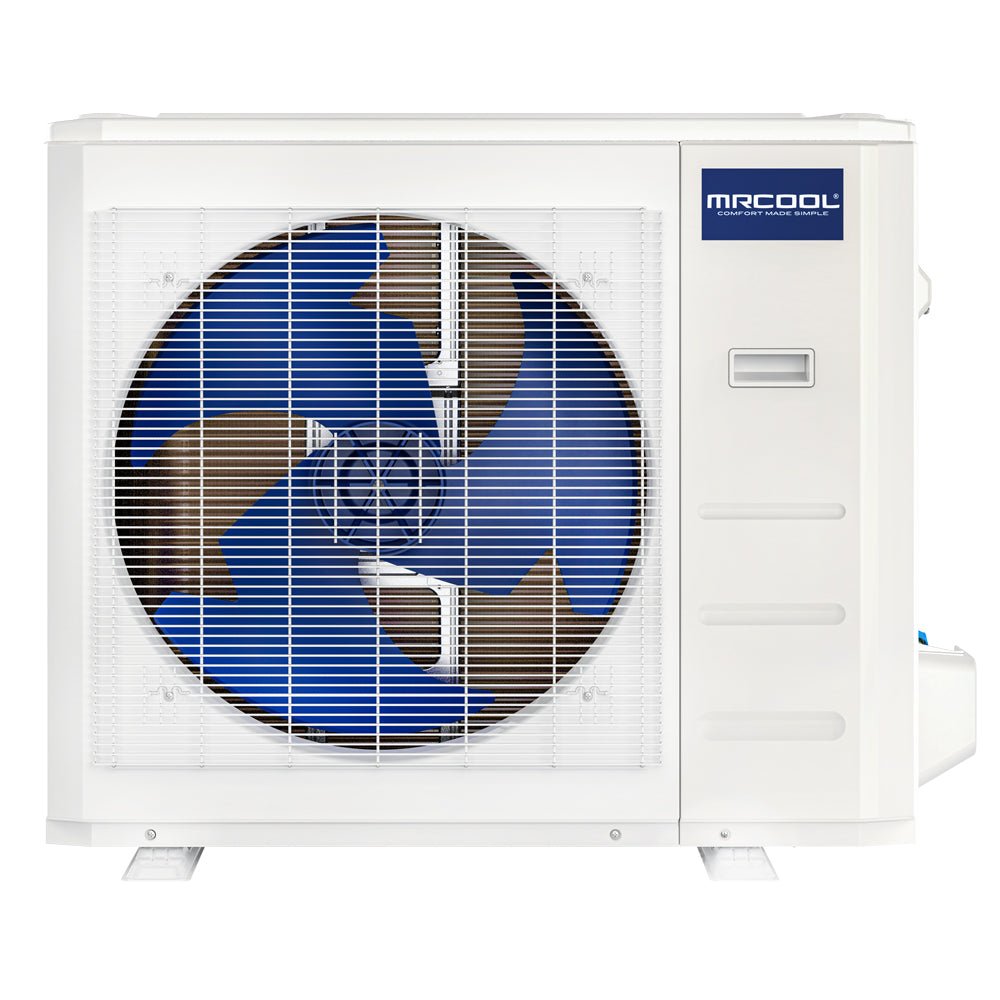

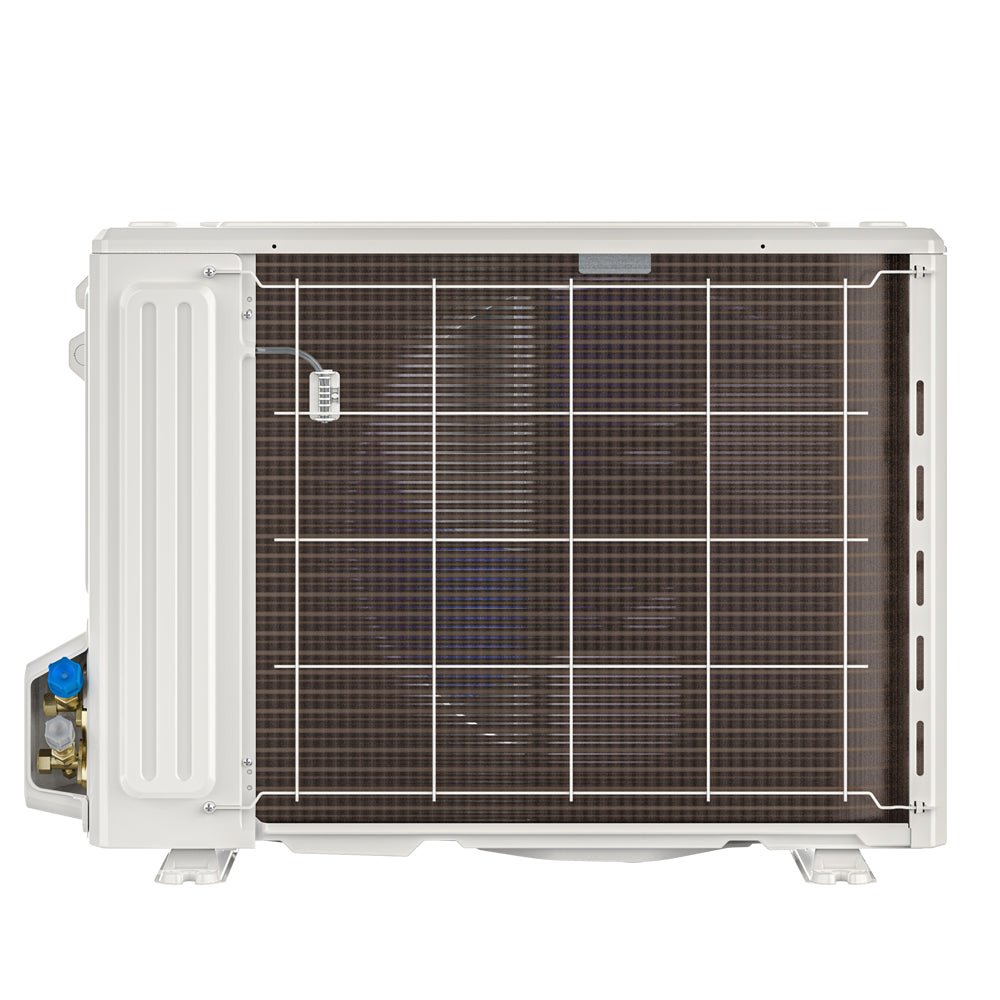

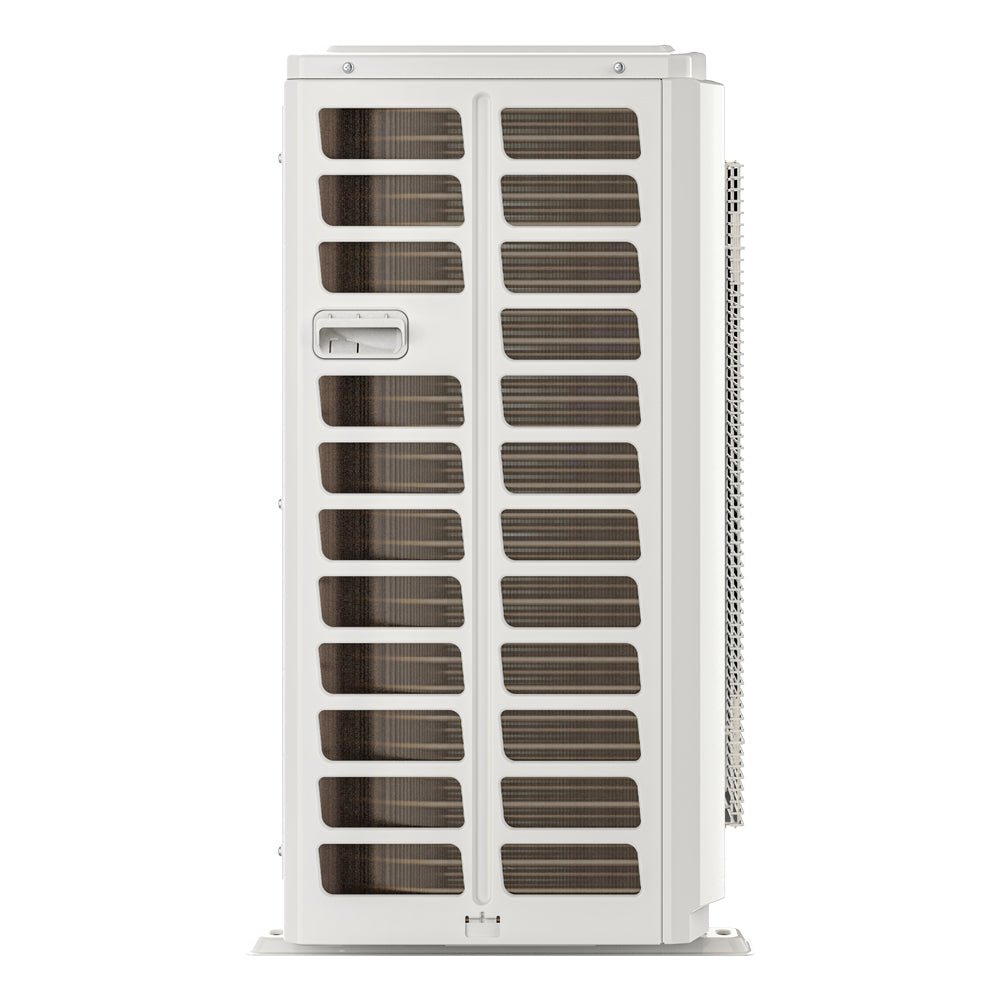

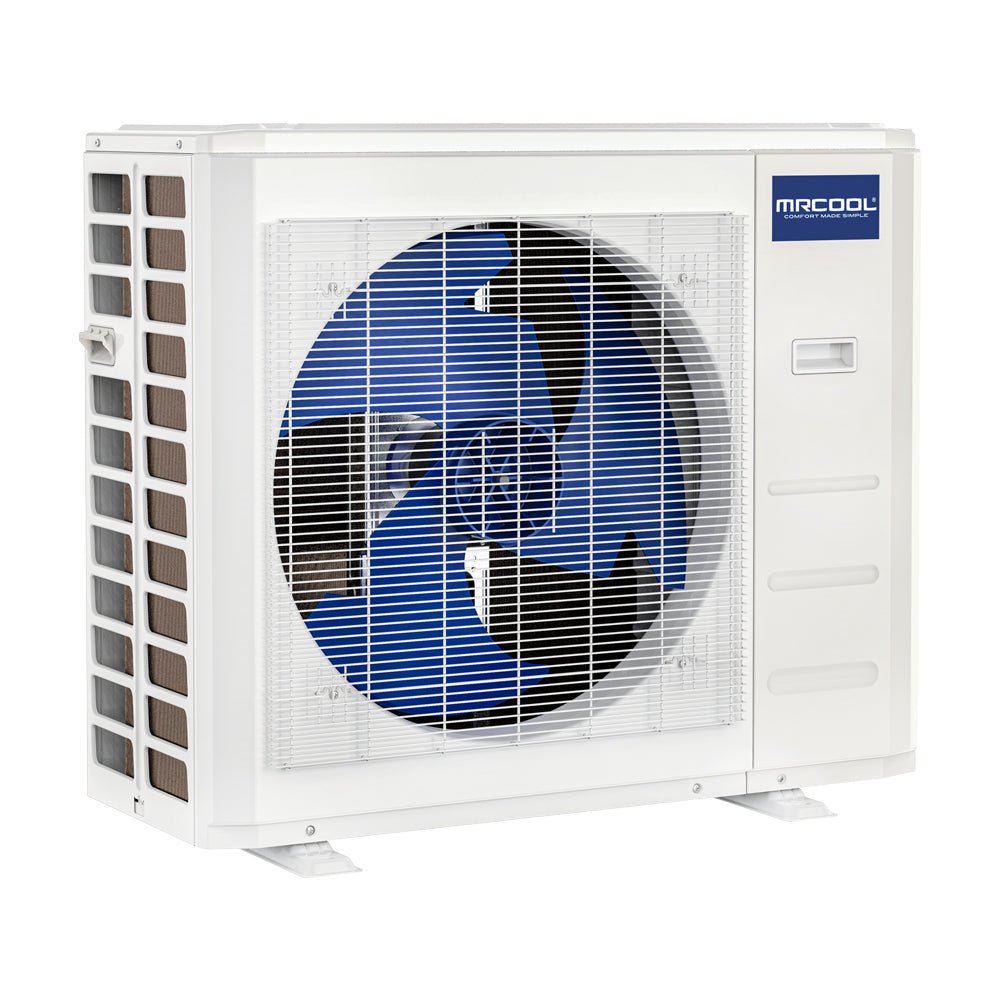

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
VersaPro® Central Ducted Condenser
|
| MODEL |
MVP-24-HP-C-230A00-O
|
| GTIN | 840255582698 |
| UPC | 840255582698 |
| UNIT TYPE |
Split System Heat Pump
|
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION |
2 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
|
| SEER2 | 18.1 |
| EER2 | 11 |
| HSPF-4 | 9.7 |
| HSPF-5 | 7.7 |
| CFM | 1765.7 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 26000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| COLOR | gray |
| REFRIGERANT TYPE | R454B |
| REFRIGERANT VOLUME (OZ) | 74.08 |
| DECIBEL RATING (DBA) | 60 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 102 |
| GROSS DEPTH (IN) | 15.67 |
| GROSS HEIGHT (IN) | 29.13 |
| GROSS WIDTH (IN) | 39.17 |
| GROSS WEIGHT (LBS) | 109 |

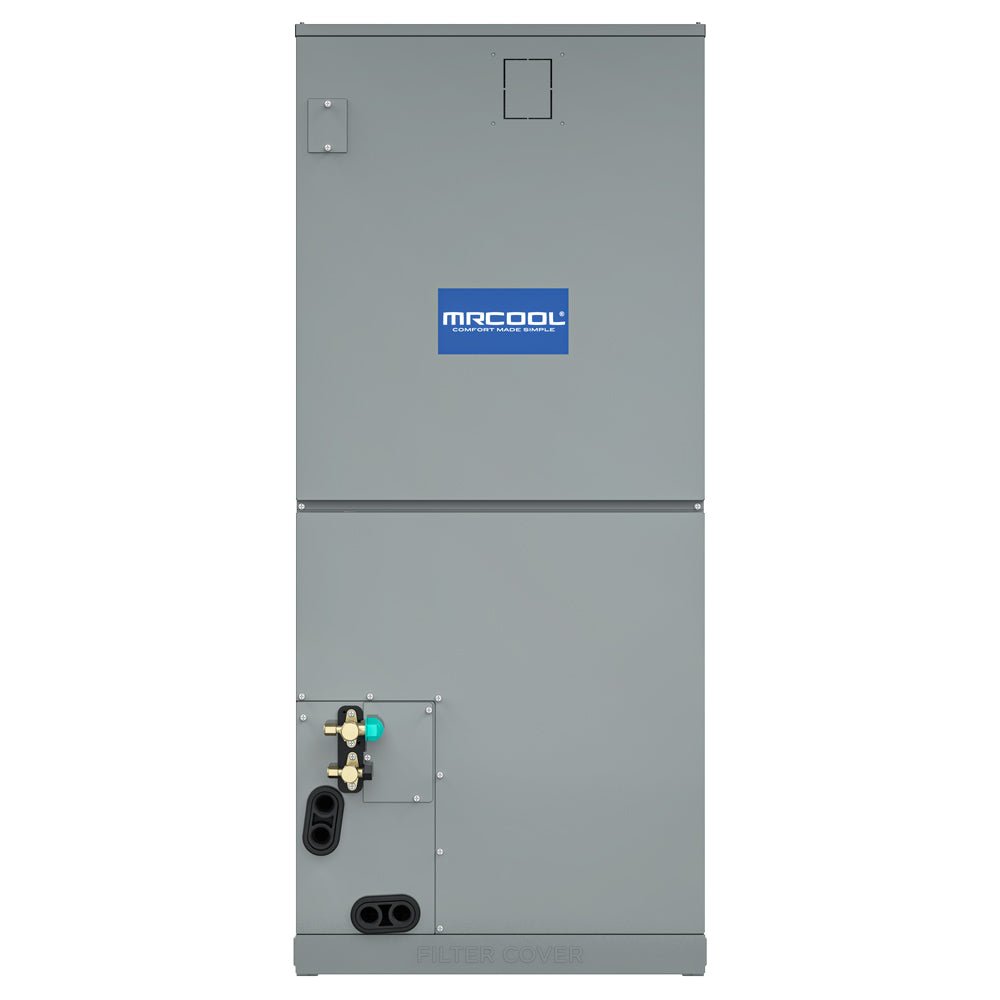

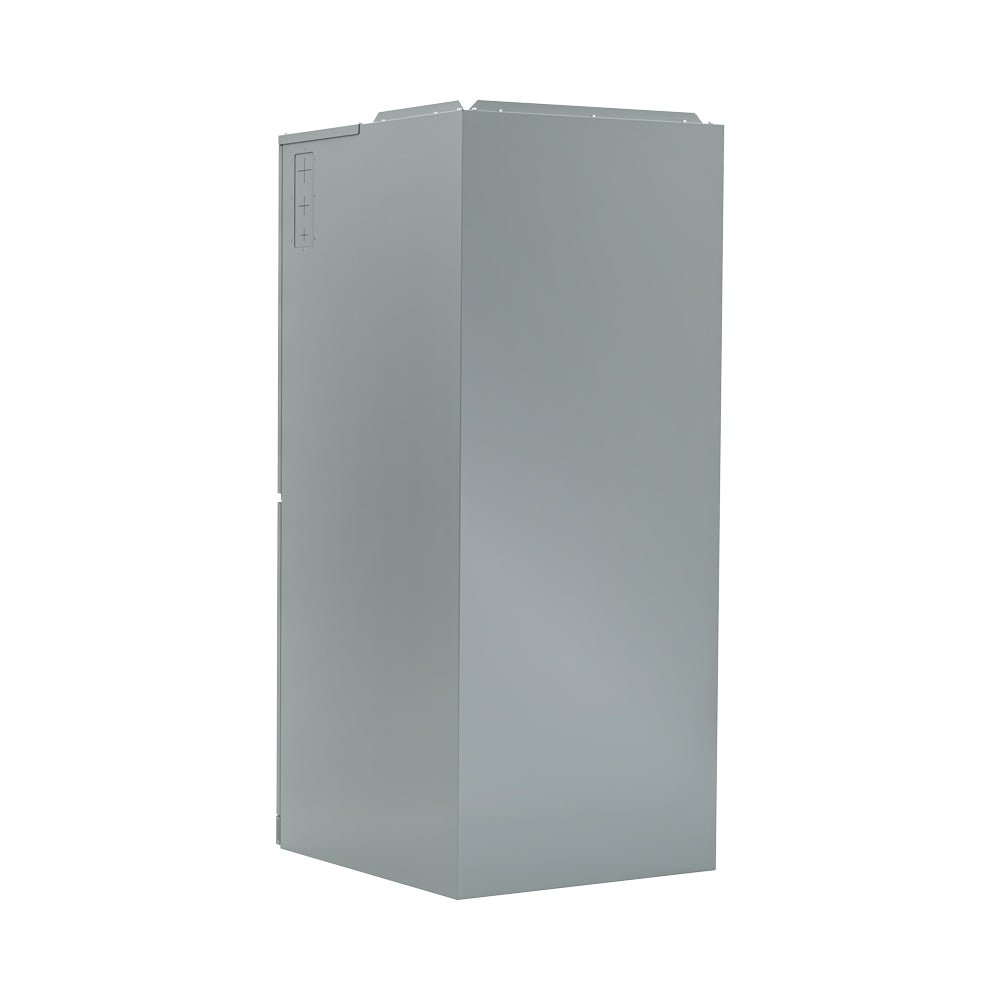

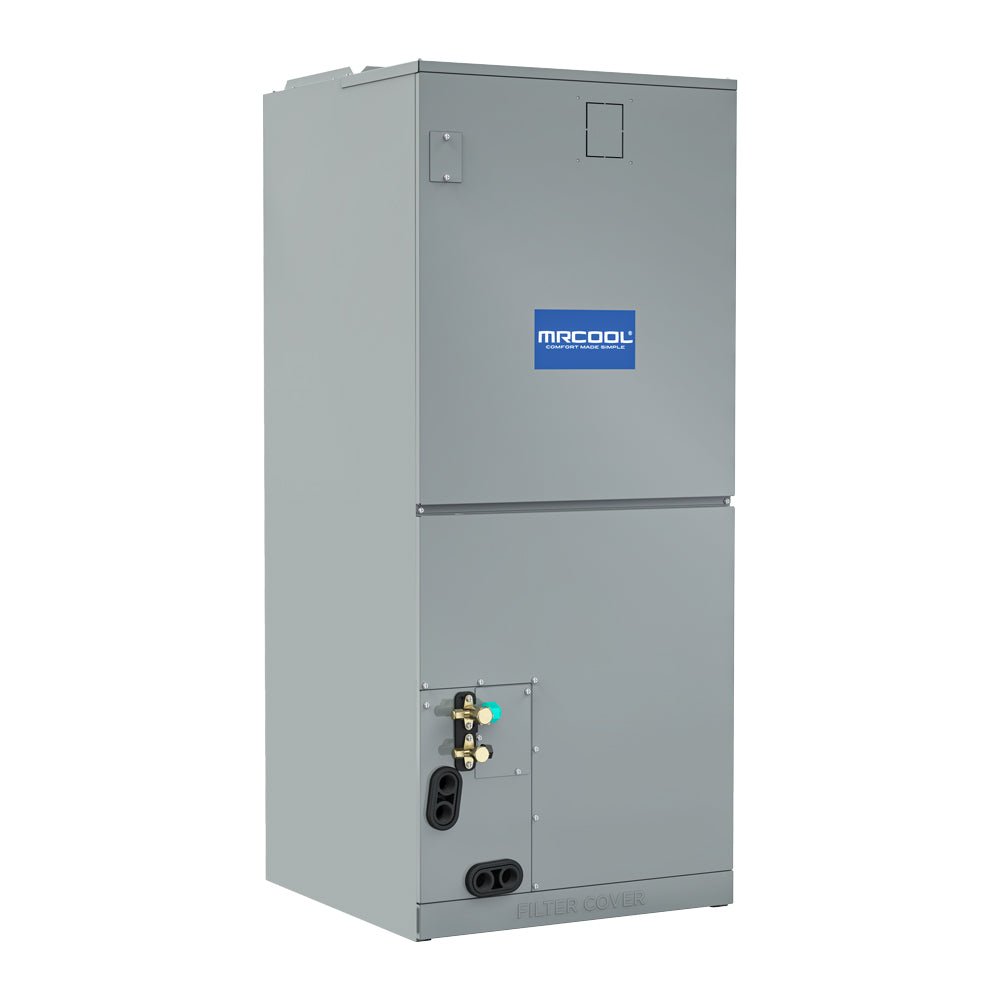

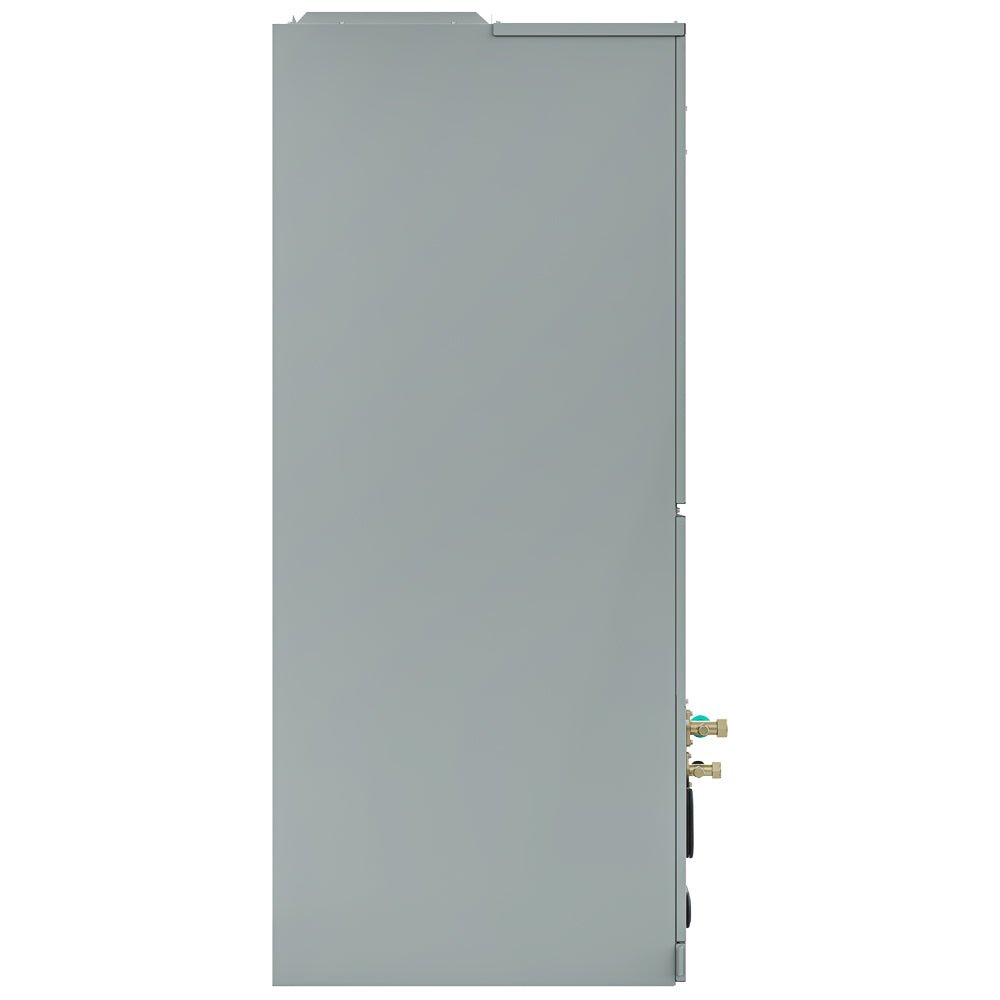

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
VersaPro® Central Ducted Air Handler
|
| MODEL |
MVP-24-HP-MUAH-230A00-O
|
| GTIN | 840255586450 |
| UPC | 840255586450 |
| UNIT TYPE |
Split System Heat Pump
|
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION |
2 Ton MRCOOL® VersaPro® Central Ducted Air Handler
|
| CFM |
824.04/759.29/694.55/629.80
|
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 26000 |
| VOLTAGE (V) | 115/208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 5.5/4.0 |
| COLOR | gray |
| DECIBEL RATING LOW (DBA) | 28 |
| DECIBEL RATING HIGH (DBA) | 44 |
| NUMBER OF SPEEDS | 3 |
| MAX LINESET LENGTH (FT) | 164 ft |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 16x20x1 |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW
|
| ADJUSTABLE THERMOSTAT | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 17.52 |
| NET HEIGHT (IN) | 45 |
| NET WIDTH (IN) | 21.02 |
| NET WEIGHT (LBS) | 105.6 |
| GROSS DEPTH (IN) | 20.87 |
| GROSS HEIGHT (IN) | 48.62 |
| GROSS WIDTH (IN) | 26.57 |
| GROSS WEIGHT (LBS) | 127.43 |
Brochure for the MRCOOL VersaPro 2 Ton 24,000 BTU Central Ducted Split System
Install Manual for the MRCOOL VersaPro 2 Ton 24,000 BTU Central Ducted Split System
