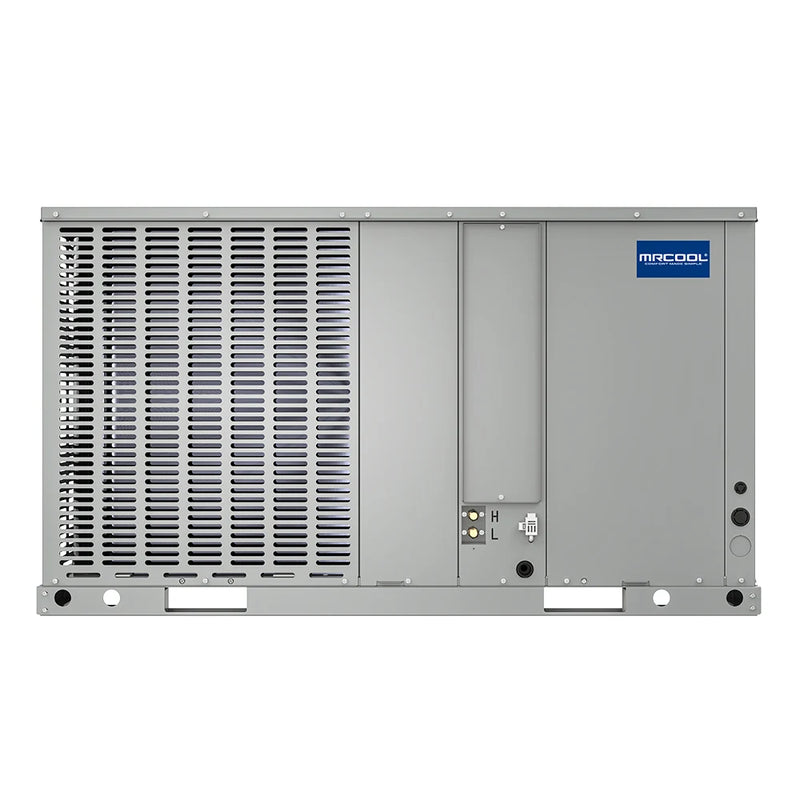

MRCOOL VersaPro 3 Ton Horizontal Package Heat Pump - R-454B
The MRCOOL® VersaPro® Series 36K Package Heat Pump delivers dependable, year-round comfort in one compact, space-saving system. Designed for high-performance cooling in summer and powerful heating in winter, it offers the perfect balance of efficiency, durability, and convenience, making it an excellent upgrade for homeowners seeking a cost-effective HVAC solution. With a 13.4 SEER2 rating, the VersaPro® 36K reduces energy consumption, lowering utility bills and environmental impact. It uses R-454B refrigerant, a next-generation option with a much lower global warming potential than older refrigerants, supporting eco-conscious upgrades without sacrificing performance. Built for long-lasting durability, the unit features a power-painted galvanized steel cabinet that protects against weather and wear. Its horizontal discharge design allows quiet operation, ideal for residential areas where space and sound control matter. Inside, aluminum tubing and fin coils improve heat transfer while resisting corrosion better than copper, reducing maintenance and extending service life.
Backed by a 10-year limited parts warranty and 10-year compressor warranty when registered, the MRCOOL® VersaPro® 36K Package Heat Pump is a reliable, efficient, and environmentally responsible investment—delivering comfort, savings, and peace of mind season after season.
Key Features:
- Quiet Horizontal Discharge
- Durable Galvanized Steel Cabinet
- High Efficiency Compressor
- Internal Safeguards
- Copper Tube/Aluminum Fin Coil
- Optional Electric Heat Kit
Install Manuals and Guides:
VersaPro Packaged Unit Brochure
VersaPro Packaged Unit Install Manual
VersaPro Packaged Unit Warranty Information
Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
VersaPro® R-454B Package Heat Pump
|
| MODEL | MPH361HO13C |
| GTIN | 840255588676 |
| UPC | 840255588676 |
| UNIT TYPE | Packaged Heat Pump |
| SHORT DESCRIPTION |
3 Ton Horizontal VersaPro® Package Heat Pump - R454B
|
| SEER2 | 13.4 |
| EER2 | 11.2 |
| HSPF2-4 | 6.7 |
| CFM | 1200 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) | 34,200 |
| HEATING CAPACITY (BTU) | 34,200 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 35 |
| MIN CIRCUIT AMPACITY (A) | 27.1 |
| COLOR | Grey |
| RATED LOAD | 17.6 |
| FULL LOAD | 86 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 60 |
| DECIBEL RATING (DBA) | 81 |
| INVERTER | No |
| MIN AMBIENT COOL (F) | 32 |
| MIN AMBIENT HEAT (F) | -0.4 |
| DRAIN CONNECTION SIZE | 3/4 |
| CONTROL TYPE | 24V Thermostat |
| COMPRESSOR MOTOR TYPE | Scroll |
| CONDENSER FAN MOTOR TYPE | ECM |
| CONDENSER FAN MOTOR HP | 1/3 |
| BLOWER MOTOR TYPE | ECM |
| BLOWER MOTOR HP | 1/4 |
| BLOWER MOTOR SPEEDS | 3 |
| METERING DEVICE | Piston |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES | 5 KW / 7.5 KW / 10 KW / 15 KW |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | 10 Year Parts, 10 Year Compressor |
| BASE WARRANTY | 5 Year Parts, 5 Year Compressor |
| REGISTERED PARTS WARRANTY | 10 Year Parts |
| BASE PARTS WARRANTY | 5 Year Parts |
| REGISTERED COMPRESSOR WARRANTY | 10 Year Compressor |
| BASE COMPRESSOR WARRANTY | 5 Year Compressor |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 52 |
| NET HEIGHT (IN) | 24.81 |
| NET WIDTH (IN) | 37.75 |
| NET WEIGHT (LBS) | 337 |
| GROSS DEPTH (IN) | 52.76 |
| GROSS HEIGHT (IN) | 25.81 |
| GROSS WIDTH (IN) | 38 |
| GROSS WEIGHT (LBS) | 351 |
