Product overview

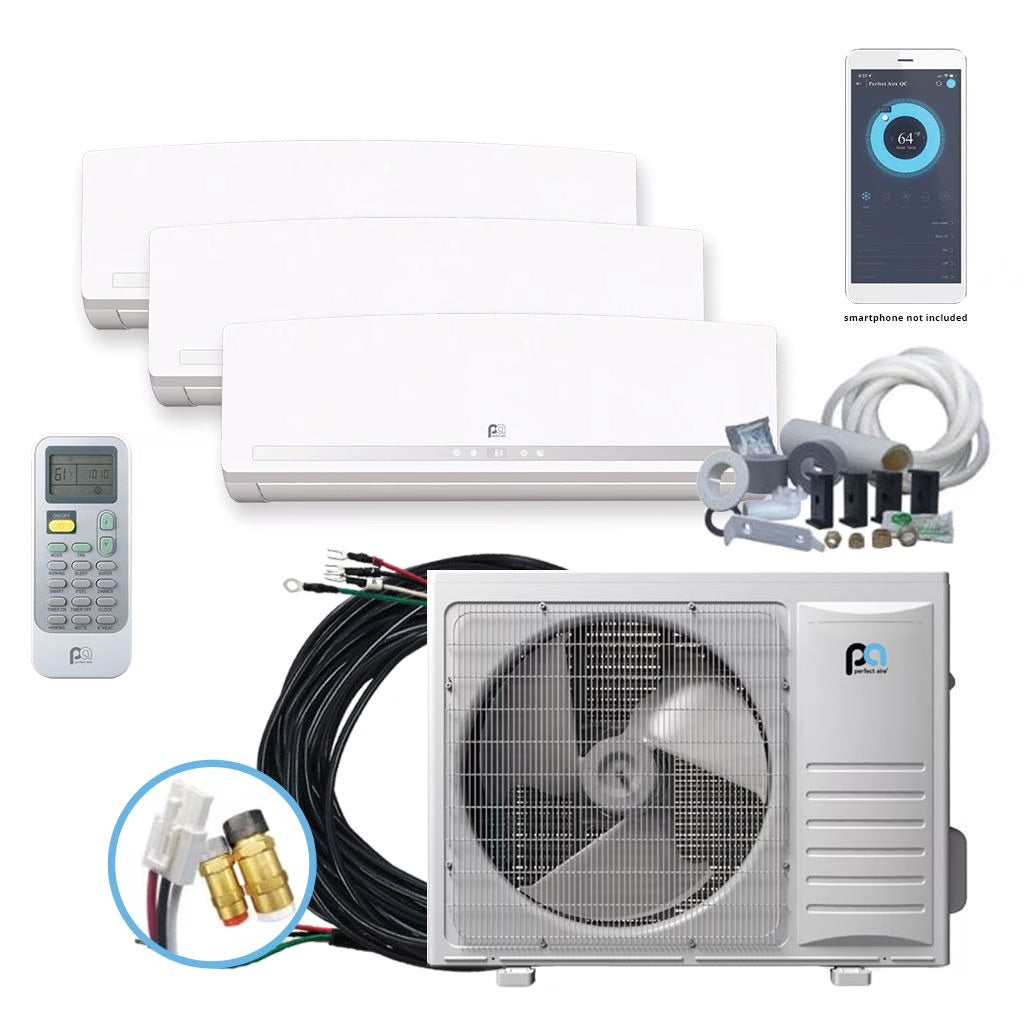

Perfect Aire DIY Multi-Zone 3 Zone 24,000 BTU (9K + 9K + 18K) Mini Split Air Conditioner Heat Pump System
The Perfect Aire 4th Gen DIY 24K Multi-Zone 3 Zone Mini Split System with Two 9K Air Handlers and one 18K Air Handler is the perfect do it yourself air conditioner and heat pump to heat and cool your home/office.
Each system uses one outdoor condenser/compressor unit connected to up to three independently-controlled indoor air handlers. Hyper Heat performance offers consistent warmth in extremely cold environments, down to -13°F. With no costly ducts to install, maintain or get in the way of your comfort, an energy efficient Quick Connect Mini-Split system gets up and running easily to deliver cooling or heating right where you need it.
FEATURES
- 24,000 BTU Multi Zone DIY Condenser with Heat Pump
- 22 SEER
- 100% DIY
- Provides efficient heating down to -13°F
- Golden Fin corrosion resistant coated coils
- Energy Star certified

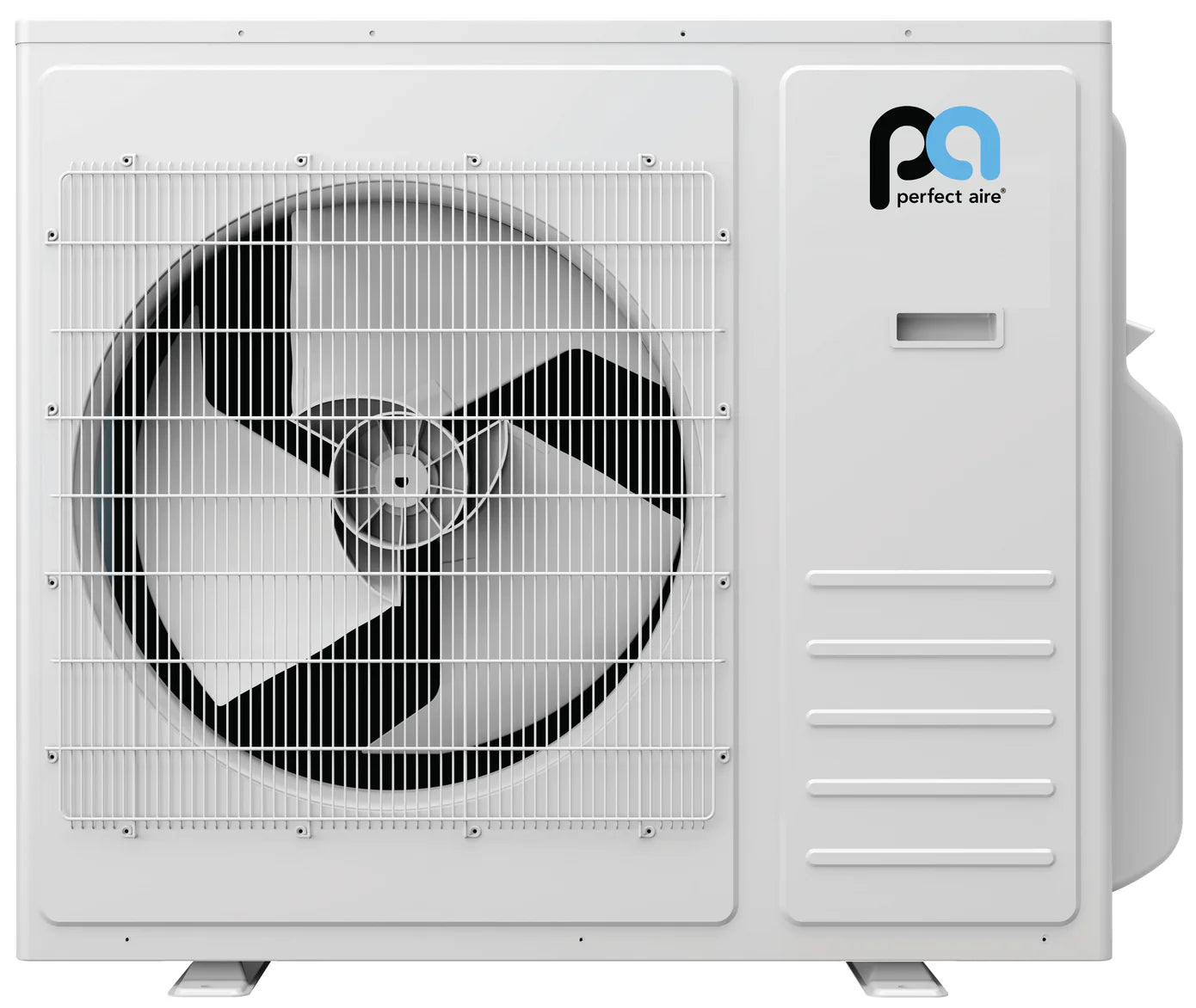

| Perfect Aire DIY 24,000 BTU 22 SEER Multi-Zone Heat Pump Condenser | |
|---|---|
| Weight | 159lbs |
| Manufacturer | Perfect Aire |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Refrigerant | R410A |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 33 |
| Width | 37.5 |
| Warranty | 1 Year Unit Replacement / 1 Year Compressor / 1 Year Parts |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|

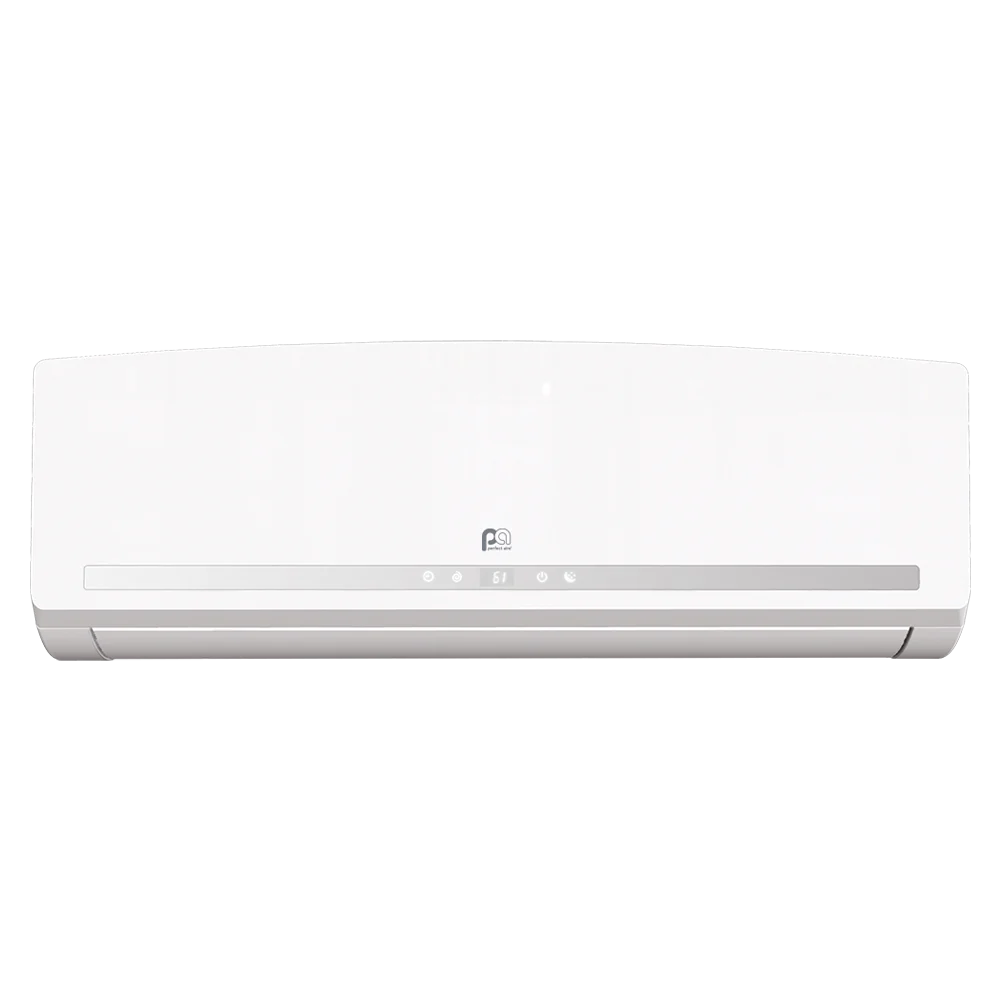

| Indoor unit(s) | 9K + 9K + 18K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 3 Zones |
| Efficiency | 22 SEER2 · ENERGY STAR certified |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | DIY Installation |
| Brand | Perfect Aire |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
Complete Your System
See it done
Watch the full DIY install
Every step, start to finish — most homeowners wrap a single zone in a weekend.
