Pioneer 24,000 (12K+12K) BTU 2-Ton Quantum Ultra 24 SEER2 Energy-Star 2 Zone Heat Pump 230V
Pioneer brand multi split heat pump system, complete set. System includes: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
- Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system)
- (x2) inside unit cooling capacity: 12,000 BTU/H nominal capacity, condensing system 27,000 BTU/H (Range: 4,500 minimum - 31,000 maximum) with 24 SEER2/12.0 EER2 efficiency
- Heating capacity: 28,000 BTU/H nominal (range 4,500 minimum - 33,000 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled
- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 75 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
What's Included:

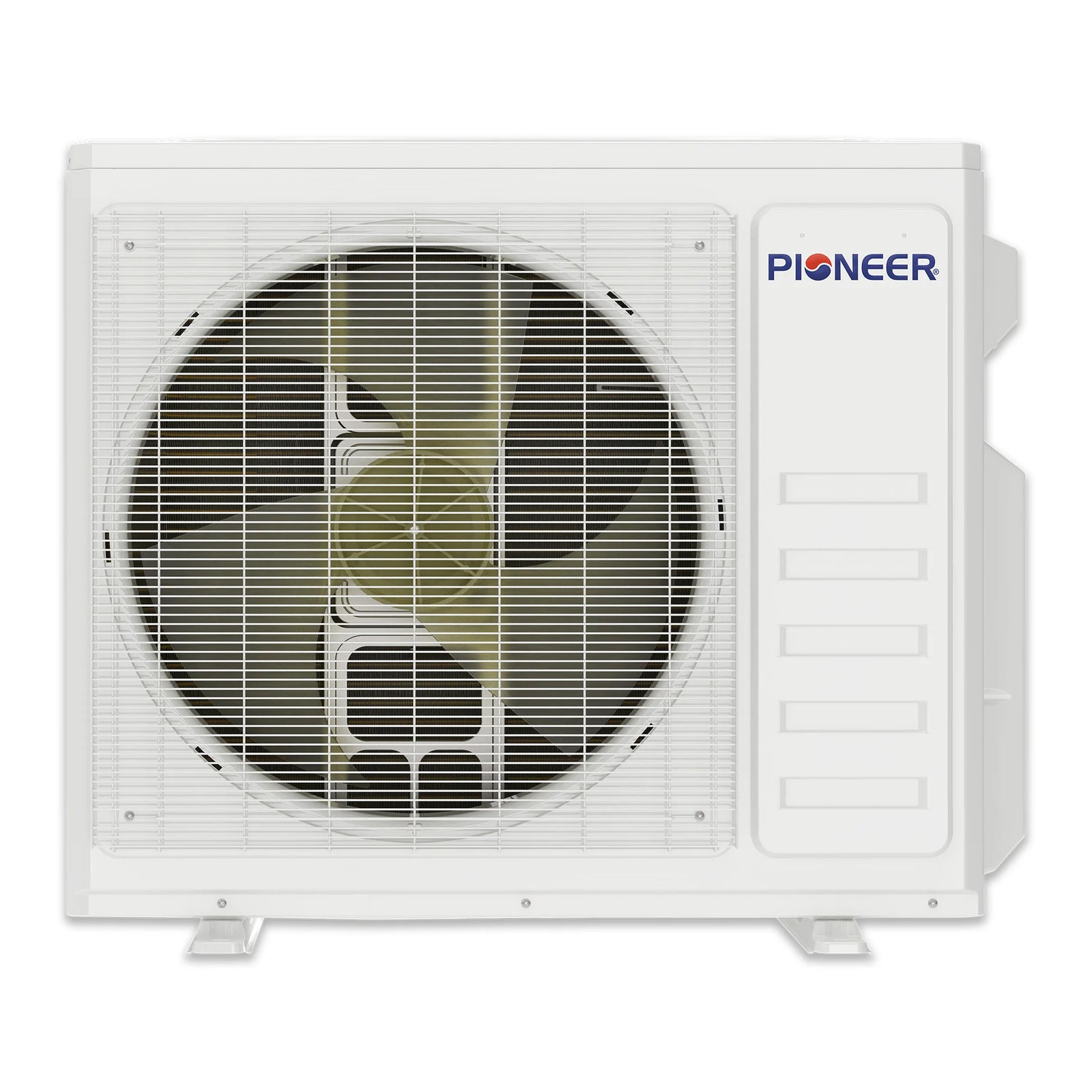

- 1 x Pioneer® 24,000 BTU Circuit Quantum Ultra Series 24 SEER2 Dual Zone Outdoor Air Conditioner Heat Pump 230V

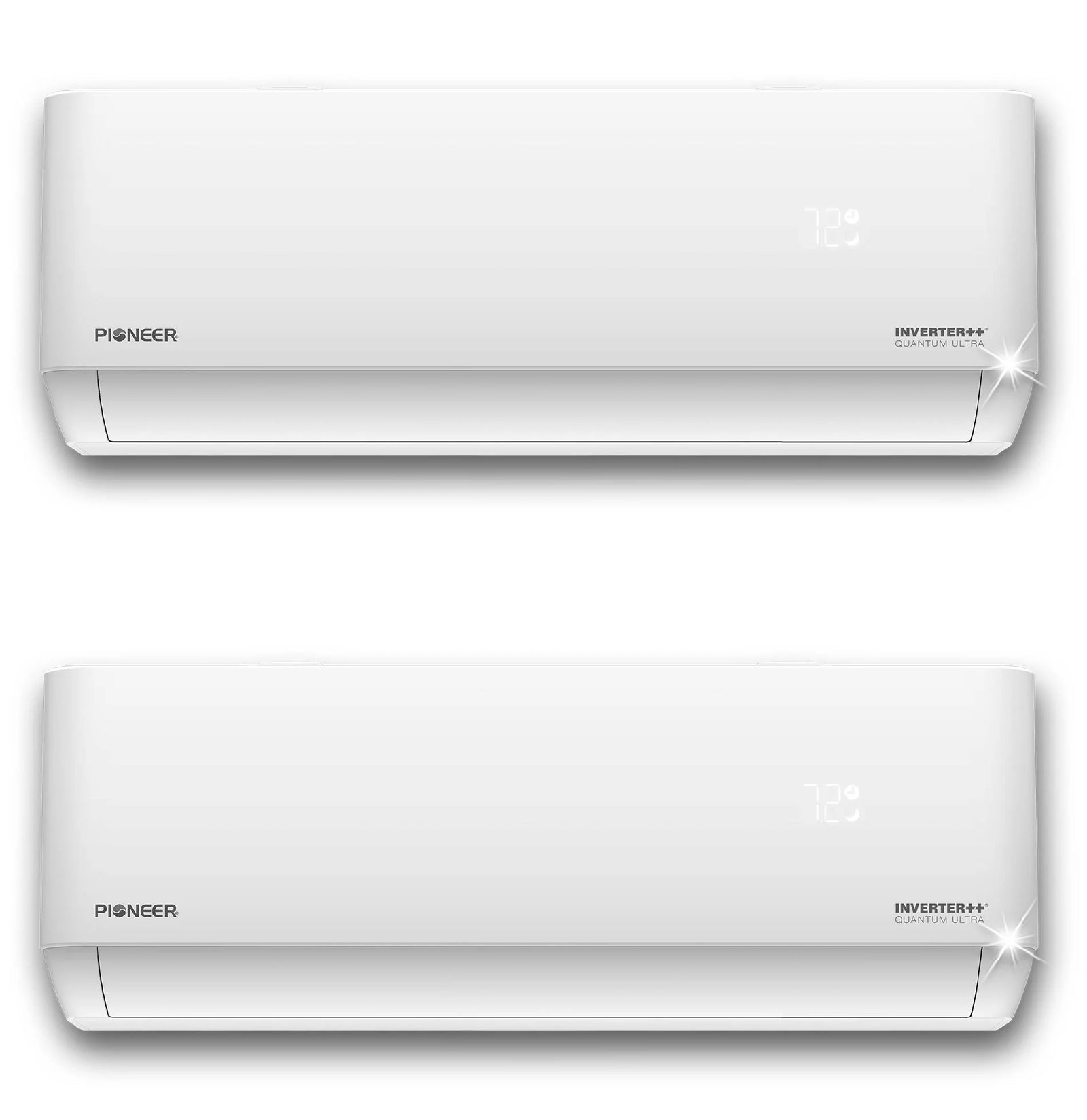

- 2 x Pioneer® Multi Zone 12,000 BTU Quantum Ultra Wall-Mounted Air Handlers

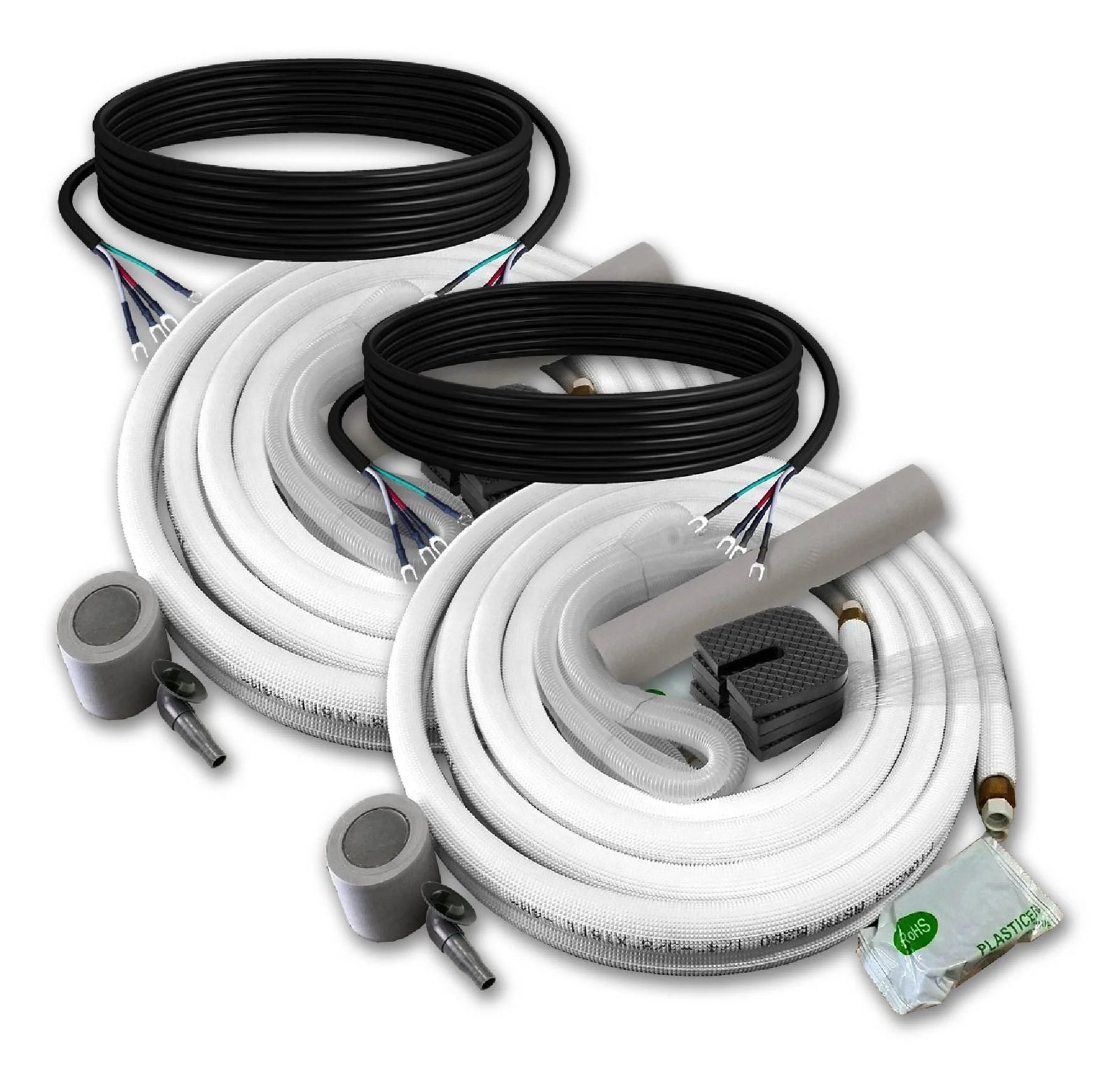

- 2 x Line Sets (Choose your length)

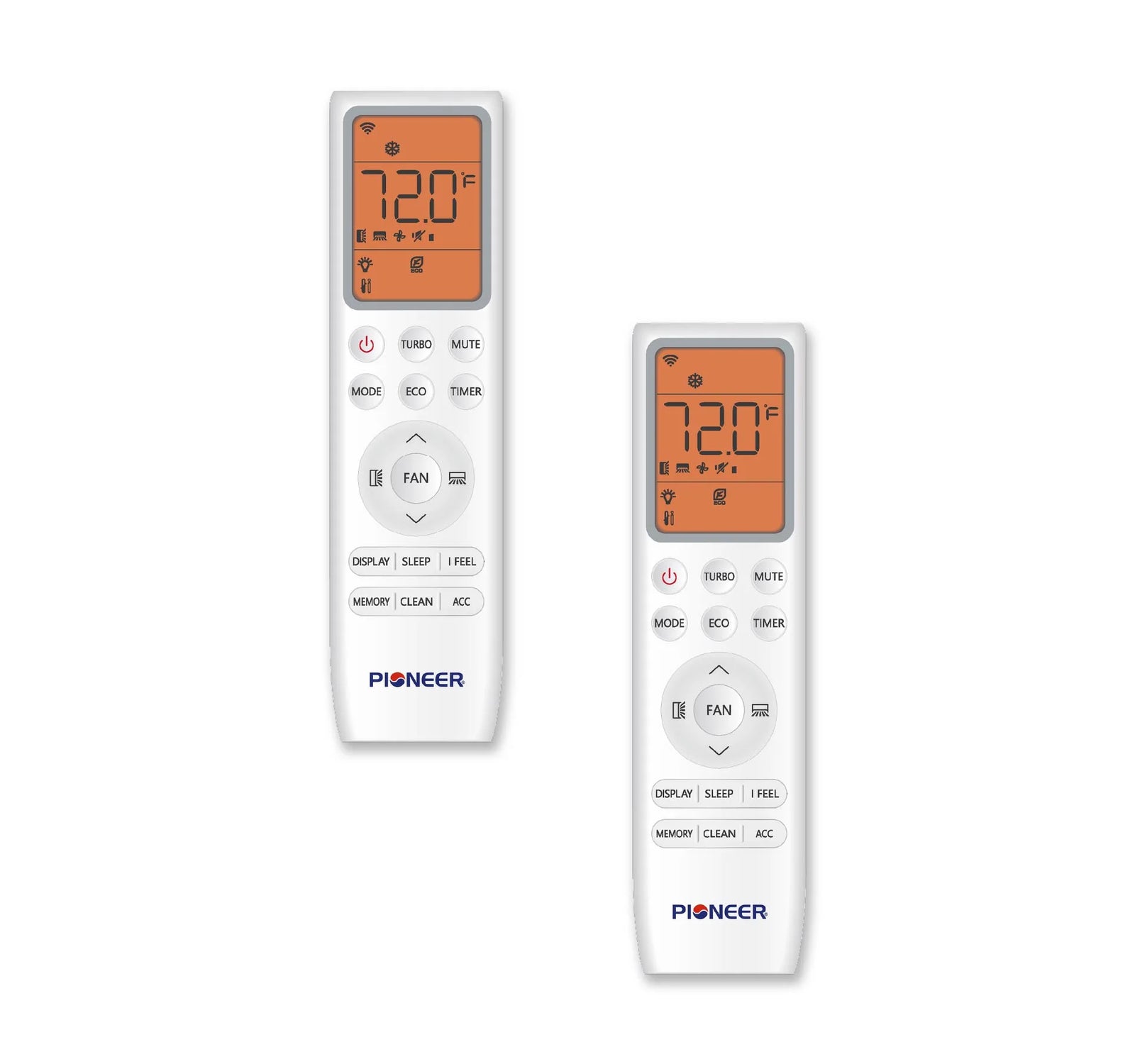

- 2 x Remote Controllers
System Manuals:
-
Technical Brochure
-
Service ManualÂ
- Submittal Sheet
- Installation Manual (Multi-Split Addendum) Â
- AHRI Certificate
- Energy Guide
Â
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|
| Indoor unit(s) | 12K + 12K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 2 Zones |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Pioneer |
