Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Full Set

Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

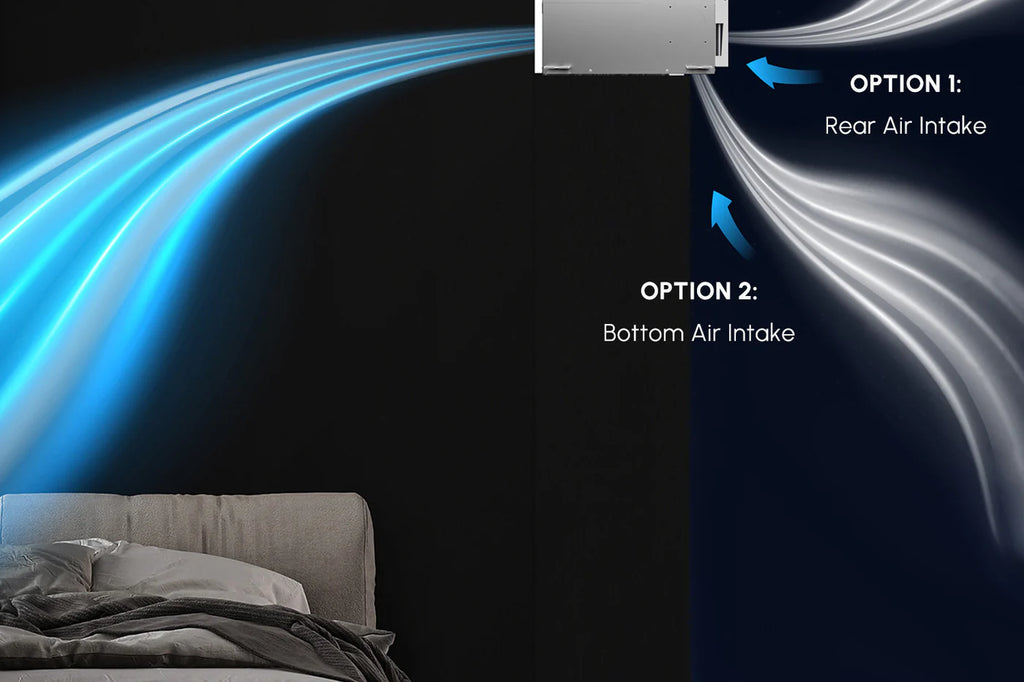

Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

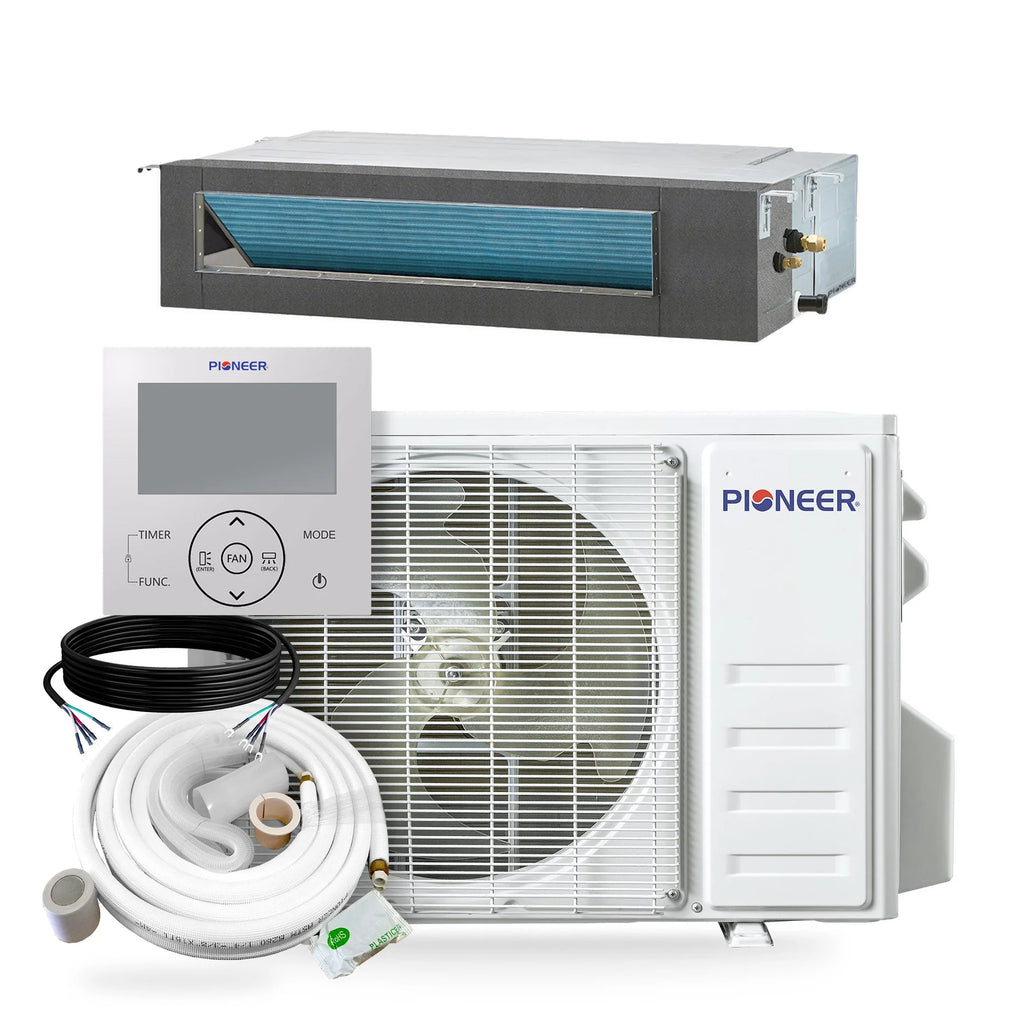

What's Included in Your Purchase:

• Indoor Unit

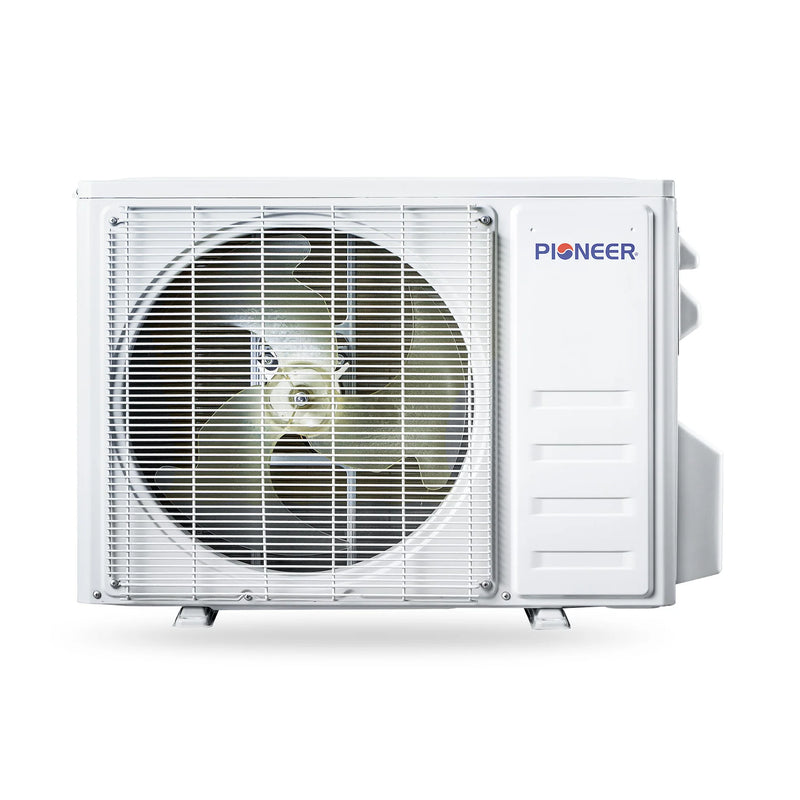

• Outdoor Unit

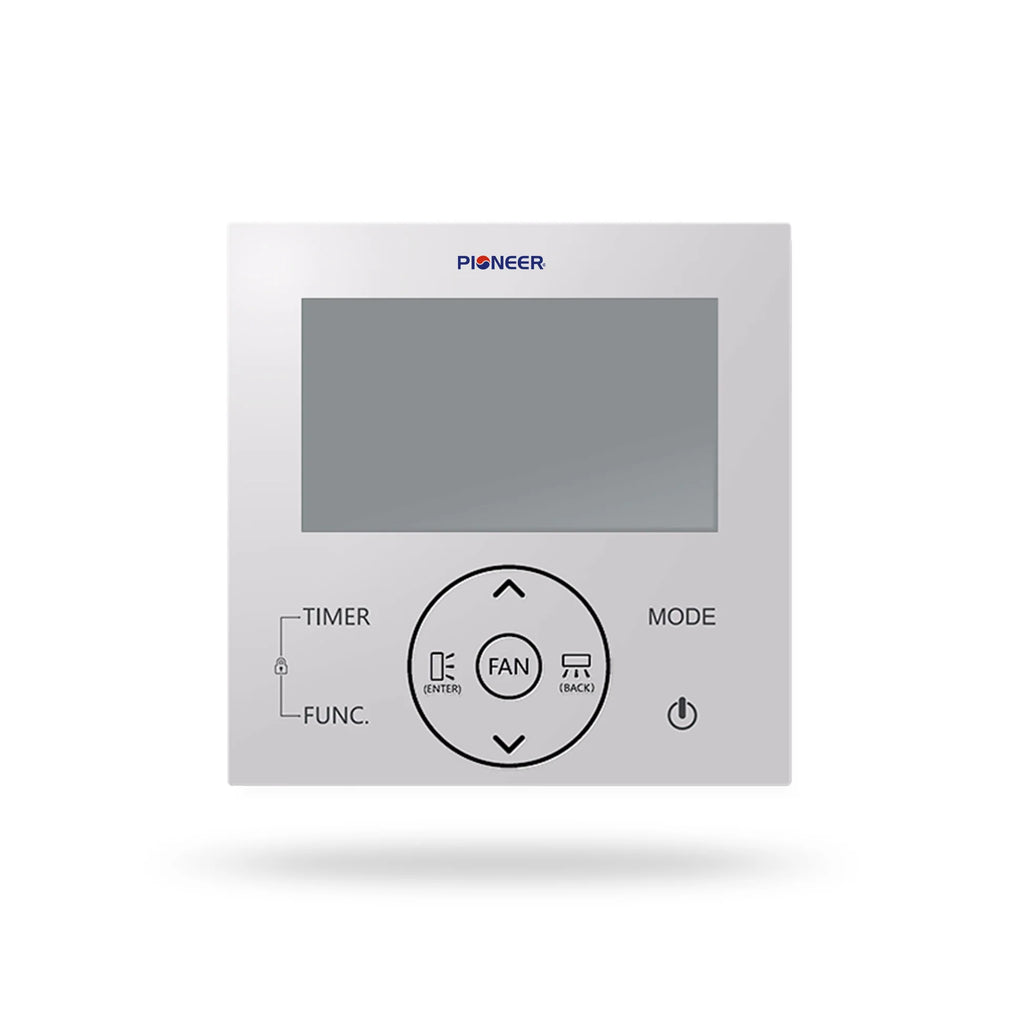

• Wire Remote Control

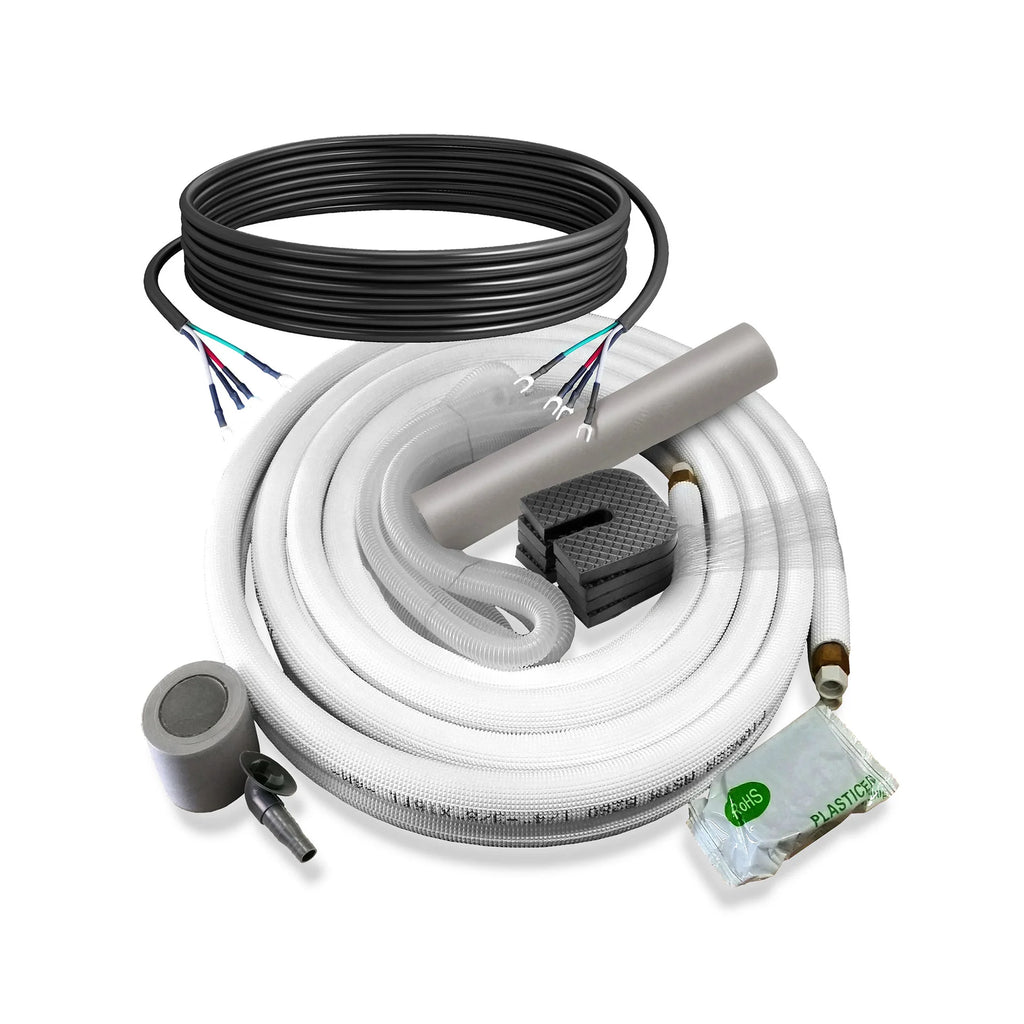

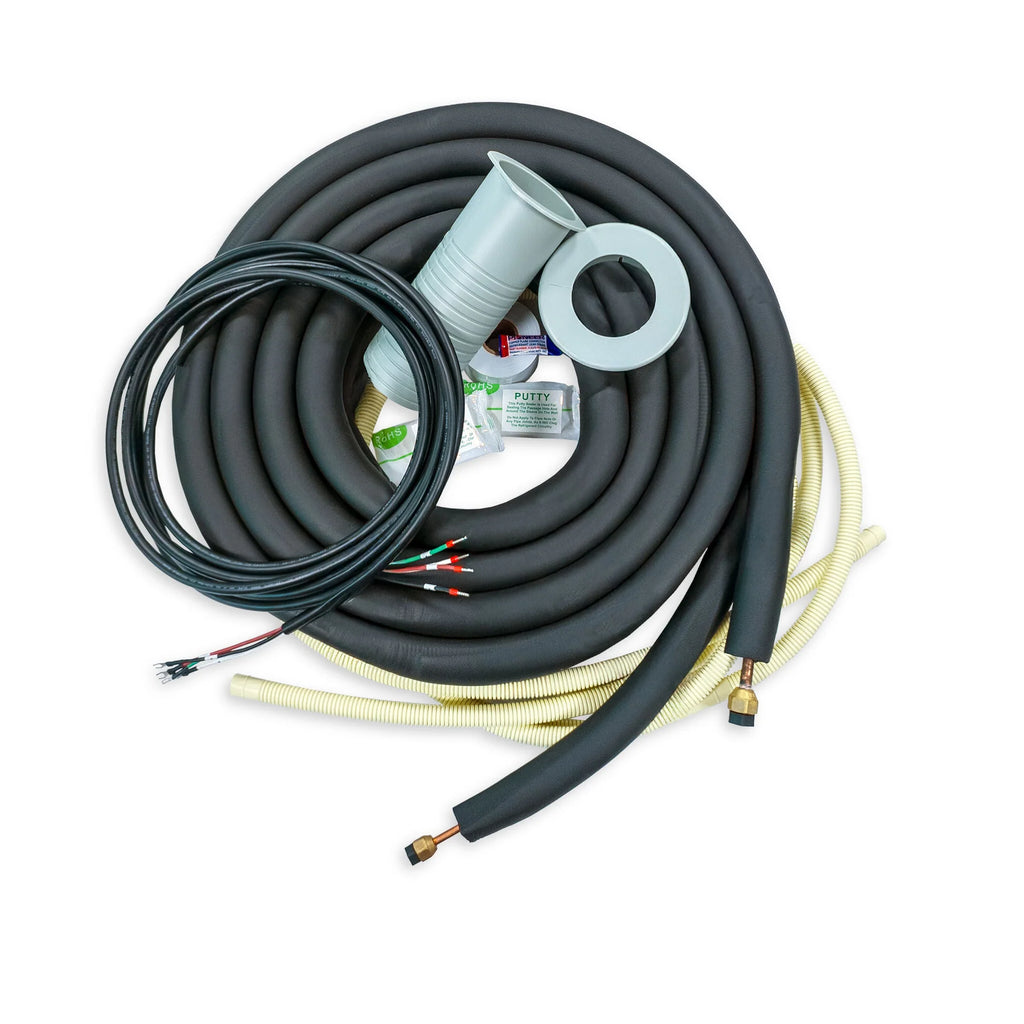

• Customizable Length Copper Lines
• Customizable Length Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Summary:

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 9,500 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 9.5 HSPF2 / 3.5 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features:

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Specifications:

Power Supply: 208~230V, 60Hz, 1Ph

Cooling Rated Capacity: 9,500 BTU/h

Cooling Capacity Range: 2,000~10,400 BTU/h

Cooling SEER2: 20.5 BTU/W.h

Cooling EER2: 12.5 BTU/W.h

Heating Rated Capacity: 9,500 BTU/h

Heating Capacity Range: 2,500~12,300 BTU/h

Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h

Heating C.O.P.2 (47°F/5°F): 3.5 / 1.9 W/W

Refrigerant Type: R454b

Suitable Area: 250~350 Sq.F

AHRI Reference: 217048762

Indoor Unit

Part Number: RT009GLSILCFHG

Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/182 CFM

Sound Level (Turbo/Hi/Med/Lo/Mute): 43/41/39 dB(A)

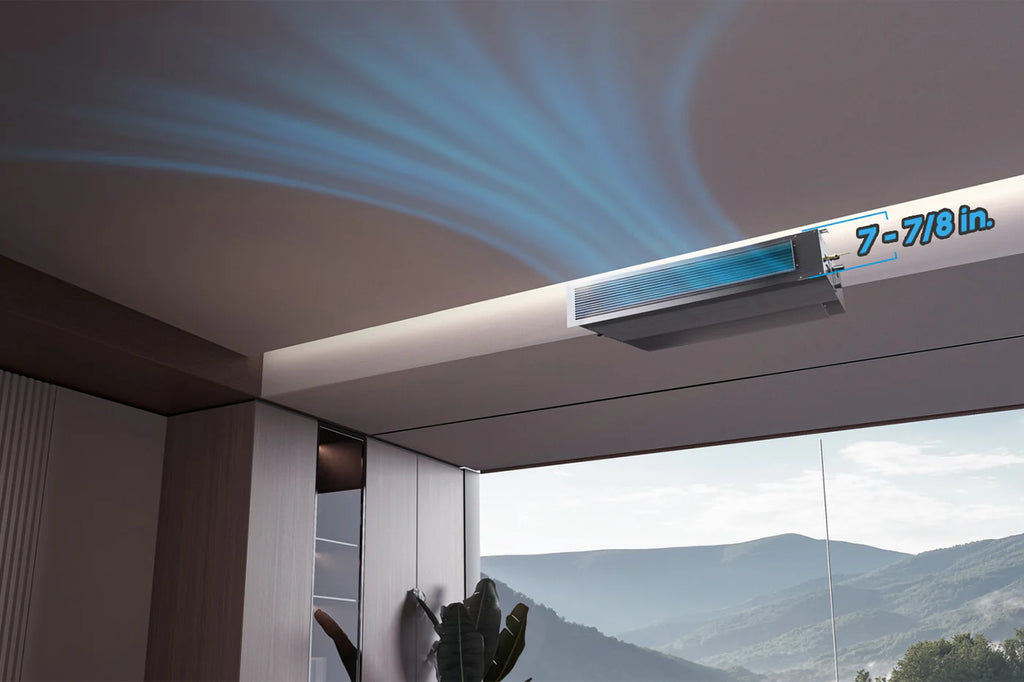

Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches

Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches

Net / Gross Weight: 33.1 / 40.8 lbs.

Outdoor Unit

Part Number: YN009GLSI24RPG

Breaker Needed: 15A (double-pole)

Sound Level: 50 dB(A)

Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches

Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches

Net / Gross Weight: 52.7 / 57.1 lbs.

Manuals & Documents

Technical Brochure

User & Installation Manual

Service Manual

Disassembly Manual

Exploded Parts Diagram
