Product overview
Senville 36,000 BTU (12K + 12K + 18K) 23 SEER2 Tri-Zone Mini Split Air Conditioner Heat Pump - 230V

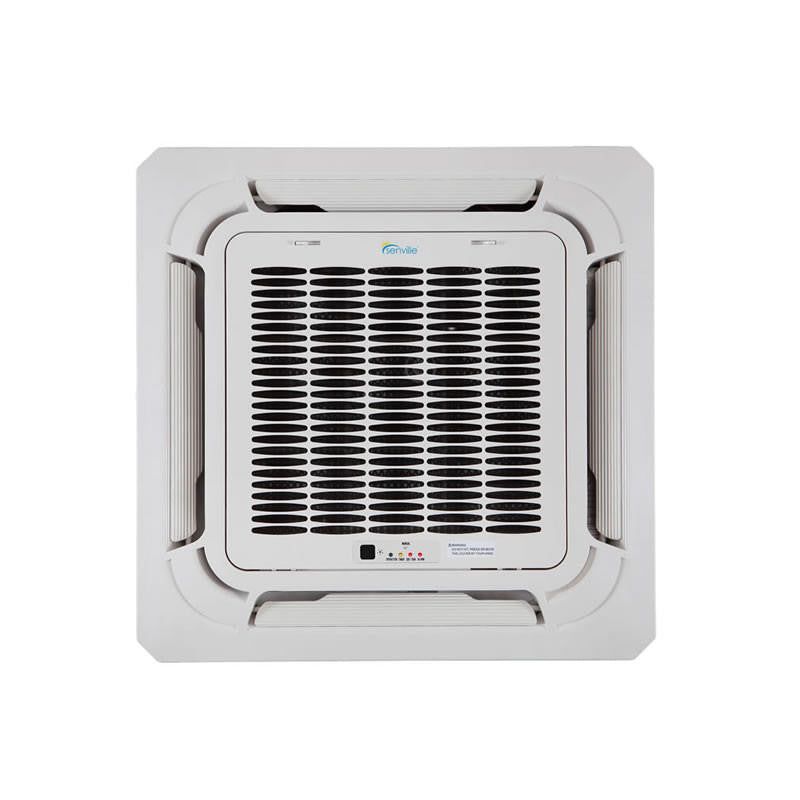

This 36,000 BTU Tri Zone (3 Zone) Ceiling Cassette Air Conditioner by Senville is one of the most advanced and high-end split units on the market. Providing you with a variety of features including, SEER2 23, with Air Conditioner & Heat Pump, Turbo Mode, Dehumidification, Timer Function, Follow Me Function and much more.
With SEER2 Ratings as high as 23, the Senville Aura surpasses many of the top name brands when it comes to efficiency. Enjoy the benefit of a cool climate controlled room, with a simple and easy to install air conditioner. Additionally, the 36,000 BTU Senville Aura offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, ensuring the most comfortable overall experience.
Features:
- 23 SEER
- With Heat Pump (Up to -30C / -22F)
- Whisper Technology (Ultra Quiet)
- Refrigerant Leak Detection
- Inverter Technology
- Vertical Swing Function
- Built-In De-humidification Function

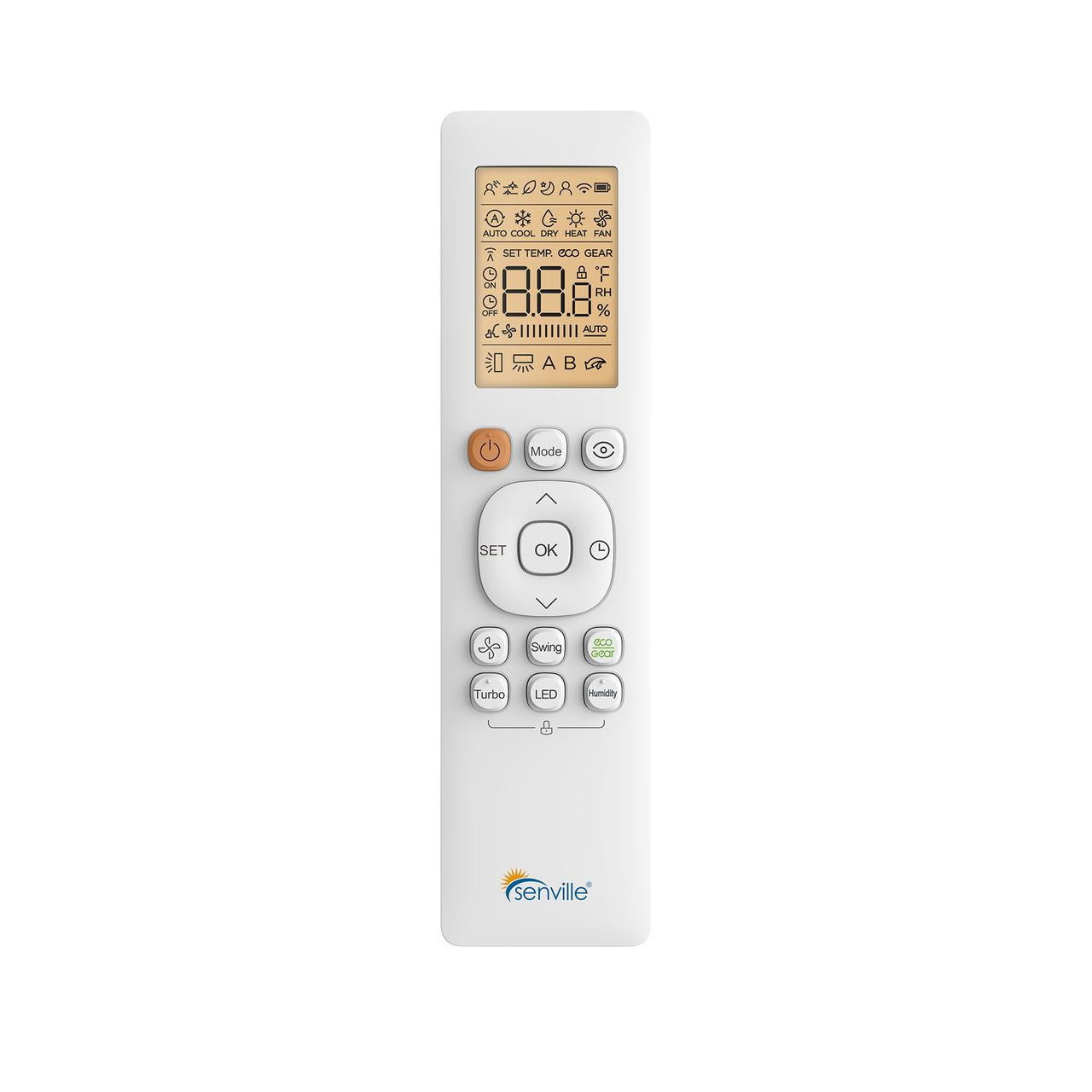

- Follow Me Function (Remote with Built-In Thermostat)
- Low Ambient Cooling (Up to -15C / 4F)
- Self-Cleaning Mode
- PTC Heat Belt and Pan
- Bucket Free Outdoor Design
- Self Diagnosis System
Documentation and Certifications:
- UL Certified
- AHRI Certified (View Certificate)

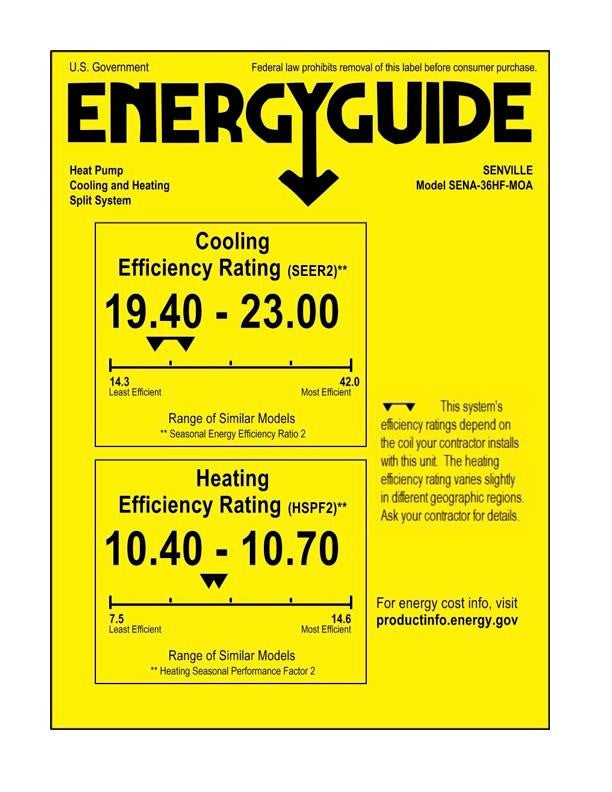

- EnergyGuide (View EnergyGuide Label)
- Installation Manual (View Installation Manual)
Specs:
| Model Number | SENA-36HF-MOA |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2-4 |

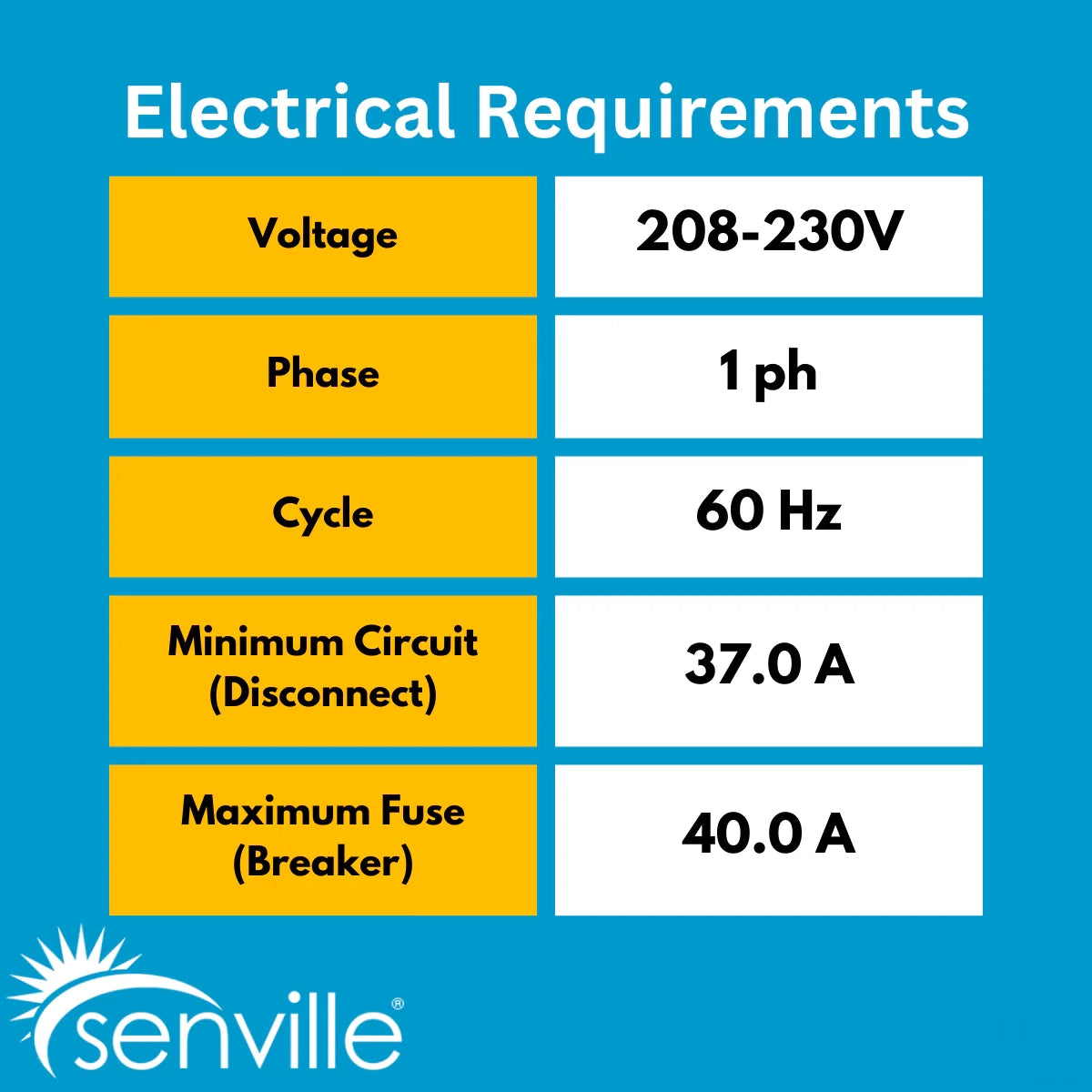

| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 13 |
| Cooling Capacity (BTU) | 36000 |
| Cooling Range (BTU) | 9000~43000 |
| Cooling Input Range (W) | 600~4000 |
| Cooling Current Range (A) | 5.2~17.8 |
| Heating Capacity | 36000 |
| Heating Range (BTU) | 10000~44000 |
| Heating Input Range (W) | 600~3750 |
| Heating Current Range (A) | 5.2~16.6 |
| HSPF2-4Â Â Â Â Â | 10.7 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Outdoor Air Flow (Max) CFM | 3037.2 |
| Outdoor Noise Level dB | 65 |
| Outdoor Dimensions (WxDxH) (in.) | 38.58 x 16.34 x 38.39 |
| Outdoor Weight | 211.86 Lbs |
| Minimum Outdoor Heating Temperature |  -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 134.04 oz |
| Refrigerant Pre-charge | 100 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
Â
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 36,000 |
|---|---|
| Indoor unit(s) | 12K + 12K + 18K |
| Coverage area | 1,550 Sq Ft. |
| Zones / rooms | 3 Zones |
| Power | 230 Volt |

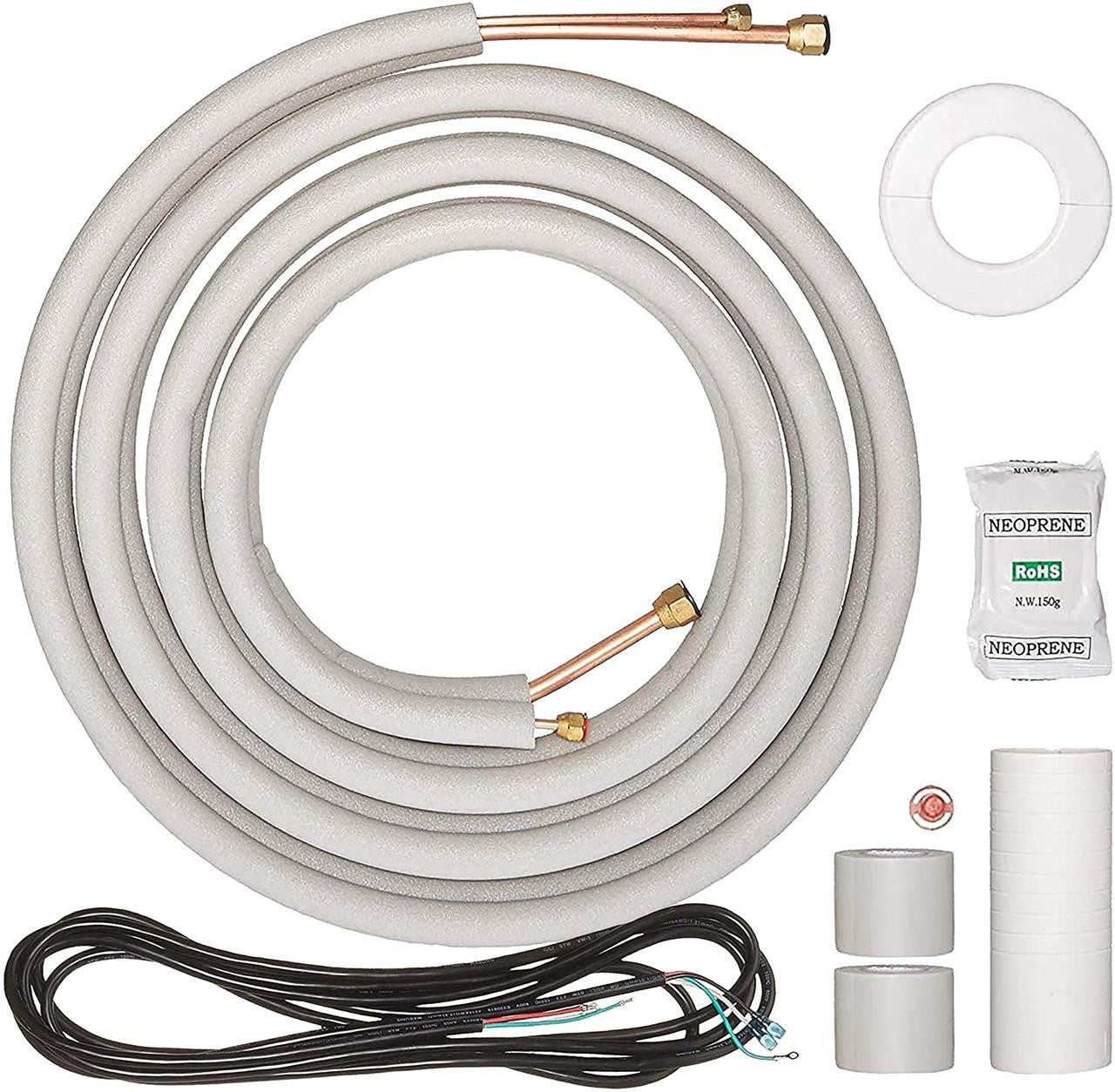

| Line set | Custom |
| Mount type | Ceiling |
| Installation | Professional Installation |
| Brand | Senville |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
