Description
Senville AURA 48,000 BTU (24K+24K) Dual Zone Mini Split Air Conditioner - 230V

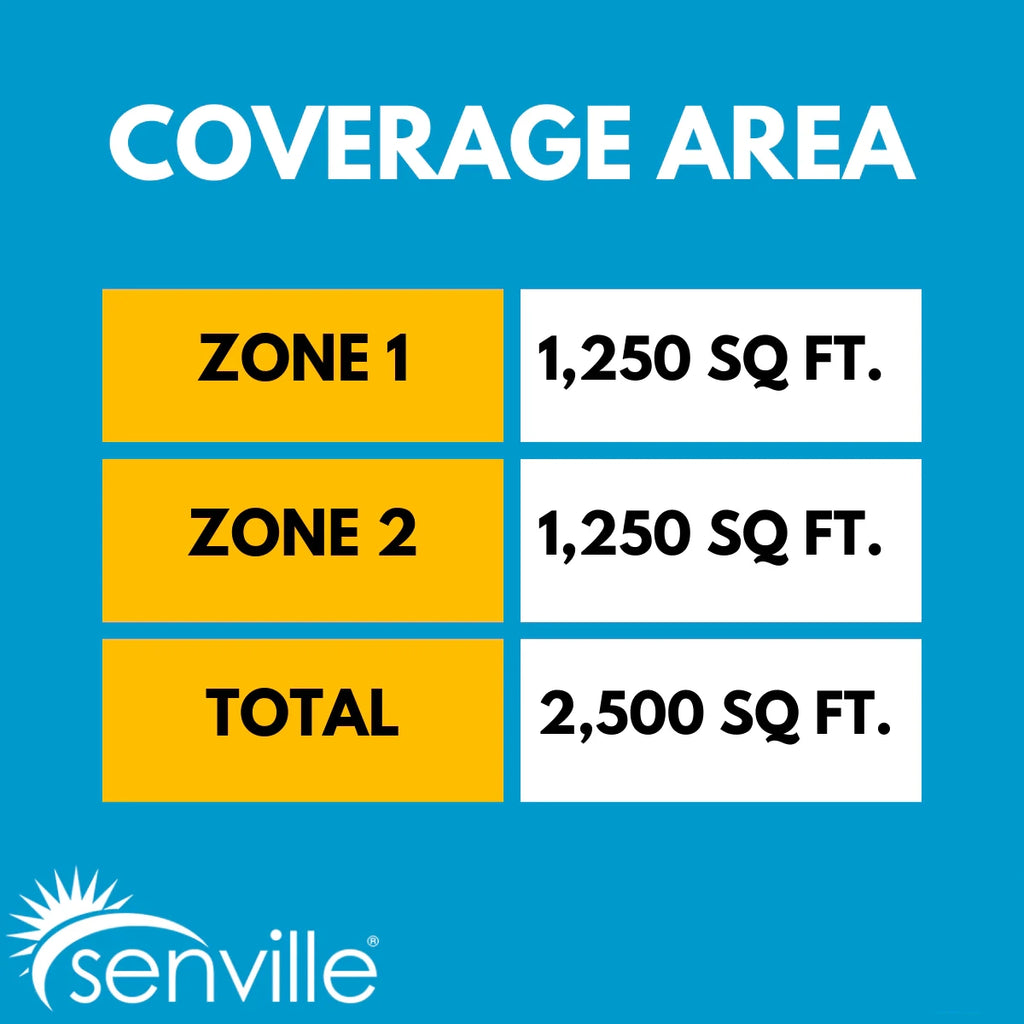

Senville SENA-48HF/D is a high-efficiency 48000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business. Recommended for 2000–2500 sq. ft.
System is pre-charged with R454B refrigerant for up to 125 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:
- 23 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Ultra-Quiet Operation
- WiFi Enabled Smart Control
What's Included:
- 2 Indoor Units (24,000 BTU each)
- Outdoor Unit
- Wireless Remote Controls
- Alexa USB Kit
- 16 ft. Installation Kits (x2)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-48HF-MOA |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 2-5 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 23 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 47000 |
| Cooling Range (BTU) | 12000~57000 |
| Cooling Input Range (W) | 800~5400 |
| Cooling Current Range (A) | 7~24 |
| Heating Capacity (BTU) | 49000 |
| Heating Range (BTU) | 13000~57000 |
| Heating Input Range (W) | 800~5200 |
| Heating Current Range (A) | 7~23 |
| HSPF2-4 | 11 |
| HSPF2-5 | 9 |
| COP W/W | 3.7 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Outdoor Air Flow (Max) CFM | 4502.8 |
| Outdoor Noise Level dB | 65 |
| Outdoor Dimensions (WxDxH) (in.) | 37.48 x 16.34 x 52.48 |
| 24K BTU Wall-Mounted Air Handler Dimensions (W x D x H) | 46.85 x 11.20 x 14.59 in. |
| Outdoor Weight | 246.47 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 151.68 |
| Refrigerant Pre-charge | 125 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
