Product overview

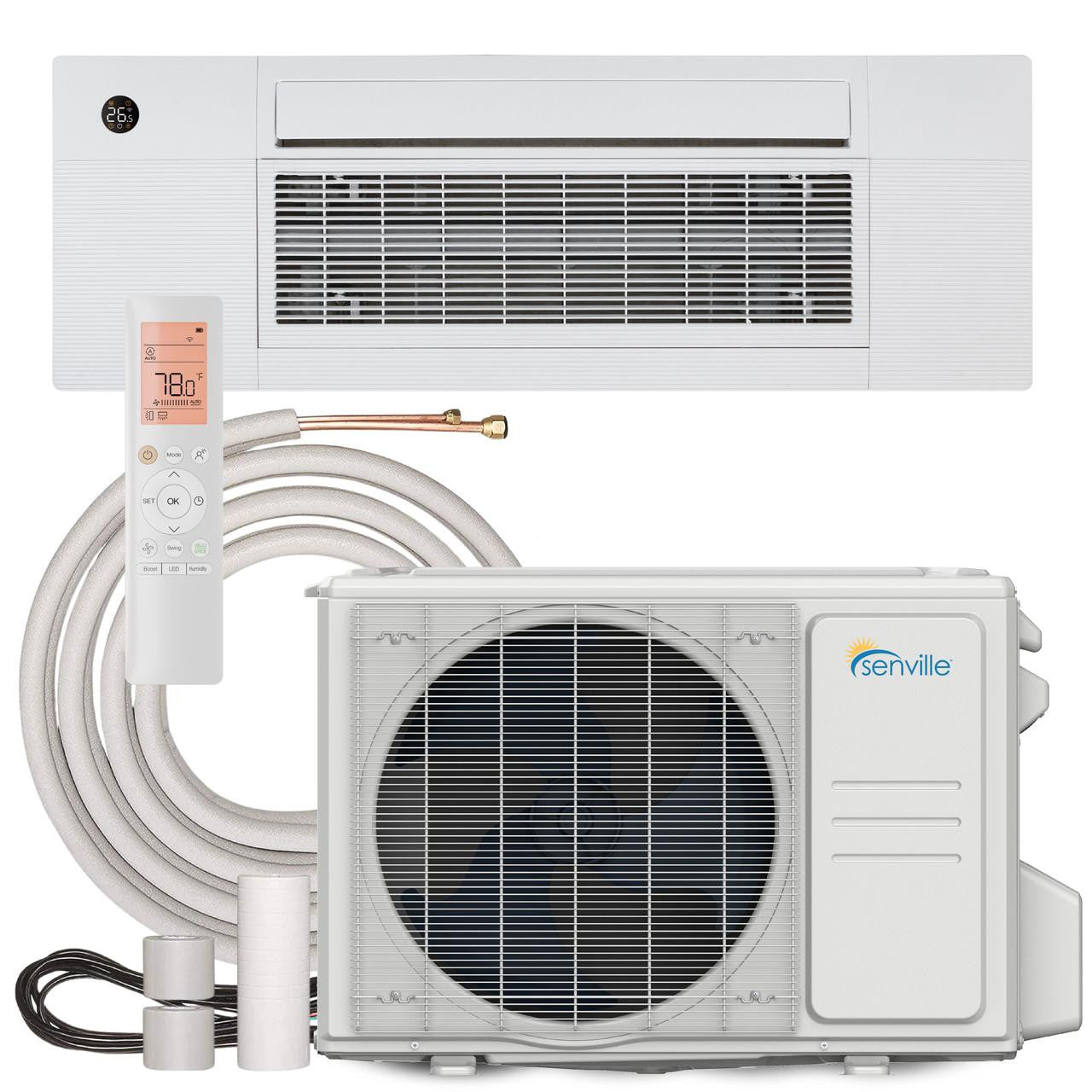

Senville AURA 6,000 BTU 22 SEER2 Cassette Mini Split Heat Pump Air Conditioner - 230V
The Senville Aura 6,000 BTU Ductless Air Conditioner & Heat Pump delivers high-efficiency cooling and heating with 22 SEER2, ENERGY STAR certification, and ultra-quiet performance. Ideal for medium-sized spaces seeking efficient climate control all year round.
Features:
- 22 SEER2 Efficiency
- Heating down to -22°F (-30°C)
- ENERGY STAR Certified
- Whisper Technology (Ultra Quiet)
- Refrigerant Leak Detection
- Inverter Technology
- Silver Ion Filter (Anti-Microbial)
- Vertical Swing & Follow Me Remote
- Built-In De-humidification Function
- Self-Cleaning Mode

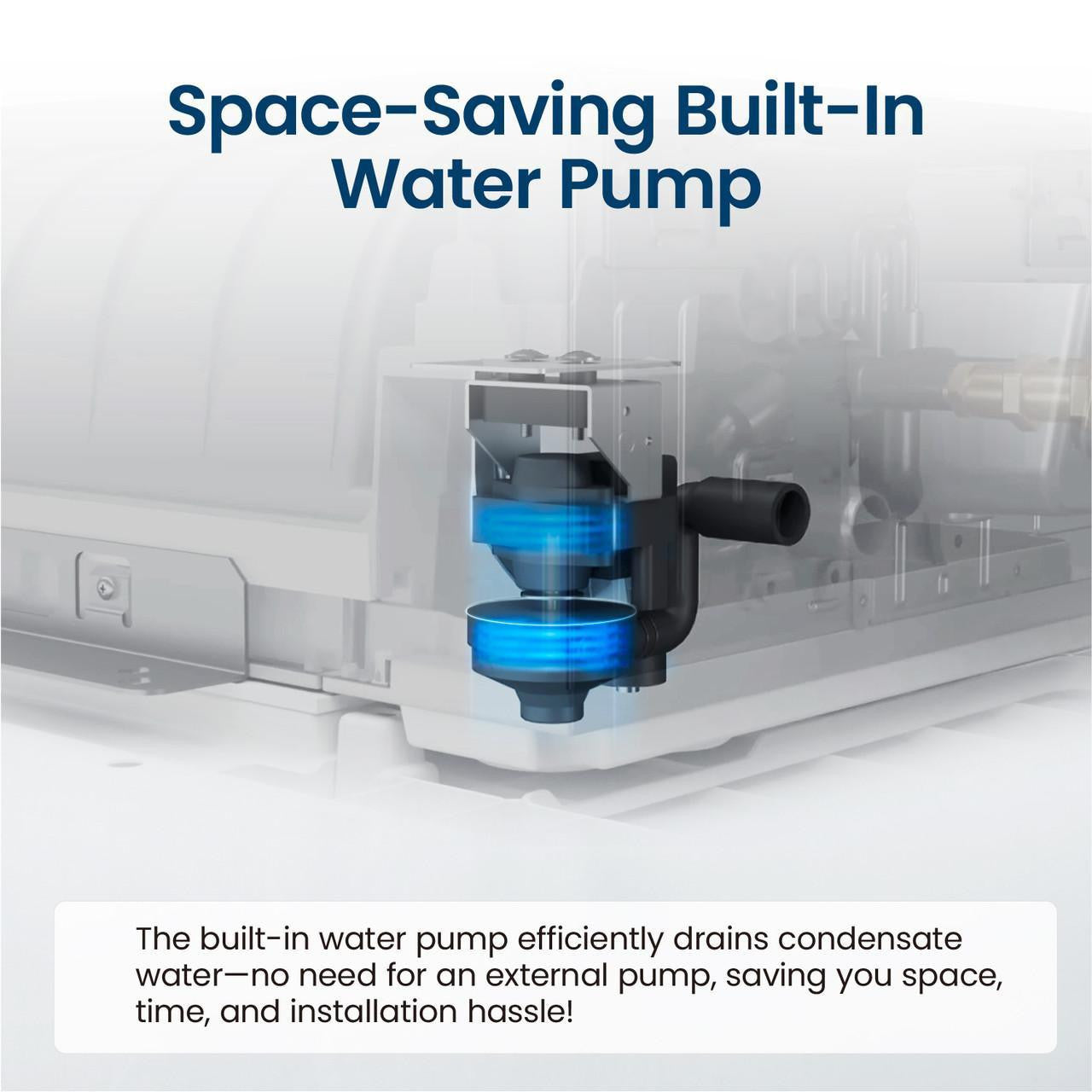

- PTC Heat Belt & Pan, Bucket-Free Design
- Self Diagnosis System
Documentation and Certifications:
- ENERGY STAR Certified
- UL Certified
- AHRI Certified (View Certificate)
- EnergyGuide (View EnergyGuide Label)
- Installation Manual (View Installation Manual)
- Service Manual (View Service Manual)
Specifications:
| Specification | SENA-06HF-1WC | SENA-09HF-1WC | SENA-12HF-1WC | SENA-18HF-1WC |
|---|---|---|---|---|
| Power Supply (V, Ph, Hz) | 208/230V, 60Hz, 1Ph | 208/230V, 60Hz, 1Ph | 208/230V, 60Hz, 1Ph | 208/230V, 60Hz, 1Ph |
| Cooling Capacity (BTU/h) | 6500 | 9000 | 12000 | 16700 |
| SEER2 | 22.0 | 24.0 | 23.0 | 20.6 |
| EER2 | 15 | 14.6 | 13 | 12.5 |
| Heating Capacity (BTU/h) | 7400 | 10900 | 12500 | 20000 |
| HSPF2-4 | 12.0 | 12.1 | 10.0 | 12.2 |
| COP (w/w) | 3.75 | 3.71 | 3.56 | 3.01 |

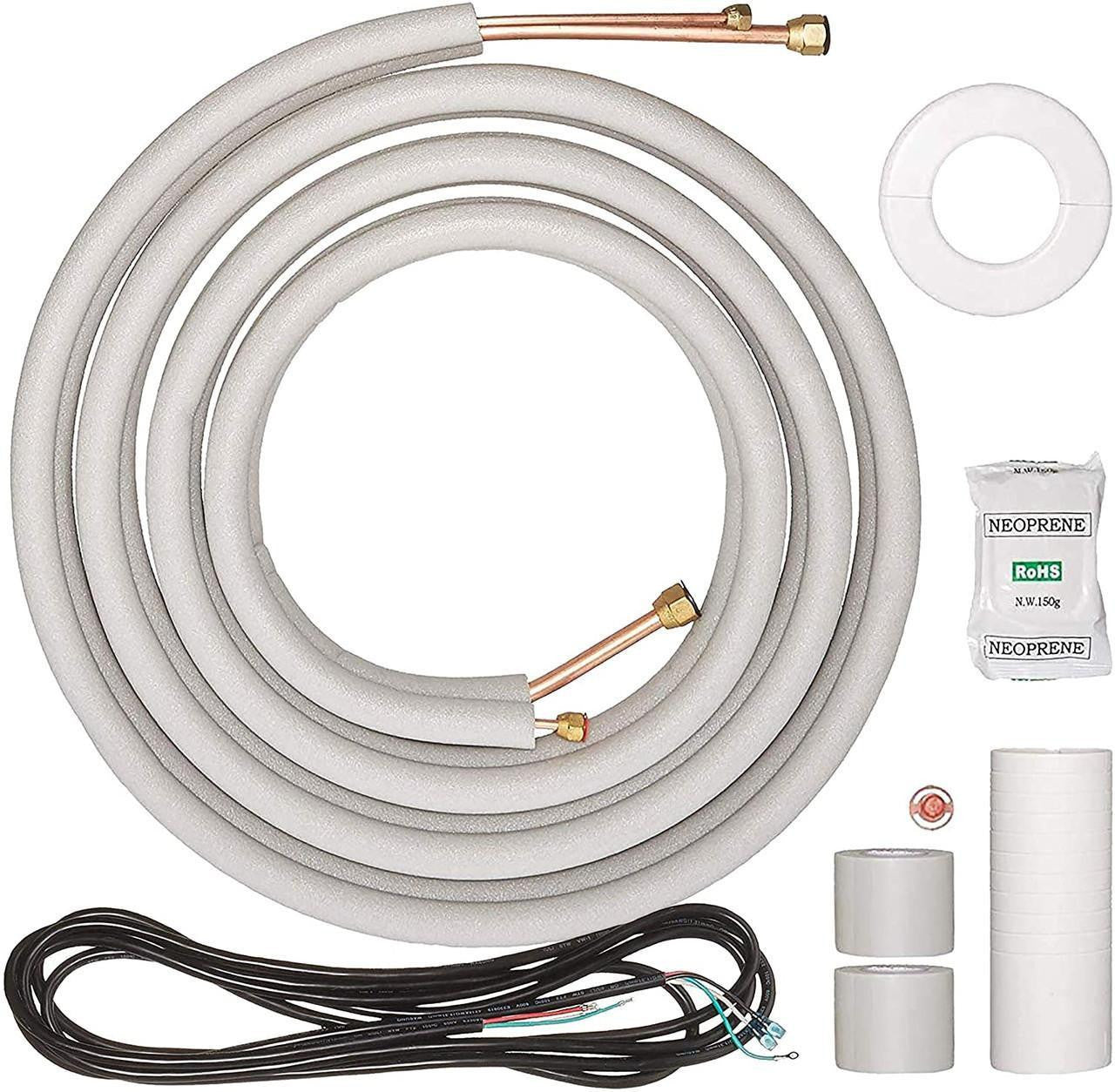

| Liquid Line (inch) | 1/4" | 1/4" | 1/4" | 1/4" |
| Gas Line (inch) | 3/8" | 3/8" | 3/8" | 1/2" |

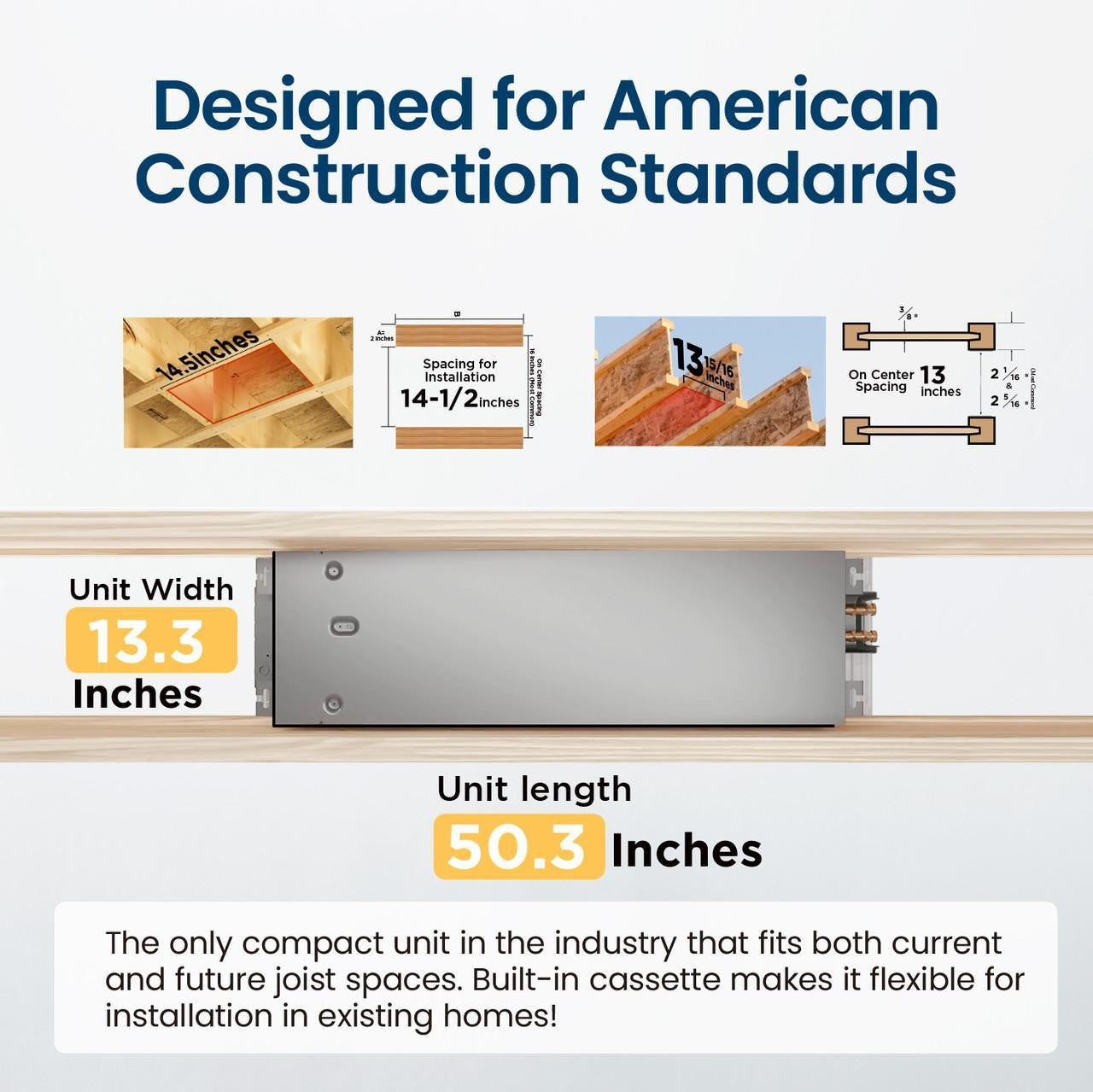

| Indoor Dimensions (WxDxH) | 50.31 x 13.19 x 8.98 | 50.31 x 13.19 x 8.98 | 50.31 x 13.19 x 8.98 | 50.31 x 13.19 x 8.98 |

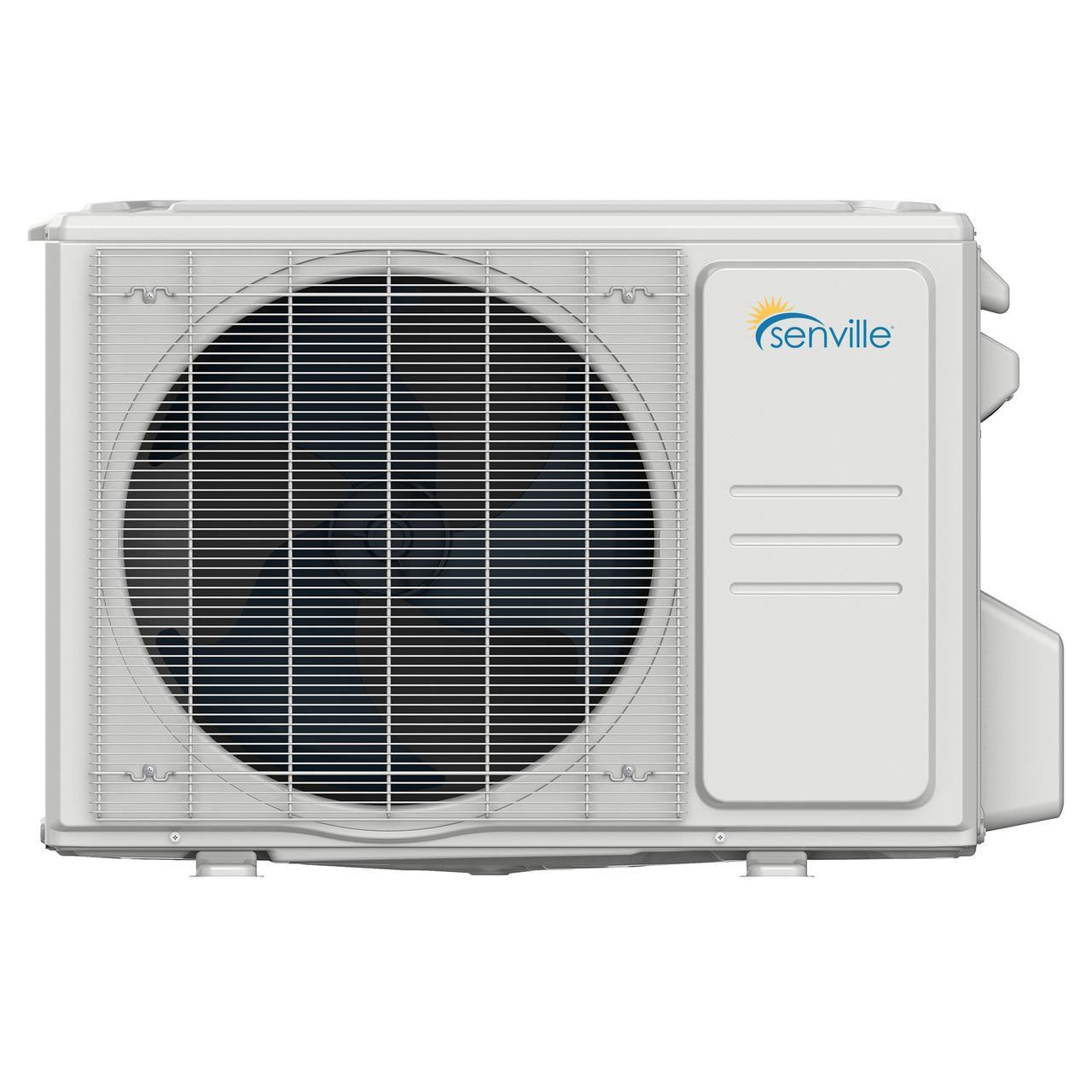

| Outdoor Dimensions (WxDxH) | 30.12 x 11.93 x 21.85 | 31.69 x 12.99 x 21.81 | 31.69 x 12.99 x 21.81 | 35.04 x 13.46 x 26.50 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 6,000 |
|---|---|
| Indoor unit(s) | 6k |
| Coverage area | 400 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 230 Volt |

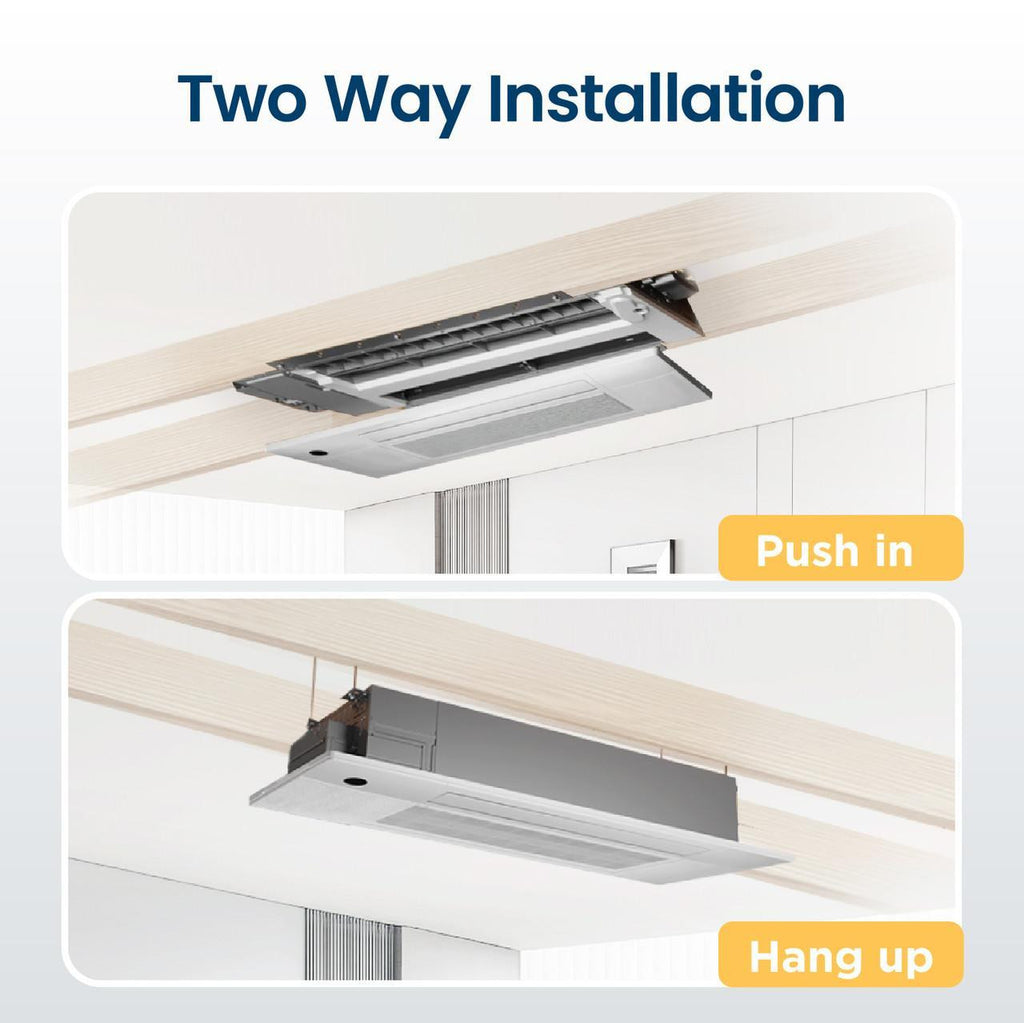

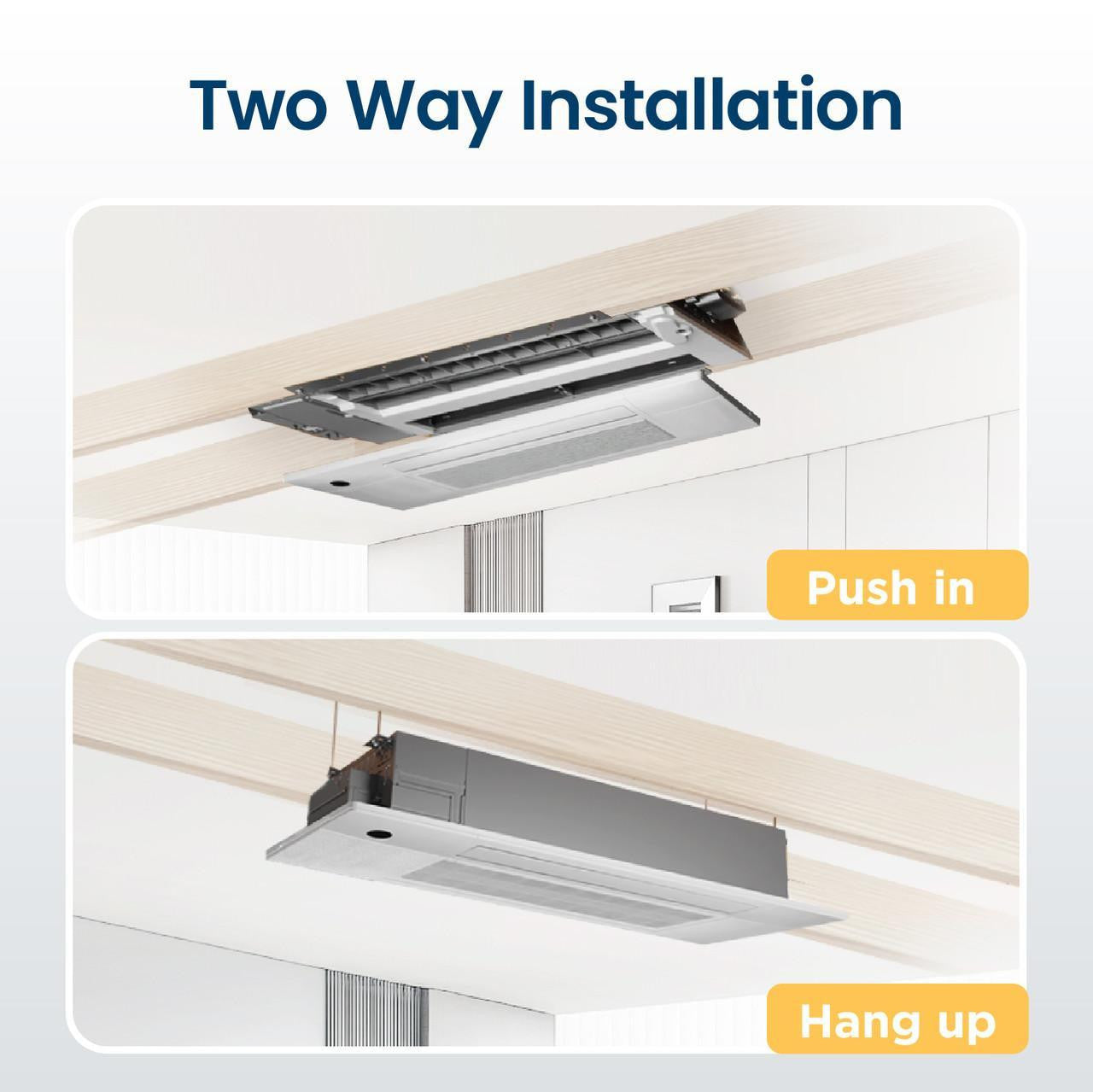

| Mount type | Ceiling |
| Installation | DIY |
| Brand | Senville |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
