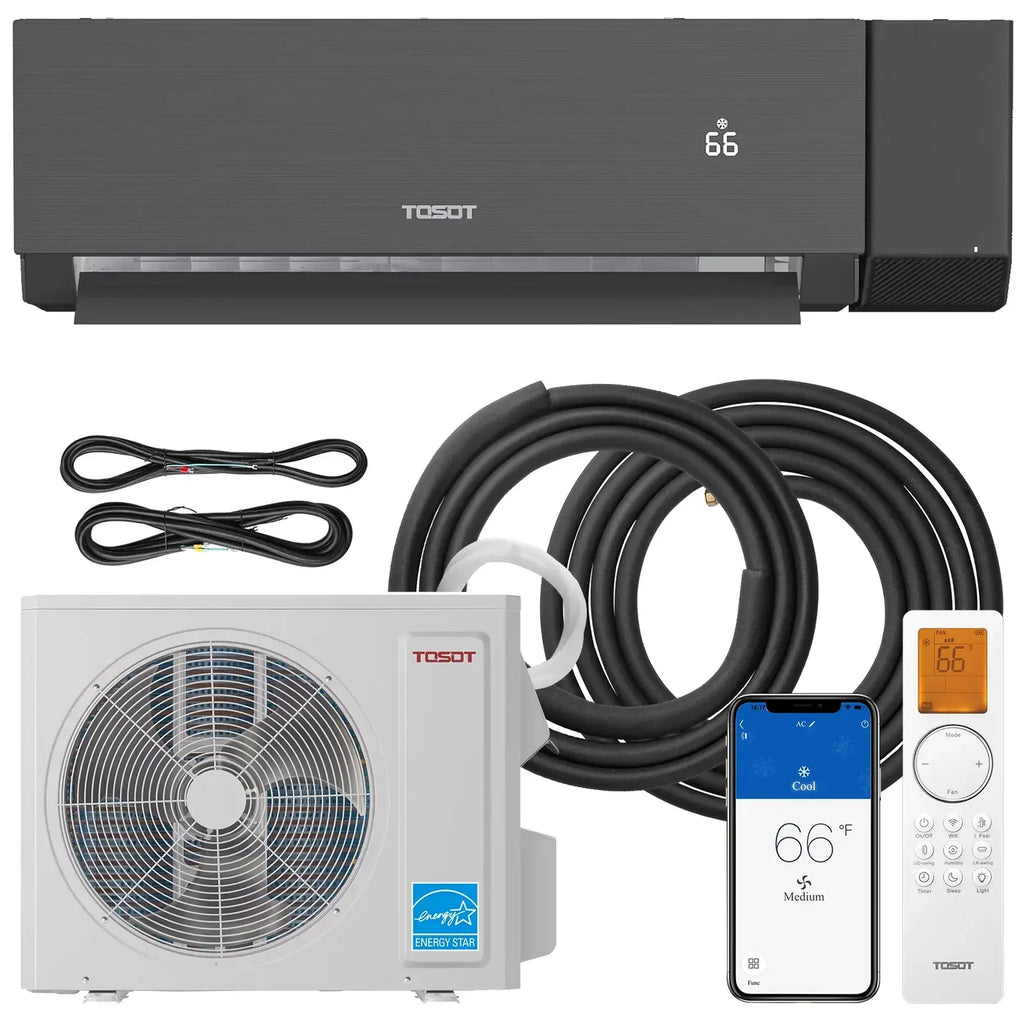

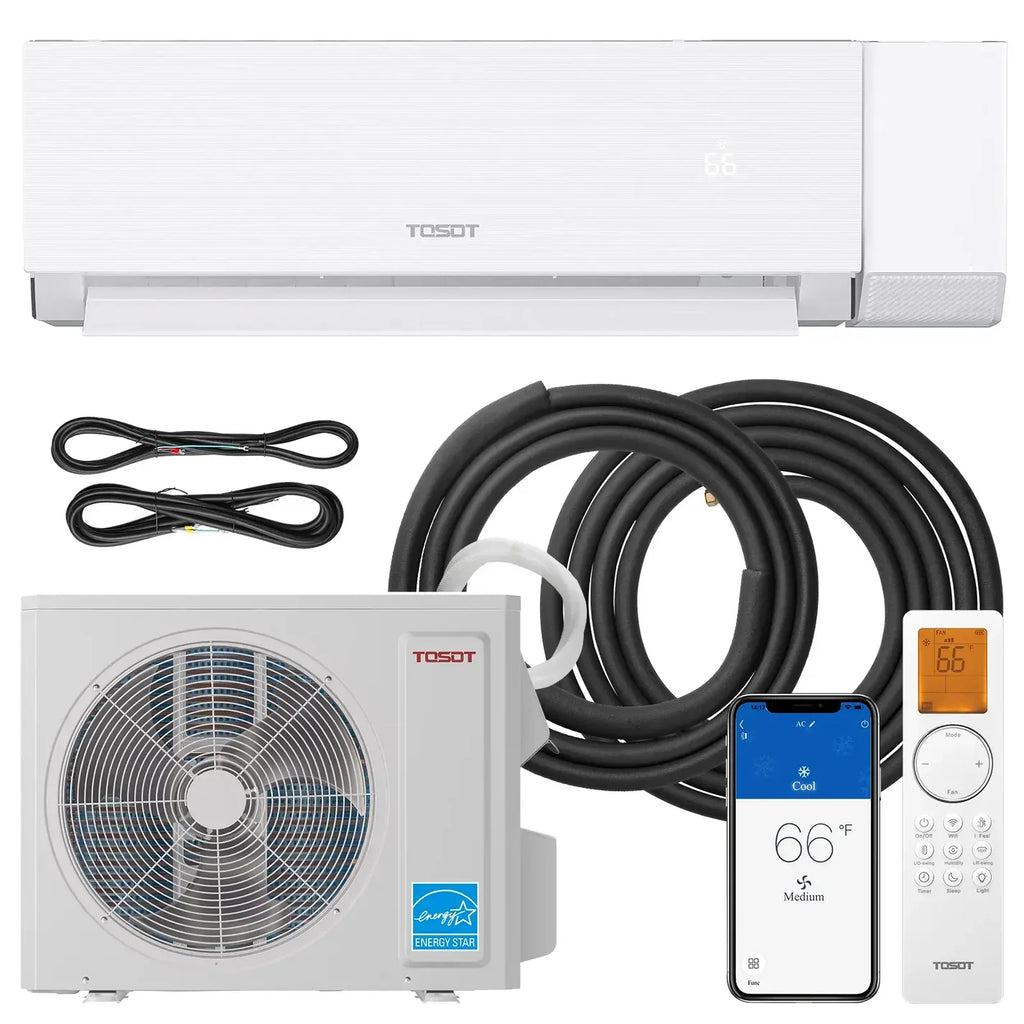

TOSOT Aoraki 18,000 BTU 24.5 SEER2 Heat Pump Mini Split AC w/ERV System - 230V
The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 24.5. Certified by Energy Star and AHRI, it qualifies for tax credits. Compared to a 16 SEER system, it can lower your energy bills by up to 36%.

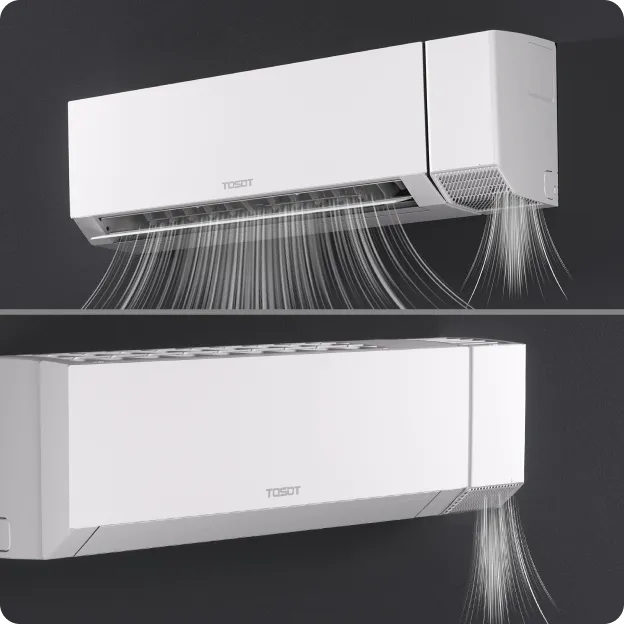

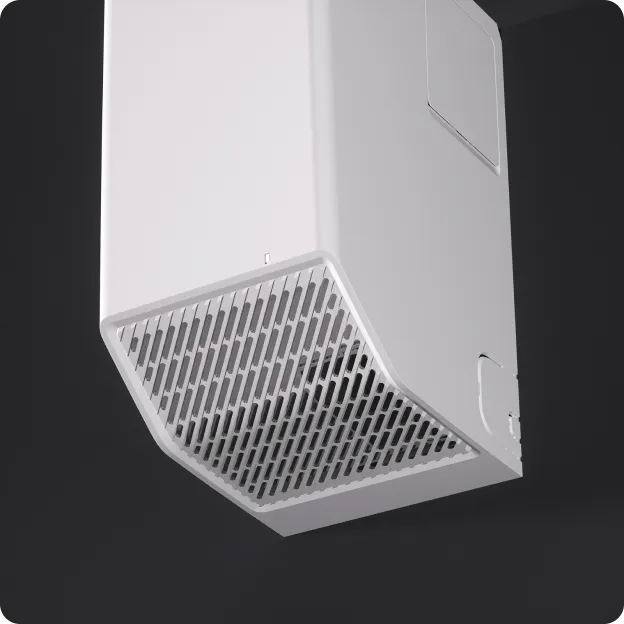

The ERV system exchanges stale indoor air with fresh outdoor air, pre-conditioning the incoming air by transferring heat and moisture from the outgoing air to improve indoor air quality and energy efficiency.
Features:
- Exceptional 24-24.5 SEER Rating.
- Energy Star Certified with tax rebate eligibility.
- Compatible with ERV Systems.
- Operates in Extreme Temperatures from -22°F to 122°F
- 5 Year Warranty
- Copper Line Set: 16 Ft
Installation and Guides:
Specifications:
- Cooling Capacity (Btu/h):18,000
- Heating Capacity (Btu/h): 18,000
- EER(Btu/h)/w: 13.65
- COP(Btu/h)/w: 13
- SEER2: 24.5
- HSPF2: 9.0
- Airflow (H/M/L): 850/700/600 m3/h
- Dehumidification (Pts/hr): 2.96
- Est. Cooling Area (Sq. Ft.): 1200
- Voltage: 208/230~60Hz, 1Ph
- Rated Input(W):2350
- Rated Current(A): 11.6
- Min. Current (MCA) (A) :16
- Max. Rating of Overcurrent Protective (A): 20
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 48/39/29 decibels
DIMENSIONS & WEIGHTS:

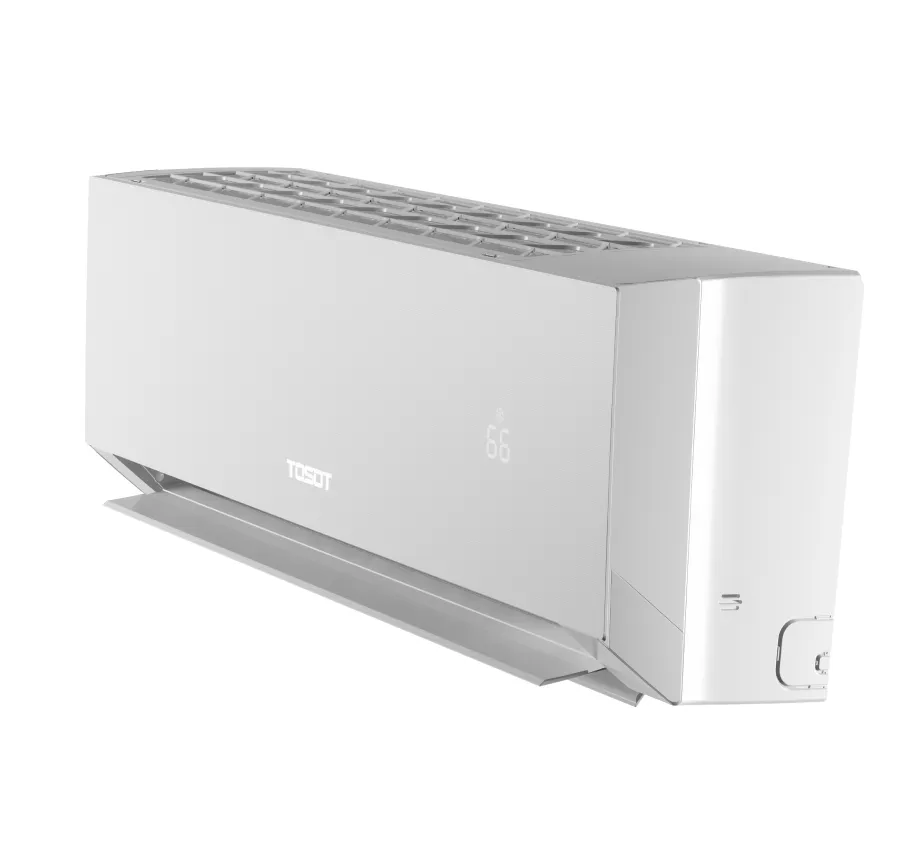

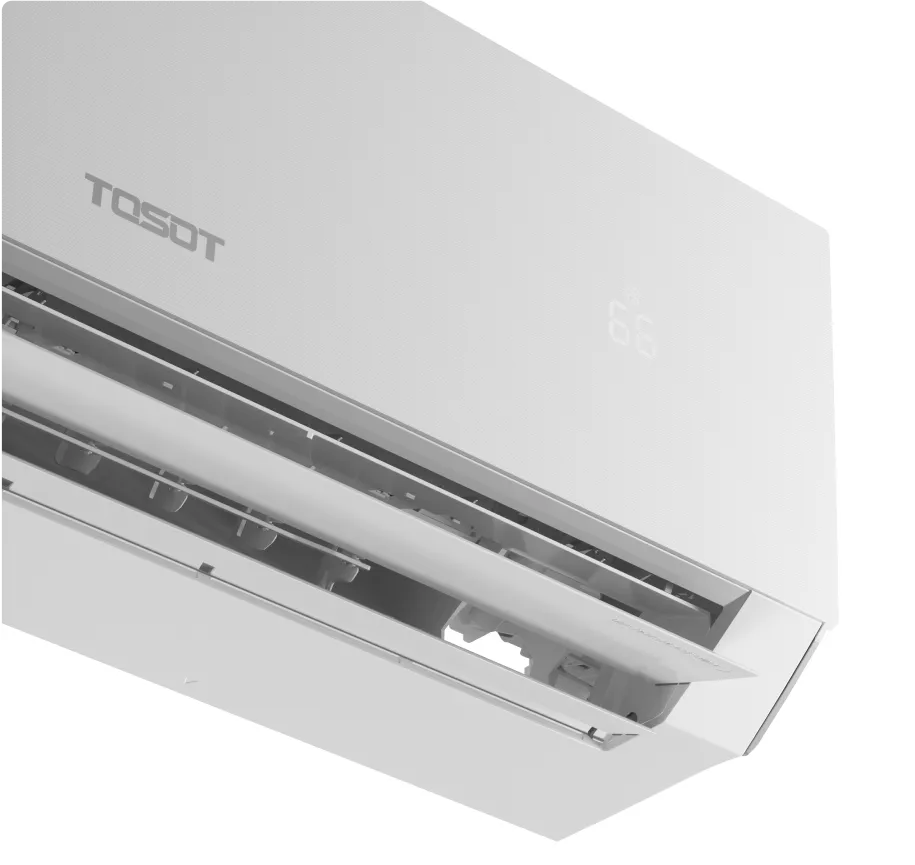

Indoor Unit
- Approximate Shipping Weight (lbs): 35.3
- Approximate Net Weight (lbs): 29.8
- Shipping Dimensions (W×H×D) (inches): 41.57 x 15.17 x 11.74
- Unit Dimensions (W×H×D) (inches): 39.12 x 12.25 x 8.75

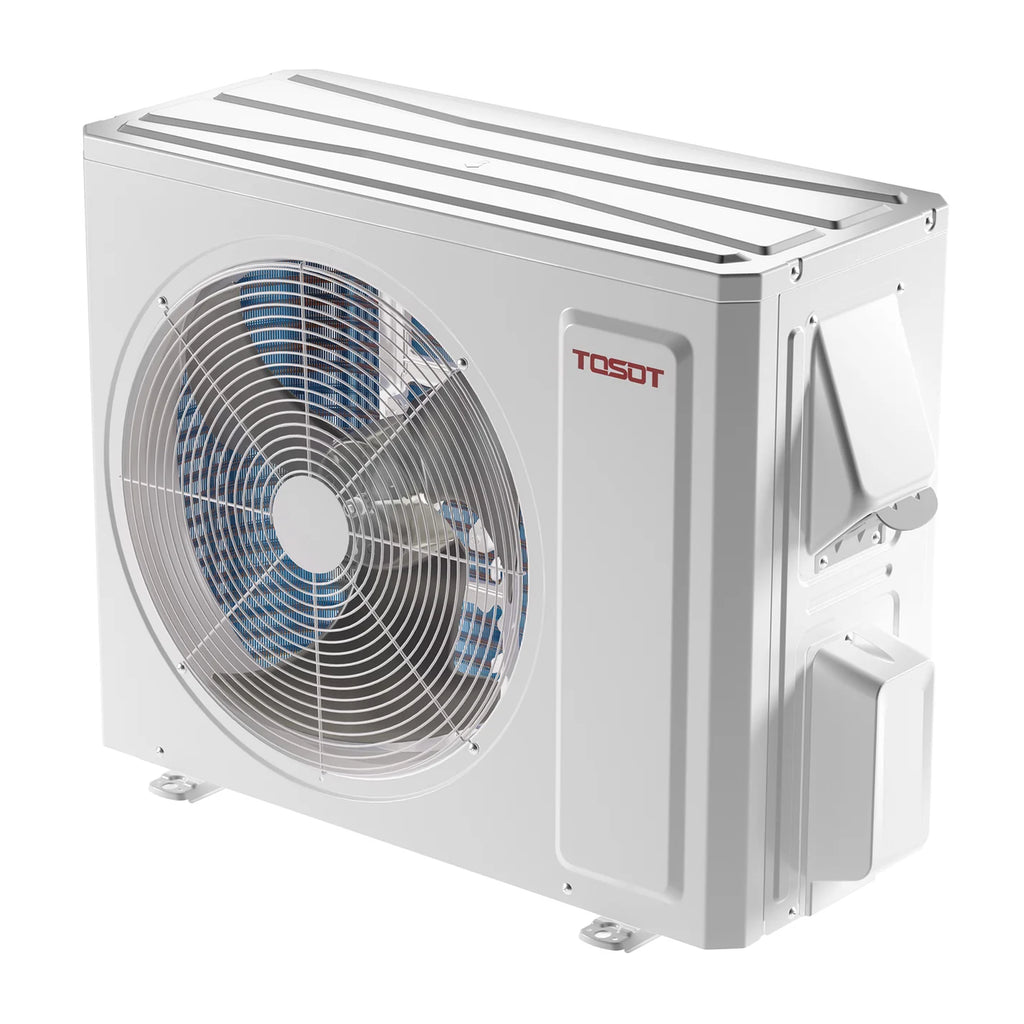

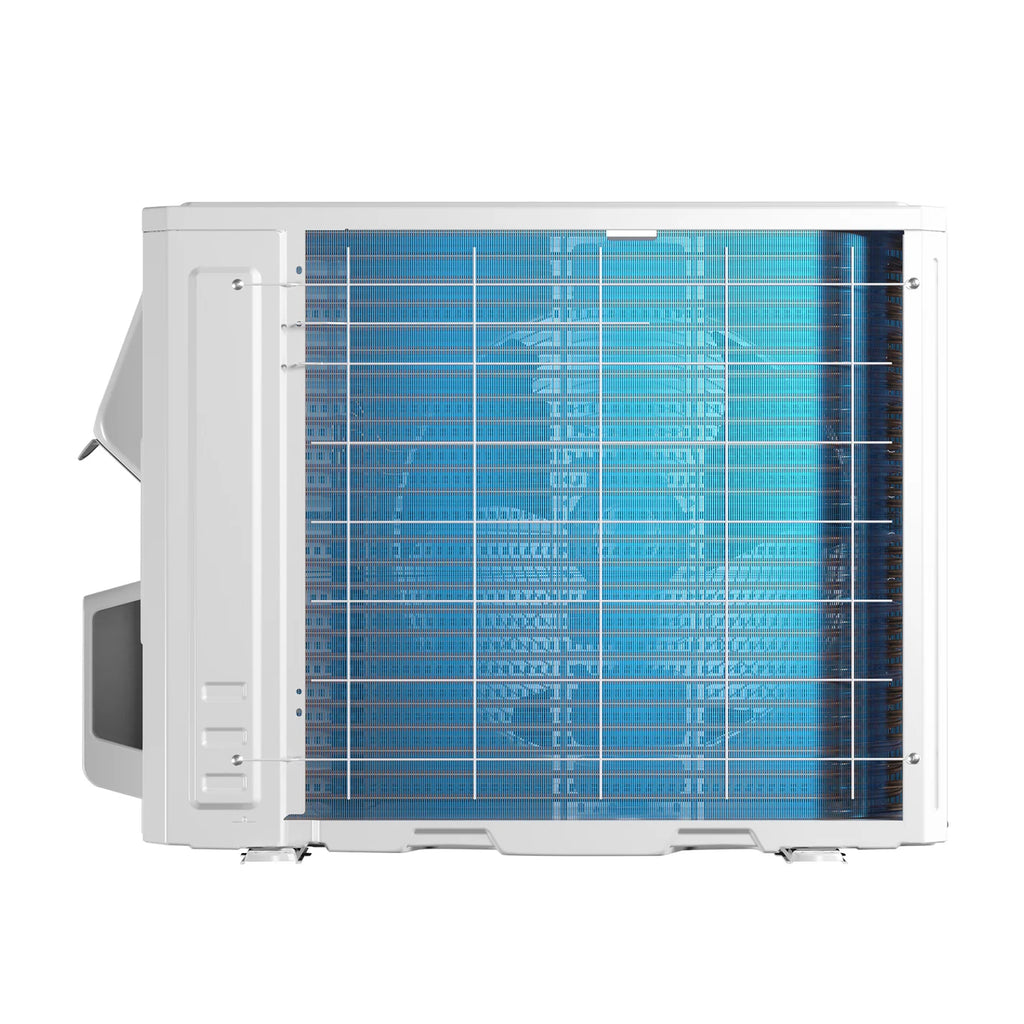

Outdoor Unit
- Approximate Shipping Weight (lbs): 104.7
- Approximate Net Weight (lbs): 94.8
- Shipping Dimensions (W×H×D) (inches): 40.66 x 29.03 x 17.97
- Unit Dimensions (W×H×D) (inches): 37.34 x 26.00 x 15.83
Line Set Length
- Copper Line Set(ft): 16
- Copper Line Size: 1/4" & 1/2"
- Signal Cable(ft): 19
- Power Cord(ft):19
