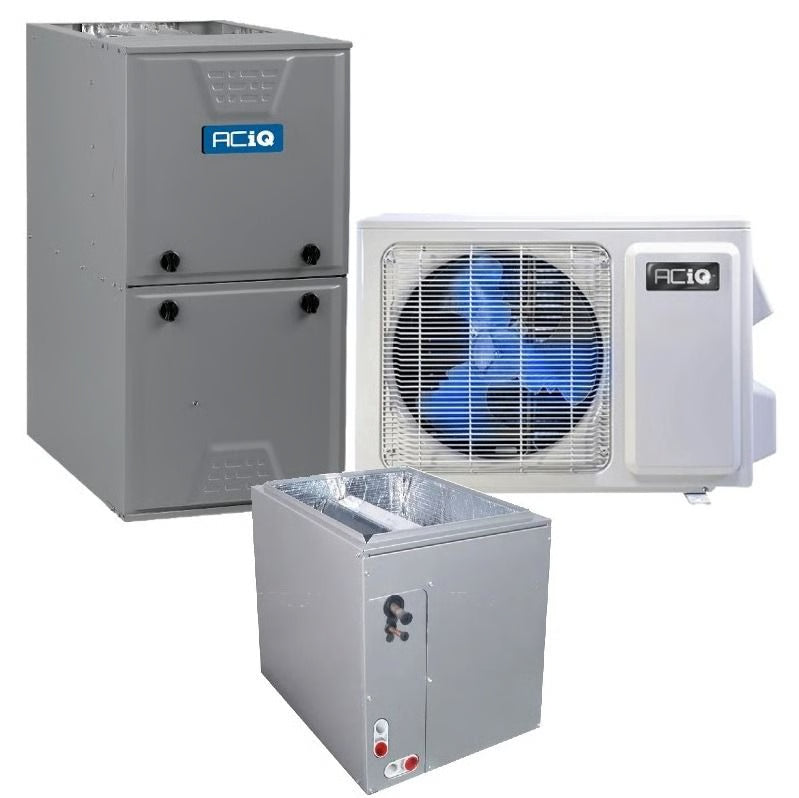

Hybrid 2 Ton 16 SEER2 96% AFUE 60,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter-R410A

OVERVIEW

With its variable speed blower motor and two stage burner, the ACiQ G96VTN0601714A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G96VTN0601714A is a great choice to keep you comfortable while saving you money in energy bills year-round.

QUICK FACTS

• 60,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to a small to medium house in ideal applications
• Variable speed blower with a two stage burner
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

60,000 BTU, 96% AFUE

The ACiQ G96VTN0601714A has an input of 60,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 57,600 BTU, meaning that it is generally suitable for small to medium house in ideal climates. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while the remaining 4% is lost out the flue piping and lost to normal furnace operations. All 96% furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration - upflow, downflow, or horizontal - the ACiQ G96VTN0601714A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.

Superior Comfort

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G96VTN0601714A definitely lives up to the name thanks in part to its variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-24-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

• 2 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

2 Tons

The ACiQ-24-ACL is rated for up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

OVERVIEW

Inverter Heat Pump - The ACiQ-24-EHPB 2-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-24-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

• Variable output based on demand
• Inverter heat pump system for ducted applications
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Reliable heating from 5°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating for longevity
• Quiet operation, even under high workloads

24,000 BTU, 17 SEER2

Boasting an efficiency rating of 17 SEER2, the ACiQ-24-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency. Use our size calculator Here to determine the demand for your home.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
